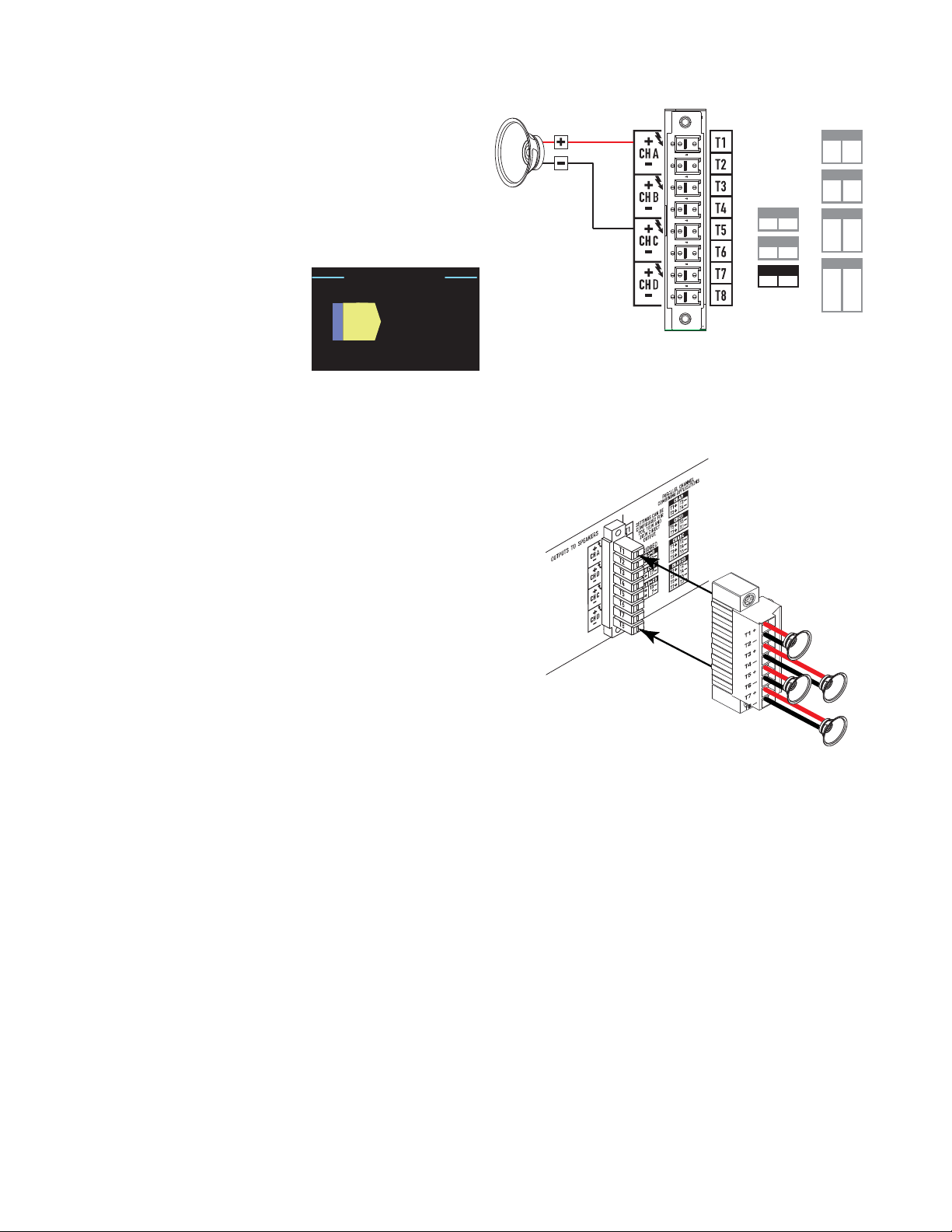

Amplifier Control
NOTE:
The following scenarios assume the amplifier is
connected to the Q-SYS Core via Q-LAN. When the
amplifier is not connected to the Q-SYS Core, it is in a Fault
mode, and not operational.
Off Mode
• Rear power switch is off, the amplifier is not operable. The power
switch is the AC Mains disconnect.
• The power button is not illuminated.
• Turn the power switch to on. The amplifier enters the mode in which
it was when power was removed – Run, Mute All, or Standby.
Run Mode
• From Standby or Mute All mode, press and release the power button
on the front panel. The amplifier is in Run Mode.
• The power button is illuminated green.
• The amplifier is fully operable; audio can pass.
Standby Mode
• From Mute All or Run mode, press and hold the power button on the
front panel for approximately four seconds.
• The power button illuminates solid red.
• The amplifier is not operable; audio will not pass.
Mute All Mode
• From the Run Mode, quickly press and release the power button.
• The power button flashes red, all output Mute buttons are red.
• The amplifier output is disabled, but the front panel is fully operable.

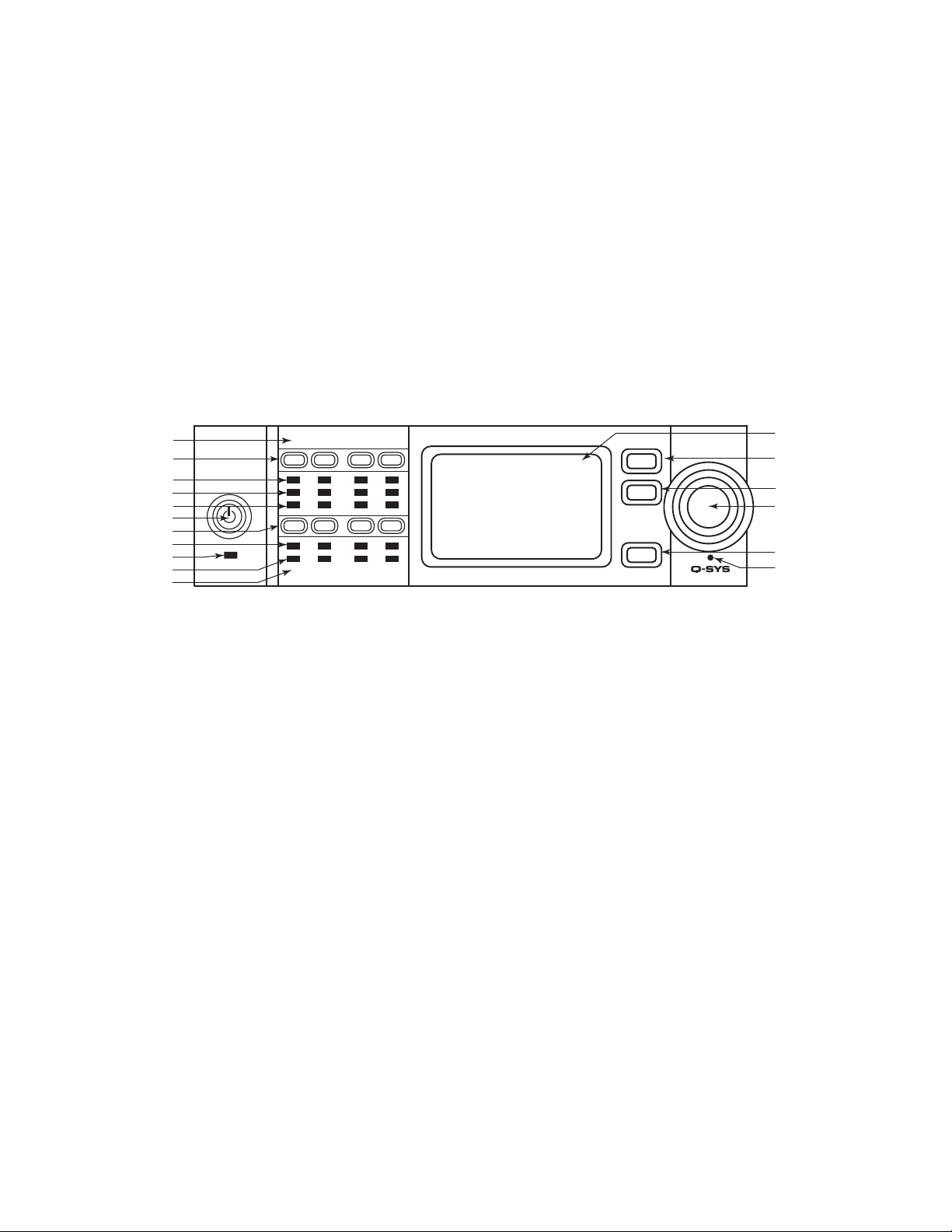

Master Control Knob
• Adjusts the Gain for the selected channel or channels. At least one
channel must be selected.
• When one or more channels are selected, turn the Master Control
knob to jump to the Gain screen. After a few seconds with no activity,
it returns to the earlier screen.
• If there is more than one channel selected, and the gains for those
channels are different, the difference is maintained unless the gain is
raised or lowered to the limits for both channels.
NEXT & PREV Buttons
• Navigates forward and backwards through the screens.
ID Button
• Press this button to display a screen with the amplifier's network
name. In addition, the ID buttons on the associated Q-SYS Amplifier
component and the associated Q-SYS Configurator item flashes. Press
again, or click one of the other ID buttons, to stop the flashing and
exit the screen.
• When prompted, press this button to change the amplifier
configuration to match the configuration of the associated
Q-SYS design.
SEL Buttons
• Use these buttons to select an output channel in order to change
the Gain.
• Select more than one channel to change multiple gain settings at the
same time.
• If two or more outputs are bridged or in parallel, pressing one button
in the group selects all channels in that bridged or parallel group.
Mute Buttons
• Use these buttons to mute the audio of the associated output
channel.
• When the output configuration is changed, the Mute buttons are
engaged automatically. You must manually unmute the channels.
• When a new design is sent to the amplifier from Q-SYS, the outputs
are muted while the amplifier is offline.
Pinhole Reset
• Insert a paper clip or similar tool into the pinhole then press and hold
for 5 seconds to reset the amplifier to the factory default settings. The
default settings include network settings, and amplifier name.
