Q s o n i x Q J B 1 1 0 N o s t a l g i c
D i g i t a l J u k e b o x U s e r G u i d e
Music Management System
Platform Version 2.20
Manual copyright © 2007 Qsonix, Inc All Rights Reserved

3
Copyright 2007
All Rights Reserved
Qsonix Inc.
Westlake Village, CA
SAFETY INSTRUCTIONS
IMPORTANT!
1. Read these instructions.
2. Keep these instructions.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the appliance.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
This document contains information proprietary
to Qsonix Corporation and may not be
reproduced, published or distributed in any form
or disclosed in whole or in part without written
authorization.

4
Table of Contents
SAFETY INSTRUCTIONS..........................................................................................................................................................3
IMPORTANT!...................................................................................................................................................................................................3
Table of Contents................................................................................................................................................................................... 4
Introduction................................................................................................................................................................................5
Major Component Location ................................................................................................................................................6
Major Component Location............................................................................................................................................................. 11
Setting Up Your QJB110 System .....................................................................................................................................12
Internet Connection................................................................................................................................................................................12
Touchscreen Basics..............................................................................................................................................................................14

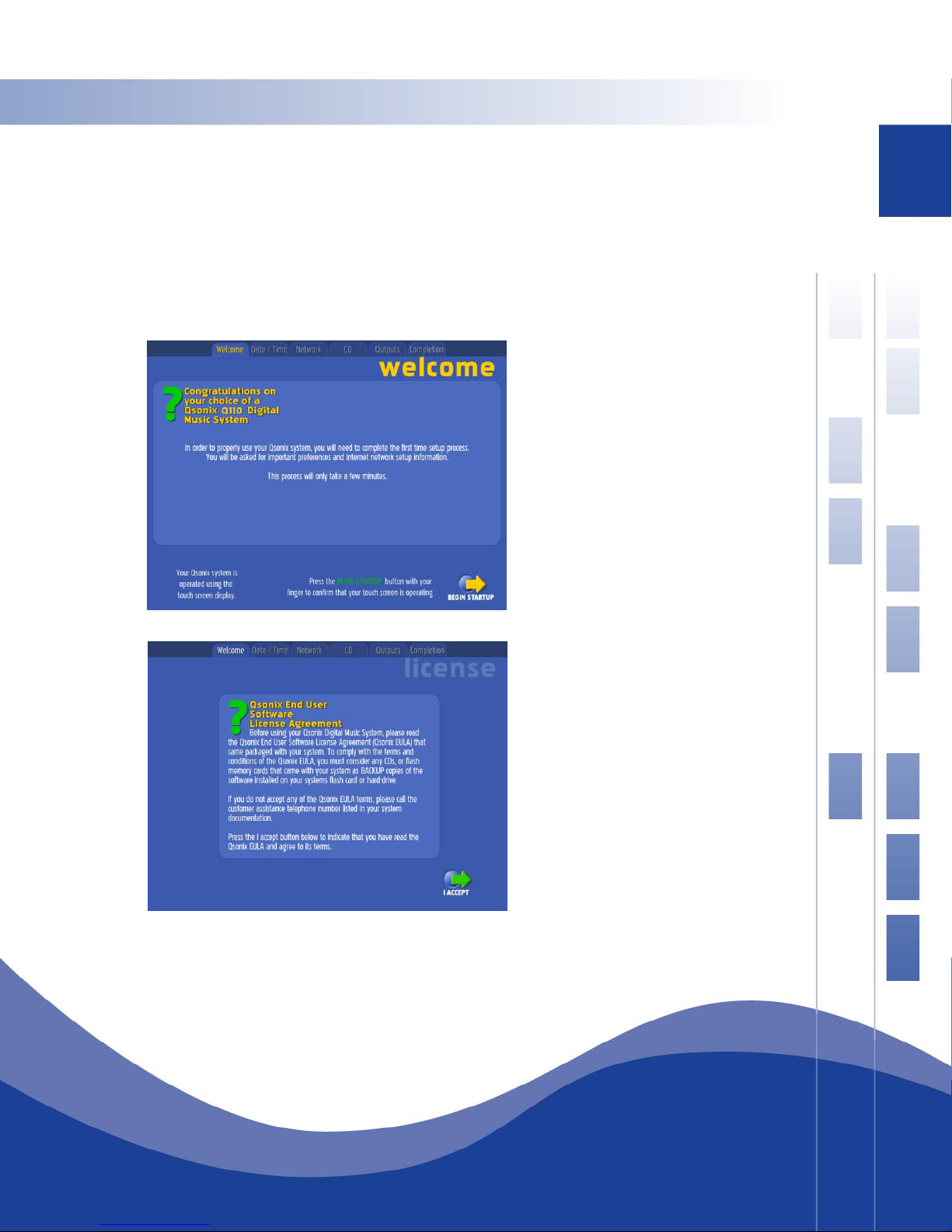

Starting your Jukebox for the First Time.............................................................................................................................15
Completing the First Time Startup Wizard ...............................................................................................................16

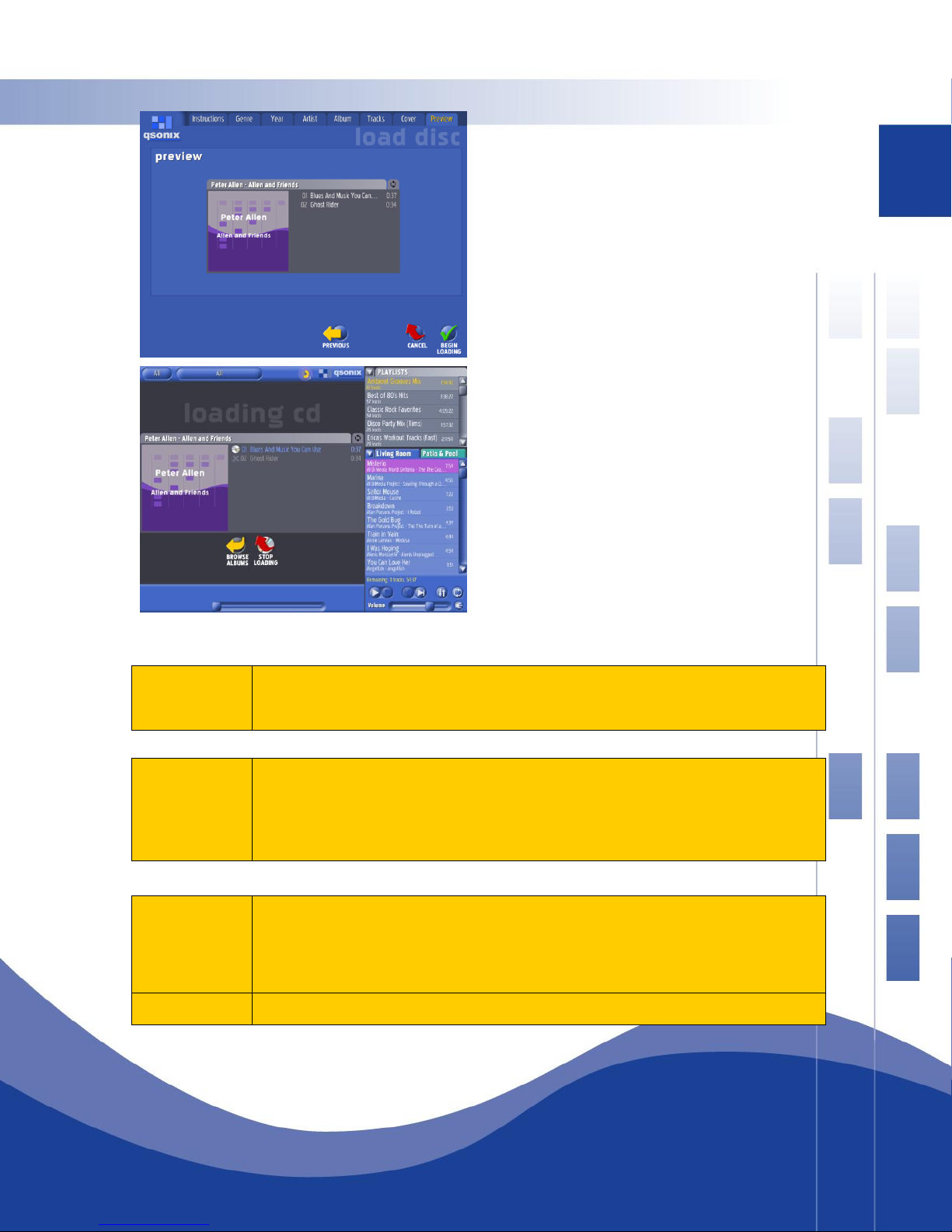

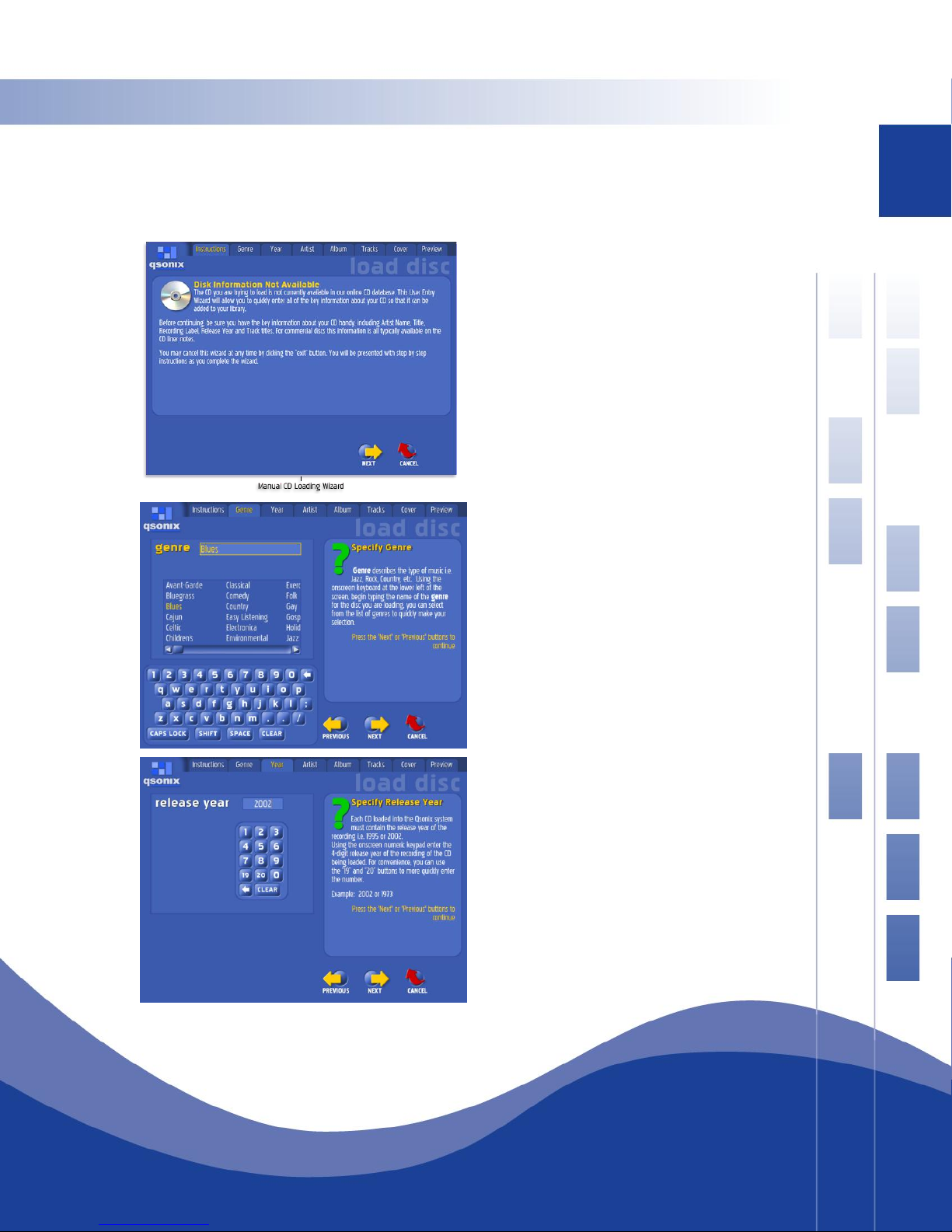

Loading Your CD Library.....................................................................................................................................................19

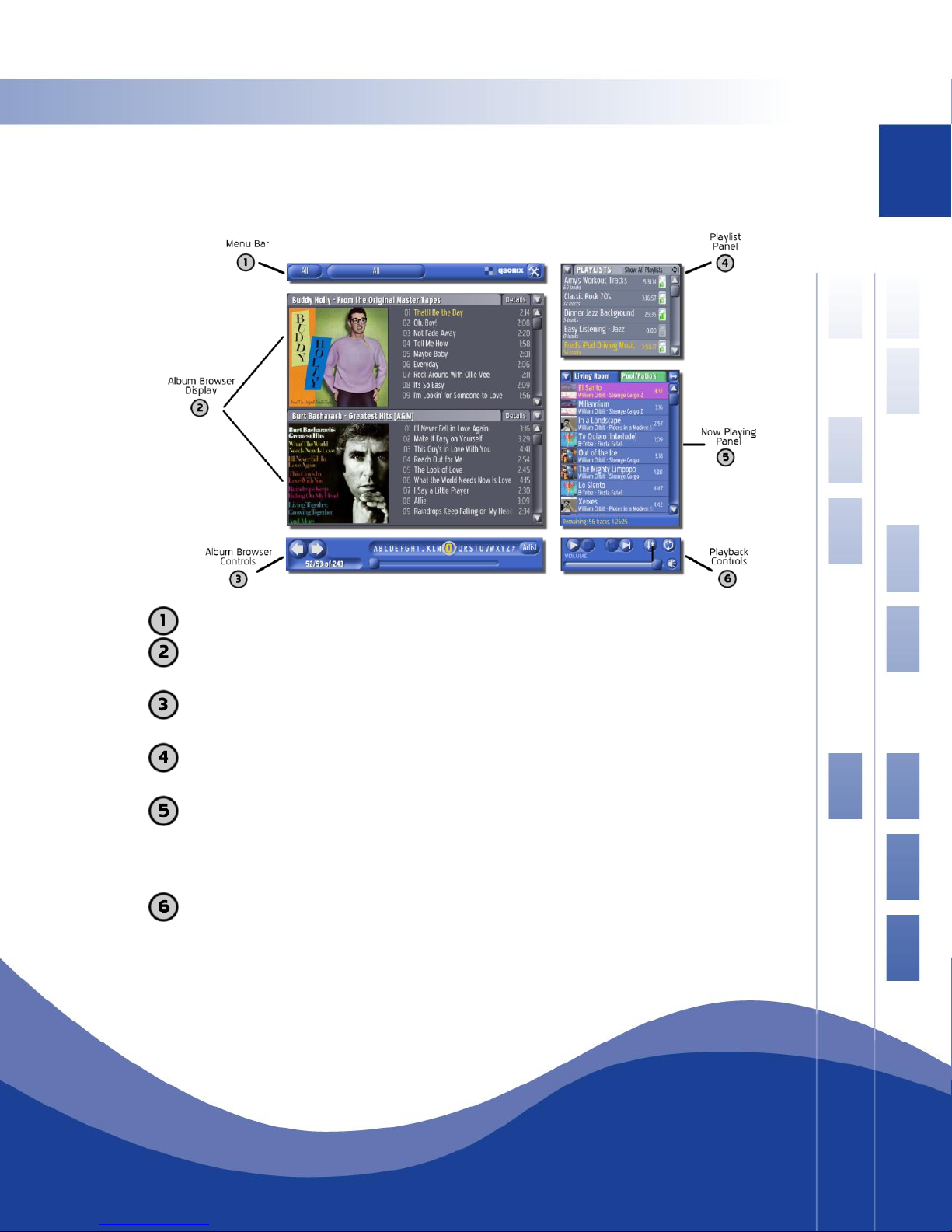

The Qsonix User Interface............................................................................................................................................................ 24
Qsonix Menu Bar.................................................................................................................................................................................25
Album Browser Display...................................................................................................................................................................30
Album Browser Controls..................................................................................................................................................................33
Now Playing Panel..............................................................................................................................................................................34
Let’s Play Some Music.........................................................................................................................................................36
Playlist Panel...........................................................................................................................................................................36
Playback Controls ..................................................................................................................................................................43
Advanced Features & Setup........................................................................................................................................................44
CD Burning...............................................................................................................................................................................55
Importing Music from Network Locations................................................................................................................56
Web Browser Control ..........................................................................................................................................................58
Frequently Asked Questions........................................................................................................................................................... 63
Appendix: Hardware and Accessories........................................................................................................................64
Troubleshooting & Repair...............................................................................................................................................65
Troubleshooting Charts ....................................................................................................................................................66
Contacting Customer Support .......................................................................................................................................68

5
Introduction
Congratulations on your purchase of the Qsonix Nostalgic Digital Jukebox—a truly unique and exciting new digital music
management system housed in a classic “Bubbler”-style cabinet designed and built by the legendary Rock-Ola company. The Qsonix
Jukebox is like no other jukebox. Inside the handcrafted hardwood cabinet, behind the bubbling rainbow lights, the Qsonix Jukebox
is powered by the Qsonix touchscreen-controlled music management system.
This system is designed to provide complete music library management from a convenient touch screen and allows you to load,
organize, and play your CD music collection with a touch of your finger tips on the screen. There are many more features including,
iPod® synchronization
CD ripping of playlists and albums
Enhanced search and playlist compilation tools
Home network compatibility
Control for up to 4 separate play zones
IR remote control
Sophisticated system maintenance tools
The QJB110 allows you to quickly and easily load your CD collection directly to the internal hard drives of the system. Using its
unique AlbumBrowser™ interface, Qsonix displays detailed information about each of your CDs, including the CD cover art. Qsonix
supports a variety of compression quality options including CD Quality Lossless Compression. Lossless Compression significantly
reduces the storage space required to rip CDs while still maintaining CD quality, making it possible to use Qsonix to store a library of
hundreds of CDs on a single hard drive.
Qsonix also includes many other unique high-quality features, such as the user controllable SoftFade™ engine that delivers
incredibly smooth cross-fading and soft volume transitions on all transport functions such as Play, Stop, Pause and Mute. Qsonix’s
user interface has been carefully designed to take the work out of browsing your music, and building custom playlists using simple
drag-and-drop operations with the system’s integrated touchscreen controller. You’ll get more out of your valued music collection
than you ever dreamed possible.
The Qsonix Jukebox also features a powerful Peavey 900 amplifier and speaker system. Combined with the user-managed
SoftFade™ engine, this sound power-house delivers incredibly smooth cross-fading and soft volume transitions in multiple modes.
The touch-controlled multi-output programming allows you to play and enjoy different playlists from your music library throughout
the home, to suit your needs and tastes.
The Qsonix Jukebox is the first music management system built to be a visual centerpiece as well as the hub of the integrated
home-entertainment system.

6
Major Component Location
Front Door
1. Touchscreen Monitor
2. Power Button
3. USB Connection
4. DVD/CD Drive

11
Major Component Location
Open Cabinet and rear Cabinet
1. Computer Core with Jukebox Harddrives. This is the heart of the Qsonix Jukebox.
2. Power Distribution Box
3. Manual Holder
4. Peavey 900 Power Amplifier.
5. Crossover. Directs audio for the speakers
6. Cooling Fan Assembly (2)
7. Woofer Speaker
8. DVD/CD reader
9. ELO Touchscreen Monitor Assembly
10. Tweeter Speaker
11. Midrange Speaker
12. Main power control panel
13. Remote Audio Interface

12
Setting Up Your Jukebox System
Set-Up of your Qsonix Jukebox is easy. All components are installed and ready to go, you have only to supply the
following:
(Broadband) Internet Connection
Power
CD’s to load onto the hard drive
Optional additional speakers
Internet Connection
In order to retrieve detailed album information, including album art, you must have a live (broadband) connection when
you load CDs to the system. Follow the steps below to get connected. “Broadband” may be DSL, ADSL, or cable modem.
The connection is not necessary for music play.
You may also use a passive wireless bridge, available as an optional accessory or a dial-up adapter.
Make sure your broadband cable is long enough to connect from your modem or router to the Qsonix Jukebox computer.
Open the jukebox door and locate the computer core (see the figure “Major Component Location,” previous page).
Thread the free end of your Ethernet cable through the access hole in the rear of the cabinet. Bring enough inside the
cabinet to reach the computer.
Connect the free end of your Ethernet cable to the Network port on the Qsonix Jukebox core. Make sure the other end of
your cable in connected to your broadband modem or router. Close the cabinet door.

13

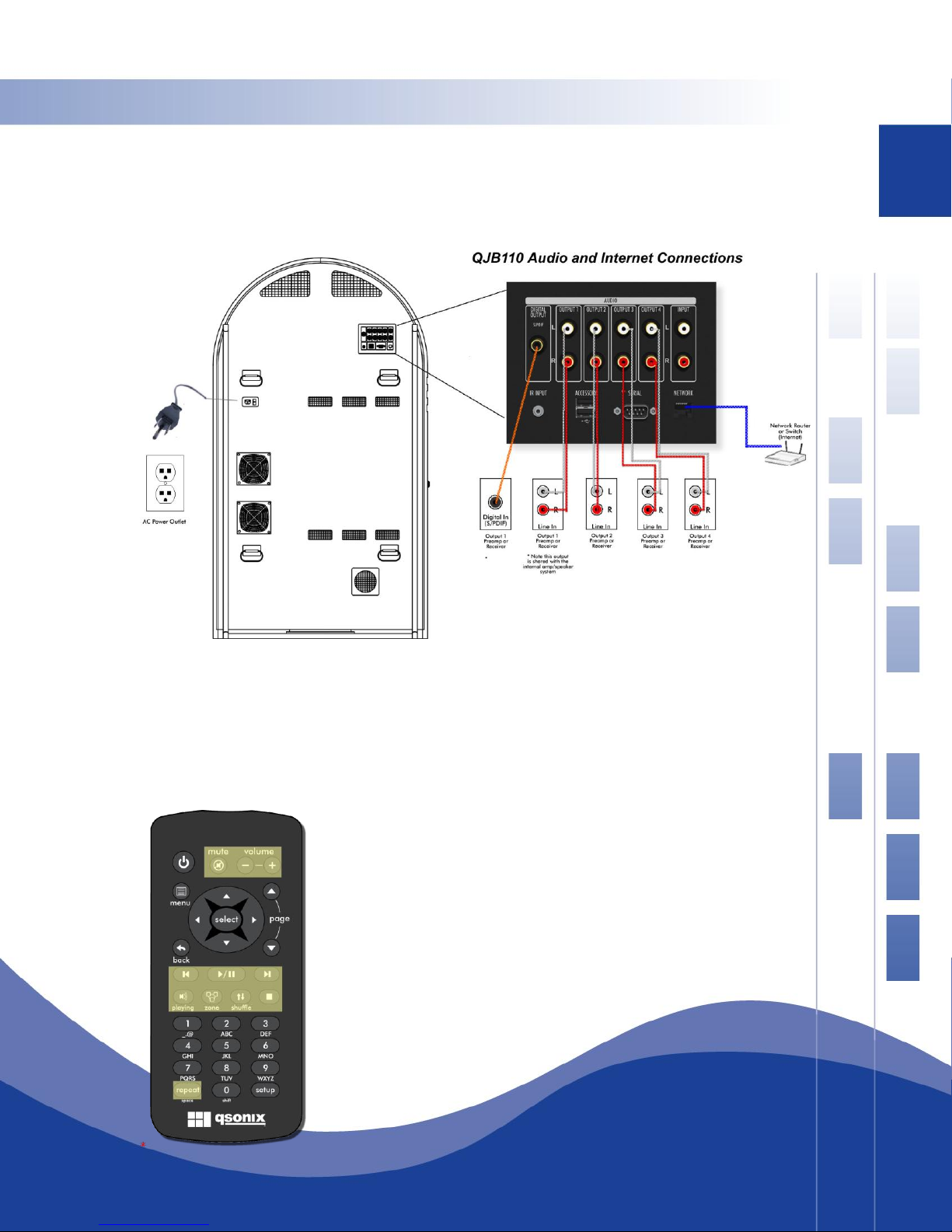

Speaker and Zone Connections for the Qsonix Jukebox
In order to begin using your Qsonix Jukebox to control multiple zones in the home, you must first have it properly
installed and integrated with your sound system.
Please use the following diagram to assist you in making the necessary audio, video, power and network connections.
Using the supplied audio cables, connect the appropriate analog and digital outputs to the line-level inputs of your
amplifier, preamplifier or powered speakers. Also connect the Power Cord to an AC power source and connect the
Network port to an available Internet router port.
About the Qsonix Infrared Remote Control
Your Qsonix Jukebox came package with an infrared remote control that can be used to
control CERTAIN functions of your system. Currently only the functions highlighted in
the illustration to the left are supported including playback controls, volume controls and
zone selections controls. The Qsonix remote control can be used as is, or can be used to
train a universal type remote control that supports integration with multiple A/V devices
in your home.
Note: The Qsonix remote control capabilities will be further enhanced for onscreen
navigation and other functions via future software updates.
Note: The QJB110 can only operate in four-zone mode when connected using analog outputs.

14
Touchscreen Basics
The Qsonix QJB110 is operated from the touchscreen controller. Even if you have never worked with a touchscreen
you will find that it is very simple—with only a little practice you will become comfortable in its use. Here are
some more tips to help you to get the most out of your Qsonix Jukebox:
Don’t be afraid to press hard on the touchscreen glass, it is designed to withstand considerable
pressure. You will find that a slightly harder press will yield better control.
Clean the cabinet, glass, and controls with a soft cloth lightly moistened with a mild detergent solution.
Do not use any type of abrasive pad scouring powder or solvent, such as alcohol or benzene.
Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a pen or
screwdriver. This type of contact may result in a scratched glass.
Avoid using the touchscreen while your hands are wet or greasy, this reduces the effectiveness of the
touchscreen.
Experiment a bit to learn what touch pressure and finger placement works best for you.
DO
hold your finger perpendicular
to the screen, so that the
fingertip makes contact with the
glass.
DON’T
drag your whole finger over the glass,
or rest your fingers on the panel.
90°
