Qstarz BT-Q1000XT User manual

Table of Contents
1. OVERVIEW ................................................................................... 1
2. PRODUCT NOTICE .......................................................................... 1
3. FEATURES .................................................................................... 2
4. PRODUCT SPECIFICATION ................................................................. 3
4-1 BT-Q1000XT............................................................................ 3
4-2 TR-Q1000XT............................................................................ 4
5. HARDWARE INTRODUCTION ............................................................. 5
5-1. APPEARANCE ............................................................................. 5
5-2. HARDWARE FUNCTION FOR BT-Q1000XT ...................................... 5
5-3. HARDWARE FUNCTION FOR TR-Q1000XT ...................................... 6
5-4. BATTERY INSTALLATION ................................................................ 7
5-5. LED INDICATORS FOR BT-Q1000XT .............................................. 8
5-6. LED INDICATORS FOR TR-Q1000XT .............................................. 9
6. SETUP BT/TR-Q1000XT ............................................................. 10

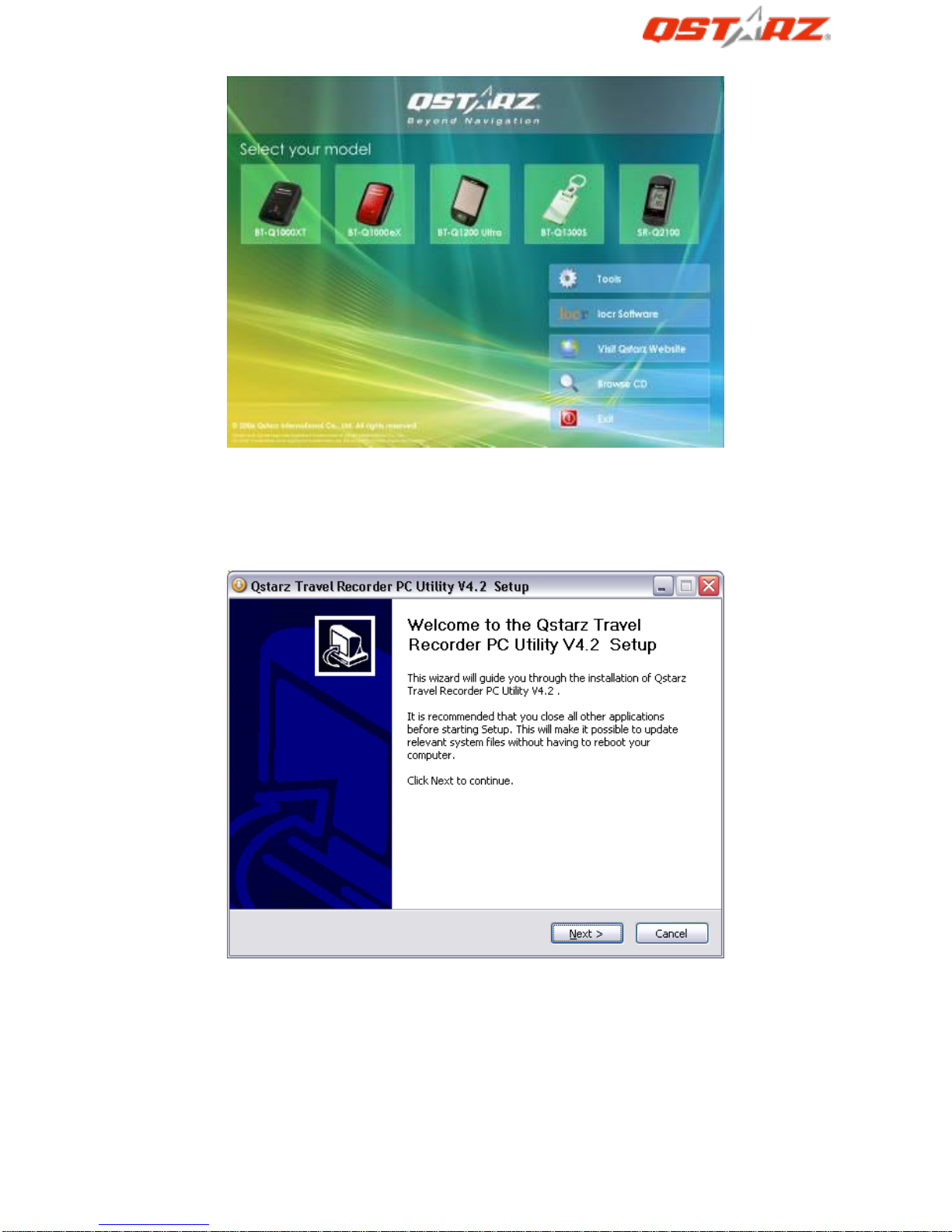

6-1. INSTALL THE DRIVER AND SOFTWARE UTILITY FOR BT/TR-Q1000XT .... 10
6-2. INSTALL GOOGLE EARTH............................................................. 14
7. START TO USE ............................................................................. 14
7-1. FULLY CHARGE THE BATTERY WHEN USING AT THE FIRST TIME............... 14
7-2. GETTING SATELLITE FIX WITH BT/TR-Q1000XT.............................. 14
7-3. CONNECT BT/TR-Q1000XT WITH YOUR PC.................................. 14
7-4. START THE SOFTWARE UTILITY...................................................... 14
8. USEFUL REFERENCE APPLICATIONS ON THE INTERNET............................ 15

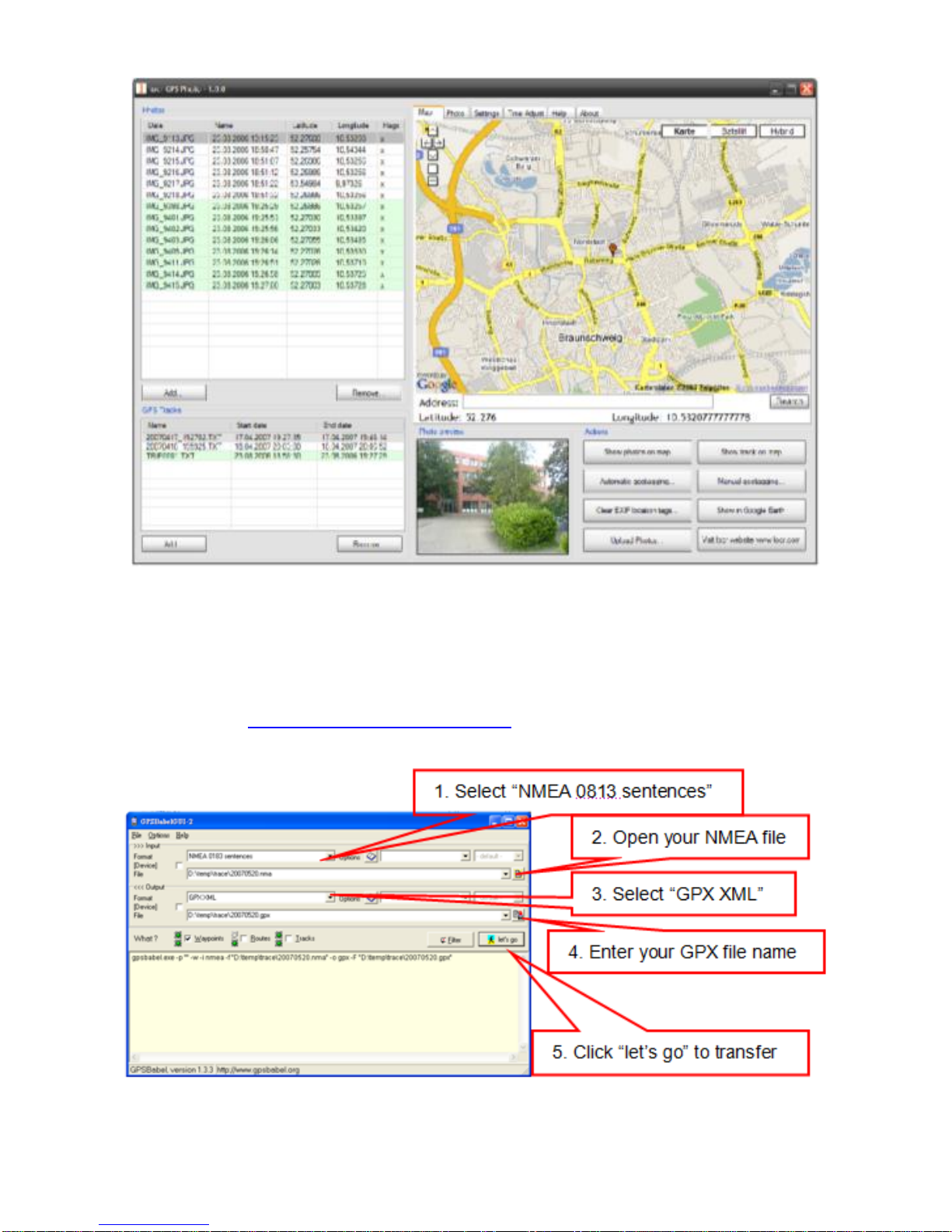

8-1. LOCR GPS PHOTO..................................................................... 15
8-2. GPSBABEL.............................................................................. 16
8-3. SPORTSMATE....................................................................... 17
8-4. JETPHOTO STUDIO .................................................................... 18
8-5. RACECHRONO .......................................................................... 19
8-6. HOUDAHGEO........................................................................... 20
9. TROUBLE SHOOTING ..................................................................... 21
10.SAFETY NOTICES ........................................................................ 23

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
1www.Qstarz.com
1. OVERVIEW
Thank you for purchasing Qstarz 66-CH series BT/TR-Q1000XT -
Bluetooth® A-GPS eXtreme Travel Recorder™, built-in second
generation GPS chipset MTK with 66 channels tracking for your travel
log, the new feature of BT/TR-Q1000XT supports Smart Log function
and vibration sensor to automatically start/ stop logging with a
preset time schedule and smartly manage power saving and
waypoint saving. Besides, the software utility supports
multi-condition setting to customize personal travel record. All
tracking records can be downloaded, saved, and also can display
directly on Google Earth with photos by integrated Geotagging
function.
2. Product Notice
Please take out the battery and store it in dry/cool places
when not use for a long period.
If BT/TR-Q1000XT isn’t used in temperature between -10℃
~ 60℃, its battery charging capability will decrease. Leave
the BT/TR-Q1000XT far from heat or high temperature
environment. And also, do not expose your BT/TR-Q1000XT
in temperature higher than 145℉/60℃to prevent the
battery inside BT/TR-Q1000XT from overheating, exploding
or burning itself. The Lithium battery inside the
BT/TR-Q1000XT should be recycled.
It is recommended to turn BT/TR-Q1000XT off in the
hospital. Wireless GPS receiver may interfere with the
medical equipments which use radio frequency.
The manufacturer assumes no responsibility for any
damages and loss resulting from the use of this manual, or
from deletion of data as a result of malfunction, dead
battery, or from misuse of the product in any way.
Please clean the unit with a dry and clean soft close. Do not
use harsh cleaning solvents, chemicals, or strong

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 2
detergents.
Do not attempt to open BT/TR-Q1000XT by yourself.
Unauthorized hacking may damage the unit, and void your
warranty.
3. Features
Adopt MTK II latest chipset with high sensitivity -165dBm
and 66-Channel tracking
Ultra lower power consumption up to 42hrs operation
Less than 15-Sec. AGPS fix support: download almanac data
to realize faster TTFF and positioning under warm start
Stand-Alone travel recorder to log up to 400,000 records
POI button design to record your point of interest
immediately
3-level Switch for easily switch Travel Recorder to LOG
Raise beeper function to notice some status of device
Integrate Vibration sensor to smartly manage power saving
and waypoint saving
Support Time schedule function to automatically start
logging and stop logging by setting multiple time interval in
specific or periodic date per requirement
Support Speed Alarm function to prompt over speed status
by beeping sound
Update Rate 1~5Hz changeable by utility provided
(receiving 5Hz update rate only, logging only 1Hz
maximum)
G-Mouse + Bluetooth in one: wired and wireless GPS
receiver(for BT-Q1000XT)
Fast Position Fix ,Cold start 35s, Warm start 33s,Hot start 1s
Personal/Portable Navigation (PDA, Smartphone, PC, etc.)
DGPS(WAAS+EGNOS+MSAS) support
*The waypoints would be decreased when the more options of Log
Format are selected

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
3www.Qstarz.com
4. Product Specification
4-1 BT-Q1000XT
General
GPS Chip
MTK II GPS Module
Frequency
L1, 1575.42MHz
C/A Code
1.023MHz chip rate
Channels
66-CH Performance
Antenna (Internal)
Built-in patch antenna with LNA
Sensitivity
Tracking -165dBm
Datum
WGS84
Performance Characteristic
Position
Without aid: 3.0m 2D-RMS
Accuracy
<3m CEP(50%) without SA (horizontal)
DGPS (WAAS, ENGOS, MSAS): 2.5m
Velocity
Without aid: 0.1m/s, DGPS (WAAS, ENGOS, MSAS):
0.05m/s
Time
50 ns RMS
Cold/Warm/Hot Start
35/33/1 sec, average
Dynamic Condition
Altitude
<18,000m
Velocity
<515m/sec
Acceleration
<4g
Protocol
GPS Output Data
NMEA 0183 (V3.01) -GGA, GSA, GSV, RMC (Default)
VTG, GLL(Optional)
Baud Rate
115,200 bps
Power
Built-in rechargeable Li-ion battery, Up to 42 hrs after fully charged
Bluetooth
Standard
Fully compliant with Bluetooth V1.2
Bluetooth Profile
Serial Port Profiles (SPP), Up to 10 meters
Others
Size / Weight
72.2 (L) X 46.5 (W) X 20 (H) mm/ 64.7g (battery
included)
Operating
Temperature
- 10 ℃to + 60 ℃
Storage Temperature
- 20 ℃to + 60 ℃

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 4
Charging
0 ℃to + 45 ℃
4-2 TR-Q1000XT
General
GPS Chip
MTK II GPS Module
Frequency
L1, 1575.42MHz
C/A Code
1.023MHz chip rate
Channels
66-CH Performance
Antenna (Internal)
Built-in patch antenna with LNA
Sensitivity
Tracking -165dBm
Datum
WGS84
Performance Characteristic
Position
Without aid: 3.0m 2D-RMS
Accuracy
<3m CEP(50%) without SA (horizontal)
DGPS (WAAS, ENGOS, MSAS): 2.5m
Velocity
Without aid: 0.1m/s, DGPS (WAAS, ENGOS, MSAS):
0.05m/s
Time
50 ns RMS
Cold/Warm/Hot Start
35/33/1 sec, average
Dynamic Condition
Altitude
<18,000m
Velocity
<515m/sec
Acceleration
<4g
Protocol
GPS Output Data
NMEA 0183 (V3.01) -GGA, GSA, GSV, RMC (Default)
VTG, GLL(Optional)
Baud Rate
115,200 bps
Power
Built-in rechargeable Li-ion battery, Up to 42 hrs after fully charged
Bluetooth
Standard
Bluetooth Profile
Others
Size / Weight
72.2 (L) X 46.5 (W) X 20 (H) mm/ 64.7g (battery
included)
Operating
Temperature
- 10 ℃to + 60 ℃
Storage Temperature
- 20 ℃to + 60 ℃

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
5www.Qstarz.com
Charging
0 ℃to + 45 ℃
5. Hardware Introduction
5-1. Appearance
1. Power jack (mini USB type)
2. Mode switch BT-Q1000XT
(OFF/NAV/LOG)
Mode switch TR-Q1000XT
(OFF/T/LOG)
3. Battery status LED (Red/Green)
4. BT-Q1000XT: Bluetooth status LED (Blue)
BT-Q1000XT: Time schedule status LED (Blue)
5. GPS status LED (Orange)
6. Internal antenna
7. POI button
5-2. Hardware Function for BT-Q1000XT
Hardware
Function
Description
Power Jack
Take the power cable and connect it to the
power jack (mini USB type) for charging only
Mode Switch
(OFF)
Power off BT-Q1000XT
Mode Switch
(NAV)
When switch to NAV mode, BT-Q1000XT can be
used to navigate and handheld devices (PDA /
Smartphone / Laptop…), and the Log function will
be enabled if the present time is within the

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 6
preset time schedule.
Mode Switch
(LOG)
When switch to LOG mode, BT-Q1000XT can be
used to record your travel path, and navigation
function is still enabled.
POI Button
Push the POI button to log favorite Point of
Interest
5-3. Hardware Function for TR-Q1000XT
Hardware
Function
Description
Power Jack
Take the power cable and connect it to the
power jack (mini USB type) for charging only
Mode Switch
(OFF)
Power off TR-Q1000XT
Mode Switch
(T)
When switch to T mode, TR-Q1000XT the Log
function will be enabled if the present time is
within the preset time schedule.
Mode Switch
(LOG)
When switch to LOG mode, TR-Q1000XT can be
used to record your travel path
POI Button
Push the POI button to log favorite Point of
Interest
Mode switch for BT-Q1000XT Mode switch for TR-Q1000XT

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
7www.Qstarz.com
5-4. Battery installation
1. Press the PUSH button on the bottom side of the unit
2. Pull out the battery cover. Insert battery in the unit
3. Put battery cover on to the cabinet
4. Then push down and force it forward
to fit firmly

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 8

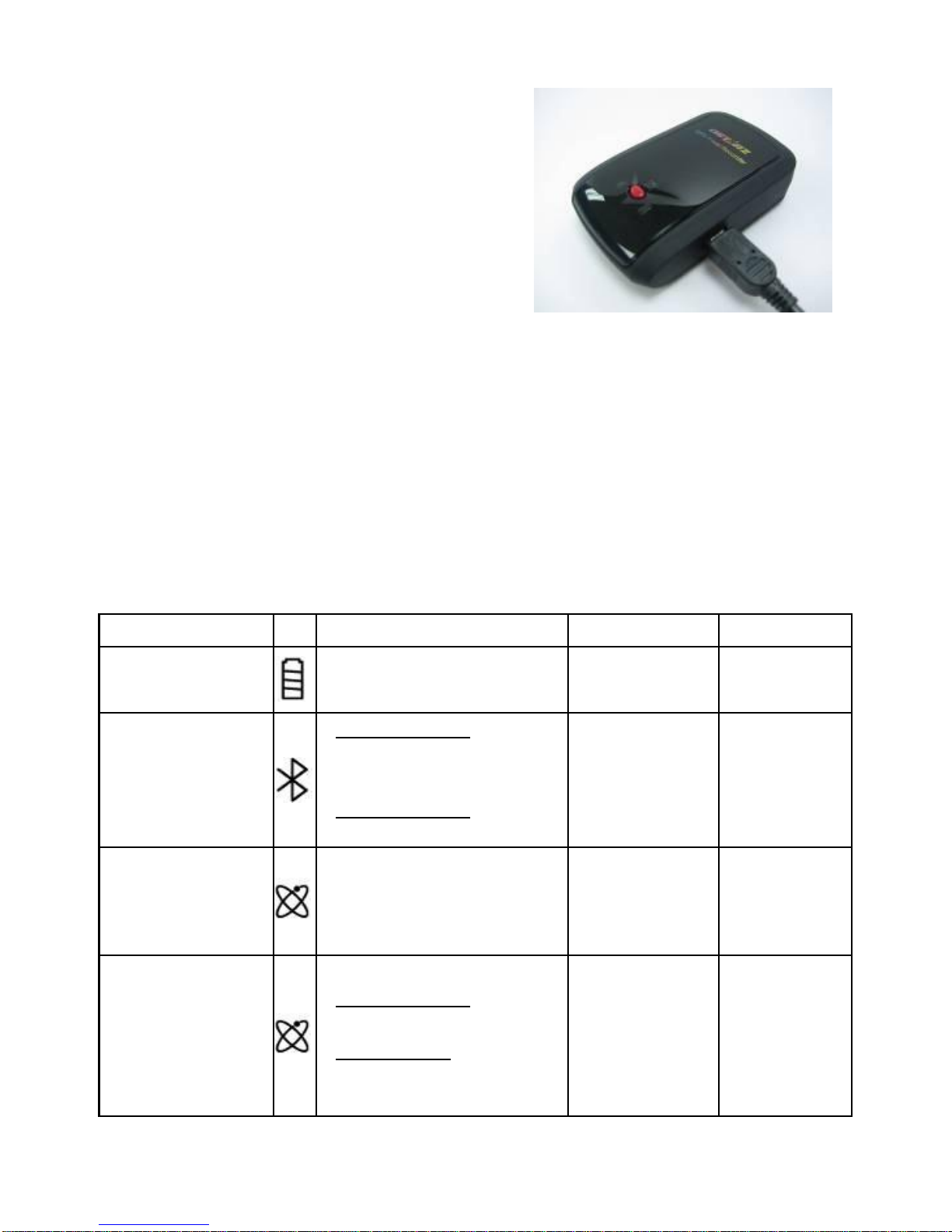

- Charging your battery
For the first time using the
BT/TR-Q1000XT, please charge
battery until it is fully charged. Take
the power cable and connect it to
the power jack (mini USB type) and
recharge through USB cable, travel
charger, or car cigarette adaptor. This will begin to charge the battery.
Charging time is about 3 hours typically.
- When the Power LED is Red, battery power is low status. Please
recharge.
- When the Power LED is Green, the battery is under charging mode.
- When the Power LED is off, the battery is fully charged.
5-5. LED Indicators for BT-Q1000XT
LED Status
Flash
ON
OFF
Power
(Red/Green)
Low Power (Red)
Recharging
(Green)
Fully
charged
Bluetooth
(Blue)
Flash per 2 sec.:
Bluetooth connected
and transmitting Mode
Flash per 5 sec.: Power
saving mode
Not
connected /
Pairing
GPS not
powered /
Log Mode
is on
GPS
(Orange)
GPS position is fixed,
Navigation
Detecting
Satellite,
GPS position
not fix
GPS not
powered
Log
(Red)
Log Mode is on
Flash per 2 sec: Low
memory (20%)
Flash 3 times:
POI(Point of Interest) is
recorded
Memory is
full
Log Mode
is off

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
9www.Qstarz.com
5-6. LED Indicators for TR-Q1000XT
LED Status
Flash
ON
OFF
Power
(Red/Green)
Low Power (Red)
Recharging
(Green)
Fully
charged
Bluetooth
(Blue)
Flash per 5 sec.: Power
saving mode
- Detecting
for satellite
in T mode
- Time
schedule
is activate
GPS not
powered /
Log Mode
is on
GPS
(Orange)
GPS position is fixed,
Navigation
Detecting
Satellite,
GPS position
not fix
GPS not
powered
Log
(Red)
Log Mode is on
Flash per 2 sec: Low
memory (20%)
Flash 3 times:
POI(Point of Interest) is
recorded
Memory is
full
Log Mode
is off
5-7. Function of Vibration Sensor
Vibration Sensor: Vibration Sensor is functioned for power saving
and waypoint saving. It will detect the physical movement of the
device. When it detects the device not moving more than 10 minutes,
BT/TR-Q1000XT will enter sleep mode so that the Blue LED will turn
to flash every 5 seconds. Under sleep mode the log will be disabled.
When the device is on sleep mode, SHAKE the device to wake it up
and the blue LED will turn to flash every 2 seconds and GPS Orange
LED will be also on.
* Vibration Sensor function is turned off as default, and can be
turned on by Software -> Config GPS.

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 10
6. Setup BT/TR-Q1000XT
6-1. Install the driver and software utility for
BT/TR-Q1000XT
System Requirement (Only compatible with Microsoft Windows XP
/ Vista/Win7)
Minimum System Requirement
Recommended System
Requirement
- Windows XP or Vista
- Pentium 3, 500Mhz
- 128M RAM
- 128MB disk space
- Network speed: 128Kbits/sec
- 3D-capable video card with
16Mbytes of VRAM
- 800x600, "16-bit High Color"
screen
- Windows XP
- Pentium 4 2.4GHz+ or AMD
2450xp+
- 512M RAM
- 2 GB of free disk space
- Network speed: 768 Kbits/sec
or better (DSL/Cable)
- 3D-capable video card with 32
MB of VRAM or greater
- 1280x1024, "32-bit True Color"
screen
1. Please insert the Software CD to your computer. The autorun
window will appear and please select BT/TR-Q1000XT. Please press
“Install QTravel” to install the main program. If the auto run
Windows did not appear, please browse the CD and find the folder
“Utility\QTravel\”. Double click “QTravelV1.3_installer.exe”
to install the software utility package. This software package
contains USB driver, QTravel™

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
11 www.Qstarz.com
2. System would pop up the utility installation dialog. Please click
<Next> for the next step.
3. Please select “QTravel”and “GPS Data Log Device Driver”, and
then click <Next> to the next step. If you already installed USB
driver, please unselect “GPS Data Log Device Driver.”

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 12
4. Click <Next> if you want to install the program in default target
folder or you can click <Explore> to change the install folder.
5. Give a folder’s name for quick links in start menu and click
<Install> to install the program.

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
13 www.Qstarz.com
6. When the utility installation is completed, please click <Finish> to
reboot. Or you can also reboot later by selecting “No, I want to
reboot later by myself.”

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 14
6-2. Install Google Earth
BT/TR-Q1000XT supports showing your travel path directly on Google
Earth. Please go to http://earth.google.com for the free download of
Google Earth, and then install it to your computer. For the operation
procedure of Google Earth, please refer to
http://earth.google.com/support/
7. Start to use
7-1. Fully charge the battery when using at the first
time
A fully charged battery can last up to 42 hours continuously
operation.
7-2. Getting satellite fix with BT/TR-Q1000XT
When switch on your BT/TR-Q1000XT, the GPS will start to acquire
the satellites position, once the GPS position is fixed, GPS LED will be
flashing , then BT/TR-Q1000XT can be used record the travel path.
7-3. Connect BT/TR-Q1000XT with your PC
1. Power on BT/TR-Q1000XT.
2. Please connect BT/TR-Q1000XT with your PC by mini USB cable.
7-4. Start the software utility
NOTE 1: Before starting the software utility, please make sure that
the USB driver and the software utility has been installed
properly.
NOTE 2: QTravel only supports BT/TR-Q1000XT. Any intention to
use QTravel connecting GPS units other than
BT/TR-Q1000XT would result in software disconnection
automatically.

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
15 www.Qstarz.com
Users have to input product key at the first time of use. The product
key is located on the envelope of the driver CD.
Important Notice: Do not lose your Product Key. Keep the packaging,
or write the number down and keep it in a safe
place.
For more software instructions, please refer to the software user’s
manual in driver CD or at Help -> Users Manual after software
installation.
For A-GPS functionality, please also refer to User’s Manual or Quick
Guide.
8. Useful reference Applications on the internet
8-1. locr GPS Photo
BT/TR-Q1000XT is the member of locr GPS Photo certified product.
This utility can integrate travel log and digital photos by date/time to
show your photos on the map directly. After the integration, the
current GPS coordinates also can be imported to your digital photos
for the further application. Please find the installation file for
Windows XP/Vista or Symbian system in Qstarz GPS CD. Go to
http://www.locr.com for the further information.

Beyond Navigation BT-Q1000XT A-GPS Travel Record™
..............................................................................................................................................................................
……….…..……………………………………………………………………………………………………………………......................
www.Qstarz.com 16
8-2. GPSBabel
This utility can transfer your NMEA file to GPX file or other format.
Please go to http://www.gpsbabel.org for free download.

BT-Q1000XT A-GPS Travel Recorder™
………………………………………………………………………………………….…………………………………………………………………………….
……….…..……………………………………………………………………………………………………………………......................
17 www.Qstarz.com
8-3. SPORTSMATE
This web site can share your travel log with your friends. Before
sharing your trip, please apply a new account first. Please go to
http://www.ttsm.com for the further information.
