Quanum 680 Super Combo Guide

wheelbase:680mm
stator size:31*10mm
680
INTRODUCTION 前言 Super Combo
,
Explorer Series
User Installation Manual
用户安装手册 V 1.0
Technical specification:
Material:3K Carbon fiber,Aluminum alloy
Flight parameters:
take off weight:1.5--3kg
load weight:0.00-1.80kg
power battery:lipo(4S 5200mAH-15000mAH,15-50C)
Max power consumption:1200W
Hover power consumption:560W(@Takeoff weight 2.5kg)
Hover time:max 15min(@5200mAH 2.5kg Takeoff weight)
Motor:
KV:750KV
Max power:390w
weight:70g
ESC:
Current:30A Hobbywing Flyfun-30A
Voltage:1--4S Lipo
Weight:18.7g
Propeller:
APC 1147inch
weight:12g
Multi-rotor Umbrella Folding 680 Hexacopter

x12
机翼组装
Wings Installation Super Combo
680
Motor mount and
arms assembly
Six arms and motor
this one
mounts are need to
be assembled like
Socket screw
M2.5x6 screws
Socket screw
圆头内六角螺丝
M2.5x22
screws nut
M2.5 screws nut
Socket screw
圆头内六角螺丝
M2.5x22
680F-A0001
680F-A0002
CAUTION
注 意
安装电机座组件时，先把电机线放入碳管中，然后再锁紧螺丝。
务必请注意锁紧螺丝时避开电机线，以免挤压电机线损坏，造成电机无法工作。
When install components of motor base , pls put the motor wires
into the carbon tube firstly , then lock screw.Please be sure to note that to keep
away from motor wires when lock screw , in order to avoid the wires of motor
to be damaged by extrusion and cause the motor doesn't work.
Lock Nut M2.5
防松螺母 M2.5
Socket screw
圆头内六角螺丝(M2.5x22.0)X1
680F-A0003
Main Rotor pipe clamp
主旋翼管夹
Main rotor - carbon tube
主旋翼-碳管
680F-B0001
Socket screw
圆头内六角螺丝M2.5x22
Lock Nut M2.5
防松螺母 M2.5
8
x12
ket button head screw
头内六角螺丝(M2.5x6.0)X24

Pls use the suitable screw glue when the
screw fix the metal piece.
螺丝锁于金属件请使用适量的螺丝胶.
约2MM
Socket button head screw
半圆头内六角螺丝M2.5x6.0
Socket button head screw
半圆头内六角螺丝M2.5x6.0
A
A
A
A
A
A
B
B
B
B
Socket button head screw
半圆头内六角螺丝(M2.5x6.0)X24
Socket button head screw
半圆头内六角螺丝(M2.5x6.0)X48
The fuselage fixed seat - A
机身固定座-A
Socket button head screw
半圆头内六角螺丝M2.5x6.0
Socket button head screw
半圆头内六角螺丝M2.5x6.0
Hexagon pillars
六角柱子
Socket button head screw
半圆头内六角螺丝M2.5x6.0
Socket button head screw
半圆头内六角螺丝M2.5x6.0
ESC 30A
电子调速器
Airframe Installation
机体组装
The fuselage fixed seat - B
» úÉ í¹ Ì¶ ¨× ù-B
Power integrated backplane
总电源集成底板
Fuselage Upper Plate
机体上板
ESC 30A
电子调速器
ESC Fixed Plate
电调固定板
Super Combo
CAUTION
注 意
!
680
680F-C0001
680F-A0013
680F-C0002
680F-A0004
680F-A0005
680F-C0003

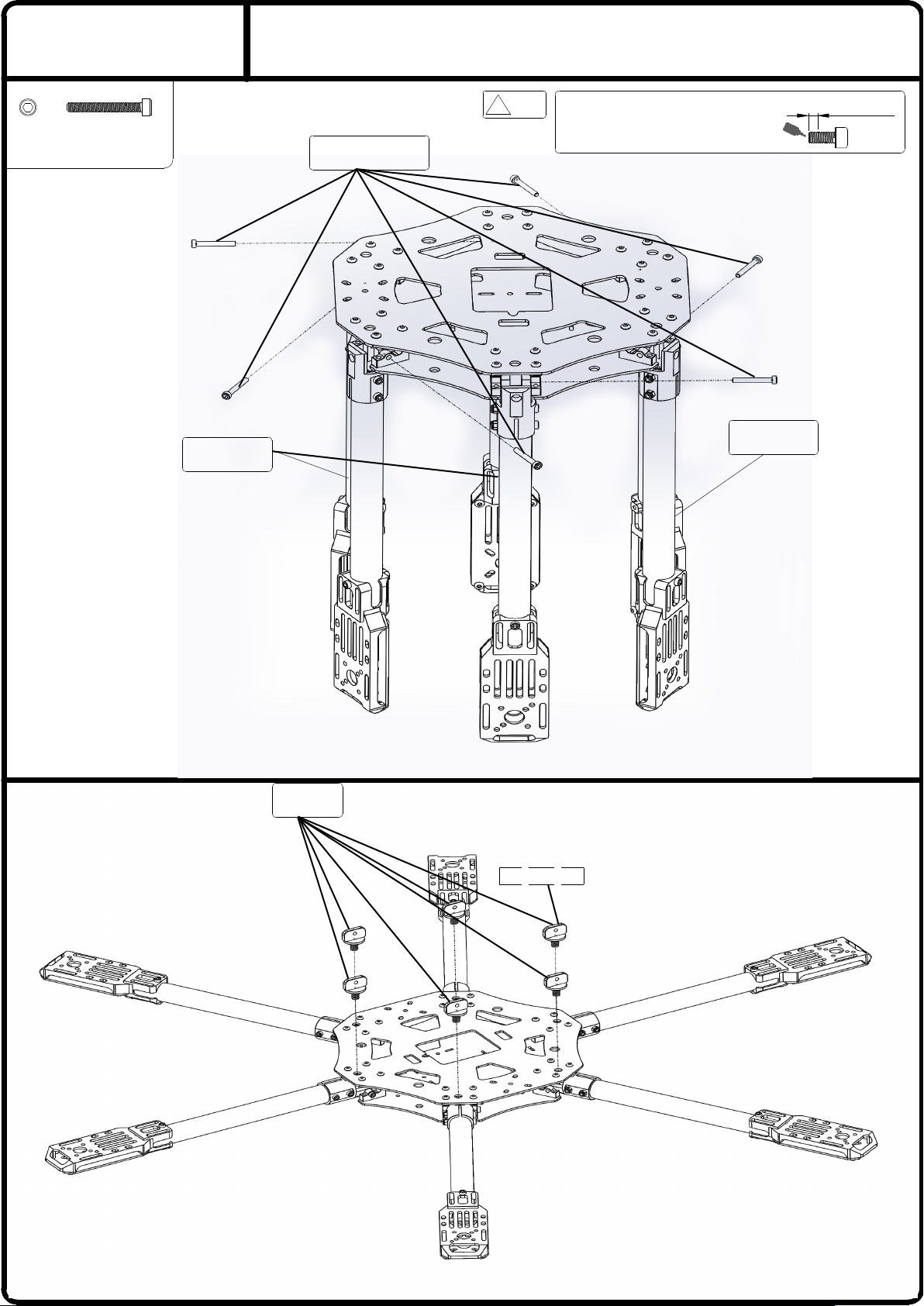

The arm and fuselage Assembly
机臂与机身组装
Socket screw
圆头内六角螺丝(M3.0x25)X6
Super Combo
!CAUTION
注 意 约2MM
Pls use the suitable screw glue when the
screw fix the metal piece.
螺丝锁于金属件请使用适量的螺丝胶.
680
Thumb screw
手拧螺丝M5.0
６８０Ｆ－Ａ０００６
Socket screw
圆头内六角螺丝M3.0x25
Main arms set Main arms set
主机臂组件 主机臂组件

CAUTION
注 意
Landing Gear linked Seat
起落架连接座
Landing Gear linked seat -Top
起落架固定座-上
Socket screw
圆头内六角螺丝M2.5x25.0
Socket screw
圆头内六角螺丝(M2.5x16.0)X4
Bracing Tube
云台支撑管
Carbon fiber rods Fixing Seat
碳棒固定座
X4
Pls use the suitable screw glue when the
screw fix the metal piece.
螺丝锁于金属件请使用适量的螺丝胶.
约2MM
Socket screw
圆头内六角螺丝M2.5x22.0
Carbon fiber rods
碳纤维棒
Bracing Fixing Seat
支撑杆-固定座
Lock Nut M2.5 X6
防松螺母 (M2.5) X6
Socket screw
圆头内六角螺丝(M3.0x18.0)X2
Lock Nut M2.5
防松螺母 M2.5
Lock Nut M2.5
防松螺母 M2.5
Socket screw
圆头内六角螺丝M2.5x16.0
Socket screw
圆头内六角螺丝M2.5x25.0
Socket screw
圆头内六角螺丝M2.5x16.0
Socket screw
圆头内六角螺丝M2.5x16.0
X2
Socket screw
圆头内六角螺丝M3.0x18.0
Lock Nut M3.0
防松螺母 M3.0
Landing gear- Up
horizontal tube fixing seat
起落架-上横管固定座
Socket screw
圆头内六角螺丝M3.0x18.0
Landing gear Aluminum -Top
起落架铝管-上
Lock Nut M3.0
防松螺母 M3.0

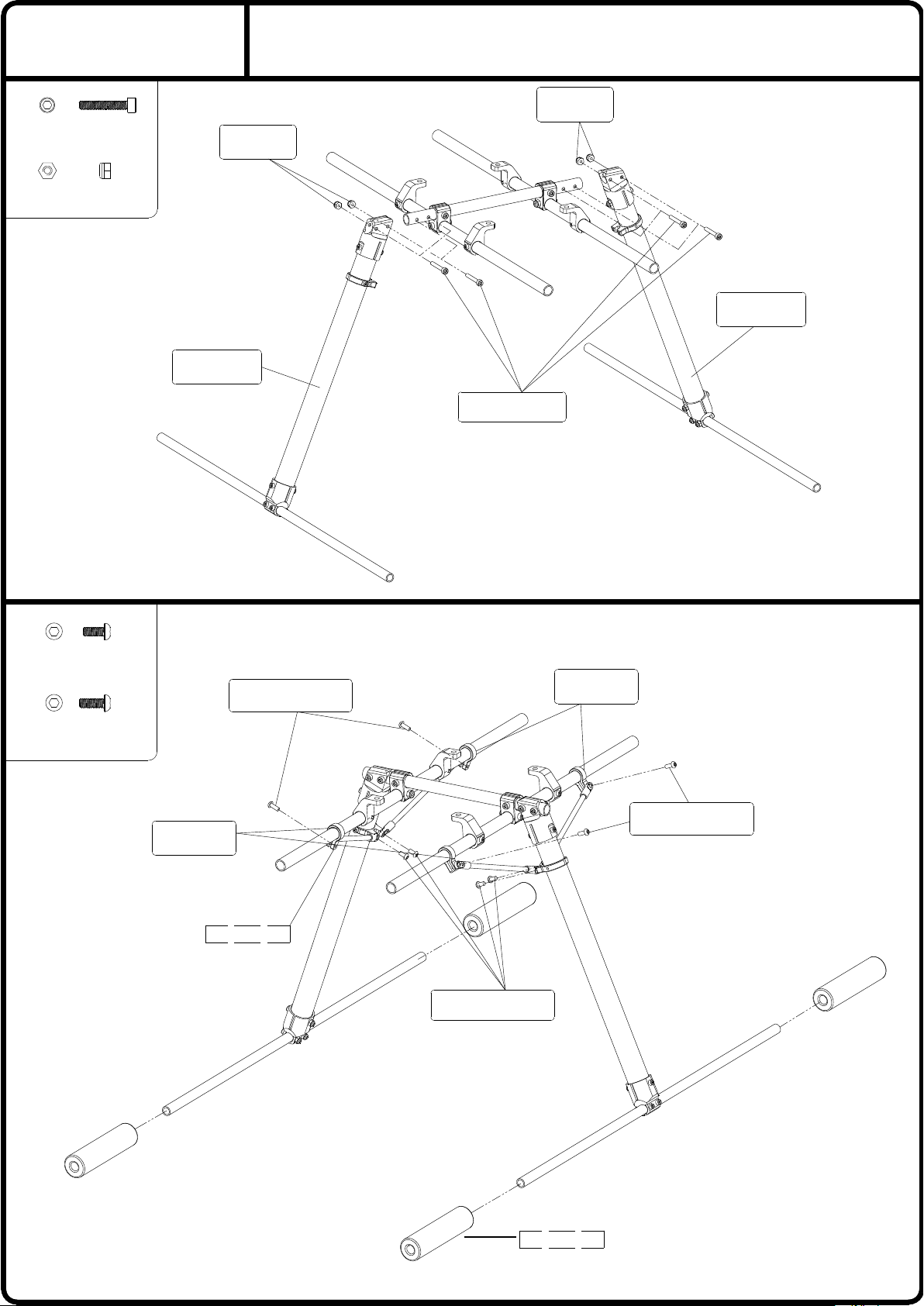

Landing gear Installation
起落架组装_one
X2
请按照此步骤安装完两组
请按照此步骤安装完两组
Lock Nut M3.0 X2
防松螺母 (M3.0) X2
Socket screw
圆头内六角螺丝(M3.0x18.0)X2
Socket screw
圆头内六角螺丝(M3.0x18.0)X2
Lock Nut M3.0 X2
防松螺母 (M3.0) X2
Landing Gear linked seat -Bottom
起落架固定座-下
Landing Gear linked Seat
起落架连接座
Landing gear Aluminum -Bottom
起落架铝管-下
请按照此步骤安装完4组
Landing Gear carbon tube
起落架碳管
Super Combo
680
６８０Ｆ－Ａ０００７
６８０Ｆ－Ｂ０００２ ６８０Ｆ－Ｂ０００５
６８０Ｆ－Ａ０００９
６８０Ｆ－Ａ００１０
６８０Ｆ－Ａ０００８
６８０Ｆ－Ａ０００３
６８０Ｆ－Ａ００１１
６８０Ｆ－Ｂ０００６
６８０Ｆ－Ａ００１２
６８０Ｆ－Ｂ０００４

Socket button head screw
半圆头内六角螺丝M3.0x8.0
Socket button head screw
半圆头内六角螺丝M3.0x8.0
Socket button head screw
半圆头内六角螺丝M3.0x6.0
Socket button head screw
半圆头内六角螺丝(M3.0x6.0)X4
Socket button head screw
半圆头内六角螺丝(M3.0x8.0)X8
Socket screw
圆头内六角螺丝M3.0x18.0
起落架组装_two
Lock Nut M3.0
防松螺母 M3.0
Lock Nut M3.0
防松螺母 M3.0
Landing gear Group
起落架组件
Socket screw
圆头内六角螺丝(M3.0x18.0)X2
Lock Nut M3.0 X2
防松螺母 (M3.0) X2
Landing gear Group
起落架组件
Super Combo
Activities slip ring
支撑杆-活动滑环
Activities slip ring
支撑杆-活动滑环
landing gear Installation
680
６８０Ｆ－Ａ００１６
６８０Ｆ－Ｆ０００１

Socket screw
圆头内六角螺丝
CAUTION
注 意
!
The frame and the landing gear assembly
机身与起落架组装 Super Combo
Battery plate Installation
电池固定板安装
Socket screw
圆头内六角螺丝
Pls use the suitable screw glue when the
screw fix the metal piece.
螺丝锁于金属件请使用适量的螺丝胶.
约2MM
Battery Fixed Plate
电池固定板
Battery Plate Fixed Seat
电池板固定座
680
M2.5X6
680F-A0015
680F-C0004
Thumb screw
手拧螺丝M5.0
(M2.5*6.0)X4

Part Bom 零件表
Part Number Part name Quantity 零件编号 零件编号 数 量
Main Rotor pipe clamp
主旋翼管夹
6 PCS
The fuselage fixed seat - A
6 PCS
6 PCS
The fuselage fixed seat - B
机身固定座-A
机身固定座-B
Thumb screw 10 PCS 手拧螺丝
Landing gear- Up
horizontal tube fixing seat
起落架-上横管固定座
2 PCS
Landing Gear linked Seat 起落架连接座
4 PCS
Landing Gear linked seat -Top 起落架固定座-上
2 PCS
Bracing Fixing Seat 支撑杆-固定座
2 PCS
Landing Gear linked seat -Bottom 起落架固定座-下
2 PCS
Carbon fiber rods Fixing Seat 碳棒固定座
8 PCS
Hexagon pillars 六角柱子
12 PCS 12 PCS
8 PCS
2 PCS
2 PCS
2 PCS
4 PCS
2 PCS
10 PCS
6 PCS
6 PCS
6 PCS
Main rotor - carbon tube
6 PCS 主旋翼-碳管
6 PCS
Bracing Tube
云台支撑管
2 PCS 2 PCS
Landing Gear carbon tube 2 PCS 起落架-碳管
Landing gear Aluminum -Bottom 起落架铝管-下
2 PCS
Landing gear Aluminum -Top 1 PCS 1 PCS
2 PCS
2 PCS
起落架铝管-上
Carbon fiber rods 碳纤维棒
4 PCS 4 PCS
ESC Fixed Plate
电调固定板
4 PCS
Fuselage Upper Plate 机体上板
1 PCS
1 PCS
Battery Fixed Plate 1 PCS 电池固定板 1 PCS
1 PCS
1 PCS
4 PCS
Battery Plate Fixed Seat 电池板固定座
4 PCS 4 PCS
4 PCS 4 PCS
Super Combo
Activities slip ring 支撑杆-活动滑环
Excursus
附录
680
Motor mount set
6 PCS 6 PCS
Fuselage bottom plate
680F-A0001 680F-A0001
680F-A0003 680F-A0003
680F-A0004 680F-A0004
680F-A0005 680F-A0005
680F-A0006 680F-A0006
680F-A0007 680F-A0007
680F-A0008 680F-A0008
680F-A0009 680F-A0009
680F-A0010 680F-A0010
680F-A0011 680F-A0011
680F-A0012 680F-A0012
680F-A0013 680F-A0013
680F-A0015 680F-A0015
680F-A0016 680F-A0016
680F-B0001 680F-B0001
680F-B0002 680F-B0002
680F-B0003 680F-B0003
680F-B0004 680F-B0004
680F-B0005 680F-B0005
680F-B0006 680F-B0006
680F-C0001 680F-C0001
680F-C0002 680F-C0002
680F-C0003 680F-C0003
680F-C0004 680F-C0004
680F-A0002 680F-A0002
Motor mount CF sheet 6 PCS 6 PCS
680F-F0001 680F-F0001
4 PCS 4 PCS
起落架减震棉
Asorbing Foam
机体下板
马达座碳纤片
铝合金马达座
