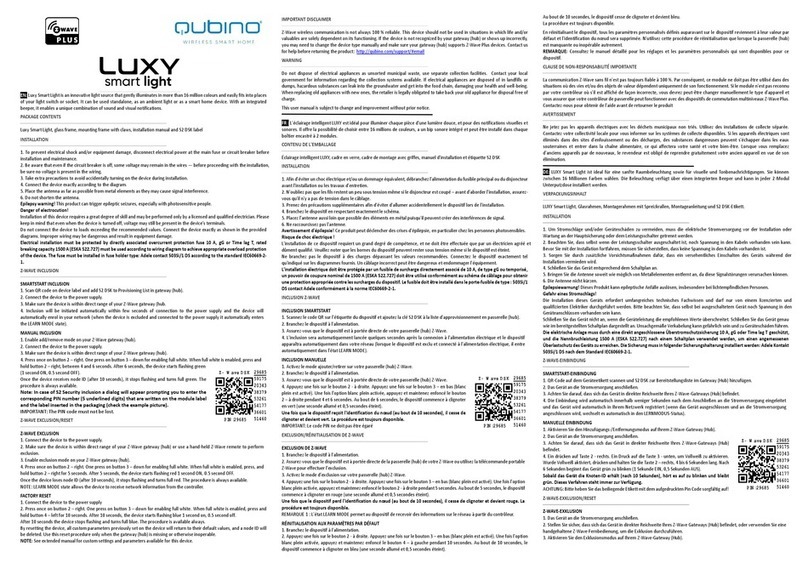

QUBINO LUXY smart light User manual

USER MANUAL EN.
LUXY SMART SWITCH
Luxy Smart Switch is an innovative light source that gently illuminates in more than 16 million
colours and easily fits into places of your light switch or socket. It can be used standalone, as
an ambient light or as a smart home device. With an additional output it can simply replace
your existing light switch or can be used for powering IR panels, fans, water heaters, etc.

EN.
2
1. About Qubino.......................................................................................................................... 4
2. Support.................................................................................................................................... 5
3. Safety Information.................................................................................................................. 6
4. Introduction ............................................................................................................................ 7
5. Functionalities......................................................................................................................... 9
5.1 Control it ............................................................................................................................... 9
5.2 Measurements and reporting............................................................................................. 10
5.3 Overload protection............................................................................................................ 10
5.4 Lock touch functions for enabling output ON/OFF ............................................................ 10
5.5 Turning off alarms............................................................................................................... 11
6. Use Cases .............................................................................................................................. 12
6.1. Usage examples for Luxy Smart Switch ........................................................................ 12
6.2. Usage examples when Luxy Smart Switch is connected to a wireless device/sensor . 13
6.3. Usage examples when Luxy Smart Switch is connected to a wired device.................. 15
7. Advantages and Highlights.................................................................................................... 17
7.1. Advantages.................................................................................................................... 17
7.2. Highlights ...................................................................................................................... 19
8. Package Contents.................................................................................................................. 21
9. Installation ............................................................................................................................ 22
9.1. Installation examples of the Luxy Smart Switch........................................................... 25
10. Technical Specification...................................................................................................... 29
11. Electrical Diagram (230 Vac)............................................................................................. 30
12. Z-Wave .............................................................................................................................. 31
12.1. Adding the device to a Z-Wave network (Inclusion)..................................................... 32
12.2. Z-Wave Security ............................................................................................................ 33
12.3. Removing the device from a Z-Wave network (Exclusion)........................................... 34
12.4. Device factory reset ...................................................................................................... 34
12.5. Associations .................................................................................................................. 35
12.6. Notification Command Class......................................................................................... 38

EN.
3
12.7. Configuration Parameters............................................................................................. 39
12.8. Z-Wave Command Classes............................................................................................ 43
13. Important Disclaimer ........................................................................................................ 46
14. Warning............................................................................................................................. 46
15. Regulations........................................................................................................................ 46

EN.
4
1.About Qubino
Qubino is a family of innovative Z-Wave devices, many of them the smallest of their kind. Numerous
breakthrough innovations, 100 % quality control, and responsive customer service make Qubino the
number one choice for making your life more comfortable.
Qubino enables you to transform –inexpensively and invisibly –any traditional electric device into a
smart, connected one that you can control with your smart phone. Qubino devices are simple to install
and use, but also extremely versatile - they offer a wealth of additional features and parameters for you
to play with.
We love helping people who enjoy creating new ideas for their home and then using their hard work and
skill to turn those ideas into reality. We admire their passion and resourcefulness. We do our best to
supply you with products that will enable you to create a unique and special home for yourself. We
innovate so that you can be free to make the smartest home possible. With just a touch of magic.
"Simple is smart." We believe it is smart to make complex things simple. But only when this means simple
for our customers, not for ourselves. We think a lot so that you will not have to when it comes to installing
or using our devices.
For more information visit: www.qubino.com
To find your nearest Qubino dealer visit: http://qubino.com/where-to-buy/

EN.
5
2.Support
Did you know that Qubino offers Z-Wave devices with 100 % quality control guaranteed throughout the
production process? Every single unit is tested and examined before being approved for sale –a truly
unique pledge in the industry.
Why is this important?
Every device has a dedicated serial number and part number, which is assigned to the device only after it
goes through a strict testing procedure.
Our support policy advises that every customer receives an answer within 24 hours during working days.
Go to our support website https://support.qubino.com/support/home and open a new support ticket.
By telling us the product's unique serial number and part number, we will automatically review the
production log file containing device parameters and information. This allows us to immediately identify
and address issues, giving you the best customer support.
Based on customer and business partner feedback, we are proud to boast Qubino’s support team as the
best and fastest on the market. If you do not find the answers to your questions in this document, please
contact us. We will try to help you as soon as possible.

EN.
6
3. Safety Information
For Qubino, safety is first, so we have prepared lots of safety tips and information that can be found
throughout this manual.
To ensure your safety, please read this manual carefully before installing the device; follow the
instructions exactly. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally responsible for any
equipment damage or personal injury caused by incorrect installation or operation other than that
covered in this manual.
ⓘPlease check the Technical Specifications and Electrical Diagram chapters, as well as fuse requirements
in the Installation chapter before installing the device.
Epilepsy warning!
This product can trigger epileptic seizures, especially with photosensitive people.

EN.
7
4.Introduction
The Luxy Smart Switch is an innovative light source that will gently illuminate your home in any
of the 16 million colours that you can choose from, to fit your personal preference and give a
personal touch to any room.
It is designed in a way that it fits in the flush mounting boxes at the height of the light switch or
where you usually have electrical sockets. This means, Luxy Smart Switch can be quickly & easily
installed anywhere in the house where you already have electricity (neutral wire is mandatory
for proper operation) or where you can easily pull additional wires.
You can control Luxy Smart Switch manually, wirelessly or set it to work automatically.
If you use it as a standalone device, you can control it through 5 integrated touch-sensitive points
on the surface. With a touch you can turn on/off the Luxy light, turn on/off the additional output,
set the colour, dim the brightness, and choose between 4 lighting effects. The lighting scenes are
inspired by nature and will help you set the mood, by simulating the ocean, sunrise, rainbow, and
nature’s colour scenes.

EN.
8
If you are a more advanced user, you can integrate Luxy Smart Switch into the Z-Wave network
and enjoy plenty of other functionalities it offers. When connected to the gateway, Luxy Switch
becomes a smart home device, enabling you to control it remotely via smartphone or tablet and
creating more complex scenes, e.g. setting the time schedule.
One of the Luxy Smart Switch features is an additional power output for connecting other loads
as room light, ceiling fan, IR panel, etc. It can trigger or be triggered by other devices.
Luxy Smart Switch supported functions as a Z-Wave device:
✓
Choosing among 16 million colours
✓
Output for connecting e.g. a room light or other loads
✓
Automatically turn ON/OFF Luxy light and/or connected output
✓
Dimming the Luxy light
✓
Associations
✓
Z-Wave Repeater
✓
Smart Start
✓
5 integrated touch-sensitive points on the surface

EN.
9

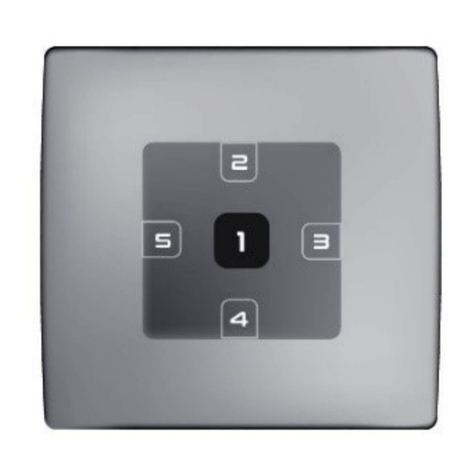

5.Functionalities
Nr. 1 (CENTER)
Turns ON/OFF the room light or any other load
connected to Luxy Smart Switch output
Nr. 2 (UP)
Turns ON/OFF the Luxy light
Dims the Luxy light
Nr. 3 (RIGHT)
Switches between 4 different lighting effects
(ocean, sunrise, rainbow, and nature)
Nr. 4 (DOWN)
Turns ON/OFF the white light on the Luxy
Dims the Luxy light
Nr. 5 (LEFT)
Starts the colour spectrum and stops at the
colour you wish to have
5.1 Control it
With a touch on one of the 5 sides
on the touch-sensitive surface (or
touch screen)
Remotely via a smartphone
Set it to work automatically,
according to the pre-
programmed scenes, created
on the Z-Wave gateway

EN.
10
5.2 Measurements and reporting
Measurements and reporting are only available for relay output.
Watt
Power –Active
kWh
Energy –Active power accumulated
Energy consumption in kWh is reported in 0.1 kWh resolution.
Active power in W is reported in 1 W resolution.
NOTE: For more options check parameter nr. 40.
5.3 Overload protection
Overload protection defined by user
The user has an option with parameter 70 to set an overload safety threshold. The threshold is set to 2300
W by default. If the power exceeds it for 5 seconds the Luxy Smart Switch relay will turn off, and a
“Overload detected” notification will be sent. Controlled device can be turned back on by capacitive
antenna/s or sending a control frame.
Overload safety protection
Overload safety protection is triggered if the load exceeds 10 A (2400 W) for more than 5 seconds. If the
overload safety protection is triggered, the device will shut down the relay and start flashing red (1 sec
ON, 0.5 sec OFF) and sends an overload notification message. Device is not responsive to touch
commands or Z-wave commands. Controlled device can be turned back on with power cycle (mains cut
off).
5.4 Lock touch functions for enabling output ON/OFF
This option enables/disables ONLY the touch functionality for closing/opening the relay output meant for
switching ON/OFF the connected light or other connected load. While enabled, other touch functionalities
are temporary unavailable. The option can be accessed:
Locally:
•You can choose any kind of light (also no light) except FULL white. Press and hold button 3 –right
in between 6 to 9 seconds. Release the button.
•To revert the option, repeat the above procedure.
Remotely:
•Check the Parameter no. 60 –Lock touch for relay only. Set value to 1 (enable) or 0 (disable) the
option.
NOTE: Your gateway needs to support advanced configuration and parameter input to
use this feature.

EN.
11
5.5 Turning off alarms
When an alarm occurs (NOTIFICATION_REPORT is sent) Luxy Smart Switch starts blinking red, so
you are notified.
As soon as the reason that caused the alarm is noted by the user, the alarm can be turned OFF:
Locally:
•Touch any out of 4 integrated touch-sensitive points (excluding middle point) on the
Luxy Smart Switch surface.
Remotely:
•Reset the alarm via gateway’s user interface.
For more options, see Parameter no. 3 –Turning off alarming.

EN.
12
6.Use Cases
To get you an idea for your next smart home project, we have prepared a few real-life examples,
where you can use Luxy Smart Switch. There are countless of options using Luxy as a standalone
ambient light or in combination with a smart home system. In a smart home system Luxy can
trigger or can be trigged by other Z-Wave devices.
6.1.Usage examples for Luxy Smart Switch
Example where Luxy Smart Switch is used as a light source for gentle and personalized
illumination of your home in 16 million colours.
As a visual alarm, for a gentle wake-
up, with colours (example yellow)
simulating the sunrise.
Do you often forget to turn off a night
light or main room light when you fall
asleep?
The Luxy Smart Switch can
automatically turn ON or OFF after a
set time (when you or your kids fall
asleep). For example, the Luxy Smart
Switch will automatically turn OFF if it
has been ON for 30 minutes. This
function is independent of other
scenes and gateway (hub) commands.

EN.
13
6.2.Usage examples when Luxy Smart Switch is connected to a wireless
device/sensor
Do you want to control other devices in
your Z-Wave network with the Luxy Smart
Switch?
Connect the Luxy Smart Switch with other
devices in your network and automatically
trigger another Z-Wave device. And have
other Z-Wave devices trigger your Qubino
Luxy Smart Switch.
Connected to a wireless doorbell, Luxy can
act as your visual doorbell. It illuminates in
the colour you choose. This way you can
completely personalize the way you want to
be notified when getting visitors at the front
door.
Do not bother your eyes during nighttime
with the too bright, main light in the
corridor. Luxy can gently illuminate your
corridor when the motion sensor detects
movement. You can personalize the color
and intensity of the Luxy light and set the
period for how long it stays ON.

EN.
14
Connected to a wireless motion sensor, Luxy
can start blinking in red colour, so you are
notified if there are any intruders around
your house.
Connected to a wireless flood detector, Luxy
can start blinking, when the water leakage is
detected.

EN.
15
6.3.Usage examples when Luxy Smart Switch is connected to a wired device
You can connect up to 10 A to its relay output.
This means that even a water heater or…
…ceiling fan, or…

EN.
16
IR panel can be directly powered with the Luxy
Smart Switch.
At the same time, you can use gateway
associations and scenes to signalize (desired
color) with Luxy light that the room is warm
enough as there is currently no consumption
on the IR panel.
NOTE: Use cases demonstrate possible ways to use Luxy Smart Switch. Other, not mentioned use
cases are still possible. Always bear in mind limitations of the Z-Wave gateways and the Z-Wave
devices regarding associations, scenes, security types, etc.

EN.
17
7.Advantages and Highlights
7.1.Advantages
•Luxy Smart Switch offers you the possibility to connect a room light.It can be used as an
independent light source, as an ambient light. At the same time, it can simply replace your
existing light switch connected to the room light.
•Luxy Smart Switch is versatile, so you can connect other loads as well. Turn ON a ceiling
fan, when wanting a cool breeze or switch ON your IR panel when feeling cold.
•Luxy Smart Switch can be controlled:
oManually via 5 integrated touch-sensitive points on the surface, designed in a
way to not interfere with the light source.
oOr wirelessly with just a simple tap on your smartphone (via Z-Wave).
•Luxy Smart Switch can be pre-programmed according to your needs. For example, it can
turn ON or OFF at any specific time. You can set two independent timers to turn ON/OFF
the Luxy light itself or the load connected to it.

EN.
18
•Luxy Smart Switch comes with the pre-programmed nature inspired lighting effects:
Ocean, Nature, Sunrise, Rainbow which will ensure you a relaxing lighting experience to
help you start the day with more energy or to relax you after a tough day.
•As most walls are painted in bright colour, the natural glass frame makes it almost
invisible on the wall, when turned OFF. When turned ON, it disperses the coloured
lighting effects beautifully. The combination of RGB LEDs and a glass frame makes a
wonderful effect when it shines.
•Qubino guarantees 100 % device quality. Such high quality can be delivered because
every Qubino device goes through rigorous quality control standards throughout the
production process. Every device has a unique serial number and part number, which are
assigned to the device only after it goes through a strict testing procedure.

EN.
19
•Luxy Smart Switch is engineered and manufactured in the EU and contains only the
highest quality components.
7.2.Highlights
•Features one of the easiest and quickest installations of devices of this kind
•Install it anywhere you like (hallway, stairway, bathroom, bedroom, living room, garage, terrace,
etc.)
•Modern and minimalistic design
•The output can be used to directly power the main room light or other loads (water heater, IR
panel, ceiling fan, etc.)
•Measures active power (W) and energy consumption (kWh) of the connected device
•You can choose between 16 million colours to fit your personal preference
•Energy efficient
•Saves and restores the last status after a power failure (set parameter 30 accordingly)
•Supports SmartStart mode for quick set up
•Supports additional parameters for expert users, which allows advanced configuration*
•Acts as a signal repeater which improves the range and stability of your Z-Wave network
•Can be triggered by other Z-Wave device

EN.
20
*Your gateway (hub) needs to support advanced configuration and parameter input if you wish to use this
feature.
