Questtel L-8VID-1IP-FE-TX-RX User manual

8 Channel Video and IP Over Fiber Extender Kit
with RS485 Data
L-8VID-1IP-FE-TX-RX
User Manual
www.questtel.com [email protected]

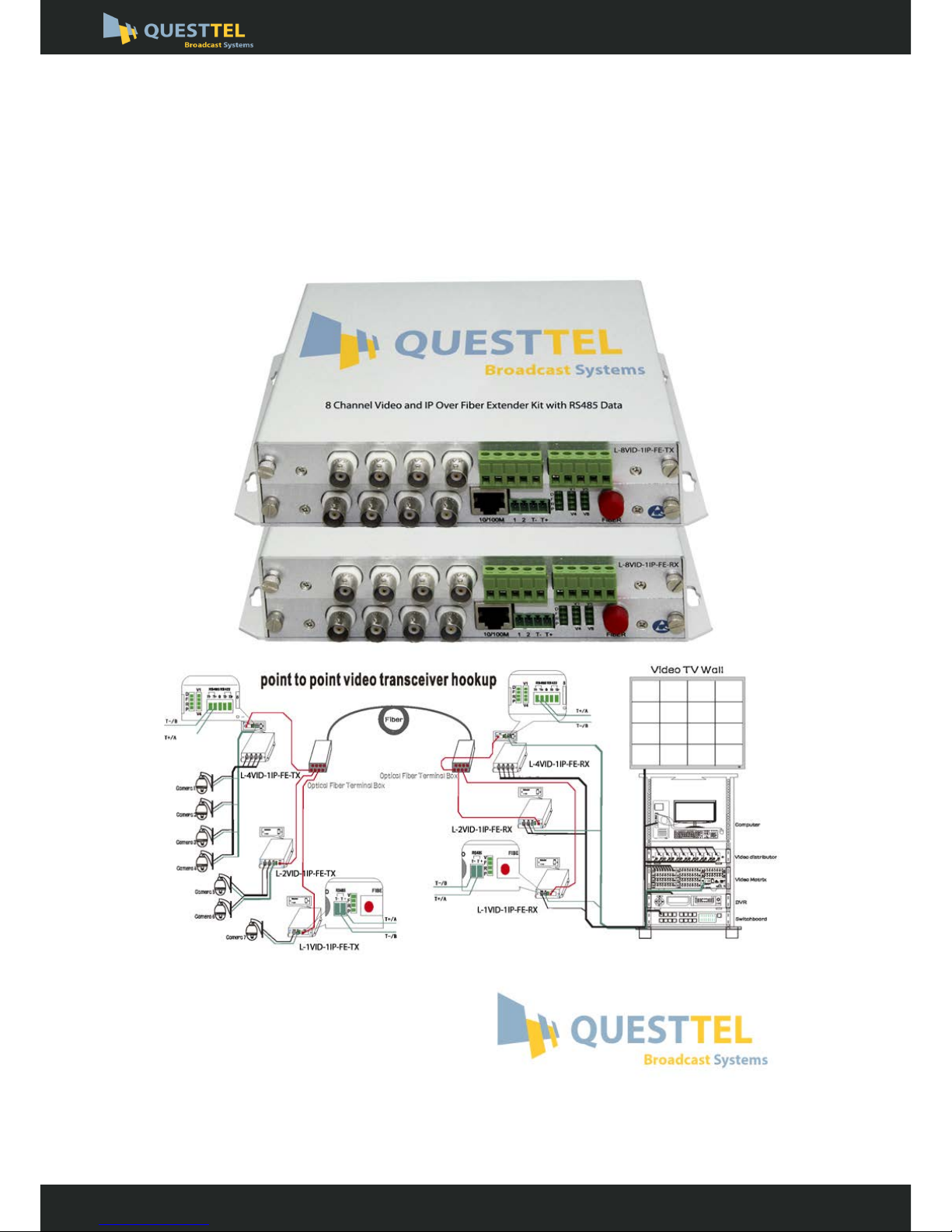

Application Drawing:
Video + Ethernet Over Fiber User Manual
L-8VID-1IP-FE-TX-RX
www.questtel.com [email protected]

The L-8VID-1IP-FE-TX-RX is a 8 Channel Video + 1 Channel reverse Data +10/100M Ethernet
optical transceiver adopts the most advanced international technology of digital video and optical
fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal
transmission over all kinds of optical fiber. The QuestTel's Fiber Optical Transmitter & Receiver
can be easily used in the normal operation by virtue of LED indication of working status, and
without any electric or optical regulation on site. It can be installed independently or installed in
4U rack. Also the L-8VID-1IP-FE-TX-RX supports video regenerative relay and is compatible with
PAL,NTSC,and SECAM formats.
General Features：
◆Card-type or Stand-alone type for your choice; suitable for concentration management in 4U
Racks
◆10 –digit coding and non-compression video transmission
◆supporting any high –resolution video signal
◆automatically compatible with PAL, NTSC and SECAM video format
◆Supporting video intact regenerative relay, the video transmission can be reach above 200km
◆Supporting advanced SNMP standards, realise long-distance web-controlling
◆LED indication of power and other parameter status, monitoring real-time operation
◆Modularized and industrialized design ensuring reliability and flexibility
Target Industries：
◆Intelligent transportation supervisory system（ITS）
◆High-speed Way supervisory/Tele-Communication System
◆Security protection system, TV medical treatment
◆Long-distance Muti-media Schooling, Campus monitoring
◆Long-distance broadcast television transmission system
◆High-building Security Protection, Military Tele-Com projects
Fiber Features:( the fiber optic connectors usually is FC, can order ST)
Type
wavelength
(nm)
TX power
dBm
Transmission
Distance Km
Lose
dBm/Km
Fiber Type
Single-mode
1310
-8~-5
0~20
0.5
Single-mode(9/125um)
Video Features：
Video Interface: BNC
Video input/output impedance: 75Ω (unbalanced)
Video input/output Voltage: 1VP - P (peak value),Max 1.2Vpp
Video Bandwidth: 10MHz
Video sampling: 15MHz high speed sampling
Video digit bit width: 10/12 bit
Differential gain: （10%-90%APL）DG <1%( Typical value)
Description:
Video + Ethernet Over Fiber User Manual
L-8VID-1IP-FE-TX-RX
www.questtel.com [email protected]

Differential phase: （10%-90%APL）DP <0.8°( Typical value)
Video SNR: S/N ≥ 70dB （Maximum optical link path loss）
Data Features：
Applications：supporting 1-ch reverse data, compatible with all kinds of Keyboard, ,DVR , alarm
data industrial application transmission
Interface：standard industrial connecting terminals
Controlling Equipments：PTZ decoder, Keyboard , High speed dome camera, industrial
equipments
Interface Signals: RS-485(2 lines)
Communication speed rate: 0~512Kbps ( speed autoadaptation, no need to adjust)
Ethernet Features
Interface Speed Rate: 10/100Mbit/s Auto-adaptation, the default is 100MBPS working condition
Interface Type: RJ-45
Supporting Agreements: IEEE802.3U 100Base-TX, 10/100M
Communication Working format: Full-duplex or half-duplex
General Parameter:
Operating Temperature: -40 ℃～+85 ℃
Storage Temperature: -45 ℃～+95 ℃
Relative humidity: 0～95% (Non-condensing)
Power Voltage: AC85-260v/50Hz
MTBF：≥105hours
Power supplier：3.5 w（Input:DC5V 1500mA）
Order Information：（Packed in standalone and card type,Card-type is suitable for the
4U Rack）
Type Numbe
Specification (Interface:ST)
Max Transmission
Distance (KM)
L-8VID-1IP-FE-TX-RX 8 Video +1 Reverse Data+ 100M Ethernet
20 KM（Single-mode）
Note: The interface can be ST or FC, according to the different requirements from
customers. The installation size please Go refer in the application instructions.
Video + Ethernet Over Fiber User Manual
L-8VID-1IP-FE-TX-RX
www.questtel.com [email protected]

Read before operating equipment.
1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer.
3. Outdoor Antenna Grounding - If you connect an outside antenna or cable system to the product, be sure the antenna or cable
system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
4. Lightning - Avoid installation or reconfiguration of wiring during lightning activity.
5. Power Lines - Do not locate an outside antenna system near overhead power lines or other electric light or power circuits or where
it can fall into such power lines or circuits. When installing an outside antenna system, refrain from touching such power lines or
circuits, as contact with them might be fatal.
6. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
7. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage
points or short out parts, resulting in a fire or electric shock. Never spill liquid of any kind on the product.
8. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
9. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
When the power supply cord or plug is damaged.
If liquid spills or objects fall into the product.
If the product is exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions. An improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the product to its normal operation.
If the video product is dropped or the cabinet is damaged.
When the video product exhibits a distinct change in performance, this indicates a need for service.
Safety Instructions
www.questtel.com [email protected]
WARNING !
This unit outputs continuous invisible light, which may
beharmful to the eyes; use with caution. For additional
safety, plug the attached dust caps into the optical
transceivers when the fiber optic cable is unplugged.
Direct viewing into optical connectors should be avoided
at all times!
