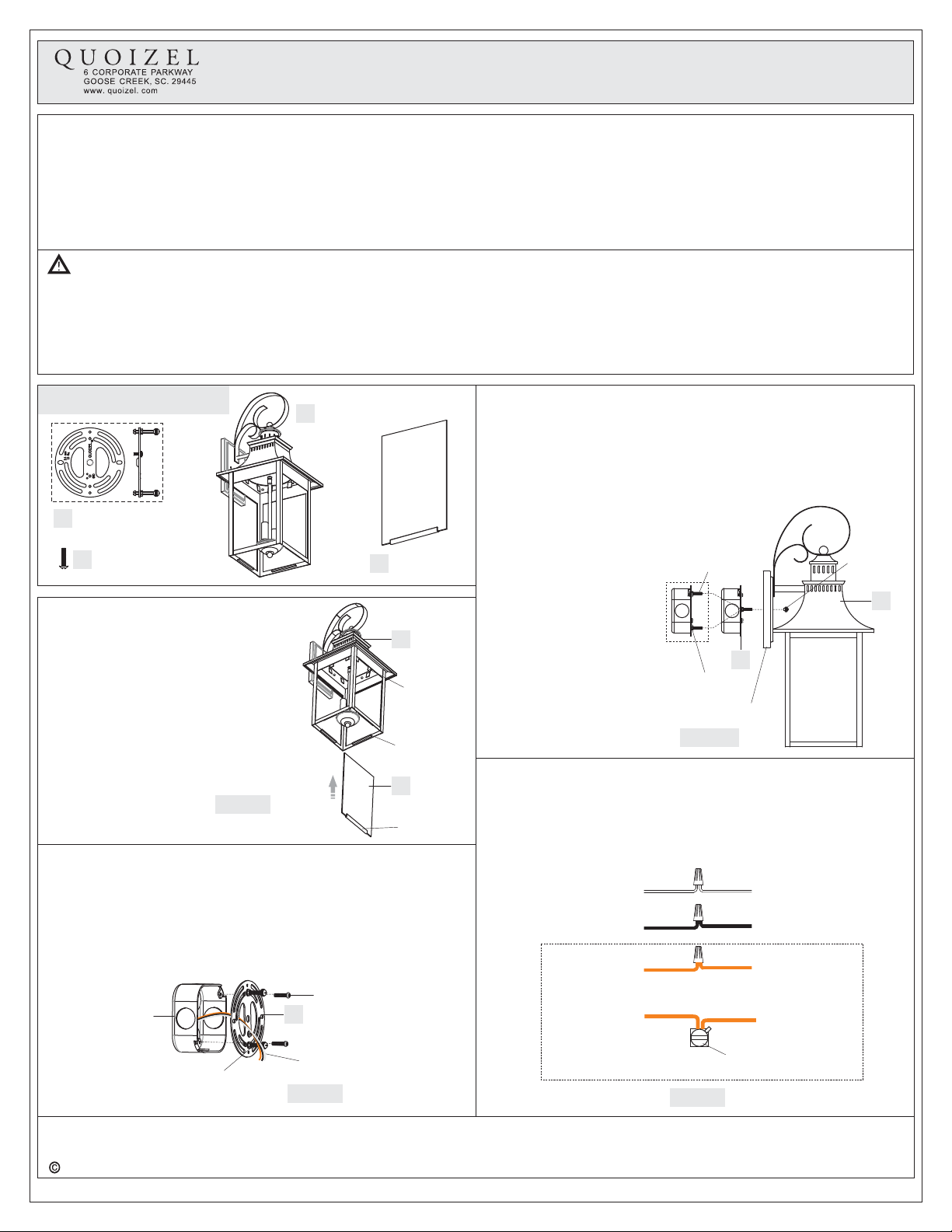

Package Contents
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-CCR8408K_R1
For Style CCR8408K
2017 QuoizelInc.
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
ACrossbar Assembly
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(2)B10CandelabraBasebulbs60WMaximum.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssemblyTime:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
CFixture Body
x1
ReleasedDate:2017-03-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
DGlass Panel
x4
B
Alternate
Mounting screw
x2
STEP 2 Installing the Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure the Crossbar Assembly (A)
with Outlet Box Screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet
Box A
Figure 2
Mounting Screw
or Alternate Short
Mounting Screw
STEP 3 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (C) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (C) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screw
C
Mounting
Ball
A
Backplate
Hex Nut and
Lock Washer
Figure 3
Mounting Screw
or Alternate Short
Mounting Screw
STEP 1 -Insert Glass Panels
A. Insert the U-shaped foam end of the
Glass Panel (D) into the slot in the
bottom of the cage and fasten with
the tabs in the top edge of the cage. Tab
Slot
U-shaped
Foam
D
C
Figure 1
STEP 4 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from fixture
Bare, or Green
Ground wire
from outlet box
OR
Ground wire
from fixture
Green Ground Screw
on the Crossbar
or alternate short
mounting screw on the
Crossbar Assembly (A)
by unscrewing the
preassembled hex nut
and lock washer and
then screwing the
mounting screws or
alternate short mounting
screws in or out of the
crossbar until the correct
length is achieved. Once
the backplate and
Fixture Body (C) is
secure, remove the
mounting ball and
Fixture Body (C) and
proceed to Step 4.
