Quooker PRO3-VAQ E User manual

Descaling the tank
This guide shows how to descale PRO3-VAQ and PRO3-VAQ E tanks.
The descaling of COMBI and COMBI E tanks is similar and is also explained.

Introduction
This guide contains two sections. You will have to determine the type of tank you have in order to
choose the correct section of this guide. There are two ways to do that:
1 By checking the type of Quooker tap you have.
In case you have a Flex tap, a Fusion tap or a Nordic boiling-water tap, you have an E tank.
Use the first section of this guide.
In case you have a Basic, Classic, Design or Modern boiling-water tap, you have a regular tank.
Use the second section of this guide.
Go to www.quooker.co.uk/collection if you are not sure.
2 By checking the serial number on your tank.
In case the serial number starts with 3 letters (VCF or CCW for example), you have an E tank.
Use the first section of this guide.
In case the serial number starts with 2 letters (VC or CC for example), you have a regular tank,
use the second section of this guide.
Tools
In addition to the supplied tools, you will need spanners to disconnect and connect the hoses:
- For an E tank, you will need spanners size 10, 14 and 24.
- For a regular tank, you will need spanners size 12, 14 and 24.
We recommend to keep paper towels within reach since some water will be left behind in the
hoses and tank.

Section 1: Descaling the E tank

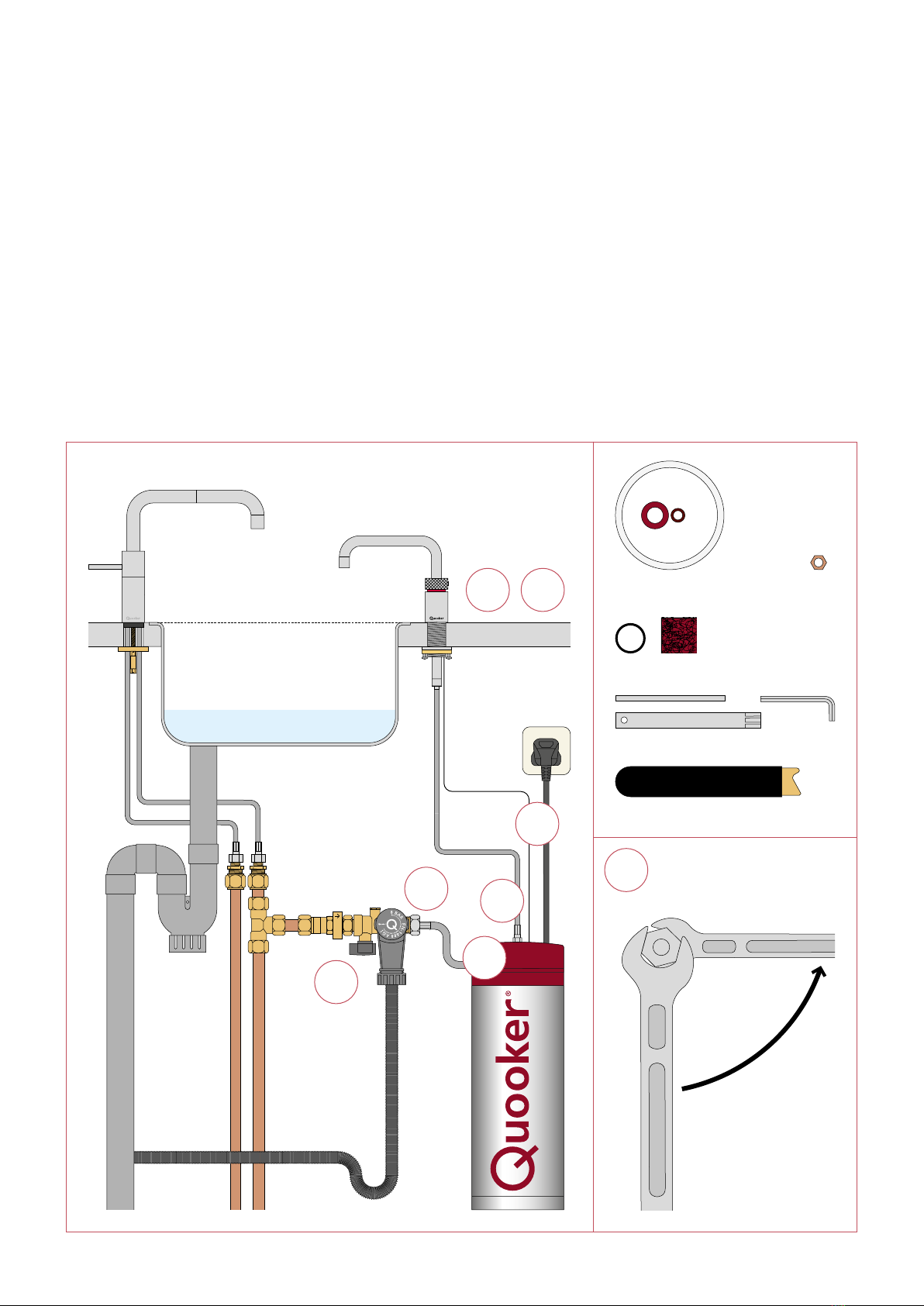

1 Switch off the tank with the Q-shaped button on top. Do not unplug it or switch off the power yet.
2 Dispense boiling and cold water together. Leave it to run until the water is completely cold and
the hose between the tap and the tank has cooled down.
3 Close the stop valve (small grey knob) on the inlet combination.
4 Open the boiling-water tap. If it is depressurised, no water will flow out of it.
5 Unplug the tank and disconnect the LED cable from the back of the tank.
6 Disconnect the flexible hose between the tap and the tank by turning the nut anti-clockwise
(use spanners 10 and 14).
7 In case of a PRO3-VAQ E tank, disconnect the hose from the inlet combination by turning the
nut anti-clockwise (use spanner 24). In case of a COMBI E tank, disconnect the two hoses from
the mixing valve (use spanner 17 and 24). Remove the tank from the kitchen cabinet.
COLD
Cold Hot
2
3
4
5
1
6
6
7
Gasket, big and small washer
Pipe wrench and allen key
Limescale scraper
8 ×
10
14
O-ring and Scotchbrite

8 Unscrew the cap screws with the supplied allen key and lift the cover. Push the hose connector
through the hole in the cover and gently disconnect the three wire plugs.
9 Remove the insulation. Start with the centre piece.
10 Use the pipe wrench to unscrew the eight nuts anti-clockwise and remove the internals.
Please note: There is still water left in the tank.
11 Remove the filter by pulling the metal clips apart. Empty the tank and discard any loose scale.
Use the supplied Scotchbrite with water to lightly remove the bulk of the scale from the tank,
internals and filter.
8
10
9
11
Please note
Do not use any descaling agents or
abbrasive pads when removing scale from
the tank.
click!

Type A
Type B
G

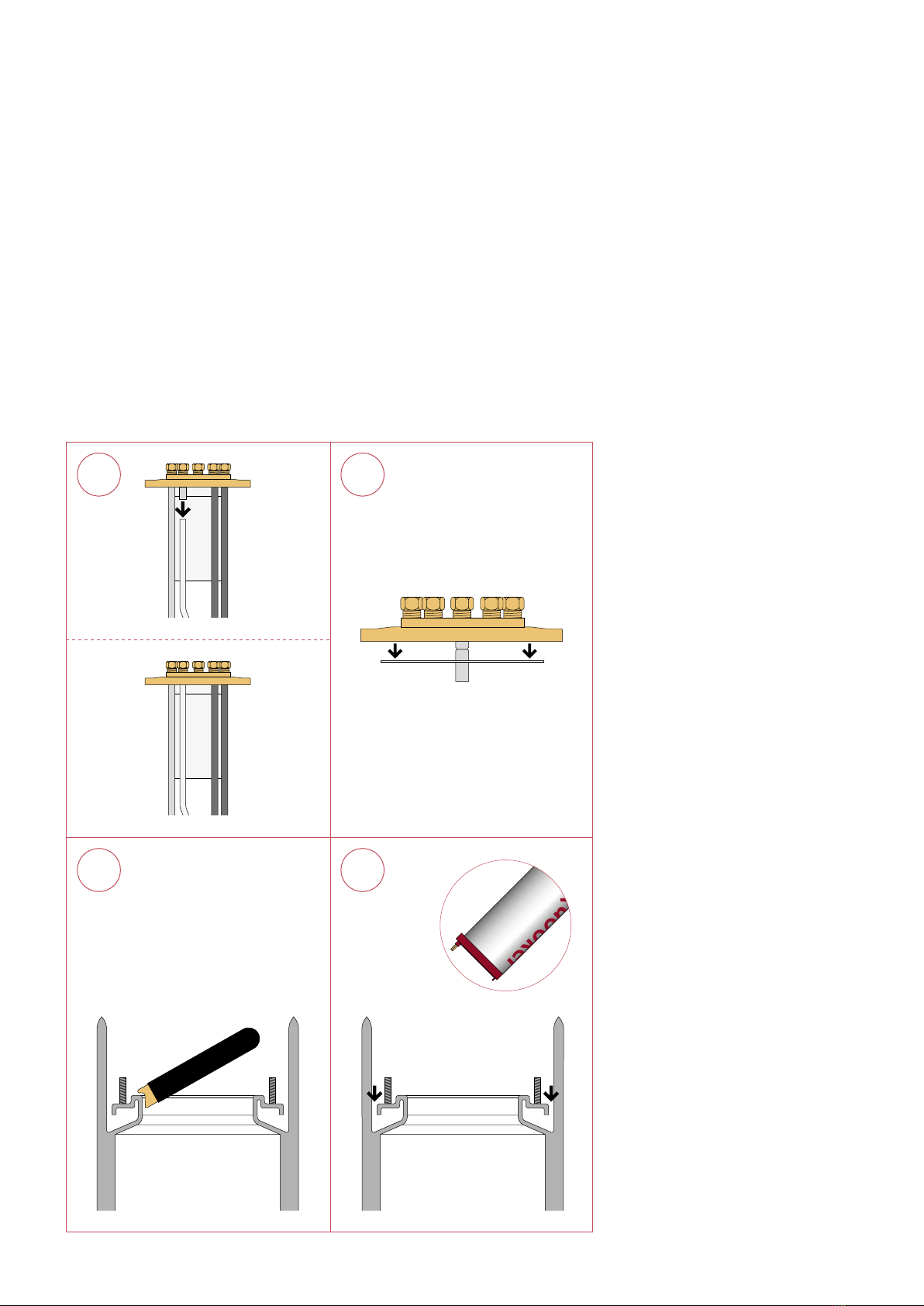

12 Type A internals: remove the transparent hose from the metal nozzle at the top. Clean scale
from the inside of the nozzle, use the allen key to remove any blockages. Push the hose back in
the nozzle all the way.
- Type B internals: move to step 13.
13 Remove the white gasket (G). Ensure that the surface of the plate is dry and clean and put the
new gasket in place.
- Retthelter.
14 Ensure that the rim of the tank is clean by using the scraper and Scotchbrite.
15 Dry the entire rim including the seams and bolts with paper towel, while holding the tank upside
down at an angle.
1312
1514

parallel
16 Toputthetankbacktogethercorrectly,rstplacethetankinfrontofyouwiththeredQuooker
logo facing you. Accurately line up the notch of the red plastic rim with the logo on the outside
of the tank.
17 Replace the internals and line up the Quooker logo on the internals with the notch of the red
ring.
- Place the eight nuts and tighten them in a diagonal sequence.
18 Now turn the tank a quarter turn clockwise. Replace the insulation. Start with the outer piece.
19 Place the two long hoses between the extended part of the red rim and the brass (distance)
nut and push it downward.
17
1918
16

COLD

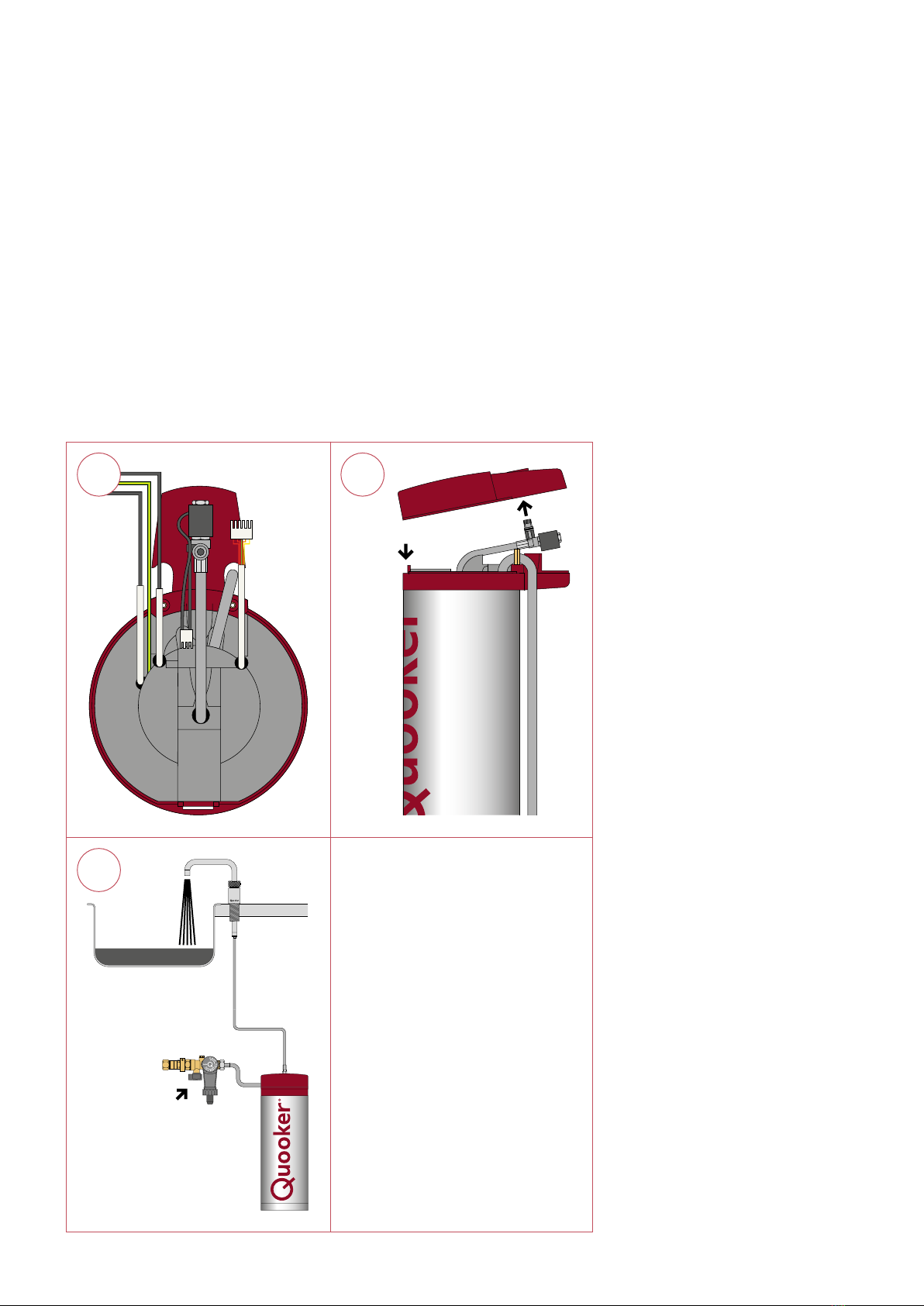

20 Place the hose with the solenoid valve (black cube) over the middle of the insulation.
- Plug the cable connectors into the cover.
21 Push the hose connector partly through the hole in the cover. Place the cover back in the
notch. Push it further into place without pinching the cables. Secure the cap screws.
- In case of a PRO3-VAQ E tank, connect the hose from the inlet combination using the large red
fibre washer. In case of a COMBI E tank, connect the two hoses from the mixing valve.
Connect the tap hose to the tank with the small washer. Connect the LED cable. Plug the tank
back in. Switch the power on but not the tank yet.
22 Open the boiling-water tap, then the grey stop valve on the inlet combination and flush the
tank through for a couple of minutes until the water is clear.
- Check for leaks. Switch the tank on with the Q-shaped button.
20 21
22
Please note
Atrstthewatermaybeblack.Thisisdue
tocarbonfromtheactivatedcarbonlter
and is perfectly harmless.
After switching on the tank, the light
should be on both the tap and tank.
The tank will be fully heated and ready for
use in around 10- 20 minutes. After it has
heatedup,thetaplightwillgooandthe
tank light will change to a fading in and
out (heartbeat light).
From time to time, unscrew the tap nozzle
and descale the aerator in a vinegar-
water solution.
For any further questions, do not hesitate
to contact our service department on
0207 923 33 55 (option 3 for service) or
email us at: [e-mail].

Section 2: Descaling the regular tank
1 Switch off the tank with the Q-shaped button on top. Do not unplug it or switch off the power yet.
2 Open the boiling-water tap. Leave it to run until the water is completely cold and the hose
between the tap and the tank has cooled down.
3 Close the stop valve (small grey knob) on the inlet combination.
4 Open the boiling-water tap. If it is depressurised, no water will flow out of it.
5 Unplug the tank and disconnect the LED cable from the back of the tank.
6 Disconnect the flexible hose between the tap and the tank by turning the nut anti-clockwise
(use spanners 12 and 14).
7 In case of a PRO3-VAQ tank, disconnect the hose from the inlet combination by turning the nut
anti-clockwise (use spanner 24). In case of a COMBI tank, disconnect the two hoses from the
mixing valve (use spanner 17 and 24). Remove the tank from the kitchen cabinet.
Cold Hot
2
3
4
5
6
1
6
7
Gasket, big and small washer
Pipe wrench and allen key
Limescale scraper
8 ×
12
14
O-ring and Scotchbrite

8 Unscrew the cap screws with the supplied allen key, remove the tank cover and disconnect the
wire plugs.
9 Remove the insulation. Start with the centre piece.
10 Use the pipe wrench to unscrew the eight nuts and remove the internals.
11 Remove the filter by pulling the metal clips apart.
- Empty the tank and discard loose scale from it. Please note: There is still water left in the tank.
Use the supplied Scotchbrite with water to lightly remove the bulk of the scale from the tank,
internals and filter.
8
10
9
11
click!
Please note
Do not use any descaling agents or
abbrasive pads when removing scale from
the tank.

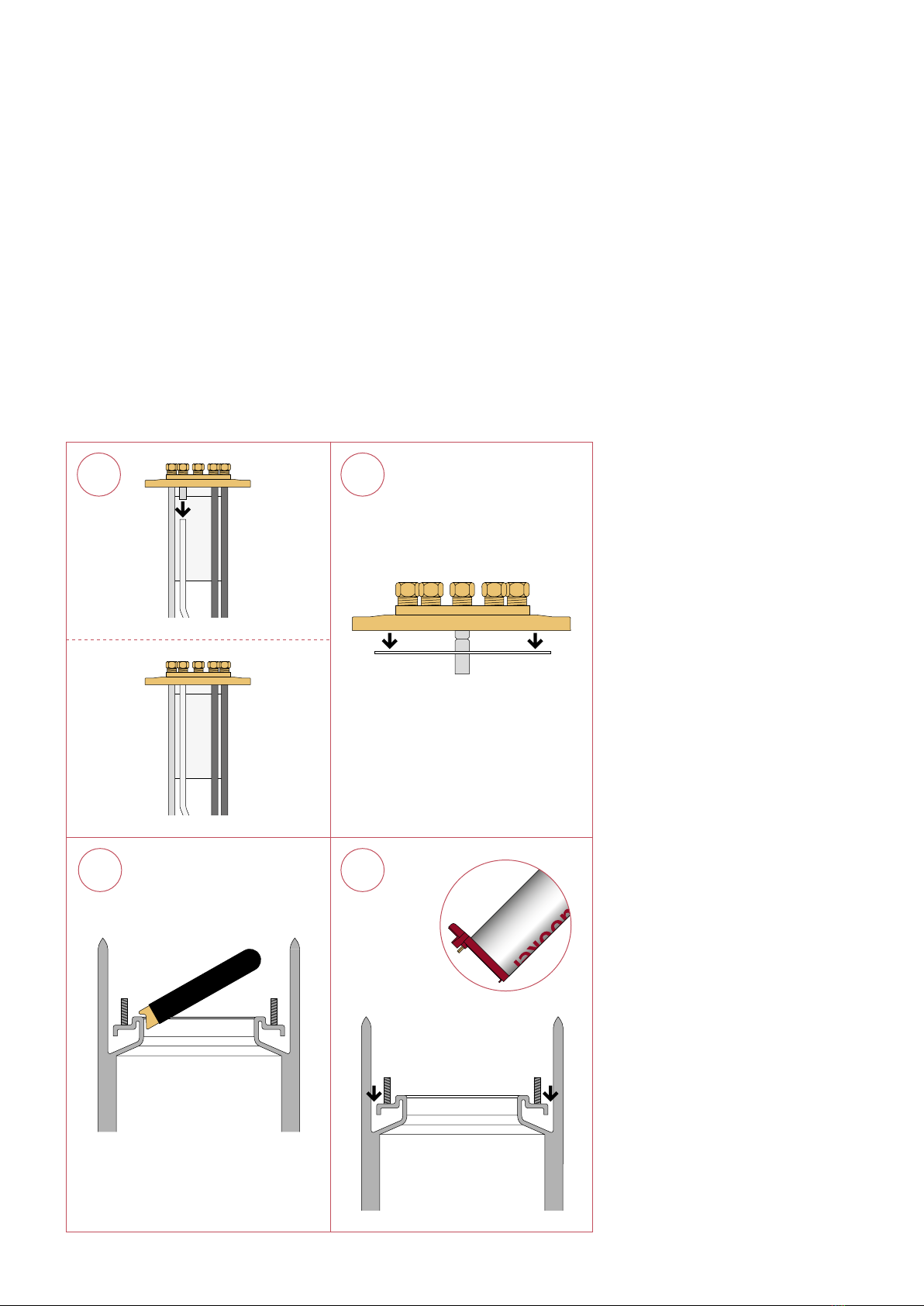

12 Type A internals: remove the transparent hose from the metal nozzle at the top. Clean scale
from the inside of the nozzle, use the allen key to remove any blockages. Push the hose back
onto the nozzle all the way.
- Type B internals: move to step 13.
13 Remove the white gasket (G). Ensure that the surface of the plate is dry and clean and put the
new gasket in place.
- Retthelter.
14 Ensure that the rim of the tank is clean by using the scraper and Scotchbrite.
15 Dry the entire rim including the seams and bolts with paper towel, while holding the tank upside
down at an angle.
12
14
13
15
G
Type A
Type B
Please note
Step12isonlynecessaryiftheowfrom
the tap was reduced. First check if you
have a tank with type A or type B internals.
Take care not to damage the transparent
or braided hose while removing scale
blockages.

parallel

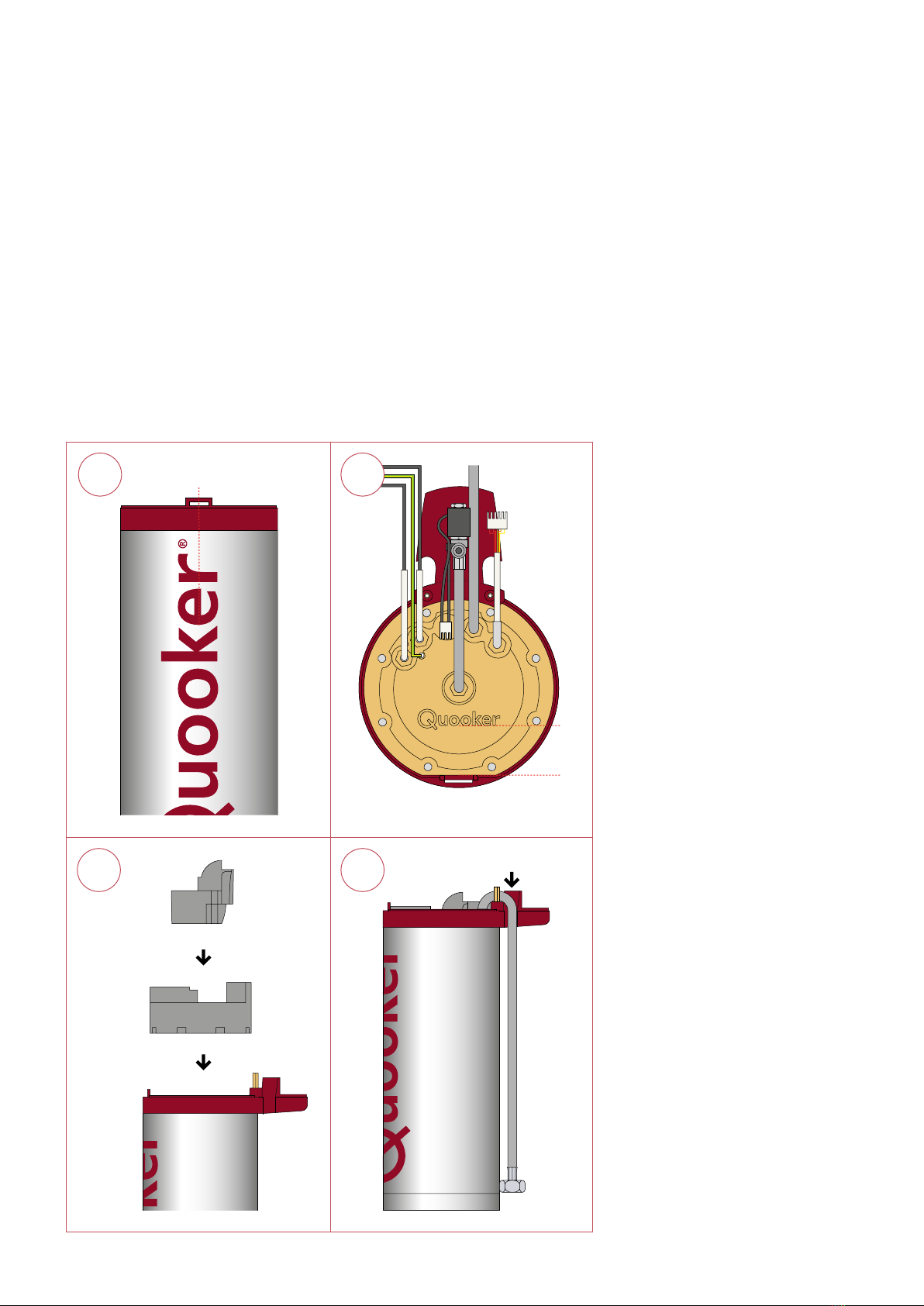

16 Replace the internals and check the positioning of the Quooker logo relative to the front of the
red ring.
- Place the eight nuts and tighten them in a diagonal sequence.
17 Replace the insulation.
- Plug the cable connectors into the cover.
- Replace the tank cover and secure the cap screws. In case of a PRO3-VAQ tank, connect the
hosefromtheinletcombinationusingthelargeredbrewasher.IncaseofaCOMBItank,
connect the two hoses from the mixing valve. Connect the tap hose to the tank with the small
washer. Connect the LED cable. Plug the tank back in. Switch the power on but not the tank yet.
18 Openthetap,thenopenthestopvalveontheinletcombinationandushthetankthrough.
Switch the tank on with the Q-shaped button.
16
18
17
Please note
After switching on the tank, the light
should be on both the tap and tank.
The tank will be fully heated and ready for
use in around 10- 20 minutes. After it has
heatedup,thetaplightwillgooandthe
tank light will change to a fading in and
out (heartbeat light).
From time to time, unscrew the tap nozzle
and descale the aerator in a vinegar-
water solution.
For any further questions, do not hesitate
to contact our service department on
0207 923 33 55 (option 3 for service) or
email us at: [e-mail].
