R.L.DRAKE DDC864 User manual
2
FRONT PANEL CONTROLS and INDICATORS
F1
F2
F3
F4
Figure 1
F4 - Mode Switch
Sets the type of channel, CATV or Broadcast
TV (“BC TV”). The "+100" position of the switch
sets a leading “1” for CATV channels 100
through 135. See also Item F3 for setting the
channel number.
For example: For example:
Setting for CATV Setting for CATV
channel "125"- channel "75"-
F1 - POWER/ERROR Indicator
Lights when the unit is connected to the
required source of DC power via the rear panel
DC INPUT connector. A flashing condition
indicates an invalid channel setting or other
conditions that would cause the unit to operate
on an invalid channel. The RF output is
switched off for flashing (ERROR) conditions.
F2 - SIGNAL Indicator
Lights when a signal is present.
F3 - Channel Number Switch
Sets the desired operating channel for standard
CATV channels 02 through 135 or Broadcast
TV channels 02 through 69. See also Item F4
which sets the type of channel (CATV or
Broadcast TV) and sets the leading “1” for
CATV channels 100 through 135.
DDC864 DIGITAL DOWNCONVERTER 1
TM
12 POSITION RACK MOUNT POWER SUPPLY
DDC864
DOWNCONVERTER
TM is a trademark of the R.L. Drake Company
is a registered trademark of the R.L. Drake Company
Copyright 2006 R.L. Drake Company P/N: 3852391A-1-2006 Printed in the U.S.A.
The R.L. Drake DDC864 is a low noise
downconverter designed for translating
digital signals from their off-air or CATV
channel to a 44 MHz IF output. The output of
the DDC864 can be connected to a DUC
series upconverter to place the digital signal
on a new output channel.
When the DDC864 is used with the DUC550
or DUC860, all input/output channel
combinations are usable except "on
channel" conversions.
When the DDC864 is used with the DUC864,
"on channel" conversions, (the same input
channel on the DCC and output channel on
the DUC) are acceptable.
The DDC864 is optimized for use with ATSC
8VSB modulation in a 6 MHz wide channel
assignment. The passband is designed for
optimized operation with 8VSB signals in an
adjacent channel environment. For translation
of QAM signals, the Drake model QQP860 is
preferred for this task.
The DDC864 provides low noise figure and low
phase noise as well as a flat passband to
minimize signal deterioration.
PS8
POWER SUPPLY
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
CATV TV
BC
+100
CATV
GAIN
DDC864
25
CATV TV
BC
+100
CATV
ERROR
PWR/
GAIN
DUC864
35
CATV TV
BC
+100
CATV
ERROR
PWR/
GAIN
DUC864
28
CATV TV
BC
+100
CATV
GAIN
DDC864
25
DRMM4
SIGNAL
ERROR
PWR/
SIGNAL
ERROR
PWR/
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
25 75
CATV
+100 CATV CATV
+100
CATVBC
TV TV
BC

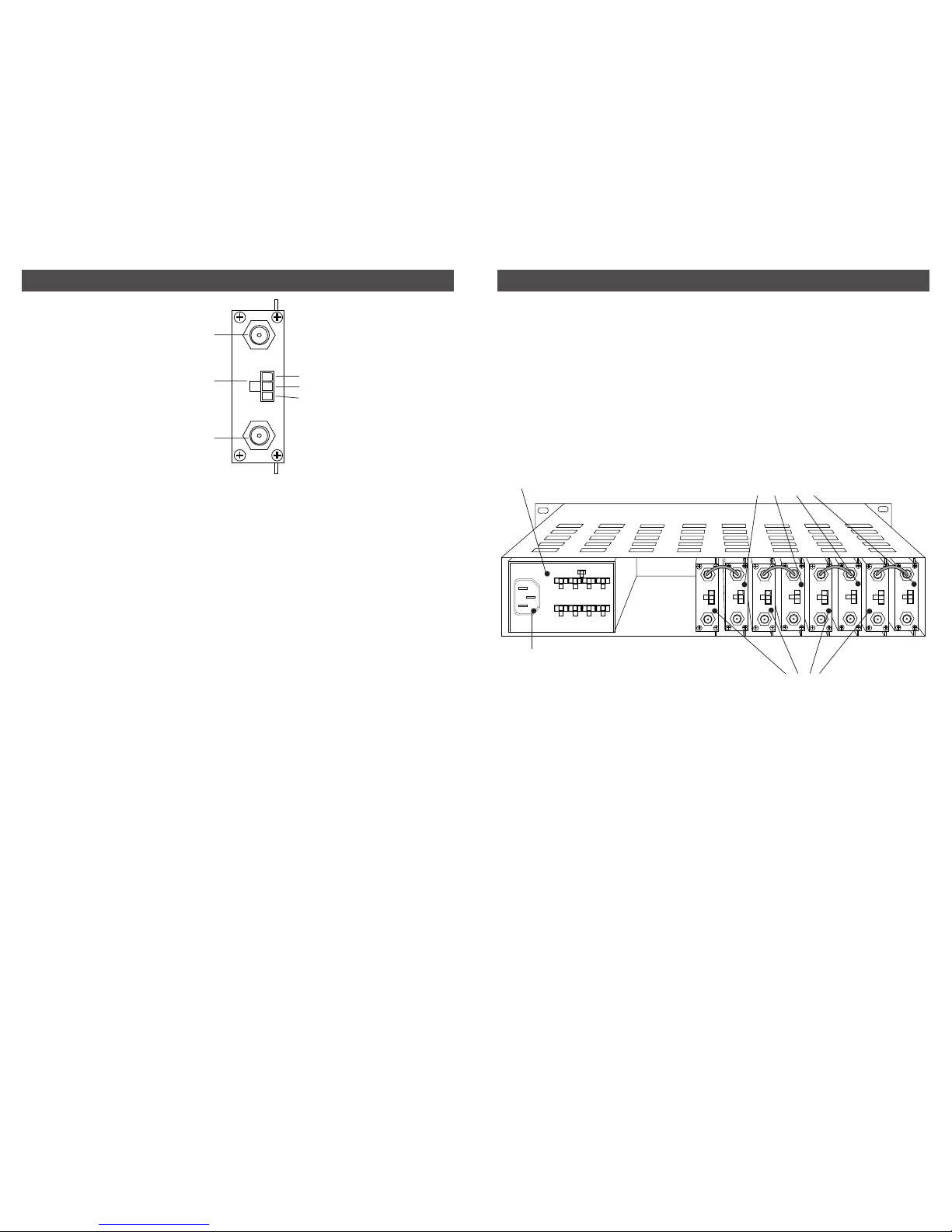

REAR PANEL CONNECTIONS 3
Figure 2
R1
R2
R3
R1 - IF OUTPUT Connector
This is the 44 MHz IF output. The level is
+30 dBmV.
R2 - DC INPUT Connector
This 3-pin connector (Male) accepts the
appropriate mating DC power cable. Observe
proper orientation and wiring.
R3 - RF IN Connector
This is the downconverter RF input from an
antenna or CATV feed.
+12 V
GND
+5 V
4
INSTALLATION
CONNECTIONS AND CONTROLS
All connections to and from each upconverter
are made through the rear panel.
DESCRIPTION
Figure 3 shows a typical installation utilizing the
Drake DRMM12 rack with 4 DDC864
downconverters, and 4 DUC upconverters.
A PS8 power supply module is used to power
all units.
Figure 3
ACPOWER
CONNECTOR
RACK MOUNTING
Adequate ventilation is very important in
multichannel installations. Units should be
spaced apart vertically by at least 1.75"
wherever possible, and some air movement is
mandatory in enclosed rack cabinets.
Excessive heat will shorten component life and
performance will be degraded without
proper cooling.
POWER
SUPPLY
POWER
+12 V
GND
+5 V
IF OUT
RF IN
DDC864
DIGITAL
DOWNCONVERTERS
DUC864
UPCONVERTERS
100-240 V ~
50/60 Hz
85 WATTS
12V GND 5V
DC OUTPUTS X 8
DC OUTPUT RATING.
TOTAL OF ALL OUTPUTS: +5V:6A MAX.
+12V:2.5A MAX. RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
EIA/NCTA
Numeric
Equivalent
86
87
88
89
90
91
92
93
94
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
Frequency
in MHz
597
603
609
615
621
627
633
639
645
651
657
663
669
675
681
687
693
699
705
711
717
723
729
735
741
747
753
759
765
771
777
783
789
795
801
807
813
819
825
831
837
843
849
855
861
CATV CHANNEL INPUT FREQUENCIES 5
TABLE 1:
CATV
Channel
Number
CABLE TV CHANNELS
Center of
Channel
EIA/NCTA
Numeric
Equivalent
2
3
4
5
6
95
96
97
98
99
14
15
16
17
18
19
20
21
22
7
8
9
10
11
12
13
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Frequency
in MHz
57
63
69
79
85
93
99
105
111
117
123
129
135
141
147
153
159
165
171
177
183
189
195
201
207
213
219
225
231
237
243
249
255
261
267
273
279
285
291
297
303
309
315
321
Channel
Number
CABLE TV CHANNELS
Center of
Channel
Channel
Number
CABLE TV CHANNELS
Center of
Channel
EIA/NCTA
Numeric
Equivalent
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
Frequency
in MHz
327
333
339
345
351
357
363
369
375
381
387
393
399
405
411
417
423
429
435
441
447
453
459
465
471
477
483
489
495
501
507
513
519
525
531
537
543
549
555
561
567
573
579
585
591
6
BROADCAST TV CHANNEL INPUT FREQUENCIES
TABLE 2:
BC TV
Center of Channel
Frequency(MHz)
57
63
69
79
85
177
183
189
195
201
207
213
2
3
4
5
6
7
8
9
10
11
12
13
VHF BROADCAST CHANNELS
Channel
Number
473
479
485
491
497
503
509
515
521
527
533
539
545
551
557
563
569
575
581
587
593
599
605
611
617
623
629
635
641
647
653
659
665
671
677
683
689
695
701
707
713
719
725
731
737
743
749
755
761
767
773
779
785
791
797
803
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Center of Channel
Frequency(MHz)
UHF BROADCAST CHANNELS
Channel
Number
CATV TV
BC
+100
CATVCATV
+100 BC
TV
CATV
CATV TV
BC
+100
CATV
CATV TV
BC
+100
CATV
CATV TV
BC
+100
CATV
CATV TV
BC
+100
CATV
SPECIFICATIONS 7
Specifications subject to change without notice or obligation.
54 to 864 MHz;
OFF-AIR channels 2 to 69,
CATV channels 2 to 135.
-30 dBmV to +30 dBmV.
75 Ohms, return loss of 8 dB
10 dB, typical.
55 dB.
44 MHz.
+30 dBmV, ±1 dB.
75 Ohms, return loss of 20 dB
±5 PPM.
6 MHz SAW filtered.
-95 dBc @ 10 kHz offset.
±3 dB over center 5 MHz
50 dB with +10 dBmV input level.
>35 dB (equalized).
+12 V ±5% @ 275 mA .
+5 V ±5% @ 275 mA.
00 C to +500 C ambient.
1” W x 3.5” H x 9.25” D. (2.5 cm) W x (8.9 cm) H x (23.5 cm) D.
14.5 oz. (0.41 Kg).
RF INPUT
Frequency Range:
Input level Range:
Impedance:
Noise Figure:
Image Rejection:
Output
IF Frequency:
Level:
Impedance:
Frequency Stability:
Channel Bandwidth:
SSB Phase Noise:
Amplitude Flatness
(6 MHz Channel):
C/N:
MER with 8VSB:
GENERAL
DC Power Input:
Operating Temperature:
Size:
Weight:
THREE YEAR LIMITED WARRANTYTHREE YEAR LIMITED WARRANTY
THREE YEAR LIMITED WARRANTYTHREE YEAR LIMITED WARRANTY
THREE YEAR LIMITED WARRANTY
R.L. DRAKE COMPANY warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3)
years from the date of original purchase.
During the warranty period the R.L. DRAKE COMPANY or an authorized Drake service facility will provide, free of charge, both parts and
labor necessary to correct defects in material and workmanship. At its option, R.L. DRAKE COMPANY may replace a defective unit.
To obtain such warranty service, the original purchaser must:
(1)(1)
(1)(1)
(1) Retain invoice or original proof of purchase to establish the start of the warranty period.
(2)(2)
(2)(2)
(2) Notify the R.L. DRAKE COMPANY or the nearest authorized service facility, as soon as possible after discovery of a possible defect,
of:
(a) the model and serial number,
(b) the identity of the seller and the approximate date of purchase; and
(c) A detailed description of the problem, including details on the electrical connection to associated equipment and the list of such
equipment.
(3)(3)
(3)(3)
(3) Deliver the product to the R.L. DRAKE COMPANY or the nearest authorized service facility, or ship the same in its original container
or equivalent, fully insured and shipping charges prepaid.
Correctmaintenance,repair,andusearenecessarytoobtain properperformancefrom thisproduct. Thereforecarefully readtheInstruction
Manual. This warranty does not apply to any defect that R.L. DRAKE COMPANY determines is due to:
(1)(1)
(1)(1)
(1) Improper maintenance or repair, including the installation of parts or accessories that do not conform to the quality and specifications
of the original parts.
(2)(2)
(2)(2)
(2) Misuse, abuse, neglect or improper installation.
(3)(3)
(3)(3)
(3) Accidental or intentional damage.
All implied warranties, if any, including warranties of merchantability and fitness for a particular purpose, terminate three (3) years from the
date of the original purchase.
The foregoing constitutes R.L. DRAKE COMPANY’S entire obligation with respect to this product, and the original purchaser shallhave no
other remedy and no claim for incidental or consequential damages, losses or expenses. Some states do not allow limitations on how long
an implied warranty lasts or do not allow the exclusions or limitation of incidental or consequential damages, so the above limitation and
exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty shall be
construed under the laws of Ohio.
8
WARRANTY AND SPECIFICATIONS
R.L. DRAKE COMPANY
230 INDUSTRIAL DRIVE
FRANKLIN, OHIO 45005 U.S.A.
CUSTOMER SERVICE AND PARTS TELEPHONE: +1 (937) 746-6990
TELEFAX:+1(937)806-1576
WORLD WIDE WEB SITE: http://www.rldrake.com
THREE YEAR LIMITED WARRANTYTHREE YEAR LIMITED WARRANTY
THREE YEAR LIMITED WARRANTYTHREE YEAR LIMITED WARRANTY
THREE YEAR LIMITED WARRANTY
R.L. DRAKE COMPANY warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3)
years from the date of original purchase.
During the warranty period the R.L. DRAKE COMPANY or an authorized Drake service facility will provide, free of charge, both parts and
labor necessary to correct defects in material and workmanship. At its option, R.L. DRAKE COMPANY may replace a defective unit.
To obtain such warranty service, the original purchaser must:
(1)(1)
(1)(1)
(1) Retain invoice or original proof of purchase to establish the start of the warranty period.
(2)(2)
(2)(2)
(2) Notify the R.L. DRAKE COMPANY or the nearest authorized service facility, as soon as possible after discovery of a possible defect,
of:
(a) the model and serial number,
(b) the identity of the seller and the approximate date of purchase; and
(c) A detailed description of the problem, including details on the electrical connection to associated equipment and the list of such
equipment.
(3)(3)
(3)(3)
(3) Deliver the product to the R.L. DRAKE COMPANY or the nearest authorized service facility, or ship the same in its original container
or equivalent, fully insured and shipping charges prepaid.
Correctmaintenance,repair,andusearenecessarytoobtain properperformancefrom thisproduct. Thereforecarefully readtheInstruction
Manual. This warranty does not apply to any defect that R.L. DRAKE COMPANY determines is due to:
(1)(1)
(1)(1)
(1) Improper maintenance or repair, including the installation of parts or accessories that do not conform to the quality and specifications
of the original parts.
(2)(2)
(2)(2)
(2) Misuse, abuse, neglect or improper installation.
(3)(3)
(3)(3)
(3) Accidental or intentional damage.
All implied warranties, if any, including warranties of merchantability and fitness for a particular purpose, terminate three (3) years from the
date of the original purchase.
The foregoing constitutes R.L. DRAKE COMPANY’S entire obligation with respect to this product, and the original purchaser shallhave no
other remedy and no claim for incidental or consequential damages, losses or expenses. Some states do not allow limitations on how long
an implied warranty lasts or do not allow the exclusions or limitation of incidental or consequential damages, so the above limitation and
exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty shall be
construed under the laws of Ohio.
8
WARRANTY AND SPECIFICATIONS
R.L. DRAKE COMPANY
230 INDUSTRIAL DRIVE
FRANKLIN, OHIO 45005 U.S.A.
CUSTOMER SERVICE AND PARTS TELEPHONE: +1 (937) 746-6990
TELEFAX:+1(937)806-1576
WORLD WIDE WEB SITE: http://www.rldrake.com
DDC864 DIGITAL DOWNCONVERTER 1
TM
12 POSITION RACK MOUNT POWER SUPPLY
DDC864
DOWNCONVERTER
TM is a trademark of the R.L. Drake Company
is a registered trademark of the R.L. Drake Company
Copyright 2006 R.L. Drake Company P/N: 3852391A-1-2006 Printed in the U.S.A.
The R.L. Drake DDC864 is a low noise
downconverter designed for translating
digital signals from their off-air or CATV
channel to a 44 MHz IF output. The output of
the DDC864 can be connected to a DUC
series upconverter to place the digital signal
on a new output channel.
When the DDC864 is used with the DUC550
or DUC860, all input/output channel
combinations are usable except "on
channel" conversions.
When the DDC864 is used with the DUC864,
"on channel" conversions, (the same input
channel on the DCC and output channel on
the DUC) are acceptable.
The DDC864 is optimized for use with ATSC
8VSB modulation in a 6 MHz wide channel
assignment. The passband is designed for
optimized operation with 8VSB signals in an
adjacent channel environment. For translation
of QAM signals, the Drake model QQP860 is
preferred for this task.
The DDC864 provides low noise figure and low
phase noise as well as a flat passband to
minimize signal deterioration.
PS8
POWER SUPPLY
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
DUC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
21
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
CATV TV
BC
+100
CATV
GAIN
DDC864
25
CATV TV
BC
+100
CATV
ERROR
PWR/
GAIN
DUC864
35
CATV TV
BC
+100
CATV
ERROR
PWR/
GAIN
DUC864
28
CATV TV
BC
+100
CATV
GAIN
DDC864
25
DRMM4
SIGNAL
ERROR
PWR/
SIGNAL
ERROR
PWR/
2
FRONT PANEL CONTROLS and INDICATORS
F1
F2
F3
F4
Figure 1
F4 - Mode Switch
Sets the type of channel, CATV or Broadcast
TV (“BC TV”). The "+100" position of the switch
sets a leading “1” for CATV channels 100
through 135. See also Item F3 for setting the
channel number.
For example: For example:
Setting for CATV Setting for CATV
channel "125"- channel "75"-
F1 - POWER/ERROR Indicator
Lights when the unit is connected to the
required source of DC power via the rear panel
DC INPUT connector. A flashing condition
indicates an invalid channel setting or other
conditions that would cause the unit to operate
on an invalid channel. The RF output is
switched off for flashing (ERROR) conditions.
F2 - SIGNAL Indicator
Lights when a signal is present.
F3 - Channel Number Switch
Sets the desired operating channel for standard
CATV channels 02 through 135 or Broadcast
TV channels 02 through 69. See also Item F4
which sets the type of channel (CATV or
Broadcast TV) and sets the leading “1” for
CATV channels 100 through 135.
SPECIFICATIONS 7
Specifications subject to change without notice or obligation.
54 to 864 MHz;
OFF-AIR channels 2 to 69,
CATV channels 2 to 135.
-30 dBmV to +30 dBmV.
75 Ohms, return loss of 8 dB
10 dB, typical.
55 dB.
44 MHz.
+30 dBmV, ±1 dB.
75 Ohms, return loss of 20 dB
±5 PPM.
6 MHz SAW filtered.
-95 dBc @ 10 kHz offset.
±3 dB over center 5 MHz
50 dB with +10 dBmV input level.
>35 dB (equalized).
+12 V ±5% @ 275 mA.
+5 V ±5% @ 275 mA.
00 C to +500 C ambient.
1” W x 3.5” H x 9.25” D. (2.5 cm) W x (8.9 cm) H x (23.5 cm) D.
14.5 oz. (0.41 Kg).
RFINPUT
Frequency Range:
Input level Range:
Impedance:
Noise Figure:
Image Rejection:
Output
IF Frequency:
Level:
Impedance:
Frequency Stability:
Channel Bandwidth:
SSB Phase Noise:
Amplitude Flatness
(6 MHz Channel):
C/N:
MER with 8VSB:
GENERAL
DC Power Input:
Operating Temperature:
Size:
Weight:
DDC864
GAIN
PWR/
ERROR
CATV
+100 BC
TV
CATV
25
SIGNAL
25 75
CATV
+100 CATV CATV
+100
CATVBC
TV TV
BC
6
BROADCAST TV CHANNEL INPUT FREQUENCIES
TABLE 2:
BC TV
Center of Channel
Frequency (MHz)
57
63
69
79
85
177
183
189
195
201
207
213
2
3
4
5
6
7
8
9
10
11
12
13
VHFBROADCASTCHANNELS
Channel
Number
473
479
485
491
497
503
509
515
521
527
533
539
545
551
557
563
569
575
581
587
593
599
605
611
617
623
629
635
641
647
653
659
665
671
677
683
689
695
701
707
713
719
725
731
737
743
749
755
761
767
773
779
785
791
797
803
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
Center of Channel
Frequency (MHz)
UHFBROADCASTCHANNELS
Channel
Number
REAR PANEL CONNECTIONS 3
Figure 2
R1
R2
R3
R1 - IF OUTPUT Connector
This is the 44 MHz IF output. The level is
+30 dBmV.
R2 - DC INPUT Connector
This 3-pin connector (Male) accepts the
appropriate mating DC power cable. Observe
proper orientation and wiring.
R3 - RF IN Connector
This is the downconverter RF input from an
antenna or CATV feed.
+12 V
GND
+5 V
POWER
+12 V
GND
+5 V
IF OUT
RF IN
CATV TV
BC
+100
CATV
CATV TV
BC
+100
CATV
EIA/NCTA
Numeric
Equivalent
86
87
88
89
90
91
92
93
94
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
Frequency
in MHz
597
603
609
615
621
627
633
639
645
651
657
663
669
675
681
687
693
699
705
711
717
723
729
735
741
747
753
759
765
771
777
783
789
795
801
807
813
819
825
831
837
843
849
855
861
CATV CHANNEL INPUT FREQUENCIES 5
TABLE 1:
CATV
Channel
Number
CABLE TV CHANNELS
Center of
Channel
EIA/NCTA
Numeric
Equivalent
2
3
4
5
6
95
96
97
98
99
14
15
16
17
18
19
20
21
22
7
8
9
10
11
12
13
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Frequency
in MHz
57
63
69
79
85
93
99
105
111
117
123
129
135
141
147
153
159
165
171
177
183
189
195
201
207
213
219
225
231
237
243
249
255
261
267
273
279
285
291
297
303
309
315
321
Channel
Number
CABLE TV CHANNELS
Center of
Channel
Channel
Number
CABLE TV CHANNELS
Center of
Channel
EIA/NCTA
Numeric
Equivalent
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
Frequency
in MHz
327
333
339
345
351
357
363
369
375
381
387
393
399
405
411
417
423
429
435
441
447
453
459
465
471
477
483
489
495
501
507
513
519
525
531
537
543
549
555
561
567
573
579
585
591
4
INSTALLATION
CONNECTIONSAND CONTROLS
All connections to and from each upconverter
are made through the rear panel.
DESCRIPTION
Figure 3 shows a typical installation utilizing the
Drake DRMM12 rack with 4 DDC864
downconverters, and 4 DUC upconverters.
A PS8 power supply module is used to power
all units.
Figure 3
ACPOWER
CONNECTOR
RACK MOUNTING
Adequate ventilation is very important in
multichannel installations. Units should be
spaced apart vertically by at least 1.75"
wherever possible, and some air movement is
mandatory in enclosed rack cabinets.
Excessive heat will shorten component life and
performance will be degraded without
proper cooling.
POWER
SUPPLY DDC864
DIGITAL
DOWNCONVERTERS
DUC864
UPCONVERTERS
100-240 V ~
50/60 Hz
85 WATTS
12V GND 5V
DC OUTPUTS X 8
DC OUTPUT RATING.
TOTAL OF ALL OUTPUTS: +5V:6A MAX.
+12V:2.5A MAX. RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
RF IN
IF OUT
+5 V
GND
+12 V
POWER
IF IN
POWER
+12 V
GND
+5 V
RF OUT
CATV TV
BC
+100
CATV
CATV TV
BC
+100
CATVCATV
+100 BC
TV
CATV
CATV TV
BC
+100
CATV
Table of contents
Other R.L.DRAKE Media Converter manuals
