RAB Lighting FERN Pagoda LL Series User manual

Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [e-mail]
FERN PAGODA INSTALLATION INSTRUCTIONS
TM
LLFCLED6LV LL1LED6LV LL2LED6LV
GROUND MOUNTING
To mount Pagoda LL series, follow the steps below -

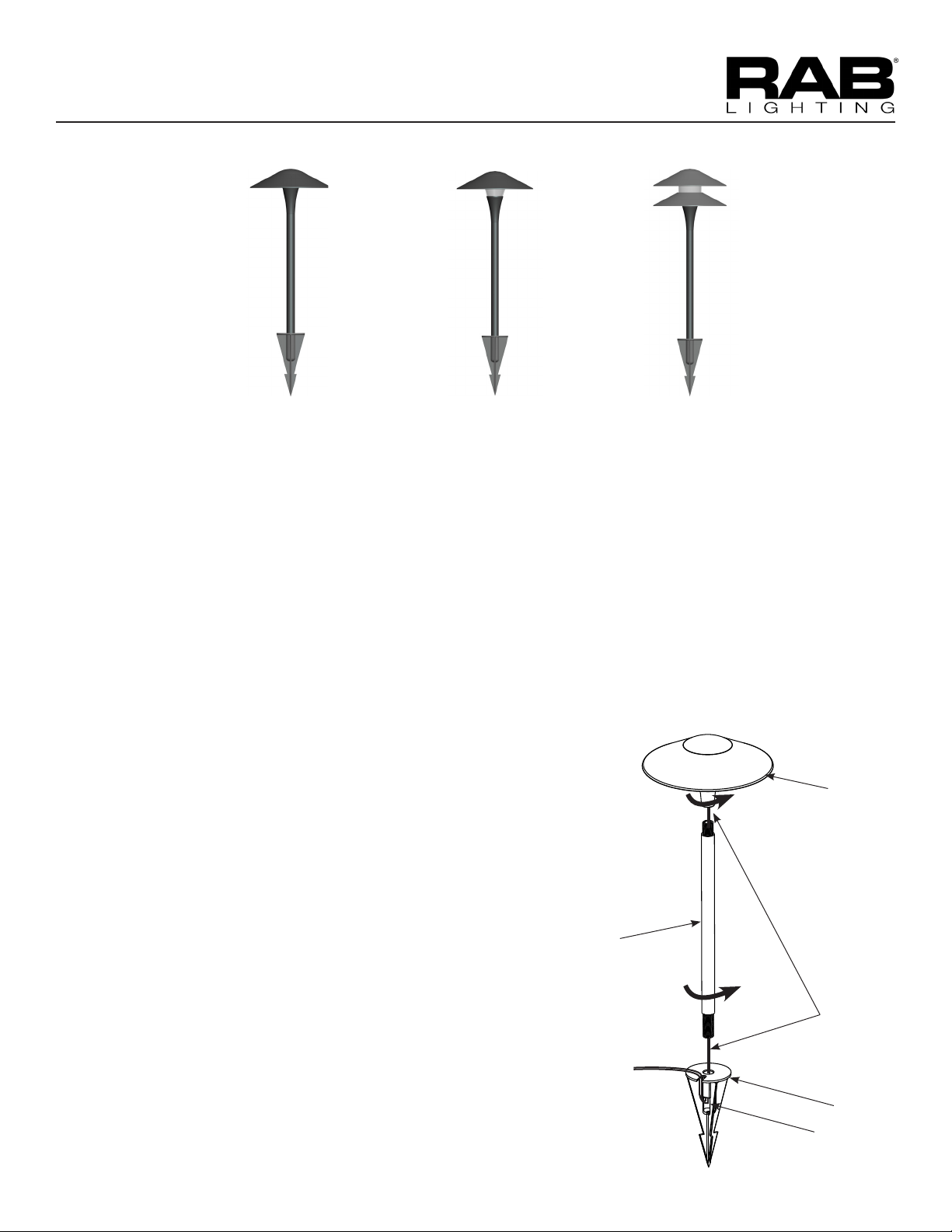

1. Feed the Fixture Leads from Shade into Stem. Rotate
Shade and secure to the Stem. Be careful not to pinch
wires.
2. Hammer Spike8 into desired location on ground in such
a way that the Wireway Slot isn’t underground yet.
Note - To avoid damage to Spike8, place a board on
top of Spike8 while hammering.
3. Feed Fixture Leads from Stem into the Spike8. Pull
Fixture Leads through Wireway Slot as shown in
gure and complete electrical connections using RAB
recommended connectors (ordered separately) to
transformer (ordered separetely) or Low Voltage Fixture.
Note - Pagoda/ LL series is supplied with 56 inches of
Fixture Leads out of the xture.
4. Rotate Stem/ Shade and secure to Spike8. Be careful
not to pinch wires.
5. Carefully hammer the Spike8 ush into the ground
without damaging the Fixture Leads.
WARNING: To prevent wiring damage or abrasion, do
not expose wiring to edges of sharp objects.
Rotate
Rotate
To the Transformer/
Low Voltage xture
Shade
Stem
Spike8
Fixture Leads
Wireway Slot
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. THIS PRODUCT MUST BE
INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
WARNING: For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
rmly.
WARNING: MAX 12VAC ONLY.
WARNING: The main low voltage cable is intended for shallow burial - less than 6 inches (152 mm).
WARNING: Risk of Electric Shock. Install all luminaires 10 feet (3.05 m) or more from a pool, spa, or fountain.

Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [e-mail]
FERN PAGODA INSTALLATION INSTRUCTIONS
TM
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation operation
or maintenance.
Easy Answers
rabweb.com
Visit our website for product info
Tech Help Line
Call our experts - 888 722-1000
e-mail
Answered promptly - [e-mail]
Free Lighting Layouts
Answered online or by request
© 2017 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
Pagoda LL IN 0217
WIRING
The Pagoda/ LL series permits operation only at 12 VAC.
Wire xture using UL approved wire connectors (ordered
separately) for SPT-1 cord.
ACCESSORIES
Following accessories should be ordered separately -
FERNFCC Fixture to Cable Connector
FERNCCC Cable to Cable Connector
CORD16/12V-100 16GA SPT-2W 12V 3.7A 100FT cord
SPIKE14 14 inches Spike
RTX1275TPC 75W Transfomer with Timer and Swivel
Photocell
RTX12100TPC 100W Transfomer with Timer and Swivel
Photocell
FERNLLSFCx Full Cut O Shade only*
FERNLLS1x 1 Tier Shade only*
FERNLLS2x 2 Tier Shade only*
FERNLLSTx Stem only*
* x denotes xture nish. A for Bronze, B for Black, D for Sand
and W for White.
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough
to touch. Do not clean or maintain while xture is
energized.
1. Lens should be washed in a solution of warm water and
any mild, non abrasive household detergent, rinsed with
clean water and wiped dry.
2. Do not open xture to clean the LED. Do not touch the
LED.
TROUBLESHOOTING
1. Check that the voltage at xture is correct. Refer to wiring
directions.
Use UL approved wiring connectors for SPT-1 cord
