Radio Shack ET-550 User manual

Cat. No. 43-1050A
OWNER’S MANUAL
Please read before using this equipment.
ET-550
25-Channel Dual Keypad
Cordless Telephone
43-1050a.fm Page 1 Tuesday, August 17, 1999 12:56 PM

2
FEATURES
Your RadioShack ET-550 25-Channel
Dual Keypad Cordless Telephone is
designed to exacting standards that
ensure reliability, long life, and out-
standing performance.
Its features include:
Dual Ke
y
pads — a full set of keys on
both the ET-550’s handset and base
let you use either keypad to make and
answer calls or program the phone’s
features.
Speakerphone — lets you make or
answer calls without using the hand-
set.
Super CCT Noise-Reduction Cir-
cuitr
y
— provides clear telephone
conversations, giving you sound clarity
comparable to that of a corded phone.
25 Channels — lets you change to a
clearer channel during a call if you no-
tice interference.
20-Number Memor
y
Dialin
g
— lets
you store up to 20 numbers in memory
— 10 on the handset and 10 on the
base — for easy dialing.
Securit
y
Access-Protection Code —
automatically prevents other cordless
phone users from using your phone
line while the handset is off the base.
COM-LOK®— ensures that other
cordless phone users cannot use your
phone line when the handset is on the
base.
Quick Talk — lets you make or an-
swer a call by simply lifting the handset
from the base.
Pa
g
in
g
/Two-Wa
y
Intercom S
y
stem
— lets you send a signal from the base
to the handset, or from the handset to
the base, so you can page someone or
easily locate the handset when it is
away from the base. If someone an-
swers, you can use the ET-550 like a
two-way intercom.
Redial — lets you quickly redial the
last number dialed.
Flash — sends an electronic switch-
hook signal for use with special phone
services, such as Call Waiting.
Tone/Pulse Dialin
g
— lets you use
your phone with either type of service.
Hearin
g
-Aid Compatibilit
y
— lets
you use your phone with hearing aids
that have a T (telephone) switch.
© 1997 Tandy Corporation.
All Rights Reserved.
RadioShack is a registered trademark used by Tandy Corporation.
43-1050a.fm Page 2 Tuesday, August 17, 1999 12:56 PM

3
Important Note: Cordless phones
such as this one require AC power to
operate. When the AC power is off,
you cannot dial out or receive incom-
ing calls using your ET-550. To be
safe, you should also have a phone
that does not need AC power to oper-
ate (not a cordless phone) so you can
still make and receive calls if there is
an AC power failure.
Your telephone operates on standard
radio frequencies as allocated by the
FCC. Even though the access protec-
tion code prevents unauthorized use
of your phone line, it is possible for
other radio units operating on similar
frequencies within a certain area to
unintentionally intercept your conver-
sations and/or cause interference.
This lack of privacy can occur with any
cordless phone.
We recommend you record your
phone’s serial number here. The num-
ber is on the bottom panel of the base.
Serial Number: __________________
This telephone has been tested and
found to comply with all applicable UL
and FCC standards.
.
This symbol is intended to alert
you to the presence of uninsu-
lated dan
g
erous volta
g
e within
the phone’s enclosure that
mi
g
ht be of sufficient ma
g
nitude
to constitute a risk of electric
shock. Do not open the phone’s
case.
This symbol is intended to in-
form you that important operat-
in
g
and maintenance
instructions are included in the
literature accompanyin
g
this
phone.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICE-
ABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED PERSONNEL.
Warning: To prevent fire or shock
hazard, do not expose this phone
to rain or moisture.
CAUTION
!
!
43-1050a.fm Page 3 Tuesday, August 17, 1999 12:56 PM

4
READ THIS BEFORE
INSTALLATION
Each device that you connect to the
phone line draws power from the
phone line. We refer to this power draw
as the device’s
Ringer Equivalence
Number
, or REN. The REN is shown
on the bottom of the base.
If you are using more than one phone
or other device on the line, add up all
the RENs. If the total is more than five,
your phones might not ring. In rural ar-
eas, a total REN of three might impair
ringer operation. If ringer operation is
impaired, remove a device from the
line.
FCC STATEMENT
This telephone complies with Part 68
of
FCC Rules
. You must, upon re-
quest, provide the FCC Registration
Number and the REN to your phone
company. These numbers are shown
on the bottom of the base.
Note: You must not connect your
phone to any of the following:
• Coin-operated systems
• Party-line systems
• Most electronic key phone sys-
tems
43-1050a.fm Page 4 Tuesday, August 17, 1999 12:56 PM

5
CONTENTS
Installation ............................................................................................................ 6
Selecting a Location ........................................................................................ 6
Placing the Base on a Desk Top ............................................................... 6
Mounting the Base on a Wall Plate ........................................................... 7
Mounting the Base Directly on the Wall .................................................... 9
Connecting and Charging the Battery ........................................................... 10
Setting the Dialing Mode ............................................................................... 12
Turning the Ringer On/Off ............................................................................. 12
Operation ............................................................................................................ 13
Making and Receiving Calls .......................................................................... 13
Using the Handset .................................................................................. 13
Using the Speakerphone ........................................................................ 13
Switching Between the Handset and Speakerphone ............................. 14
Using Both the Handset and Speakerphone .......................................... 14
Changing the Channel ............................................................................ 14
Putting a Call on Hold ................................................................................... 14
Using the Paging/Intercom Features ............................................................ 15
Using Redial .................................................................................................. 16
Using Flash ................................................................................................... 16
Using Tone Services on a Pulse Line ........................................................... 17
Memory Dialing ............................................................................................. 17
Storing a Number in Memory .................................................................. 17
Entering a Pause .................................................................................... 18
Dialing a Memory Number ...................................................................... 19
Chain-Dialing Service Numbers ............................................................. 19
Testing Stored Emergency Numbers ..................................................... 19
Troubleshootin
g
................................................................................................ 20
Care and Maintenance ...................................................................................... 22
Replacing the Battery .................................................................................... 23
The FCC Wants You to Know ....................................................................... 24
Lightning ....................................................................................................... 24
43-1050a.fm Page 5 Tuesday, August 17, 1999 12:56 PM

6
INSTALLATION
SELECTING A LOCATION
You can place the phone on a desk top
or table, or mount it on a wall. Select a
location that is:
• near an AC outlet
• near a telephone line jack
• out of the way of normal activities
• away from electrical machinery,
electrical appliances, metal walls
or filing cabinets, wireless inter-
coms, alarms, and room monitors
• away from other cordless phones
The base’s location affects the hand-
set’s range. If you have a choice of
several locations, try each to see
which provides the best performance.
Caution: The supplied RadioShack
adapter was designed specifically for
your ET-550. Use only the supplied
adapter.
Notes:
• Your telephone connects directly
to a modular telephone line jack. If
your phone line jack is not a mod-
ular jack, you can update the wir-
ing yourself, using jacks and
adapters available at your local
RadioShack store. Or, you can let
the phone company update the
wiring for you.
• The USOC number of the jack to
be installed is RJ11C (RJ11W if
you want to mount it on a wall
plate).

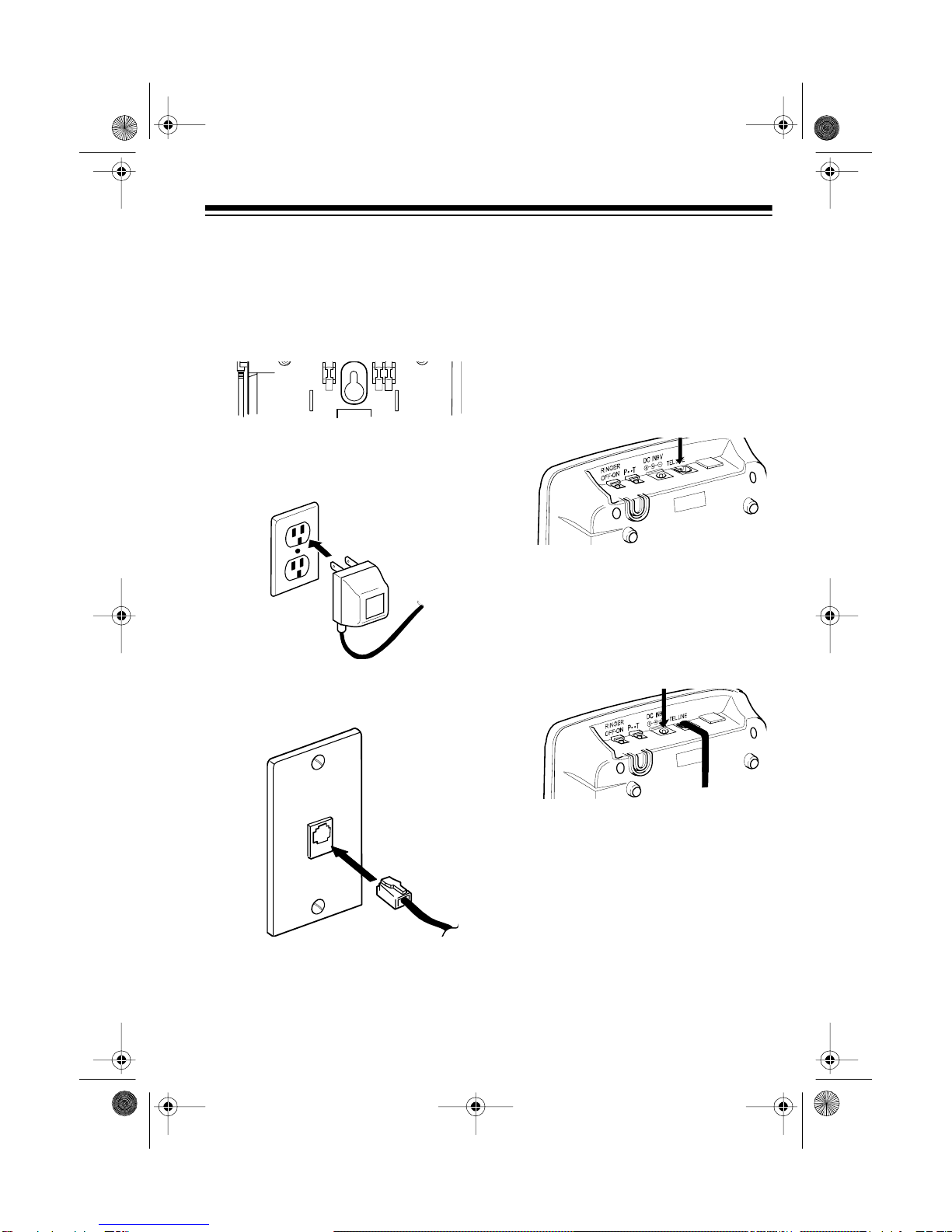

Placing the Base
on a Desk Top
Follow these steps when you place
the base on a desk, shelf, or table.
1. Plug one end of the supplied mod-
ular cord into the TEL LINE jack on
the back of the base.
2. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.
43-1050a.fm Page 6 Tuesday, August 17, 1999 12:56 PM

7
3. Route the adapter’s cord through
the strain relief slot on top of the
base.
4. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
5. Plug the modular cord’s other end
into a modular phone line jack.
6. Fully extend the base’s antenna
and place it in a vertical position.
Mounting the Base
on a Wall Plate
1. Plug one end of a short modular
cord (such as Cat. No. 279-390,
not supplied) into the TEL LINE
jack on the back of the base.
2. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.
43-1050a.fm Page 7 Tuesday, August 17, 1999 12:56 PM

8
3. Route the modular cord through
the upper groove and the adapter
cord through both the upper and
lower grooves on the bottom of
the base.
4. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
5. Plug the short modular cord’s
other end into the wall plate jack,
then align the base’s keyhole slots
with the wall plate studs and slide
the base downward to secure it.
6. Press and lift out the handset
holder, rotate it 180°, then snap it
back into place so it holds the
handset.
7. Fully extend the base’s antenna
and place it in a vertical position.
Lower
Groove Upper
Grooves
43-1050a.fm Page 8 Tuesday, August 17, 1999 12:56 PM

9
Mounting the Base
Directly on the Wall
For this mounting method, you need
two wood screws (not supplied) with
heads that fit into the keyhole slots on
the bottom of the base.
1. Drill two holes 315/16
inches apart. Then
thread a screw into
each hole, letting
the heads extend
about
5/16 inch from
the wall.
2. Plug one end of the supplied mod-
ular cord into the TEL LINE jack on
the back of the base.
3. Insert the supplied AC adapter’s
barrel plug into the DC IN 9V jack
on the back of the base.
4. Route the supplied modular cord
and the adapter cord through both
the upper and lower grooves on
the bottom of the base.
5. Plug the adapter into a standard
AC outlet. The POWER indicator
on the base lights.
315/16
5/16
5/16
Lower
Grooves Upper
Grooves
43-1050a.fm Page 9 Tuesday, August 17, 1999 12:56 PM

10
6. Plug the modular cord’s other end
into a modular phone line jack.
7. Align the keyhole slots with the
mounting screws and slide the
base downward to secure it.
8. Press and lift out the handset
holder, rotate it 180°, then snap it
back into place so it holds the
handset.
9. Fully extend the base’s antenna
and place it in a vertical position.
CONNECTING AND
CHARGING THE
BATTERY
The ET-550 comes with a recharge-
able nickel-cadmium battery installed
in the handset. Before using your
phone’s handset, you must connect
the battery, then charge it for about 14
hours.
1. Using a Phillips screwdriver,
remove the screw on the battery
compartment cover on the bottom
of the handset. Then press down
and slide off the cover in the direc-
tion of the arrow.
2. Insert the battery pack’s plastic
connector into the phone’s socket.
The plug fits only one way.
43-1050a.fm Page 10 Tuesday, August 17, 1999 12:56 PM
