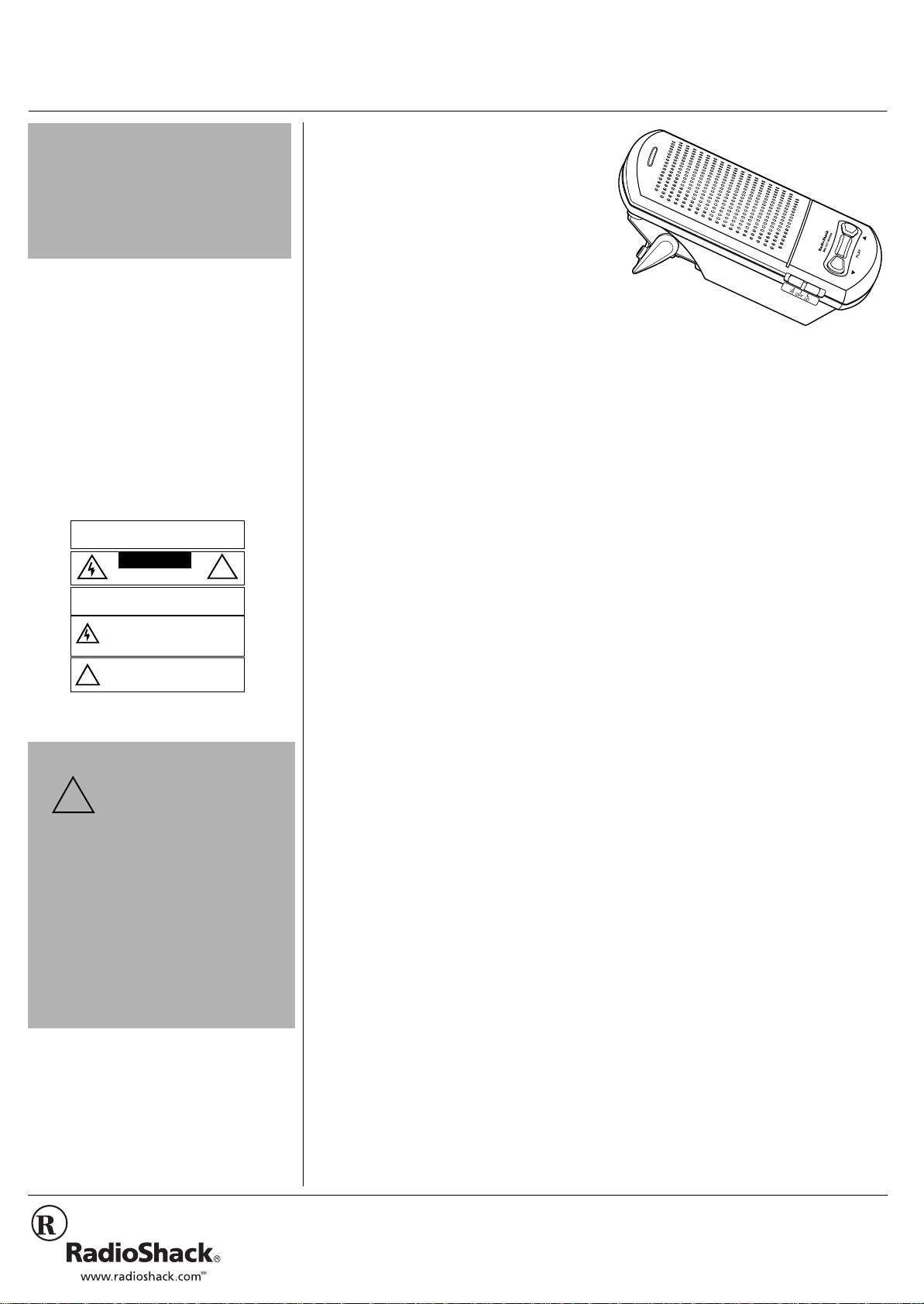

43-2206 OWNER’S MANUAL — Please read before using this equipment.
Thank you for purchasing the RadioShack
Melody Maker. You can use it to play a mel-
ody or sound a distinctive ring when your
phone rings. The Melody Maker has 15
melodies and 5 distinctive ring tones you
can choose, and works with all phones.
(%%"+0(14/#6+10
Your Melody Maker complies with Part 68 of
FCC Rules
. You must, upon request, pro-
vide the FCC registration number and the
REN to your telephone company. Both num-
bers are on the bottom of the unit.
You must not connect your Melody Maker
to:
• coin-operated systems
• party-line systems
• most electronic key telephone systems
We have designed your Melody Maker to
conform to federal regulations, and you can
connect it to most telephone lines. However,
each Melody Maker (and each device, such
as a telephone or answering machine) that
you connect to the telephone line draws
power from the telephone line. We refer to
this power draw as the device's ringer
equivalence number, or REN on the bottom
of your Melody Maker.
If you use more than one phone or other
device on the line, add up all of the RENs. If
the total is more than five (three in rural
areas), your telephones might not ring. If
ringer operation is impaired, remove a
device from the line.
In the unlikely event that your phone causes
problems on the phone line, the phone com-
pany can temporarily discontinue your ser-
vice. If this happens, the phone company
attempts to notify you in advance. If advance
notice is not practical, the phone company
notifies you as soon as possible and advises
you of your right to file a complaintwith theFCC.
Also, the phone company can make
changes to its lines, equipment, operations,
or procedures that could affect the operation
of this telephone. The telephone company
notifies you of these changes in advance, so
you can take the necessary steps to prevent
interruption of your telephone service.
Your Melody Maker is ETL listed to UL
standards and meets all applicable FCC
requirements. The USOC-type RJ11C jack
provided with your Melody Maker is TIA/EIA-
IS-968 compliant.
24'2#4#6+10
219'4+0)"6*'"/'.1&;"/#-'4
Your Melody Maker runs on three AA bat-
teries or a 6V AC power adapter (neither
supplied).
75+0)"$#66'4+'5
1. Slide the battery compartment cover on
the back of the Melody Maker in the
direction of the arrow to remove it.
2. Place three AA batteries in the
compartment according to the polarity
symbols (+and –) marked inside.
3. Replace the cover.
75+0)"#0"#%"#&#26'4
You can power the Melody Maker using a
6V, 300 mA AC adapter and a size M
Adaptaplug™ adapter (neither supplied).
Both are available at your local RadioShack
store. .
..
.
1. Connect the Adaptaplug to the end of
the AC adapter, then plug it into the
Melody Maker’s 6V DC 300MA jack.
2. Plug the AC adapter into a standard AC
outlet.
/1706+0)"6*'"/'.1&;"
/#-'4
You can place the Melody Maker on a flat
surface such as a desk, shelf, or table, or
mount it on a wall.
10"#"(.#6"574(#%'
Pull up the bracket on the back of the
Melody Maker until it stops, then place it on
a flat surface.
10"#"9#..
1. Remove the bracket on the back of the
Melody Maker by pulling it up halfway
and pushing one side in while pushing
#"+/2146#06"#
If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.
Rý— Warning #— Important
.
..
.— Caution °
°°
°— Hint
±— Note
."%#76+10".
This product is intended to be
supplied by a Listed Direct Plug-
In Power Unit marked "Class 2"
and rated from 6VDC 300mA. You must
use a Class 2 power source that supplies
6V DC and delivers at least 300 mA. Its
center tip must be set to negative and its
plug must fit the Melody Maker's 6V DC
300MA jack. Using an adapter that does not
meet these specifications could damage the
Melody Maker or the adapter.
• Always connect the AC adapter to the
Melody Maker] before you connect it to AC
power. When you finish, disconnect the
adapter from AC power before you
disconnect it from the Melody Maker.
!
/GNQF["/CMGT
The lightning symbol is intended to alert you to the
presence of uninsulated dangerous voltage within
this product’s enclosure that might be of sufficient
magnitude to constitute a risk of electric shock. Do
not open the product’s case.
The exclamation symbol is intended to inform you
that important operating and maintenance
instructions are included in the literature
accompanying this product.
!
WARNING: To reduce the risk of fire or shock hazard,
do not expose this product to rain or moisture.
..CAUTION..
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
!
43-2206NEW.fm Page 1 Tuesday, April 23, 2002 1:25 PM

43-2206
04A02
Printed in China
RadioShack Corporation
Fort Worth, Texas 76102
the other side out. Pull out one side of
the bracket, then remove the other side.
2. Insert the two supplied screws into the
two bracket holes (hinges facing
outward) and drill holes in the wall in the
desired mounting location.
3. Place the Melody Maker on the bracket
so it snaps in place.
%100'%6+0)"6*'"/'.1&;"
/#-'4"61";174"2*10'
1. Unplug the telephone line cord from
your phone, then plug it into the Melody
Maker’s LINE jack.
2. Plug one end of the supplied modular
cord into your phone, then plug the
other end into the Melody Maker’s
PHONE jack.
12'4#6+10
#&,756+0)"6*'"4+0)'4"
81.7/'"#0&"610'
1. Slide HI OFF LO to the desired ringer
volume setting.
2. Repeatedly press Hor Gto select the
desired melody or distinctive ring tone.
3. Press PLAY to hear the selected melody
or ring tone.
When a call is received, the selected melody
or ring tone sounds and the red indicator
flashes.
%#4'
Keep the Melody Maker dry; if it gets wet,
wipe it dry immediately. Use and store the
Melody Maker only in normal temperature
environments. Handle the Melody Maker
carefully; do not drop it. Keep the Melody
Maker away from dust and dirt, and wipe it
with a damp cloth occasionally to keep it
looking new.
5'48+%'"#0&"4'2#+4
If your Melody Maker is not performing as it
should, take it to your local RadioShack
store for assistance. Modifying or tampering
with the Melody Maker’s internal compo-
nents can cause a malfunction and might
invalidate its warranty.
2#465"#0&"
#%%'5514+'5
Parts and accessories are available at your
local RadioShack store. Accessories are
also available online at
www.radioshack.com. Parts and
accessories are available but not limited to
the following. Visit your local RadioShack
store or obtain a RadioShack catalog for a
more complete listing of available
accessories.
Use a 6V AC adapter to
power your Melody
Maker rather than
swapping out batteries.
Adapters keep a
constant electrical
voltage and protect
equipment from power
fluctuations. The filtered output helps reduce
audio hum and distortion.
Connect another device to one
jack using a 1-to-2 jack adapter.
Additional UL listed line
cords with modular plugs
at each end always come
in handy with your telephone accessories.
/GNQF[1
4KPIGT"
6QPG"
0WODGT
6KVNG1&GUETKRVKQP
1 Mozart’s Eine Kleine Nacht Musik
2The Entertainer
3 Bach’s Orchestral Suite
4Song of Joy
5Tchaikovsky’s Swan Lake
(from Second Movement)
6Tchaikovsky’s Nutcracker Suite
7 Brahm’s Hungarian Dance No.5
8Bach’s Toccata & Fugue in D Minor
9Tchaikovsky’s Swan Lake
(from First Movement)
10 Bach’s Brandenburg Concerto No. 2
11 Twinkle Twinkle Little Star
12 Jingle Bells
13 Beethoven’s Fur Elise
14 Wedding March
15 Cradle Song
16 Distinctive Ring 1
17 Distinctive Ring 2
18 Distinctive Ring 3
19 Distinctive Ring 4
20 Distinctive Ring 5
