13-1317 OWNER’S MANUAL — Please read before using this equipment.
Thank you for purchasing the RadioShack Mini Stereo System. Its novel motorized, rotating
unit-face makes loading CDs and tapes easy and fun. The 2 ×2-way speaker box gives you
high quality sound effects. The stereo not only includes a CD player, tape deck and AM / FM
tuner, but also an alarm clock (J?C;H
J?C;HJ?C;H
J?C;H) with sleep and snooze-control features. The supplied
30-key infrared remote control can operate the system from across the room. The tuner
features 20-station memory, allowing you to store up to 20 radio stations (10 FM and 10 AM)
in memory, so you can quickly turn to a stored station. The tuner also uses PLL (Phase Lock
Loop) Digital Automatic Seeking, which searches forward or backward to the next strong
station in the selected band so you can quickly find new stations. The CD player has
programmable play, so you can play up to 20 tracks in any sequence you choose.
SPEAKER R / L —
Output connections for
right and left speakers
çý— Record function
The tape deck can
record from either the
CD player or tuner.
Jý— Play function
#ý— Rewind function
,ý— Fast forward
function
'ý— Stop / Eject
function.
f— Pause function
FUNCTION —Usethiscontrolto
switch between the CD, tuner
and tape mode.
EQ — Equalizer effects. Three kinds
of effects (Rock, Classic and Pop)
plus the normal setting are available.
E-BASS — Extended bass control
adds a boost to bass sounds.
REPEAT/MEM UP — In CD mode this
controls the repeat play feature, allowing
you to repeat a single track, a
programmed sequence or an entire CD.
In the tuner mode this control allows you
to advance through the radio stations
stored in memory.
ROTATE — In CD and
tuner mode this turns the
unitface,allowingaccess
to the tape deck without
interrupting play.
STOP/BAND — In CD
mode this control stops
play. In the tuner mode
this control switches
between AM and FM.
INTRO — Sets or cancels the
intro play feature, which allows
youtoplaythe first10secondsof
each track on a CD.
)/-— In tuner
mode these controls
are used to manually
tune in radio stations.
In CD mode these
controls are used to
skip forward or
backward through the
tracks. While a CD is
playing, the audible
search feature can be
employed by holding
down these controls.
Audible search plays
through the track
(forward or backward)
athighspeedtolocate
a specific portion of
the track.
RANDOM — Allows CD tracks to be
played in random order.
SLEEP/ TIMER — Sets
sleep and timer (alarm
clock) functions.
DISPLAY — Toggles
betweenvariousdisplaysfor
settings confirmation.
CLOCK/MEMORY — This control is
used to compile CD programs,
program radio stations into tuner
memory, and set the clock.

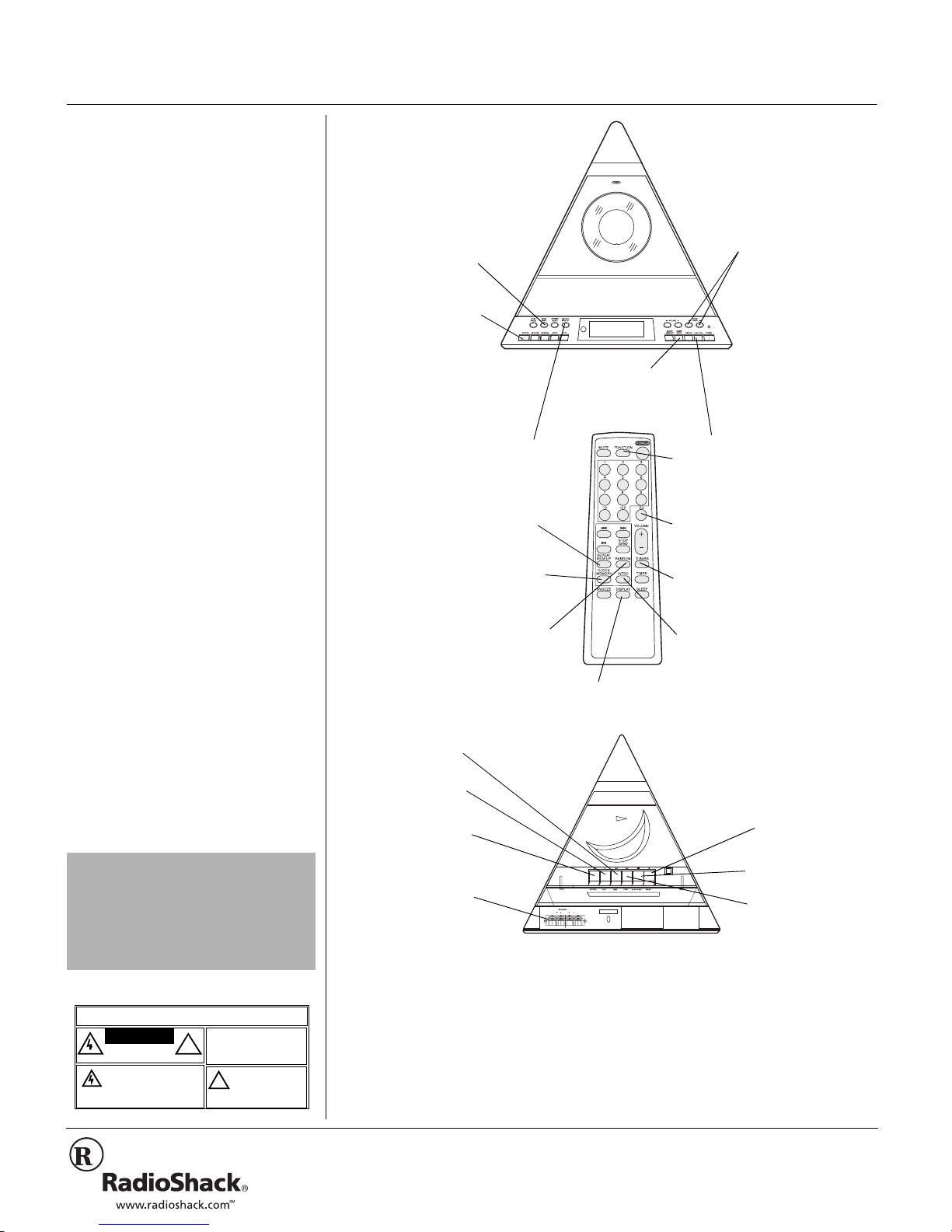

Rear View of Tape Deck
Front View and Remote Control
#"+/2146#06"#
If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.
Rý— Warning #— Important
.
..
.— Caution ±— Note
%106'065
Preparation .................................................. 2
Connecting the Speakers ......................... 2
Installing Batteries in the
Remote Control ........................................ 2
Connecting the System to AC Power ....... 2
Standby Mode .......................................... 2
Unit Face.................................................... 2
CD Player Operation ................................... 3
Playing a CD ............................................ 3
Skip Search .............................................. 3
Audible Search ......................................... 3
Repeat Play ............................................. 3
Intro Scan ................................................. 3
Random Play ........................................... 3
Programming CD Tracks ......................... 3
Replaying the Programmed Tracks ..... 4
Clearing CD Memory ........................... 4
Using the Tuner ........................................... 4
Memory Tuning ........................................ 4
Using the Cassette Player ........................... 4
Playing a Cassette Tape .......................... 4
Recording ................................................. 5
Recording From the Tuner ................... 5
Recording From a CD .......................... 5
Adjusting the Sound .................................... 5
E-Bass ..................................................... 5
EQ ............................................................ 5
Volume ..................................................... 5
Mute ......................................................... 5
Setting the Clock ......................................... 5
Using the Timer ........................................... 6
Setting the Timer ...................................... 6
Timer-On .................................................. 6
Turning Off the Preset Timer .................... 6
Using the Sleep Timer ............................. 6
Troubleshooting .......................................... 6
Care ............................................................ 6
Service and Repair ...................................... 7
CD CARE TIPS ........................................... 7
Tape Tips ..................................................... 7
Restoring Tape Tension and
Sound Quality .......................................... 7
Erasing Tapes .......................................... 7
Preventing Accidental Erasure ................. 7
Specifications .............................................. 7
The lightning symbol is intended to
alert you to the presence of uninsulated
dangerous voltage within this
product’s enclosure that might be of
sufficientmagnitude toconstitutea risk of electric
shock. Do not open the product’s case.
The exclamation symbol is
intended to inform you that
important operating and
maintenance instructions are
included in the literature accompanying
this product.
!
WARNING: To reduce the risk of fire or shock hazard, do not expose this
product to rain or moisture.
..CAUTION.. CAUTION: TO REDUCE THE
RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER OR BACK.
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.
RISK OF ELECTRIC
SHOCK DO NOT OPEN
!
/KPK"5VGTGQ"5[UVGO

2
+/2146#06"5#('6;"
+05647%6+105
1. All the safety and operating instructions
should be read before the product is
operated.
2. The safety and operating instructions
should be retained for future reference.
3. All warnings on the appliance and in the
operating instructions should be
adhered to.
4. All operating and use instructions
should be followed.
5. Do not use this appliance near water.
6. Clean only with dry cloth.
7. Do not block any ventilation opening.
Install in accordance with the
manufacturer’s instruction.
8. Do not install near any heat sources
such as radiators, heat registers,
stoves, or other appliances (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized type plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or the
third prong is provided for your safety. If
the provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11. Unplug this apparatus during lighting
storms or when unused for long periods
of time.
12. Refer all servicing to qualified service
personal. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord or
plug isdamaged, liquid hasbeen spilled
or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or as been dropped.
13. This appliance should not be exposed
to dripping or splashing water and
objects filled with liquids such as vases
should not be placed on the apparatus.
24'2#4#6+10
%100'%6+0)"6*'"52'#-'45
There are no differences between the two
speakers. Both speakers can be connected
as L (left) or R(right) speaker.
Connect the lead wires of the left and right
speakers to the speaker terminals at the
backside of the main unit..
..
.
+056#..+0)"$#66'4+'5"+0"6*'"
4'/16'"%10641.
The remote control requires two AA
batteries (not supplied) for power. For the
best performance and longest life, we
recommend RadioShack alkaline
batteries..
..
.
1. Press and slide the battery
compartment cover in the direction of
the arrow to remove it.
2. Place the batteries in the compartment
as indicated by the polarity symbols
marked inside.
3. Replace the cover.
The maximum operational distance between
the remote control and the sensor should be
16 feet (5 meters) approximately. If the
remote control only operates at a much
shorter distance, replace the batteries.Rý
%100'%6+0)"6*'"5;56'/"61"
#%"219'4
Insert the AC power plug into a standard AC
outlet. The red power LED (Light Emitting
Diode) lights. If the clock has never been set
the LCD (Liquid Crystal Display) shows &0&&
&0&&&0&&
&0&&.
Press the POWER. The red power LED turns
off. At the same time, the blue top LED and
the blue LCD backlight turns on.
The unit was designed so that the CD mode
plays when the stereo is powered up for the
first time. If it is not thefirst time to power on,
the stereo will be in the last listening mode
used.
• If the last listening mode was CD, when
the unit is powered on, the display
shows 9:
9:9:
9:, total numbers of tracks and
total times (if there is a CD disc loaded)
or deýZ_iY
deýZ_iYdeýZ_iY
deýZ_iY (if no disc is loaded).
• If the last listening mode was tuner,
when the unit is turned on, JKD;H
JKD;HJKD;H
JKD;H and
the last played station’s frequency are
displayed. Play begins at once.
• If the last listening mode was tape,
when the unit is turned on, J7F;
J7F;J7F;
J7F; and the
time of day are displayed.
56#0&$;"/1&'
Press POWER while power is on. The unit
goes into standby mode. The red LED lights
while the top LED and the LCD backlight
turns off at the same time. In standby mode,
the LCD display still shows the clock.
70+6"(#%'
Once the CD/Tuner or Tape is selected by
pressing FUNCTION, its corresponding unit
face automatically rotates to the front.±
."%#76+10".
Connecting the Speakers
Do not confuse the polarity of lead wires of
speakers. The solid red wire should be
connected to the red terminal.
Installing Batteries in the Remote Control
• Use only fresh batteries of the required size
and recommended type.
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.
R"9#40+0)ýR"
Dispose of old batteries promptly and properly.
Do not burn or bury them.
±"016'"±"
ROTATE is designed to turn the tape side to
the front for the convenience of loading or
unloading tapes while recording from the CD
player or a radio program. If the unit face does
not turn to match the corresponding play mode
when FUNCTION is pressed, press ROTATE
to change the unit face.

3
%&"2.#;'4"
12'4#6+10
2.#;+0)"#"%&
1. Repeatedly press FUNCTION on the
stereo or remote control to switch to CD
mode. If the CD side does not face
front, press ROTATE to turn the CD side
to the front.#
2. To open the CD door, press OPEN.
3. Hold the CD disc by its edges and
carefully place it into CD compartment
with the label-side visible.
4. Close the CD cover. The total number
of tracks and total playing time are
displayed.
5. Press PLAY/PAUSE on the stereo or â
on the remote. The CD starts playing
from the first track. The track number
and elapsed time of the current playing
track are displayed.
Or, press one of the number buttons on
the remote control to select a track to
play.
To play tracks 11 to 19, press +10 then
the second digit. For example to play
track 13, press +10 first. '
''
'is displayed.
Then, press 3.±
Press PLAY/PAUSE on the stereo or âon
the remote to pause temporarily. The
elapsed time indicator flashes on the
display. Press PLAY/PAUSE on the stereo or
âon the remote again to resume playing.
The CD stops automatically at the end of the
last track. When CD playing stops, the
display shows the total number of tracks and
total playing time. To stop playing sooner,
press STOP/BAND.
5-+2"5'#4%*
You can use the skip search before or
during play to quickly locate any track.
While the CD player is stopped, press )or
-repeatedly until the desired track is
displayed, then press PLAY/PAUSE on the
stereo or âon the remote to play the track.
During play, press )once to return to the
beginning of the current track. Press )
twice quickly to return to the beginning of
the previous track. To move to the beginning
of the next track, press -.
#7&+$.'"5'#4%*
To search for a particular section within a
track, hold down )or -during play. The
CD player rapidly plays the CD either
forward or backward at a high speed and
low volume. When you hear the section you
want, release )or -to resume normal
play.
If you hold down -while the last track is
playing, audible forward search stops at the
end of that last track. If you hold down )
while the first track is playing, audible
backward search stops at the beginning of
track one, and then plays the first track at
normal speed.
4'2'#6"2.#;
You can set the CD player to continuously
play a single track, all tracks, or all of the
programmed tracks on the loaded CD.
During play, press REPEAT/MEM UP
repeatedly until H;F;7J
H;F;7JH;F;7J
H;F;7J flashes on the
display, the current track will be repeated.
To repeat all tracks, press REPEAT/MEM UP
repeatedly until H;F;7J
H;F;7JH;F;7J
H;F;7J lights steadily.
To end repeat play, press REPEAT/MEM UP
repeatedly until H;F;7J
H;F;7JH;F;7J
H;F;7J disappears.
+0641"5%#0
You can set the CD player to play the first
10 seconds of each track on a loaded CD,
so you can find the track you want to hear.
The player will not start scanning from the
first track during play. To start scanning from
the first track, press STOP/BAND (if
necessary), and press INTRO. ?DJHE
?DJHE?DJHE
?DJHE appears
on the display.
To start scanning while CD is playing,
repeatedly press INTRO until ?DJHE
?DJHE?DJHE
?DJHE appears.
Intro scan starts at once from the next track
forward.
During intro play, you can press )or -to
skip backward or forward. You can also set
the player to repeatedly scan by pressing
REPEAT.
To stop scanning and resume normal play,
repeatedly press INTRO until ?DJHE
?DJHE?DJHE
?DJHE
disappears.
4#0&1/"2.#;
You can set the CD player to randomly
select and play tracks from a loaded CD.
While the CD player is stopped, press
RANDOM. The CD player starts random play
at once, and H7D:EC
H7D:ECH7D:EC
H7D:EC is displayed.
While the CD player is playing, repeatedly
press RANDOM until H7D:EC
H7D:ECH7D:EC
H7D:EC appears. The
CD player starts random play when the
current track playing finishes.
To cancel random play, repeatedly press
RANDOM until H7D:ECý
H7D:ECýH7D:ECý
H7D:ECýdisappears.
241)4#//+0)"%&"64#%-5
You can program up to 20 tracks from the
loaded CD to play in any order you choose,
and you can also program the same track to
play more than once.
#"+/2146#06"#
To avoid damaging the CD player, remove
the CD insert protection card before using
the player.
±"016'"±"
• To play track 20 or above, press +10 twice,
then the second digit. For example to play
track 24, press +10 twice. (
((
(is displayed.
Then, press 4.
•10 also acts as a 0. For example, to play
track 20, press +10 twice, then 10.

4
1. Stop play by pressing STOP/BAND (if
necessary).
2. Press CLOCK/MEMORY, C;CEHO
C;CEHOC;CEHO
C;CEHO
flashes on the display.
3. Repeatedly press )or -or press the
number buttons on the remote control
to select the track to be programmed.
4. Press CLOCK/MEMORY again to save.
The display changes as shown
below.±
5. Repeat Steps 3 and 4 to program up to
19 more tracks.±
To end programming, press PLAY/PAUSE on
the stereo or âon the remote. The CD
player starts playing the programmed
sequence at once.
After the last programmed track is played,
the player stops automatically. To stop
sooner, press STOP/BAND.
While playing, you can press )or -to skip
backward or forward. You can also set the
programmed sequence to continuously play
by pressing REPEAT.
4GRNC[KPI"VJG"2TQITCOOGF"
6TCEMU
Before the programmed memory is cleared,
you may replay it by pressing CLOCK/
MEMORY and then pressing PLAY/PAUSE on
the stereo or âon the remote.
%NGCTKPI"%&"/GOQT[
To clear the programmed sequence, while
the player is playing, press STOP/BAND.
Repeatedly press CLOCK/MEMORY until
C
CC
C;CEHO
;CEHO;CEHO
;CEHO flashes in the display, then press
STOP/BAND again.
You may also clear the programmed
memory by opening the CD cover while the
player is stopped.
75+0)"6*'"670'4
Whenever the tuner is turned on, it always
begins at the last station played.
Press FUNCTION repeatedly until JKD;H
JKD;HJKD;H
JKD;H
appears on the display.
Press STOP/BAND to select between the FM
or AM band.
There are three ways to tune to a desired
radio station’s frequency.±
Manual tuning — Repeatedly press )or
-to tune down or up.
Automatic tuning — Press and hold down
)or -ýfor about two seconds then release.
The tuner searches for a radio program
automatically and stops when a strong
signal is received.
Memory tuning — Press REPEAT/MEM UP
repeatedly to search for a preset station. Or
press the number buttons on the remote
control to select a preset station directly.
/'/14;"670+0)
You can store up to 20 stations (10 FM and
10 AM) in memory.
1. Press FUNCTION repeatedly until JKD;H
JKD;HJKD;H
JKD;H
appears.
2. Press STOP/BAND to choose between
AM and FM.
3. Seek for the desired station by pressingý
)or -.
4. Press CLOCK/MEMORY. C;CEHO
C;CEHOC;CEHO
C;CEHO
flashes on the display.
5. Repeatedly press REPEAT/MEM UP to
advance to the desired memory
location.
Or, press a number button on the
remote control to select a memory
location (1–10).
6. Press CLOCK/MEMORY to save the
entry.±
7. Repeat steps 2 to 6 to store up to 10
radio stations into memory for each
band.
75+0)"6*'"%#55'66'"
2.#;'4
2.#;+0)"#"%#55'66'"6#2'
Take up any slack in the cassette tape by
turning the hub with a pencil. If you do not
remove excess slack, the tape might
become tangled in the record/playback
mechanism. Avoid touching the tape.
1. Press FUNCTION repeatedly until J7F;
J7F;J7F;
J7F;
appears on the display. The cassette
tape side rotates to face forward.
2. To open the cassette control cover,
press OPEN.
3. Press 'gently to open the cassette
door. Load a cassette tape in the
cassette compartment door with the
side you want to play facing you, the
exposed tape edge down, and the full
reel to the left.
4. Close the door.
5. Press J. The cassette starts playing.
The tape plays until it reaches the end
of the side, then it automatically stops.
To fast-forward or rewind the tape, press '
then press #or ,.
±"016'"±"
Programming CD Tracks
There are only 20 memory slots for a CD
program. If you try to program for more than 20
tracks, the previously programmed track(s) will
be replaced in sequence. For example, the
21st entry replaces the first entry, and the
22nd entry replaces the second entry.
Using the Tuner
• The music center has a built-in AM antenna.
For better reception, adjust its location.
• While an FM stereo broadcast is received,
IJ;H;E
IJ;H;EIJ;H;E
IJ;H;E appears on the display. If the
reception is poor or noisy, press STEREO/
MONO to switch the stereo broadcast to
mono. When mono is selected, IJ;H;E
IJ;H;EIJ;H;E
IJ;H;E
disappears.
Memory Tuning
• If you use the remote’s number keys to
select a memory location, you do not need to
press CLOCK/MEMORY again to save the
entry.
• When the station is stored, C;CEHO
C;CEHOC;CEHO
C;CEHO stops
flashing.
The FM mono setting cannot be memorized.
Even if you have changed from stereo to mono
while setting FM station memory, when it is
turned on automatically, it is still stereo.

5
To temporarily stop playback, press f.
Press fagain to continue playback.
To stop fast-forward, rewind, or playback,
press '.
To open the cassette compartment and
remove the cassette tape, press 'while the
cassette player is stopped.
4'%14&+0)
The recording level is preset. Adjusting
E-BASS or VOLUME does not affect the
recording level or sound quality.
4GEQTFKPI"(TQO"VJG"6WPGT
1. Press FUNCTION repeatedly until JKD;H
JKD;HJKD;H
JKD;H
appears.
2. Press STOP/BAND to select the desired
band.
3. Select the desired radio station
4. Press ROTATE to turn cassette tape
side to front (if necessary).
5. Open the cassette door by pressing ',
and then insert a blank cassette tape.
6. Press down f.
7. Press down ç. The Jkey is also
pressed down automatically.
8. When the preferred program begins,
press fagain to release pause. The
recording starts. The cassette records
until it reaches the end of the side, then
it automatically stops. To stop recording
before the cassette automatically stops,
press '.
4GEQTFKPI"(TQO"C"%&
1. PressFUNCTION repeatedlyto switch to
the CD mode (if necessary).
2. Load a CD.
3. Press )or -or the numberbuttonson
remote control to select desired track.
Or, press CLOCK/MEMORY to call out
the programmed tracks (see
“Programming CD Tracks” on Page 3).
4. Press ROTATE to turn the cassette side
to front.
5. Open the cassette door by pressing ',
then insert a blank cassette tape.
6. Press down ç. The display shows IOD9ý
IOD9ýIOD9ý
IOD9ý
H;9
H;9H;9
H;9. Recording starts from the
beginning of the selected track
automatically.±
To stop recording before the end of the of
CD, press '. The elapsed time flashes on
the display. To continue CD playing, press
PLAY/PAUSE on the stereo or âon the
remote. IOD9ýH;9
IOD9ýH;9IOD9ýH;9
IOD9ýH;9 disappears.
#&,756+0)"6*'"
5170&
'/$#55
To enhance bass sound, repeatedly press
E-BASS on remote control until ;#87II
;#87II;#87II
;#87II
appears on the display.
To cancel bass booster, press E-BASS again
until ;#87II
;#87II;#87II
;#87II disappears.±
'3
Press EQ on the remote control repeatedly.
The corresponding EQ appears on the
display in this order: H
HH
HE9A
E9AE9A
E9A, 9B7II?9
9B7II?99B7II?9
9B7II?9, and F
FF
FEF
EFEF
EF.ý
ýýý
Press EQ again to cancel EQ.±
81.7/'
Press VOLUME (– / +) to adjust the volume to
a comfortable level. The corresponding
volume is displayed as nnýZX
nnýZXnnýZX
nnýZX.
The volume range is from &&
&&&&
&&ZX
ZXZX
ZX through
.&ZX
.&ZX.&ZX
.&ZX. It increases or reduces 2 db with every
pressing of VOLUME (– / +).
/76'
To temporarily silence the sound, press
MUTE. CKJ;
CKJ;CKJ;
CKJ; appears on the display.
Press VOLUME (-/+) or MUTE again to
resume the sound. CKJ;
CKJ;CKJ;
CKJ; disappears.
5'66+0)"6*'"%.1%-
In the power standby mode, you can set the
time directly by following the steps below.
While the power is on, you must first set the
display to the clock by pressing DISPLAY
repeatedly until the clock is shown.
In the CD mode, press DISPLAY repeatedly.
The display changes in this sequence:
While playing
• CD remain time
•Clock
•J?C;H
J?C;HJ?C;H
J?C;H flashes.
• Playing CD’s lapsed time
While stopped
•Clock
•J?C;H
J?C;HJ?C;H
J?C;H flashes.
• Loaded CD’s total playing time
In the tuner mode, press DISPLAY
repeatedly. The display changes in this
sequence:
•Clock
•J?C;H
J?C;HJ?C;H
J?C;H flashes.
• Radio frequency
In the tape mode, press DISPLAY
repeatedly. The display changes in this
sequence:
±"016'"±"
Recording from a CD
The CD track or programmed sequence will
start playing as soon as you complete step 4;
however, it will begin again when IOD9ýH;9
IOD9ýH;9IOD9ýH;9
IOD9ýH;9ýis
activated.
E-Bass
E-Bass is turned off automatically when you
press EQ.
EQ
EQ is canceled automatically when you press
E-BASS.

6
•J?C;H
J?C;HJ?C;H
J?C;H flashes.
•Clock
1. When clock is shown, hold down
CLOCK /MEMORY for more than three
seconds until '(>
'(>'(>
'(> or (*>
(*>(*>
(*> flashing is
displayed.
2. Press )or -ýto choose between the
12-hour mode or 24-hour mode.±
3. Press CLOCK /MEMORY button again to
save. The hour digits flash on the
display.
4. Repeatedly press or hold down )or -
to select the hour.
5. Press CLOCK /MEMORY again to save.
The minute digits flash.
6. Repeatedly press or hold down )or -
to select the minutes.
7. Press CLOCK/MEMORY once more to
save. Clock is set.
75+0)"6*'"6+/'4
5'66+0)"6*'"6+/'4
The timer acts as an alarm clock, powering
on the stereo in the last listening mode.
Once the timer is set, it will come on at the
same time everyday.
1. Hold down SLEEP/TIMER for more than
three seconds until J?C;H
J?C;HJ?C;H
J?C;H flashes on the
display.
2. Hold down CLOCK/MEMORY for more
than three seconds until the hour digits
flash.
3. Repeatedly press or hold down )or -
to select desired hour.
4. Press CLOCK/MEMORY again to save.
The minute digits flash.
5. Repeatedly press or hold down )or -
to select the minutes.
6. Press CLOCK/MEMORY once more to
save. J?C;H
J?C;HJ?C;H
J?C;H flashes for a few more
seconds then stops flashing. Then the
timer is set.
6+/'4/10
When it is time for timer-on,and the unit is in
standby mode, the stereo will automatically
turn on in the last listening mode. Playing
volume will be at the previously set levels.±
If you wish to snooze for some more time,
press SNOOZE, the unit will be turned off for
five minutes. Five minutes later, it will start to
play again automatically.
Timer turns off automatically one hour later.
After timer-off, SNOOZE can not be initiated.
6740+0)"1011(("6*'"
24'5'6"6+/'4"
To turn off the timer, press TIMER on the
remote or, hold down SLEEP/TIMER on the
stereo for more than three seconds until
J?C;H
J?C;HJ?C;H
J?C;H disappears.
To turn on the timer, press TIMER on the
remote or, hold down SLEEP/TIMER on the
stereo for more than three seconds until
J?C;H
J?C;HJ?C;H
J?C;H flashes.
75+0)"6*'"5.''2"6+/'4
The stereo can be set to turn off
automatically, so that it does not continue
playing after you have gone to sleep. To set
a “sleep time”, press SLEEP repeatedly until
the desired time is shown on the display.
The maximum sleep time is 90 minutes. The
setting decreases by 10 minutes every time
you press SLEEP. To cancel the sleep
setting, press SLEEP repeatedly until IB;;F
IB;;FIB;;F
IB;;F
disappears.
6417$.'5*116+0)
If your system is not working properly, these
suggestions might help you to eliminate the
problem. If you still havea problem, take it to
your local RadioShack store for assistance.
%#4'
Keep the stereo dry. If it gets wet, wipe it dry
immediately. Use and store the stereo only
in normal temperature environments.
Handle the stereo carefully; do not drop it.
Keep the stereo away from dust and dirt,
and wipe it witha damp cloth occasionally to
keep it looking new..
..
.
±"016'"±"
Setting the Clock
In 12-hour mode, 7C
7C7C
7C appears for an AM hour
and FC
FCFC
FC appears for a PM hour.
Timer-On
If the last listening mode was the CD player,
play will start from the first track.
2TQDNGO 5QNWVKQP
The set does not
function.
Confirm the connection
of the AC power plug to
a working AC outlet.
No Sound Check the speaker
connections.
Adjust the volume.
CD does not play
Reinstall the CD with its
printed side (label side)
facing out.
Clean or replace the
CD.
Press FUNCTION to
switch to CD mode.
Noisy or distorted
radio reception
Tune the station in
again.
Adjust the position of
the stereo for best
reception
The tape does not
advance.
Re-load the tape with
the exposed side down.
Carefully take the tape
out, and insert a
replacement.
Tape deck does not
record.
Verify the tape has
protection tabs. If tabs
have been removed,
replace tape or cover
holes with adhesive
tape.
."%#76+10".
You might permanently damage your speakers
by cleaning them with a vacuum cleaner. Use a
feather duster or a soft loose cloth instead.

7
5'48+%'"#0&"4'2#+4
If your stereo is not performing as it should,
take it to your local RadioShack store for
assistance. Modifying or tampering with the
stereo’s internal components can cause a
malfunction and might invalidate its
warranty.
%&"%#4'"6+25
Even though a compact disc is durable, treat
the CD surface with care.
• Do not write on either side of the CD,
particularly the non-label side (signals
are read from the non-label side).
• Do not store CDs in high temperature or
high humidity areas. They might warp.
• Keep CDs dry. A water drop can act as
a lens and affect the laser beam's
focus.
Always handle a CD by the edges to avoid
fingerprints and always keep it in its
protective case or sleeve when it is not in
use. Fingerprints and scratches on the CD's
surface can prevent the laser beam from
correctly reading the digital information. If
the CD gets scratched, use RadioShack
Scratch 'n Fix to repair the disc.
6#2'"6+25
4'5614+0)"6#2'"6'05+10"
#0&"5170&"37#.+6;
After you play a cassette tape several times,
the tape might become tightly wound on the
reels. This can cause playback sound
quality to deteriorate.
To restore the sound quality, fast-forward
the tape from the beginning to the end of
one side, then completely rewind it. Then
loosen the tape reels by gently tapping each
edge of the cassette on a flat surface..
..
.
'4#5+0)"6#2'5
To record over a cassette tape, simply
record as usual. The cassette deck records
over the previous recording.
You can quickly erase both sides of a
cassette tape using a RadioShack bulk tape
eraser.±
24'8'06+0)"#%%+&'06#."
'4#574'
Cassette tapes have two erase-protection
tabs — one for each side. When a tab is in
place, you can record on that side.
To prevent accidental erasure of a recorded
tape, use a screwdriver to remove one or
both of the cassette tape’s erase-protection
tabs. This prevents RECORD from
engaging..
..
.
If you later decide to record on a tape side
after you have removed the erase-protection
tab, place a piece of strong plastic tape over
that side’s erase-protection hole. Be sure
you cover only the hole originally covered by
the erase-protection tab.
52'%+(+%#6+105
Radio
Frequency ...................................................................................... AM: 520 – 1710 kHz (10 kHz per step)
......................................................................................................FM: 87.5 – 108.MHz (0.1 MHz per step)
Radio Channel Memory..................................................................................................... AM:10 channels
........................................................................................................................................... FM:10 channels
Cassette
Tape Speed.............................................................................................................. 1 7/8 ips (4.75cm/sec)
Recording System.......................................................................................................................... AC Bias
CD Player
Frequency Response........................................................................................................ 100 – 20,000 Hz
Signal-to-Noise................................................................................................................ 60 dB (w/ BPF. A)
Sampling Frequency ..................................................................................................................... 44.1 kHz
Oversampling................................................................................................................................. 8 Times
Harmonic Distortion....................................................................................................... (at 1 kHz) THD 1%
General
Power supply (Main unit)........................................................................................................... 120V60Hz
(Remote control).................................................................................................. 2 ×1.5V (UM-3) batteries
Max output power (10% THD)................................................................................................................ 4W
Operation Temperature ............................................................................................. 32 –104° F, 1 – 40° C
Dimensions of Main Unit (HWD) .......................... 10 3/4×11 13/16 × 1113/16 Inches (273 ×300 ×300 mm)
Dimensions of Each Speaker (HWD)....................... 713/16 ×8 3/16 ×7 13/16 Inches (198 ×208 ×198 mm)
Weight (not including packing material) ................................................................................ 10 lb (4.53kg)
Specifications are typical. Individual units might vary. Specifications are subject to change and
improvement without notice.
."%#76+10".
Restoring Tape Tension and Sound
Quality
Be careful not to damage the cassette when
tapping it. Do not touch the exposed tape or
allow any sharp objects near the cassette.
Preventing Accidental Erasure
Removing the erase-protection tabs does not
prevent a bulk eraser from erasing a cassette
tape.
±"016'"±"
If you use a metal or high-bias type tape, the
recorded sound might not be erased properly.

13-1317
06A02
Printed in China
RadioShack Corporation
Fort Worth, Texas 76102
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and
workmanship under normal use for one (1) year from the date of purchase from RadioShack
company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS
PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IM-
PLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE
WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED
HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER
OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR
DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE
PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT
NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF
TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCI-
DENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you.
In the event of a product defect during the warranty period, take the product and the Ra-
dioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will,
at its option, unless otherwise provided by law: (a) correct the defect by product repair with-
out charge for parts and labor; (b) replace the product with one of the same or similar design;
or (c) refund the purchase price. All replaced parts and products, and products on which a re-
fund is made, become the property of RadioShack. New or reconditioned parts and products
may be used in the performance of warranty service. Repaired or replaced parts and prod-
ucts are warranted for the remainder of the original warranty period. You will be charged for
repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God,
abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper
installation or maintenance, alteration, lightning or other incidence of excess voltage or cur-
rent; (b) any repairs other than those provided by a RadioShack Authorized Service Facility;
(c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, ship-
ping or insurance costs; or (f) costs of product removal, installation, set-up service adjust-
ment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
12/99
