RainPoint IK10P User manual

Instruction
WIFI AUTOMATIC WATERING PUMP KIT
Model: IK10P
Web: www.rainpointonline.com
Email: se[email protected]
WhatsApp: [phone]
Free Hotline
US: [phone]
(MON-FRI 9:30 AM-5:30 PM PST)
EU: [phone]
(MON-FRI 9:00 AM-5:00 PM CET )

Dear friend,
Thanks for choosing RAINPOINT WiFi automatic watering system！
Your satisfaction as a RAINPOINT customer means evething to us.
Before using this unit, please read these operating instructions carefully, take special care to
follow the warning and safety suggestions. If you have any question or problem during using
our product, please contact our customer seice and your problem will be solved within 24hrs.
Contact on Amazon: Click on "Ask a question"
WELCOME TO RAINPOINT
Web: www.rainpointonline.com
WhatsApp: [phone]
US Free Hotline(English):
[phone](MON-FRI 9:30 AM-5:30 PM PST)
UK Free Hotline(English Deutsch):
[phone](MON-FRI 9:00 AM-5:00 PM CET )

TABLE OF CONTENTS
PRODUCT OVERVIEW
1. PACKAGE INCLUDES
2. TECHNICAL PARAMETER
3. INTRODUCTION OF BUTTONS AND INDICATORS
1. TWO POWER SUPPLY METHODS
1.1 Install 4*AA 1.5V alkaline batteries for power
1.2 Plug in the USB cable for power
2. DETERMINE THE CORRECT PLACEMENT
3. CONNECT THE HOSE CORRECTLY
4. INSTALLATION COMPLETED AND TESTED
OPERATING INSTRUCTIONS
MANUAL MODE
WARNING ALARM
1. Lacking water alarm
2. Low batte alarm
TROUBLESHOOTING
WARRANTY
CUSTOMER SUPPORT
01-02
01
02
03
04
04
05
06
07-08
08
09-11
12
12
12
13
14
15
15

PRODUCT OVERVIEW
1. Package Includes
Filtering impurities from water
Len: 10m/32.8 Ft
Inner diameter of pipe:0.17”(＞1/6”)
Outside diameter of pipe: 1/4”
Accessories
Included Name
USB Cable 1
Tubing
Filter
1
1
Tubing End
Caps 3
root directly
Micro Drip
Emitters 10
Conne cting water pipes
Straight Barb
Fitting 3
Split water and connect pipesT Barb Fitting 10
PCS Function
0101
Power supply

2. Technical Parameter
Iniet 4mm
4mm
0.3Bar
0.4L/Min
3-5m
0C to 50C (37°F-122°F)
1.AABattex4( not included)
2.USB power supplier(DC 5V 1A)
Outlet
Maximum water pressure
Water ow
Pump Head
Working temperature
Power supply way
3Split water and connect pipes
Cross Barb
Fitting
1
1
Put it on the timer to make the timer
hangable
Prevents water from backing up in the
pipes back to the pump
Detachable
Hook
Check Valve
02

3.Introduction Of Buttons And Indicators
“OK” Button:
“▲” Button:
How Long
How Often
Delay
Watering Duration 20s - 30min
Watering Frequency 1h -23h or 1days - 7days
Delay the watering plan 1h - 24h
• Press to enter setting mode of 3 dierent options: How
Long, How Often and Delay
• Press and hold enter the manually watering mode
Remaining
Next The next watering time
It is watering
Currently shoage of water
Manually operation setting
Connected with the USB charger
Low power
The remaining watering time of the current period
Decrease the number, hold to reduce faster
Increase the number, hold to accelerate
“ ” Button:
▲
03

Note:
Two power supply methods
rand new AA (1.5V) alkaline batteries
(not included) as the marked "-", "+" direction.
resistance.
properly.
· Used up batteries must be removed from the pump.
cause explode or leak.
04

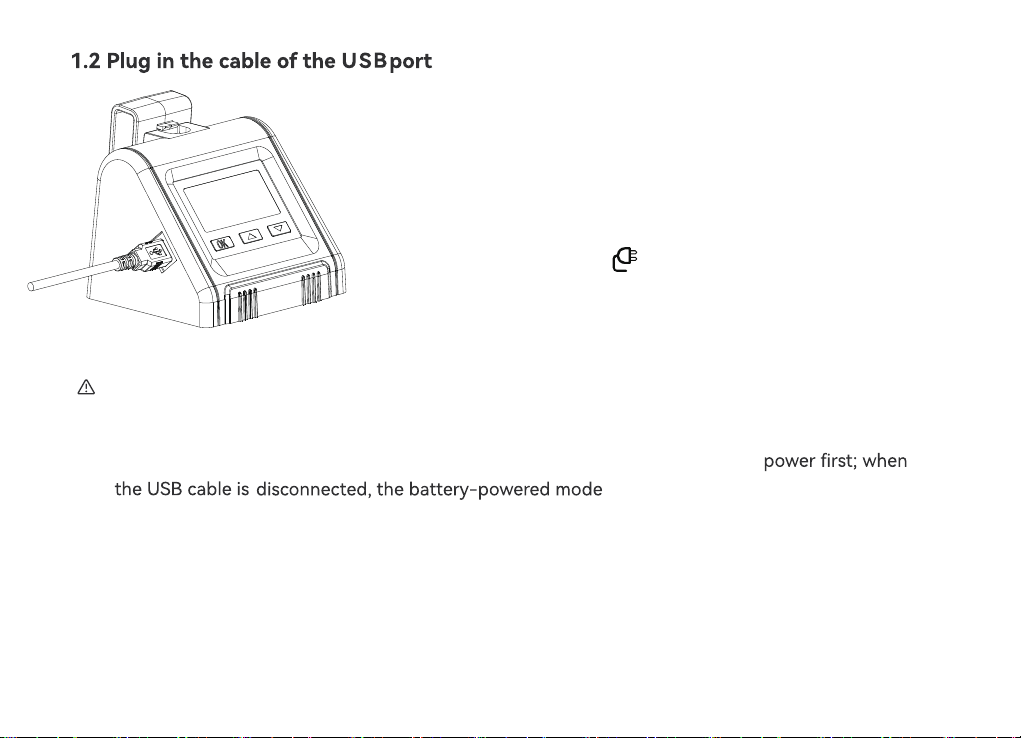

1) Plug in the USB cable (included)
2) When the power is on, the indicator will light up.
Note:
· When both power modes are used simultaneously, it will match the USB cable
will
be activated.
· We recommend that you use USB power supply where there is a power supply, so that the
water pump can have a stable voltage and improve eciency.
05

2. Determine the correct placemen
over-watering problem）
leaking and
2.5m2.5m
water pipe
can not be placed 100% straight, we recommend that the height
pump should n
between the plants and
ot exceed 2.5m.
06

3. Connect the hose correctly
3.1 Cut the hose according to the distance of the device,
the plant or you need
3.2 Put the head of hose into hot water for 10s or Put a
little veggie oil on the end of the hose before
connecting
3.3 Connect the hose to water inlet and outlet
veggie
oil
Inlet
Outlet
3.4 Connect the check valve to the water outlet near the pump. Using a
check valve may reduce water pressure. (The check valve must be
installed correctly in accordance with the ow direction)
1) If only the hose needs
to be
connected, you can use
6
container.
inlet with
5
07

2) When you need to connect the hose while splitting
to twoways, you can use the T
3) When you need to connect a hose while splitting to
other 3 ways
4. Installation completed and tested
3.7 When water needs to be delivered to the soil, you
need to use the micro drip emitters
Tips:
deep, which will help water enter the plant roots.
no tightening, please keep tightening until no leakage.
4.3 After testing with no usage problems, go to the next step: WiFi After testing with no usage problems,
go to the next step: programming the watering schedule.
ok
4.1 Press and hold the button to sta the pump, then the water will be pumped to your plants.
3.8 Please install Tubing End Caps after water ows out from the end of
the pipe to avoid air in the pipe so that the water cannot ow
smoothly to the end of the pipe.
08

OPERATING INSTRUCTIONS

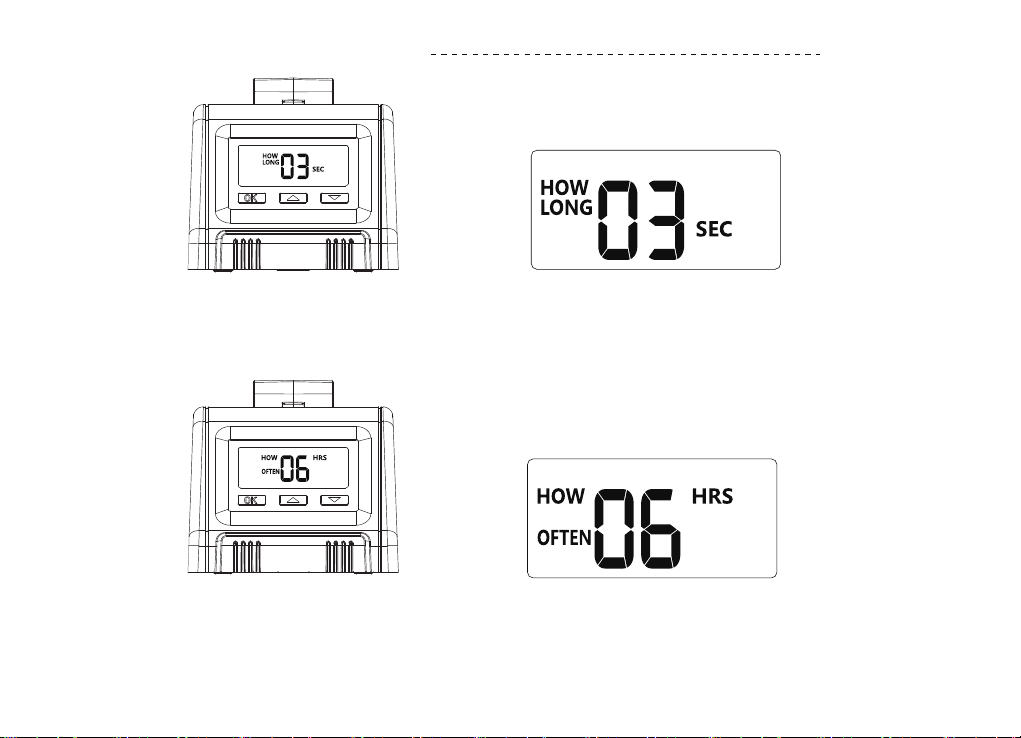

STEP 1:HOW LONG
Press "OK" button,"HOW LONG" will light up,press ▲/▼ to set the watering duration,then press “OK” to
conrm and go on the next step. (Watering duration can be setting from 20s to 30mins)
STEP 2:HOW OFTEN
When entering "HOW OFTEN" setting mode,Eve and How Often on the screen will light up at the same
time. Press ▲/▼ to set the watering frequency from 1 hour to 23 hours or 1 day to 7 days,then press
"OK" button to conrm and go on the next step.
09

STEP 3:DELAY MODE
When the screen shows DELAY，use the "▲" and "▼" buttons, to select watering delay schedule from 0
hours to 24 hours,then press "OK" button to to save the schedule.
Note：
If "How Often" : "How Long" has been changed during setting and setting the delay time to 0 hours, the
watering pump will automatically turn on manual watering (watering duration is 20s).
For example, when the watering schedule is changed and the delay mode is set to 0 hours, the pump will
automatically turn on manual watering.
10

STEP 4: AUTOMATIC WATERING

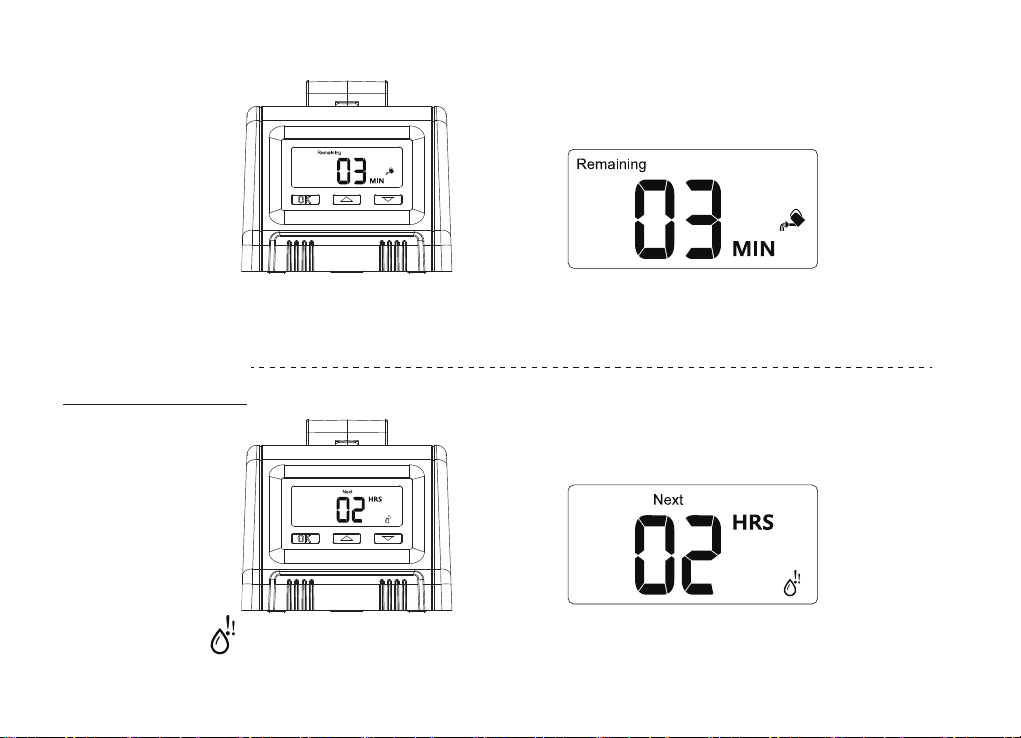

1. Press "OK" again,Remaining and Watering Icon light up,and it will sta watering schedule
automatically. The countdown of remaining watering time will be showed.
2. When the watering program is nished, the NEXT icon lights up which means the remaining time to the
next watering.
Note：
During setting,if there is no operation within 8 seconds,the pump will automatically quit setting model.
If "How Often" or "How Long" has been changed during setting,it will automatically sta running as you
changed.
Setting Example
* If want to water your plants for 30 seconds at 9:00am of eveday,please set "HOW LONG" by
30s,"HOW OFTEN" by 1day and the "DELAY" by 0,set the device at 9:00am. After setting nished,the
watering pump timer will work automatically eveday at 9:00am to watering for 30 seconds.
* If now it’s 7:00am,and you want to water your plants for 1 minute at 10:00am,please set "HOW LONG"
by 1min,"HOW OFTEN" by 1 day,"Delay" by 3hours. The rst time watering will sta at 10:00am,and
fuher watering will sta at 10:00am with 1 day inteal.
11

MANUAL MODE
Warning alarm
1 Lacking water alarm

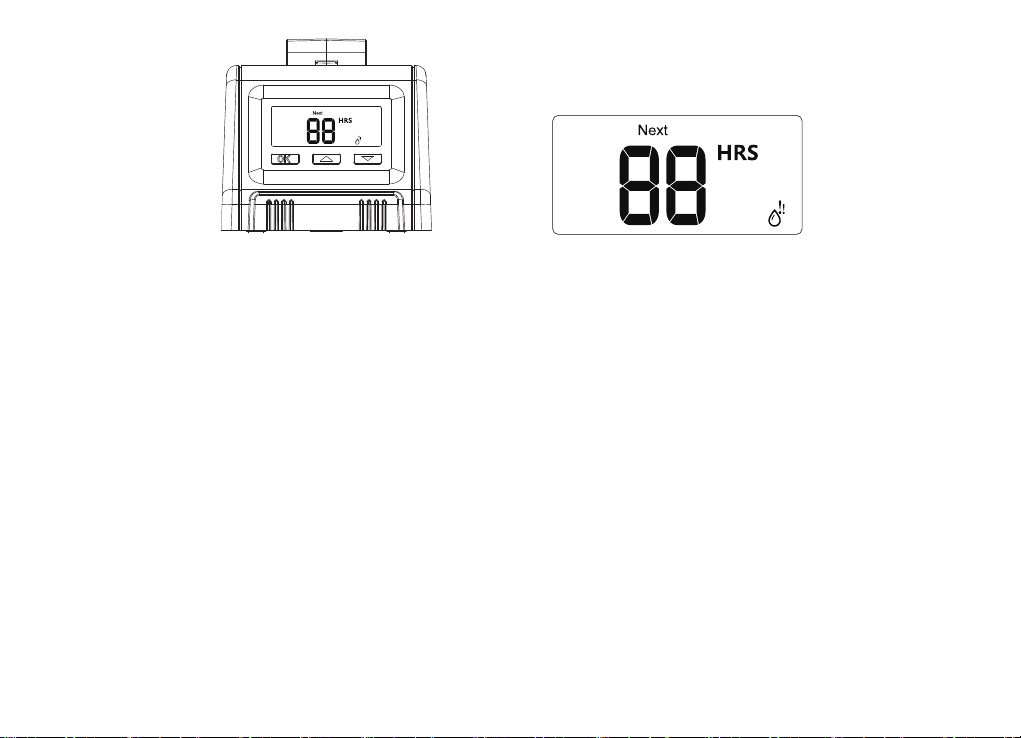

When it appears on the screen,please check if it’s sho of water in the tank and ll enough water in
time. The pump timer will keep working as scheduled.
Press and hold enter the manually watering mode.
12

When the display shows the power and ashing,it means the batte
2 Low batte alarm
13

Uneven water Too far away from pots and
water containers or too long
pipes can reduce the pump's
The fuher away from the pump the potted plant
is, the weaker the water ow will become. Please
use some clamps to hold the rst few branches so
that the mainstream water can be delivered
quickly and for a long time.
Problem Possible Cause Possible Solution
and remove
water pipes
Watering
schedule not
on time
Because of the material, in
order to make the pipe more
durable.
The lack of water at the inlet
resulted in the plan not
being implemented on time.
Put the head of hose into hot water for 10s or Put
a little veggie oil on the end of the hose before
connecting.
Check if there is a lack of water in the container
at the inlet.
(If there is a leakage the schedule will not running)
The water pump unexpectedly
lost power and theplan was
emptied.
The watering schedule needs to be reset.
troubleshooting steps, please
contact us by phone or email : US: 1-833-381-5659 (EN)(MON-FRI󶀅9:30󶀅AM-5:30󶀅PM󶀅PST)
EU: [phone] (EN DE)(MON-FRI󶀅9:00󶀅AM-5:00󶀅PM󶀅CET)
Email:󶀅se[email protected]
TROUBLESHOOTING
14

CUSTOMER SERVICE
WARRANTY
RainPoint provides a 1-year warranty against manufacturing defects in materials and workmanship from
the date of purchase. During the warranty period , we’ll replace free of charge the product found to be
defective under reasonable use and seice as determined solely by RainPoint.
To place a warranty request, please email us with your order ID at se[email protected] and we’ll
respond within 24 hours.
Still have trouble with setup , please search for " RainPoint " on Youtube for installation videos! If the user
manual doesn’t have what you're looking for or you need other help, please contact us before returning
the product to the store and let us know the Model NO and LOT NO. of your device.
Model NO.: xxxxxxxxxx((on the back of the pump label))
LOT NO.: xxxxxxxxxxx (on the back of the pump label)
US Free Hotline(English): [phone]
(MON-FRI 9:30 AM-5:30 PM PST)
UK Free Hotline(English Deutsch): [phone]
(MON-FRI 9:00 AM-5:00 PM CET )
Email: se[email protected]
WhatsApp: [phone]
Suppo：https://www.rainpointonline.com/pages/suppo
