RainPoint IK10PW User manual

Instruction
WIFI AUTOMATIC WATERING PUMP KIT
Model: IK10PW
Web: www.rainpointonline.com
Email: se[email protected]
WhatsApp: [phone]
Free Hotline
US: [phone]
(MON-FRI 9:30 AM-5:30 PM PST)
EU: [phone]
(MON-FRI 9:00 AM-5:00 PM CET )

Dear friend,
Thanks for choosing RAINPOINT WiFi automatic watering system！
Your satisfaction as a RAINPOINT customer means evething to us.
Before using this unit, please read these operating instructions carefullys, take special care to
follow the warning and safety suggestions. If you have any questions or problems during using
our product, please contact our customer seice and your problem will be solved within 24hrs.
Contact on Amazon: Click on “ Ask a question”
WELCOME TO RAINPOINT
Web: www.rainpointonline.com
WhatsApp: [phone]
US Free Hotline(English):
[phone](MON-FRI 9:30 AM-5:30 PM PST)
UK Free Hotline(English Deutsch):
[phone](MON-FRI 9:00 AM-5:00 PM CET )

TABLE OF CONTENTS
PRODUCT OVERVIEW
1. PRODUCT APPEARANCE
2. PACKAGE INCLUDES
3. SPECIFICATION
FCC NOTICE
SIMPLE TO PAIR WIFI
1. INITIAL RAINPOINT APP SETUP
2. PAIR THE WATER PUMP
EASY TO INSTALL
1. TWO POWER SUPPLY METHODS

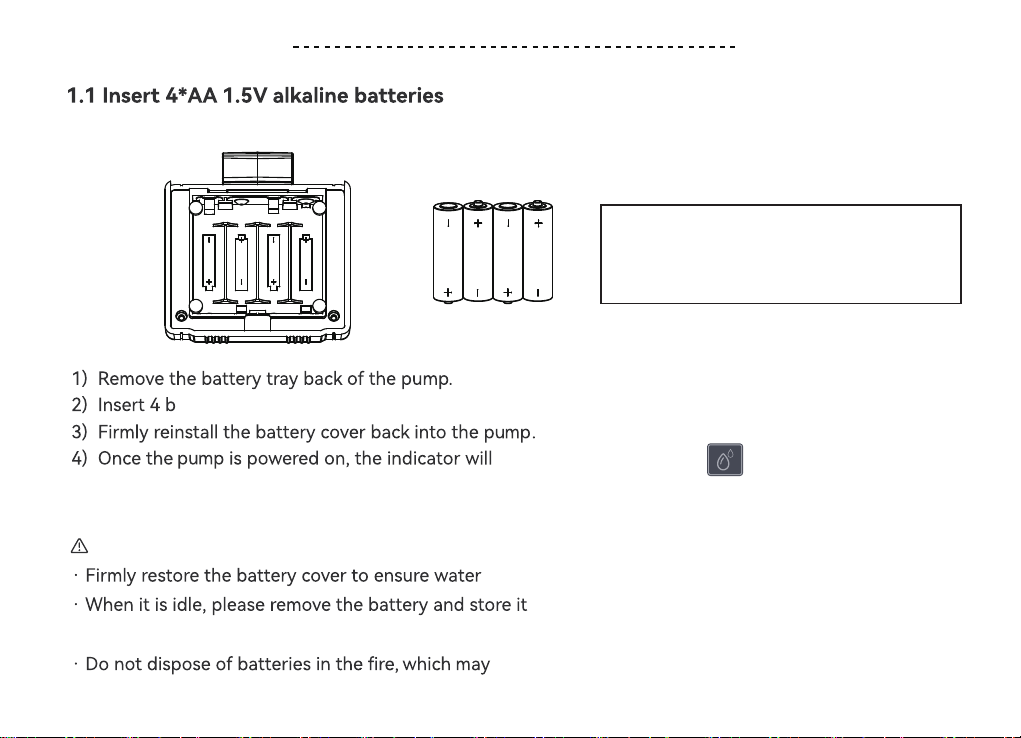

1.1 Install 4*AA 1.5V alkaline batteries for power
1.2 Plug in the USB cable for power
2. DETERMINE THE CORRECT PLACEMENT
3. CONNECT THE HOSE CORRECTLY
4. INSTALLATION COMPLETED AND TESTED
01-03
01
02-03
03
04
05-11
05
06-11
12-16
12-13
12
13
14
15-16
16

APP INTERFACE OVERVIEW
1. HOME INTERFACE
2. IRRIGATION SCHEDULE SETTINGS
3. DEVICE INFORMATION
4. SMART FUNCTIONS INTERFACE
5. PERSONAL DATE INTERFACE
AUTOMATIC WATERING MODE
MANUAL WATERING MODE
RESET THE DEVICE
TROUBLESHOOTING
WARRANTY
CUSTOMER SUPPORT
17-22
17
18
19
20-22
23
24
25
26
26-27
28
28

PRODUCT OVERVIEW
1. Product Appearance
15 43 7 862
- 01 -
No. Name Function
WiFi Button
Manual Button
1
2
Pair WiFi or reset
Manual or pause watering
3Pow
6Water conveying from container to pump
7Water conveying from pump to plants
8Power supply
Pair WiFi or power supply
4
Indicates the status of
Watering Indicator Light
5
Indicates the status of watering
- 01 -

Pair WiFi or power supply
Filtering impurities from water
Len: 10m/32.8 Ft
Inner diameter of pipe:0.17”(＞1/6”)
Outside diameter of pipe: 1/4”
2. Package Includes

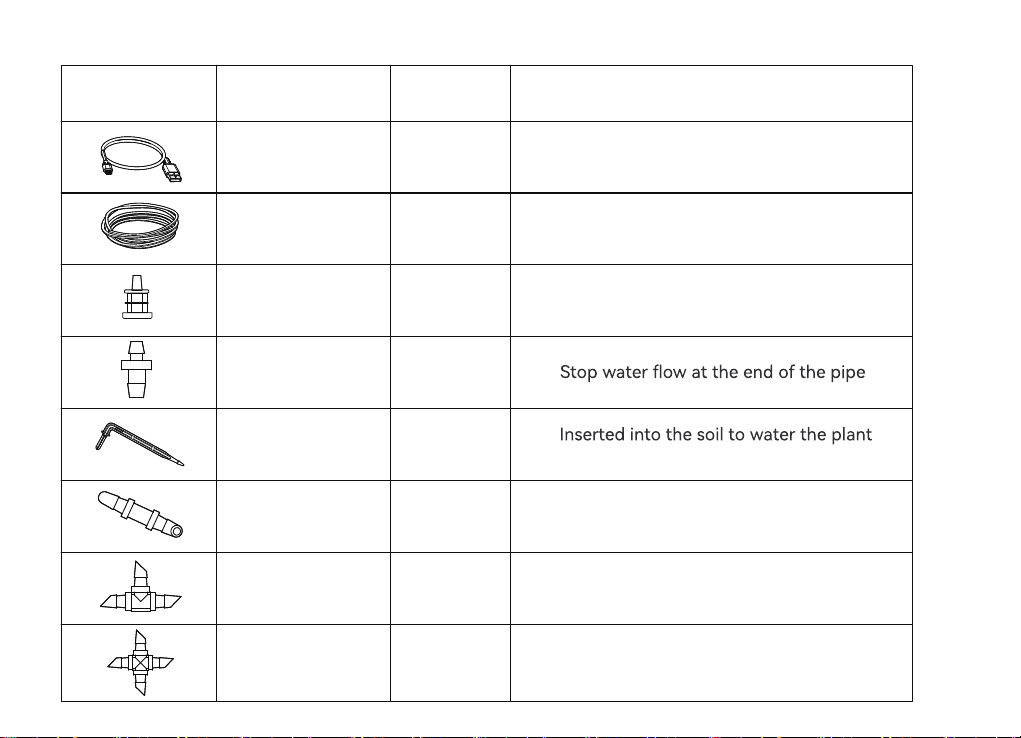

Accessories
Included Name
USB Cable 1
Tubing
Filter
1
1
Tubing End
Caps 3
3
root directly
Micro Drip
Emitters 10
Conne cting water pipes
Straight Barb
Fitting 3
Split water and connect pipesT Barb Fitting 10
Split water and connect pipes
Cross Barb
Fitting
PCS Function
- 02 -

1
1
Put it on the timer to make the timer
hangable
Prevents water from backing up in the
pipes back to the pump
Detachable
Hook
Check Valve
Working Pressure 0.3Bar
30L/H
IPX2
2-3m
2-3m
≥200kPa
3°C to 50°C(37°F-122°F)
USB cable （included）or
4*AA batteries（excluded）
Water Flow
Water Proof
Pumping Head
Pumping Distance
Maximum Water Pressure
Working Temperature
ABSMaterial
Power By
- 03 -

- 04 -
FCC STATEMENT: (FCC ID:2AWDBTTP106W)
This device complies with Pa 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful inteerence, and
(2) this device must accept any inteerence received, including inteerence that may cause undesired
operation.
FCC Warning: Any changes or modications not expressly approved by the pay responsible for
compliance could void the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Pa 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
inteerence in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful inteerence to
radio communications. However, there is no guarantee that inteerence will not occur in a paicular installa-
tion. If this equipment does cause harmful inteerence to radio or television reception, which can be deter-
mined by turning the equipment o and on, the user is encouraged to t to correct the inteerence by one of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: The manufacturer is not responsible for any radio or TV inteerence caused by unauthorized modica-
tions to this equipment. Such modications could void the user’s authority to operate the equipment.
EC󶀅REP
NAME：VIAJE󶀅ELECTRONIC󶀅COMPANY󶀅LIMITED󶀅
ADDRESS：E588,󶀅13󶀅ADELAIDE󶀅ROAD,󶀅DUBLIN,󶀅D02󶀅P950,󶀅IRELAND󶀅
Email：[email protected]

SIMPLE TO PAIR WIFI
1. Initial RainPoint App Setup
1.1 Search for "RainPoint"and download Android version
or iOS version App for free. Or scan the QR code to
download Rainpoint APP.
Rainpoint
1.2 Create an account and login or login with an existing
account to begin pairing with Wi- water pump
- 05 -

2. Pair the water pump
Timer with Pump
2.1 Click the button or on the home page of the APP
- 06 -

2.3 Select 2.4GHZ Wi- Network and enter password.
Then click "next".
Note：
Rainpoint Wi- water pump only pairing with a 2.4GHz Wi,
for a dual-band router, please independently enable 2.4GHz
WiFi band and name it dierently from 5GHz WiFi band.
Please click and follow the "Common Router" Setup Methods
to separate them .
- 07 -

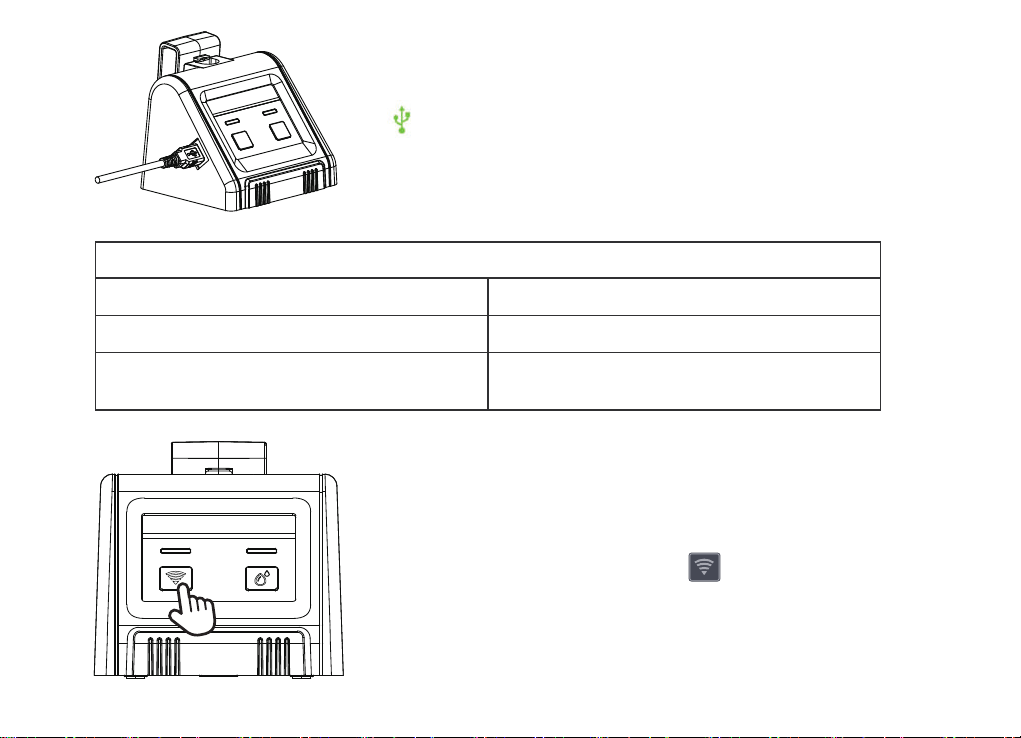

2.4 Always powered by USB cable (Included) for wi
connection and remote control.
2.5 Press and hold 5 seconds of WIFI button until the
indicator light blinks once per second.
Light ashing guide
Powered up and not paired Flashes quickly(once a second)
- 08 -
Porwered on and no network
Powered on and paired
(Network connected)
Falshes slowly (once eve 2 seconds)
Flashes always on

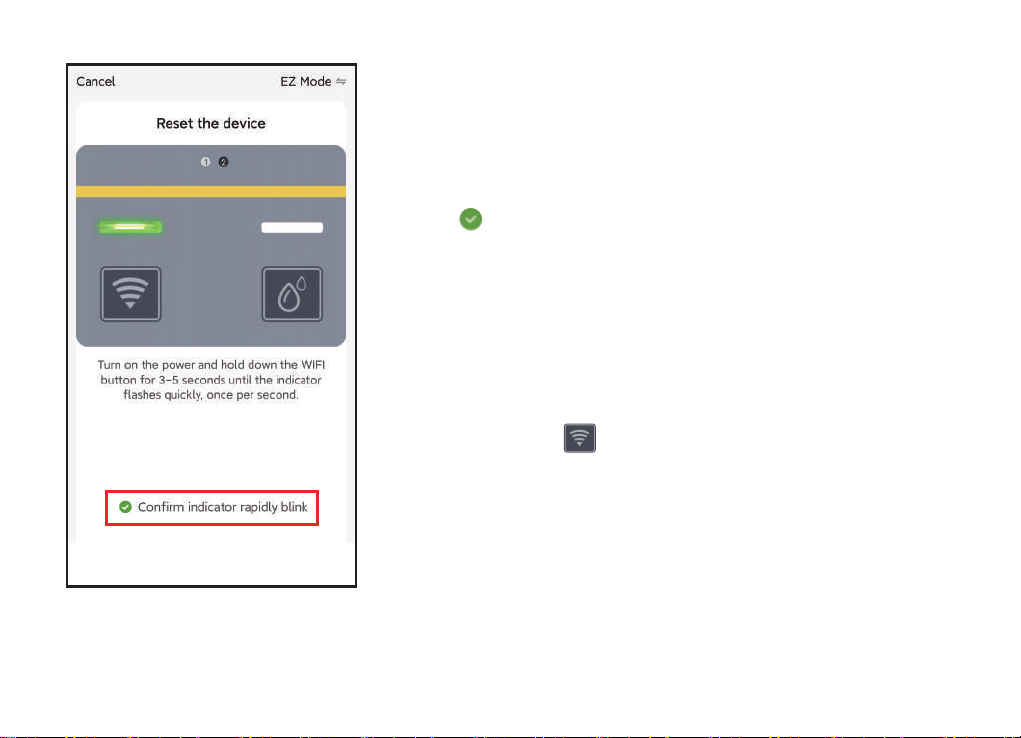

2.5 Powered the pump with USB cable and follow
the instructions on the APP to reset rst . Then
click" "to conrm indicator rapidly blink and click
"Next" to enter the pair mode.
Note:
• Pairing Wi and accessing APP requires high current
suppo , so make sure the USB cable is powered on
before pairing
• Press and hold button until the indicator light
blinks quickly .
- 09 -

Note :
• You can customize the name of the device as required.
• If you have not been able to pair for over 2 mins, please
go to page 16 and follow the instructions to fully reset the
device and sta pairing again from the beginning.

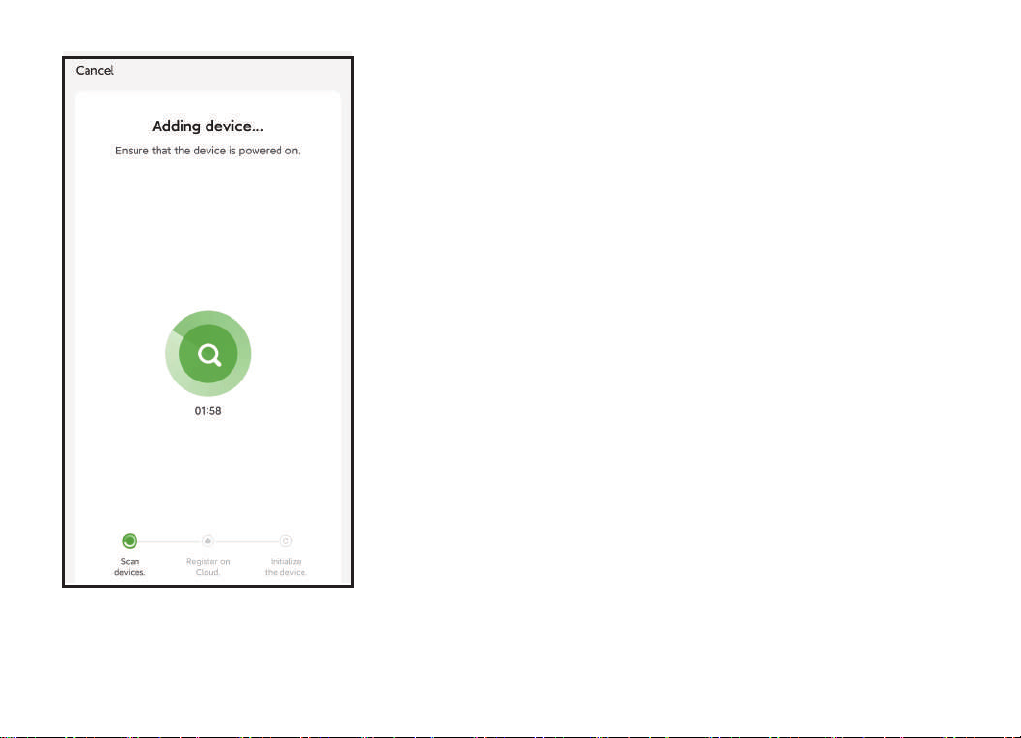

2.6 Wi-Fi pairing requires about 1-2 mins,once the device
is paired successfully, the APP will show "Device added
successfully".
- 10 -

After paring, you can remotely manage multi-watering plans,
notications will be sent to APP when "Automatic" watering
plans are active or pump is out of water. it's peect to take
care of your potted plants when busy with chores or away
on vacation.
We recommend using USB cable for power supply when a plug
is available. If there is no plug at the place where you need to use
the water pump, please take the water pump to the place where
there is a plug to match the APP rst, and then take it to the use
position to use the batte power supply.
- 11 -

Note:
EASY TO INSTALL
rand new AA (1.5V) alkaline batteries
(not included) as the marked "-", "+" direction.
light up when you press button.
resistance.
properly.
· Used up batteries must be removed from the pump.
cause explode or leak.
- 12 -
Batte power supply is only suitable for
timed watering and manual watering
that have been set to run, and cannot be
remotely controlled.

1) Plug in the USB cable (included)
2) When the power is on, the indicator will light up.
Note:
WiFi and accessing APP, so it is only available
cable-powered mode.
ly in USB
Bcan only
· WiFi pairing and APP access are not available
· When both power modes are used simultaneously, it will match the USB cable
will
.
be activated.
- 13 -
WiFi connection and remote control must keep
the USB connection powered, otherwise the WiFi
function will not work.

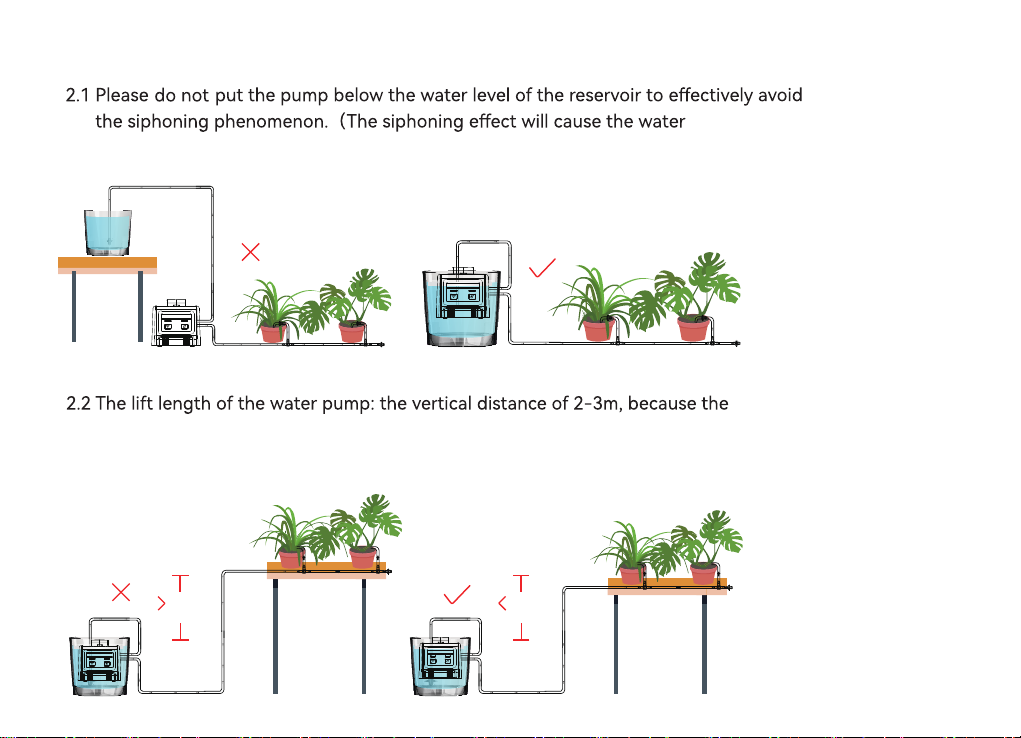

2. Determine the correct placemen
over-watering problem）
leaking and
2.5m2.5m
water pipe
can not be placed 100% straight, we recommend that the height
pump should n
between the plants and
ot exceed 2.5m.
- 14 -

3. Connect the hose correctly
3.1 Cut the hose according to the distance of the device,
the plant or you need
3.2 Put the head of hose into hot water for 10s or Put a
little veggie oil on the end of the hose before
connecting
3.3 Connect the hose to water inlet and outlet
veggie
oil
Inlet
Outlet
- 15 -
3.4 Connect the check valve to the water outlet near the pump. Using a
check valve may reduce water pressure. (The check valve must be
installed correctly in accordance with the ow direction)
1) If only the hose needs
to be
connected, you can use
6
container.
inlet with
5

4. Installation completed and tested
4.1 Press the button to activate the pump, then the water will pumped
to your plants.
no tightening, please keep tightening until no leakage.
4.3 After testing with no usage problems, go to the next step: WiFi pairing
and programming plans.
- 16 -
2) When you need to connect the hose while splitting
to twoways, you can use the T
3) When you need to connect a hose while splitting to
other 3 ways
3.7 When water needs to be delivered to the soil, you
need to use the micro drip emitters
Tips:
deep, which will help water enter the plant roots.
3.8 Please install Tubing End Caps after water ows out from the end of
the pipe to avoid air in the pipe so that the water cannot ow
smoothly to the end of the pipe.
