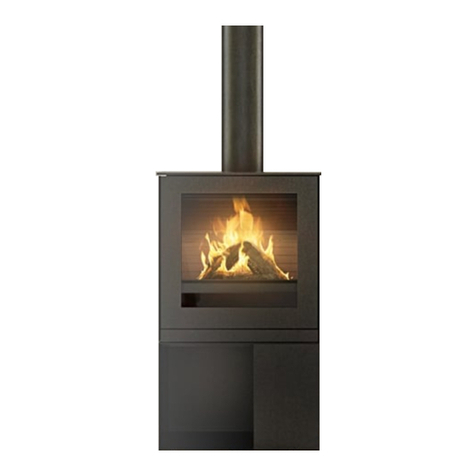

RAIS/attika Q-Tee II GAS User manual

1
BRUGERMANUAL
BEDIENUNGSANLEITUNG
USER MANUAL
MANUEL D’UTILISATEUR
BRUKERVEILEDNING
BRUKSANVISNING
KÄYTTÖOHJE
GEBRUIKERSHANDLEIDING
POSITIV
OUTLINE
NEGATIV
Q-Tee II GAS
Q-Tee II C GAS

3
Product ID: 0359CS1717
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
CE Label:
Q-Tee II Gas
Q-Tee II C Gas
18
C11
C31
C91
____ /
This appliance must be installed in accordance with the rules in force, and only used in
a suffidebtly ventilated space. Consult instructions before installation and use of this
appliance. Tested and Certified for use on Biopropane.
Efficiency class 1
N
A
T
U
R
A
L
P
R
O
P
A
N
E
GAS CATEGORY and SUPPLY PRESSURE
I2H
I2E
I2E+
I2ELL
I2L I2EK
I2 (43.46 -45.3 MJ/m3
(0°C))
I3+
I3P(30)
I3P(37)
I3P(50)
I3B/P(30)
I3B/P(50)
HEAT
INPUT
(Gross, KW)
BURNER
PRESSURE
(Hot, mbar) COUNTRY
of DESTINATION
G20 @ 20 mbar
G20 @ 20 mbar
G20↔G25 @
20↔25 mbar
G25 @ 20 mbar
G20/G25.3 @
25 mbar
G30↔G31 @
28↔37 mbar
G31 @ 30 mbar
G31 @ 37 mbar
G31 @ 50 mbar
G30↔G31 @
30 mbar
G30↔G31 @
50 mbar
9,1
9,1
9.1/8.4
7,5
8,5
8
7
8
8
8
836
27
36
36
28
27/36
16.6
13.4
13.2/16.4
13,2
13,2
AT, BG, CH, CZ, DK, EE, ES, FI,
GB, GR, HR, IE, IT, LT, LV, NO,
PT, RO, SE, SI, SK, TR
DE, LU, PL, RO
BE, FR
DE
NL
BE, CH, CY, CZ, ES, FR,
GB, GR, IE, IT, LT, PT, SI,
SK, TR
FI, NL, RO
BE, CH, CZ, ES, FR, GB,
GR, HR, IE, IT, LT, NL, PL,
PT, SL, SK, TR
AT, CH, CZ, DE, NL, SK
BE, BG, CY, DK, EE, FI, FR, GB,
GR, HR, HU, IT, LT, MT, NL, NO,
RO, SE, SI, SK, TR
AT, CH, CZ, DE, FR, SK
Q-Tee II Gas
Q-Tee II C Gas
CITY GAS G150.1 @ 8 mbar 9,4 6DK, SE
Typeskilt/Typenschild/Manufacturer’s plate/Plaque signalétique/
Merkeplate/Märkplät/ Tyyppikilpi

Q-Tee II Gas - Glass door
Q-Tee II Gas - Classic door
Q-Tee II C Gas - Glass door
Q-Tee II C Gas - Classic door
This stove had been tested and certicated for several countries (see the rating
plate). It may be necessary to adjust the stove for safe and correct use in your coun-
try/area.
This stove has been tested and certicated for use with natural gas, LPG and bio-
propane.
Biopropane can be used if the stove is adjusted for use with LPG (liquid petroleum
gas), see rating plate under PROPANE.
This manual covers the following models:
The stove is HOT during operation. Wear gloves when opera-
ting the stove. Do not operate the stove with an open door,
damaged glass, worn or damaged seals. Caution there might
be sharp edges.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

5
12-6510 - Q-Tee II Gas - Q-Tee II C GAS
3
20-06-2018
Revision :
Date :
INTRODUCTION.................................................................................................................6
GUARANTEE...........................................................................................................................7
SPECIFICATIONS .....................................................................................................................8
DISTANCE/TEMPLATE..............................................................................................................8
GENERAL
GENERAL COMMENTS ...........................................................................................................9
EMERGENCY INTERRUPTION OF GAS SUPPLY .......................................................................10
INSTALLATION OF STOVE
INSTALLATION ......................................................................................................................11
GAS CONNECTION...............................................................................................................11
VENTILATION........................................................................................................................11
GAS INSTALLATION...............................................................................................................11
CHANGING THE CHIMNEY CONNECTION.............................................................................12
CONVERSION TO BOTTLED GAS (LPG) ..................................................................................15
NORMAL INSTALLATION - Q-TEE II GAS ................................................................................22
NORMAL INSTALLATION - Q-TEE II C GAS .............................................................................23
CORNER INSTALLATION 45° - Q-TEE II GAS...........................................................................24
CORNER INSTALLATION 45°- Q-TEE II C GAS.........................................................................25
INSTALLATION SPACING FOR NON-FLAMMABLE WALL .........................................................26
CHIMNEY / FLUE...................................................................................................................27
LOCATION OF CHIMNEY TERMINALS....................................................................................28
HORIZONTAL WALL TERMINAL TYPE C11 .............................................................................29
VERTICAL ROOF TERMINAL C31 ...........................................................................................30
FITTING OF SECONDARY BURNER.........................................................................................31
Arrangement of ”Embers” and ”Logs”.................................................................................32
START-UP
BATTERIES ............................................................................................................................37
SETTING UP THE ELECTRONIC CODE ....................................................................................39
COMMISSIONING.................................................................................................................40
INITIAL IGNITION ..................................................................................................................42
USER INSTRUCTIONS
REMOTE CONTROL...............................................................................................................43
USING STOVE WITHOUT REMOTE CONTROL ........................................................................49
SERVICE
SERVICE ...............................................................................................................................51
CLEANING............................................................................................................................52
ACCESSORIES.......................................................................................................................53
MYFIRE WI-FI BOX ................................................................................................................54
SPARE PART LIST ...................................................................................................................56
SPARE PART LIST GAS UNIT...................................................................................................57
TECHNICAL INFORMATION
TECHNICAL INFORMATION...................................................................................................58
TECHNICAL DATA.................................................................................................................60
EXAMPLES OF CHIMNEY SOLUTIONS....................................................................................62
CHIMNEY COMPONENTS .....................................................................................................71
DECLARATION OF PERFORMANCE........................................................................................75
Reservations for printing errors.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

6
Dealer: Datum:
Installateur: Datum:
Dealer: Date:
Introduction
Congratulation on your new RAIS / attika Product.
A RAIS / attika stove is more than just a source of heat, it also expresses how you put
the emphasis on good design and high quality in your home.
In order get the most pleasure and benefit from your new stove, it is important that
you read the manual thoroughly before it is installed and put to use.
For the purpose of the guarantee and all contact regarding the stove in general, it is
important that you can state the stove's production number. We therefore recommend
that you write down the number in the form below.
The production number can be found at the bottom of the stove.
Installer: Date:
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

7
Guarantee
RAIS/ attika stoves are checked several times with regard to safety, as well as the
quality of materials and manufacturing. We offer a guarantee on all models and the
guarantee commences on the date of installation.
The guarantee covers:
• documented functional faults due to incorrect manufacture
• documented material faults
The guarantee does not cover:
• door and glass gaskets
• ceramic glass
• the appearance of the surface structure or texture of the natural stone
• the appearance of the stainless steel and colour changes and patina
• expansion blemishes
• batteries
The guarantee is invalidated in the event of:
• damage due to overfiring
• damage due to external influences and the use of unsuitable fuels
• failure to comply with statutory or recommended installation instructions and in
the event the user's own modifications of the stove.
• lack of servicing and care, the stove must be serviced annually
In the event of damage, please contact your dealer. In the event of claims under the
guarantee, we will decide how the damage is to be repaired. In the event of repairs, we
will ensure they are performed professionally.
In the event of guarantee claims concerning repaired parts or parts delivered later,
please refer to national/EU law/provisions in relation to renewed guarantee periods.
The guarantee provisions applying at any time may be requested from RAIS/ attika .
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

8
Specifications
Intertek Ref.: 103435815LHD-001
Q-Tee II Gas Q-Tee II C Gas
Nominal heat input (kW):
Natural Gas - G20 I2H/I2E 9.1 9.1
Min. input (kW):
Natural Gas - G20 I2H/I2E 1.7 1.7
Nominal heat input (kW):
Propane Gas - G30/G31 I3B/P(30) 8 8
Min. input (kW):
Propane Gas - G30/G31 I3B/P(30) 1.8 1.8
Heating area (m2at -20°): Approx. 180 Approx. 180
Stove width/depth/height (mm): 582-410-598 660-479-598
Weight (kg) min., depending on model: approx. 87 approx. 94
Efficiency (%): (G20 I2H/I2E) 78.3 78.3
CO content (PPM) (G20 I2H/I2E) 31 31
NOx emissions (G20 I2H/I2E) 23 23
Flue gas temperature (°C): (G20 I2H/I2E) 210 210
Intertek Testing & Certification Ltd,
Registered office: Academy Place, 1 to 9 Brook Street, Brentwood, Essex
CM14 5NQ, United Kingdom. Registered No: 3272281
(England), VAT No: GB 672-7639-96-011
T: [phone]
F: [phone]
Distances/template
See scale drawings at back of the manual.
I: Distance from floor to flue outlet top
J: Distance from floor to centre flue outlet rear
L: Distance from floor to air intake back
M: Distance from centre flue outlet top to top plate rear edge
N: Distance from side to air intake at bottom
Maximum Output Natural Gas
Net Effect (kW) Gas type G20
6,4
Maximum Output Propane
Net Effect (kW) Gas type G31
5,8
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

9
General Comments
This RAIS / attika product is an extremely effective convection gas stove with a sealed
combustion chamber for chimneys with a balanced draught. It is fitted with a burner
with the latest burner technology. It has a variable heat output because it uses a special
control system that makes it possible to use three burners for high output or one burner
for a lower output. One of the burners, called the "Main burner" is located in the centre
of the stove, the second and third burners, called the "Secondary burners" are located
behind the Main burner. The secondary burners can be switched on and off while the
stove is on.
Where there is a natural gas connection, the local gas supply conditions should be inves-
tigated to ensure that the gas composition and pressure suit the stove's settings.
If the stove is connected to bottled gas, only gas bottles fitted with a gas regulator (Low
pressure regulator) providing the correct gas pressure may be connected. For this reason,
gas bottles without a regulator must not be connected.
This stove must only be installed, set up and serviced by a Gas safe registered Engineer.
The installation must comply with local and national Building Regulations and Gas
Regulations and the user manual must be adhered to. The user manual should be left
with the customer, who should keep this for later use. The manual is necessary when the
stove is to be serviced.
Ensure that the chimney terminal is not blocked in any way and is free of vegetation
in the form of trees, bushes etc. and that objects are not resting against the chimney's
terminal or the protection around the terminal.
The door glass should always be cleaned before the stove is turned on and fingerprints
wiped as these can be burned into the glass.
The stove must not be used if the door glass is split, cracked, removed or if the
door is open. Do not use the stove if the door gasket is broken or worn.
This stove is designed for use in many different installation situations, which can be seen
in this manual. Only chimneys approved by RAIS / attika may be used with this prod-
uct. (see chimney section)
This stove is intended for chimneys with balanced draughts (Air intake and draught in
same chimney) so there is no need for any extra air supply for combustion.
This product is a heating appliance so the surfaces become very hot and should
not be touched during use. It is therefore recommended that you use an ap-
proved stove screen to protect children, vulnerable adults, older people and
persons with reduced mobility in the same area as the stove.
Keep curtains, washing, furniture etc. at a minimum distance of 300 mm from this stove.
The stove must not be used for burning waste.
If the stove is extinguished or goes out, do not attempt to turn it back on until a mini-
mum of 3 minutes have passed.
General
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

10
Emergency interruption of gas supply
Where a smell of gas is detected, the gas supply must be interrupted
immediately. Turn off the stove at the isolation tap and the gas meter
Ventilate the room by opening windows and doors, do not use electrical
appliances in the vicinity of the stove. Or operate any electrical switches.
The gas supply must not be switch on, until a Gas Safe Registered engi-
neer has checked the system and deem it as being safe.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

11
Installation
It is important that the stove is correctly installed from both an environ-
mental and safety point of view.
The stove must only be installed by a Gas Safe Registered engineer.
When installing the stove, all local rules and regulations, including those
referring to national and European standards must be complied with.
The installation must comlpy with the Building Regulations and Gas Safe-
ty (Installation and use) Regulation.
There must be no unauthorised modifications of the stove.
Before installation begins, it should be confirmed that the information
on the data plate regarding gas type and pressure is in accordance with
the local gas supply conditions under which the stove is to be installed.
You should ensure that the gas supply can supply the required quantity
of gas and pressure as described on the data plate. It is advisable to wear
gloves when installing and servicing the stove.
Gas connection
The inlet supply pipe has an external diameter of Ø8mm. An isolation
tap must be fitted.
Ventilation
This stove has a sealed combustion chamber and is intended for a bal-
anced draught. There is therefore no need for an extra air supply.
It is recommended that sufficient fresh air is supplied to the room to
maintain a comfortable environment.
This stove may be installed in a completely airtight building or a building
with mechanical ventilation.
Gas installation
Once it has been decided where the stove will be positioned, a gas in-
stallation should be established in the vicinity of the stove so that the gas
supply and stove can be connected.
As this stove has a sealed combustion chamber and a built-in plinth,
there is no need for a floor slab.
The installation must comply with the Building Regulations, Gas Safe-
ty (Installation & USe) Regulations, BS 5871, BS 5440-1, BS 6891 and
where relevant all LPG Codes of Practice. LPG stoves must not be fitted
in a basement.
installation of stove
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

12
Established:
Designer: Project manager:
Format:
Approved:
Drawing no.:Revision:Project:
Drawing name:
INDUSTRIVEJ 20, 9900 FREDERIKSHAVN, DENMARK
Phone [phone] - Fax [phone]
E-mail: [e-mail] - Homepage: www.rais.dk
Corrections:
D M Y
ksj
Changing the chimney connection
20-06-2018 A3 12-0103-860712
PLEASE NOTE!
The floor construction must be able to bear the weight of the stove and
chimney, if applicable. If the existing design does not satisfy this prereq-
uisite, suitable measures must be taken (e.g., a load distribution slab).
Consult a construction expert.
The stove must be positioned at a safe distance from flammable materi-
al.
It must be ensured that flammable objects (e.g., furniture) are not po-
sitioned closer than the distances stated in the following sections with
regard to installation (risk of fire).
When you choose where you wish to position your stove, you should
consider the heat distribution to the other rooms. Then you will get the
maximum possible pleasure from your stove.
Inspect the stove for defects upon receipt.
Changing the chimney connection
The stove is supplied ready for a top outlet but can be changed to a
rear outlet in the following manner:
1. The knock-out blank at the rear of the stove
can be knocked out using a hammer. This may
require several blows. Be careful to only hit the
blank.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

13
2. Loosen the three
screws of the outer
flange on the top sur-
face of the stove. And
remove it.
3. Loosen the three
screws of the inner
flange inside the
burning chamber. And
remove it.
4. Unscrew the outer cover
plate at the rear of the stove
and move it to the upper sur-
face of the stove.
5. To open the door, a 10mm
open-ended spanner is re-
quired to turn the two catches
at the top and bottom of the
door.
6. The secondary burners are
removed by lifting them verti-
cally up and out.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

14
8. Remove the Scamol fire
bricks, (First remove the
perforated plate)
9.The internal cover plate
can now be dismounted.
7. If the ceramic logs are
fitted remove these.
10. The internal cover plate
is now fitted to the un-
derside of the top plate as
shown. It is vital that this
plate fits and seals correctly
11 Fit the connecting piec-
es where the cover plates
were and replace the back
plate, logs and burners.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

15
LPG
LPG LNG
LNG
Conversion to bottled gas (LPG)
IF the stove is supplied configured for natural gas, it can be converted to
bottled gas (LPG). The conversion must only be carried out by a Gas Safe
Registered engineer.
Conversion kit. Use article number 3713595. This set contains 4 new
injectors suitable for propane/LPG gas.
The injectors for the secondary
burners for LPG are marked
"100"
The injectors for the second-
ary burners for natural gas are
marked "260"
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

16
LPGLNG
LPGLNG
The injector for the pilot light for
LPG is marked "27"
The injector for the pilot light for
natural gas is marked "32"
The injector for the main burner for LPG
is marked "80"
The injector for the main burner for nat-
ural gas is marked "120"
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

17
The gas unit needs to be dismantled to gain access to the injectors. Do
this in the following manner:
Lift the perforated plate up and out of
the stove.
Loosen the four screws holding the
gas
unit in place.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

18
Replace the two injectors for the second-
ary burners by loosening the coupling and
carefully pulling the pipe out. Loosen the
locknut and then unscrew the injector. Fit
the LPG injector and tighten the lock nut.
Finally, re-tighten the coupling.
Once the gas unit has been dismounted, replace the four injectors and
adjust the three air intakes.
Now the gas unit can be lifted out carefully
by tilting and rotating the unit a little.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

19
Remove the injector for the main burner by
loosening the coupling and carefully pulling
the pipe out and then unscrewing the injec-
tor. Fit the LPG injector and tighten the lock
nut. Finally, re-tighten the coupling.
Replace the injector for the pilot light by
loosening the coupling and carefully pull-
ing the pipe out. Note. The small pilot light
injector should now fall out and can be
replaced with the LPG injector.
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas

20
The two air intakes for the secondary burn-
er are adjusted for LPG configuration by
loosening the two screws and rotating the
air intake by 90°. So that both holes in the
vertical pipe are now open. (the small one
at the rear and the large one at the front)
Small hole at the rear
Large hole at the front
The air intake to the main burner is adjust-
ed for LPG configuration by loosening the
two nuts and pushing the plate all the way
towards the burner. (The hole fully open)
English RAIS/ attika - U ser manual for Q-Tee II Gas / Q-Tee II C Gas
