RAK10701-P Field Tester Pro for LoRaWAN
Quick Start Guide
Prerequisites
What Do You Need?
Before going through each and every step in the installation guide of the RAK10701-P Field Tester Pro for
LoRaWAN, make sure to prepare the necessary items listed below:
Hardware Tools
1. RAK10701-P Field Tester Pro for LoRaWAN
2. LoRa SubGhz Antenna with RP-SMA connector
3. USB Type-C Cable
4. Windows/Linux/macOS for PC or iOS/Android for mobile
Software Tools
WisToolBox for configuration and firmware update.
📝 NOTE:
It is mandatory that you are within the coverage of the LoRaWAN Gateway of the network you are trying to
join. Without the coverage, the Field Tester will not be useable.
Product Configuration
RAK10701-P Field Tester Pro Physical Interface
The user interface of the RAK10701-P Field Tester Pro for LoRaWAN is via TFT Touchscreen LCD and one
pushbutton at the side. There is also an external LoRA antenna port via RP-SMA connector and USB-C port for
charging and configuration if connected to a PC.

Documentation Center

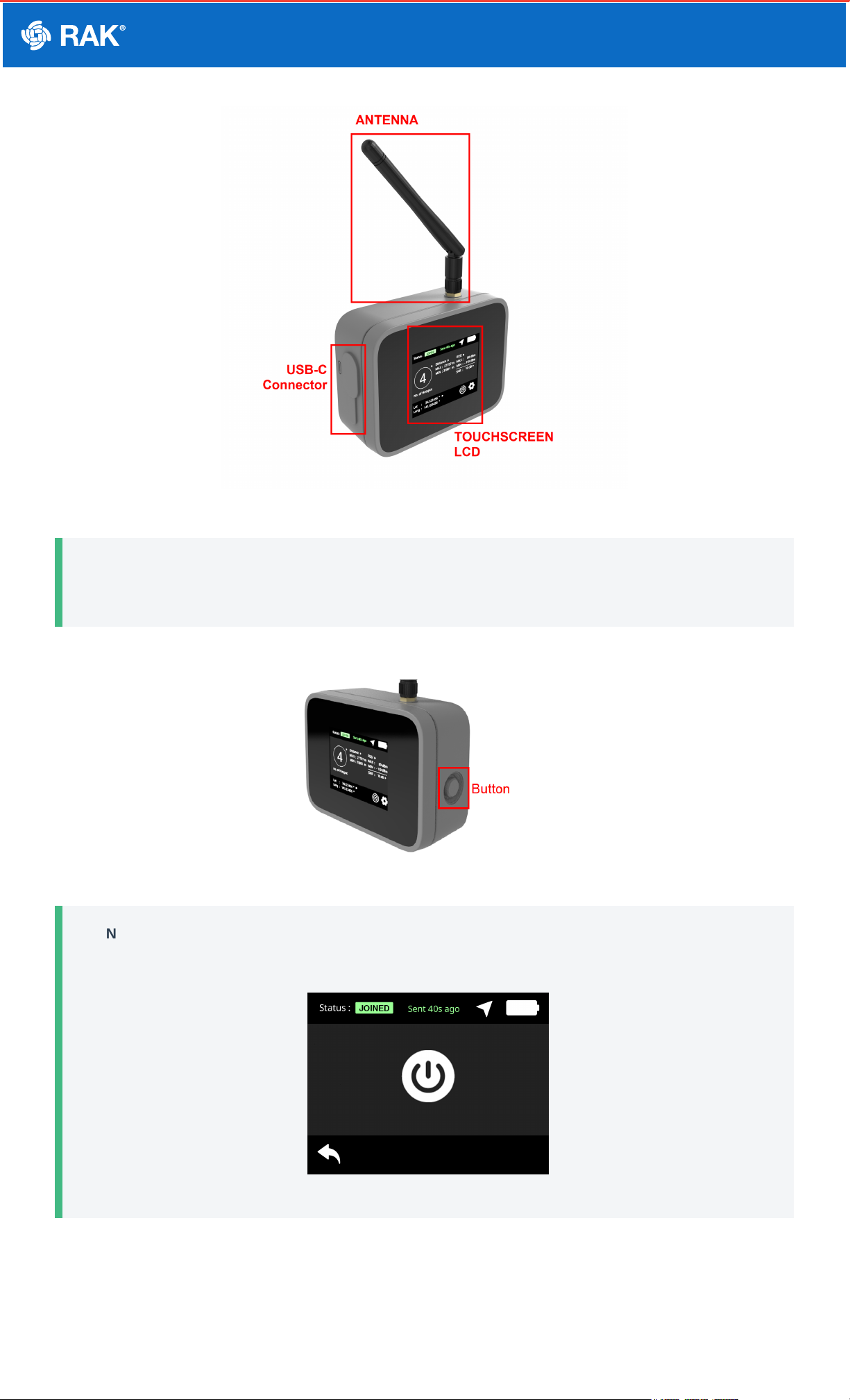

Figure 1: Parts of RAK10701-P
📝 NOTE:
You have to ensure that the LoRa antenna is attached before turning on the device.
1. To turn on the device, you have to press and hold the button for at least five seconds.
Figure 2: RAK10701-P button to turn on
📝 NOTE:
The same button can be used to power off. You have to hold it as well for at least five seconds.
Figure 3: RAK10701-P power off
2. When the device initializes, it will show the RAK logo on the screen. If there is any initialization error, it will be
shown on the upper right section of the screen as well. A properly working device should not have any errors
shown.

Documentation Center

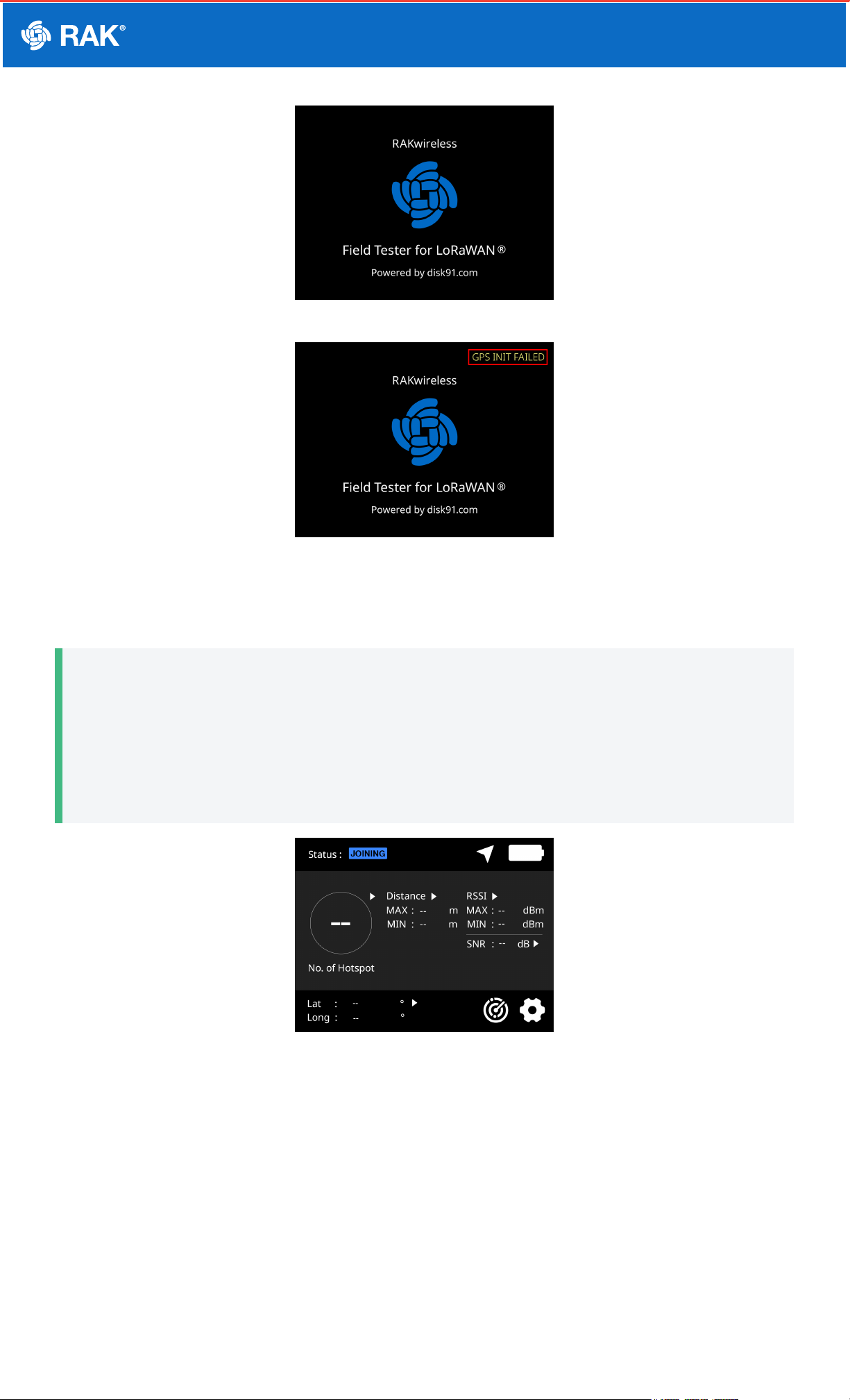

Figure 4: RAK10701-P power up successful
Figure 5: GPS error on boot up sequence
3. After the successful boot-up, the main home screen will be shown. Take note, that there will be no data at the
first start of the device.
📝 NOTE:
The field tester must be outside and has a clear view of the sky to get GPS coordinates. The GPS antenna
is located on top of the device beside the RP-SMA connector of the LoRa Antenna.
If you are indoors, there will be no reception of the GPS signal. The latitude and longitude data will be
empty.
Figure 6: RAK10701-P Main Page waiting for valid data
4. Once fully powered on, the external button at the side can sleep or wake up the display on the LCD screen via a
single press on it.
5. If the device is connected via USB-C to a computer, then the button is pressed, it will not remove the display but
will lock the screen (touch screen behavior is disabled).

Documentation Center
Figure 7: RAK10701-P locked screen
LoRaWAN Network Servers Guide for RAK10701-P
Field Tester Pro
The field tester supports different network servers and can be used as well on others not listed in this guide as
long as the uplink and downlink packets are configured correctly.
You can check each guide on how to use the RAK10701-P Field Tester Pro for LoRaWAN in the following network
servers.
Helium
The Things Network
Chirpstack (with Datacake integration used as backend)
📝 NOTE:
This section will focus on the configuration of each network server. The procedure of Device Configuration
of RAK10701-P via WisToolBox is the same for all network server and will be covered in a separate
section of the guide.
RAK10701-P Field Tester Pro Guide for the Helium
Network
RAK10701-P can be manually registered to Helium Console . This is a public LoRaWAN network server that
you can use for your LoRaWAN end-devices powered by community-driven Helium Hotspots. This guide will show
every detail of how to prepare the Helium Console for your RAK10701-P Field Tester Pro.
📝 NOTE:
This guide is based on disk19 guide for the Field Tester configuration for the Helium Console.
1. You need to register an account and then purchase data credits (DC) to use the network. If you are a new user,
there are free data credits (DC) included in your new account to get you started quickly.

Documentation Center
Figure 8: Heluim Console
Figure 9: Console Home Page
2. Once you are logged in, you can start adding your device. You have two ways to add a device as shown in the
image.

Documentation Center

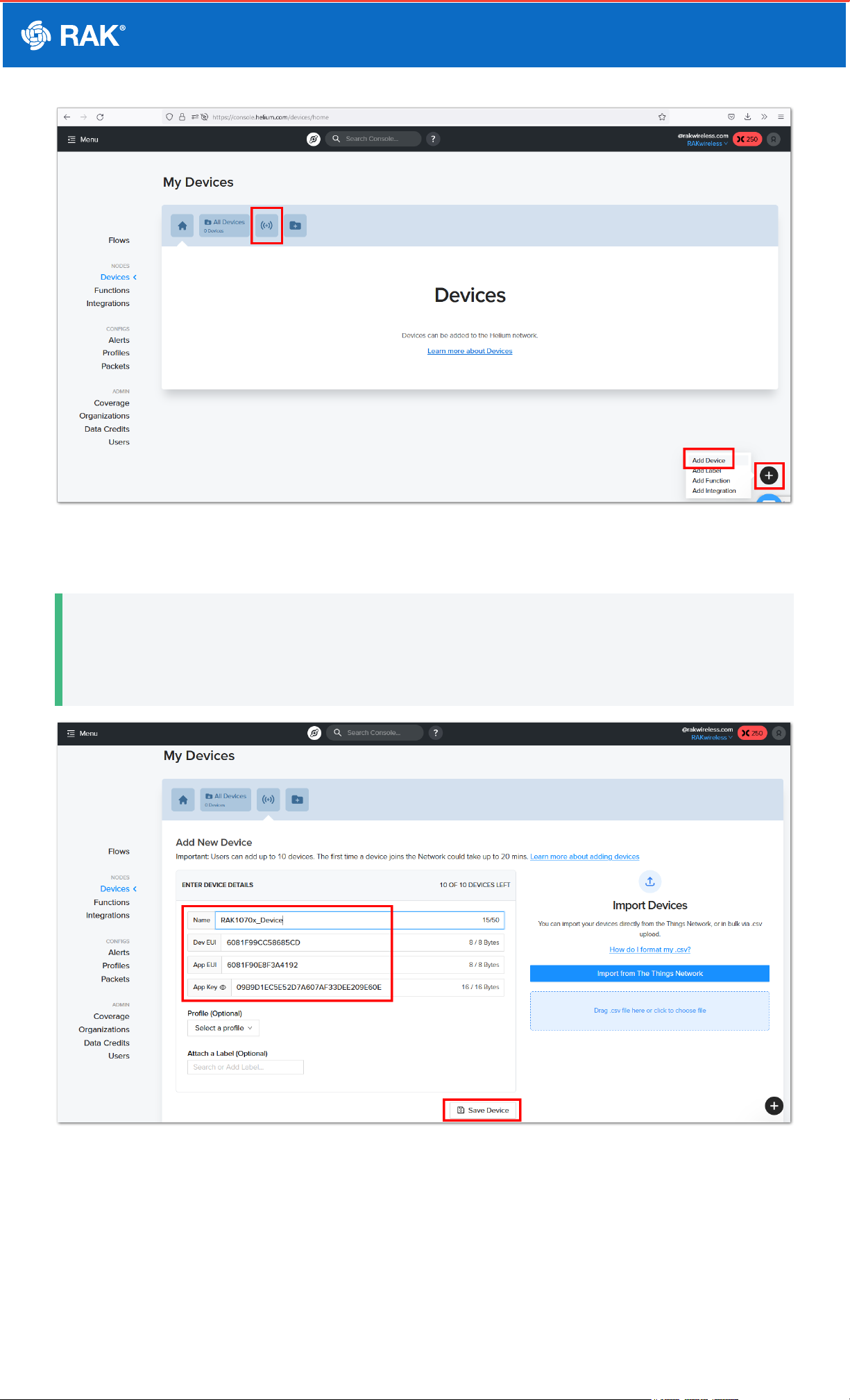

Figure 10: Adding Device
3. The newly added device parameters will be shown. You have to put a device name and click save.
📝 NOTE:
The DEVEUI, APPEUI, and APPKEY are important in this step. These values must be configured on your
RAK10701-P device using WisToolBox which will be covered later in this guide.
Figure 11: Configuring Device Name
4. The device will be added to the blockchain and it will show pending beside its name.

Documentation Center
Figure 12: Pending Device Status
5. While waiting for the device to be added to the blockchain, you can create a Label . This will allow you to
group your device to have a common setting. This will be needed to attach the needed integrations to the
backend server of dev.disk91.com . You have to click the folder with the + icon and add a Label name then
click Save Label . The newly created label should now be shown in the Devices console.
Figure 13: Add Label icon

Documentation Center

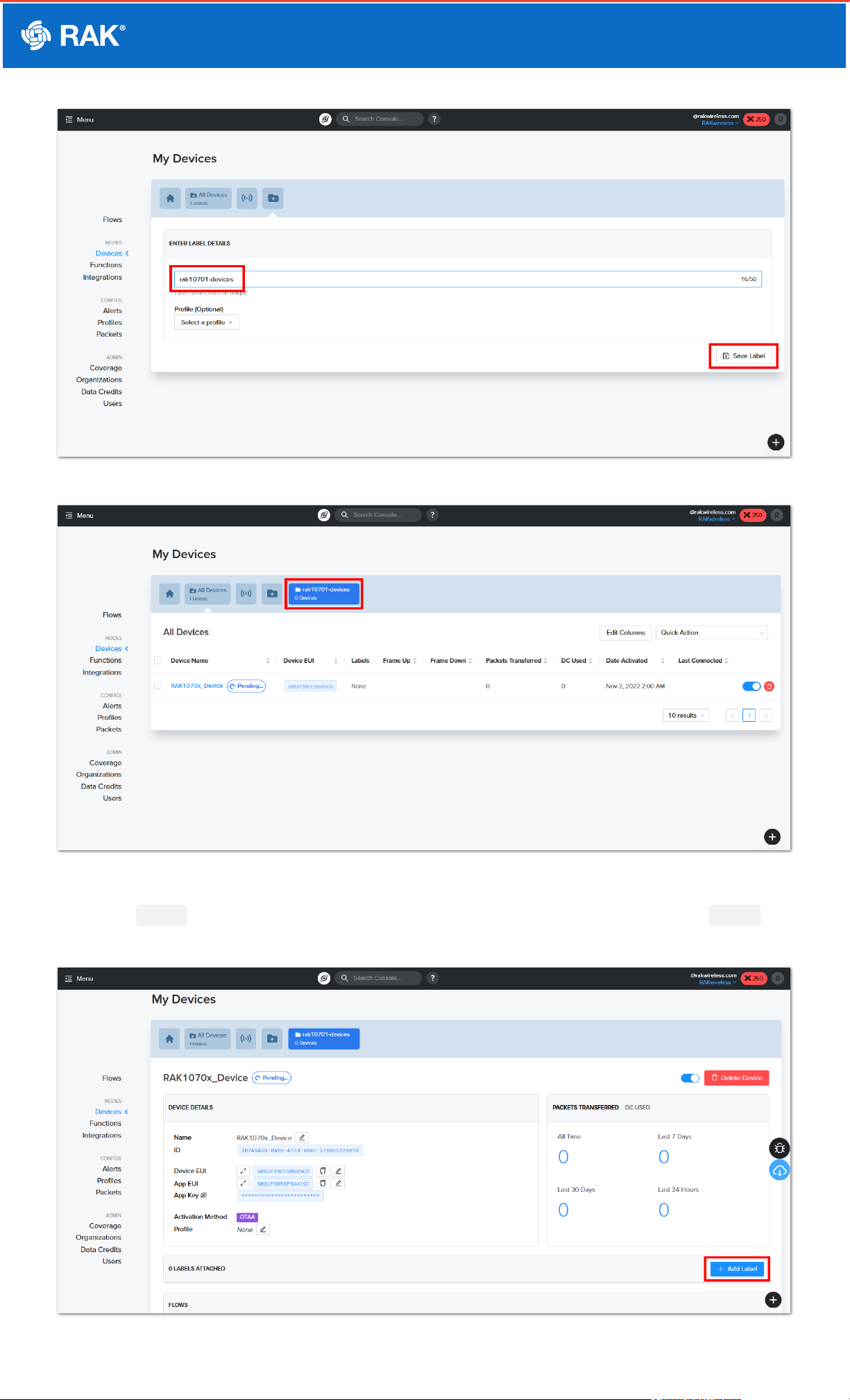

Figure 14: Add Label Name
Figure 15: Label created successfully
6. Once the Label is created you have to associate it on the RAK10701 device. You can attach the Label on
the device by clicking the Add Label button.
Figure 16: Attach a label to the device

Documentation Center
7. A pop-up will be shown and you have to select the correct Label created for RAK10701 then click Add Label.

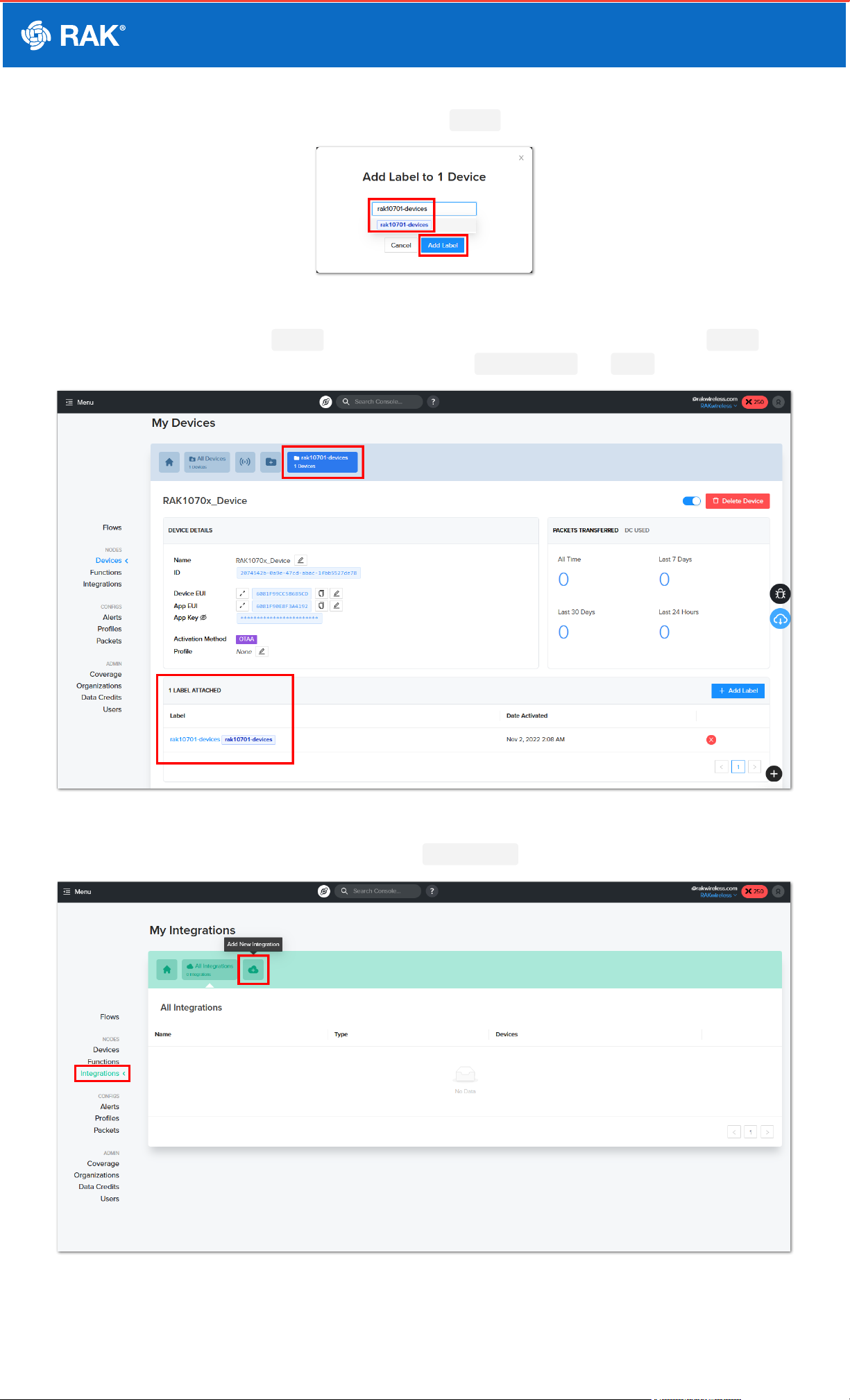

Figure 17: Drop-down on label selection
8. After successful attachment of Label on the devices, it should show one (1) device is under that Label . The
device is properly labeled which is needed for the next steps - Integrations and Flow .
Figure 18: Label added on the RAK10701 device
9. To connect the backend server, you have to create an Integration .
Figure 19: Add integration

Documentation Center
Figure 20: HTTP integration
10. Then you must proceed to steps 2 and 3 sections of the Integration settings. You have to select POST then
on the Endpoint URL, you must put https://dev.disk91.com/fieldtester/helium/v3 . It is also needed to
put the integration name before the clicking Add integration button.
Figure 21: Details of HTTP Integration
11. After preparing the device and the integration, you can now proceed with creating the flow to connect them. You
have to click Flows and then the + icon on NODES .

Documentation Center
Figure 22: Setting up the Flows
12. You must select Labels and Integrations and then drag the correct blocks on the flows canvas.
Figure 23: Drag the rak10701-devices label

Documentation Center

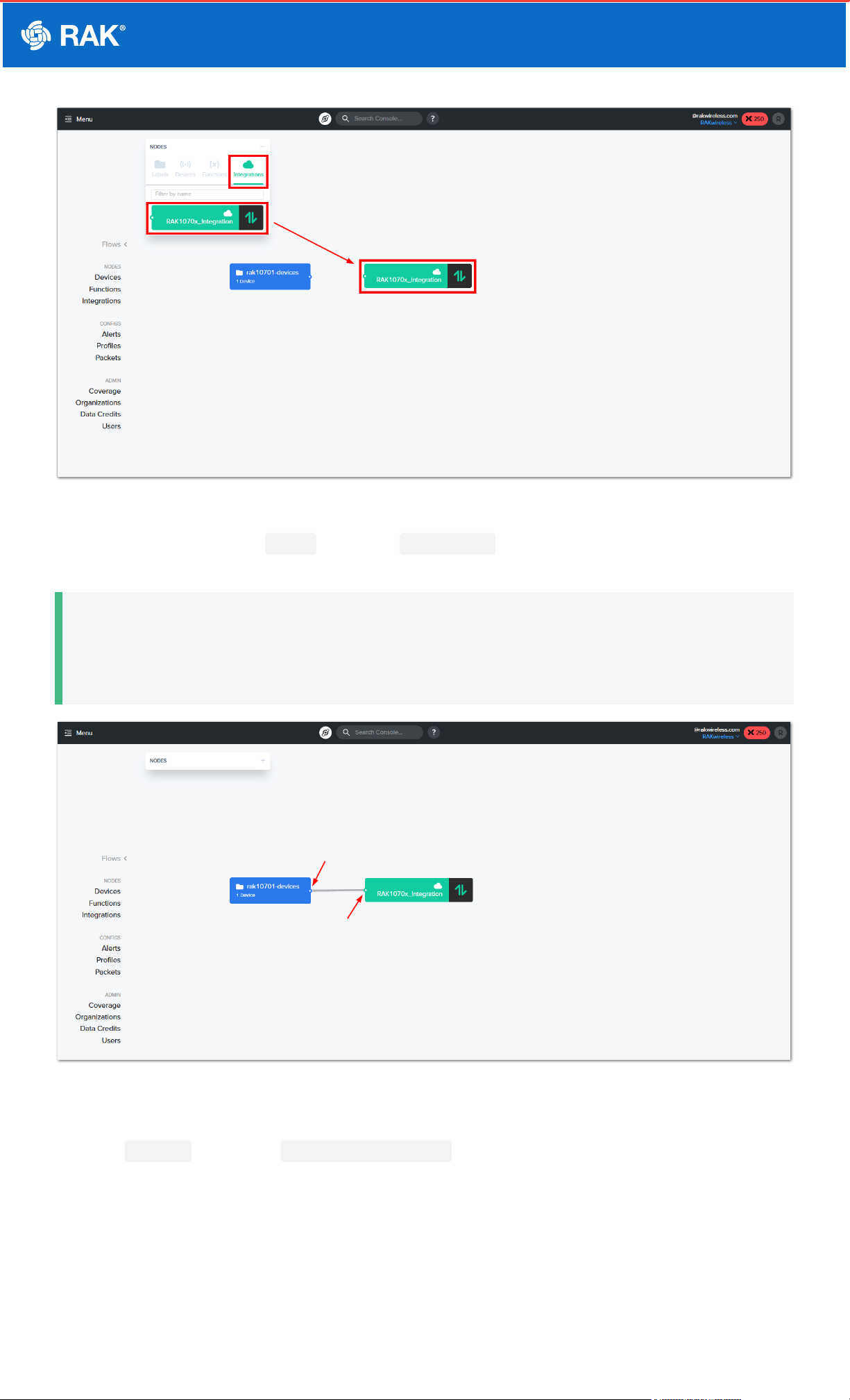

Figure 24: Drag the RAK1070x_Integration
13. You then have to connect the Label block to the Integration block via the tiny connector indicated by the
red arrows by using your mouse cursor and dragging the line connector.
📝 NOTE:
There is no need to save the changes created on the flows canvas since it is automatically saved as you
do changes.
Figure 25: Connecting Labels to Integrations
14. The final step in the setting up of the Helium Console for RAK10701 is the setting up of packets. You have to
click on Packets and then the Add New Packet Config icon.

Documentation Center
Figure 26: Creating Packets
15. You must also input a name on the Packet Config Name , select Multiple Packets and drag the slider so it
will show All Available Packets . Once done, you can now click on + Create Packet Config .

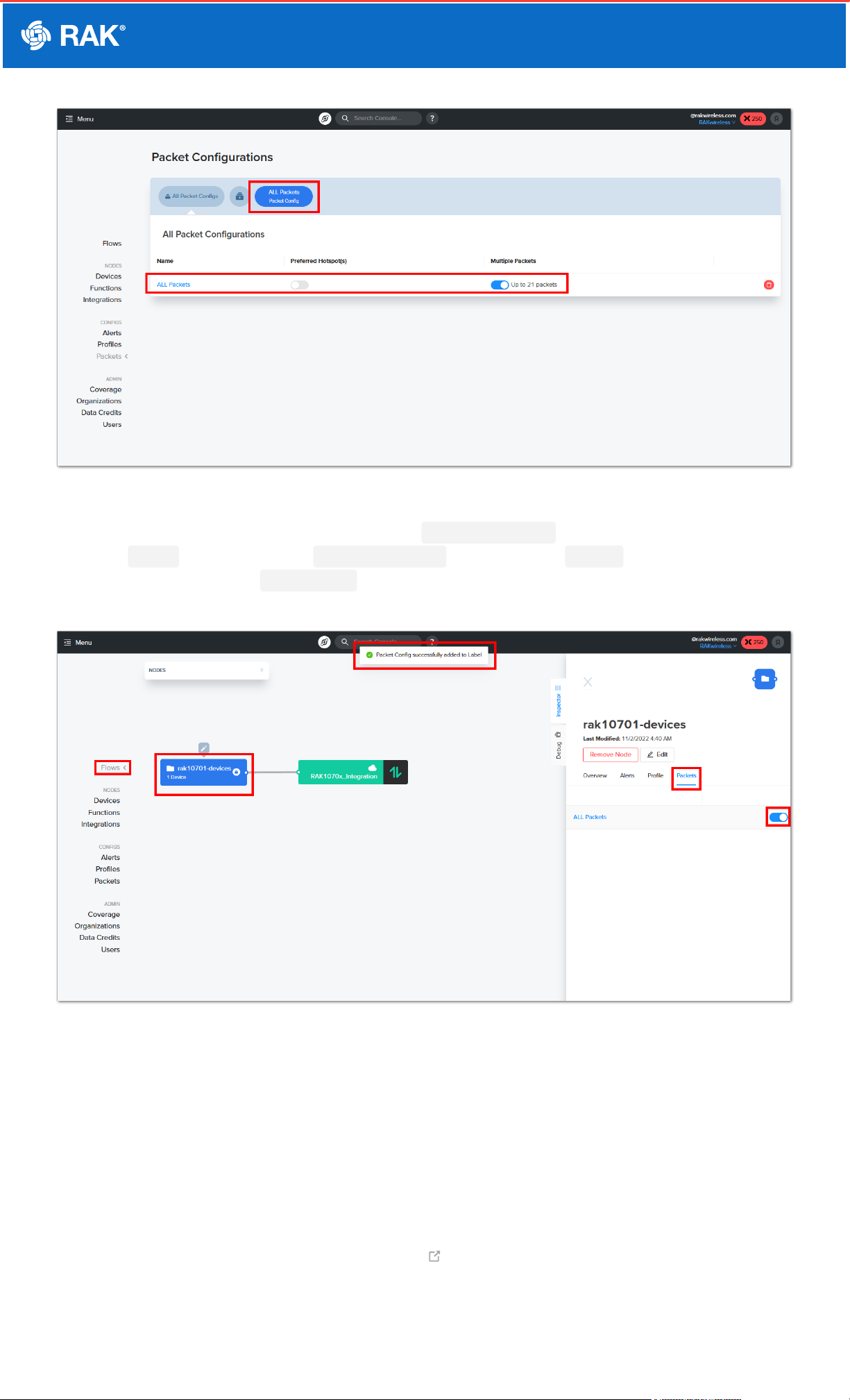

Figure 27: Multiple packets configuration

Documentation Center
Figure 28: Successful packets creation
16. You must associate the multiple packet setup with the rak10701-devices label. To do this, you have to go
back on Flows , double-click on the rak10701-devices label, choose the Pakets tab under rak10701-
devices settings then enable ALL Packets . After this, you can now proceed with the configuration of
RAK10701 using WisToolBox.
Figure 29: Attaching multiple packets to the rak10701-devices label
17. You can now proceed on device configuration so that the proper EUIs and KEY will match the one in the Helium
network.
RAK10701-P Field Tester Pro Guide for The Things
Network
This section shows how to use the RAK10701-P Field Tester Pro for LoRaWAN to The Things Stack.
1. First, log in to TTNv3. To do so, head to the TTNv3 site and select your cluster. If you already have a TTN
account, you can use your The Things ID credentials to log in.

Documentation Center
Figure 30: The Things Stack home page
Figure 31: Console page after a successful login
📝 NOTE:
To connect RAK10701-P Field Tester Pro to TTNv3, you should already have connected a gateway in
range to TTNv3. Or, you have to be sure that you are in the range of a public gateway.
2. Now that you are logged in to the platform, the next step is to create an application. In your console, click
Create an application.

Documentation Center
Figure 32: Create an application
3. To have an application registered, you need to input first the specific details and necessary information about
your application then click Create application.
Figure 33: Creating an Application
4. If you had no error during the previous step, you should now be on the application console page. The next step
is to add end-devices to your TTN application.

Documentation Center

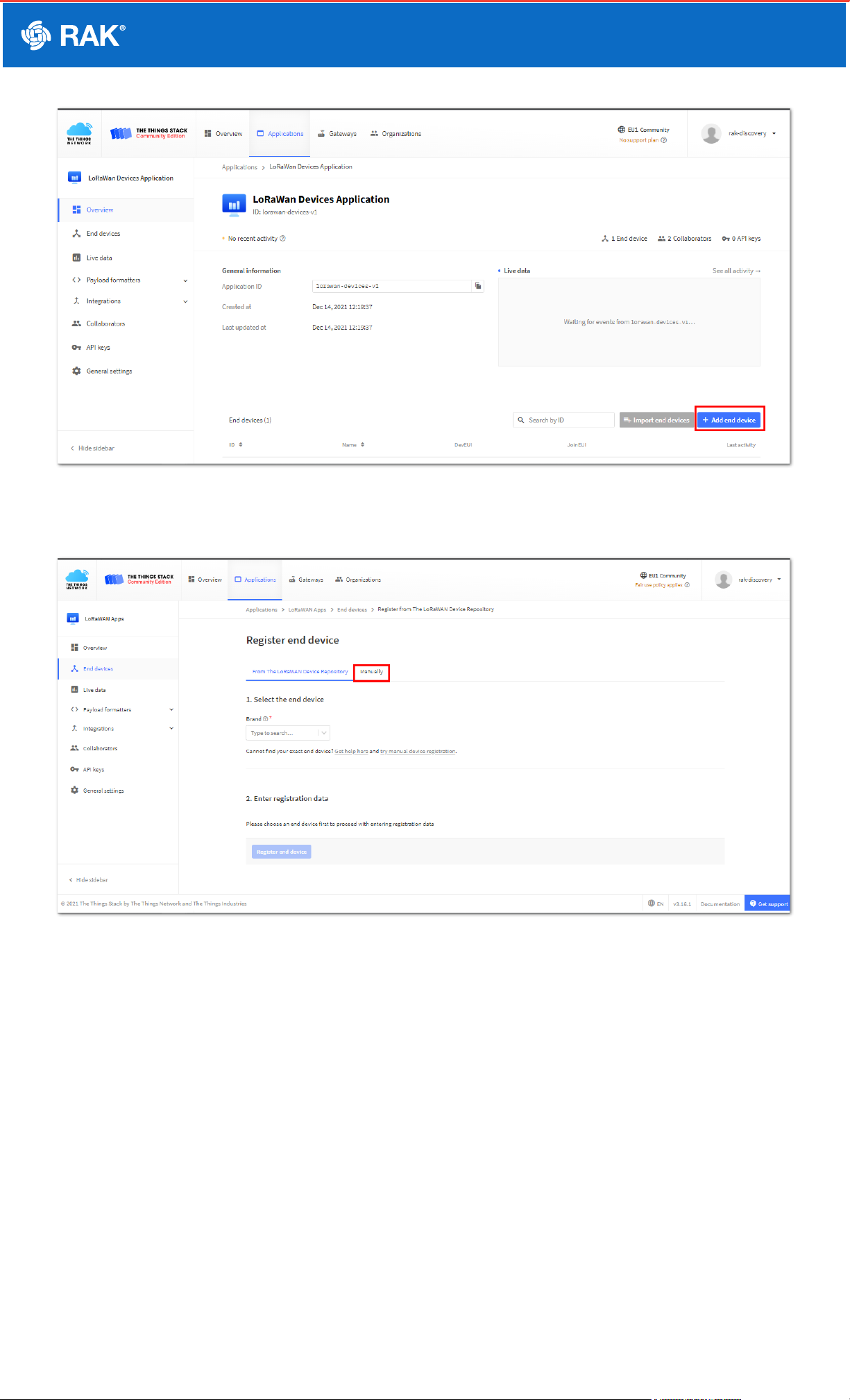

Figure 34: Add end-devices to your TTN application
5. To register the RAK10701-P Field Tester Pro, you need to click Manually first.
Figure 35: Adding end devices manually
6. Choose the following configurations in adding the end devices. You must choose the correct Frequency Plan
and the LoRaWAN version must be 1.0.3.

Documentation Center
Figure 36: Configurations for adding end devices
7. Click Show advanced activation, LoRaWAN class, and cluster settings, then select Over the air action
(OTAA).
Figure 37: OTAA settings
8. Then input the LoRaWAN OTAA parameters. For AppEUI, you may click Fill with Zeros. For AppKey and
DevEUI, you can click Generate. Then the parameters will be automatically filled by the TTS platform. Finally,
click Register End Device.

Documentation Center
Figure 38: Registering the end device
9. You should now be able to see the device on the TTN console after you fully register your device. Take note of
these OTAA parameters, such as the AppEUI , DevEUI , and the AppKey , as they are needed in the
configuration of the RAK10701-P Field Tester Pro hardware later on in this guide.
Figure 39: OTAA device successfully registered to TTN
10. After adding the device to the LoRaWAN application, link it to the backend server. The first step is to create an
API key.

Documentation Center
Figure 40: Creating API key
Figure 41: Creating API key
11. Configure the API key parameters. You can put any names that will easily track your API. You have to set the
expiration date as well. Then you must check Write downlink application traffic . After the configuration,
you can now click Create API key .
