Agilent Infiniium 90000 Series Oscilloscopes
Engineered for unmatched real-time measurement accuracy
Data Sheet

2

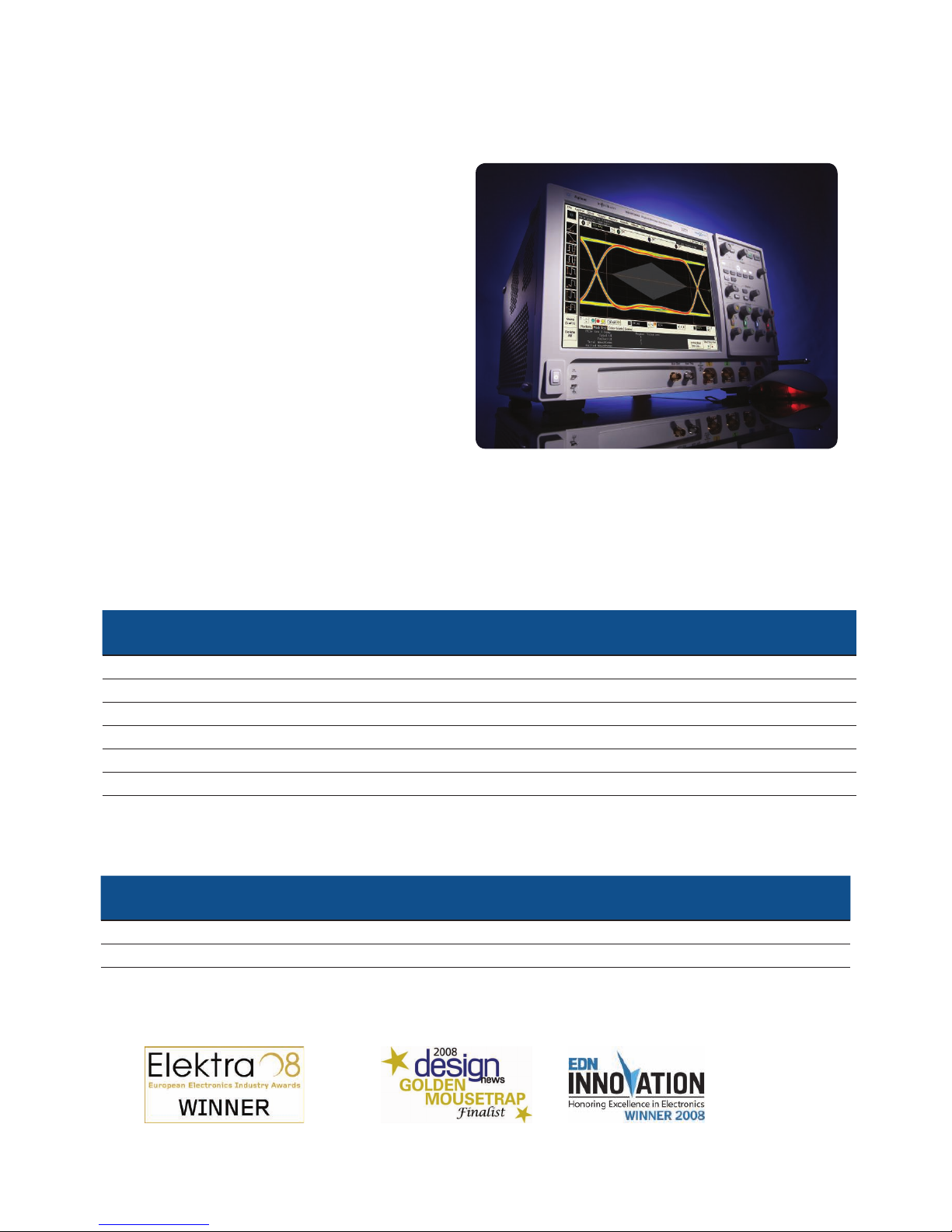

Why choose Agilent oscilloscopes for your toughest high-speed measurement
challenges?
As an engineer you’re no stranger to tough challenges that
help you exceed your customer’s needs and expectations.
Deploying your next design successfully is even more
difficult with today’s high speed technologies. Data signal
eye openings become smaller and measurement error from
your oscilloscope becomes less tolerable. Agilent is
committed to providing the best measurement solutions
for these critical challenges.
Model Real-time
bandwidth on 4 ch
Maximum sampling
rate on 4 ch
Standard memory Maximum
memory
Noise floor at
50 mV/div
91304A 13 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.73 mVrms
91204A 12 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.45 mVrms
90804A 8 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.15 mVrms
90604A 6 GHz 20 GSa/s on 4 ch* 20 Mpts on 4 ch 1 Gpts on 4 ch 0.98 mVrms
90404A 4 GHz 20 GSa/s on 4 ch* 20 Mpts on 4 ch 1 Gpts on 4 ch 0.79 mVrms
90254A 2.5 GHz 20 GSa/s on 4 ch* 20 Mpts on 4 ch 1 Gpts on 4 ch 0.64 mVrms
*DSA model numbers come standard with 50 Mpts of memory on 4 ch.
Sampling Rate 20 Mpts of
memory
50 Mpts of
memory
100 Mpts of
memory
200 Mpts of
memory
500 Mpts of
memory
1 Gpts of
memory
40 GSa/s 500 µs 1.25 ms 2.5 ms 5.0 ms 12.5 ms 25.0 ms
20 GSa/s 1 ms 2.5 ms 5.0 ms 10.0 ms 25.0 ms 50.0 ms
90000A Series Infiniium oscilloscopes
How much time span can I capture?
Note: time span capture = memory depth x 1/ sampling rate
The Agilent Infiniium 90000 Series oscilloscopes are
engineered to give you unmatched real-time measurement
accuracy so you can:
1. Use your jitter budget in your design, not on your
oscilloscope.
2. Pass today’s demanding compliance tests more
quickly.
3. Debug your toughest designs with confidence.

3
Engineered for unmatched real-time measurement accuracy.
Use your jitter budget in your design, not on your oscilloscope.
Agilent’s Infiniium 90000 Series oscilloscopes offer the industry’s lowest noise floor and most accurate real-time
jitter measurements available on scopes of this bandwidth class. Complete with full-bandwidth probing solutions and
hardwareaccelerated de-embedding and equalization techniques, Agilent oscilloscopes are the best oscilloscope solution
for today’s demanding high-speed measurements.
The industry’s deepest memory
With 1 Gbyte of memory, low-
frequency jitter components can be
more quickly resolved in a single
measurement. Statistical accuracy is
improved with more data collection.
Agilent’s integrated deep memory
remains responsive and allows more
comprehensive testing, supporting
pattern lengths up to PRBS23 for
accurate transmitter and receiver
results.
The industry’s lowest noise floor
Leveraging the company expertise in
RF design, Agilent has invested in key
technology blocks like our proprietary
Faraday caged front end to significantly
reduce our inherent scope noise floor.
The result: the lowest noise floor
available on any real-time oscilloscope
from 2.5 GHz to 12 GHz.
We add full bandwidth probing
and accurate de-embedding and
equalization software
The performance of Agilent’s
oscilloscopes is matched by the
superiority of our probing, de-embedding
and equalization offerings. Maintain full
bandwidth performance to the probe tip
with our InfiniiMax probing solutions.
Render waveforms anywhere in the
digital serial link with our hardware
accelerated N5465A InfiniiSim Waveform
Transformation Toolset. Configurable
system modeling allows you to remove
the deleterious effects of unwanted
channel elements, simulate waveforms
with channel models inserted, view
waveforms in physically unprobeable
locations, and compensate for loading of
probes and fixtures. The N5461A Serial
Data Equalization software allows you
to model equalization techniques in real
time.

4
Engineered for unmatched real-time measurement accuracy.
Pass today’s demanding compliance tests more quickly.
Offering the industry’s widest range of available
compliance applications to provide fast setup for complete,
automated compliance and margin testing and reporting,
the Agilent 90000 Series scopes have become the go-to
tool for test houses worldwide. Our experts serve on the
industry standards committees, and our oscilloscopes
are certified on today’s high speed serial data standards.
Plus our 1G memory supports real-time testing to pattern
lengths of PRBS23 to stress your design to the max.
Choose from a wide range
of complete compliance
applications
Choose from the industry’s widest
range of complete applications for
the Infiniium 90000 Series to ensure
compliance to the leading industry
standards, including SATA, PCI
Express®, Ethernet, USB, and more.
Comprehensive set-up wizards and full
automation of the required testing take
the guesswork out of demonstrating
compliance quickly. Get further insight
with our protocol and analysis decode
available on PCI Express, SATA and USB.
Put Agilent’s experts on your
team
Agilent’s measurement experts sit on
the industry standards committees
and help define the compliance
requirements. They make sure our tools
deliver exactly to the standards. You
get the benefit of years of training and
experience on every measurement you
make.
Free up valuable engineering
resources
Set-up wizards combined with
intelligent test filtering make it simple
to ensure the right tests are being
run. Comprehensive HTML reports
with visual documentation and pass/
fail results guarantee that critical
information is retained on each test.
Technicians can run complete and
accurate testing on their own, freeing
valuable engineering resources.
PrecisionProbe uses Agilent’s proprietar 200 GHz indium phosphide
process to create a fast edge for characterization with PrecisionProbe.
Agilent’s N2809A PrecisionProbe software quickly
characterizes and compensates the frequency response
of any path to the 90000 Series input. PrecisionProbe’s
patented technology uses the < 15ps edge from the 90000
Series oscilloscope to:
• Measure input impedance and response of any probe
and the loss of any cable
• Quickly correct from probe and cable loss(without extra
instruments such as VNA or TDR)
• Correct probing issues such as phase nonlinearity,
magnitude non-flatness, and see the effect of probe
loading
• Quickly gain insight into impedance/capacitance that
defines your connection
PrecisionProbe

5
Engineered for unmatched real-time measurement accuracy.
Debug your toughest designs with confidence.
The 90000 series boasts an ever-expanding set of measurement applications
for serial debugging and protocol viewing, jitter testing, advanced triggering,
measurement customization, and rapid automation. Put the power of the scope to
work for your unique debug and analysis challenges.
Streamline your debug and analysis tasks with the industry’s widest
range of application software
Whether you need to trigger and decode serial buses, iron out the kinks in your
memory designs, or see FFT based spectrum analysis of your signal, the Infiniium
90000 Series has application software to help. Our serial protocol views are unique
to oscilloscopes, and our DDR debug tools support multiple generations of the
standard. Quickly access additional features from the scope’s standard menus.
Customize your scope for even more efficiency
The N5414B InfiniiScan Event Identification software makes unique capabilities
like Zone Qualify and Generic Serial triggering possible. Rapidly automate any
scope measurement using the N5467A User Defined Application and have it appear
seamlessly in your scope’s menu. Customize your Infiniium further by taking full
advantage of MyInfiniium (standard on all 90000A Series oscilloscopes). Use
MyInfiniium to deliver automated measurements, execute customized scripts, save
screenshots, or load your favorite setup.
Add measurement capability with MATLAB compatibility
If we haven’t provided exactly what you need, take customization to a new level
with MATLAB (Option 062) - a data analysis software environment and scripting
language with over 1,000,000 users today. Use MATLAB to design and apply your
own filters to oscilloscope signals, graphically visualize oscilloscope signals in
2-D and 3-D plots, automate measurements, and build test applications. Add the
N5430A User Defined Function software to your scope to seamlessly integrate your
custom functionality into the Infiniium 90000 menus so results are displayed on the
scope screen. Agilent is the only T&M manufacturer today that sells and supports
MATLAB as its own product as part of a complete T&M solution.

6
Engineered for unmatched real-time measurement accuracy.
Debug your toughest designs with confidence.

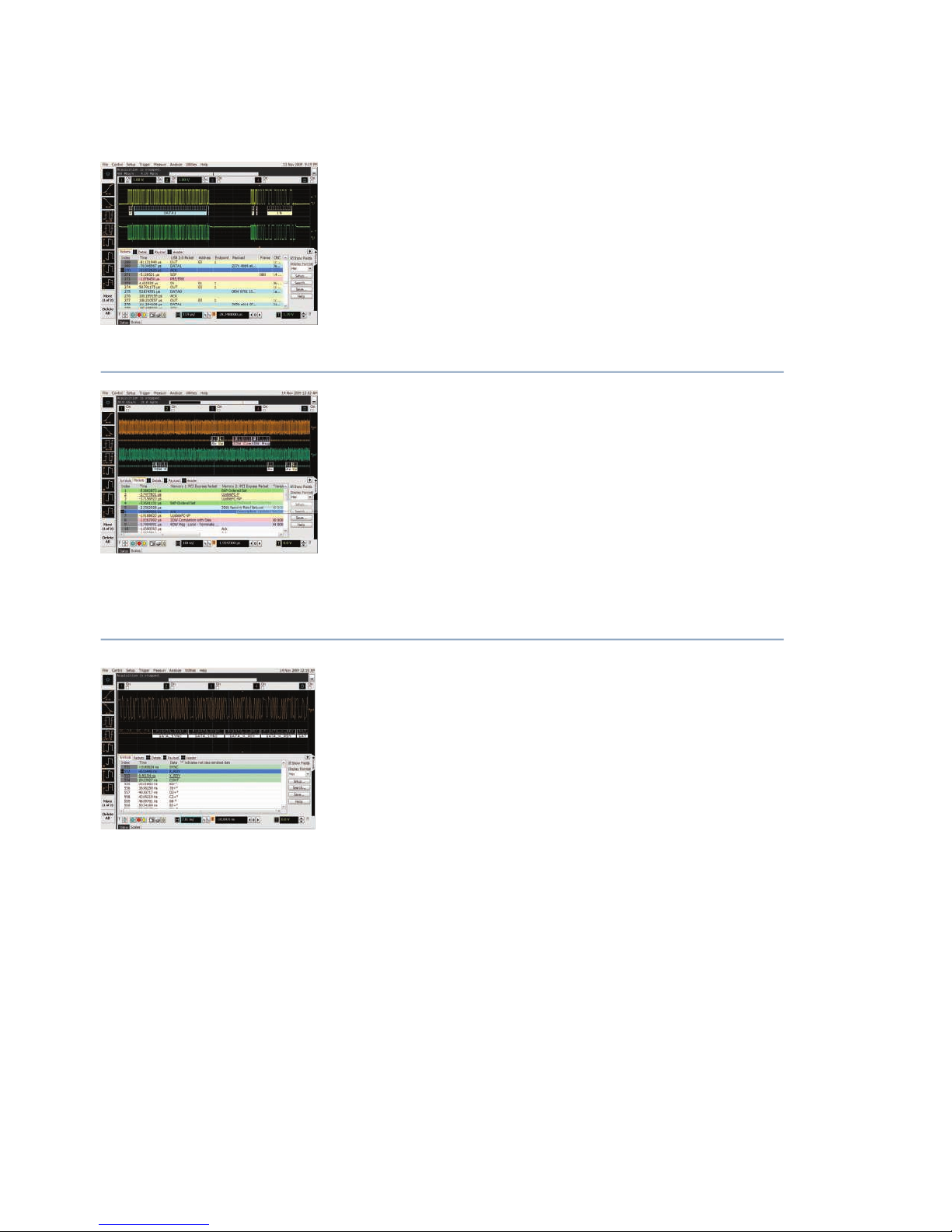

Given even further insights with protocol decode capability. Quickly move between
physical and protocol layer information using the time-correlated tracking marker.
Display protocol content using waveform symbols and the industry’s first multi-tab
protocol viewer. The packets tab shows a high level view of the packet over time.
I2C/SPI serial trigger and decode (N5391A or Option 007 on new
scope purchases)
Infiniium’s built-in FFT allows users to quickly and easily analyze the frequency
components of their signals. Both FFT magnitude and phase can be displayed
and can be combined with other built-in math functions or Matlab based
measurements. A resolution bandwidth of 6 kHz is supported with the standard
10 Megabytes of acquisition memory at the maximum sample rate of 40 GSa/s.
With optional acquisition memory installed resolution bandwidths of 2 kHz can be
obtained. Standard windowing of Hanning, Flattop and Rectangular are supported
along with cursor based power measurements. When more powerful frequency
domain measurements are required including modulation analysis, consider the
Agilent 89601A Vector Signal Analyzer software.
Frequency Domain Analysis
Select the channel menu and enable differential mode to enable hardware accelerated
math capability. Enjoy full channel functionality including InfiniiScan triggering and
jitter analysis. Save time, by using the hardware acceleration for even faster update
rates with your differential and common mode math needs.
Hardware Accelerated Differential and Common Mode Math
Trigger and view on-screen serial decode
of I2C packets

7
Debug your toughest designs with confidence
EZJIT analysis software (E2681A or option 002 on new scope purchases)
Quickly characterize and evaluate most commonly needed jitter measurements,
including cycle-cycle, N-cycle, period, time-interval, error, setup and hold time,
histograms, measurement trending and jitter spectrum.
Includes advanced clock recovery options such as constant frequency and PLL.
Make measurements on repetitive or arbitrary data.
This application is supported on all models and is standard on DSA models.
For more information: www.agilent.com/find/EZJIT
Conduct jitter analysis.
EZJIT Plus analysis software (N5400A or Option 004 on new scope purchases.
To upgrade from EZJIT to EZJIT Plus, order N5401A.)
EZJIT Plus adds additional compliance views and an expanded measurement setup wizard
to simplify and automate RJ/DJ separation for testing against industry
standards.
This application is supported on all models and is standard on DSA models.
For more information: www.agilent.com/find/EZJITPlus
Analyze jitter plus RJ/DJ separation.
EZJIT Complete analysis software (N8823A or Option 070 on new scope purchases.
To upgrade from EZJIT Plus to EZJIT Complete, order N8813A)
EZJIT Complete includes all of the advanced jitter analysis capabilities of EZJIT and
EZJIT Plus, and adds advanced analysis of the vertical noise affecting the ones and
zeros of your real-time eye. Decomposition of vertical noise provides key insight into
degradation of your eye height. In providing advanced decomposition of both
horizontal jitter and vertical noise components of your signals, EZJIT Complete
represents the most comprehensive analysis software available.
This application is supported on all models and is a standard on DSA models.
For more information: www.agilent.com/find/EZJITComplete
EZJIT Complete.

8
Debug your toughest designs with confidence
InfiniiScan event identification (N5414B or Option 009 on new scope purchases)
Rapidly trigger on complex events and identify signal integrity issues. This innovative
software quickly scans through thousands of acquired waveform cycles and isolates
anomalous signal behavior.
This application is supported on all models.
For more information: www.agilent.com/find/infiniiScan
Identify signal integrity issues with InfiniiScan
Zone – Qualify triggering.
High-speed serial data analysis software (E2688A or Option 003 on new scope
purchases)
Quickly validate signal integrity for high-speed serial interfaces with embedded clocks.
Recover embedded clocks synchronized with the analog waveform view. Build and
validate eye diagrams.
The SDA package also includes software-based bit-level triggering and decode for
8B/10B. This application is supported on all models and comes standard on DSA
models.
For more information: www.agilent.com/find/SDA
Recover embedded clocks with serial data
analysis (SDA).
PrecisionProbe software (N2809A or Option 001 on new scope purchases)
Make more accurate measurements independent of what probes or cables used.
Agilent’s N2809A PrecisionProbe software characterizes and corrects for the loss
in your specific cable or probe. PrecisionProbe removes the uncertainty about the
input connected to your oscilloscope by allowing you to see its characteristics in
less than five minute. PrecisionProbe gives you design and debug confidence by
allowing you to quickly de-embed probe and cable loss to make more accurate
measurements.
For more information: www.agilent.com/find/PrecisionProbe
Quickly characterize and correct for any input
to your oscilloscope.

9

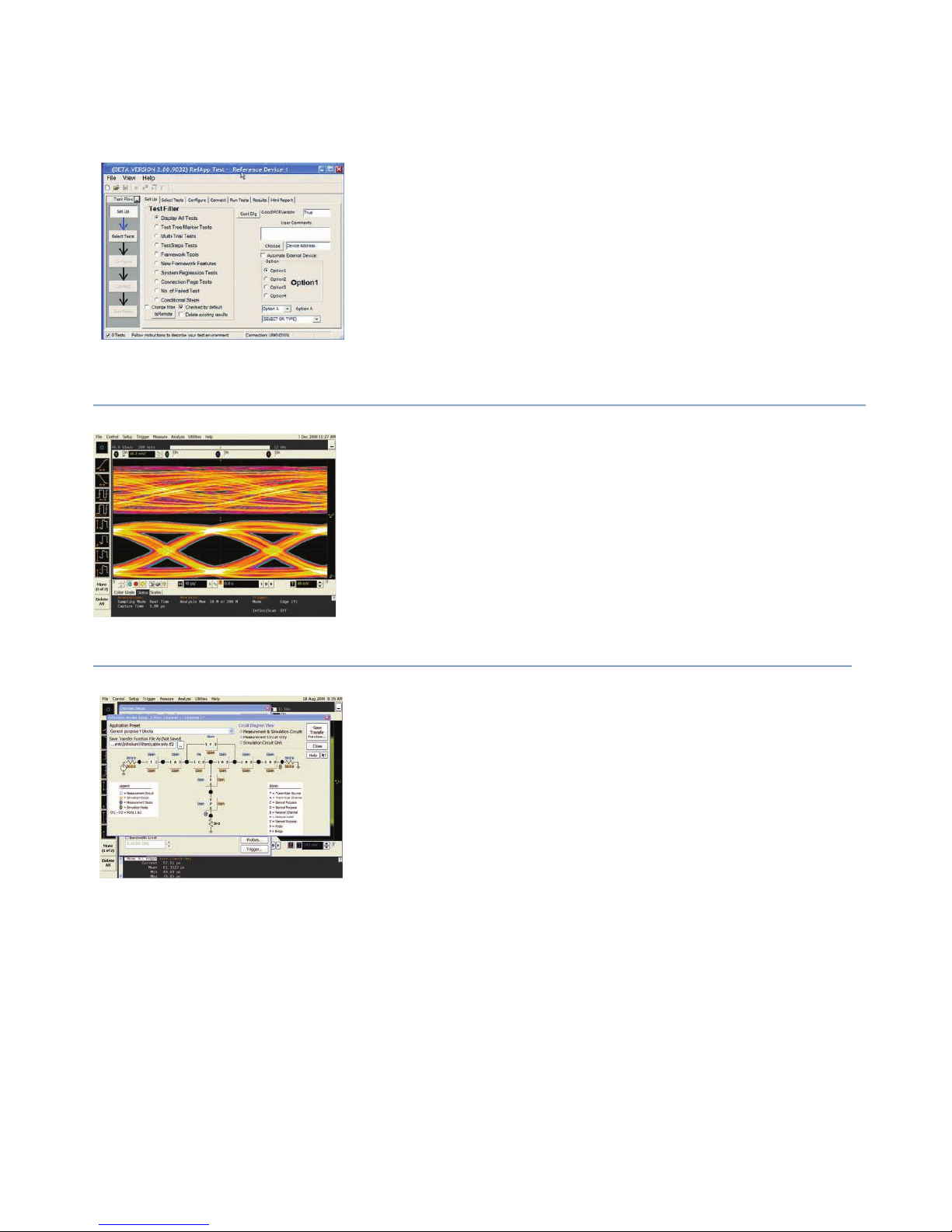

Debug your toughest designs with confidence
Serial Data Equalization (N5461A or Option 012 on new scope purchases)
Measure at the pin and use equalization to see a virtual eye on the other side of an
equalizer. Model equalization techniques such as DFE, FFE, and CTLE.
This application is supported on all models.
For more information: www.agilent.com/find/SDE
Reduce receiver errors by opening tightly shut eyes.
Infiniium Remote Programming interface (Now standard on all Infiniium scopes)
Operate your Infiniium compliance and validation applications remotely using .NET
languages.
This application is supported on all models.
For more information: www.agilent.com/find/RPI
Control your applications remotely.
InfiniiSim Waveform Transformation and De-embedding Toolset (Basic: N5465A-001
or option 13 on new scope purchases. Advanced: N5465A-002 or Option 14 on new
scope purchases.)
The N5465A InfiniiSim waveform transformation toolset for Infiniium Series
oscilloscopes provides the most flexible and accurate means to render waveforms
anywhere in the digital serial link. The configurable system modeling allows you to
remove the deleterious effects of unwanted channel elements, simulate waveforms
with channels models inserted, view waveforms in physically un-probable locations,
compensate for loading of probes and other circuit elements, and do so simply and
quickly on the real-time oscilloscope.
This application is supported on all models.
For more information: www.agilent.com/find/InfiniiSim
Model channel effects including reflection.

10

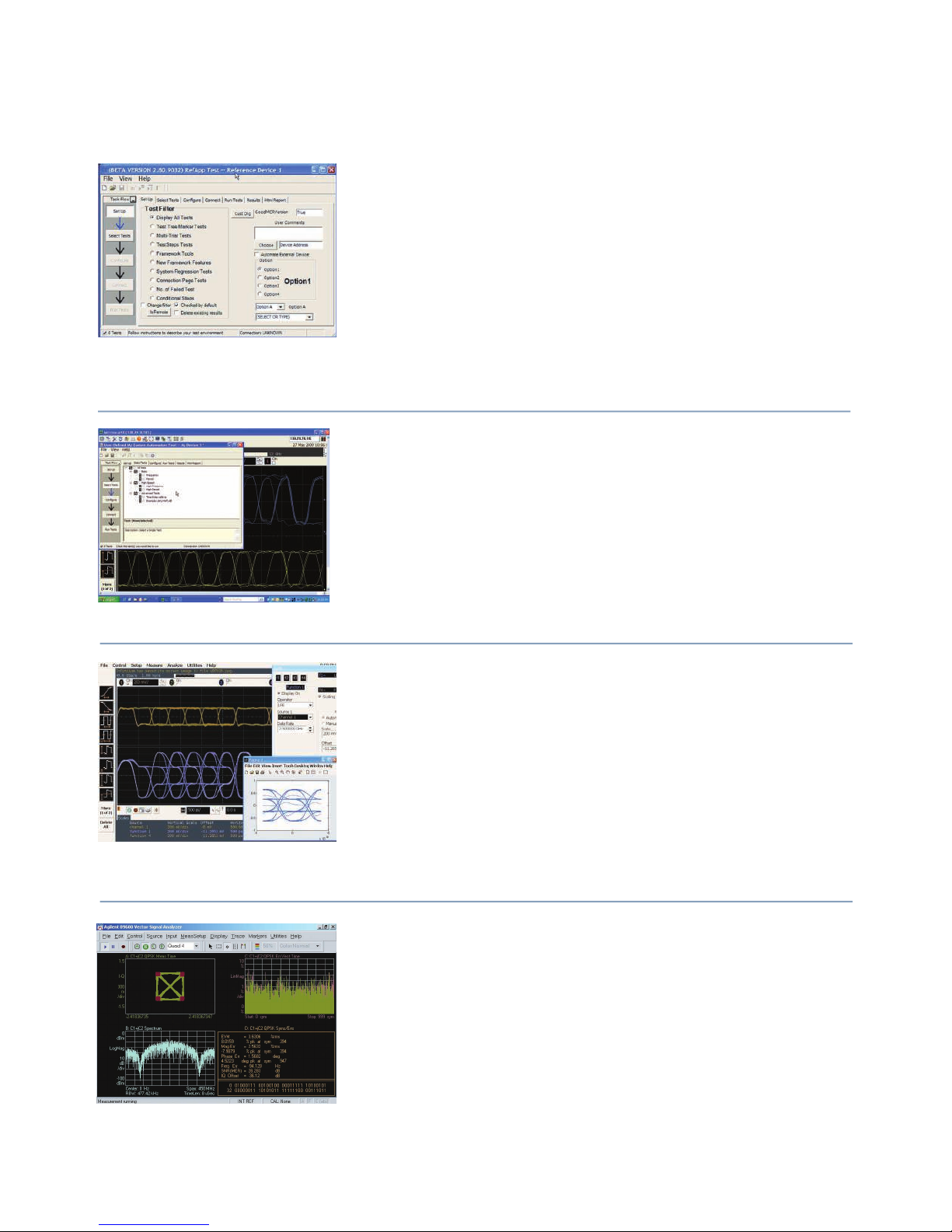

User-defined function (N5430A or Option 010 on new scope purchases)
If we haven’t provided exactly what you need, use the N5430A User Defined Function
software to create it yourself. Develop your own math functions or filters using
MATLAB. Your custom functionality is seamlessly integrated into the Infiniium 90000
menus and results are displayed on the scope screen. This requires MATLAB
(available as Option 062) to be installed directly on the oscilloscope. Agilent is the only
T&M manufacturer today that sells and supports MATLAB as its own product.
This application is supported on all models and requires MATLAB software (not
included with UDF).
For more information: www.agilent.com/find/UDF
Signal equalization using user-defined function.
Control your applications remotely.
MATLAB®data analysis software (Option 061 or O62 on new scope purchases)
MATLAB is a data analysis software environment and scripting language used by over
1,000,000 users in aerospace/defense, automotive, communications, electronics, and
other applications. MATLAB is now available directly from Agilent as in instrument
option with the purchase of your Agilent 90000 Series oscilloscope. Install MATLAB
on your oscilloscope or remote PC to make customized measurements, design and
apply your own filters to oscilloscope signals, graphically visualize signals in 2-D or
3-D plots, automate measurements, or build test applications. Purchase MATLAB with
your Agilent 90000 Series oscilloscope to ensure version compatibility and so that your
MATLAB software license is always available when you need it.
For more information: www.agilent.com/find/matlab_oscilloscopes
User-definable application (N5467A or Option 040 on new scope purchases)
Rapidly develop your own automated measurements and tests.This application
provides the framework you need to quickly program and automate any single or set of
measurements the oscilloscope can make.The application also provides full control of
other Agilent instruments and HTML reporting capabilities.
For more information: www.agilent.com/find/UDA
Quickly automate oscilloscope measurements.
Vector signal analysis software (89601A)
Expand the measurement capability of your scope with the 89601A vector signal analy-
sis software. This advanced DSP-based software takes the digitized signal data from
the scope and displays FFT-based spectrum analysis and wide-bandwidth digital modu-
lation analysis for wireless communication signals such as WCDMA and cdma2000
and wireless networking signals such as 802.11 WiFi and 802.16 WiMax.
Take advantage of the super-wide bandwidth of your scope to capture and evaluate
radar signals.
For more information: www.agilent.com/find/VSA
Use vector signal analysis software to see
FFT-based spectrum analysis.
Debug your toughest designs with confidence

11
Debug your toughest designs with confidence
I2C/SPI serial trigger and decode (N5391A or Option 007 on new scope purchases)
This application displays real-time time-aligned decode of I2C and SPI packets. View
decode in waveform area or in protocol lister.
This application works on all models.
For more information: www.agilent.com/find/90000_I2C-SPI
RS-232/UART serial decode and trigger (N5462A or Option 015 on new scope
purchases)
This application eliminates the need to manually decode bus traffic. Using data captured
on the scope channels, the application lets you easily view the information sent over an
RS-232.
Display real-time time-aligned decode of transmit and receive lines.
This application works on all models.
For more information: www.agilent.com/find/90000_RS-232
Trigger and view on-screen serial decode
of I2C packets.
Trigger on and decode RS-232/UART
transmission.
N8805A USB 3.0 Protocol Triggering and Decode (N8805A)
Trigger on and view USB 3.0 with the industry’s first oscilloscope-based protocol
analyzer with time-correlated views of physical layer and transaction layer errors.
The multi-tab protocol viewer includes correlation between the waveforms and the
selected packet, enabling you to quickly move between the physical and protocol layer
using the time-correlated tracking marker.
For more information: www.agilent.com/find/usb3decode
Isolate signal integrity problems from logic-level coding
errors on bidirectional serial data streams.
JTAG (IEEE 1149.1) triggering and decode (N8817A or Option 042 on new scope
purchases)
This application displays real-time time-aligned decode of JTAG (IEEE 1149.1) TDI
and TDO signals. The application eliminates the difficult task of manually determin-
ing JTAG TAP controller states, instruction and data register decode, and flags error
conditions. The application includes scan chain description features including the
ability to import .bsdl files for each device and displays device names and opcodes in
the protocol listing.
This application works on all models and can use any combination of scope or logic
acquisition channels.
For more information: www.agilent.com/find/90000_JTAG
Trigger on and decode JTAG packets.

12
SATA triggering and decode (N8801A or option 018 on new scope purchases)
Trigger on and view both protocol layer information and physical layer signal
characteristics for SATA 1.5 Gb/s, 3.0 Gb/s, and 6.0 Gb/s. Numerical decode values
are automatically displayed and synchronizes below the capture signal or seen in
protocol viewer.
This application works on all models.
For more information: www.agilent.com/find/N8801A
Trigger on and decode SAS/SATA serial packets.
PCI Express®serial trigger and protocol viewer (N5463A or Option 017 on new
scope purchases)
This application provides protocol-level triggering and viewing of a PCIe® lane. Quickly
view packets, payload, header, and detail information. Powerful time-correlated views
of waveform, symbol, character, link and transaction layer packet data down to the bit
level make it easy to isolate communication faults to logic or analog sources.
This application is supported on all 4 GHz and greater models.
For more information: www.agilent.com/find/90000_PCI_protocol_viewer
Trigger on and decode PCIe serial packets.
USB serial trigger and protocol viewer (N5464A or Option 016 on new scope
purchases)
Trigger on and quickly view USB 2.0 packets, payload, header and detail information.
Powerful time-correlated views of waveform and symbol, to the bit level, make it easy
to isolate communication faults.
This application is supported on all models.
For more information: www.agilent.com/find/90000_USB_protocol_viewer
Trigger on and decode USB packets.
Pass today’s demanding compliance tests more quickly

13

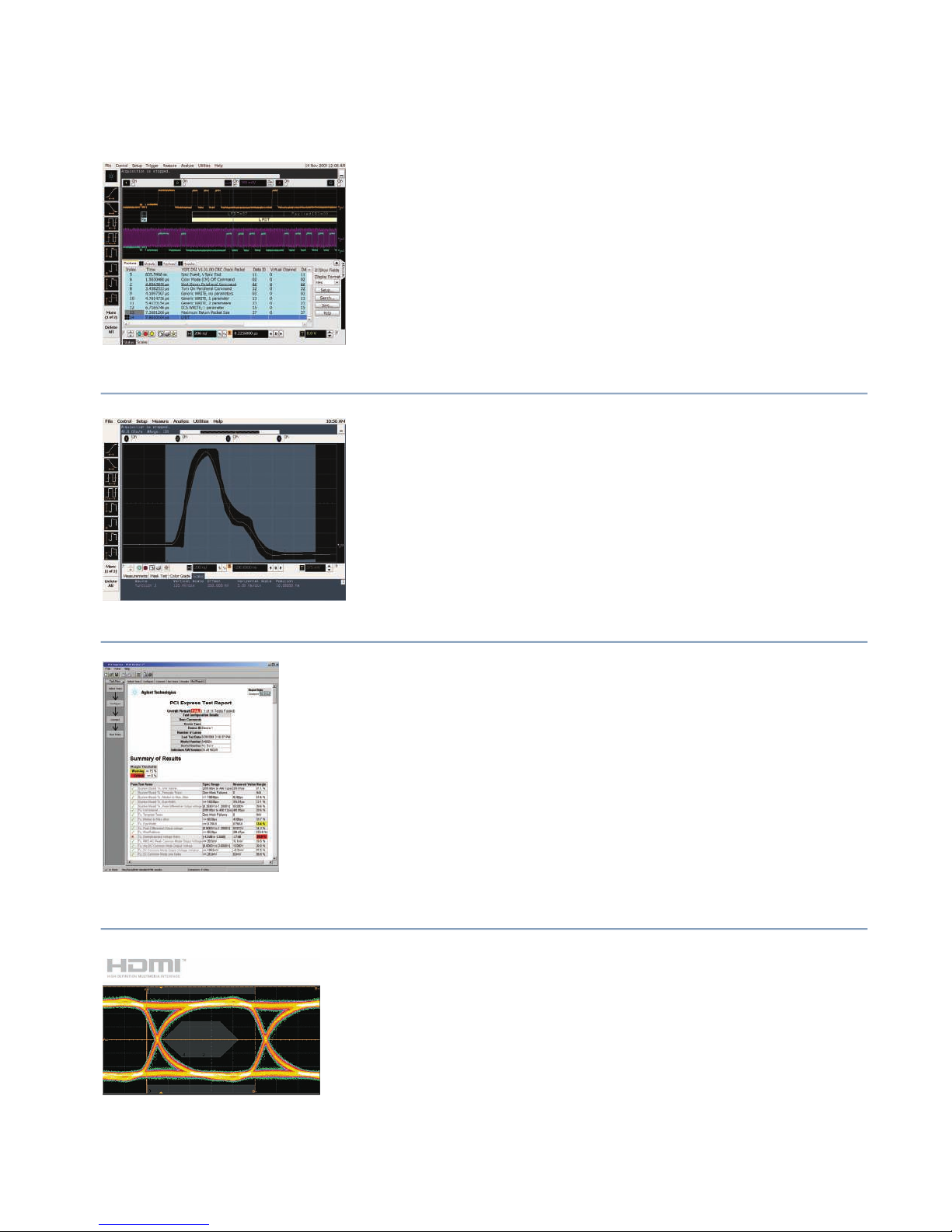

Pass today’s demanding compliance tests more quickly
MIPI D-phy trigger and decode (N8802A or Option 019 on new scope purchases)
This application eliminates the need to manually decode bus traffic. Using data
captured on the scope, the application lets you easily view the information sent over
MIPI serial buses.
The application also enables software based protocol triggering.
This application is supported on all models >=4 GHz bandwidth.
For more information: www.agilent.com/find/N8802A
Trigger on and decode MIPI packets.
Ethernet compliance testing (N5392A or Option 021 on new scope purchases)
Perform a wide range of electrical tests for 10-, 100-, and 1000-Base-T systems. An
N5395B or N5395C test fixture and N5396A jitter test cable speed compliance testing.
This application is supported on all models.
For more information: www.agilent.com/find/N5392A
Validate Ethernet compliance.
PCI EXPRESS®Electrical Performance Validation and Compliance Software
(N5393B or Option 022 on new scope purchases)
Provides fast and easy way to verify and debug your PCI EXPRESS designs. Allows
you to automatically execute PCI EXPRESS electrical checklist tests, and displays
the results in a flexible report format. Ensures that your Gen2 measurements will
have absolute consistency with measurements made using the PCI-SIG’s standalone
Sigtest software.
This application is supported on all models >=8 GHz bandwidth.
For more information: www.agilent.com/find/N5293B
Quickly verify and debug your PCI EXPRESS®
designs.
HDMI™Electrical Performance Validation and Compliance Software (N5399A or
Option 023 on new scope purchases)
Quickly verify and debug your High Definition Multi-media Interface (HDMI) designs.
The N1080A fixture provides access to the compliance points for the electrical
measurements required for the transmitter compliance testing.
This application is support on all models >=8 GHz bandwidth.
For more information: www.agilent.com/find/N5399A
Verify and debug your HDMI designs.

14
Pass today’s demanding compliance tests more quickly
Fully Buffered DIMM Compliance Application (N5409A or Option 024 on new scope
purchases)
Quickly characterize and evaluate the signal integrity of both your high speed FB-DIMM
signals as well as your reference clock. All tests are based on the JEDEC High Speed
Point-to-Point Link Specification.
This application is supported on all models >=10 GHz bandwidth.
For more information: www.agilent.com/find/N5409A
Characterize and evaluate the signal
integrity of both your high speed FB-DIMM
signals as well as your reference clock.
Energy Efficient Ethernet Application (N5392B or Option 060 on new scope purchases)
Industry leading compliance application that measures 10/100/1000BTe Energy Efficient
Ethernet IEEE 802.3az-2010 specification. Exclusive EEE fixture allows you to measure
all test modes at all speeds. Detailed reporting with clear measurements and pass/fail
results.
This application is supported on all models.
For more information: www.agilent.com/find/EEE
Characterize and evaluate the signal
integrity of your Energy Efficient
Ethernet devices.
SATA 6G Compliance Test Software (N5411B or Option 038 on new scope purchases)
Rapidly validate and debug your SATA 1.5Gb/s (Gen 1), 3.0 Gb/s (Gen2) and 6.0 Gb/s
(Gen3) silicon, host bus adapter, port multiplier, high-density disk drive, solid-state
disk drive or optical disk drive. Provides automated compliance test support for the i
(internal), m(eSATA) and x(SAS attachment) interfaces points, and displays the results
in a flexible report format.
This application is supported on all models >= 12 GHz bandwidth.
For more information: www.agilent.com/find/N5411B
Simplify the validation of SATA designs.
U7232B DisplayPort Compliance Test Software (U7232B or Option 045 on new scope
purchases)
Sets the benchmark for ease-of-use, and offers complete testing without compromise.
The software guides the user sequentially through the tasks ensuring minimal setup error,
executes the tests specified by the standard and conveys the test information through a
convenient software generated report. The three modes of physical layer test allow for
automated measurements based on the customizable configuration of compliance and
characterization testing. To make the test signal connection, the Agilent W2641B Display-
Port test point access adaptor completes the DisplayPort source solution.
The application is supported on all models >= 8 GHz.
For more information: www.agilent.com/find/U7232B
Full suite of DisplayPort source tests.

15

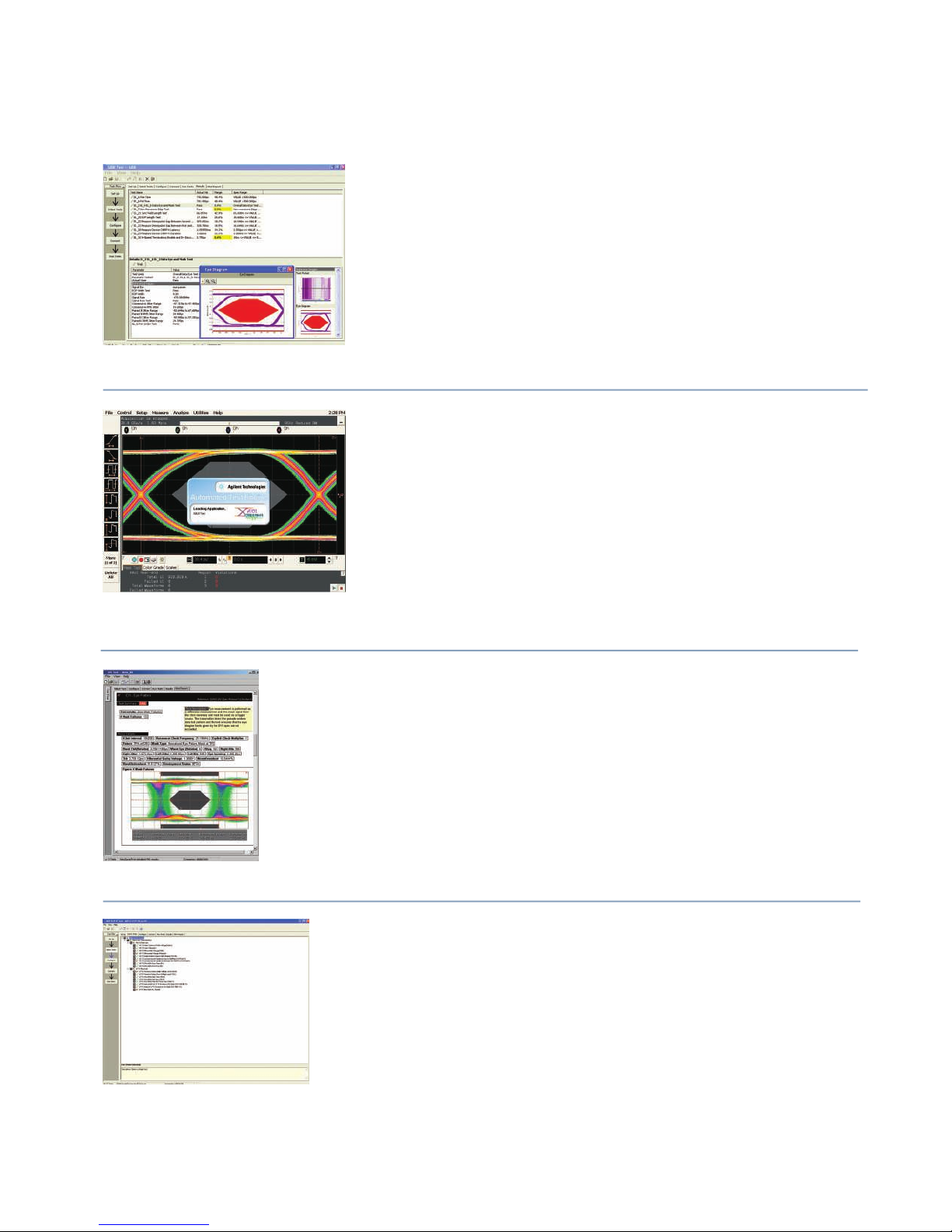

Pass today’s demanding compliance tests more quickly
USB 2.0 Compliance Test Software (N5416A or Option 029 on new scope purchases)
Quickly determine USB compliance with this USB-IF recognized solution. A setup
wizard guides you through test selection and configuration.
This application is supported on all models.
For more information: www.agilent.com/find/N5416A
Check for USB compliance.
XAUI Electrical Validation with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO
Support (N5431A or Option 030 on new scope purchases)
Improve your efficiency by confirming that your devices conform to the XAUI specifi-
cations as defined by the IEEE 802.3-2005 10-gigabit Ethernet specification. Provides
support for the XAUI-derived 10GBASE-CX4 specification.
The application is supported on all models.
For more information: www.agilent.com/find/N5431A
Perform automated testing and margin analysis
for XAUI and XAUI-derived specifications.
DVI Electrical Performance Validation & Compliance Software (N5394A or Option 034
on new scope purchases)
Automatically execute DVI electrical checklist tests and display the results in a flexible
report format. In addition to the measurement data, the report provides a margin analy-
sis that shows how closely your device passed or failed each test.
The application is supported on all models >= 4GHz.
For more information: www.agilent.com/find/90000
Verify and debug your DVI designs more easily.
MIPI D-PHY Compliance Test Software (U7238A or Option 035 on new scope
purchases)
Automatically execute D-PHY electrical checklist tests for CSI and DSI architectures.
Displays the results in a flexible report format.
The application is supported on all models.
For more information: www.agilent.com/find/d-phy_compliance
Automatically execute D-PHY electrical checklist
tests for CSI and DSI architectures.

16

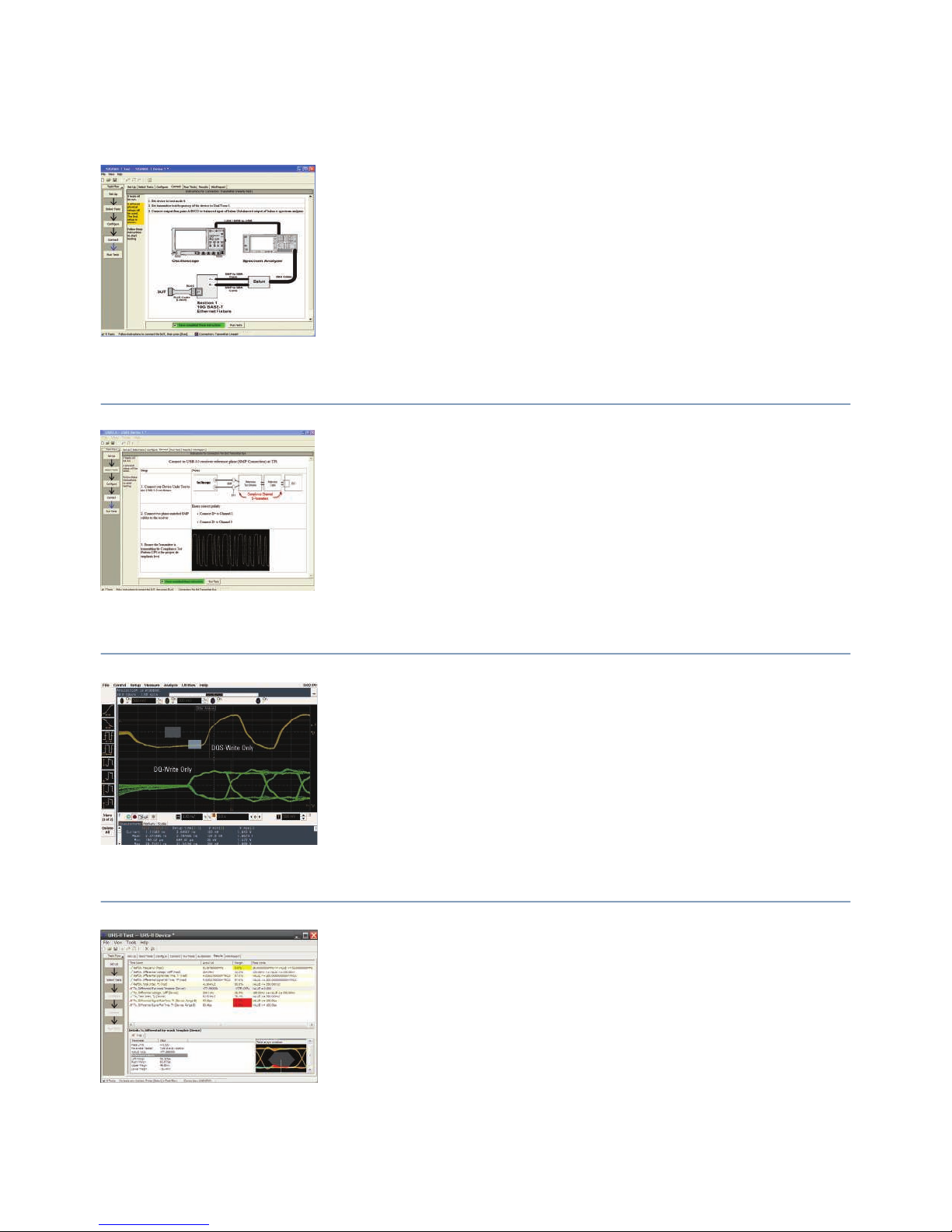

Pass today’s demanding compliance tests more quickly
10GBASE-T Ethernet Electrical Conformance Application for Infiniium Oscilloscopes
(U7236A or Option 036 on new scope purchases)
Takes care of the tedious task of instrument control and configures the oscilloscope,
spectrum analyzer, or vector network analyzer as needed by each 10GBASE-T test to
provide rapid, accurate, and repeatable test execution.
The application is supported on all models.
For more information: www.agilent.com/find/10gbase-t
Automatically execute 10GBASE-T Ethernet
physical-layer (PHY) electrical tests
USB 3.0 Compliance Test Software (U7243A or Option 041 on new scope purchases
Provides industry leading automated test support for USB 3.0 products and displays the
test results in a comprehensive test report. For best measurement accuracy use the
Agilent U7242A USB 3.0 transmitter and receiver test fixtures. Agilent’s USB 3.0 test
solution is designed from the ground up with the needs of the test engineer in mind.
The application is supported on models >= 12 GHz
For more information: www.agilent.com/find/USB3
Validate and debug your USB 3.0 silicon,
host, hub or device
DDR1 and LPDDR/DDR2, LPDDR2/DDR3, DDR4 and GDDR5 compliance testing
(U7233A/N5413B/U7231B/N6462A/U7245A or Options 031/032/033/058 on new
scope purchases)
Quickly and easily evaluate and characterize your memory designs. Automated test-
ingbased on JEDEC specifications saves time. The application also includes additional
debug and compliance capabilities.
This application is supported on all models. However, the DDR technology you are
using may dictate the minimal bandwidth required for your scope.
For more information: www.agilent.com/find/DDR
Test DDR memory.
SD UHS-I and SD UHS-II Card Compliance Testing (U7246A/N6461A)
The SD card compliance test software gives you a fast, easy way to test, debug and
characterize your SD designs up to 1.5 Gb/s in accordance with the SD Specification.
The U7246A with 9000A and 90000A Series oscilloscopes is a certified test tool for SD
Card Phy electric tests with the SD Association. Reference is available in SDA official
document: SD Test Tool Information Ver1.0 Sep. 13, 2010.
For more information: www.agilent.com/find/U7246A
www.agilent.com/find/N6461A
Comprehensive analysis that automates
the complex measurements even when
you are not there.

17
Agilent’s Infiniium oscilloscope lineup includes bandwidths from 600 MHz to 63 GHz. Use the following selection guide to
determine which best matches your specific needs. Infiniium real-time oscilloscopes feature the following:
• World’s highest bandwidth on 4 channels in a single frame
• Industry’s lowest noise floor
• Full PrecisionProbe compatibility
Agilent Infiniium portfolio
9000 Series 90000A Series 90000 X-Series 90000 Q-Series
Available bandwidths
Up to 4 GHz 600 MHz, 1 GHz,
2.5 GHz, 4 GHz
2.5 GHz, 4 GHz
6 to 16 GHz 6 GHz, 8 GHz 12
GHz, 13 GHz
13 GHz, 16 GHz
20 to 63 GHz 20 GHz, 25 GHz,
33 GHz
20 GHz, 25 GHz,
33 GHz, 50 GHz,
63 GHz
Max upgradable bandwidth 4 GHz 13 GHz 33 GHz 63 GHz
Sample rate (2-channel/4-channel) 10/20 GSa/s 40/40 GSa/s 80/40 GSa/s 160/80 GSa/s
Channel inputs and connector types 50Ω and 1 MΩ,
BNCs
50 Ω, BNCs 50 Ω, 2.92 and
3.5 mm SMAs
50 Ω, 1.85 mm,
2.4, mm, 2.92 and
3.5 mm, SMAs
Memory depth (standard/max) 20 M/1 Gpts 20 M/2 Gpts 20 M/2Gpts 20 M/2 Gpts
MSO models Yes No No No
Supported InfiniiMax probe families InfiniiMax 2 InfiniiMax 2 InfiniiMax 3
InfiniiMax 2 with
adapter
InfiniiMax 3
InfiniiMax 2 with
adapter

18

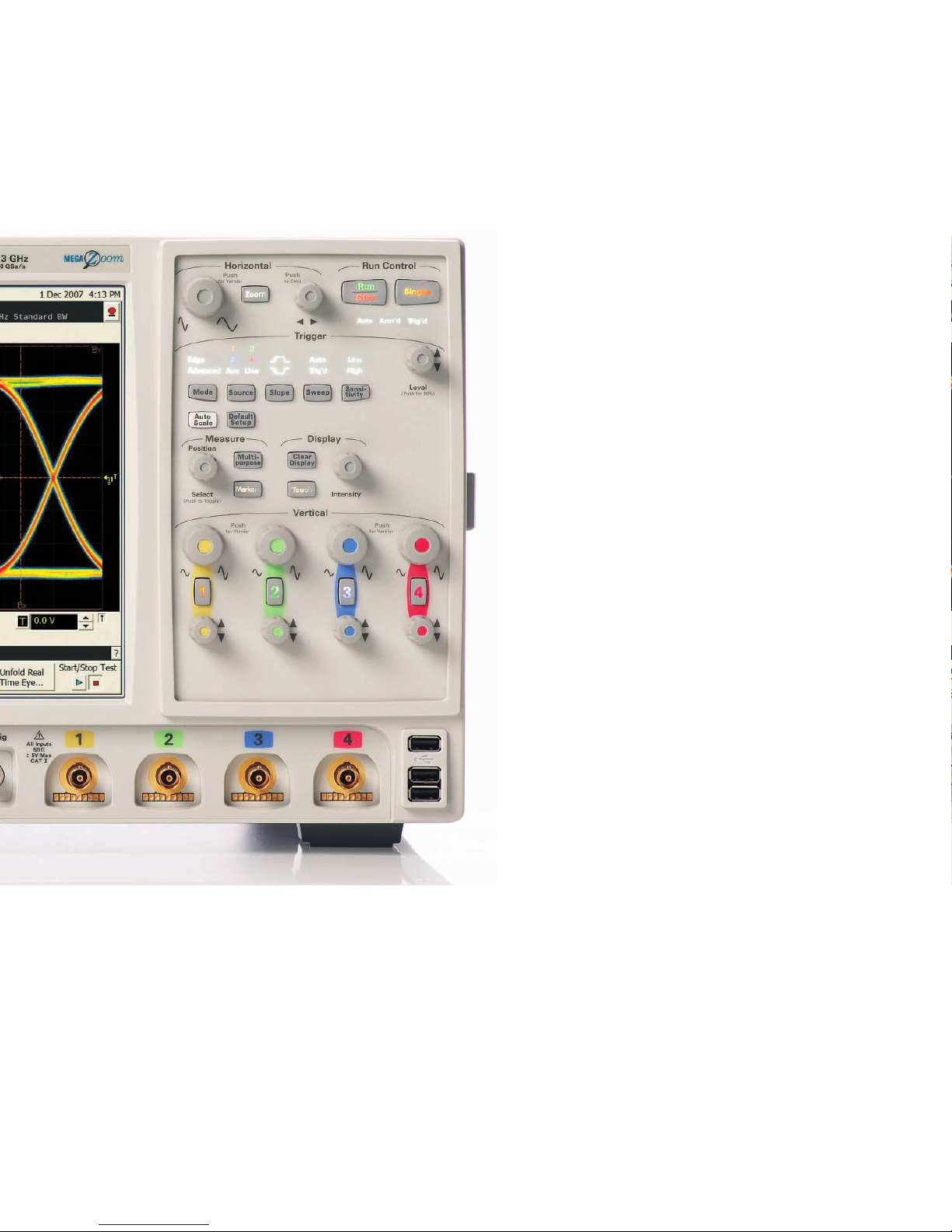

Infiniium 90000A Series
Starting with an 18-GHz, BNC-compatible connector, an ultra-low noise floor
front end design using Faraday cage technology ensures high signal integrity in
its signal path.
Click on the icon at the bottom left of
the Infiniium screen to minimize the
status and scales tab for full screen
viewing. Maximize your viewing needs.
Ever wanted to change the scale
or offset of a function or waveform
memory? If you have, you know that
it requires multiple menus and key
strokes. In Infiniium software version
2.01 and later, you can now map
functions and waveform memories
to the front panel controls of the
oscilloscope!

19
Install third-party software packages
on Windows XP Pro operating system
such as Excel, LabVIEW, Agilent
VEE, MATLAB®, anti-virus software,
and more, to perform customized
processing and automation of your
oscilloscope or to make the scope
compliant to the network environment
of your company.
Dedicated single acquisition button
provide better control to capture an
unique event.
Customizable Multipurpose key gives
you any five automated measurements
with a push of a button. You can
also configure this key to execute a
script, print/save screen shots, save
waveforms, or load a favorite setup.
Measure section including a toggling
marker button and a dedicated marker
knob provides quick access to your
marker control.
Quick access to fine/vernier control
by pressing the horizontal and vertical
sensitivity knobs.
Increase your productivity with
a familiar Infiniium graphical
user interface, like your favorite
drag-and-drop measurement icons.
Infiniium’s analog-like front panel has
a full set of controls color coded to the
waveforms and measurements, making
your tasks simple.
Optional USB external DVD-RW drive
allows you to install your favorite
third-party software conveniently and
can be used to back up your critical
measurement data.
Simply press the horizontal delay knob
to set the delay value to zero. A zoom
button provides quick access to two
screen zoom mode.
AutoProbe interface completely configures your scope for use with the
InfiniiMax probing system and previous-generation Agilent active probes.

20

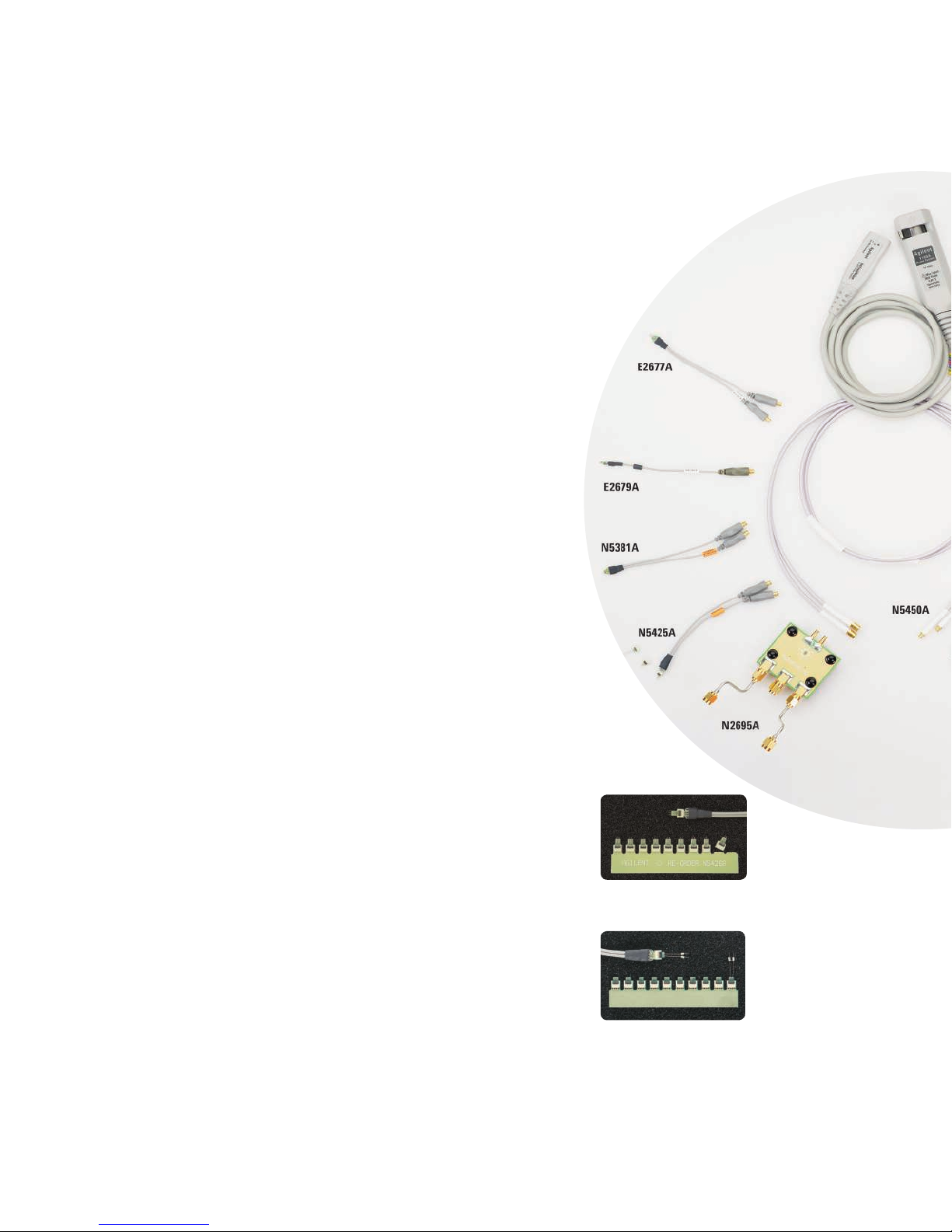

E2695A 8-GHz differential SMA
probe head allows you to connect
two SMA cables to make a differential
measurement on a single scope channel.
N5381A 13-GHz high-
bandwidth solder-in differential
probe head provides maximum
bandwidth and minimizes capacitive loading
to ≤ 210 fF. Variable spacing from
0.2 to 3.3 mm (8 to 130 mills).
E2679A 6-GHz extremely
small single-ended, solder-in
probe heads for probing even the
hardest-to-reach single-ended signals.
E2677A 12-GHz solder-in
differential probe head can be
attached to very-small-geometry circuits
for measuring both single-ended and
differential signals. External mini-coaxial
resistors facilitate wider span but have
increased high-frequency response
variation relative to N5381A.
N5425A 13-GHz high-
bandwidth solder-in differential
ZIF probe head and N5426A
ZIF tip provides maximum bandwidth
with the industry’s first lead-free solder-
in probe solution in an economical
replaceable tip form factor.
N5451A 9-GHz/5-GHz long-wire
ZIF tip provides a high-bandwidth
economical replaceable solder-in tip with
extra reach (9 GHz with 7 mm and 5 GHz
with 11 mm wire).
InfiniiMax offers you the high-
est performance available for mea-
suring differential and single-ended signals,
with flexible connectivity solutions for
today’s high-density ICs and circuit boards.
InfiniiMax probes have fully
characterized performance for all
of their various probe heads. This includes:
• Swept frequency response plot
• Common mode rejection versus
frequency plot
• Impedance versus frequency plot
• Time-domain probe loading plot
• Time-domain probe tracking plot
One-year standard warranty on
active probes and a variety of Agilent
support options to choose from.
Controlled impedance
transmission lines in every probe
head deliver full performance versus the
performance limitations introduced by
traditional wire accessories.
Probe interface software allows
you to save the calibration information for
up to 10 different probe heads per channel
and will automatically retrieve calibration
data for a probe amplifier when attached to
the scope.
High-input impedance active
probes minimize loading, support
differential measurements and DC offset,
and can compensate for cable loss.
Probe calibration software
delivers the most accurate probe
measurements and linear phase response
and allows various probe combinations to
be deskewed to the same reference time.
A flat frequency response over
the entire probe bandwidth eliminates the
distortion and frequency-dependent loading
effects that are present in probes that have
an in-band resonance.
N5426A
N5451A
InfiniiMax II: The World’s best high-speed probing system
just keeps getting better
