RAMMER S 83 STD User manual

3/05
OPERATION AND MAINTENANCE
OMS83SENG.305
HYDRAULIC HAMMER
RAMMER S 83 STD

OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Foreword . . . . . . . . . . . . . . . . . . . . . . . . 4
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . 4
This manual . . . . . . . . . . . . . . . . . . . . . . 4
Important safety information . . . . . . . . . 5
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 6
Spare part orders. . . . . . . . . . . . . . . . . . . 6
2. Machine numbers . . . . . . . . . . . . . . . . . . 7
Model and serial number . . . . . . . . . . . . 7
3. Product introduction. . . . . . . . . . . . . . . . 8
Overview. . . . . . . . . . . . . . . . . . . . . . . . . 8
Removal from package . . . . . . . . . . . . . . 8
Lifting instructions . . . . . . . . . . . . . . . . . 8
Main parts . . . . . . . . . . . . . . . . . . . . . . 10
Environmental protection and
recycling policy . . . . . . . . . . . . . . . . . . . 11
4. Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 12
General safety . . . . . . . . . . . . . . . . . . . . 12
Safety instructions. . . . . . . . . . . . . . . . . 12
5. Operation . . . . . . . . . . . . . . . . . . . . . . . 17
Operating instructions. . . . . . . . . . . . . . 17
Daily operation. . . . . . . . . . . . . . . . . . . 20
Mounting and dismounting the
hammer. . . . . . . . . . . . . . . . . . . . . . . . . 27
Movement. . . . . . . . . . . . . . . . . . . . . . . 28
Special conditions of use . . . . . . . . . . . . 28
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 29
LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . 31
1. Hammer tool greasing. . . . . . . . . . . . . . 32
Recommended greases. . . . . . . . . . . . . . 32
Manual greasing . . . . . . . . . . . . . . . . . . 32
2. Carrier hydraulic oil . . . . . . . . . . . . . . . 34
Requirements for hydraulic oil . . . . . . . 34
Oil cooler . . . . . . . . . . . . . . . . . . . . . . . 36
Oil filter . . . . . . . . . . . . . . . . . . . . . . . . 37
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . 39
1. Routine maintenance . . . . . . . . . . . . . . 40
Overview. . . . . . . . . . . . . . . . . . . . . . . . 40
Inspection and maintenance by the
operator . . . . . . . . . . . . . . . . . . . . . . . . 40
Inspection and maintenance by the
dealer . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Maintenance intervals in special
applications. . . . . . . . . . . . . . . . . . . . . . 42
Other maintenance procedures . . . . . . . 42
2. Removal of tool . . . . . . . . . . . . . . . . . . 43
Wear limits and lubricants for tool
removal. . . . . . . . . . . . . . . . . . . . . . . . . 43
Removal of tool . . . . . . . . . . . . . . . . . . 43
Installation of tool. . . . . . . . . . . . . . . . . 45
3. Lower tool bushing. . . . . . . . . . . . . . . . 46
Wear limits and lubricants for
lower tool bushing . . . . . . . . . . . . . . . . 46
Removal of lower tool bushing. . . . . . . 47
Installation of lower tool bushing. . . . . 48
4. Troubleshooting. . . . . . . . . . . . . . . . . . 49
The hammer does not start. . . . . . . . . . 49
The hammer operates irregularly
but the blow has full power . . . . . . . . . 50
The hammer operates irregularly
and blow has no power . . . . . . . . . . . . 50
Impact rate slows down . . . . . . . . . . . . 50
The hammer does not stop or
has run-on . . . . . . . . . . . . . . . . . . . . . . 51
Oil overheats . . . . . . . . . . . . . . . . . . . . 52
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . 53
1. Hammer specifications. . . . . . . . . . . . . 54
Technical specifications . . . . . . . . . . . . 54
Main dimensions . . . . . . . . . . . . . . . . . 55
2. Tool specifications . . . . . . . . . . . . . . . . 56

OPERATION - Page 3© 2005 SANDVIK TAMROCK CORP.
S 83 STD
OPERATION

© 2005 SANDVIK TAMROCK CORP.Page 4 - OPERATION
Foreword S 83 STD
1. FOREWORD
1.1 PREFACE
Congratulations on having purchased this product. A properly installed attachment
should prove to be a productive machine requiring maintenance only at regular in-
tervals.
1.2 THIS MANUAL
This manual is arranged to give you a good understanding of the equipment and its
safe operation. It also contains maintenance information and technical specifica-
tions. Read this manual from front to back before installing, operating or maintain-
ing the attachment for the first time.
In this manual, the units of measurement are metric. For example, weights are given
in kilograms (kg). In some cases the other unit follows in parenthesis (). For exam-
ple 28 litres (7.4 US gal).
The specifications and designs presented in this manual are subject to change with-
out prior notice.
SYMBOLS USED IN THIS MANUAL
This symbol identifies important safety messages within this manual. Carefully read
the message that follows. Failure to understand and obey this safety warning could
result in injury to you or others, and could also cause damage to equipment. See il-
lustration 1.

OPERATION - Page 5© 2005 SANDVIK TAMROCK CORP.
ForewordS 83 STD
This symbol identifies prohibited action or hazardous location. Failure to under-
stand and obey this safety warning could result in injury to you or others, and could
also cause damage to equipment. See illustration 2.
This symbol identifies correct and recommended action. See illustration 3.
1.3 IMPORTANT SAFETY INFORMATION
Basic safety precautions are outlined in the "Safety" section of this manual and in
the description of operations where hazards exist. Warning labels have also been put
on the machine to provide instructions and to identify specific hazards which if not
observed could cause bodily injury or death to you or other persons. These warnings
in the guide and on the machine labels are identified by the warning symbol.
To use the attachment correctly, you must also be a competent operator of the carrier
machine. Do not use or install it if you can not use the carrier machine properly. The
attachment is a powerful tool. If used without proper care, it can cause damage.
Do not rush when you are learning to use the product. Take your time and most im-
portantly, take it safely. Do not guess. If there is anything you do not understand,
ask your local dealer. He will be pleased to advise you.
Improper operation, lubrication or maintenance of this machine can be dangerous
and could result in injury.
Do not operate this machine until you read and understand the instructions in this
manual.
Do not perform any lubrication and maintenance on this machine until you read and
understand the instructions in this manual.

© 2005 SANDVIK TAMROCK CORP.Page 6 - OPERATION
Foreword S 83 STD
1.4 WARRANTY
The customer is provided with a separate warranty sheet, where the export warranty
terms are explained. Check always that this warranty sheet is provided with the at-
tachment. If not, contact your local dealer immediately.
WARRANTY REGISTRATION CARD
A warranty registration card is filled out after theinstallation inspection by the deal-
er and a copy of it is sent to the manufacturer. This card is very important because
no warranty claims are handled without it. Make sure that you get a copy of it after
the installation inspection and that it is correctly filled out.
INSTALLATION INSPECTION
An installation inspection must be carried out after the product has been installed on
the carrier. In the installation inspection certain specifications (operating pressure,
oil flow, etc.) are checked so that they are within given limits.
1.5 SPARE PART ORDERS
When you need spare parts or some information concerning maintenance to your
machinery, please contact your local dealer. Quick deliveries are ensured by exact
orders.
Required information:
1. Name of customer, contact person
2. Order number (when available)
3. Delivery address
4. Mode of delivery (air mail, etc.)
5. Required delivery date
6. Invoicing address
7. Model and serial number of product
8. Name, number and required amount of spare parts

OPERATION - Page 7© 2005 SANDVIK TAMROCK CORP.
Machine numbersS 83 STD
2. MACHINE NUMBERS
2.1 MODEL AND SERIAL NUMBER
The equipment serial number is stamped on the valve body. The model and serial
number are also located on the CE marking. Check that the model corresponds to
the one given on the cover of this manual.
It is important to make correct reference to the serial number of the attachment when
making repairs or ordering spare parts. Identification of the serial number is the only
proper means of maintaining and identifying parts for a specific product.

© 2005 SANDVIK TAMROCK CORP.Page 8 - OPERATION
Product introduction S 83 STD
3. PRODUCT INTRODUCTION
3.1 OVERVIEW
The product is a hydraulically operated breaker. It can be used on any carrier which
meets the necessary hydraulic and mechanical installation requirements. The unit
functions by repeatedly raising a steel piston and driving it down onto the head of a
removable breaking tool.
No additional pressure accumulators are necessary since the integrated pressure ac-
cumulator absorbs hydraulic pressure peaks. The impact energy of the hammer is
almost constant and independent of the carrier's hydraulic system.
3.2 REMOVAL FROM PACKAGE
Remove all the steel belts from the package. Open the package and remove all plas-
tics covering the product. Recycle all package materials (steel, plastic, wood) prop-
erly.
Check that the product is in good condition and that there is no visible damage.
Check that all ordered parts and accessories have been enclosed with the product.
Some options may be provided by your local dealer like installation kits; including
hoses and mounting bracket.
3.3 LIFTING INSTRUCTIONS
Use a hoist when lifting components which weigh 23 kg (50 lb) or more, to avoid
back injury. Make sure all chains, hooks, slings etc., are in good condition and are
in the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not
to be side loaded during a lifting operation. Do not use the hammer's tools for lifting.
Lifting devices must safely carry the working weight of the product. See “Hammer
specifications” on page 54. Place chains or slings, as shown by the illustration, to
lift the product.

OPERATION - Page 9© 2005 SANDVIK TAMROCK CORP.
Product introductionS 83 STD
Note: The lifting eye must always be removed from the hammer and replaced with
a blanking screw before starting to operate hammer.

© 2005 SANDVIK TAMROCK CORP.Page 10 - OPERATION
Product introduction S 83 STD
3.4 MAIN PARTS
The main parts of the hammer are shown below.
A. Housing
B. Mounting flange
C. Vibration dampening elements
D. Hose connections (pressure and return lines)
E. Pressure accumulator
F. Tool retaining mechanism
G. Tool bushing retaining mechanism
H. Lifting eye
I. Grease nipples

OPERATION - Page 11© 2005 SANDVIK TAMROCK CORP.
Product introductionS 83 STD
3.5 ENVIRONMENTAL PROTECTION AND RECYCLING POLICY
Rammer manufactures products which contribute to the recycling of materials to
help customers achieve their environmental objectives. During the manufacturing
all the necessary precautions are taken to make sure that no harm is done to the en-
vironment.
Rammer strives to foresee and minimize the risks that might be caused by operation
or maintenance of products, which could expose humans or the environment to dan-
ger. Rammer support customers in their efforts to consider the environmental pro-
tection in their everyday work.
When working with Rammer product please follow these guidelines:
■Dispose of packaging materials properly. Wood and plastic can be burned or re-
cycled. Deliver the steel belts to metal recycling center.
■Protect environment from oil spills.
In case of hydraulic oil leaks, the equipment should be serviced immediately.
Follow the product's greasing instructions and avoid excessive greasing.
Be careful when handling, storing and transporting oils.
Dispose of empty oil or grease containers appropriately.
Consult local authorities for detailed instructions.
■All metal parts of the product can be recycled by delivering them to an author-
ized scrap metal collection facility.
■Comply with local waste classification rules when disposing of used rubber or
plastic parts (buffers, wear plates, seals).
■When scrapping the whole product or pressure accumulator, consult your local
Rammer dealer for instructions on depressurizing the accumulator.
■Do not bring the product or accumulator to a scrap metal collection center be-
fore depressurizing the accumulator first.
Consult with your local dealer for more information.

© 2005 SANDVIK TAMROCK CORP.Page 12 - OPERATION
Safety S 83 STD
4. SAFETY
4.1 GENERAL SAFETY
All mechanical equipment can be hazardous if operated without due care or correct
maintenance. Most accidents involving machine operation and maintenance are
caused by failure to observe basic safety rules or precautions. An accident can often
be avoided by recognizing potentially hazardous situations before an accident oc-
curs.
Because it is impossible to anticipate every possible circumstance that might in-
volve a potential hazard, the warnings in this guide and on the machine are not all
inclusive. If a procedure, tool, working method or operating technique not specifi-
cally recommended by manufacturer is used, you must satisfy yourself that it is safe
for you and others. You should also ensure that the product will not be damaged or
made unsafe by the method of operation or maintenance procedures you choose.
Safety is not just a matter of responding to the warnings. All the time you are work-
ing with your attachment you must pay attention to what hazards there might be and
how to avoid them. Do not work with the product until you are sure that you control
it. Do not start any job until you are sure that you and those around you will be safe.
Warning! Read the following warning messages carefully. They tell you of dif-
ferent hazards and how to avoid them. If proper precautions are not taken you
or others could be seriously injured.
4.2 SAFETY INSTRUCTIONS
MANUALS
Study this manual before installing, operating or maintaining the product. If there is
anything you don't understand, ask your employer or your local dealer to explain it.
Keep this manual clean and in good condition.
Study also the operating and maintenance manual of your carrier before operating
the attachment.
CARE AND ALERTNESS
All the time you are working with the product, take care and stay alert. Always be
careful. Always be alert for hazards. The possibility of a serious or even fatal acci-
dent is increased when you are intoxicated.

OPERATION - Page 13© 2005 SANDVIK TAMROCK CORP.
SafetyS 83 STD
CLOTHING
You can be injured if you do not wear proper clothing. Loose clothing can get
caught in the machinery. Wear protective clothing to suit the job.
Examples are: a safety helmet, safety shoes, safety glasses, well-fitting overalls,
ear-protectors and industrial gloves. Keep cuffs fastened. Do not wear a necktie or
scarf. Keep long hair restrained.
PRACTICE
You and others can be killed or injured if you perform unfamiliar operations without
practising them first. Practice away from the job site, in a clear area.
Keep other people away. Do not perform new operations until you are sure you can
do them safely.
REGULATIONS AND LAWS
Obey all laws, work site and local regulations which affect you and your equipment.
COMMUNICATIONS
Bad communications can cause accidents. Keep people around you informed of
what you will be doing. If you will be working with other people make sure they
understand any hand signals you will be using.
Work sites can be noisy. Do not rely only on spoken commands.
WORK SITE
Work sites can be hazardous. Inspect the site before working on it.
Check for potholes, weak ground, hidden rocks etc. Check for utilities (electric ca-
bles, gas and water pipes etc.). Mark the positions of underground cables and pipes
if you will be breaking the ground.
Poor visibility can cause accidents and damage. Make sure that visibility and light-
ning of the working area are adequate.
BANKS AND TRENCHES
Banked material and trenches can collapse. Do not work too close to banks and
trenches where there is a danger of collapse.
SAFETY BARRIERS
Unguarded equipment in public places can be dangerous. Place barriers around the
machine to keep people away.

© 2005 SANDVIK TAMROCK CORP.Page 14 - OPERATION
Safety S 83 STD

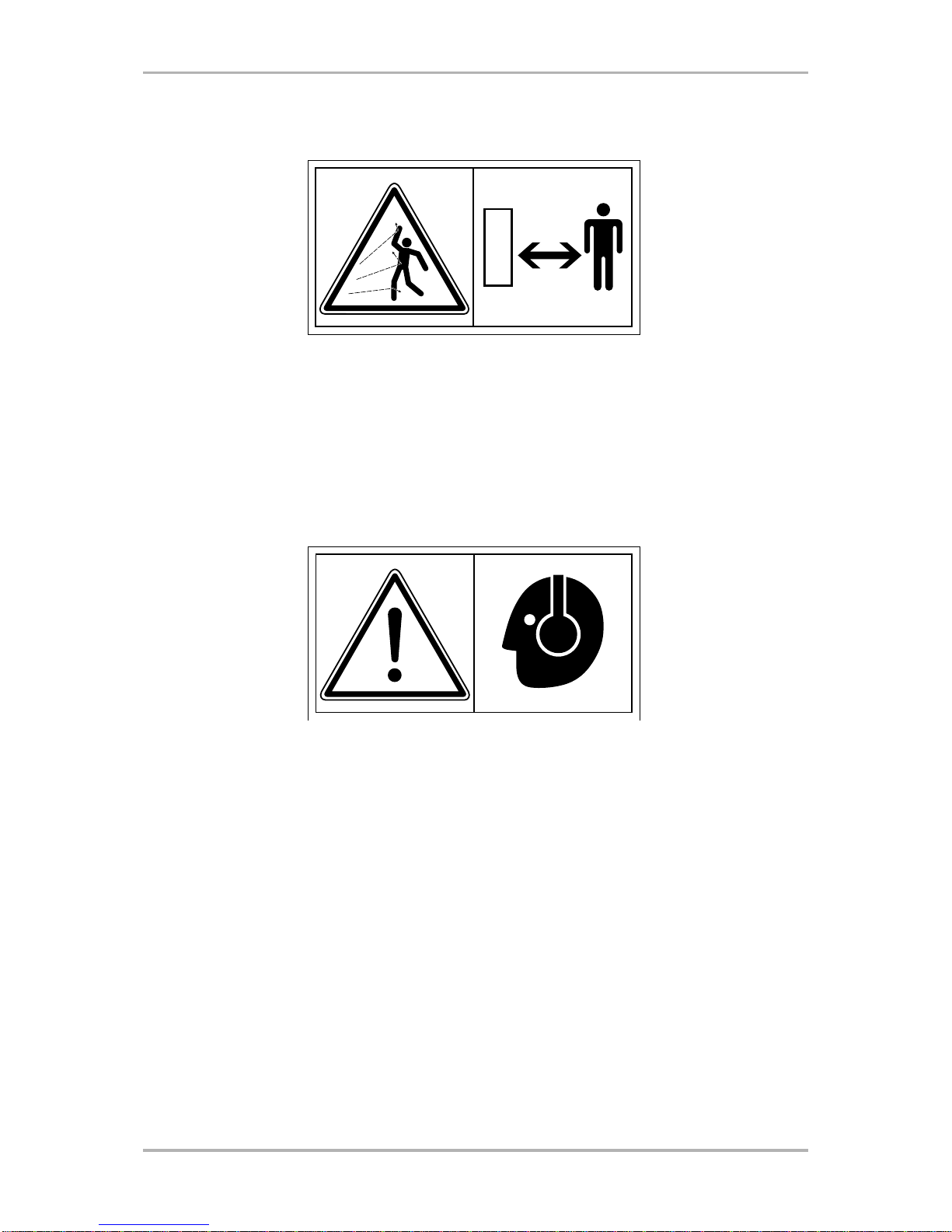

FLYING CHIPS OF ROCK
Protect yourself and your neighbourhood against flying chips of rock. Do not oper-
ate the product or carrier if someone is too close.
Keep the cabin windows and doors closed during operation. Window bars are rec-
ommended to protect the windows from flying chips of rock.
HIGH NOISE LEVEL
High noise level. Wear ear protection to prevent personal injury.
EQUIPMENT LIMITS
Operating the product beyond its design limits can cause damage. It can also be dan-
gerous. See “Hammer specifications” on page 54.
Do not try to enhance the product's performance by unapproved modifications.
HYDRAULIC FLUID
Fine jets of hydraulic fluid at high pressure can penetrate the skin. Do not use your
fingers to check for hydraulic fluid leaks. Do not put your face close to suspected
leaks. Hold a piece of cardboard close to suspected leaks and then inspect the card-
board for signs of hydraulic fluid. If hydraulic fluid penetrates your skin seek med-
ical help immediately.
Hot hydraulic fluid can cause severe injuries.
R010213
R010214

OPERATION - Page 15© 2005 SANDVIK TAMROCK CORP.
SafetyS 83 STD
HYDRAULIC HOSES AND FITTINGS
Ensure all hydraulic components will withstand maximum pressure and mechanical
stresses caused by operation of the attachment. Consult your local dealer for instruc-
tions.
FIRE HAZARD
Most hydraulic fluids are flammable and might ignite when contacting hot surface.
Avoid spilling hydraulic fluid to hot surfaces.
Working with the product on certain materials can cause sparks and hot splinters to
get loose. These can ignite flammable materials around working area.
Ensure that adequate extinguisher is available.
HYDRAULIC PRESSURE
Hydraulic fluid at system pressure can injure you. Before disconnecting or connect-
ing hydraulic hoses, stop the carrier engine, operate the controls to release pressure
trapped in the hoses and wait ten (10) minutes. During the operation, keep people
away from the hydraulic hoses.
There might be pressurized oil trapped inside the product even if it is disconnected
from the carrier. Be aware of possible blank firing while greasing or removing and
installing hammer tools. See “Removal of tool” on page 43.
PRESSURE ACCUMULATORS
The hammer incorporates one or two pressure accumulators, depending on the mod-
el. The accumulators are pressurized even when there is no hydraulic pressure to the
hammer. Attempting to dismantle the accumulators without first releasing the pres-
sure can cause injury or death. Do not try to dismantle pressure accumulators, con-
tact your local dealer first.
R010215

© 2005 SANDVIK TAMROCK CORP.Page 16 - OPERATION
Safety S 83 STD
LIFTING EQUIPMENT
You can be injured if you use faulty lifting equipment. Make sure that lifting equip-
ment is in good condition. Make sure that the lifting tackle complies with all local
regulations and is suitable for the job. Make sure that the lifting equipment is strong
enough for the job and you know how to use it.
Do not use this product or any of its parts for lifting. See “Lifting instructions” on
page 8. Contact your carrier dealer to find out how to lift with your carrier.
SPARE PARTS
Use only genuine spare parts. Use only genuine tools with hydraulic hammers. The
use of other spare part or hammer tool brands may damage the product.
EQUIPMENT CONDITION
Defective equipment can injure you or others. Do not operate equipment which is
defective or has missing parts.
Make sure the maintenance procedures in this manual are completed before using
the product.
REPAIRS AND MAINTENANCE
Do not try to do repairs or any other maintenance work you do not understand.
MODIFICATIONS AND WELDING
Non-approved modifications can cause injury and damage. Contact your local deal-
er for advice before modifying the product. Before welding on the product while it
is installed on the carrier, disconnect the carrier alternator and battery. Note that
welding of the hammer tools will render them useless and make the warranty void.
METAL SPLINTERS
You can be injured by flying splinters when driving metal pins in and out. Use soft-
faced hammer or drifts to remove and fit metal pins, such as pivot pins. Always wear
safety glasses.

OPERATION - Page 17© 2005 SANDVIK TAMROCK CORP.
OperationS 83 STD
5. OPERATION
5.1 OPERATING INSTRUCTIONS
RECOMMENDED USE
The hammer is designed to be used in breaking oversized boulders, demolishing
heavily reinforced concrete structures and for major heavy excavation and clearing
work. It can be also used for primary breaking, tunnelling and removal of metallur-
gical slag. Your local dealer will gladly give you more information.
OPERATING CONDITIONS
Principle of installation
Almost all carriers meeting mechanical and hydraulic requirements can be used to
operate the attachment. See “Hammer specifications” on page 54. The product is in-
stalled on the carrier much in the same manner as installing a bucket or other attach-
ments. A top mounted attachment requires a separate mounting bracket.
The attachment is connected to a carrier's hydraulic circuit with an installation kit.
If the carrier is already equipped with an installation kit, the installation requires
only suitable hoses and fittings. If the carrier does not have suitable kit to run the
attachment, one must be built. This may require more complex installation includ-
ing new piping and additional valves such as directional valve and pressure relief
valve.
Suitable kits can be ordered from the manufacturer or local dealers, from carrier
manufacturers and their dealers or from third party suppliers.
Hydraulic oil
In general the hydraulic oil originally intended for the carrier can be used with this
product. See “Requirements for hydraulic oil” on page 34.
Operating temperature
The operating temperature is -20 °C to +80 °C (-4 °F to +176 °F). If the temperature
is lower than -20 °C (-4 °F), the hammer and tool have to be preheated before any
operations can begin, in order to avoid breaking the accumulator's membrane and
the tool. During operation they will remain warm.
Note: The temperature of the hydraulic oil must be monitored. Ensure that oil grade
and monitored oil temperature together guarantee correct oil viscosity. See “Oil
specifications” on page 35.

© 2005 SANDVIK TAMROCK CORP.Page 18 - OPERATION
Operation S 83 STD
Noise dampening
Operating the hammer near residential areas or other noise sensitive areas can cause
noise pollution. In order to avoid unnecessary noise, please follow these basic rules:
1. When operating with the hammer, keep the tool at 90 degree angle to the mate-
rial and the feed force in-line with the tool.
2. Replace or fix all parts that are worn out, damaged or loosened. This not only
saves your hammer but it decreases the noise level.
PRINCIPLES OF BREAKING
To increase the hammer's working life, pay particular attention to correct working
methods and how to choose the correct tool for the job. There are essentially two
ways of breaking with a hydraulic hammer.
Penetrative breaking (or cutting)
In this form of breaking a moil point or chisel tool is forced inside the material. This
method is most effective in soft, layered or plastic, low abrasive material. The high
impact rate of the small hammers makes them ideal for penetrative breaking.
Impact breaking
With impact breaking, the material is broken by transferring very strong mechanical
stress waves from the tool into the material. The best possible energy transfer be-
tween the tool and the object is achieved with a blunt tool. Impact breaking is most
effective in hard, brittle and very abrasive materials. The use of a chisel tool in hard
material will cause the sharp edge to wear very quickly. The high impact energy of
the big hammers makes them ideal for impact breaking.
CHOOSING TOOLS
A selection of standard and special tools to suit each application are available. The
correct type of tool must be selected to get the best possible working results and
longest life time for the tool. Choosing the best tool type for an application may re-
quire some testing, please consult with your local dealer. See “Tool specifications”
on page 56.

OPERATION - Page 19© 2005 SANDVIK TAMROCK CORP.
OperationS 83 STD
Chisel, moil point and pyramid
■For sedimentary (e.g. sandstone) and weak metamorphic rock into which the
tool penetrates.
■Concrete.
■Trenching and benching.
Blunt tool
■For igneous (e.g. granite) and tough metamorphic rock (e.g. gneiss) into which
the tool doesn't penetrate.
■Concrete.
■Breaking boulders.
Super blunt
■When tool wear is extensive in igneous (e.g. granite) and tough metamorphic
rock (e.g. gneiss) into which the tool doesn't penetrate.
■Breaking boulders (very abrasive rock).
■Do not use for penetrative work or in non-abrasive rock!
It is important to choose a tool, which is suitable for your hammer and for the ap-
plication you are working on. The tool selection available depend on hammer mod-
el. See “Tool specifications” on page 56.

© 2005 SANDVIK TAMROCK CORP.Page 20 - OPERATION
Operation S 83 STD
5.2 DAILY OPERATION
Warning! Protect yourself and your neighbourhood against flying chips of
rock. Do not operate the hammer or carrier if someone is too close to the ham-
mer.
The hammer as a standard assembly, must not be used under water. If water
fills the space where the piston strikes the tool, a strong pressure wave is gen-
erated and the hammer may be damaged.
1. Prepare the carrier for normal excavation work. Move the carrier to the required
position. Set the drive to neutral.
2. Set the engine speed to the recommended engine RPM for correct amount of oil
supply.
3. Carefully operate the carrier controls to place the hammer and boom into the
breaking position. Quick and careless boom movements could result in damage
to the hammer.
