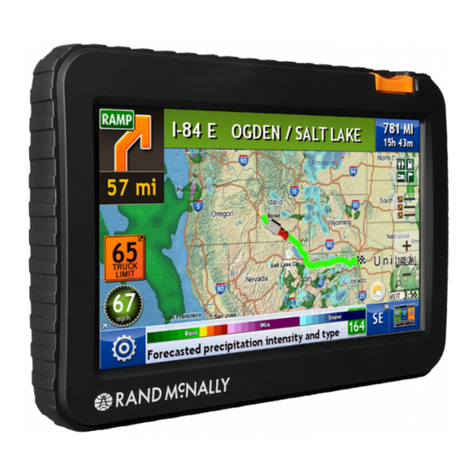

Rand McNally intelliroute TND 720 LM User manual

Quick Start Guide
Guide de démarrage rapide
Guía de Inicio Rápido

IMPORTANT: Connect your device to your personal computer to register your device and activate additional features.
Features require Internet connection.
FOR CUSTOMER SUPPORT, CALL 800-333-0136
Overview
WARNING: See safety information included with the device for warnings and precautions.
To maximize battery life, plug in the navigation unit for the first 2 hours of use. Always make sure your GPS has
a clear view of the sky. The first time you use the device, it may take up to 15 minutes for your GPS to connect to the
satellites.
TO POWER THE DEVICE:
On Press and hold the Power Key for two (2) seconds.
(Device powers on in 5 seconds.)
Off Press and hold the Power Key for five (5) seconds.
BATTERY POWER INDICATOR:
No Light
Device is running on the battery. Battery power is
sufficient.
Green Device is plugged in and the battery is fully charged .
Red
Device is plugged in and the battery is charging.
1

Power Key Battery
Power
Indicator
NOTE: Use the Reset button (located on the side of the
device) to restore factory settings and restart the device.
PHOTO TO COME
2

Install the Mount
NOTE: Follow all local regulations governing the placement of the mount.
Select an area with a line of sight to the sky and GPS satellites to ensure reliable GPS information.
1. Clean and dry the mounting area.
2. Remove the suction cup protective film.
3. Adjust the angle of the mount using the thumbscrew.
4. Pull the suction cup lever up to release suction.
5. Place and hold the mount suction cup against the mounting surface.
6. Press the suction cup lever down until it snaps into place.
7. Slide the device onto the mount.
8. Plug the power cord into the device and the vehicle’s 12-volt power source.
9. Adjust the device so that it can be easily seen and does not block the driver’s line of sight.
3

1
3
4
567
89
2
Main Menu
1Enter truck information and access
truck-specific use tools.
2Show location on the map and view
navigation instructions.
3Change driver status.
4Choose a destination.
5Select TND™ and route preferences.
6Mute/unmute the speaker.
7Adjust speaker volume.
8Select the trailer load option.
9Indicates power status.
NOTE: From other screens, tap this icon in the bottom right corner to return to the Main Menu.
4

On the
left, tap
on an
option
On the right,
enter settings
for the option
Enter Truck Information and Set Warnings
1. Tap Truck Tools > Truck Info or Warnings.
2. Tap and to view all options.
3. Tap the option button to be changed.
4. Enter new settings.
5. Tap Back to save changes.
NOTE: See page 15 for Routing Options.
Route to a Destination
Address
1. Tap
Choose Destination > New Location.
2. Tap
Address.
5

Route to a Destination (Continued)
3. Enter the name of the city. (Note: As you type, the keyboard
displays only the next possible letter. Prompts appear in the
top bar. Tap the name to select. Or, tap List to view cities
beginning with the letter(s) you entered. You can also use
Zip Code Search.)
4. Enter the street name. (Note: Tap Expand Search to…?)
5. Enter the house number. (Note: Tap ABC to enter letters.)
See Confirm Destination Window (page 7).
City Center -To route to a city without an address, tap Choose
Destination > New Location > City Center. See instructions
above.
Intersection -To route to the intersection of two streets, tap
Choose Destination > New Location > Intersection. See
instructions above.
Latitude/Longitude -To enter a location by latitude and
longitude, tap Choose Destination > New Location > Enter
Lat/Long.
History -Recent destinations are stored in History. Tap Choose
Destination > History to view.
Address Book -To save a location, enter it in the Address
Book from the Confirm Destination Window (page 7).
6

Confirm Destination Window
1Destination address.
2Begin route to destination.
3Cross reference to printed Rand McNally
Motor Carriers’ Road Atlas.
4Return to previous window.
5View the map.
6Change the starting address for a route to the location displayed
on the map screen.
7Return to Main Menu.
8Save the location to the Address Book.
9Add the location as a via point on the way to a previously entered destination.
1
3
4
5
6
8
7
9
2
7

Find a Point of Interest (POI)
1. Tap Choose Destination > Points of Interest.
2. Select a search type (My Truck, City, My Route,
End of Day or Destination).
3. Select a category and, if necessary, a subcategory.
4. Tap on the Point of Interest in the displayed list.
Google Search
1. Tap Choose Destination > Google Search.
2.
8

Route Map Window
1Repeat spoken next-maneuver instructions.
2Name of street you will turn onto next.
3Show arrival time and remaining distance.
4Directions list slideout.
5Zoom in/zoom out.
6Tap to view the Traffic Window.
7Current speed limit.
8Tap on the current speed to display the Virtual Dashboard.
9Additional current location or route options.
10 Tap to view current road name, upcoming cross road name, or city name and state.
11 Select a map display option (North Up, Heading Up or 3D View).
12 Return to Main Menu.
13 Slide out exit amenities.
14 Tap to view weather information.
9

Junction View
When on a route, Junction View displays when you have an upcoming maneuver.
Once past the maneuver, Junction View closes and the previous window displays.
1The highway you are currently on.
2The highway you will be on after the next maneuver.
3Number and direction of lanes for the next maneuver.
4Miles to the upcoming maneuver. Distance decreases as you
approach the ramp.
5Return to Route Map Window.
1
3
2
4
5
Traffic Window
1Tap to select either a recalculated route based on traffic events
or to stay on the current route.
2View traffic events along your route.
3View a list of traffic events within receiver range.
4Return to Route Map Window.
5Tap the Off/Predicted/Real-Time Traffic button to display Predicted
Traffic. Real-Time Traffic is an optional service Additional accessory required.
6Return to Main Menu.
13
2
45 6
10

Weather
1. To view current weather information and the three-day
forecast for your location, tap the Weather icon [show
image?] on the Route Map Window.
2. To view weather information at your destination, tap At
Destination. [What about along the route?]
3. Tap Map Overlay to choose from different weather types
to display on the map as you drive.
4. Use the slider at the bottom left of the Weather Type
screen to adjust the transparency of the overlay on the map.
11

Virtual Dashboard
When using the virtual dashboard on a route, the virtual dashboard closes
and the Junction View displays an upcoming maneuver. Once past the
maneuver, the virtual dashboard redisplays.
1Current direction of travel.
2Displays current time at the yard, current location and your destination.
3Sunrise/Sunset time based on vehicle location (latitude/longitude) and day.
4Current speed (above) and posted speed limit (below).
5Altitude at current location.
6Percentage of current trip completed, distance to next maneuver, and the number of miles and time spent on the trip to
this point.
7Average uphill and downhill speeds.
8Return to the Route Map Window.
9Gather trip information for up to three trips. Includes odometer settings, hours, and speeds.
10 Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3).
11 Select to reset the information in all three tabs after the vehicle has remained stationary for the specified
number of hours.
12 Tap to view fuel logs.
1
345
6
8
10 11
7
12
9
2
12

View Timers and Logs
Countdown timers are controlled by the Driver Status (Driving, On
Duty, or Off Duty) selected on the Main Menu.
1. Tap Truck Tools > Timers, Logs, Trails, Fuel.
2. Tap
Timers to view timers, odometer readings, and times.
3. Tap on a field to change or reset the number.
4. Tap Logs to view a list of mileage logs by quarter.
5. Tap on a quarter to view individual logs by state.
13

View Trails and Fuel
1. Tap Truck Tools > Timers, Logs, Trails, Fuel.
2. Tap
Set Trails to record a “bread-crumb” path of GPS
coordinates where your truck has traveled.
3. Tap any record to view the trail, edit the name or set the
color.
4. Tap
Keep on Map to display the trail on the Route Map
Window.
5. Tap
Fuel to view a list of fuel logs by quarter.
6. Tap on a quarter to view individual logs by state.
7. Tap
Add Fuel to record the date, location and cost of fuel
purchase.
8. Tap on a field to make changes.
9. Tap
Report to include the purchase in the fuel log.
10. Tap
Save.
14

Set Routing and Device Options
1. Tap Preferences.
2. Tap the Truck, Route or Device tab.
3. Tap and to view options.
4. Tap the option button to be changed.
5. Enter the new settings for the option.
10. Tap Back to save changes and return to the Main Menu.
On the left,
tap on an
option
On the right,
enter settings
for the option
15

WiFi
How it works:
Your IntelliRoute® TND™ 720 is wireless compatible, and uses a wireless network for features such as Google search,
weather, and live traffic. You can connect to the wireless network at a hotspot, such as those found at some truck stops, or
by tethering your cellular phone to your device. For information on setting up a wireless hotspot through your phone, please
contact your wireless carrier or visit support.randmcnally.com/wifihelp for basic instructions.
1. From the Main Menu, tap Preferences.
2. Tap WiFi in the bottom right corner.
3. Tap Enable WiFi to view available hotspots.
4. Tap the hotspot you want to connect to.
5. Enter the network password for the hotspot.
The [??] symbol indicates an active connection to that hotspot.
16

More Information
For a detailed description of the features of your device, please see the IntelliRoute® TND™ 720 user manual. The user
manual can be downloaded from the Rand McNally Dock, and is also available at www.randmcnally.com/support.
Rand McNally Dock
The Rand McNally Dock enables you to receive software upgrades and access map updates, construction updates, and
additional features. Simply download the Dock software at www.randmcnally.com/dock.
With the Rand McNally Dock, you can also:
• Retrievemileagelogs
• UploadcustomPOIstoyourdevice
• Downloadtheusermanual
• AccesstheRandMcNallysupportsiteandonlinestore
• Readproductnewsandannouncements
• SendfeedbackandsuggestionstoRandMcNallythrough“TellRand”
