Note: Specify Refrigerant
Randell supplies R-134a as standard.

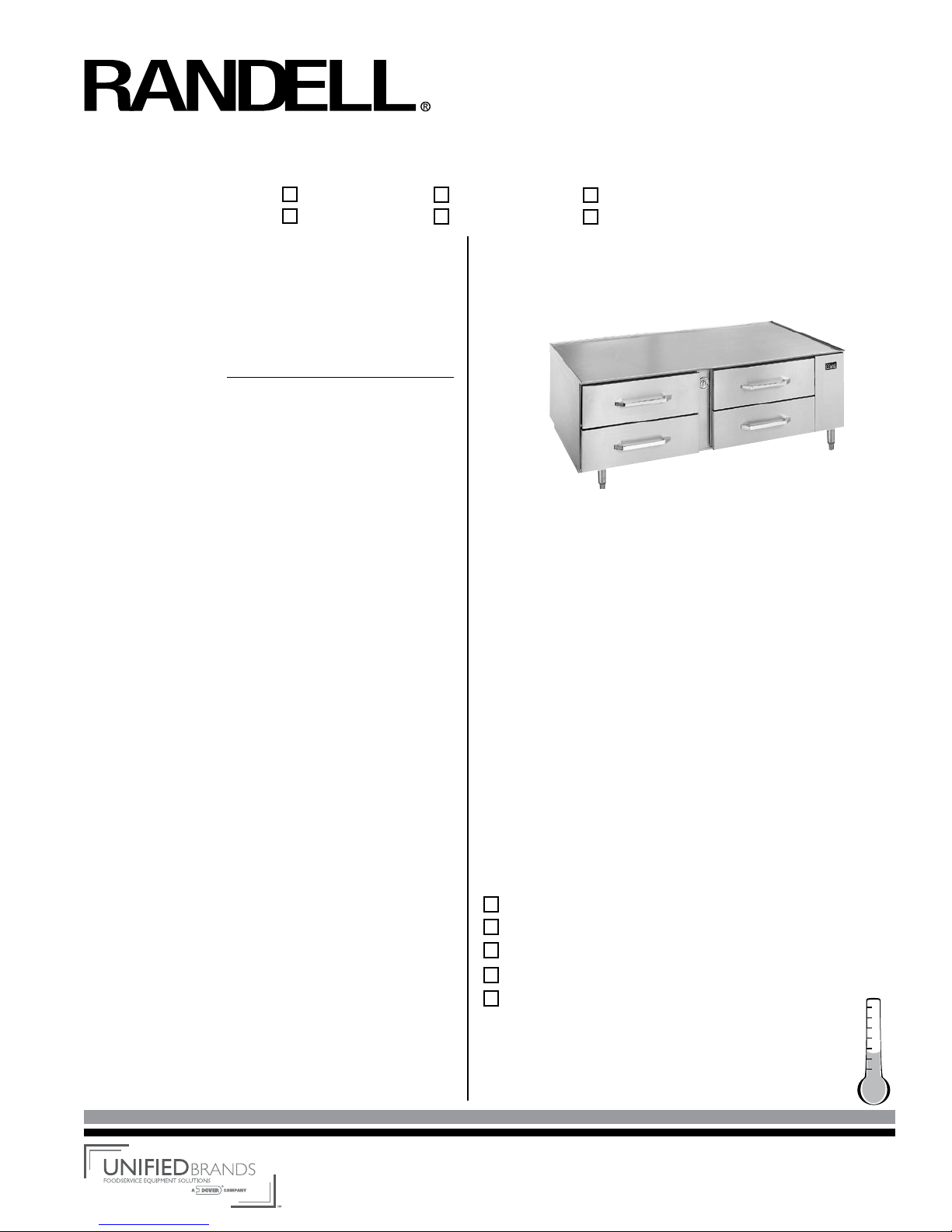

Equipment Stand Remote Refrigerated Base model 20000R
model 20065R shown
Standard Features:
• R-134a refrigeration system, “CFC free” features thermostatic
control for operator adjustability. Evaporator blower coil with
expansion valve and refrigeration lines provided and installed.
Condensing unit and controls not provided.
• Drawer Cartridge Assemblies are fully removable with
Quick Release feature
• Foamed in place “CFC” free urethane insulation
• Marine edged stainless steel top with 12 gauge steel
subtop to hold the heaviest cooking equipment
• Removable 14 gauge drawer tracks on 1 5/8" heavy duty
stainless steel bearings
• Drawers to accommodate (2)12"x 20"x 4"
pans per drawer (pans not included)
• 6" high adjustable legs
Description:
32 1/2" deep remote refrigerated cooking equipment stand
with reinforced stainless steel top. 12 gauge steel subtop, and
full marine edge. R-134a refrigeration system, with evaporator
blower coil and expansion valve supplied & installed. Condensing
unit not provided. Unit on 6" high adjustable legs.
Specifications:
CABINET EXTERIOR: Cabinet body is constructed of all metal. The
top, front, and louver panel are stainless steel. Full length, 12
gauge steel subtop beneath one piece stainless steel top with
1/2" marine edged. Body ends are stainless steel. 6" stainless
steel legs with adjustable bullet feet are mounted to a heavy
gauge steel frame assembly which is integrally welded to bottom
of assembly. Unit totally prewired to junction box.
CABINET INTERIOR: Interior of cabinet is fully coved to meet
N.S.F. standard #7. The interior is constructed of anodized
aluminum with coved corners for easy clean-up. Drawer opening
frames are A.B.S. and contain magnetic strip for positive seal of
drawer gaskets. Unit insulated with CFC free, foamed in place
polyurethane.
REFRIGERATED DRAWERS: Fully welded, unitized drawer
cartridge assembly - patented. Heavy duty full extension 14
gauge drawer tracks on 1 5/8" heavy duty stainless steel
bearings. Will accommodate (2) 12" x 20" x 4" deep pans per
drawer (pans not included). Quick release allows drawers to be
easily removed for cleaning. Stainless fronts, mounted to drawer
cartridge assembly with easy to grasp drawer handles. Drawers
with press fit magnetic gaskets - (designed for installation &
removal without tools).
REFRIGERATION: CFC free, R-134a refrigeration system to
include Randell blower coil, and thermostatic control for operator
adjustability. Blower coil fitted with expansion valve for fast
recovery. Condensing unit not provided. Mullion coil, is coated to
resist corrosion, and offers maximum air flow.
Options & Accessories:
Heavy duty casters
Flat top
Electric condensate evaporator
Length modification of: _______
Mechanical housing on left
Randell Equipment Stand, Page 3
Revised 04/07
These units feature our Patented Drawer Cartridge Assembly.
A fully welded, unitized drawer cartridge assembly with a
quick release that allows the refrigerated drawers to be
easily removed for cleaning.3 year warranty on the entire
drawer system.
33°F to 40°F 18°F to 22°F33°F to 41°F
model, 32” Drawer 20042R-32 20065R-32 20092R-32
model, 27” Drawer 20042R 20065R 20092R

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 20000R
R404 REFRIG.
R-22 REFRIG.
R134A REFRIG.
JUNCTION BOX 14" AFF
CONDENSATE DRAIN 1/2 "
I.D. VINYL TUBING
115V/60Hz/1Ph/6A
CHOOSE REFRIGERANT
J
OC
AFF = ABOVE FIXED FLOOR
MODEL # 20042R
LEGEND FOR LEGEND FOR
R134A REFRIG.
R404 REFRIG.
R-22 REFRIG.
115V/60Hz/1Ph/3A
JUNCTION BOX 14" AFF
MODEL # 20065R
AFF = ABOVE FIXED FLOOR
CONDENSATE DRAIN 1/2"
I.D. VINYL TUBING
CHOOSE REFRIGERANT
J
OC
CHOOSE REFRIGERANT
115V/60Hz/1Ph/4A
AFF = ABOVE FIXED FLOOR
MODEL # 20092R
JUNCTION BOX 14" AFF
LEGEND FOR
I.D. VINYL TUBING
CONDENSATE DRAIN 1/2"
OC
J
R-22 REFRIG.
R134A REFRIG.
R404 REFRIG.
32.5"
26"
6"
(1) SET OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
THERMOMETER
27" REFRIG.
27" REFRIG.
42"
25"
J
OC
27" REFRIG.
27" REFRIG.
THERMOMETER
(2) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
27" REFRIG.
27" REFRIG.
MECH. HSG.
65"
25"
(3) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
27" REFRIG.
27" REFRIG.27" REFRIG.
27" REFRIG.
27" REFRIG.
27" REFRIG.
THERMOMETER
92"
25"
Component
27” DRAWER REMOTE REFRIGERATED MODELS (The load capacity of this equipment stand is rated up to 225 lbs per linear foot)
Model L D H Drawers # of 12x20 Pans Volt Amp BTUs Ship Wt.
20042R 42” 32 1/2” 26” 2 4 115/60/1 3 466 330
20065R 65” 32 1/2” 26” 4 8 115/60/1 3 823 460
20092R 92” 32 1/2” 26” 6 12 115/60/1 4 1300 600
The Randell Cartridge System! Patented.
• Fully welded 14 gauge unitized Drawer Cartridge assembly.
• 14 gauge drawer tracks on 1 5/8" heavy duty stainless steel bearings.
• Heavy duty full extension tracks to accommodate 12" x 20" x 4" deep pans, two per drawer. Pans by others.
• Quick release allows drawers and liners to be removed without tools.
• Drawers with stainless steel drawer fronts & easy to grasp drawer handles.
27” DRAWER MODELS

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 20000R-32
Component
32” DRAWER REMOTE REFRIGERATED MODELS (The load capacity of this equipment stand is rated up to 225 lbs per linear foot)
Model L D H Drawers # of 12x20 Pans Volt Amp BTUs Ship Wt.
20042R-32 47” 32 1/2” 26” 2 4 115/60/1 3 466 330
20065R-32 75” 32 1/2” 26” 4 8 115/60/1 3 823 460
20092R-32 107” 32 1/2” 26” 6 12 115/60/1 4 1300 600
The Randell Cartridge System! Patented.
• Fully welded 14 gauge unitized Drawer Cartridge assembly.
• 14 gauge drawer tracks on 1 5/8" heavy duty stainless steel bearings.
• Heavy duty full extension tracks to accommodate 12" x 20" x 4" deep pans, two per drawer. Pans by others.
• Quick release allows drawers and liners to be removed without tools.
• Drawers with stainless steel drawer fronts & easy to grasp drawer handles.
R404 REFRIG.
R-22 REFRIG.
R134A REFRIG.
JUNCTION BOX 14" AFF
CONDENSATE DRAIN 1/2 "
I.D. VINYL TUBING
115V/60Hz/1Ph/3A
CHOOSE REFRIGERANT
J
OC
AFF = ABOVE FIXED FLOOR
MODEL # 20042R-32
LEGEND FOR LEGEND FOR
R134A REFRIG.
R404 REFRIG.
R-22 REFRIG.
115V/60Hz/1Ph/3A
JUNCTION BOX 14" AFF
MODEL # 20065R-32
AFF = ABOVE FIXED FLOOR
CONDENSATE DRAIN 1/2"
I.D. VINYL TUBING
CHOOSE REFRIGERANT
J
OC
CHOOSE REFRIGERANT
115V/60Hz/1Ph/4A
AFF = ABOVE FIXED FLOOR
MODEL # 20092R-32
JUNCTION BOX 14" AFF
LEGEND FOR
I.D. VINYL TUBING
CONDENSATE DRAIN 1/2"
OC
J
R-22 REFRIG.
R134A REFRIG.
R404 REFRIG.
32.5"
26"
6"
THERMOMETER
32" REFRIG.
32" REFRIG.
47"
J
OC
32" REFRIG.
32" REFRIG.
THERMOMETER
32" REFRIG.
32" REFRIG.
MECH. HSG.
75"
32" REFRIG.
32" REFRIG.32" REFRIG.
32" REFRIG.
32" REFRIG.
32" REFRIG.
THERMOMETER
107"
(1) SET OF CARTRIDGE STYLE DRAWERS, EACH
DRAWER TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
25"
(2) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
25"
(3) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
25"
32” DRAWER MODELS
