R&S EB200 User manual

4052.2039.32-07
Manual
Division
Radiomonitoring and Radiolocation
MINIPORT RECEIVER
R&S

EB200

4052.2000.02

4052.2039.32-07
R&S®ist eingetragenes Warenzeichen der Fa. Rohde & Schwarz GmbH & Co. KG.
Eigennamen sind Warenzeichen der jeweiligen Eigentümer.
R&S®is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Proper names are trademarks of the respective owners.
Printed in the Federal
Republic of Germany
Rohde & Schwarz GmbH & Co. KG
Mühldorfstraße 15
D-81671 München
www.rohde-schwarz.com

EB200 Manual Contents
4052.2039.32 3 E-7.1
Contents
1 Data sheet ...........................................................................................................................PD757.3728
2 Preparation for Use............................................................................................................................2.1
2.1 Installation....................................................................................................................................2.1
2.2 Wiring...........................................................................................................................................2.2
2.3 Pin assignment of the connectors................................................................................................2.3
2.4 Operation with Battery Pack EB200BP........................................................................................2.3
2.5 Operation in a vehicle ..................................................................................................................2.4
2.6 Image of the Display in the Internet Browser...............................................................................2.4
3 Operation ............................................................................................................................................3.1
3.1 Description of the front panel.......................................................................................................3.1
3.2 Overall view of operating elements and menus...........................................................................3.3
3.3 Display..........................................................................................................................................3.6
3.3.1 Frequency display................................................................................................................3.7
3.3.2 Level display........................................................................................................................3.8
3.3.3 Offset display, TUNING .......................................................................................................3.9
3.3.4 IF spectrum (option)...........................................................................................................3.10
3.3.5 DATA lamp.........................................................................................................................3.10
3.3.6 Symbols .............................................................................................................................3.11
3.3.7 Status and error messages................................................................................................3.12
3.4 Direct keys .................................................................................................................................3.13
3.4.1 MOD key (modulation modes)...........................................................................................3.13
3.4.2 BW key (bandwidths).........................................................................................................3.13
3.4.3 MGC-SQU-TONE keys and the VAR potentiometer .........................................................3.14
3.4.4 ATT key (attenuator)..........................................................................................................3.15
3.4.5 AFC key (automatic frequency control) .............................................................................3.16
3.4.6 LEV key (level indicator)....................................................................................................3.16
3.4.7 SAVE and RCL keys (memory functions)..........................................................................3.16
3.5 Decimal keypad..........................................................................................................................3.17
3.6 Spinwheel (rotary pulse generator)............................................................................................3.17
3.7 Keys for selecting the spinwheel functions................................................................................3.17
3.8 Memory functions.......................................................................................................................3.18
3.9 Menu-control keys......................................................................................................................3.18
3.9.1 Softkeys .............................................................................................................................3.18
3.9.2 Escape (ESC) ....................................................................................................................3.18
3.9.3 Select key (SEL) ................................................................................................................3.18

EB200 Manual Contents
4052.2039.32 4 E-7.1
3.9.4 Relationship between the FRQ, MEM, SEL and LOCK keys............................................3.19
3.10 TEST key .................................................................................................................................3.19
3.11 ON/OFF switch.........................................................................................................................3.19
3.12 Contrast control........................................................................................................................3.19
3.13 VAR pot (MGC, SQU, TONE)..................................................................................................3.19
3.14 Volume potentiometer..............................................................................................................3.20
3.15 Headphone connector..............................................................................................................3.20
3.16 POP-UP editor .........................................................................................................................3.21
3.16.1 Softkeys in the editor window ..........................................................................................3.22
3.17 Changing configuration parameters.........................................................................................3.23
3.18 Softkey menus .........................................................................................................................3.24
3.18.1 M-SCAN...........................................................................................................................3.25
3.18.1.1 M-SCAN - CONFIG .................................................................................................3.26
3.18.1.2 M-SCAN - CONFIG - DELETE................................................................................3.28
3.18.2 F-SCAN............................................................................................................................3.29
3.18.2.1 F-SCAN - CONFIG..................................................................................................3.30
3.18.2.2 F-SCAN - CONFIG - SUPP.....................................................................................3.31
3.18.3 D-SCAN (option)..............................................................................................................3.32
3.18.3.1 D-SCAN CONFIG....................................................................................................3.33
3.18.3.2 D-SCAN cycle..........................................................................................................3.34
3.18.3.3 Spectrum display NORM (normal)...........................................................................3.34
3.18.3.4 Spectrum display NORM with squelch on ...............................................................3.35
3.18.3.5 Spectrum display in STOP mode ............................................................................3.35
3.18.3.6 Spectrum display DIFF (differential mode)..............................................................3.35
3.18.3.7 Spectrum display with BW ZOOM...........................................................................3.36
3.18.4 RX-CONF (receiver configuration)...................................................................................3.36
3.18.4.1 ANT (antenna) .........................................................................................................3.37
3.18.4.2 MEASURE (configuration of measuring time parameters)......................................3.38
3.18.4.3 AF configuration.......................................................................................................3.39
3.18.4.4 SYSTEM menu........................................................................................................3.40
3.18.4.5 TEST........................................................................................................................3.43
3.18.5 DISPLAY (display variants)..............................................................................................3.45
3.18.5.1 IF-PAN (IF panorama).............................................................................................3.47
3.18.5.2 LEVEL BAR (level measurement)...........................................................................3.49
3.18.5.3 TONE (signal tone; pitch depends on the signal level) ...........................................3.50
3.18.5.4 FRQ (frequency)......................................................................................................3.51
3.18.6 SETUP.............................................................................................................................3.51
3.18.6.1 KEYS .......................................................................................................................3.52

EB200 Manual Contents
4052.2039.32 5 E-7.1
3.18.6.2 MESSAGE...............................................................................................................3.53
3.18.6.3 POWER ...................................................................................................................3.54
3.18.6.4 REF..........................................................................................................................3.54
3.18.6.5 AUX..........................................................................................................................3.55
3.18.6.6 REMOTE (remote control).......................................................................................3.56
4 Remote control...................................................................................................................................4.1
4.1 Introduction ..................................................................................................................................4.1
4.2 Brief instructions...........................................................................................................................4.1
4.2.1 Remote control via RS232 interface....................................................................................4.1
4.2.2 Remote control via LAN interface (option)...........................................................................4.2
4.3 Configuring the remote control.....................................................................................................4.2
4.3.1 Setting the IP-A and port number ........................................................................................4.2
4.4 Structure and syntax of the device messages.............................................................................4.3
4.4.1 SCPI introduction.................................................................................................................4.3
4.4.2 Structure of a command.......................................................................................................4.3
4.4.3 Structure of a command line................................................................................................4.7
4.4.4 Responses to queries ..........................................................................................................4.8
4.4.5 Parameters...........................................................................................................................4.9
4.4.6 Overview of syntax elements.............................................................................................4.12
4.5 Description of commands...........................................................................................................4.13
4.5.1 Notation..............................................................................................................................4.13
4.5.2 Common commands..........................................................................................................4.15
4.5.3 ABORt subsystem..............................................................................................................4.18
4.5.4 CALCulate subsystem .......................................................................................................4.19
4.5.5 DIAGnostic subsystem.......................................................................................................4.24
4.5.6 DISPlay subsystem............................................................................................................4.27
4.5.7 FORMat subsystem ...........................................................................................................4.33
4.5.8 INITiate subsystem ............................................................................................................4.37
4.5.9 INPut subsystem................................................................................................................4.38
4.5.10 MEASure subsystem .......................................................................................................4.40
4.5.11 MEMory subsystem .........................................................................................................4.42
4.5.12 OUTPut subsystem..........................................................................................................4.46
4.5.13 ROUTe subsystem...........................................................................................................4.54
4.5.14 SENSe Subsystem ..........................................................................................................4.58
4.5.15 STATus subsystem..........................................................................................................4.96
4.5.16 SYSTem subsystem ......................................................................................................4.101
4.5.17 TEST subsystem............................................................................................................4.109
4.5.18 TRACe subsystem.........................................................................................................4.110

EB200 Manual Contents
4052.2039.32 6 E-7.1
4.5.19 TRIGger subsystem.......................................................................................................4.119
4.6 Device model and command processing.................................................................................4.122
4.6.1 Remote client...................................................................................................................4.123
4.6.2 Data memory ...................................................................................................................4.126
4.7 Status reporting system ...........................................................................................................4.127
4.7.1 Structure of an SCPI status register ................................................................................4.128
4.7.2 Overview of the status registers.......................................................................................4.130
4.7.3 Description of the status registers ...................................................................................4.131
4.7.3.1 Status Byte (STB) and Service Request Enable Register (SRE)............................4.131
4.7.3.2 IST flag and Parallel Poll Enable (PPE) register .....................................................4.132
4.7.3.3 Event Status Register (ESR) and Event Status Enable (ESE) register ..................4.133
4.7.3.4 STATus:OPERation register....................................................................................4.134
4.7.3.5 STATus:OPERation:SWEeping register..................................................................4.135
4.7.3.6 STATus:QUEStionable register...............................................................................4.136
4.7.3.7 STATus:TRACe register..........................................................................................4.137
4.7.3.8 STATus:EXTension register....................................................................................4.138
4.7.4 Use of the Status Reporting System................................................................................4.140
4.7.4.1 Service request, making zse of the hierarchy structure ..........................................4.140
4.7.4.2 Query by means of commands................................................................................4.141
4.7.4.3 Error-queue query....................................................................................................4.141
4.7.5 Resetting values of the status reporting system..............................................................4.142
5 Maintenance and Troubleshooting...................................................................................................5.1
5.1 Maintenance.................................................................................................................................5.1
5.1.1 Alignment of the 10-MHz reference oscillator crystal in the IF section................................5.1
5.1.2 Re-establishing the original state, coldstart.........................................................................5.1
5.1.3 Firmware Update .................................................................................................................5.1
5.2 Troubleshooting ...........................................................................................................................5.2
5.2.1 Accessories..........................................................................................................................5.2
5.2.2 Error messages....................................................................................................................5.3
5.2.3 List of modules.....................................................................................................................5.4
5.2.4 Module exchange.................................................................................................................5.5
5.2.4.1 Opening the unit ..........................................................................................................5.5
5.2.4.2 DC/DC converter .........................................................................................................5.6
5.2.4.3 RAM expansion / Li-battery .........................................................................................5.7
5.2.4.4 Processor module........................................................................................................5.8
5.2.4.5 Front panel control unit and LCD.................................................................................5.9
5.2.4.6 Preselection, frontend, IF section, IF-panorama (option)..........................................5.12
5.2.4.7 Cable plan..................................................................................................................5.14

EB200 Manual Contents
4052.2039.32 7 E-7.1
5.2.4.8 RS232 interface.........................................................................................................5.15
5.2.5 Maintenance support .........................................................................................................5.16
Annex A (RS232 Interface) ..................................................................................................................A.1
Characteristics of the RS232 interface .............................................................................................A.1
RS232 standard mode...................................................................................................................... A.1
Setting parameters.......................................................................................................................A.1
Null modem cable ........................................................................................................................ A.1
Binary transmission with byte escaping.......................................................................................A.2
RS232 PPP mode.............................................................................................................................A.3
Setting parameters.......................................................................................................................A.3
Null modem cable ........................................................................................................................ A.3
Installation of a PPP connection under WindowsNT ........................................................................ A.4
Installation of a PPP connection under Windows 95/98/ME.............................................................A.6
Installation of a PPP connection under Windows 2000.................................................................... A.8
Installation of a PPP connection under Windows XP ..................................................................... A.11
Installation of a PPP connection under Linux ................................................................................. A.14
Testing the protocol on the low-level ..............................................................................................A.15
Testing the protocol on the EB 200 command level .......................................................................A.15
Annex B (Error Messages) ..................................................................................................................B.1
Warnings, component failures and device-dependent info...............................................................B.1
Error messages of the queue query.................................................................................................. B.4
SCPI-specific error messages...........................................................................................................B.4
Device-specific errors........................................................................................................................ B.9
System errors.................................................................................................................................... B.9
Message "OUT OF MEMORY".........................................................................................................B.9
Error hierarchy ................................................................................................................................B.10
Annex C (Functions and Commands)................................................................................................C.1
Remote and manual control functions ..............................................................................................C.1
Basic functions.............................................................................................................................C.1
MSCAN ........................................................................................................................................C.2
Memory functions.........................................................................................................................C.4
FSCAN.........................................................................................................................................C.5
FSCAN SUPP..............................................................................................................................C.6
DSCAN.........................................................................................................................................C.7
Receiver configuration .................................................................................................................C.8
Measuring functions.....................................................................................................................C.9

EB200 Manual Contents
4052.2039.32 8 E-7.1
System .......................................................................................................................................C.10
Test ............................................................................................................................................C.11
Display .......................................................................................................................................C.12
IFPAN.........................................................................................................................................C.13
Messages...................................................................................................................................C.14
Operating elements....................................................................................................................C.15

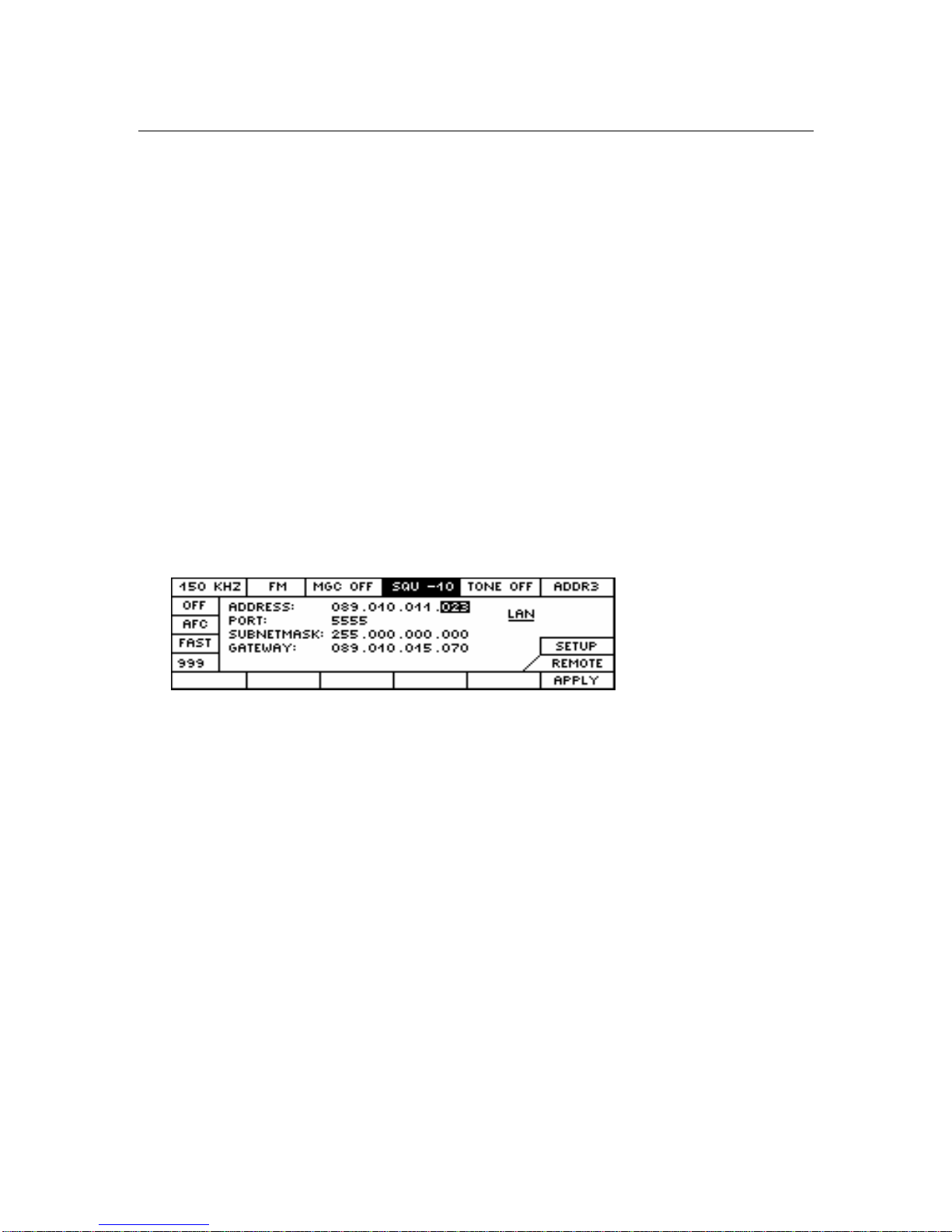

LAN Interface.............................................................................................................................C.16
RS232 interface (PPP)...............................................................................................................C.16
RS232 interface (standard)........................................................................................................C.17
Rear panel interfaces.................................................................................................................C.17
Power source.............................................................................................................................C.18
Data formats...............................................................................................................................C.18
Trace..........................................................................................................................................C.18
Status reporting - operation .......................................................................................................C.19
Status reporting - operation - sweep..........................................................................................C.20
Status reporting - extension.......................................................................................................C.20
Status reporting - questionable..................................................................................................C.21
Status reporting - trace ..............................................................................................................C.21
Annex D (Programming Examples)....................................................................................................D.1
Annex E (Measuring Functions)......................................................................................................... E.1
Detectors........................................................................................................................................... E.1
CONTINUOUS measuring mode................................................................................................. E.4
Measuring time..................................................................................................................................E.5
PERIODIC measuring mode........................................................................................................E.6
Measuring time different from DEFAULT..........................................................................................E.6
Annex F (Datagram Communication)................................................................................................. F.1
General.............................................................................................................................................. F.1
Addressing ........................................................................................................................................ F.1
Configuration..................................................................................................................................... F.1
Protocol............................................................................................................................................. F.1
Header ......................................................................................................................................... F.2
GenericAttribute........................................................................................................................... F.3
TraceAttribute............................................................................................................................... F.4
FScanTrace.................................................................................................................................. F.6
MScanTrace................................................................................................................................. F.7
DScanTrace................................................................................................................................. F.8

EB200 Manual Contents
4052.2039.32 9 E-7.1
AUDio........................................................................................................................................... F.9
IFPan.......................................................................................................................................... F.11
FASTLEVCW ............................................................................................................................. F.11
LIST............................................................................................................................................ F.11
CW ............................................................................................................................................. F.11
Remote commands......................................................................................................................... F.12
Annex G (Coverage Measurement) ....................................................................................................G.1
Operating modes...............................................................................................................................G.1
Single-channel measurement......................................................................................................G.1
Multi-channel measurement (triggered scan)..............................................................................G.1
Measuring times................................................................................................................................G.3
Triggering..........................................................................................................................................G.4
Externally triggered measurement...............................................................................................G.4
Internally triggered measurement................................................................................................G.4
Timer-triggered measurement .....................................................................................................G.5
Data output........................................................................................................................................G.5
Single-channel measurement......................................................................................................G.5
Multi-channel measurement (triggered scan)..............................................................................G.5
Annex H (Field Strength Measurement).............................................................................................H.1
1. Manual operation ..........................................................................................................................H.1
Selecting the antenna ..................................................................................................................H.1
Displayed parameters.............................................................................................................H.1
Softkeys..................................................................................................................................H.2
Numerical field strength display...................................................................................................H.2
Field strength display in DSCAN..................................................................................................H.3
2. Remote control..............................................................................................................................H.4
2.1 Sensor functions ....................................................................................................................H.4
2.2 Data output.............................................................................................................................H.4
3. Tool for handling antenna factors .................................................................................................H.5
3.1 Starting up the tool.................................................................................................................H.5
3.2 Description of functions..........................................................................................................H.6
General functioning.................................................................................................................H.6
Creating a characteristic data set...........................................................................................H.6
Importing and exporting the antenna data - with OPEN and SAVE.......................................H.7
Loading and saving the antenna data – with LOAD and STORE...........................................H.7
Integrated help........................................................................................................................H.8
Generation of characteristic-lines data in the user-data dialog..............................................H.9

EB200 Manual Contents
4052.2039.32 10 E-7.1
Graphical representation in the view Window ......................................................................H.10
Graphical representation of the K-factors of the antenna HE200.........................................H.11
3.3 Upgrading the browser to Java 2 standard..........................................................................H.11
Annex I (Digital IF Output).....................................................................................................................I.1
Digital IF output at the unit’s rear panel. .............................................................................................I.1
Bandwidths and scanning rates..........................................................................................................I.1
Data output via a DSP of the Motorola 563xx-family..........................................................................I.2
Configuration of the ESSI0 in the DSP 563xx.....................................................................................I.2
Data output to a personal computer....................................................................................................I.2
Annex J (Channel spacing DSCAN - FSCAN) ....................................................................................J.1
DSCAN principle ................................................................................................................................J.1
Previous state (DSCAN) ...............................................................................................................J.2
New state (DSCAN)......................................................................................................................J.3
FSCAN principle.................................................................................................................................J.5
Annex K (Dynamic IP address RARP)................................................................................................K.1
Interface Description......................................................................................................4052.2000.01 SB
Test Instruction ................................................................................................................ 4052.2000.01 T
Figures
Fig. 2-1: Rear view.................................................................................................................................2.1
Fig. 2-2: Speaker jumper........................................................................................................................2.2
Fig. 3-1: Front view.................................................................................................................................3.1
Fig. 3-2: Display .....................................................................................................................................3.6
Fig. 4-1: Tree structure of the SCPI command system
using the SENSe system by way of an example....................................................................4.4
Fig. 4-2: Device model with remote control........................................................................................4.122
Fig. 4-3: Structure of a remote client within the firmware...................................................................4.123
Fig. 4-4 : Status register model...........................................................................................................4.128
Fig. 4-5: Overview of status registers.................................................................................................4.130

EB200 Manual Preparation for Use
4052.2000.02 2.1 E-7.1
2 Preparation for Use
2.1 Installation
OPTION
X 6
DC
OPTIONS
IFWB
AUX
X 8 REF
EXT/ INT
AUDIO
X 7 ANT
10...30
X 1
X 2
X 5
X 4
X 13
+
LINE
X 12
X10 BATTERY PACK
+
RS 232
X 9 RS 232 X 9
27 28 29 30 31
32
3334353637
OPTION
X 6
DC
OPTIONS
IFWB
AUX
X 8 REF
EXT / INT
AUDIO
X 7 ANT
10...30
X 1
X 2
X 5
X 4
X 13
+
LINE
X 12
X10 BATTERY PACK
+
RS 232
X 9 RS 232 X 9
38
LAN INTERFACE EB200R4
LINK OK
X91
RECEIVE
ETHERNET
10BASE-T
40
39
Fig. 2-1: Rear view
Item Designation Function
27 X9
RS 232 Connection for serial remote control RS-232 Sub-D connector, 9 pole
28 X2
DC 9 ... 30 V Connection for battery belt (plugged-on battery pack will not be charged)
29 X1
DC 9 ... 30 V Connection for external DC power supply (plugged-on battery pack will be charged)

EB200 Manual Preparation for Use
4052.2000.02 2.2 E-7.1
Item Designation Function
30 X6
OPTION Connection for external digital panoramic display unit (option) Digital IF Output, connection for software update
31 X5
IFWB IF output, wide (10.7 MHz ±5 MHz)
Connection for panoramic display unit
BNC connector, 50 Ω
32 X4
REF EXT/INT Input for external reference signal or output for internal reference signal 10 MHz
Selectable in menu SETUP-REF
BNC connector, Ri= 500 Ω, Ra= 50 Ω
33 X13
ANT Antenna input for rack installation (to be selected internally)
SMA connector, 50 Ω
34 X7
AUDIO Audio output signals; signal level External speaker output by setting of the internal jumpers
35 X8
AUX Universal connectors Antenna number; control commands for external options; digital control inputs;
digital AF for DAT recorder
36 X10
BATTERY PACK Connection for battery pack
37 X12
LINE Audio output for left and right stereo channel 3.5-mm connector
38 X91
ETHERNET
10BASE-T
Connection for serial remote control LAN
Western socket
39 RECEIVE LED indicator signals reception of data via LAN interface
40 LINK OK LED indicator signals that the LAN connection is OK
2.2 Wiring
For installation of the EB200 in a rack there is connector X13 available for connecting the antenna
(antenna connector can be internally selected).
The external speaker output is activated by setting an internal jumper which automatically sets the
internal speaker out of order.
Fig. 2-2: Speaker jumper

EB200 Manual Preparation for Use
4052.2000.02 2.3 E-7.1
2.3 Pin assignment of the connectors
For the pin assignment of the connectors refer to interface description 4052.2000.01 SB in the annex.
2.4 Operation with Battery Pack EB200BP
The battery pack incorporates two 12V nickel metal hydride accumulators Energizer NJ1020.
It can be charged via incorporated power supply input or via connector DCX1 at the rear panel of the
EB200, while the unit is on or off. The accumulators are charged one after another.
Before starting operation, the state of the accumulators must be checked by pressing 2. If required, the
accumulators must be charged.
If the accumulators are charged, the LEDs 25, 50, 75 and 100 are on after pressing 2 indicating the
existing capacity.
If the accumulators are discharged the LED at 25 is flashing after pressing 2.
If the accumulators are over-discharged, all LEDs remain off after pressing 2. This is indicated in the
menu SETUP POWER by NOT FIT.
Over-discharged accumulators can only be charged when the
EB200 is switched off or directly via the connector at the battery
pack (1).
If charging doesn’t take place (after a charging period of 1 hour
there is no capacity change being indicated after pressing 2) the
accumulators must be taken out and put in again by exchanging
positions.
Note:
If the unit can’t be operated despite max. capacity being indicated
there can be an erroneous reaction of the accumulator controller.
Possible remedy: The accumulators must be taken out and put in
again by exchanging positions.
Operation with only one accumulator is also possible.
Charging can only take place at a temperature range of 0°C to +45°C.
Charge voltage range : +22V to +26V
Discharge temperature range : −10°C to +55°C
Storage temperature range : −20°C to +55°C
Self discharge increases heavily with higher storage temperatures.
The SETUP POWER menu shows the dc power supply source of the EB200 with the status of the
accumulator and the remaining operating time of the battery pack at the actual power consumption
under the total capacity of accumulator 1 and 2.
The displayed accumulator status might not be accurate if partly discharged accumulators are charged
several times. The correct accumulator status is displayed only when the accumulators were
discharged and charged completely.
PUSH
100
75
50
25
PUSH
100
75
50
25
DC 22...26 V
!
1
22

EB200 Manual Preparation for Use
4052.2000.02 2.4 E-7.1
The display illumination consumes power intensively. The illumination can be set to one of seven levels.
There is also an automatic time-off that can be set so that the illumination switches off after a certain
period of time (DISPLAY CONFIG menu). It switches on again when the EB200 is operated via front
panel.
2.5 Operation in a vehicle
Operation of the EB200 in a vehicle is only permitted with the 12 V-to-24 V adapter.
2.6 Image of the Display in the Internet Browser
The display of the EB200 can appear in the Internet Browser via LAN.
For this purpose EB200 and personal computer must be connected through the same network.
•Enter the LAN address of the EB200 (see also 3.18.6.6REMOTE (remote control)) and additionally
:81 into the address field of the Browser. The image of the EB200 display appears in the Browser.
Example:
Enter into the address field of the Browser : http://89.10.11.23:81
The image of the EB200 display in the Internet browser is updated every 2 seconds.

EB200 Manual Operation
4052.2000.02 3.1 E-7
3 Operation
3.1 Description of the front panel
Fig. 3-1: Front view
Table 3-1: Controls and displays
Item. Designation Function
1 N-connector Antenna connection
2 BW Bandwidth selection
3 MOD Selection of modulation mode FM, AM, PULSE, CW, USB, LSB or IQ
4 MGC Switches MGC function on or off. Adjustments with potentiometer (7).
5 SQU Switches the squelch function on or off. Adjustments with potentiometer (7).
6 TONE Switches the tone function on or off. Adjustments with potentiometer (7).
7 VAR pot Potentiometer for adjusting the values of MGC, SQU and TONE.
8 Volume control Volume control for headphones, loudspeaker and loudspeaker-output on the rear
panel
9 Spinwheel Selects frequency, memory location or configuration parameters
10 LOCK Key for enabling or disabling the spinwheel function
11 FRQ Key for entering receive frequencies
12 MEM Key for selecting the memory location number (0 to 999)
13 SEL For selecting parameters in the configuration menu
14 Decimal keypad For entering values into the editor, keys 0 to 9, decimal point and storage in the
current selection with the ENT key. With the keys FRQ, MEM, MGC, SQU and
TONE, the value is taken from the editor and stored directly.
15 ESC Closes editor or temporary window or for moving a level upwards in the menu tree.

EB200 Manual Operation
4052.2000.02 3.2 E-7
Item. Designation Function
16 Display The display is subdivided into the working area and the softkey area and also into
areas for direct functions, VAR pot functions, menu names, spinwheel functions
and the selector (see "Display" on page 5)
17 Softkeys Function depends on the menu status. The key lettering is provided by the field
above in the display.
18 TEST Self-test is performed while the key is held down.
19 RCL Recalls values from a memory location to the receiver
20 Headphone
connector Connector for headphones
21 SAVE Saves receiver values to a particular memory location
22 Contrast control Controls display contrast
23 LEV Level display (PEAK, AVG, FAST)
24 ON/OFF switch Switches the internal power supply on or off
25 AFC Switches the AFC function on or off
26 ATT Function for connecting the 30 dB attenuation path (on, off, and auto)

EB200 Manual Operation
4052.2000.02 3.3 E-7
3.2 Overall view of operating elements and menus
Selects modulation mode FM, AM, PULSE, CW, USB, LSB, IQ
Selects IF bandwidth
Selects the manual gain control, squelch and tone function; values can be varied with the VAR potentiometer
Toggles between 30 dB attenuation ON, OFF or AUTO
Switches automatic frequency control on or off
Toggles between PEAK, AVG or FAST level display
Writes to memory locations with SAVE, reads from memory locations with RCL
Quick test
For writing values and storing with ENT as currently selected parameter.
The keys FRQ, MEM, MGC, SQU, TONE, SAVE and RCL transfer the value from the editor and store it directly.
Disable spinwheel functions with LOCK
Select frequencies with spinwheel function FRQ
Select a memory location with spinwheel function MEM
Selects a parameter in the configuration menu
For going a level higher in the menu tree or escaping from the editor
The functions of softkeys F1 to F6 depend on what menu has been selected. The currently selected function is
displayed by the LCD.

EB200 Manual Operation
4052.2000.02 3.4 E-7
MAIN menu
M-SCAN (scan with stored values)
RUN (starts scan)
STOP(stops scan)
SUPP (suppresses memory location)
CONFIG (selects configuration menu)
RUN (starts scan)
ACTIVATE (activates memory location)
SUPP (suppresses memory location)
DELETE (clears current memory location or all memory locations)
RX <-> MEM (swaps the receiver parameters with contents of memory location)
F-SCAN (frequency scan)
RUN (starts scan)
STOP (stops scan)
SUPP (suppresses frequency range)
CONFIG (go to configuration menu)
RUN (starts scan from current frequency)
SUPP (suppressed frequency ranges)
SORT (sorts suppressed frequency ranges)
DELETE (deletes current line from the table)
DEL ALL (deletes the whole table)
D-SCAN (RF spectrum display, option)
NORM DIFF (differential or normal spectrum)
RUN STOP (sweep mode: listening mode)
BW ZOOM (change-over to bandwidth-zoom mode)
RND 60 (Y-scaling for 20, 40, 60, 80 dB of the spectrum display)
CONFIG (change into the configuration menu)
NORM DIFF (normal or differential display of the spectrum)
MAX (max. hold in the spectrum display)
CLRWRITE (clear write in the spectrum display)
RNG 60 (Y-scaling for 20, 40, 60, 80 dB)
|<- ->| ^ (start, stop, marker frequency) or <-> >|< ^ (span- center-, marker frequency)
RX-CONF (receiver configuration)
ANT (antenna number and code)
MEASURE (measuring time and cycle)
CONTIN (continuous measurement)
PERIODIC (periodic measurement)
AF (AF parameters SPEAKER, TONE, BALANCE)
SYSTEM (displays system data)
PROTECT (password protection)
EDIT PW (enter password)
DEL PW (delete password)
SW OPT (display and installation of software options)
INSTALL (installation of software options)
RESET (reset to the default values)
TEST (self-test)
LONGTEST (starts overall test)

EB200 Manual Operation
4052.2000.02 3.5 E-7
DISPLAY (menu display modes)
DEFAULT (selection of display setting)
IF-PAN (IF panorama display)
LEVEL (level display as bar or numerically)
TONE (signal tone whose pitch depends on the signal level)
CONFIG (setting the selected display mode)
MORE (more menus)
FRQ (large frequency display)
CONFIG (setting of the selected display mode)
MORE (back to previous menus)
SETUP
KEYS (characteristics of spinwheel and keys)
MESSAGE (configuration of the acoustic and optical messages)
POWER (display of charging status)
REF (internal or external reference frequency)
AUX (configuration of the AUX port parameters)
REMOTE (configuration of the remote-control parameters)
STANDARD (simple ASCII protocol through the RS232 interface)
RS232 PPP (point-to-point protocol through the RS232 interface)
APPLY (transfer of the parameters)
YES (acknowledgement of the parameter transfer)
NO (refusal of the parameter transfer)

EB200 Manual Operation
4052.2000.02 3.6 E-7
3.3 Display
Fig. 3-2: Display
Working area
The working area can be expanded for certain, display-intensive menus or for panorama displays, but
the direct-function fields, the VAR potentiometer functions and the display area for the spinwheel
functions will be partially or completely obscured.
Direct functions
The currently selected state of each key function (except softkeys) is displayed in an LCD window next
to or below the key in question.
VAR pot functions
At the top of the display, there are three fields for the MGC, SQU and TONE functions. Their values can
be adjusted with the digital VAR potentiometer.
Spinwheel functions
In the upper right hand corner of the display, there is a field in which the current function of the
spinwheel (FRQ, MEM, LOCK) is displayed. If in a submenu for configuring a parameter, the spinwheel
function is set to this parameter, the short designation or the symbol for this parameter (eg T_DWELL,
T_NOSIG, CYCLES etc) is displayed in this field.
Softkey area
The six fields that provide the labelling for the softkeys below are provided for every menu status.
The softkey bar may be temporarily obscured by status and error messages.
