Range Master Toledo 110 Dual Fuel Instruction Manual

Britain’s No.1 Range Cooker
USER GUIDE &
INSTALLATION INSTRUCTIONS
Classic 110 Dual Fuel
Toledo 110 Dual Fuel

RANGEMASTER COOKWARE
Our range cookers are well known for providing the
best possible cooking performance and years of
faithful service. However, a great cooker alone cannot
guarantee perfect results every time. The other vital
ingredients are of course enthusiasm and quality
cookware.
We oer cookware to work perfectly with all fuel types
manufactured by Rangemaster, including induction
hobs. You can be assured of functionality with style, as
well as the quality and meticulous attention to detail
you expect from the pioneers of range cooking.
Visit: www.rangemastercookshop.co.uk
Ingredients
• Oil for greasing
• 100g strawberries
• 100g raspberries
• 100g redcurrants
• 100g blackberries
• or a 400g mixture of any soft
fruits
• 2 medium eggs
• 30g caster sugar
• 80ml skimmed milk
• 2tsp vanilla extract
• 60g plain our (sifted)
• 1tsp baking powder
• Icing sugar to dust
Method
1. Preheat the oven to 200°C (for a conventional oven),
180oC (for a fan oven) or gas mark 6.
2. Lightly grease a dish 26cm wide x 4cm deep.
3. Thickly slice any large strawberries and place them with the other fruits
into an ovenproof dish, deep enough so the berries are about 2 deep.
4. Whisk the eggs and caster sugar until pale and uy. Beat the milk and
vanilla extract into the mixture and then fold in the sifted our and
baking powder.
5. Pour the cake mix over the fruit and bake on the centre shelf of the
oven for 15-20 minutes, or until the mixture is cooked through and
golden on the top.
6. Dust with icing sugar and serve immediately with cream or crème
fraiche.
FRUITY BAKED PUDDING
Serves 4–6
Ingredients
• 3kg (6½lb) skinned and
boned loin of pork
• 2 x 70g packs prosciutto
• Grated zest of 2 lemons
• Bay leaves
• Salt and freshly ground
black pepper
For the sauce:
• 1 tablespoons plain our
• 4 tablespoons lemon
juice
• Chicken stock/water
Method
1. Preheat the oven to 220°C (for a conventional oven), 200°C (for a fan
oven) or gas mark 7.
2. Spread one of the packs of prosciutto over a chopping board; place
the pork on top with the outer (fat) part of the pork resting on the
prosciutto.
3. Sprinkle the lemon zest onto the inside of the meat and season well. Lay
the remaining prosciutto on top of the zest and roll up.
4. Secure the pork with string or silicone bands and thread bay leaves
under the string, covering the whole piece of pork. Put the meat on to
a trivet over a large roasting tin containing enough water to cover the
base.
5. Place into the oven and cook for 30 minutes. Reduce the heat to 180°C
conventional oven/160 °C fan oven/gas 4 and continue roasting for a
further 25 minutes per 500 g. Should the prosciutto start becoming too
brown, cover with some foil.
6. When the pork is cooked, place onto a warm plate, cover with foil and
allow to rest for at least 20 minutes.
7. Spoon o most of the fat from the roasting tin and stir the our into the
remaining. Gradually add the stock and lemon juice, adding more stock
until the desired consistency is reached and simmer for 5 minutes. Check
the seasoning, adding more pepper or lemon juice as necessary.
8. Remove the string or bands from the pork and carve into slices, serve
with the sauce.
ROAST LOIN OF PORK WITH PROSCIUTTO
& BAY LEAVES

iii
1. Before You Start… 1
Important! 1
Installation and Maintenance 1
Peculiar Smells 1
If You Smell Gas 1
Ventilation 1
Personal Safety 1
Cooker Care 2
Cleaning 2
2. Cooker Overview 3
Hotplate Burners 3
Wok Burner 4
The Wok Cradle (optional extra) 5
The Griddle 5
Warmer 6
The Grill 6
The Ovens 7
Operating the Ovens 7
The Browning Element 7
The Clock 8
Accessories 10
Main Oven Lights 10
Storage 10
3. Cooking Tips 11
Tips on Cooking with the Timer 11
General Oven Tips 11
4. Cooking Table 12
5. Cleaning Your Cooker 13
Essential Information 13
Hotplate Burners 13
The Griddle 13
Grill 14
Control Panel and Doors 14
Ovens 14
6. Troubleshooting 16
7. Installation 18
Dear Installer 18
Safety Requirements and Regulations 18
Provision of Ventilation 18
Location of Cooker 19
Conversion 19
Positioning the Cooker 20
Moving the Cooker 20
Fitting the Stability Bracket or Chain 21
Repositioning the Cooker Following
Connection 21
Conversion to Another Gas 22
Levelling 22
Fitting the Handles and Handrail (Classic
only) 22
Gas Connection 23
Electrical Connection 24
Final Checks 24
Fitting the Plinth 24
Customer Care 24
8. Conversion to LP Gas 25
Hotplate 25
Ax Label 26
Pressure Testing 26
9. Circuit Diagram 27
10. Technical Data 28
Connections 28
Dimensions 28
Hotplate Ratings 28
Hotplate Eciency 29
Oven Data 30
Contents
Classic & Toledo 110DF U110110-06

iv

1
This User Guide covers a number of dierent models.
Although some of the illustrations will look dierent to
your particular model the functions will be the same. We
hope the meaning is clear.
Your cooker should give you many years of trouble-free
cooking if installed and operated correctly. It is important
that you read this section before you start, particularly if you
have not used a dual fuel cooker before.
Important!
 CAUTION: This appliance is for cooking purposes
only. It must not be used for other purposes, for
example room heating. Using it for any other
purpose could invalidate any warranty or liability
claim. Besides invalidating claims this wastes fuel
and may overheat the control knobs.
Installation and Maintenance
This cooker must be installed in accordance with the relevant
instructions in this booklet, with the relevant national and
local regulations, and with the local gas and electricity supply
companies’requirements.
Make sure that the gas supply is turned on and that the
cooker is wired in and switched on (the cooker needs
electricity).
Set the clock to make sure that the oven is functional – see
the relevant section in this manual.
It is recommended that this appliance is serviced annually.
Only a qualied service engineer should service the cooker,
and only approved spare parts should be used.
Always allow the cooker to cool and then switch it o at the
mains before cleaning or carrying out any maintenance work,
unless specied otherwise in this guide.
Peculiar Smells
When you rst use your cooker it may give o an odour. This
should stop after use.
Before using your cooker for the rst time, make sure that all
packing materials have been removed and then, to dispel
manufacturing odours, turn all the ovens to 200 °C and run
for at least an hour.
Before using the grill for the rst time you should also turn on
the grill and run for 30 minutes with the grill pan in position,
pushed fully back, and the grill door open.
Make sure the room is well ventilated to the outside air
(see‘Ventilation’ below). People with respiratory or allergy
problems should vacate the area for this brief period.
If You Smell Gas
• DO NOT turn electric switches on or off
• DO NOT smoke
• DO NOT use naked flames
• DO turn off the gas at the meter or cylinder
• DO open doors and windows to get rid of the gas
• DO keep people away from the area affected
• Call your gas supplier
Ventilation
 CAUTION: The use of a gas cooking appliance results
in the production of heat and moisture in the room
in which it is installed. Therefore, make sure that the
kitchen is well ventilated: keep natural ventilation
holes open or install a powered cooker hood that
vents outside. If you have several burners on, or use
the cooker for a long time, open a window or turn on
an extractor fan.
Personal Safety
 DO NOT modify this appliance.
 This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
 WARNING: The appliance and its accessible parts
become hot during use and will retain heat even
after you have stopped cooking. Care should be
taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless
continuously supervised.
 This appliance is not intended for use by young
children or inrm persons unless they have been
adequately supervised by a responsible person to
make sure that they can use the appliance safely.
 CAUTION: A long term cooking process has to be
supervised from time to time. A short term cooking
process has to be supervised continuously.
 Danger of re: DO NOT store items on the cooking
surfaces.
 To avoid overheating, DO NOT install the cooker
behind a decorative door.
 Accessible parts will become hot during use and will
retain heat even after you have stopped cooking.
Keep babies and children away from the cooker and
never wear loose-tting or hanging clothes when
using the appliance.
1. Before You Start…

2
 DO NOT use a steam cleaner on your cooker.
Always be certain that the controls are in the OFF position
when the oven is not in use, and before attempting to clean
the cooker.
 When the ovens are on, DO NOT open the doors
for longer than necessary to insert and remove
contents. The control knobs will become hot and
may cause cosmetic failure.
 When using the grill, make sure that the grill pan
is in position and pushed fully in, otherwise the
control knobs may become very hot.
 DO NOT use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass or glass lid
since they can scratch the surface, which may result
in shattering of the glass.
Always keep combustible materials, e.g. curtains, and
ammable liquids a safe distance away from your cooker.
 DO NOT spray aerosols in the vicinity of the cooker
while it is on.
Use dry oven gloves when applicable – using damp gloves
might result in steam burns when you touch a hot surface.
Do not use a towel or other bulky cloth in place of a glove – it
might catch re if brought into contact with a hot surface.
 NEVER operate the cooker with wet hands.
 DO NOT use aluminium foil to cover shelves, linings
or the oven roof.
 DO NOT use hotplate protectors, foil or hotplate
covers of any description. These may aect the safe
use of your hotplate burners and are potentially
hazardous to health.
 NEVER heat unopened food containers. Pressure
build up may make the containers burst and cause
injury.
 DO NOT use unstable saucepans. Always make sure
that you position the handles away from the edge of
the hotplate.
 DO NOT use cooking vessels on the hotplate that
overlap the edges.
Never leave the hotplate unattended at high heat settings.
Pans boiling over can cause smoking, and greasy spills may
catch on re. Use a deep fat thermometer whenever possible
to prevent fat overheating beyond the smoking point.
 WARNING!
Unattended cooking on a hob with fat or oil can be
dangerous and may result in re.
 NEVER leave a chip pan unattended. Always heat fat
slowly, and watch as it heats. Deep fry pans should
be only one third full of fat. Filling the pan too full
of fat can cause spill over when food is added. If you
use a combination of oils or fats in frying, stir them
together before heating, or as the fats melt.
Foods for frying should be as dry as possible. Frost on frozen
foods or moisture on fresh foods can cause hot fat to bubble
up and over the sides of the pan. Carefully watch for spills or
overheating of foods when frying at high or medium high
temperatures. Never try to move a pan of hot fat, especially a
deep fat fryer. Wait until the fat is cool.
Do not use the top of the ue (the slots along the back of
the cooker) for warming plates, dishes, drying tea towels or
softening butter.
 DO NOT use water on grease res and never pick
up a aming pan. Turn the controls o and then
smother a aming pan on a surface unit by covering
the pan completely with a well tting lid or baking
tray. If available, use a multi-purpose dry chemical
or foam-type re extinguisher.
Cooking high moisture content foods can create a‘steam
burst’ when the oven door is opened (Fig. 1.1). When
opening the oven stand well back and allow any steam to
disperse.
Take care that no water seeps into the appliance.
 This appliance is heavy so take care when moving it.
 The appliance is not intended to be operated by
means of external timer or separated remote-control
system.
Cooker Care
As steam can condense to water droplets on the cool outer
trim of the oven, it may be necessary during cooking to wipe
away any moisture with a soft cloth. This will also help to
prevent soiling and discolouration of the oven exterior by
cooking vapours.
Cleaning
In the interests of hygiene and safety, the cooker should be
kept clean at all times as a build up in fats and other food
stu could result in a re.
Clean only the parts listed in this guide. Clean with caution. If
a wet sponge or cloth is used to wipe spills on a hot surface,
be careful to avoid steam burns. Some cleaners can produce
noxious fumes if applied to a hot surface.
ArtNo.324-0001 Steam burst
Fig. 1.1

3
The 110 dual fuel cooker (Fig. 2.1) has the following features:
A. 5 hotplate burners including a warmer and wok burner
B. A control panel
C. Grill
D. Main conventional oven
E. Fan oven
F. Storage drawer
Hotplate Burners
The drawing by each of the central knobs indicates which
burner that knob controls.
Each burner has an Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
When the igniter button is pressed in, sparks will be
made at every burner – this is normal. Do not attempt to
disassemble or clean around any burner while another
burner is on, otherwise an electric shock could result.
To light a burner, press the igniter button, and push in and
turn the associated control knob to the high position as
indicated by the large ame symbol (), (Fig. 2.2).
ArtNo.212-0002 - 110 Classic ceramic front view
O O O O
O
O
A
B
C
D
E
F
Fig. 2.1
Fig. 2.2
2. Cooker Overview DocNo.020-0013 - Overview - 110DF - Classic, RM & Toledo lidded

4
The igniter should spark and light the gas. Keep holding the
knob pressed in to let the gas through to the burner for about
ten seconds.
If, when you let go of the control knob, the burner goes out,
then the FSD has not been bypassed. Turn the control knob
to the OFF position and wait for one minute before you try
again, this time making sure to hold in the control knob for
slightly longer.
Adjust the ame height to suit by turning the knob clockwise
(Fig. 2.3).
If a burner ame goes out, turn o the control knob and
leave it for one minute before relighting it.
Make sure that the ames are under the pans. Using a lid will
help the contents boil more quickly (Fig. 2.4).
Large pans should be spaced well apart.
Pans and kettles with concave bases or down-turned base
rims should not be used (Fig. 2.5).
Simmering aids, such as asbestos or mesh mats, are
NOT recommended (Fig. 2.6). They will reduce burner
performance and could damage the pan supports.
You should also avoid using unstable and misshapen pans
that may tilt easily, and pans with a very small base diameter,
e.g. milk pans, single egg poachers (Fig. 2.7).
The minimum recommended pan diameter is 120 mm. The
maximum allowable pan base diameter is 260mm.
DO NOT use cooking vessels on the hotplate that overlap the
edges.
Wok Burner
The wok burner is designed to provide even heat over a large
area. They are ideal for large pans and stir-frying (Fig. 2.8).
For heating smaller pans, the aforementioned hotplate
burners may be more ecient.
You should wipe the enamel top surface of the cooker around
the hotplate burners as soon as possible after spills occur. Try
to wipe them o while the enamel is still warm.
Note: The use of aluminium pans may cause metallic marking
of the pan supports. This does not aect the durability of the
enamel and may be cleaned o with an appropriate metal
cleaner.
ArtNo.311-0005 Wok burner & pan support
ArtNo.311-0002 Pan with rim
ArtNo.311-0001 Right pans gas
Art No. 311-0003 Simmer aids
ArtNo.311-0004 Tipping wok
Fig. 2.3
Fig. 2.4
Fig. 2.6
Fig. 2.5
Fig. 2.7
Fig. 2.8

5
0
S
12345
6
7
8
9
0
0
00000
S
12345
6
7
8
9
0
O
O
O
0
S
12345
6
7
8
9
0
0
00000
S
12345
6
7
8
9
0
O
O
O
ArtNo.311-0006 Correct wok sizes
The Wok Cradle (optional extra)
The wok cradle is designed to t a 35 cm wok. If you use a
dierent wok, make sure that it ts the cradle. Woks vary very
widely in size and shape. It is important that the wok sits
down on the pan support – however, if the wok is too small,
the cradle will not support it properly (Fig. 2.9).
The cradle should be used on the wok burner only. When you
t the cradle, make sure that it is supported properly on a pan
support and the wok is sitting level in the cradle (Fig. 2.10).
The cradle will get very hot in use – allow plenty of time for it
to cool before you pick it up.
The Griddle
The griddle ts the left-hand pan support, front to back (Fig.
2.11). It is designed for cooking food on directly. DO NOT use
pans of any kind on it. The griddle surface is non-stick and
metal cooking utensils (e.g. spatulas) will damage the surface.
Use heat resistant plastic or wooden utensils.
 DO NOT put it crossways – it will not t properly and
will be unstable (Fig. 2.12).
 DO NOT put it on any other burner – it is not
designed to t in any of the other pan supports.
Position the griddle over the hotplate burners resting on the
pan support. Check that it is securely located.
The griddle can be lightly brushed with cooking oil before
use (Fig. 2.13). Light the hotplate burners. Adjust the ame
heights to suit.
Preheat the griddle for a maximum of 5 minutes before
adding food. Leaving it longer may cause damage. Turn the
control knobs towards the low position, marked with the
small ame symbol, to reduce the burner ames.
 Always leave space around the griddle for the gases
to escape.
 NEVER t two griddles side by side (Fig. 2.14).
After cooking, allow the griddle to cool before cleaning.
ArtNo.311-0007 Wok stand close-up
ArtNo.311-0009 Oil on griddle
ArtNo.311-0008 Griddle positioning
Fig. 2.9
Fig. 2.10
Fig. 2.11
Fig. 2.12
Fig. 2.13
Fig. 2.14

6

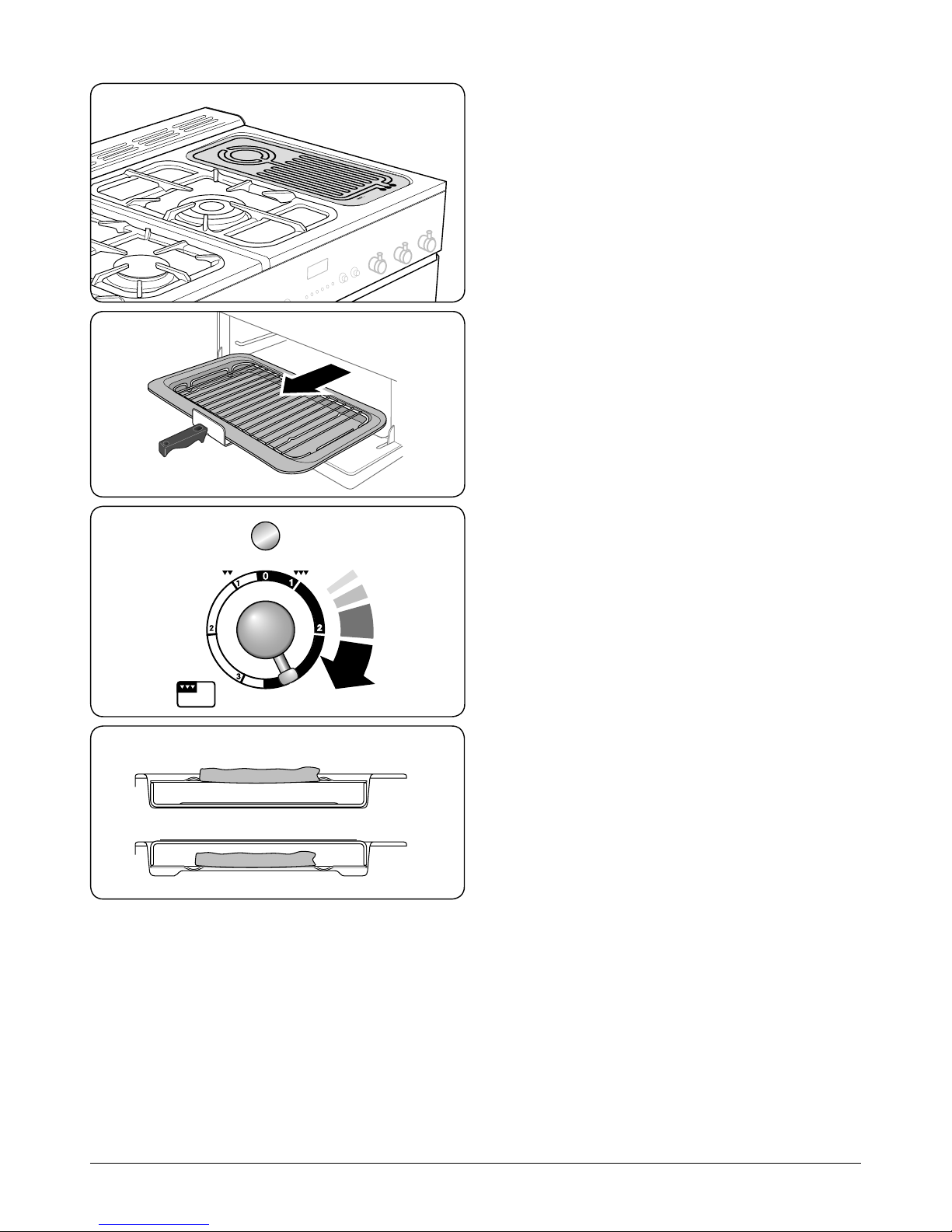

Warmer
On the right of the hob is the warmer (Fig. 2.15). Use the
warmer for keeping food warm while the nal touches are
put to a meal. Turn the control knob counter-clockwise to the
‘On’position.
For best results, preheat a covered serving dish for 10 minutes
before adding food to it.
Use only heat resistant dishes.
The Grill
 CAUTION: This appliance is for cooking purposes
only. It must not be used for other purposes, for
example room heating.
 CAUTION: Accessible parts may be hot when the grill
is in use. Young children should be kept away.
Open the door and pull the grill pan forward using the handle
(Fig. 2.16).
The grill has two elements that allow either the whole area of
the pan to be heated or just the right-hand half.
Adjust the heat to suit by turning the control knob. To heat
the whole grill, turn the control knob clockwise (Fig. 2.17).
To heat the right-hand half, turn the control knob counter-
clockwise. The neon indicator light by the grill control will
come on.
For best results, slide the grill pan back into the grill chamber
and preheat the appropriate part(s) of the grill for two
minutes. The grill trivet can be removed and the food placed
on it while you are waiting for the grill to preheat.
Once the grill has preheated, slide the grill pan out again.
With the trivet back in place with the food on it, slide the grill
pan back into the grill chamber. Make sure that it is pushed
right in.
The grill trivet can be turned over to give two grilling
positions (Fig. 2.18).
Do not leave the grill on for more than a few moments,
without the grill pan underneath it.
 Never close the grill door when the grill is on.
ArtNo.331-0002 Grill pan high/low position
ArtNo.330-0003 - Grill pan w handle pulled forwards
ArtNo.210-0001 -
Classic grill control
Fig. 2.15
Fig. 2.16
Fig. 2.17
Fig. 2.18

7
The Ovens
The clock must be set to the time of day before the ovens
will work. See the following section on‘The Clock’ for
instructions on setting the time of day.
References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed
from the front of the appliance.
The left-hand oven is a conventional oven, while the right-
hand oven is a fan oven.
The Conventional Oven
A conventional oven has two heating elements – one visible
in the top of the oven and the other under the oven base.
Note: Be careful to avoid touching the top element and
element deector when placing or removing items from the
oven.
The exposed top element may cook some foods too quickly,
so we recommend that the food be positioned in the lower
half of the oven to cook. The oven temperature may also need
to be lowered.
Similar items being cooked will need to be swapped around
for even cooking.
The Fan Oven
The right-hand oven is a fan oven that circulates hot air
continuously, which means faster, more even cooking.
The recommended cooking temperatures for a fan oven are
generally lower than a conventional oven.
Note: Please remember that all cookers vary so temperatures
in your new ovens may dier to those in your previous
cooker.

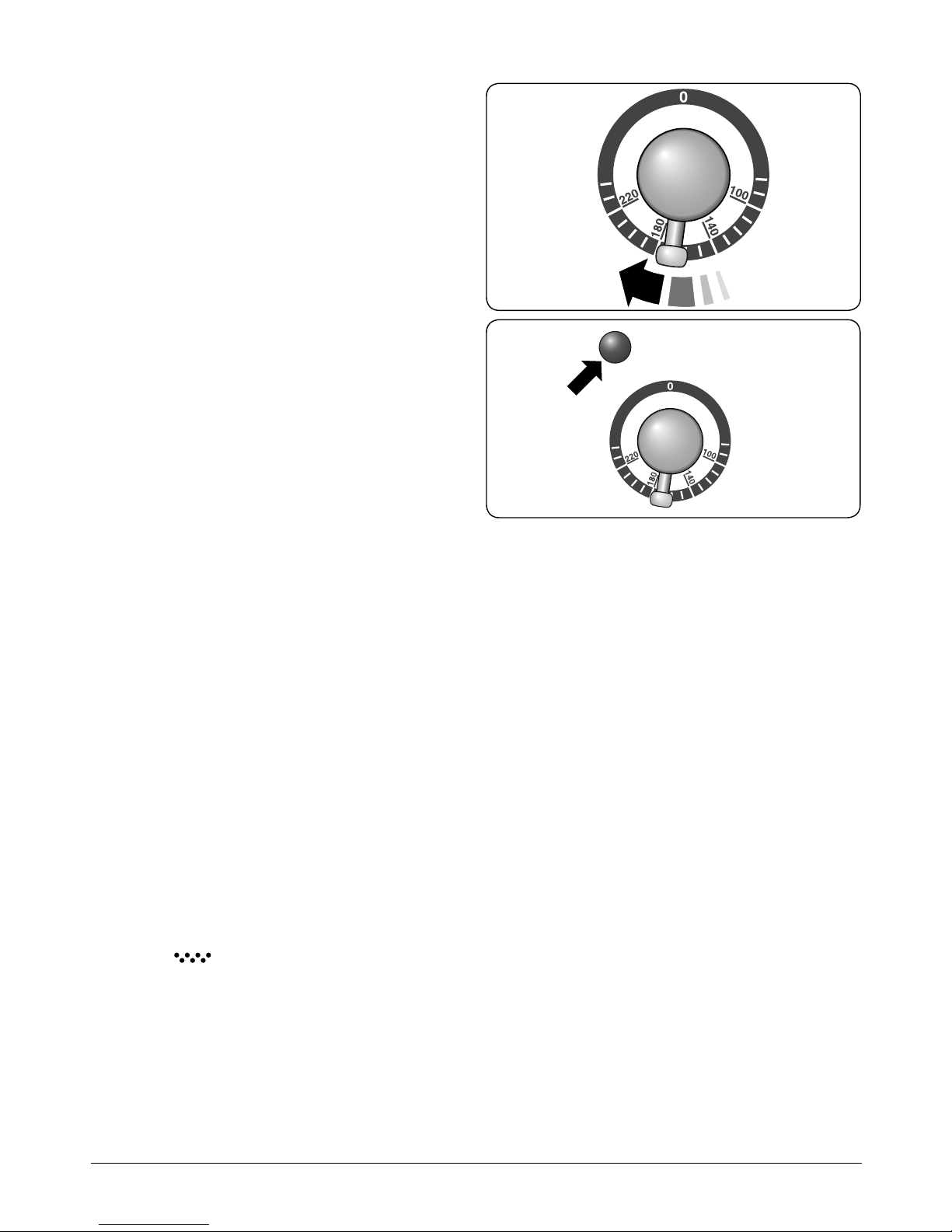

Operating the Ovens
Turn the oven knob to the desired temperature (Fig. 2.19).
The oven indicator light will glow until the oven has reached
the temperature selected. It will then cycle on and o during
cooking (Fig. 2.20).
The Browning Element
The Browning Element is positioned in the top of the left-
hand oven. It can be used at the end of a normal cooking
period to give extra browning to au gratin dishes or give a
crisper nish to meat.
After the normal cooking is nished turn the left-hand
oven thermostat knob clockwise to the browning position,
indicated by ( ArtNo.030-0003 Browning
element symbol ) on the fascia panel.
Only the Browning Element will operate when the thermostat
is turned to this position. The top and base cooking elements
will switch o automatically.
Fig. 2.19
Fig. 2.20

8
ArtNo.302-0001 - 6-button clock
ArtNo.302-0003 - 6BC
minute minder setting 1
ArtNo.302-0004 -
Minute minder setting 2
ArtNo.302-0005 -
6BC Stopping the oven 1
ArtNo.302-0002 - 6BC annotated
A B C D E F
ArtNo.302-0005a -
6BC Stopping the oven 1a
ArtNo.302-0006 - 6BC
setting the cook time
ArtNo.302-0006 - 6BC
setting the cook time
ArtNo.302-0005 -
6BC Stopping the oven 1
ArtNo.302-0005a -
6BC Stopping the oven 1a
A – Minute minder, B – ‘Cook’ time, C – ‘Stop’ time, D – Manual,
E & F – Time setting buttons
The Clock
You can use the timer (Fig. 2.21) to turn the ovens on and o.
The clock must be set to the time of day before the ovens will
work.
Setting the Time of Day
When the clock is rst connected the display ashes (0.00 )
and () alternately.
Press and hold both the [] and [] buttons down
(Fig. 2.22). Now press the [+] button (or the [–] button) until
the correct time shows.
Do not forget that it is a 24-hour clock.
If you need to reset the cooker, turn o the power supply and
wait for a couple of minutes and start again.
Minute Minder
Press and hold the [] button (Fig. 2.23), and then press the
[+] button until the length of time you want to cook for is
shown (Fig. 2.24).
You can check the time remaining by pressing []. When the
beeper sounds cancel it by pressing [].
• The ‘cook period’, which is the length of time you
want the oven to cook for.
• The ‘stop time’, which is the time of day you want the
oven to stop cooking.
To Stop the Ovens Automatically
Press and hold the ‘stop time’ [] button (Fig. 2.25) and then
press the [+] button (or [–] button) until the required ‘stop
time’ shows (Fig. 2.26). AUTO will show in the display.
Once the ‘stop time’ is reached, the beeper sounds. To stop the
beep turn the oven control knob to 0 rst and then press []
once; press [] again to return to manual cooking.
To Start and Stop the Ovens Automatically
Before you set the clock you must have two numbers clearly
in mind – the ‘cook period’ and the ‘stop time’.
Note: You cannot set a start time directly – this is set
automatically by setting the ‘cook period’ and the ‘stop time’.
Press and hold the [] button (Fig. 2.27) and then press the
[+] button (or [–] button) until the required ‘cook period’ shows
(Fig. 2.28).
Now press and hold the [] button (Fig. 2.29) and then press
the [+] button (or [–] button) until the required ‘stop time’
shows (Fig. 2.30). Release the buttons.
AUTO will now show in the display.
Set the oven(s) to the required temperature. When cooking is
nished the beeper will sound. Turn the oven knob(s) to the
OFF position rst, and then press the [] button once to stop
the beep; press it again to return to manual cooking.
If you are out, do not worry about the beeper going o, it
stops after a while. When you return, turn the oven knob(s) to
0 rst, and then press [] twice to return to manual cooking.
Fig. 2.21
Fig. 2.22
Fig. 2.23
Fig. 2.25
Fig. 2.27
Fig. 2.29
Fig. 2.24
Fig. 2.26
Fig. 2.28
Fig. 2.30

9
ArtNo.302-0009 - Activating
the key lock 2
ArtNo.302-0008 -
Activating the key lock 1
AUTO is Showing, You Want to Reset to Manual
Cooking
To return to manual cooking from any automatic setting,
the ‘cook period’ must be cancelled. Press and hold the []
button and then press the [–] button until the display reads
(0.00 ).
Press the [] button to return to manual cooking.
Key Lock
When the key lock is activated, the ovens are locked and will
not come on.
To Activate the Key Lock
Make sure that the clock is in manual mode and cancel any
active programs.
Hold the Minute Minder [] and Cook period [] buttons.
When‘On’appears on the display (Fig. 2.31) press the [+]
button once. The key symbol [ ] and‘OF’will now show on
the display (Fig. 2.32). Release the buttons.
The ovens are now locked, as conrmed by the display
showing the time of day alongside the key symbol (Fig. 2.33).
To Turn O the Key Lock
Hold the Minute Minder [] and Cook period [] buttons.
When‘OF’appears on the display (Fig. 2.34) press the [+]
button once. The key symbol [ ] will go out and‘On’ will show
on the display (Fig. 2.35). Release the buttons.
After a few seconds, the display reverts to showing the time
of day.
The ovens can now be used normally.
ArtNo.302-0012 -
Deactivating the key lock 2
ArtNo.302-0011 - 6BC
Deactivating the key lock 1
ArtNo.302-0010 -
Activating the key lock 3
Fig. 2.31
Fig. 2.33
Fig. 2.32
Fig. 2.34
Fig. 2.35

10

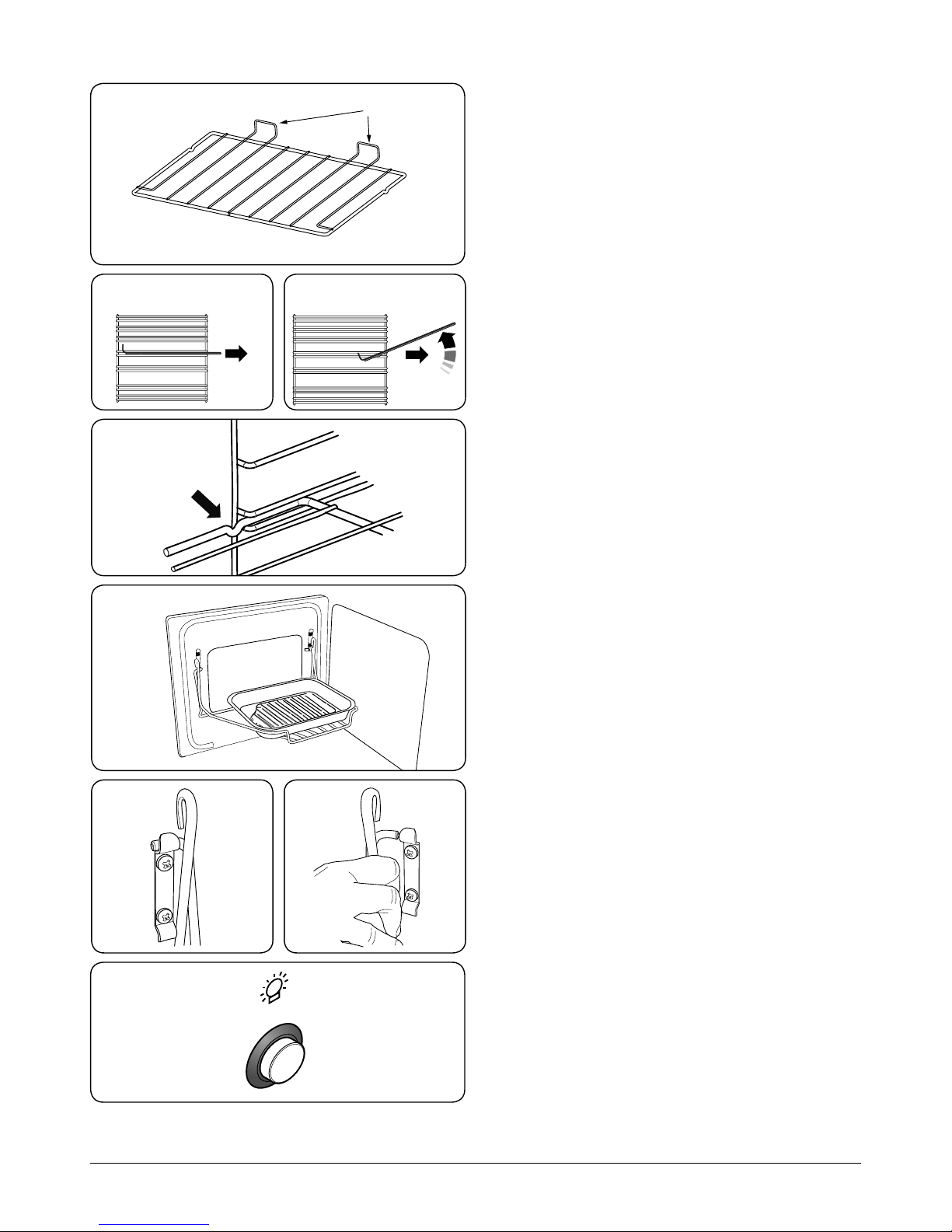

Accessories
Oven Shelves
The oven shelves (Fig. 2.36) can be easily removed and
retted.
Pull the shelf forward until the back of the shelf is stopped by
the shelf stop bumps in the oven sides (Fig. 2.37).
Lift up the front of the shelf so the back of the shelf will pass
under the shelf stop and then pull the shelf forward
(Fig. 2.38).
To ret the shelf, line up the shelf with a groove in the oven
side and push the shelf back until the ends hit the shelf stop.
Lift up the front so the shelf ends clear the shelf stops, and
then lower the front so that the shelf is level and push it fully
back (Fig. 2.39).
The Handyrack (Main Oven)
The Handyrack (Fig. 2.40) ts to the left-hand oven door
only. Food cooking on it is easy to attend to, because it is
accessible when the door is open.
The maximum weight that can be held by the Handyrack
is 5.5kg (12 lb). It should only be used with the supplied
roasting tin, which is designed to t the Handyrack. Any other
vessel could be unstable.
It can be tted at two dierent heights. One of the oven
shelves must be removed and the other positioned to suit.
When the Handyrack is used in its highest position, other
dishes can be cooked on the bottom shelf position or base of
the oven.
When the Handyrack is used in its lowest position, other
dishes can be cooked on the second shelf position or base of
the oven.
To t the Handyrack, locate one side of it on the door bracket
(Fig. 2.41).
Then spring the other side out to clip it onto the other
bracket (Fig. 2.42).
Main Oven Lights
Press the button to turn the lights on (Fig. 2.43).
If an oven light fails, turn o the power supply before
changing the bulb. See the ‘Troubleshooting’ section for
details on how to change the bulb.
Storage
The bottom drawer is for storing oven trays and other
cooking utensils. It can get very warm, so do not store
anything in it that may melt or catch re.
The drawer can be removed completely by pulling it right out
and up.
ArtNo.320-0013 Removing the shelf 3
ArtNo.320-0014 Handyrack on LH door
ArtNo.320-0015
Fitting the Handyack 1 ArtNo.320-0016
Fitting the handyrack 2
ArtNo.320-0011 Removing the shelf 1
ArtNo.320-0012 Removing the shelf 2
ArtNo.320-0026
- Oven light
Shelf guard
Front
Fig. 2.36
Fig. 2.37
Fig. 2.39
Fig. 2.38
Fig. 2.40
Fig. 2.41
Fig. 2.43
Fig. 2.42

13
3. Cooking Tips
Tips on Cooking with the Timer
If you want to cook more than one dish, choose dishes that
require approximately the same cooking time. However,
dishes can be‘slowed down’slightly by using small containers
and covering them with aluminium foil, or‘speeded up’
slightly by cooking smaller quantities or placing them in
larger containers.
Very perishable foods such as pork or sh should be avoided
if a long delay period is planned, especially in hot weather.
 DO NOT place warm food in the oven to be timed.
 DO NOT use a timed oven that is already warm.
 DO NOT use the timed oven if the adjoining oven is
already warm.
Whole poultry must be thoroughly defrosted before being
placed in the oven. Check that meat and poultry are fully
cooked before serving.
General Oven Tips
The wire shelves should always be pushed rmly to the back
of the oven.
Baking trays with food cooking on them should be placed
level with the front edge of the oven’s wire shelves. Other
containers should be placed centrally. Keep all trays and
containers away from the back of the oven, as overbrowning
of the food may occur.
For even browning, the maximum recommended size of a
baking tray is 340mm (13½”) by 340mm (13½”).
When the oven is on, do not leave the door open for
longer than necessary, otherwise the knobs may get very
hot.
• Always leave a“finger’s width”between dishes on the same
shelf. This allows the heat to circulate freely around them.
• To reduce fat splashing when you add vegetables to hot fat
around a roast, dry them thoroughly or brush lightly with
cooking oil.
• Where dishes may boil and spill over during cooking, place
them on a baking tray.
• The ‘Cook & Clean’oven liners (see ‘Cleaning Your Cooker’)
work better when fat splashes are avoided. Cover meat
when cooking.
• Sufficient heat rises out of the oven while cooking to warm
plates in the grill compartment.
• If you want to brown the base of a pastry dish, preheat the
baking tray for 15 minutes before placing the dish in the
centre of the tray.

14
4. Cooking Table
ArtNo.050-0007
Oven shelf positions
Oven Shelf Positions
Top (T)
Centre (C)
Base (B)
The oven control settings and cooking times given in the table below are intended to be used
AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a
preferred result.
Food is cooked at lower temperature in a fan oven than in a conventional oven. When using
recipes, reduce the fan oven temperature by 10 °C and the cooking time by 5-10 minutes. The
temperature in the fan oven does not vary with height in the oven so you can use any shelf.
Food
Meat
Beef (no bone)
Lamb
Pork
Poultry
Chicken
Turkey
Duck
Casserole
Yorkshire Pudding
Cake
Very rich fruit - Christmas,
wedding, etc.
Fruit 180 mm tin
Fruit 230 mm tin
Madeira 180 mm
Small cakes
Scones
Victoria sandwich
180 mm tin
210 mm tin
Desserts
Shortcrust tarts
Fruit pies
Tartlets
Puff pastry
Meringues
Baked egg custard
Baked sponge pudding
Milk pudding
Bread
Fish
Fillet
Whole
Steak
Approximate Cooking Time
30-35 minutes per 500g +30-35 minutes.
20-25 minutes per 500g +20-25 minutes.
30-35 minutes per 500g +30-35 minutes.
25-30 minutes per 500g +25-30 minutes.
35-40 minutes per 500g +35-40 minutes.
25-30 minutes per 500g +25-30 minutes.
20-25 minutes per 500g +20-25 minutes.
15-20 minutes per 500g +15-20 minutes.
20 minutes per 500g +20 minutes.
15 minutes per 500g +15 minutes.
25-30 minutes per 500g.
20 minutes per 500g.
2-4 hours according to recipe.
Large tins 30-35 minutes; individual 10-20 minutes.
45-50 minutes per 500g of mixture.
2-2½ hours.
Up to 3½ hours.
80-90 minutes.
15-25 minutes.
10-15 minutes.
20-30 minutes.
30-40 minutes.
20-30 minutes on a preheated tray.
35-45 minutes.
10-20 minutes according to size.
20-40 minutes according to size.
2-3 hours.
45-60 minutes.
40-45 minutes.
2 to 3 hours.
20-30 minutes.
15-20 minutes.
15-20 minutes per 500g.
Steaks according to thickness.
Conventional Oven
Temperature °C
(Shelf Position)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
140-150 (C)
220 (C)
140 (C/B)
150 (C/B)
150 (C/B)
160 (C/B)
170 (C/B)
200 (C/B)
170 (C/B)
170 (C/B)
200 (C/B)
180 (C/B)
180 (C/B)
210 (C/B)
100 (C/B)
160 (C/B)
180 (C/B)
140-150 (C/B)
210 (C)
Fanned Grilling
190 (C/B)
190 (C/B)
190 (C/B)
Fan Oven
Temperature
°C
150
190
150
190
150
190
150
190
150
190
150
190
130-140
210
130
140
140
150
160
190
160
160
190
170
170
200
90
150
170
130-140
200
190 (C/B)
190 (C/B)
190 (C/B)
Thoroughly thaw frozen joints before
cooking. Meat may be roasted at
220°C (210°C for fan oven) and the
cooking time adjusted accordingly.
For stuffed and rolled meats, add
approximately 10 minutes per 500g,
or cook at 200°C (190°C) for 20
minutes then 160°C (150°C) for the
remainder.
For stuffed poultry, you could cook
at 200°C (190°C) for 20 minutes
then 160°C (150°C) for remainder.
Do not forget to include the weight
of the stuffing.
For fresh or frozen prepacked
poultry, follow instructions on the
pack. Thoroughly thaw frozen
poultry before cooking.
Using the conventional oven: when
two tier cooking leave at least one
runner space between shelves.
Position the baking tray with the
front edge along the front of the
oven shelf.
ArtNo.050-0001 Gas cooking table
Using the conventional oven: for
even browning the maximum size of
baking tray recommended is 340 mm
x 340 mm. This ensures free heat
circulation.
If cooking a two tier load, the trays
should be interchanged
approximately halfway though the
cooking time.
Up to three tiers can be cooked in a
fan oven at the same time but make
sure to leave at least one runner
space between each shelf being
cooked on.
T - Top; C - Centre; B - Base
DocNo.031-0004 - Cooking table - electric & fan single cavity

13
ArtNo.311-0032 Burner layout FSD
A
B
C
D
E
ArtNo.311-0033 Wok burner details FSD
A
B
C
D
E
ArtNo.311-0016 Fitting the burner inner head
A
B
A – Cap, B – Head, C – Notch, D – Base , E – Electrode
A – Inner burner cap, B – Outer burner cap, C – Inner burner head,
D – Outer burner head, E – Wok burner base
A – Electrode notch, B – Ignition electrode
Essential Information
Isolate the electricity supply before carrying out any
thorough cleaning. Allow the cooker to cool.
 NEVER use paint solvents, washing soda, caustic
cleaners, biological powders, bleach, chlorine based
bleach cleaners, coarse abrasives or salt.
 DO NOT mix dierent cleaning products – they may
react together with hazardous results.
All parts of the cooker can be cleaned with hot soapy water
– but take care that no surplus water seeps into the
appliance.
Remember to switch on the electricity supply and reset the
clock before re-using the cooker.
Hotplate Burners
The burner heads and caps can be removed for cleaning.
 DO NOT put the burner heads in a dishwasher.
Make sure they are absolutely dry before replacing them.
The Single Ring Burners
When retting the burner head, make sure that the notch
lines up with the electrode or hole in the base. Check that the
burner head is level and that the cap is tted centrally on the
burner head (Fig. 5.1).
The Wok Burner
When reassembling the wok burner (Fig. 5.2), turn over the
large base ring and nd the‘D’shaped area (Fig. 5.3). Turn
the head until the‘D’matches the one on the burner base.
Flip the burner over once again and place it on the burner
base.
To t the small inner burner, nd the larger electrode notch in
the burner rim. Line this up with the white ignition electrode
and place the inner burner on the large base ring (Fig. 5.4).
Now t the two burner caps, making sure that they are seated
properly.
Check the burner ports are not blocked. If a blockage occurs,
remove stubborn particles using a piece of fuse wire.
The Wok Cradle
Recommended cleaning materials are hot soapy water, a
moistened soap pad, cream cleaner or a nylon scourer.
The Griddle
Always clean the griddle after use. Allow it to cool completely
before removing. Immerse the griddle plate in hot soapy
water. Use a soft cloth or, for stubborn stains, a nylon washing
up brush.
Note: If the griddle is washed in a dishwasher then some
dishwasher residue may appear on the back. This is normal
and will not aect the performance of your griddle.
5. Cleaning Your Cooker
Fig. 5.1
Fig. 5.2
Fig. 5.3
Fig. 5.4

14
Grill
The grill pan and trivet should be washed in hot soapy water.
After grilling meats or any foods that soil, leave to soak for a
few minutes immediately after use. Stubborn particles may
be removed from the trivet using a nylon brush. Alternatively,
the grill pan can be washed in a dishwasher.
 Before you remove any of the grill parts for cleaning,
make sure that they are cool, or use oven gloves.
 DO NOT use any abrasive substances.
Control Panel and Doors
Avoid using any abrasive cleaners including cream cleaners.
For best results, use a liquid detergent.
The same cleaner can be used on the doors, or alternatively,
using a soft cloth wrung out in clean hot soapy water – but
take care that no surplus water seeps into the appliance. After
cleaning, polish with a dry cloth.
Glass Fronted Door Panels
The oven door front panels can be taken o so that the glass
panels can be cleaned. Move the cooker forward to gain
access to the sides (see the ‘Moving the Cooker’ section under
‘Installation’).
Open the oven door slightly and remove the front panel
xing screws from the door sides, two each side (Fig. 5.5).
Carefully lift o the outer door panel. The inside face of the
glass panels can now be cleaned – take care not to disturb or
wet the door insulation.
Note: If the door is triple glazed then the inner two panels are
xed together and should not be separated.
After cleaning, carefully ret the outer door panel and replace
the side xing screws.
 DO NOT use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
Ovens
‘Cook & Clean’ Panels
The ovens have panels which have been coated with a special
enamel that partly cleans itself. This does not stop all marks
on the lining, but helps to reduce the amount of manual
cleaning needed. The‘Cook & Clean’panels work better
above 200°C. If you do most of your cooking below this
temperature, occasionally remove the panels and wipe with a
lint free cloth and hot soapy water. The panels should then be
dried and replaced and the oven heated at 200°C for about
one hour. This will make sure the ‘Cook & Clean’ panels are
working eectively.
DO NOT use steel wool, oven cleaning pads, or any other
materials that will scratch the surface.
ArtNo.320-0002a Proplus oven door side screws
Fig. 5.5
Fig. 5.6

15
Removing the Main Oven Linings
Some of the lining panels can be removed for cleaning.
If you wish to clean the enamel interior of the oven, you
will need to remove the shelves before removing the ‘Cook
& Clean’ panels. You do not have to remove the support
brackets to remove the panels. Lift each panel upward and
slide forward o the support brackets (Fig. 5.6).
Once the panels have been removed, the oven enamel
interior can be cleaned. Ret in the reverse order.
Hotplate
Part Finish Recommended Cleaning Method
Hob top (including burner heads and
caps)
Enamel, stainless steel,
aluminium
Hot soapy water, soft cloth. Any stubborn stains remove gently
with a nylon scourer.
Ceramic/Induction hob Toughened glass Hot soapy water; cream cleaner/scourer if necessary.
Griddle plate (some models only) Non-stick surface Allow to cool. Wash in hot soapy water. Do not use abrasive
cleaners/scourers. Dishwasher.
Warming zone (some models only) Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Outside of Cooker
Part Finish Recommended Cleaning Method
Door, door surround and storage
drawer exterior
Enamel or paint Hot soapy water, soft cloth.
Any stubborn stains, remove gently with a liquid detergent.
Stainless steel E-cloth (electrical retailers) or microfibre all-purpose cloth
(supermarket).
Sides and plinth Painted surface Hot soapy water, soft cloth.
Splashback/rear grille Enamel or stainless steel Hot soapy water, soft cloth. Cream cleaner, with care, if necessary.
Control panel Paint, enamel or stainless steel Warm soapy water. Do not use abrasive cleaners on lettering.
Control knobs/handles & trims
Plastic/chrome, copper or
lacquered brass Warm soapy water, soft cloth.
Brass Brass polish.
Oven door glass/glass lid Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Oven and Grill
Part Finish Recommended Cleaning Method
Sides, floor & roof of oven NOT
COOK & CLEAN OVEN PANELS (see
below)
Enamel
Any proprietary oven cleaner that is suitable for enamel.
CAUTION: CORROSIVE/CAUSTIC OVEN CLEANERS: FOLLOW
MANUFACTURER’S INSTRUCTIONS.
Do not allow contact with the oven elements.
Cook & Clean oven panels (some
models only)
Special enamel that partly
cleans itself
This surface cleans itself at 200 °C and above, or the panels can
be removed and washed with hot soapy water and a nylon brush
(see ‘The Ovens’ in ‘Cleaning your Cooker’).
Oven shelves, Handyrack, grill
trivet, Handygrill rack (some
models only)
Chrome An oven interior cleaner that is suitable for chrome. Soap filled
pad. Dishwasher.
Grill pan/meat tin (some models
only) Enamel Hot soapy water. Soap filled pad. Dishwasher.
Table 5-1
Cleaning Table
Cleaners listed (Table 5-1) are available from supermarkets or
electrical retailers as stated.
For enamelled surfaces use a cleaner that is approved for use
on vitreous enamel.
Regular cleaning is recommended. For easier cleaning, wipe
up any spillages immediately.

19
Hotplate ignition or hotplate burners faulty
Is the power on? Is the clock illuminated?
If not, there maybe something wrong with the power
supply.
Are the sparker (ignition electrode) or burner slots
blocked by debris?
Are the burner trim and caps correctly located? See the
section on ‘Cleaning’.
Hotplate burners will not light
Make sure that the burner parts have been replaced
correctly after wiping or removing for cleaning.
Check that there is not a problem with your gas
supply. You can do this by making sure that other gas
appliances you may have are working.
Do the burners spark when you push the button?
If not, verify that the power is on by checking that the
clock is illuminated.
Steam is coming from the oven
When cooking foods with high water content (e.g. oven
fries) there may be some steam visible at the rear grille.
Take care when opening the oven door, as there may
be a momentary pu of steam when the oven door
is opened. Stand well back and allow any steam to
disperse.
What cleaning materials are recommended for the
cooker?
See the ‘Cleaning’ section for recommended cleaning
materials.
 Never use caustic or abrasive cleaners as these will
damage the surface.
An oven fan is noisy
The note of the oven fan may change as the oven heats
up – this is perfectly normal.
The knobs get hot when I use the oven or the grill. Can I
avoid this?
Yes, this is caused by heat rising from the oven or the
grill, and heating them up. Do not leave the oven door
open.
Make sure that the grill pan is pushed right back to the
‘back stop’ when grilling.
Always grill with the grill compartment door open.
If there is an installation problem and I don’t get my
original installer to come back to x it who pays?
You do. Service organizations will charge for their call
outs if they are correcting work carried out by your
original installer. It is in your interest to track down your
original installer.
Power failure
In the event of a failure in the electrical supply,
remember to reset the clock to make sure that the
timed oven continues to operate.
Food is cooking too slowly, too quickly, or burning
Cooking times may dier from your previous oven.
Check that you are using the recommended
temperatures and shelf positions – see the oven
cooking guide. The oven control settings and cooking
times are intended to be used only as a guide.
Individual tastes may require the temperature to be
altered either way, to get the results you want.
The oven is not cooking evenly
Do not use a baking tray with dimensions larger than
those specied in the section on ‘General Oven Tips’.
If you are cooking a large item, be prepared to turn it
round during cooking.
If two shelves are used, check that space has been left
for the heat to circulate. When a baking tray is put into
the oven, make sure that it is placed centrally on the
shelf.
Check that the door seal is not damaged and that the
door catch is adjusted so that the door is held rmly
against the seal.
A dish of water when placed on the shelf should be the
same depth all over. (For example, if it is deeper at the
back, then the back of the cooker should be raised up or
the front lowered.) If the cooker is not level arrange for
your supplier to level it for you.
Oven not coming on
Is the power on? Is the clock illuminated? If not, there
may be something wrong with the power supply.
Is the cooker supply on at the isolator switch?
Has the time of day been set?
Is the key symbol [] showing in the display to signify
that the oven is locked? See the ‘Clock’ section of the
instructions for more information on the key lock
feature.
The timed oven is not coming on when automatic cooking
Has the oven knob been left in the OFF position by
mistake?
Is the oven locked (see above)?
Oven temperature getting hotter as the cooker gets older
If turning the temperature down using the oven control
knob has not worked, or has only worked for a short
time, then you may need a new thermostat. This should
be tted by a service person.
6. Troubleshooting
