Rankam GR2234801-MM-00 Quick reference guide

1 of 32 20161206-Ver.1
2-BURNER PATIO GAS GRILL
Model number:
GR2234801-MM-00 / GR2234802-MM-00
ASSEMBLY & OPERATING INSTRUCTIONS
For Outdoor Use Only
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling/using the
appliance.
Failure to follow these instructions and warnings could result in damage to the
product or injury to the user.
Keep this manual for further reference.
Should you encounter any problem,
CALL US FIRST.
DO NOT return product to the retail store!!
WE CAN HELP.
For assistance, contact customer service at [e-mail]
or at [phone], Mon to Fri, 8:00am –5:00pm Pacific Standard time

2 of 32 20161206-Ver.1
WARNINGS
SAFETY LABELS
DANGER: Indicates an imminent hazardous situation which if not avoided will result in
death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the instructions are not
followed. Be sure to read and carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call
your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion which
could cause property damage, personal injury or death.
WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.
DANGER
(a) Do not store a spare LP gas cylinder under or near this appliance;
(b) Never fill the cylinder beyond 80 percent full;
(c) If the information in (a) and (b) is not followed exactly, a fire causing death or
serious injury may occur.
PROP 65 WARNING
Chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm are created by the combustion of propane, charcoal, or other wood
products.

3 of 32 20161206-Ver.1
WARNING
This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a
building, garage or any other enclosed area.
This outdoor cooking gas appliance is not intended to be installed in or on boats. This
appliance is not intended to be installed in or on recreational vehicles.

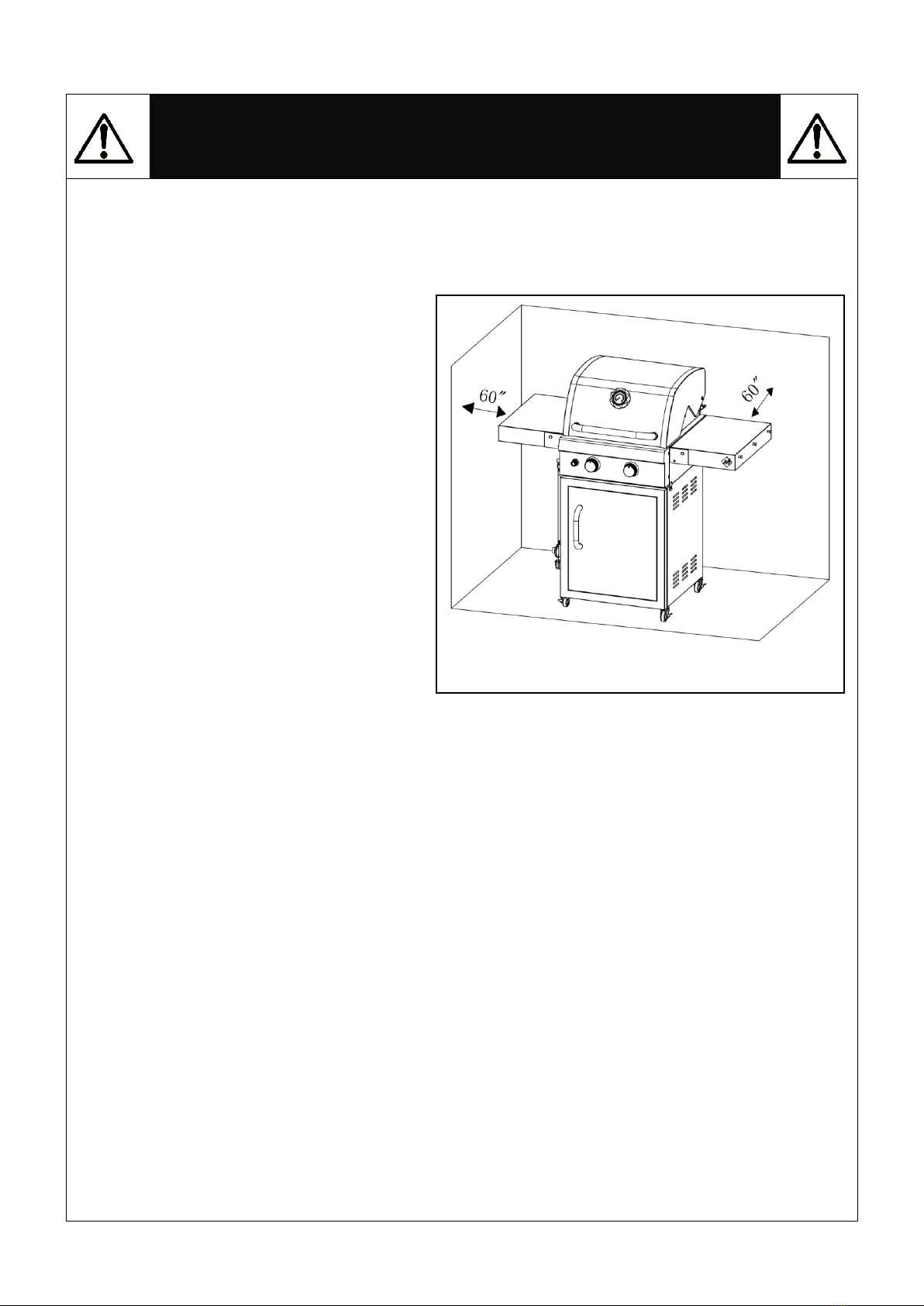

Use your grill OUTDOORS in a well
ventilated space away from dwellings
or other buildings to prevent dangers
associated with gas accumulation
and toxic vapors. The grill should be
situated at least 60 inches (152.4 cm)
from buildings. Not adhering to these
clearances will prevent proper
ventilation and may increase the risk
of a fire and/or property damage,
which could also result in personal
injury.
Maintain a minimum clearance of 60
inches (152.4 cm) between all sides
of grill, deck railings, walls or other
combustible material. DO NOT use
grill under any overhead combustible
construction.
DO NOT obstruct the flow of combustion/ventilation air.
DO NOT leave the grill unattended while in use.
DO NOT use while under the influence of drugs or alcohol.
Keep the fuel supply hose away from heated surfaces.
DO NOT put the grill in storage or move it after use. Allow the grill to be cool to the touch
before moving/storing. Failure to do so could result in a fire causing property damage,
personal injury or death.
The appliance is for household use only. DO NOT use this grill for other than its intended
purpose.
Never use natural gas in a unit designed for liquid propane gas.
Never use charcoal or wood briquettes in a gas grill. Flavoring chips must be contained in
a metal smoking box to contain ash and prevent fires.
A Leak Test must be conducted prior to each use.
Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local
authority to determine proper size and type.
Grill is hot when in use. To avoid burns:
DO NOT attempt to move the grill.
Lock the wheels so the unit does not accidentally move.
Wear protective gloves or oven mitts.
DO NOT touch any hot grill surfaces.
DO NOT wear loose clothing or allow hair to come in contact with grill.
Never close the side burner lid during operation.
Maintain a minimum clearance of
60 inches from combustible material.

4 of 32 20161206-Ver.1
USE AND INSTALLATION OF LP GAS CYLINDER (PROPANE TANK)
BEFORE INSTALLING:
The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as
applicable.
BEFORE EVERY USE:
Be sure to inspect the hose for leaks, cuts, wear, abrasion, or damage of any sort before using
this appliance. If any damage is apparent, the hose must be replaced with a new hose specified
by the manufacturer before further use.
LP GAS CYLINDER
The LP (liquid propane) cylinder specifically designed to be used with this unit MUST have a 20
lb. (9.1kg) capacity with a Type 1 cylinder valve and an overfilling protection device (OPD).
Only use LP cylinders with this type of valve.
LP tank valve requirement:
Purchase LP tanks only with these required measurements: 12”
(30.5cm) (diameter) x 18” (45.7cm) (tall) with 20lb. (9kg) capacity
maximum.
Type 1 outlet compatible with regulator or appliance.
Safety relief valve.
UL-listed Overfill Protection Device (OPD). This
OPD safety feature is identified by a unique
triangular hand wheel. Use only tanks equipped with
this type of valve.
LP tank must be arranged for vapor withdrawal.
The LP cylinder must be constructed and marked in
accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of Transportation
(D.O.T.) or the National Standard of Canada
CAN/CSA –B339, Cylinder, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission of Dangerous Goods; and Commission,
as applicable.
The LP cylinder must include a collar to protect the cylinder valve.
If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply
cylinder(s).
The LP cylinder must be stored outdoors out of the reach of children and MUST NOT be
stored in a building, garage, shed, breezeway, or any other enclosed space.
Storage of an outdoor cooking gas appliance indoors is permissible ONLY if the cylinder is
disconnected and removed from the outdoor cooking gas appliance.
The cylinder should ALWAYS be put in an upright position.
LP Tank Valve
Safety Cap

5 of 32 20161206-Ver.1
DANGER
DO NOT connect this grill to an existing #510 POL cylinder valve with Left hand threads.
The Type 1 valve can be identified with the large external threads on the valve outlet.
DO NOT connect to a propane cylinder exceeding its capacity.
DO NOT connect to a cylinder that uses any other type of valve connection device.
Never store a spare LP gas cylinder under or near your grill. This could cause pressure to
be expelled through the vapor relief valve resulting in fire, explosion, or severe personal
injury, including death.
Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from
obstructions and debris.
DO NOT insert any foreign objects into the valve outlet. Damage to the valve outlet could
result. A damaged valve outlet can cause a leak, possibly resulting in explosions, fire,
severe bodily harm, or death.
WARNING
FOR FILLING THE LP GAS CYLINDER
Allow only qualified LP gas dealers to properly fill or repair your LP cylinder.
DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create
a dangerous condition. Over-filled tanks can build up pressure and cause the relief valve
to expel propane gas vapors. The vapor is combustible and if it comes in contact with a
spark source or flame an explosion causing severe burns, bodily harm, or death could
occur.
Always use a safety cap when the grill is not connected to a cylinder.
If you exchange a cylinder with a qualified exchange program, be sure the cylinder has a
Type 1 valve and an over-fill prevention device (OPD).

6 of 32 20161206-Ver.1
INSTALLING GAS CYLINDER
1. Check that the cylinder valve is closed by turning the knob in clockwise.
2. Place the cylinder into cylinder holder and tighten the fixing bolt. Place cylinder such that
the valve opening faces the left side table in such a way that the hose is not
kinked/damaged.
3. Attach or detach the regulator to the LP gas cylinder only when the cylinder is placed on the
cylinder holder.

7 of 32 20161206-Ver.1

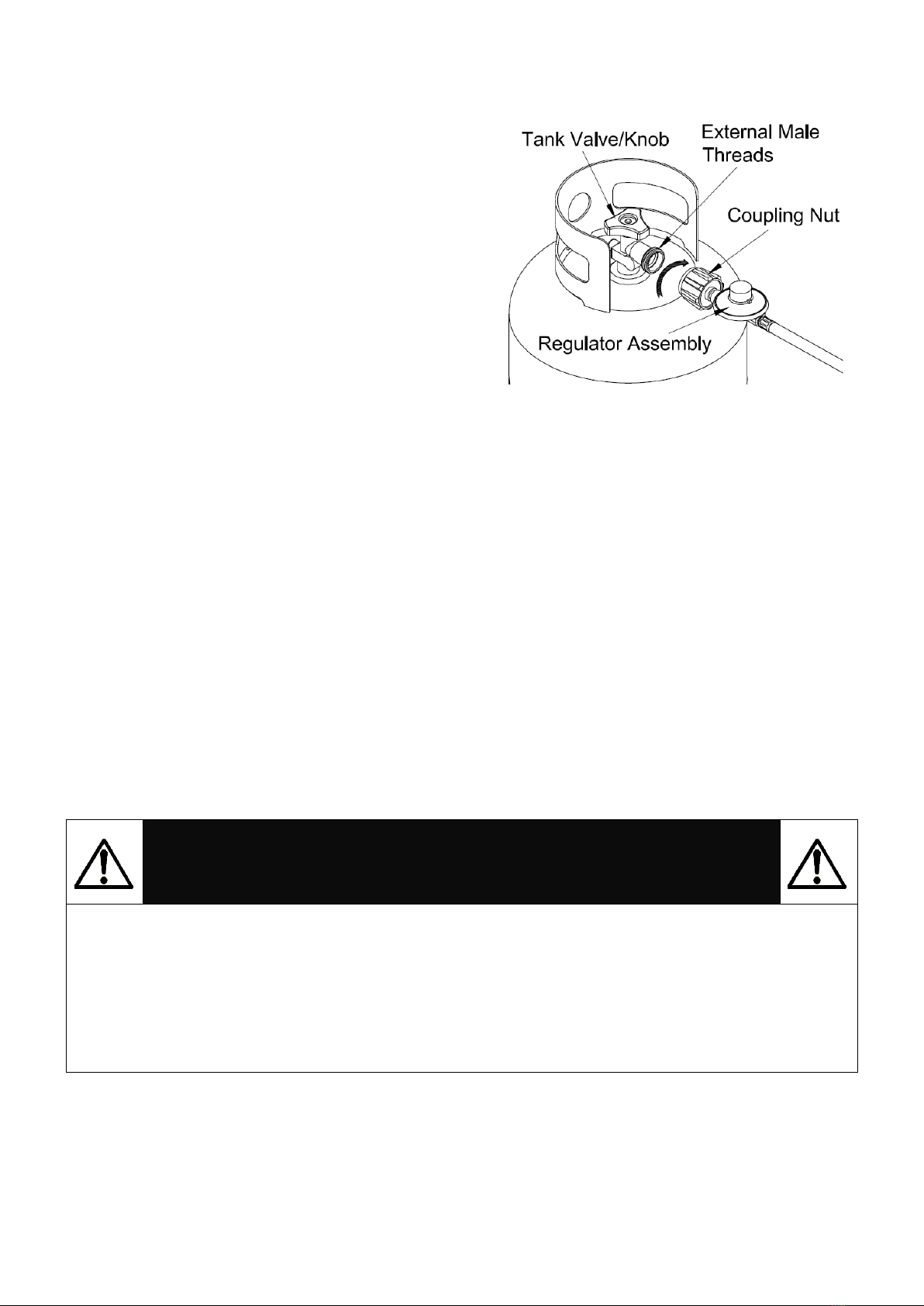

CONNECTION PROCEDURES
1. Make sure the tank valve is closed (turn
valve clockwise until tight).
2. Check the tank valve to insure it has the
proper external male threads.
3. Make sure all burner valves are turned OFF.
4. Inspect valve connections, port, and regulator
assembly. Look for any damage or debris.
Remove any debris. Inspect the hose for
damage. Never attempt to use damaged or
obstructed equipment. Contact your local LP
gas dealer for repair.
5. When connecting the regulator assembly to the valve, hand tighten the quick coupling nut
clockwise to a complete stop. Do not use a wrench to tighten. Use of a wrench may damage
the quick coupling nut and result in a hazardous condition.
6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all
connections for leaks (a Leak Test) before attempting to light the grill (see P.24-25). If a leak
is found, turn the tank valve off and do not use the grill until your LP gas dealer can make
repairs.
TO DISCONNECT LP CYLINDER:
1. Turn the burner valves off.
2. Turn the tank valve off fully (turn clockwise to stop).
3. Detach the regulator assembly from the tank valve by turning the quick coupling nut
counterclockwise.
CAUTION
When installing LP cylinders, the pressure regulator and hose supplied by the
manufacturer MUST be used with the appropriate cylinder. Replacement regulators
and hoses need to be specified by the manufacturer of this appliance.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Only install the type of dust cap on the cylinder valve outlet that is provided with the
cylinder. Other types of caps or plugs may result in leakage of propane.

8 of 32 20161206-Ver.1
PRODUCT DIAGRAM

9 of 32 20161206-Ver.1
COMPONENT LIST
1. Warming Rack
2. Cooking Grate
3. Flame Tamer
Qty: 1pc
Qty: 2pcs
Qty: 2pcs
4. Grill Body Assembly
5. Left Side Table
6. Right Side Table Bracket
Qty: 1pc
Qty: 1pc
Qty: 2pcs
7. Left Side Table Bracket
8. Right Side Table
9. Hook
Qty: 2pcs
Qty: 1pc
Qty: 3pcs
10. Cart Base Assembly
11. Drip Tray
12. Left Cart Panel Assembly
Qty: 1pc
Qty: 1pc
Qty: 1pc

10 of 32 20161206-Ver.1
13. Rear Cart Panel Assembly
14. Right Cart Panel
15. Grease Cup
Qty: 1pc
Qty: 1pc
Qty: 1pc
16. Tank Heat Shield
17. Cart Door Handle
18. Locking Caster
Qty: 1pc
Qty: 1pc
Qty: 4pcs
19. Plastic Insert
20. Front Cart Frame
21. Cart Door
Qty: 2pcs
Qty: 1pc
Qty: 1pc

11 of 32 20161206-Ver.1

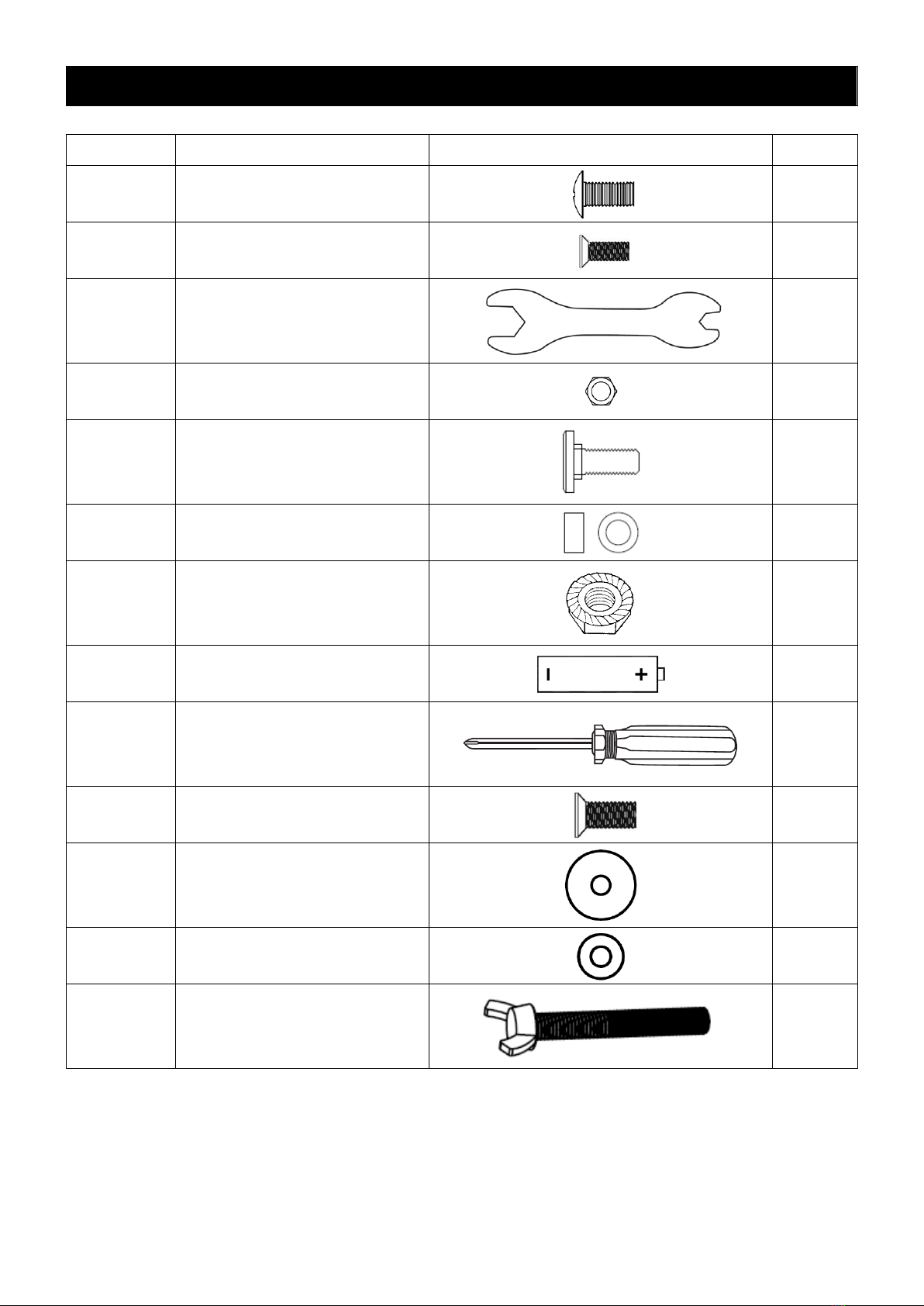

HARDWARE LIST
Item No.
Item name
Diagram
Qty
A
M6x12mm Bolt
28
B
M4x10mm Countersink
Head Bolt
5
C
Hex Nut Wrench
1
D
M4 Nut
3
E
Table Pin
4
F
Rotary sleeve
4
G
M6 Serrated Flange Nut
4
H
LR6/AA Battery
1
I
Phillips Head Screwdriver
1
J
M6x16mm Countersink
Head Bolt
12
K
Ø18 Washer
1
L
Ø12 Washer
3
M
Tank Fixing Bolt
1

12 of 32 20161206-Ver.1
Replacement Part List (I)

13 of 32 20161206-Ver.1
Replacement Part List (II)
Part
Number
Part Name
Part
Number
Part Name
1
Warming Rack
2
Cooking Grate
3
Flame Tamer
4
Grill Body Assembly
4a
Grill Body –Lid
4b
Grill Body –Thermometer
4c
Grill Body –Thermometer Bezel
4d
Grill Body –Lid Handle Bezel
4e
Grill Body –Lid Handle
4f
Grill Body –Lid Support Left Bracket
4g
Grill Body –Lid Support Right
Bracket
4h
Grill Body –Fire Box
4i
Grill Body –Left Burner
4j
Grill Body –Cotter Pin
4k
Grill Body –Right Burner
4L
Grill Body –Ignition Electrode &
Wire
4m
Grill Body –Fire Box Front Heat
Shield
4n
Grill Body –Valve & Manifold
Assembly
4o
Grill Body –Igniter
4p
Grill Body –Regulator Assembly
4q
Grill Body –Control Panel
4r
Grill Body –Knob Bezel
4s
Grill Body –Control Knob
4t
Grill Body –Burner Fixing Pin
5
Left Side Table
6
Right Side Table Bracket
7
Left Side Table Bracket
8
Right Side Table
9
Hook
10
Cart Base
11
Drip Tray
12
Left Cart Panel Assembly
12a
Left Cart Panel
12b
Plastic Ring
13
Rear Cart Panel Assembly
13a
Rear Cart Panel
13b
Match Holder
14
Right Cart Panel
15
Grease Cup
16
Tank Heat Shield
17
Cart Door Handle
18
Locking Caster
19
Plastic Insert
20
Front Cart Frame
21
Cart Door
Symbol: The following symbols will be shown in each procedure for indication of
tightening the bolt and nut if necessary.
Hand Tighten only at this time
Tighten with tools at this time

14 of 32 20161206-Ver.1
ASSEMBLY PROCEDURES
Step 1. Install the Tank Fixing Bolt (M) into the Cart Base (10) as shown.
Attach the Ø18 Washer (K) to the tank fixing bolt with a Countersink Head M4
Bolts (B).
Step 2. Attach the cart base to the Rear Cart Panel Assembly (13) using 3 pcs
M6x12 Bolts (A). Do not fully tighten the bolts.

15 of 32 20161206-Ver.1

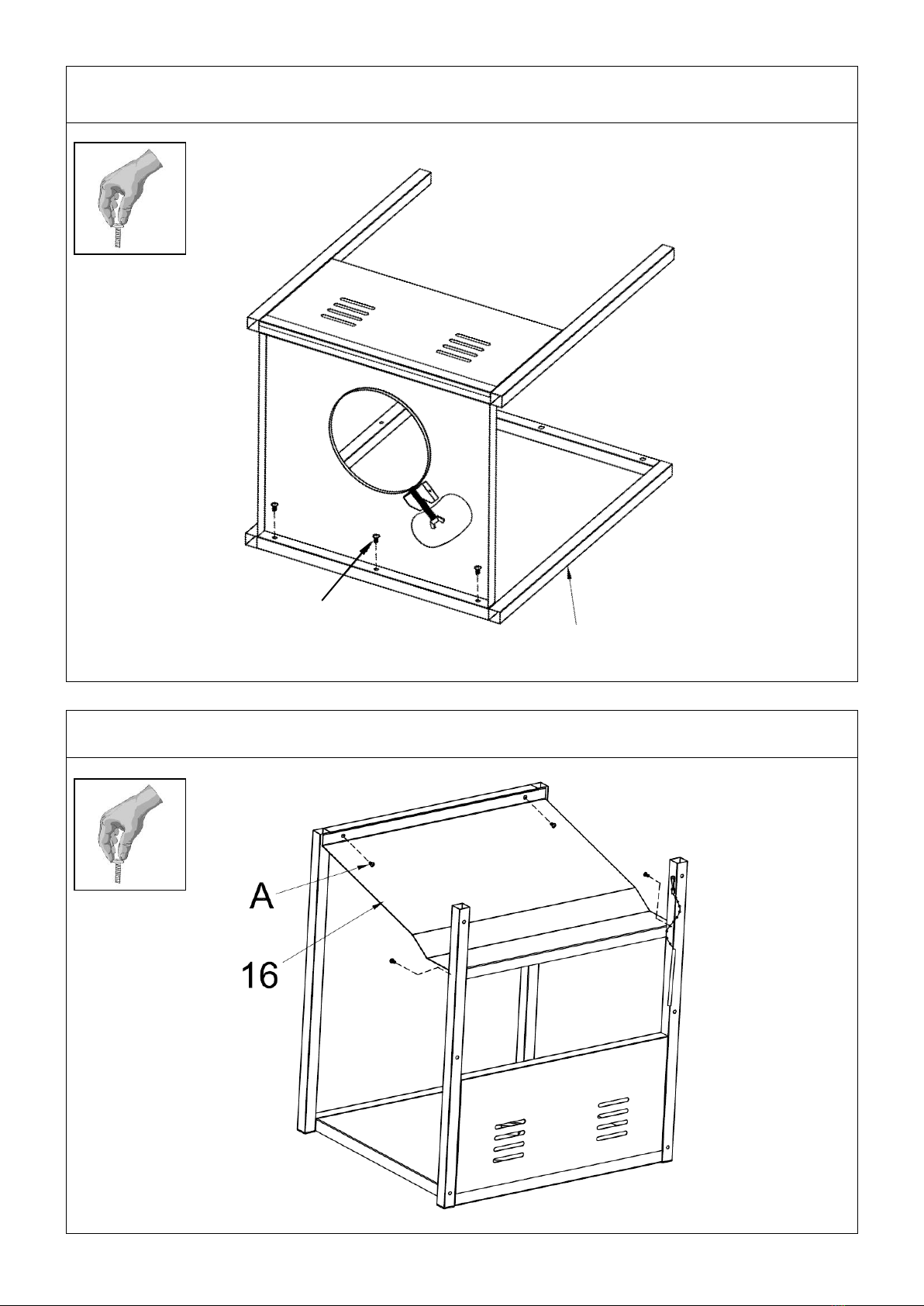

Step 3. Attach the Front Cart Frame (20)to the cart base using 3 pcs M6x12
Bolts (A). Do not fully tighten the bolts.
Step 4. Attach the Tank Heat Shield (16) to the cart assembly using 4 pcs
M6x12 Bolts (A). Do not fully tighten the bolts.
A
20

16 of 32 20161206-Ver.1
Step 5.Attach the Right Cart Panel (14) and Left Cart Panel Assembly (12) to
the cart assembly using 12 pcs M6x12 Bolts (A). Fully tighten all the bolts in the
cart assembly.
Step 6.Install the Locking Casters (18) into the threaded holes on the bottom of
the cart assembly. Use the Hex Nut Wrench (C) to tighten the caster by turning
in clockwise until it is fully secured.

17 of 32 20161206-Ver.1

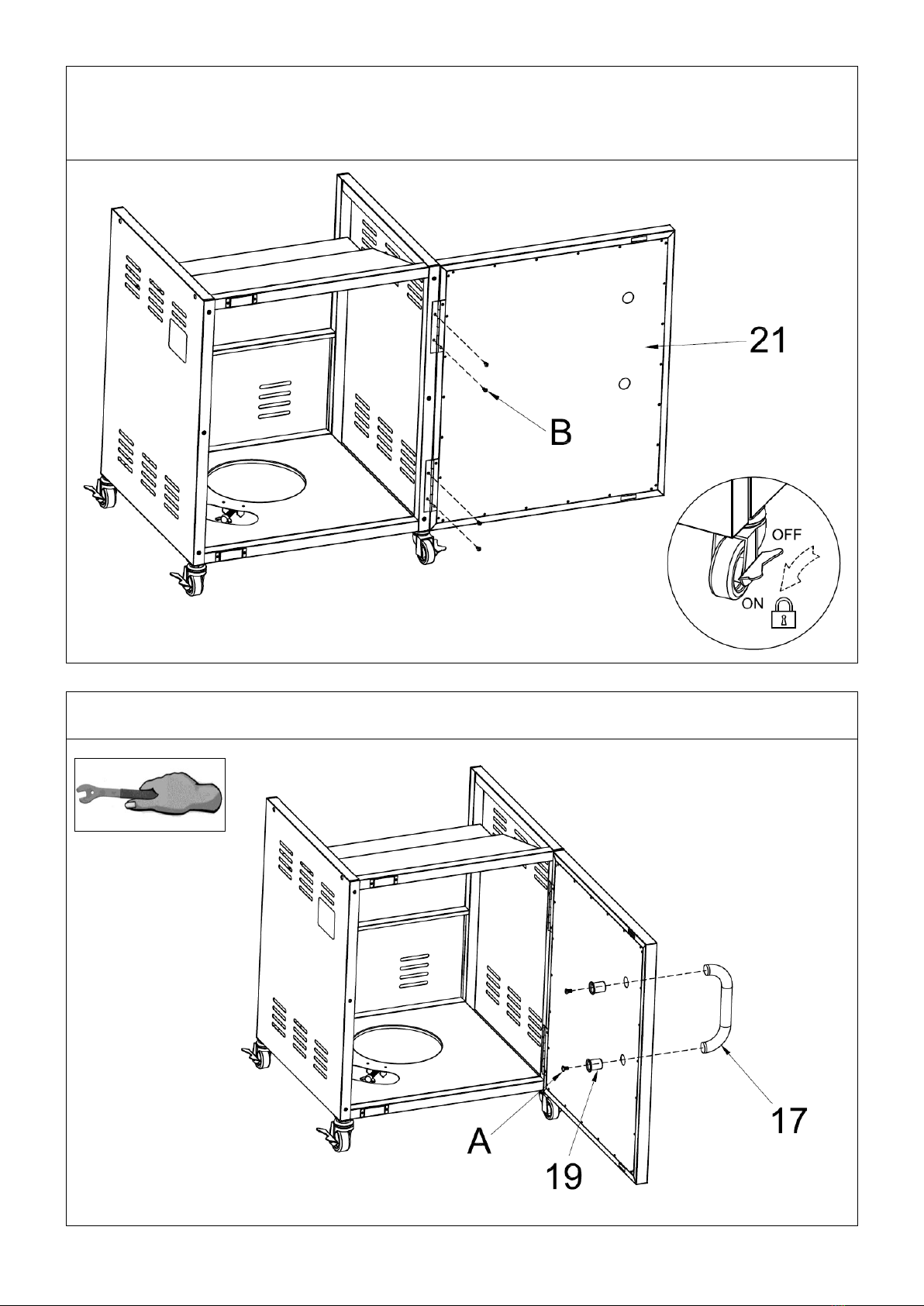

Step 7.Lock all 4 pcs casters to prevent the unit from moving.
Attach the Cart Door (21)to the cart assembly using 4 pcs Countersink Head
M4 Bolts (B). Do not tighten the bolts until all the holes on the hinges are aligned
and match with the cart assembly. Then fully tighten the bolts.
Step 8.Attach the Cart Door Handle (17)and the Plastic Insert (19) to the cart
assembly using 2 pcs M6x12 bolts (A).

18 of 32 20161206-Ver.1
Step 9. This step needs two people to complete! Keep all 4 pcs caster locked.
Install 4 pcs of M6x12mm bolts (A) on the cart assembly and adjust to 3/16”
clearance as shown. Put the Grill Body assembly (4) carefully on the top of cart
assembly. Position the part in place then fully tighten the bolts. Be careful to
support the grill body and cart assembly during this step.
Step 10. Attach the Right Side Table Bracket (6) and Left Side Table Bracket
(7) to the grill body assembly using 12 pcs Countersink Head Bolt M6 bolts (J).
A

19 of 32 20161206-Ver.1
Step 11.Attach the Hook (9) to the Right Side Table (8) using 3 pcs Ø12
Washer (L) and 3 pcs M4 nuts (D).
Step 12: Attach the right side table assembly to the side table brackets and insert
2 pcs Table pin (E) into the brackets and side table to hold them up. Then fold
the table upwards and using 2 pcs Rotary sleeve (F) and M6 Serrated Flange
Nut (G) as shown for installation. Use the Hex Nut Wrench (C) to tighten the
nuts.
1
2

20 of 32 20161206-Ver.1
Step 13: Attach the Left Side Table (5) to the side table brackets and insert 2 pcs
Table pin (E) into the brackets and side table to hold them up. Then fold the table
upwards then using 2 pcs Rotary sleeve (F) and M6 Serrated Flange Nut (G)
as shown for installation. Use the Hex Nut Wrench (C) to tighten the nuts.
Step 14: Slide the Drip Tray (11) into the holding bracket at the bottom of the fire
box. Slide the Grease Cup (15) into the holding bracket at the bottom of the drip
tray. Be sure the handle is facing outward.
1
2
