Rankam GR2264401-GS-00 Quick reference guide

1 of 32 20170126-Ver.1.0
5-BURNER GAS GRILL
Model number: GR2264401-GS-00 /
GR2264402-GS-00 / GR2264403-GS-00
ASSEMBLY & OPERATING INSTRUCTIONS
For Outdoor Use Only
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling/using the
appliance.
Failure to follow these instructions and warnings could result in damage to the
product or injury to the user.
Keep this manual for further reference.
Should you encounter any problem,
CALL US FIRST.
DO NOT return product to the retail store!!
WE CAN HELP.
For assistance, contact customer service at [email protected]
or at [phone], Mon to Fri, 8:00am – 5:00pm Pacific Standard time

2 of 32 20170126-Ver.1.0
WARNINGS
SAFETY LABELS
DANGER: Indicates an imminent hazardous situation which if not avoided will result in
death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the instructions are not
followed. Be sure to read and carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call
your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion which
could cause property damage, personal injury or death.
WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.
DANGER
(a) Do not store a spare LP gas cylinder under or near this appliance;
(b) Never fill the cylinder beyond 80 percent full;
(c) If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.
PROP 65 WARNING
Chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm are created by the combustion of propane, charcoal, or other wood
products.

3 of 32 20170126-Ver.1.0
WARNING
This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a
building, garage or any other enclosed area.
This outdoor cooking gas appliance is not intended to be installed in or on boats. This
appliance is not intended to be installed in or on recreational vehicles.
Use your grill OUTDOORS in a well
ventilated space away from dwellings
or other buildings to prevent dangers
associated with gas accumulation
and toxic vapors. The grill should be
situated at least 60 inches (152.4 cm)
from buildings. Not adhering to these
clearances will prevent proper
ventilation and may increase the risk
of a fire and/or property damage,
which could also result in personal
injury.

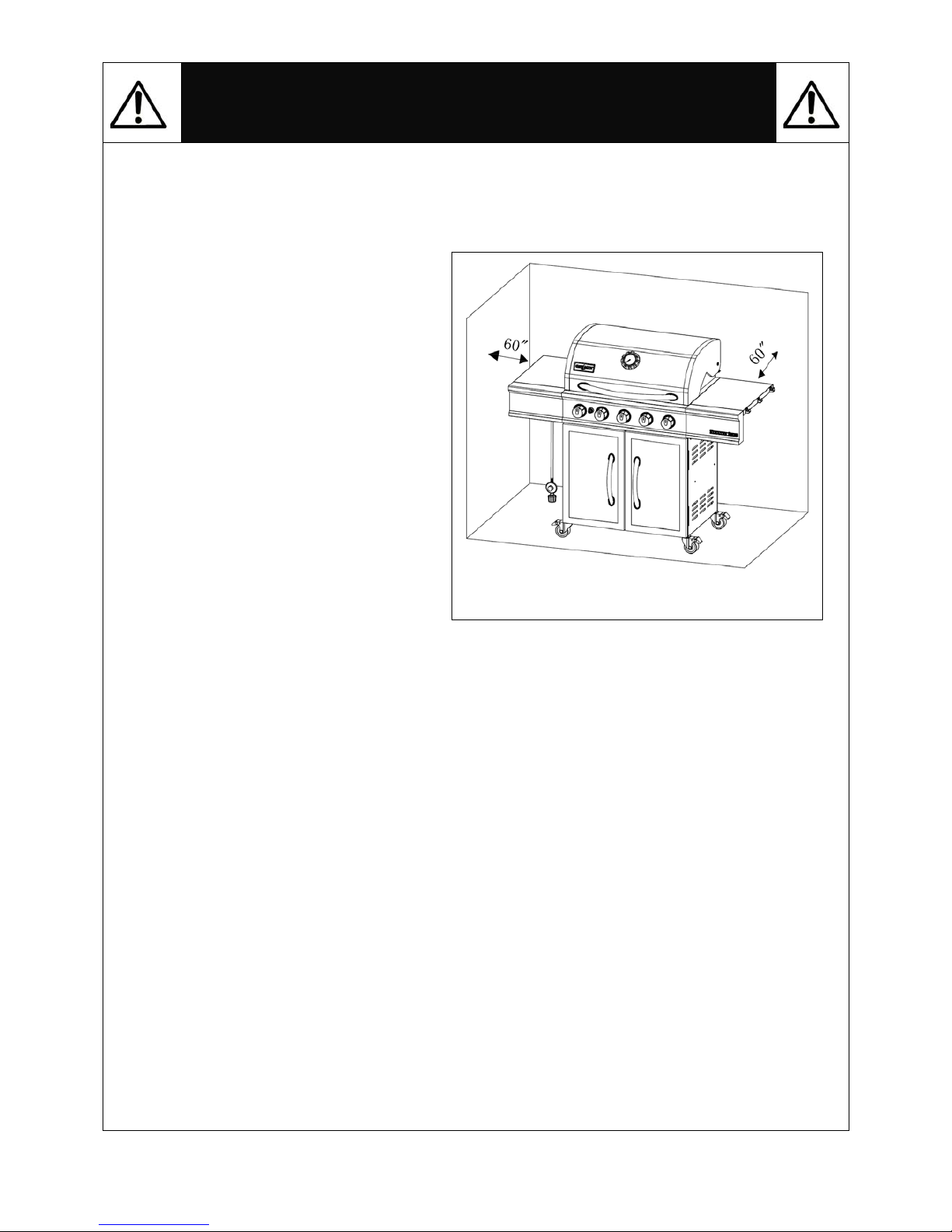

Maintain a minimum clearance of 60
inches (152.4 cm) between all sides
of grill, deck railings, walls or other
combustible material. DO NOT use
grill under any overhead combustible
construction.
DO NOT obstruct the flow of combustion/ventilation air.
DO NOT leave the grill unattended while in use.
DO NOT use while under the influence of drugs or alcohol.
Keep the fuel supply hose away from heated surfaces.
DO NOT put the grill in storage or move it after use. Allow the grill to be cool to the touch
before moving/storing. Failure to do so could result in a fire causing property damage,
personal injury or death.
The appliance is for household use only. DO NOT use this grill for other than its intended
purpose.
Never use natural gas in a unit designed for liquid propane gas.
Never use charcoal or wood briquettes in a gas grill. Flavoring chips must be contained in
a metal smoking box to contain ash and prevent fires.
A Leak Test must be conducted prior to each use.
Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local
authority to determine proper size and type.
Grill is hot when in use. To avoid burns:
DO NOT attempt to move the grill.
Lock the wheels so the unit does not accidentally move.
Wear protective gloves or oven mitts.
DO NOT touch any hot grill surfaces.
DO NOT wear loose clothing or allow hair to come in contact with grill.
Never close the side burner lid during operation.
Maintain a minimum clearance of
60 inches from combustible material.

4 of 32 20170126-Ver.1.0
USE AND INSTALLATION OF LP GAS CYLINDER (PROPANE TANK)
BEFORE INSTALLING:
The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational
Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as
applicable.
BEFORE EVERY USE:
Be sure to inspect the hose for leaks, cuts, wear, abrasion, or damage of any sort before using
this appliance. If any damage is apparent, the hose must be replaced with a new hose specified
by the manufacturer before further use.
LP GAS CYLINDER
The LP (liquid propane) cylinder specifically designed to be used with this unit MUST have a 20
lb. (9.1kg) capacity with a Type 1 cylinder valve and an overfilling protection device (OPD). Only
use LP cylinders with this type of valve.
LP tank valve requirement:
Purchase LP tanks only with these required measurements: 12”
(30.5cm) (diameter) x 18” (45.7cm) (tall) with 20lb. (9kg) capacity
maximum.
Type 1 outlet compatible with regulator or appliance.
Safety relief valve.
UL-listed Overfill Protection Device (OPD). This
OPD safety feature is identified by a unique
triangular hand wheel. Use only tanks equipped with
this type of valve.
LP tank must be arranged for vapor withdrawal.
The LP cylinder must be constructed and marked in
accordance with the Specifications for LP-Gas
Cylinders of the U.S. Department of Transportation
(D.O.T.) or the National Standard of Canada
CAN/CSA – B339, Cylinder, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission of Dangerous Goods; and Commission,
as applicable.
The LP cylinder must include a collar to protect the cylinder valve.
If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply
cylinder(s).
The LP cylinder must be stored outdoors out of the reach of children and MUST NOT be
stored in a building, garage, shed, breezeway, or any other enclosed space.
Storage of an outdoor cooking gas appliance indoors is permissible ONLY if the cylinder is
disconnected and removed from the outdoor cooking gas appliance.
The cylinder should ALWAYS be put in an upright position.
LP Tank Valve
Safety Cap

5 of 32 20170126-Ver.1.0
DANGER
DO NOT connect this grill to an existing #510 POL cylinder valve with Left hand threads.
The Type 1 valve can be identified with the large external threads on the valve outlet.
DO NOT connect to a propane cylinder exceeding its capacity.
DO NOT connect to a cylinder that uses any other type of valve connection device.
Never store a spare LP gas cylinder under or near your grill. This could cause pressure to
be expelled through the vapor relief valve resulting in fire, explosion, or severe personal
injury, including death.
Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from
obstructions and debris.
DO NOT insert any foreign objects into the valve outlet. Damage to the valve outlet could
result. A damaged valve outlet can cause a leak, possibly resulting in explosions, fire,
severe bodily harm, or death.
WARNING
FOR FILLING THE LP GAS CYLINDER
Allow only qualified LP gas dealers to properly fill or repair your LP cylinder.
DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create a
dangerous condition. Over-filled tanks can build up pressure and cause the relief valve to
expel propane gas vapors. The vapor is combustible and if it comes in contact with a spark
source or flame an explosion causing severe burns, bodily harm, or death could occur.
Always use a safety cap when the grill is not connected to a cylinder.
If you exchange a cylinder with a qualified exchange program, be sure the cylinder has a
Type 1 valve and an over-fill prevention device (OPD).

6 of 32 20170126-Ver.1.0
INSTALLING GAS CYLINDER
1. Check that the cylinder valve is closed by turning the knob in clockwise.
2. Place the cylinder into cylinder hole and tighten the fixing bolt. Place cylinder such that the
valve opening faces the left side burner in such a way that the hose is not kinked/damaged.
3. Attach or detach the regulator to the LP gas cylinder only when the cylinder is placed on the
cylinder hole.

7 of 32 20170126-Ver.1.0

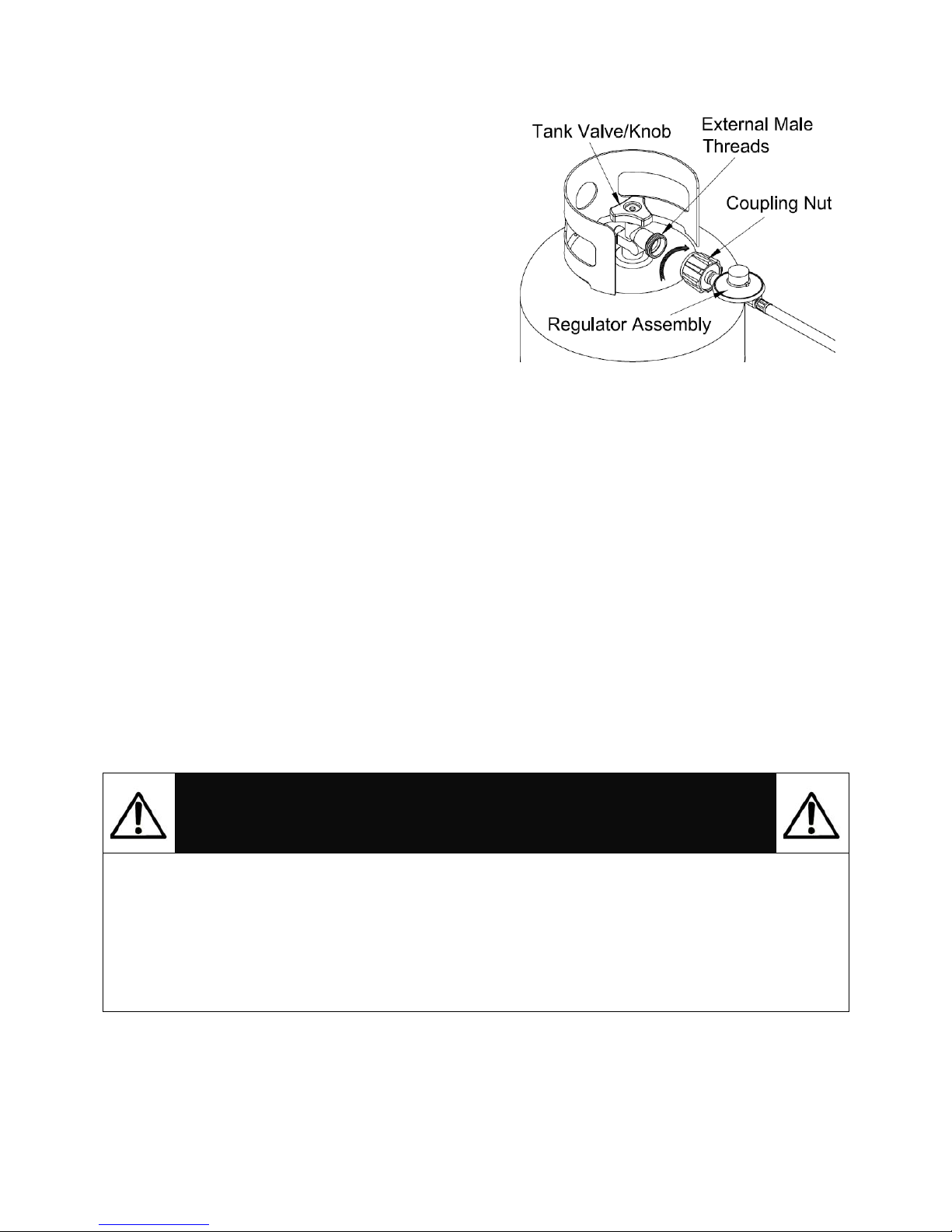

CONNECTION PROCEDURES
1. Make sure the tank valve is closed (turn valve
clockwise until tight).
2. Check the tank valve to insure it has the
proper external male threads.
3. Make sure all burner valves are turned OFF.
4. Inspect valve connections, port, and regulator
assembly. Look for any damage or debris.
Remove any debris. Inspect the hose for
damage. Never attempt to use damaged or
obstructed equipment. Contact your local LP
gas dealer for repair.
5. When connecting the regulator assembly to the valve, hand tighten the quick coupling nut
clockwise to a complete stop. Do not use a wrench to tighten. Use of a wrench may damage
the quick coupling nut and result in a hazardous condition.
6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all
connections for leaks (a Leak Test) before attempting to light the grill (see P.24-25). If a leak
is found, turn the tank valve off and do not use the grill until your LP gas dealer can make
repairs.
TO DISCONNECT LP CYLINDER:
1. Turn the burner valves off.
2. Turn the tank valve off fully (turn clockwise to stop).
3. Detach the regulator assembly from the tank valve by turning the quick coupling nut
counterclockwise.
CAUTION
When installing LP cylinders, the pressure regulator and hose supplied by the
manufacturer MUST be used with the appropriate cylinder. Replacement regulators
and hoses need to be specified by the manufacturer of this appliance.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Only install the type of dust cap on the cylinder valve outlet that is provided with the
cylinder. Other types of caps or plugs may result in leakage of propane.

8 of 32 20170126-Ver.1.0

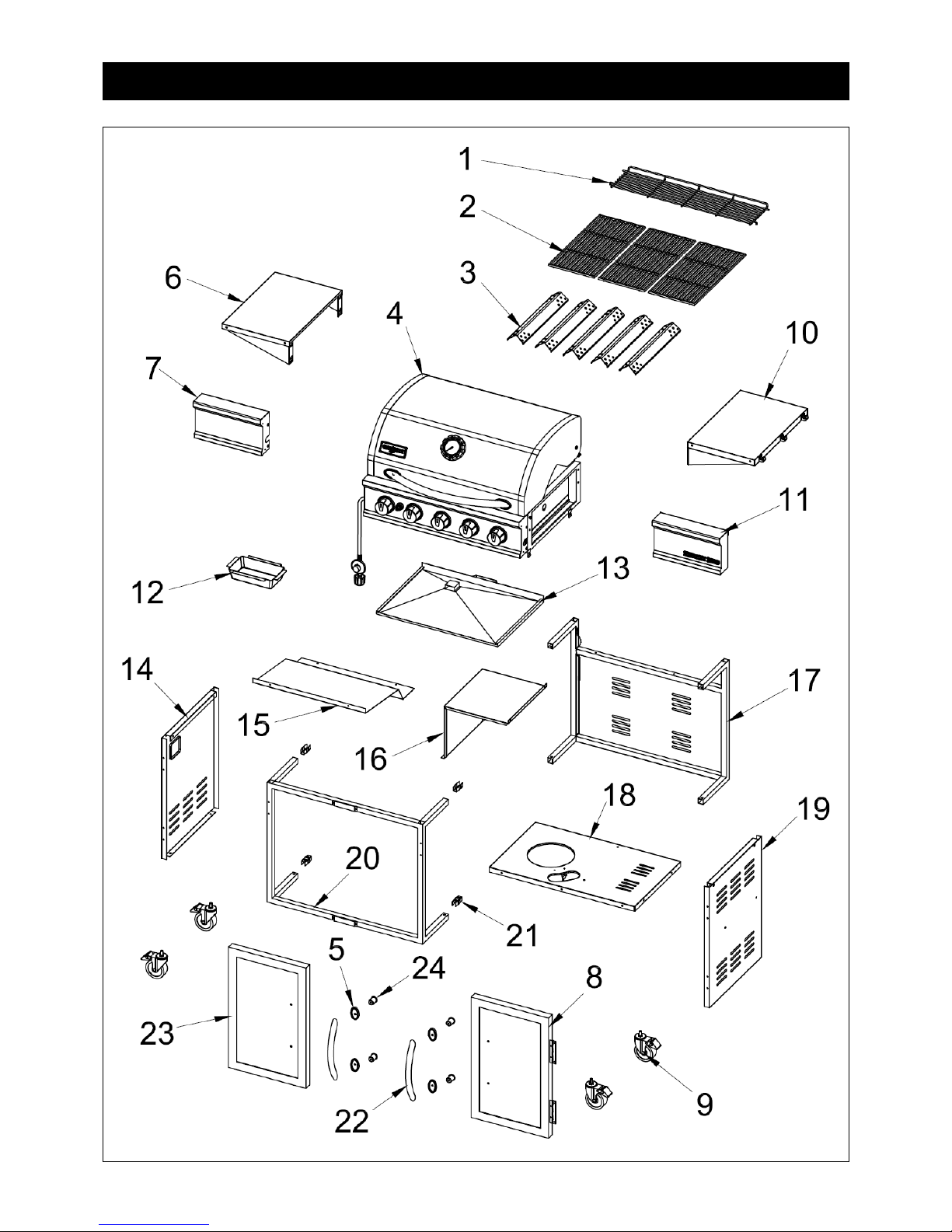

PRODUCT DIAGRAM

9 of 32 20170126-Ver.1.0
COMPONENT LIST
1. Warming Rack 2. Cooking Grate 3. Flame Tamer
Qty: 1pc Qty: 3pcs Qty: 5pcs
4. Grill Body Assembly 5. Door Handle Bezel 6. Left Side Table
Qty: 1pc Qty: 4pcs Qty: 1pc
7. Left Side Table Panel 8. Right Door Assembly 9. Locking Caster
Qty: 1pc Qty: 1pc Qty: 4pcs
10. Right Side Table Assembly 11. Right Side Table Panel 12. Grease Cup
Qty: 1pc Qty: 1pc Qty: 1pc

10 of 32 20170126-Ver.1.0
13. Grease Collecting Tray 14. Left Cart Side Panel
Assembly
15. Tank Heat Shield
Qty: 1pc Qty: 1pc Qty: 1pc
16. Cart Rack 17. Rear Cart Assembly 18. Bottom Cart Panel Assembly
Qty: 1pc Qty: 1pc Qty: 1pc
19. Right Cart Side Panel 20. Front Cart Assembly 21. Cart Frame Connecting Tube
Qty: 1pc Qty: 1pc Qty: 4pcs
22. Door Handle 23. Left Door Assembly 24. Plastic Insert
Qty: 2pcs Qty: 1pc Qty: 4pcs

11 of 32 20170126-Ver.1.0
HARDWARE LIST
Item No. Item name Diagram Qty
A Phillips Head Screwdriver 1
B M4x10mm Bolt (Black) 4
C M6x12mm Bolt (Black) 26
D Hex Nut Wrench 1
E M4x10mm Bolt (Silver) 8
F M6x12mm Bolt (Silver) 28
G LR6/AA Battery 1
Note:
For Bolt F, 20 pcs are stored in the hardware pack, and 8 pcs have been pre-attached on the
related components.
Symbol: The following symbols will be shown in each procedure for indication of
tightening the bolt and nut if necessary.
Hand Tighten only at this time
Tighten with tools at this time

12 of 32 20170126-Ver.1.0
Replacement Part List (I)

13 of 32 20170126-Ver.1.0
Replacement Part List (II)
Part
Number Part Name Part Number Part Name
1 Warming Rack 2 Cooking Grate
3 Flame Tamer 4 Grill Body Assembly
4a Grill Body – Lid 4b Grill Body – Thermometer
4c Grill Body – Thermometer Bezel 4d Grill Body – Lid Handle Bezel
4e Grill Body – Lid Rubber Cushion 4f Grill Body – Lid Handle
4g Grill Body – Lid Support Left
Bracket 4h Grill Body – Fire Box
4i Grill Body – Lid Support Right
Bracket 4j Grill Body – Burner
4k Grill Body – Ignition Electrode &
Wire A 4LGrill Body – Burner Fixing Pin
4m Grill Body – Cotter Pin 4n Grill Body – Ignition Electrode &
Wire B
4o Grill Body – Ignition Electrode &
Wire C 4p Grill Body – Ignition Electrode & Wire D
4q Grill Body – Fire Box Front Heat
Shield 4r Grill Body – Valve & Manifold Assembly
4s Grill Body – Control Panel 4t Grill Body – Igniter
4u Grill Body – Control Knob Bezel 4v Grill Body – Hose & Regulator
Assembly
4w Grill Body – Control Knob 5 Door Handle Bezel
6 Left Side Table 7 Left Side Table Panel
8 Right Door Assembly 9 Locking Caster
10 Right Side Table Assembly 10a Right Side Table
10b Plastic Hook 11 Right Side Table Panel
12 Grease Cup 13 Grease Collecting Tray
14 Left Cart Side Panel Assembly 14a Left Cart Side Panel
14b Plastic Ring 15 Tank Heat Shield
16 Cart Rack 17 Rear Cart Assembly
17a Rear Cart Panel 17b Rear Cart Frame
17c Match Holder 18 Bottom Cart Panel Assembly
18a Bottom Cart Panel 18b Tank Fixing Bolt
19 Right Cart Side Panel 20 Front Cart Assembly
21 Cart Frame Connecting Tube 22 Door Handle
23 Left Door Assembly 24 Plastic Insert

14 of 32 20170126-Ver.1.0
ASSEMBLY PROCEDURES
Step 1. Connect the Front Cart Assembly (20) and Rear Cart Assembly (17)
with 4 pcs Cart Frame Connecting Tube (21) then secure them with 8 pcs
M6x12 Bolts Black (C). Do not fully tighten the bolts.
Step 2.
A
ttach the Left Cart Side Panel Assembly (14) to the cart assembly
using 4 pcs M6x12 Bolts Black (C). Do not fully tighten the bolts.

15 of 32 20170126-Ver.1.0

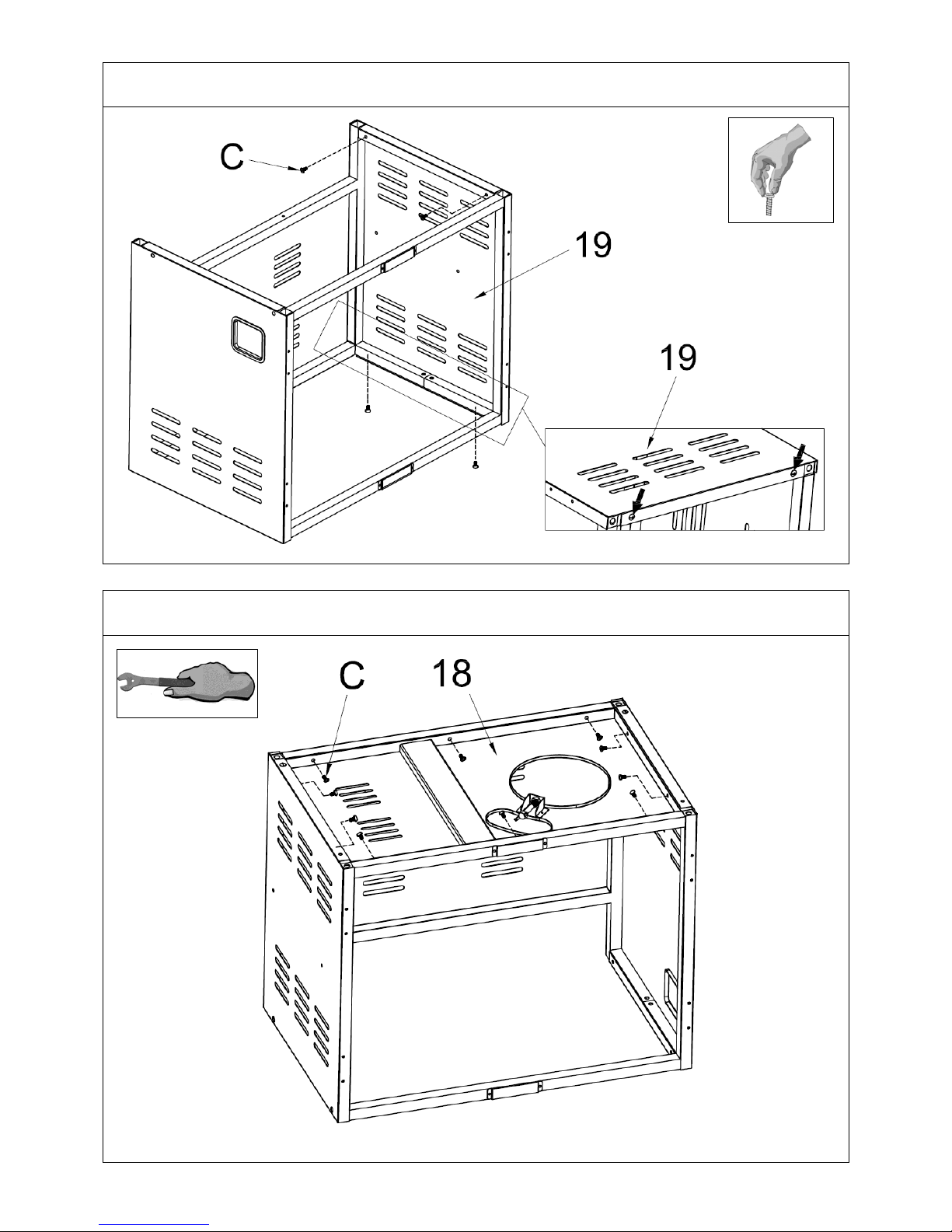

Step 3.
A
ttach the Right Cart Panel (19) to the cart assembly using 4 pcs M6x12
Bolts Black (C). Do not fully tighten the bolts.
Step 4.
A
ttach the Bottom Cart Panel
A
ssembly (18) to the cart assembly using
10 pcs M6x12 bolts Black (C). Fully tighten all the bolts in the cart assembly.

16 of 32 20170126-Ver.1.0

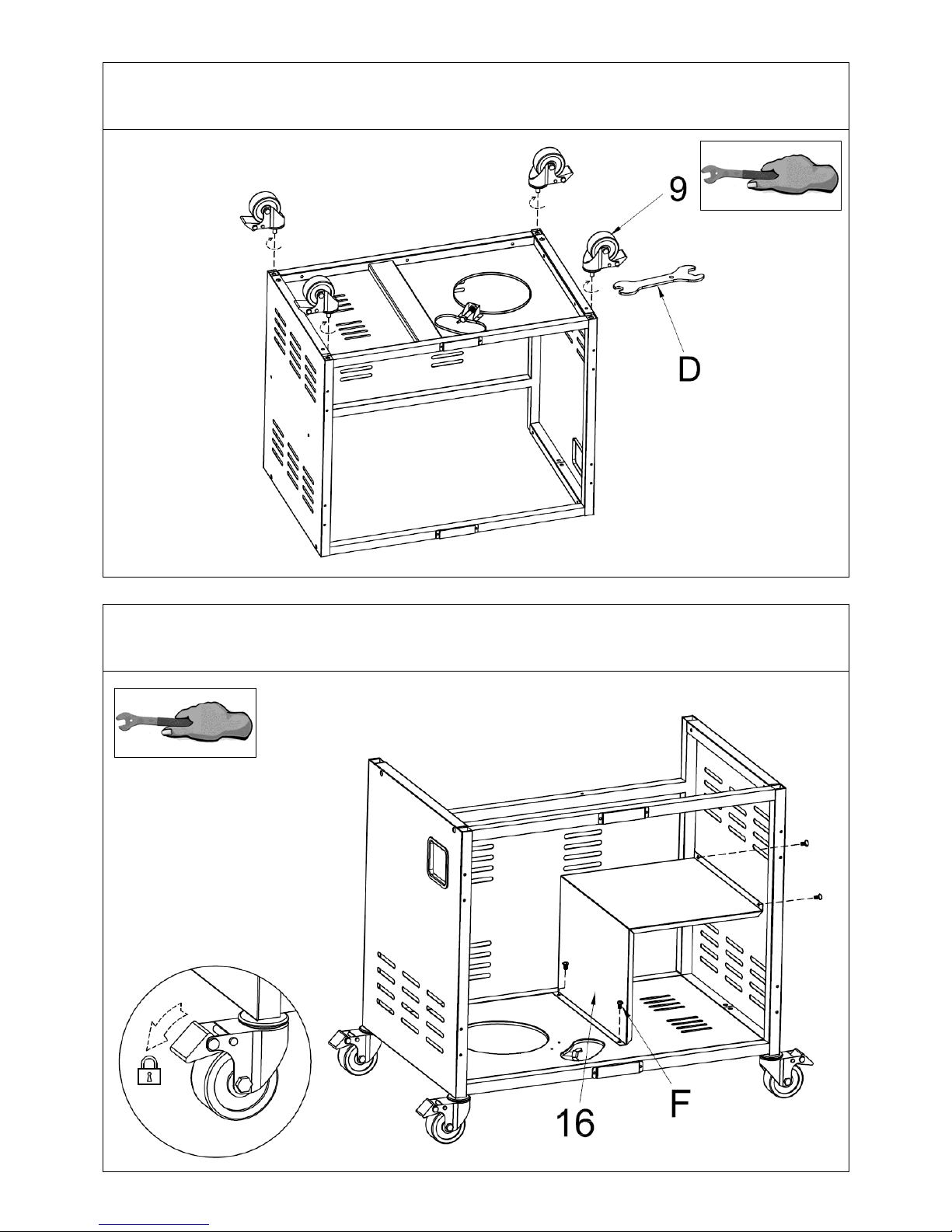

Step 5.Insert the Locking Casters (9) into the threaded holes on the bottom of
the cart assembly. Use the Hex Nut Wrench (D) to tighten the caster by turning
in clockwise until it is fully secured.
Step 6. Lock all 4 locking casters to prevent the unit moving by stepping the
pedals downwards. Attach the Cart Rack (16) to the cart assembly using 4 pcs
M6x12 bolts Silver (F) as shown. Fully tighten all the bolts.

17 of 32 20170126-Ver.1.0

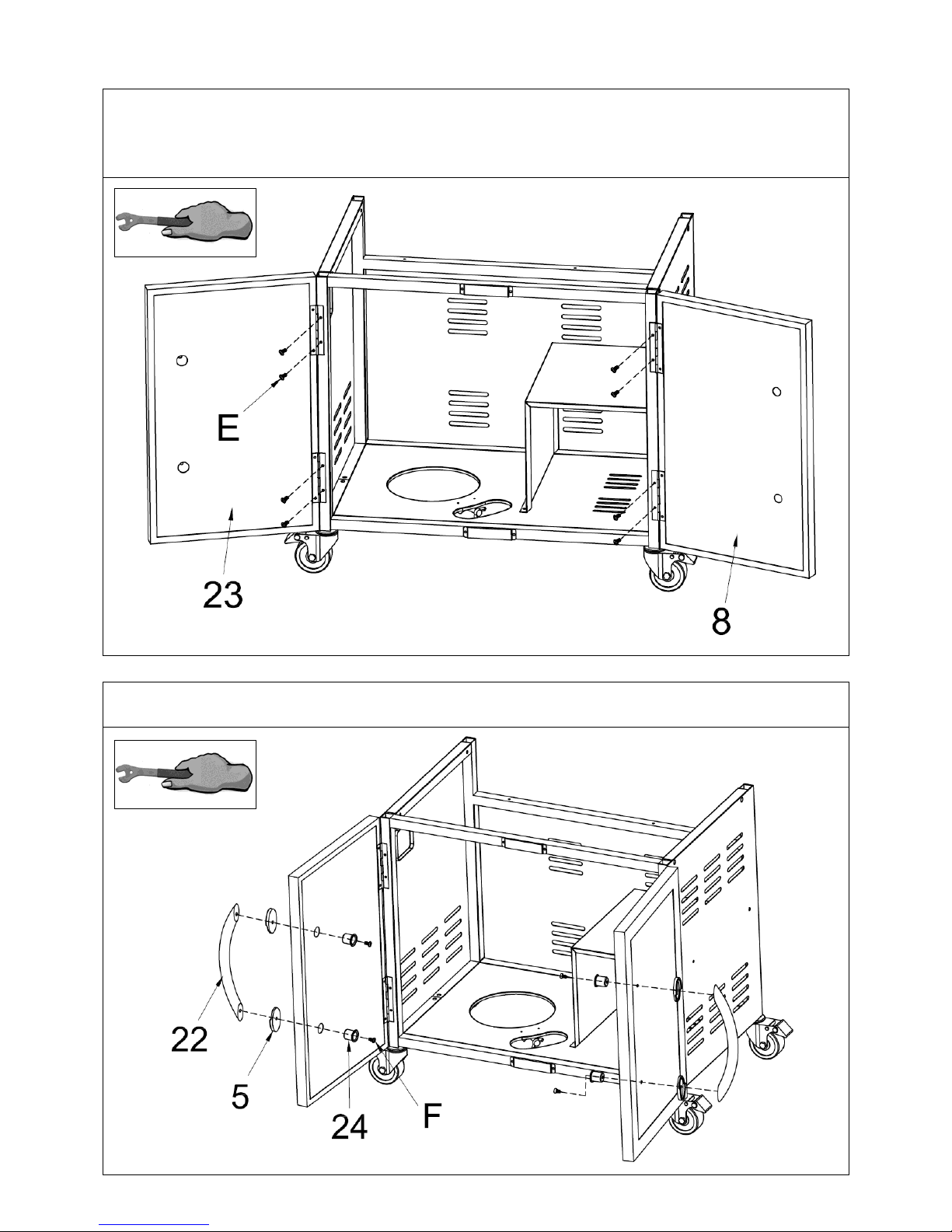

Step 7.
A
ttach the Left Door Assembly (23) and Right Door Assembly (8) to
the cart assembly using 8 pcs M4x10 bolts Silver (E).
Remark: Do not tighten the bolts until all the holes on the hinges are aligned and
match with the cart assembly. Then fully tighten all the bolts.
Step 8.
A
ttach the Door Handles (22) to the doors with the Door Handle Bezel
(5) and Plastic Inserts (24) using 4 pcs M6x12 bolts Silver (F) as shown.

18 of 32 20170126-Ver.1.0

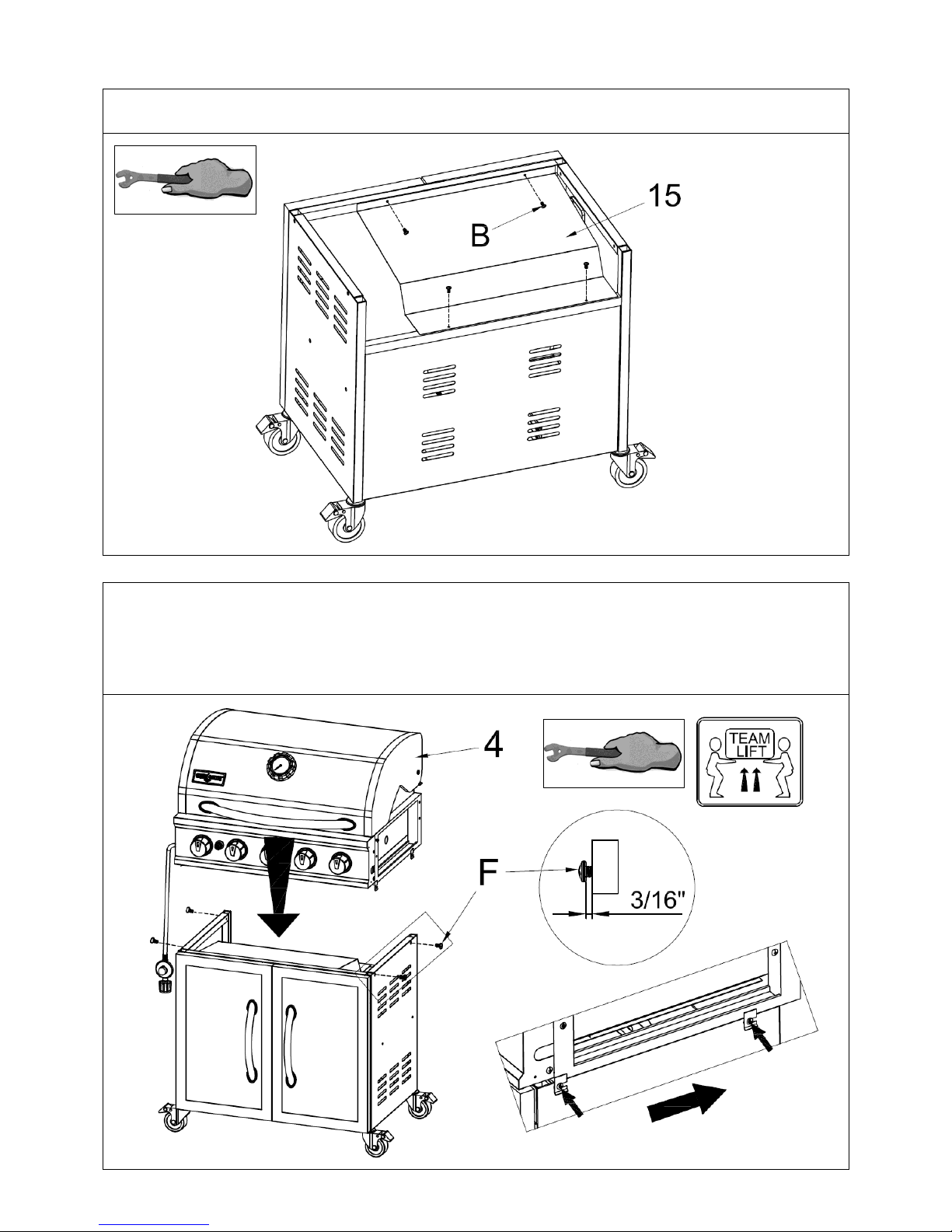

Step 9.
A
ttach the Tank Heat Shield (15) to the cart assembly using 4 pcs
M4x10 bolts Black (B). Fully tighten all the bolts in the cart assembly.
Step 10. This step needs two people to complete! Keep all 4 pcs caster locked.
Install 4 pcs of M6x12mm bolts Silver (F) on the cart assembly and adjust to
3/16” clearance as shown. Put the Grill Body assembly (4) carefully on the top
of cart assembly. Position the part in place then fully tighten the bolts. Be careful
to support the grill body and cart assembly during this step.

19 of 32 20170126-Ver.1.0

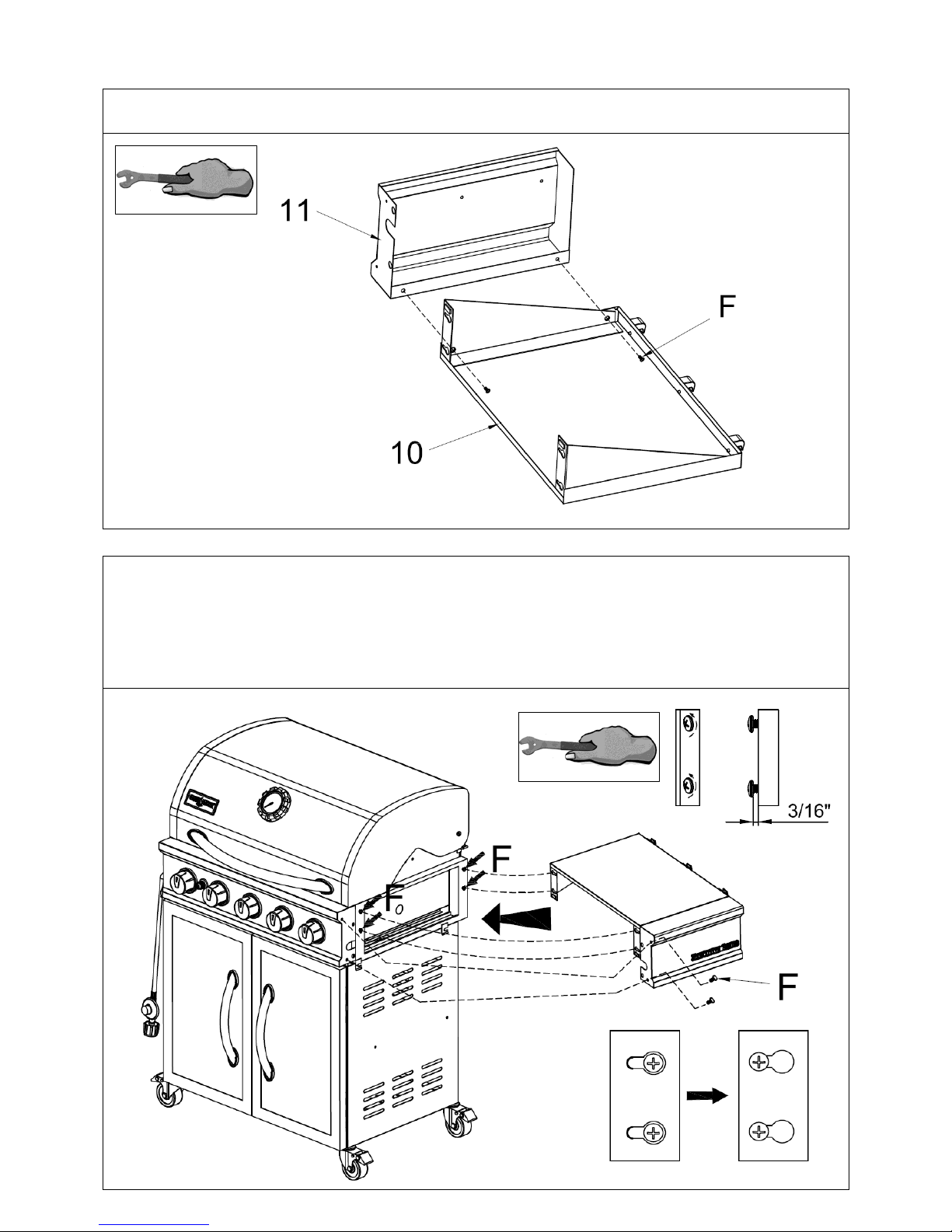

Step 11.
A
ttach the Right Side Table Panel (11) to the Right Side Table
Assembly (10) using 2 pcs M6x12mm bolts Silver (F).
Step 12. Loosen 4 pcs pre-attached bolts M6x12mm bolts Silver (F) on the right
side of the grill body and adjust to 3/16” clearance as shown. Position the holes
on the right side table assembly through the bolts at grill body as shown below.
Push the right side table assembly rightwards to lock it in place and tighten all the
bolts. Secure the right side table assembly to the control panel of the grill body
assembly using 2 pcs M6x12mm bolts Silver (F).

20 of 32 20170126-Ver.1.0
Step 13:
A
ttach the Left Side Table Panel (7) to the Left Side Table (6) using 2
pcs M6x12mm bolts Silver (F).
Step 14:Loosen 4 pcs pre-attached bolts M6x12mm bolts Silver (F) on the left
side of the grill body and adjust to 3/16” clearance as shown. Position the holes
on the left side table assembly through the bolts at grill body as shown below.
Push the left side table assembly leftwards to lock it in place and tighten all the
bolts. Secure the left side table assembly to the control panel of the grill body
assembly using 2 pcs M6x12mm bolts Silver (F).
