Ransomes KR Series Guide

Safety, Operation & Maintenance Manual
Ransomes MP653 And MP653XC, Kubota ®V2403-CR-TE4,
4WD with ROPS And Cab
Series: KR
Series: NB
Series: XA
Series: YA
Product code:RMP653
Product code:RMP653C
Product code:RHR700
Product code:RHR700C
WARNING
WARNING: If incorrectly used this machine can cause severe injury. Those who use and maintain this machine
must be trained in its proper use, warned of its dangers and must read the entire manual before attempting to set
up, operate, adjust or service the machine.
25127G-GB (Rev.0)
RJL 100 June 2016
GB
United
Kingdom

1 CONTENTS
SECTION ................................................ PAGE SECTION................................................. PAGE SECTION.................................................PAGE
© 2016, Ransomes Jacobsen Limited. All Rights Reserved
INTRODUCTION
IMPORTANT ............................................................3
PRODUCT IDENTIFICATION .......................................4
GUIDELINES FOR THE DISPOSAL OFSCRAP PRODUCTS
6
DURING SERVICE LIFE ............................................6
END OFSERVICE LIFE ............................................6
PARTS MANUAL ......................................................7
KEY NUMBERS .......................................................7
SAFETY INSTRUCTIONS
HOW TOOPERATE SAFELY .................................... 9
SAFE OPERATION ...................................................9
PREPARATION ........................................................9
OPERATION ...........................................................10
ROPS ..................................................................11
SAFE HANDLING OFFUELS ....................................11
MAINTENANCE AND STORAGE ................................11
WHEN YOU PUT THE MOWER ONA TRAILER .........12
IMPORTANT SAFETY NOTES ...................................13
DECALS
SAFETY DECALS ....................................................16
CONTROLS
OPERATOR WORKSTATION ....................................20
CONTROL PANEL AND POD
CONTROL PANEL (ROTARY THROTTLE) ..................21
STARTER KEY SWITCH ..........................................23
THROTTLE CONTROL ROTARY ................................23
THROTTLE CONTROL LEVER ..................................23
PARKING BRAKES ..................................................23
TRANSPORT LOCK SWITCH ....................................24
CUTTER SWITCH ...................................................24
4 WHEEL DRIVE INREVERSE DIRECTION SWITCH ...24
CRUISE CONTROL SWITCH ....................................24
DPF SWITCH ........................................................25
AUXILARY HYDRAULIC SERVICES KIT SWITCH
(OPTIONAL) 25
LIGHT SWITCH (OPTIONAL) ....................................25
HAZARD WARNING SWITCH (OPTIONAL) .................25
ROTATING BEACON (OPTIONAL) .............................26
LIFT/LOWER SWITCH’S...........................................26
INDICATOR LAMPS .................................................26
WEIGHT TRANSFER BUTTON ..................................26
VISUAL DIPLAY
VISUAL DISPLAY ....................................................27
START UPSCREEN ...............................................27
WARNING / SERVICE SCREEN ................................27
FIRST SCREEN ......................................................28
ENGINE START ......................................................28
THE ENGINE WILL NOT START ...............................28
BRIGHTNESS SELECT ............................................29
BRIGHTNESS ADJUST ............................................29
TIME DISPLAY OPTION ...........................................29
MAIN MENU SELECT ..............................................29
CLOCK SELECT .....................................................30
DATE SELECT .......................................................30
TIME SELECT ........................................................30
DATE FORMAT .......................................................30
SERVICE MENU .....................................................31
FAULT LOG ...........................................................31
FAULT LOG ...........................................................31
FAULT LOG DETAIL ................................................32
SERVICE MENU - TIME UNTIL SERVICE ...................32
TIME UNTIL SERVICE .............................................32
DIAGNOSTICS ........................................................33
I/O DIAGNOSTICS ..................................................33
CONNECTOR J1 ....................................................33
CONNECTOR J2 ....................................................33
CONNECTOR J3 ....................................................34
CONNECTOR J4 ....................................................34
CONNECTOR J5 ....................................................34
CONNECTOR J6 ....................................................34
ECU (ENGINE CONTROL UNIT) MONITOR (J1939) ..35
SERVICE MANAGER PIN INPUT ...............................35
ECU MONITOR INFORMATION (J1939) ...................35
INFORMATION SCREEN ONE ...................................35
INFORMATION SCREEN TWO ..................................36
MODE MENU .........................................................37
AUTOMATIC / MANUAL / CREEP MODE SELECTION ..37
MEASURE UNITS MENU .........................................37
MEASURE UNITS ...................................................38
PIN MENU .............................................................39
INPUT PIN .............................................................39
CRUISE CONTROL .................................................39
CRUISE SELECT ....................................................39
CROSS CUT ..........................................................40
CROSS CUT ACTIVE / INACTIVE ..............................40
VEHICLE SPEED ....................................................40
MAXIMUM SPEED SETTINGS MENU .........................40
PIN CHANGE .........................................................41
NEW PIN ...............................................................41
INCLINOMETER ......................................................41
DRIVE MODES .......................................................41
BRIGHTNESS ADJUST ............................................42
LANGUAGE MENU ..................................................42
LANGUAGE OPTION ...............................................42
WARNING OIL-PRESSURE FAULT ........................... 43
WARNING SLOPE ANGLE - INHIBIT LIFT .................. 43
WARNING SLOPE ANGLE - INHIBIT CUT .................. 43
WARNING OIL-PRESSURE FAULT ........................... 44
WARNING CLEAR RADIATOR SCREENS .................. 44
WARNING ENGINE FAULT ...................................... 44
WARNING FOOT PEDAL FAULT .............................. 45
WARNING BATTERY FAULT .................................... 45
WARNING CHARGE FILTER BLOCKED .................... 45
WARNING HYDRAULIC OIL-LEVEL LOW .................. 45
WARNING SERVICE NEEDED ................................. 46
WARNING SOLENOID FAULT .................................. 46
WARNING (TST) TILT SENSOR TECHNOLOGY FAULT 46
WARNING MAXIMUM SLOPE ANGLE EXCEEDED ...... 46
CONTROLS CONTINUED
TRACTION PEDAL ................................................. 47
STEERING TILT CONTROL ..................................... 47
HORN ................................................................... 47
POWER OUTLET ................................................... 47
SEAT RIGHT-SIDE ARMREST AND POD .................. 48
PARKING BRAKE RELEASE VALVE ......................... 49
TOW VALVE .......................................................... 49
LIGHTING KIT (OPTIONAL) ..................................... 49
CAB
CAB CONTROLS .................................................... 50
OPERTAION
DAILY INSPECTION ................................................ 51
OPERATOR PRESENCE AND SAFETY INTERLOCK
SYSTEM 52
PROCEDURE FOR OPERATION ............................... 53
TOFIT THE CUTTER DECKS TOTHE MACHINE ...... 54
OPERATION OFTHE MACHINE .............................. 57
HOW TOSTART THE ENGINE ................................ 57
HOW TODRIVE .................................................... 58
HOW TOMOW ...................................................... 58
TOSTOP THE ENGINE .......................................... 58
TOREMOVE A BLOCKAGE FROM CUTTING UNITS .. 59
TRANSPORTING ONA TRAILER ............................. 60
SLINGING AND JACKING THE MACHINE .................. 60
MOWING ONSLOPES ............................................ 61
ADJUSTMENTS
GENERAL PRECAUTIONS ....................................... 64
ENGINE FAN BELT ................................................ 65
WEIGHT TRANSFER ADJUSTMENT .......................... 65
AXLE STOP ADJUSTMENT ...................................... 65
STEERING SHAFT ADJUSTMENT ............................. 66
HEIGHT OFCUT ADJUSTMENT .............................. 67
HEIGHT OFCUT ADJUSTMENT (FRONT DECK) ....... 67
HEIGHT OFCUT ADJUSTMENT (WING CUTTER DECKS)
68
GENERAL INSTRUCTIONS FOR GRAMMER SEATS ... 69
SEAT (GRAMMER MSG 85) .................................. 70
AIR SUSPENSION SEAT (GRAMMER MSG 75 -521) 71
WEIGHT ADJUSTMENT .......................................... 71
FRONT AND BACK ADJUSTMENT ........................... 71
BACKREST EXTENSION ......................................... 71
LUMBAR SUPPORT (OPTION) ................................. 72
LEFT HAND ARMRESTS ......................................... 72
ARMREST ADJUSTMENT ........................................ 72
BACKREST ADJUSTMENT ....................................... 72
MAINTENANCE ...................................................... 73
AIR SUSPENSION SEAT (GRAMMER MSG 95 -721) 74
WEIGHT ADJUSTMENT .......................................... 74
HEIGHT ADJUSTMENT ........................................... 74
ARMRESTS ADJUSTMENT (OPTION) ....................... 75
ARMREST (OPTION) .............................................. 75
BACKREST ADJUSTMENT (OPTION) ........................ 75
LUMBER SUPPORT (OPTION) ................................. 75
BACKREST ADJUSTMENT (OPTION) ........................ 76
FORE / AFT ADJUSTMENT (OPTION) ...................... 76
MULTIFUNCTION ARMREST (OPTION) ..................... 76
MAINTENANCE ...................................................... 77
MAINTENANCE AND LUBRICATION
MAINTENANCE AND LUBRICATION CHARTS ............ 78
GENERAL PRECAUTIONS ........................................ 82
ENGINE ................................................................ 82
ENGINE LUBRICATION ........................................... 83
ENGINE COOLANT ................................................. 84
HYDRAULIC SYSTEM ............................................. 86
HYDRAULIC FILTER ............................................... 87
HYDRAULIC TEST PORTS ...................................... 88
FUEL .................................................................... 89
FUEL SYSTEM ...................................................... 90
AIR CLEANER ....................................................... 91
BATTERY .............................................................. 92
CHARGE THE BATTERY.......................................... 93
ENGINE EXHAUST .................................................. 93
DIESEL PARTICULATE FILTER ................................ 94
HYDRAULIC HOSES................................................ 95
TYRES ................................................................. 96
WHEEL MOUNTING PROCEDURE ........................... 96
BLADE CHANGE .................................................... 97
INSPECTING BLADES ............................................. 98
SHARPENING BLADES ........................................... 98
FOLDING ROPS ..................................................... 99
CARE AND CLEANING .......................................... 100
MOWER STORAGE ............................................... 101
LUBRICATION OFCUTTING UNIT ........................... 102
PROBLEM SOLVING
ENGINE PROBLEM DIAGNOSTICS .......................... 104
QUALITY OF CUT
QUALITY OFCUT PROBLEM SOLVING ................... 106
THE STEP CUT .................................................... 107
SCALPING ............................................................ 108
STRAGGLERS ....................................................... 109
STREAKS ............................................................. 110
WINDROWING ...................................................... 111
MISMATCHED CUTTER DECKS .............................. 112
FUSES AND RELAYS
FUSE AND RELAY/COMPONENT IDENTIFICATION .... 114
SPECIFICATIONS
ENGINE SPECIFICATION ........................................ 117
DIMENSIONS & WEIGHTS (ROPS MACHINE) ........... 118
DIMENSIONS & WEIGHTS (CAB MACHINE) ............. 120
MACHINE SPECIFICATION ..................................... 122
VIBRATION ........................................................... 123
NOISE ................................................................. 124
SLOPES ............................................................... 124
CUTTING PERFORMANCE ...................................... 124
CUTTER DECK SPECIFICATION ............................. 125
RECOMMENDED LUBRICANTS ............................... 126
ACCESSORIES ..................................................... 126
CERTIFICATES OFCONFORMITY ........................... 127
GUARANTEE
WARRANTY .......................................................... 132
SERVICE............................................................... 132

en-3
INTRODUCTION 2
2.1 IMPORTANT __________________________________________________________
The MP653 with Diesel engine is a self propelled rotary mower. With hydraulic systems to power the traction
drive, the cutting unit lift and lower, the cutting unit drives and the steering.
IMPORTANT: Do the maintenance indicated in this manual to make sure that the quality of cut is kept at a high
level.
This Manual is part of the machine and must stay with the machine always. The suppliers of new, or used,
machines need to keep this documentation and supply the owners with a copy.
You must use the machine to cut the grass only and not for any other purpose. The Compliance with these con-
ditions of The operation, service and repair specified by the manufacturer, are understood to be part of the cor-
rect use.
ALL operators MUST read through this manual and understand the Safety Instructions, controls, lubrication and
maintenance procedures.
Make sure that you obey all safety and road traffic regulations.
You must not make any changes to the machine that are not approved by the manufacturer. This type of change
can release the manufacturer from the liability for any damage or injury.
Discard of worn parts in alignment with all local environment protection regulations. Use the local systems avail-
able in the country where the machine is used, for these recycled materials. When the machine is at its end of
life, there are guidelines in this manual for the removal of the machine from use.
Use only Ransomes Jacobsen Genuine spare parts to meet the machine type approval regulations specified by
the European Union.
2006/42/EC
These instructions are the Original instructions confirmed by Ransomes Jacobsen Limited

en-4
2 INTRODUCTION
MADE IN JAPAN
V2403
Serial No.:
Code No.:
XXXXXXX
XXXXX-XXXXX
MADE IN JAPAN
V2403
Serial No.:
Code No.:
XXXXXXX
XXXXX-XXXXX
CAUTION
Do not use ether or
starting uid.
Severe engine damage
will occur.
19426-87903
.5



$
&'
%
A
B
C
D
2.2 PRODUCT IDENTIFICATION ___________________________________________
A Maximum front axle load in Kg (for all machines being driven
on the highway)
B Weight-Mass in Kg
C Maximum rear axle load in Kg (for all machines being driven
on the highway)
D Power Rating in Kw
E Date code
F Machine type (Name)
G Product code
H Product name
J Serial number
Location of Serial number plate

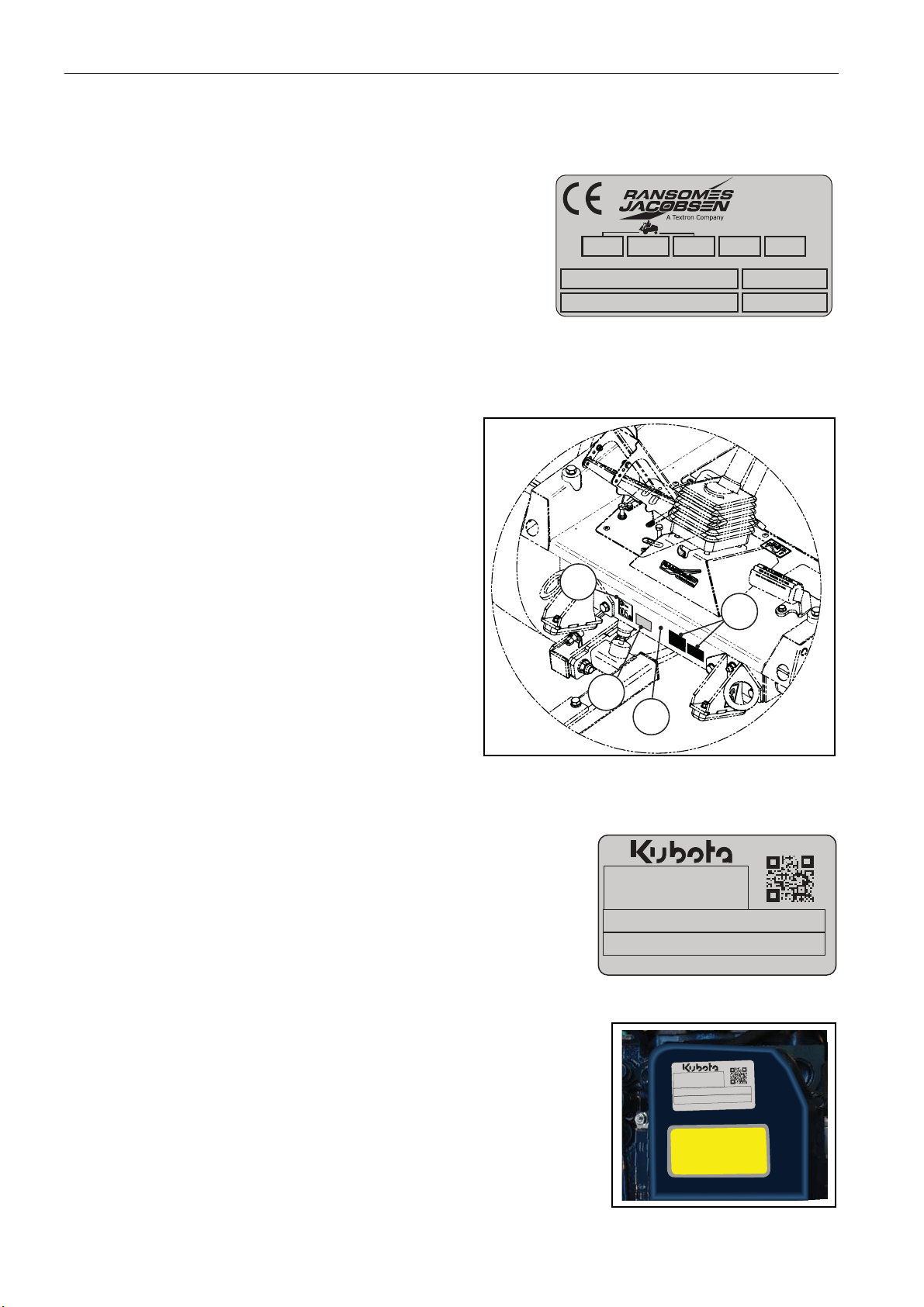

The serial number plate (A) is found on the front of the
chassis, between the front deck stops next to the
environmental noise decal (B).
Chassis Stamp
The Serial number and date code (C) are shown on the
chassis between the serial plate and engine data decals
(D).
Engine Identification
Serial number plate
Location of Engine Serial number plate
The engine serial number is found on the top of the valve cover toward the
front of the mower. Label shows the engine group and serial number.
The engine serial number is also found on the engine block.
Kg Kw Kg Kg
West Road
Ransomes Europark
Ipswich IP3 9TT
England
ABCD E
FG
HJ

en-5
INTRODUCTION 2
CD
E
Kg
A
F
West Road
Ransomes Europark
Ipswich IP3 9TT
England
B
ROPS Serial number plate
A Reference Mass
B Date Code
C Standard Used
DPartNumber
E For Product
F Serial Number
ROPS Serial number plate Location
The ROPS serial number plate (C) is found at the base of the front of the
ROPS main beam.
Cabin Serial number plate
Cabin Serial number plate Location
The cab serial number plate (C) is located on the front face of the control
panel facing forwards.
FG
H
Kg
B
J
WestRoad
RansomesEuropark
IpswichIP39TT
England
E
C
DIETEG
GERÄTEBAU GMBH & CO. KG
MODEL N0. 50 048 0000
SERIAL NO. 50 048 / #########
APPROVED FOR THE MP SERIES
OECD APPROVAL No. 4 / N950/14/16923
DIETEG GERÄTEBAU GMBH & C0.KG
FUHRENKAMP 1
D-29664 WALSRODE
C
DIETEG
GERÄTEBAU GMBH & CO. KG
D-29664 WALSRODE
MODEL N0. 50 048 0000
SERIAL NO. 50 048 / #########
APPROVED FOR THE MP SERIES
OECD APPROVALNo. 4 / N950/14/16923
DIETEG GERÄTEBAU GMBH & C0.KG
FUHRENKAMP 1

en-6
2 INTRODUCTION
2.3GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS _____________________
2.3.1 DURING SERVICE LIFE _______________________________________________
All the used fluids and parts must be controlled as hazardous materials material. Recommended procedures must be
followed for their safe removal.
If a fluid leak occurs, contain the spill to make sure that the leak does not flow into the ground or drainage system.
Follow the regulations in force to make sure that leaks are controlled.
The maintenance procedures in this manual make sure that the damage that the machine can cause in the local
environment is controlled.
When the machine completes its full service life, the following actions must be taken.
2.3.2 END OF SERVICE LIFE _______________________________________________
These guidelines must be used with applicable Health, Safety and Environmental laws. Always use the approved local
waste disposal and agencies for recycled materials.
• Park the machine in an applicable area to use all of the necessary lifting equipment.
• Use correct tools and Personal Protective Equipment (PPE) and take instruction from the technical
manuals applicable to the machine.
• Remove and store correctly
1. Batteries
2. Fuel
3. Engine coolant
4. Oils
• Read the Technical Manual before you begin to disassemble the machine. Plan the disassembly, give
attention to parts that are in a state of mechanical pressure or contain stored energy e.g springs.
• Items that continue to have a service life must be separated and returned to the local dealer.
• Items that are worn must be separated into the material groups and removed according to the agencies
for the recycled materials that are available. Common examples.
• Steel
• Non ferrous metals
• Aluminium
• Brass
• Copper
• Plastic materials
• Identified
• Can be recycled
• Can not be recycled
• Not identified
• Rubber
• Electrical and Electronic Components
• Some parts are not easily separated e.g Hydraulic hose. These materials must be added to the
“General discarded materials” area.
• Do not burn discarded materials.
Change the machinery records to show that the machine is not in operation and is discarded. Supply this serial number
to The Ransomes Jacobsen Warranty Department to close their records.

en-7
INTRODUCTION 2
2.4 PARTS MANUAL ______________________________________________________
To meet the standard ISO14001, Ransomes Jacobsen Limited does not send a paper parts manual with every
product.
To refer to the parts list for this mower you have four options:
1. Website – www.ransomesjacobsen.com. Select the “ONLINE PARTS LOOK-UP” tab. These pages will
show the parts list and the line drawings you need to help with the identification of spare parts.
2. Website – www.ransomesjacobsen.com. Select the “MANUALS” tab. You have the option to view or
“Download” a PDF version of the parts manual.
3. Complete the form included in the technical manual pack supplied with the machine for one of the two
options below
a. A disc that contains an electronic copy of the Parts Book.
b. A paper copy of the parts manual.
2.5 KEY NUMBERS _______________________________________________________
Record the key numbers
Starter Switch:-- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Diesel tank:-- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Record the machine and the engine numbers.
The machine serial number is found on the registration plate and the engine serial number is on the rocker cover.
Machine Number:- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Engine Number:- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

en-8
2 INTRODUCTION
NOTES

en-9
SAFETY 3
3.1 HOW TO OPERATE SAFELY ___________________________________________________
3.1.1 Safe Operation
a Read the Operator’s Manual and other training material. If the operator or technician can not read this
manual, the owner is responsible to describe this material to the operators and technicians. Manuals in
additional languages may be available on the Jacobsen or Ransomes Jacobsen website.
a Read all of the instructions for this mower carefully. Know the controls and the correct operation of the
equipment.
b Children or persons who do not understand these instructions must not use the mower. The local
regulations can limit the age of the operator.
c Never use a mower near persons, including children or animals.
d Remember that the operator or owner is responsible for accidents or hazards that occur to other persons or
their property.
e Never carry passengers.
f Never allow persons to operate or service the mower or its attachments without correct instructions.
g Do not operate equipment while tired, sick or after you use alcohol or drugs.
3.1.2 Preparation
a When you operate the mower, wear correct clothing, slip resistant work shoes or boots, work gloves, hard
hat, safety glasses and hearing protection. Long hair, loose clothing or jewelry can be caught in moving
parts.
b Do not operate the equipment with the Interlock System disconnected or the system does not operate
correctly. Do not disconnect or prevent the operation of any switch.
c Never operate equipment that is not in correct order or without decals, guards, shields, deflectors or other
protective devices fastened. When you mow with a side discharge deck, DO NOT operate the cutting unit
without the discharge chute installed.
d Inspect the mower before you operate the mower. Check the tyre pressure, engine oil level, the radiator
coolant level and the air cleaner indicator. Fuel is flammable. Use caution when you add the fuel to the
mower.
e Operate the mower in daylight or in good artificial light. Use caution when you operate the mower during
bad weather. Never operate the mower with lightning in the area.
f Inspect the area to select the accessories and attachments that are needed to correctly and safely do the
job. Only use parts, accessories and attachments approved by Manufacture.
g Be careful of holes in the terrain and other hazards that are not visible.
h Inspect the area where the equipment is operated. Remove all objects you can find before you operate. Be
careful of obstructions above the ground (low tree limbs, electrical wires) and also underground obstacles
(sprinklers, pipes, tree roots). Enter a new area carefully. Look for possible hazards.
i Inspect the cutting system before you start the mower. Make sure the blades are free to rotate. When you
rotate one blade, other blades can rotate.
WARNING
EQUIPMENT OPERATED INCORRECTLY OR WITHOUT TRAINING CAN BE DANGEROUS.
Know the location and correct operation of controls. Operators without experience must receive instruction from
another person that knows the correct operation of the equipment before you operate the mower.
Only use parts, accessories and attachments approved by Ransomes Jacobsen.
!

en-10
3 SAFETY
3.1.3 Operation
a Never operate the engine without enough ventilation or in an enclosed area. The carbon monoxide in the
exhaust fumes can increase to dangerous levels.
b Never carry passengers. Keep other persons or animals away from the mower.
c Disengage all drives and engage the parking brake before you start the engine. Only start the engine with
the operator in the seat. Never start the engine with persons near the mower.
d Keep your legs, arms and body inside the operator compartment while the mower is in operation. Keep
your hands and feet away from the cutting units.
e Do not use on the slopes greater than the safe slope limit for the equipment.
f To guard against over turning or loss of control:
– Operate the mower up and down on the face of slopes (vertically), but not across the face (horizontally).
– Do not start or stop suddenly on slopes.
– Decrease the speed when you operate on slopes or when you must turn. Use caution when you change
direction. Turf condition can change the mower stability.
– Use caution when you operate the mower near drop-offs, ditches or embankments.
– Be careful of holes in the terrain and other hazards that are not visible.
g When you drive in the reverse direction, look behind you and down to make sure the path is clear. Do not
operate the cutting units when you drive in the reverse direction.
h Use caution when you go near corners, trees or other objects that can prevent a clear view.
i Equipment must meet the current regulations to be driven on the public roads.
j Before you move across or operate on the paths or roads, turn off the PTO switch, lift the mowers and
travel at decreased speed. Look for traffic.
k Stop the blades when the mower is on any surface that is not grass.
l Do not release the cut grass in the direction of persons or allow persons near the mower while in operation.
m Do not operate the mower with damaged guards or without safety devices in position.
n Do not change the engine governor setting or over-speed the engine. Never change or tamper with
adjusters that are closed with a seal for the engine speed control.
o Before you leave the operator compartment, for any reason:
– Disengage all the drives and lower attachments to the ground.
– Engage the parking brake.
– Stop the engine and remove the key.
p When you hit an object or mower starts to cause the vibration that is not normal, inspect the mower for
damage and make repairs.
q Decrease the throttle setting before you stop the engine.
r Do not use this equipment for uses that the mower was not made for.
