Rasha PRO LIGHT PANTA-V7 User manual

R
P
R
GBAW(
5
P
ANT
A
W
I
User
5
-IN-1
A
-V7
I
RELESS
P
Instructio
n
COLOR
S
P
ROFILE
ns
S
)

Panta-V7WirelessProfile Features
• RGBAW(5 in 1)-Colors Mixing / Single RGBAW Colors
• Electronic Dimming 0-100%
• Strobe(0-100%)
• Built in Microphone
• DMX-512 protocol
• 3-Pin DMX Connection
• Five/Nine DMX Modes:
• Wireless 2.4G Receiver Built -In
Panta-V7 WirelessProfile WarrantyRegistration
The Panta-V7 Wireless Profile carries a 1 year limited warranty. Please fill out the enclosed
warranty card to validate your purchase. All returned service items whether under warranty or
not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A.
number must be clearly written on the outside of the return package. A brief description of the
problem as well as the R.A. number must also be written down on a piece of paper included in
the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our customer support team on
our customer support number. All packages returned to the service department not displaying a
R.A. number on the outside of the package will be returned to the shipper.
Panta-V7 WirelessProfile Installation
The unit should be mounted using a mounting clamp (provided)/keep in plane surface, affixing
it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating. Always ensure that the structure to which
you are attaching the unit is secure and is able to support a weight of 10 times the unit’s weight.
Also, always use a safety cable that can hold times the weight of the unit when installing the
fixture.
The equipment must be installed by a professional, and it must be installed in a place where it
is out of the reach of people’s grasp.
Panta-V7 Wireless Profile Introduction
Unpacking: Thank you for purchasing the Panta-V7 Wireless Profile by Rasha®. Every Panta-V7
Wireless Profile has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the carton
appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories
necessary to operate the unit has arrived intact. In the case damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Do not return this
unit to your dealer without first contacting customer support.
Introduction: The Rasha® Tint -5-V12 Wireless Profile is part of a continuing pursuit to create high quality
intelligent lighting. The Panta-V7 Wireless Profile is a wireless DMX DMX intelligent, high-powered LED
par fixture. This fixture can be used in a standalone mode or connected in a Master/Slave configuration.
This Wireless Profile has five operating modes: Sound Active mode, Auto mode, RGB+White+ Amber
mode, 12 Static Color mode, and DMX control mode. Color Strobe Effect., Color Change, Color Dimmer
color Jump/Gradually auto change. To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic operations of this unit. These
instructions contain important safety information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Customer Support: Rasha provides a customer support line, to provide set up help and to
answer any question should you encounter problems during your set up or initial operation.
You may also visit us on the web at www.rashanet.com for any comments or suggestions.
Service Hours are Monday through Friday 8:00 a.m. to 5:30 p.m.Bejing Standard Time.
Voice: 0086-020-37726213
Fax:[phone]
E-mail: [email protected]/[email protected]
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain
or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself, doing so will void your manufactures warranty. In the unlikely event your unit may
require service please contact Rasha Professional A/S.

Panta-V7WirelessProfile SafetyPrecautions
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not
attempt to remove or break off the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out` doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to the point they exit from
the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer.
• Heat -The appliance should be situated away from heat sources such as radiators, heat
registers, stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in
performance.
Panta-V7WirelessProfile SetUp
Power Supply: The Rasha Tint Wireless Profile contains switching (multi Voltage) voltage
switch, which will auto sense the voltage when it is plugged into the power source. With this
switch there is no need to worry about the correct power voltage; this unit can be plugged in
anywhere. Light can recharge and use at same time.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of
communication between intelligent fixtures and controllers. A wireless transmitter/ DMX
controller sends DMX data instructions from the controller to the fixture. DMX data is sent as
serial data that travels from fixture to fixture via the wireless DMX receiver/DATA “IN” and
DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufactures to
be linked together and operate from a single controller, as long as all fixtures and the controller
are DMX compliant. To ensure proper DMX data transmission, when using several DMX
fixtures try to use the shortest cable path possible or connect wireless transmission. The order
in which fixtures are connected in a DMX line does not influence the DMX addressing. For
example; a fixture assigned a DMX address of Addr-A001 may be placed anywhere in a DMX
line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX
address of A001, the DMX controller knows to send DATA assigned to address A001 to that
unit, no matter where it is located in the DMX chain/Controller.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Panta-V7 Wireless
Profile can be controlled via DMX-512 protocol/Wireless DMX transmitter. The Panta-V7
Wireless Profile has 5/9 DMX channel modes,. The DMX address is set on the back panel of
the Panta Wireless Profile. Your unit and your DMX controller require a standard 3-pin XLR
connector/wireless DMX Transmitter for data input and data output. We recommend
Rasha-Cable DMX cables/Wireless Transmitter. If you are making your own cables, be sure to
use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro
lighting stores) or 2.4Mhz Wireless Transmitter/Receiver. Your cables should be made with a
male and female XLR connector on either end of the cable. Also, remember that DMX cable
must be daisy chained and cannot be split.

Panta-V7 WirelessProfile SetUp

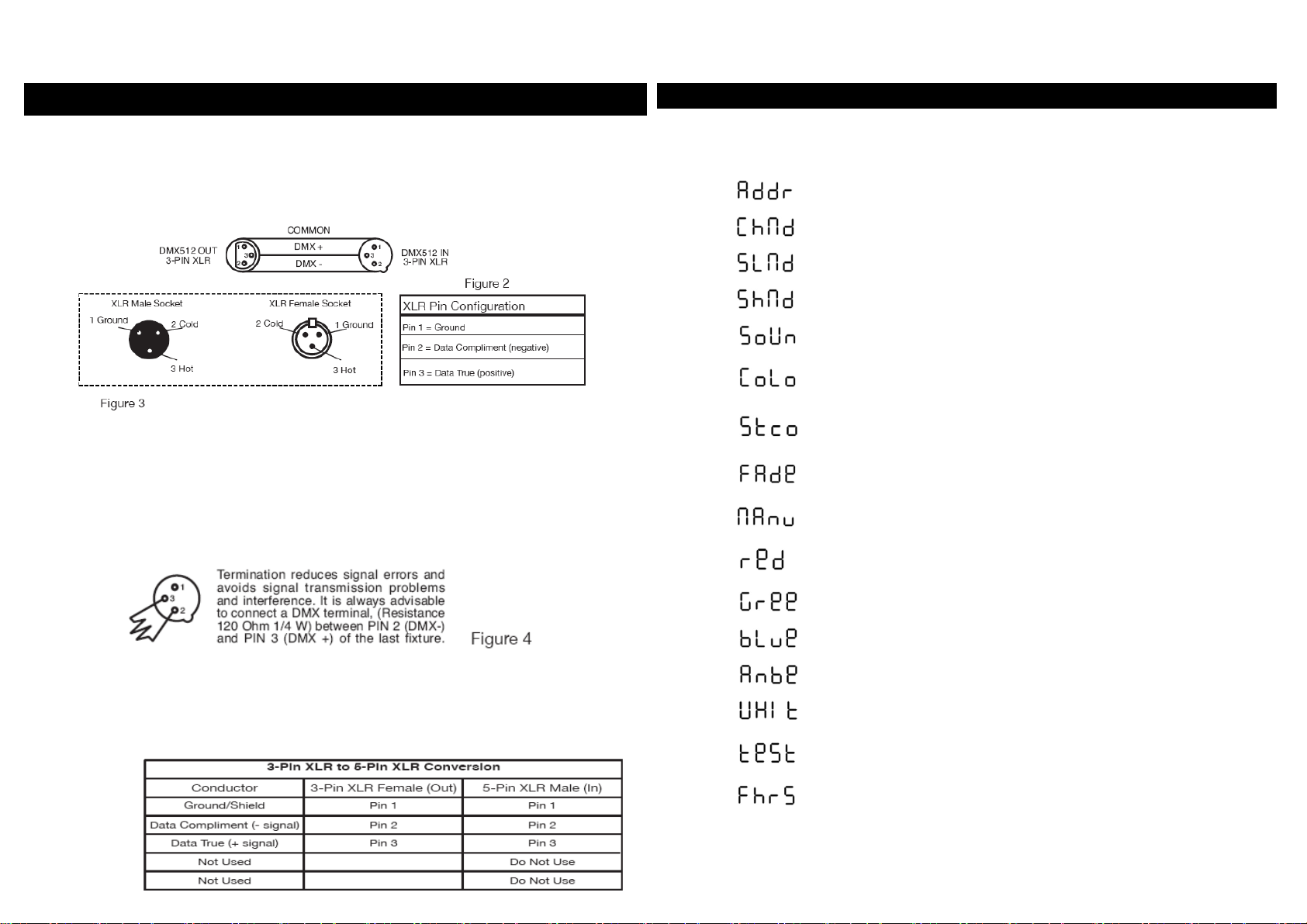

Notice: Be sure to follow figures two and three when making your own cables. Do not use
the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the
ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
Grounding the shield could cause a short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need
to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4
watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to
terminate the line. Using a cable terminator (Rasha part number R-DMX/T) will decrease the
possibilities of erratic behavior
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for
DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX
line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart below details a proper
cable conversion.
Panta-V7WirelessProfile Operating Instructions
UP and DOWN buttons to adjust intensity.
5. After you have adjusted the RGBAW colors to make your desired color you can then activate strobing by
pressing the SET UP button to enter the Flash (strobe) mode.
1. : 1-512
2. : (5CH/9CH)
3. : MAST/ SLAVE
4. :
(SOUND ACTIVATED &auto-run mode is one)
(COL1 to COL12、AUTO)
(0-255 strobe speed)
(color gradually change, speed: SP01 to SP08）
5. : ( 5 colors manual select):
Red (0-255)
Green (0-255)
Blue (0-255)
Amber (0-255)
White (0-255)
to test each color if work
7. . : (Sum of the device consumption hours since built the fixture)

Panta-V7 DMX Mode
DMX Mode:
Operating through a DMX controller gives the user the freedom to create their own programs tailored to their
own individual needs. This function also allows you to use your fixtures as spot lights. The Panta Wireless
Profile has 5/9 DMX Mode (for each modes’ DMX traits See below dmx chart).
1. This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
2. To run your fixture in DMX mode press the Addr button until “Addr” is displayed. “ADDR” represents the
current displayed address then press A001. Use the UP or DOWN buttons to select your desired DMX address,
then press the SETUP button to select your DMX Channel mode.
3. Use the UP or DOWN buttons to scroll through the DMX Channel modes. The Channel modes are listed
below:
To run the 5 Channel Mode, press the CHND button then use UP/ Down Button unit “5CH” is displayed. This is
the 5 Channel DMX Modes.
To run the Channel Mode, press the CHND button then use UP/ Down Button unit “9CH” is displayed. This is
the 9Channel DMX Mode.
4. Please see below pages for DMX values and traits.
5. After you have chosen your desired DMX Channel mode plug in the fixture via the XLR connections to any
standard DMX controller.
Panta –V7 Wireless Profile Operating Instructions
Display Inversion:
Menu down up Enter
After initialization, the unit is ready for setting and working. Please see
the following table for setting information
This function will allow you to “flip” the LED display.
1. Plug the fixture in and press the Addr button until “ADDR” is dis- played
. “001” represents
either “on” or “oFF”.
2. Press the SET UP button until “Test” is displayed. For testing the light
Default Running Mode:
This is a default running mode. When this mode is activated all modes will return to their
default settings.
1. Plug the fixture in and press the MODE button until “dXX” is dis- played
. “XX” represents
either “on” or “oFF”.
2. Press the SET UP button until “Addr” is displayed.
3. Press the UP and DOWN buttons simultaneously. Press the MODE button to exit.
4. Press SLDN –NAST to choose Master or salve mode
5. Press –SHND-SOUN for sound active mode
6. Press SHND-COLO – AUTO to choose auto color mixing
7. Press SHND-COLO-COL1 to COL16 to set the customized color or hold the
NANU Mode

Panta-V7 WirelessProfile Master-SlaveConfiguration
Master-Slave Configuration:
This function will allows you to link units together to run in a Master-Slave mode. In
Master-Slave operation one unit will act as the controlling unit and the others will
react to the controlling unit’s built-in programs. Any unit can act as a Master or as a
Slave however, only one unit can be programmed to act as the “Master.”
Master-Slave Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of the unit. Use standard
XLR data cables to link your units together. Remember that the Male XLR connector
is the input and the Female XLR connector is the output. The first unit in the chain
(master) will use the female XLR connector only. The last unit in the chain will use the
male XLR connector only.
2. Connect the first “Slave” unit to the “Master.”
3. Set the “Master” unit to your desired mode of operation. The “Slave” unit will now
follow the “Master”.
4. Master configuration for the built in program/static color/sound active/nanu mode
5. Salve configuration for the DMX mode, or wireless dmx mode
6. Setting for Master mode: Menu\Slnd\Nast- Master Mode
7. Setting for Salve mode: Menu\Slnd\Slau- Salve Mode
If light go back automatically to the color mode or static color or sound mode please
be noted that your light in master mode you need to change the setting to the slave
mode to control the light by dmx or save the last transmission record.
If light not stable in static mode or custom mode be noted that light is salve mode,
you have set the light first at master mode to stable in standalone built in color or
effect
Tint 5-V7 Wireless Profile Operation
DMX Control:
Operating through an DMX controller gives the user the freedom to create their own programs
tailored to their own individual needs. Follow the directions below to set your DMX Mode and
address.
1. Before connecting to DMX controller, your fixture has different DMX channel modes; please
select your desired mode by pressing the DMX Mode button, then using the “Up” or “Down”
buttons to scroll through the DMX Channel Modes. Set the mode before you address the
fixture. See the bottom of this page for the DMX modes.
2. After you have selected your mode, set the wireless DMX wireless transmitter, after the
transmission successful in between the light and dmx controller(wireless transmitter) the
Green Led bulb in rear side of the light it will start to blip(means the successful in
transmission).
Note: When setting the DMX address each time a number is pressed a LED color will glow, 3.
now you may connect the fixture via the XLR connections to any standard DMX controller.
Please see below pages for a detailed description of the DMX modes, values, and traits.
T

Panta-V7 Wireless Profile DMX Values & Functions
5 CH Modes
Channel Value Description
CH1 0 No action
1-255 RED dimmer
CH2 0 No action
1-255 GREEN dimmer
CH3 0 No action
1-255 BLUE dimmer
CH4 0 No action
1-255 Amber( dimmer -Sharp
CH5
0 No action
1-255 White (0-255 white dimmer)
9 CH Modes
Channel Value Description
CH1 0 No action(blackout)
1-255 RED dimmer--Bright
CH2 0 No action (blackout)
1-255 GREEN dimmer--Bright
CH3 0 No action (blackout)
1-255 BLUE dimmer--Bright
CH4 0 No action (blackout)
1-255 Amber dimmer-Bright
CH5 0 No action (blackout)
1-255 White Dimmer-Bright
CH6 0 No action(blackout)
128-255 RGBAW dimmer-Bright
CH7 0-127 No action (blackout)
128-255 Strobe from slow to fast
CH8 0 No action (blackout)
1-255 Auto Run from slow to fast
CH9 0 No action (blackout)
1-255 Auto Run Normal
Panta-V7 Wireless Profile Power Cord Daisy Chain
With this feature you can connect the fixtures to one another using the IEC input and output
sockets. The quantity that can be connected is 33 fixtures maximum. After 33 fixtures you will
need to use a new power outlet. They must be the same fixtures. DO NOT mix fixtures.
Panta-V7 Wireless Profile Fuse Replacement
Disconnect the unit from its power source. Remove the power cord from the unit. Once the
cord has been removed, you will find that the fuse holder is located inside the power socket.
Insert a flat-head screw driver into the power socket and gently pry out the fuse holder.
Remove the bad fuse and replace with a new one. The fuse holder also has a holder for a
spare fuse.
Panta-V7 Wireless Profile Trouble Shooting
Listed below are a few common problems the user may encounter, with solutions.
Unit not responding to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”;
on some other DMX devices pin 2 may be ‘hot’). Also, check that all cables are connected to
the right connectors; it does matter which way the inputs and outputs are connected.
Unit does not respond to sound:
1. Quiet or high pitched sounds will not activate the unit.
2. Make sure that Sound Active mode is activated.

Panta-V7 WirelessProfile Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be
carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog
residue, dust, dew).
ng
Panta–V7WirelessProfile BodyDetails
Front Panel (Figure-1)
Rear Panel (Figure 1)
Rear Panel (Figure 2)
1. Alpha Led Display(4 digits)
2. Menu Button
3. DMX out port
4. DMX In Port
5. Power out port
6. Micro Phone/Sound Detector
7. Power in port
8.
Wireless si
g
nal indicator led bulb
ID Code Selector
DMX Wireless Receiver Antenna

Panta-V7 Wireless Profile Warranty
MANUFACTURER’S LIMITED WARRANTY
Rasha Professional A/S Co (Rasha Lights). hereby warrants, to the original purchaser, Rasha products to be free of manufacturing
defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This
warranty shall be valid only if the product is purchased within the People’s Republic of China , including possessions and territories. It is
the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For
warranty service you must obtain a Return Authorization number (RA#) before sending back the product. Contact Rasha Professional
A/S Service Department at [phone]. Send the product only to the Rasha Professional A/S Co. factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Rasha. will pay
return shipping charges only to a designated point within the China PR. If the entire instrument is sent, it must be shipped in it’s original
package. No accessories should be shipped with the product. If any accessories are shipped with the product, Rasha Professional A/S
Co. shall have no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any manner which Rasha
Professional . concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone
other than the Rasha Professional. factory unless prior written authorization was issued to purchaser by Rasha Professional if the
product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning or periodic check-up. During the period
specified above, Rasha professional Co.,. will replace defective parts at its expense with new or refurbished parts, and will absorb all
expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Rasha
professional A/S Co., under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of Rasha Professional A/S Co., All products covered by this warranty were manufactured after January 1, 2006, and bear
identifying marks to that effect.
E. Rasha Professional A/S Co.,. Reserves the right to make changes in design and/or improvements upon its products without any
obligation to include these changes in any products theretofore manufactured. No warranty, whether expressed or implied, is given or
made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all
implied warranties made by Rasha Professional A/S Co.,. in connection with this product, including warranties of merchantability or
fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including
warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer’s and/or Dealer’s sole
remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Rasha Professional A/S
Co.,. be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to Rasha Professional A/S Co., Products and supersedes all prior warranties and
written descriptions of warranty terms and conditions heretofore published.
Panta-V7 WirelessProfile Specifications
Model: Panta-V7 Wireless Profile-V1.0
Voltage: 100V ~ 240V/50~60Hz
LEDs: 7 x 15W High Brightness 5-in-1 – RGBWA Color
Beam Angle: 35 Degrees
Working Position: Any safe working position
Power Draw: 150W(24Voltage)
Power Cord Daisy Chain: 33 Fixtures Max.
Fuse: 500mA
Weight: 3.3Kgs.
Dimensions: 20 (L) x8.4 Botom,3.7(Top)(W) x 20 CM
Colors: RGB+Amber +White Color Mixing and single color
Color: 16.7 million kinds of color change
DMX Channels: 5/9 DMX
Wireless DMX 512 : Built in 2.4G, Wireless DMX
Receiver
Control Mode: Stand alone/Maser salve/DMX/Auto
Warranty: 1Year (365 days)
A uto Sensing Voltage: This fixture contains a automatic voltage switch, which will auto sense
the voltage when it is plugged into the power source.
Please Note: Specifications and improvements in the design of this unit and this manual are
subject to change without any prior written notice.
©Rasha Professional A/S Co., Limited
No: 8 Street 4, Sandongxincunxiqu, No.97 Sandongdadao, Huadu District, Guangzhou
TEL: [phone] Fax:[phone]
Web: www.rashalight.com / E-mail: [email protected]
