RASLOK HCA-T3 User manual

Page 1of 10
RASLOKTM
Better Water, Better Life
Water Purifier Solutions
Operating Instructions
RASLOKTM Filtered Water Dispenser
HCA-T3
© 2012 RASLOK Pte. Ltd. All rights reserved.
RASLOK™ is a trademark of RASLOK Pte. Ltd., Singapore.
Website: www.raslok.com Email: sal[email protected]om
● Design and color may differ from the picture.
● Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance.
● The rated voltage of this unit is AC 220V/50Hz only.

Page 2of 10
Table of Contents
Safety information ....................................................................................... 3
NOTICE ................................................................................................... 4
Panel functions and control ............................................................................. 5
How to use panel functions ............................................................................ 6
Cleaning and maintenance of water dispenser ..................................................... 7
Troubleshooting guide .................................................................................. 8
Technical specifications .................................................................................. 9

Page 3of 10
Safety information
Read, understand, and follow all safety information contained in these instructions prior to
use of the RASLOK Filtered Water Dispenser HCA-T2.
Retain these instructions for future reference.
Intended Use:
The RASLOK
TM Filtered Water Dispenser HCA-T2 is intended for use in filtering potable water for drinking
purposes. The system is typically installed at point of use and must be installed by a RASLOK authorized
professional installer according to installation instructions.
Explanation of Signal Word Consequences:
WARNING
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury and/or property damage.
NOTICE
Indicates a situation which, if not avoided, could result in property
damage.
WARNINGS
About the Power Supply
DO NOT switch ON power supply until water is flowing out from HOT water outlet (red color tap).
Otherwise, heating system will be damaged.
To reduce the risks associated with hazardous voltage and fire:
● Do not plug-in multiple devices into the same power outlet or extension cord simultaneously.
● Plug the power cord into a 220 V outlet with at least a rating of 10 A and power surge protection.
● Please ensure the power plug and power outlet is clean and dry.
● Damaged parts or machine malfunction are only to be repaired or replaced by RASLOK
authorizedprofessionals.
To reduce the risks associated with hazardous voltage:
● Do not operate the machine with wet hands.
● Do not bend the power cord excessively or put heavy objects over the power cord. Ensure your pets do
not damage the power cord.
● Do not use the equipment if there is any damage to power cord, plug or the outlet.

Page 4of 10
Important guide during installation / Use
To reduce the risks associated with fire and explosion:
● Do not place the equipment in area with potential gas leak, or near heating devices.
● Do not put candles, lit cigarettes, or any heating devices on the unit.
To reduce the risks associated with hazardous voltage, fire and/or property damage:
●
Do not put water containers, chemicals (volatile materials, organic solvents etc.), small metal objects etc. on top of
unit to avoid accidental spillage into the unit to cause electric shock or fire.
To reduce the risks associated with fire and/or property damage:
●
Do not place the equipment in an enclosed space where ventilation is difficult, causing overheating atthe
electricalparts.
To reduce the risks associated with contaminated water and/or property damage:
●
Do not clean the equipment with chemicals that could contaminate the water.
NOTICE
●
Do not install in direct sunlight or outdoors exposed to rain /snow. The equipment is designed for indoor
use only. Large amount of moisture or dust in the equipment surroundings may damage the equipment.
●
Do not tilt the equipment over 45° when transporting the unit. Install and keep the equipment on a flat
stable surface. Unstable surface and inclination will cause performance degradation or equipment
malfunction.
●
Do not connect to hot water source over 40 °C.
●
Keep equipment approximately 15 cm away from the wall and ensure proper ventilation behind the
equipment.
●
Ensure tubing are securely connected and is not bent or pressed down by any heavy objects.
●
The disposable filter cartridge must be replaced every 12 months, or if any noticeable reduction in flow
rate occurs (whichever sooner), to ensure filter effectiveness.
●
It is connected to water mains by detachable tubing hose. When you relocate and reinstall the appliance,
please do not use the old tubing hose. Use a new tubing hose.
●
This appliance is intended to be used indoors.
●
Close supervision is required when any appliance is used by or near children.
Safety information

Page 5of 10

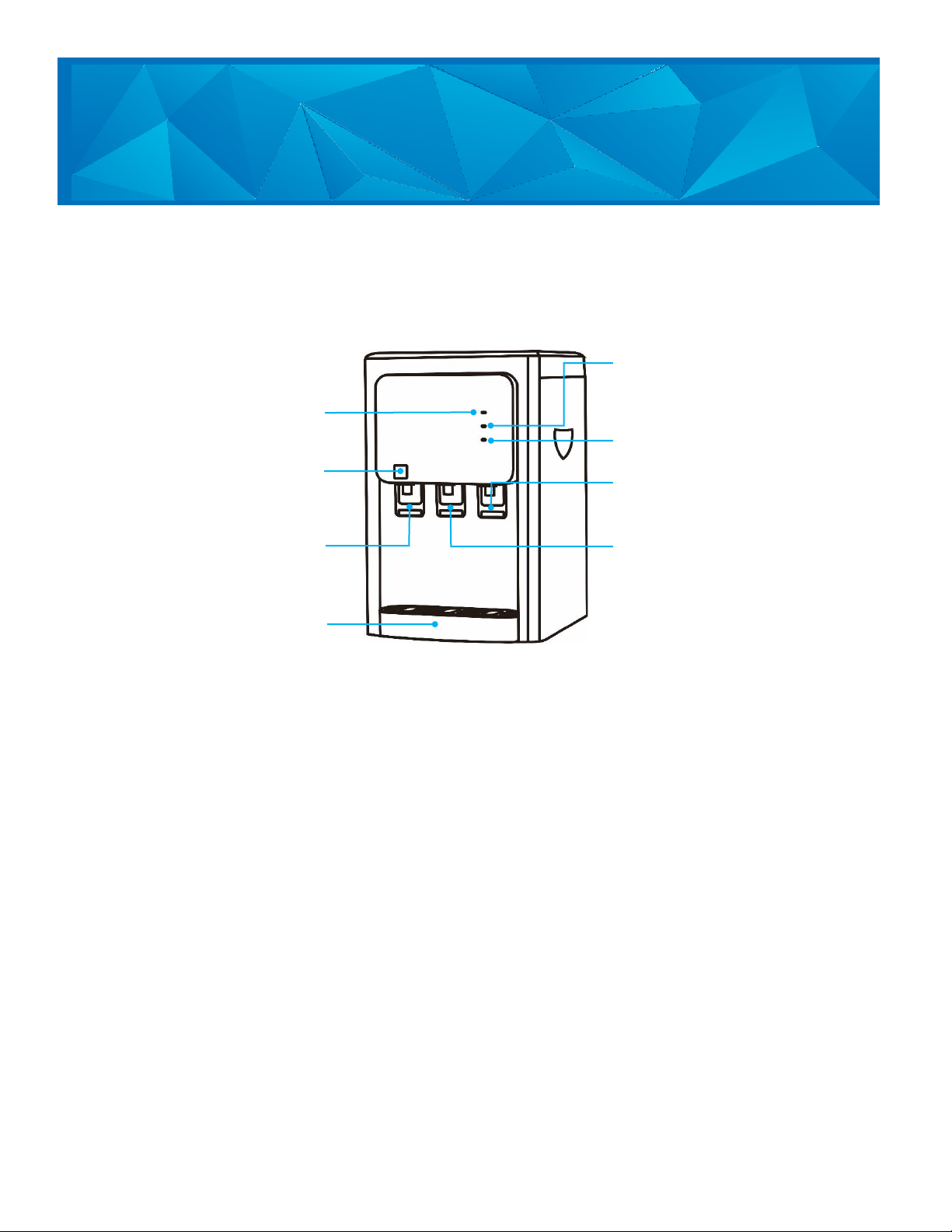

Panel functions and control
Water Tray
Cold Water Tap
Ambient Water Tap
Hot Water Tap
Cooling LED Indicator
Heating LED Indicator
Power LED Indicator
Hot Water Lock

Page 6of 10
How to use panel functions
Hot Water
Turn on the heating switch, the red LED indicator will be on
and the heating system starts working. When the hot water
comes up to 85-95°or so, the red light goes off, the heating
system stops working. The machine turns to the warm-
keeping status. When the hot water temperature is lower
than 85°, the heating system will resume working
automatically.
1. Press “Hot Water Lock” button to unlock position.
2. Press “Hot Water Tap” to dispense the hot water.
Cold Water
Turn on the cooling switch, the green LED indicator will be
on and the cooling system starts working. When the cold
water falls to below 5 °C, the green light goes off, the
cooling system stops working. The machine turns to the
cold-keeping status. When the cold-water temperature goes
up to 10 °C, the cooling system will resume working
automatically.
Press the “Cold Water Tap” to dispense the cold water.
Ambient Water
Press the “Ambient Water Tap” to dispense the ambient
water.

Page 7of 10
Section
Details
Installation
Location
The unit can be installed at places with low water pressure that
are within water quality range.
Environment
Do not install the unit in the following places:
• Anywhere that will expose the unit to direct sunlight
• Anywhere with fluctuating temperatures devices
Use
Water dispenser spout
The spout should be cleaned regularly. If any foreign liquid or
items come into contact with the spout, the spout should also
be cleaned.
Water tray
Avoid drinking directly from the water tray and do not allow
dirty items or utensils to come into contact with the spout.
Do not pour any other liquids into the tray other than water
from the unit.
Maintenance
Self- maintenance
Ensure that the water tray is cleaned at least once a week and
pour away excess water in the tray when possible.
Ensure that the spout and the tray are maintained regularly
according to the schedule listed above.
Never use detergent or chemicals harmful to health to clean
the water tanks.
Cleaning and maintenance of water dispenser

Page 8of 10
Issues
Checking points
Actions
Display is not
switched on or not
operational
The power plug could be not properly
inserted into its socket.
Ensure that the power plug is now inserted properly
into its socket.
Ambient and cold
water is not served
The water supply might be disconnected.
Ensure that the unit is properly connected to a proper
water source and wait for at least 80min for the
water to cool to desired temperature.
Dispensed cold water
is not cold enough or
not at desired
temperature
The unit was just connected to a power
source.
Water is still in the process of cooling down and
being produced. Wait for 2 hours for initial startup.
Cold water had been dispensed in large
amounts previously or had been
dispensed frequently.
There is insufficient cold water in the unit and new
water from the source is being cooled down. This
process takes approximately 80 minutes.
Hot water is not hot
enough, or not at
desired temperature.
The hot water is switched off.
Turn on the heating switch.
There is no water in the hot water tank.
It takes a few minutes to fill up the tank and heat the
water to 85-95 °C .
Troubleshooting guide

Page 9of 10
Technical specifications
RASLOKTM
MODEL NO. HCA-T3
Voltage
220-240V ~
Rated Frequency
50-60Hz
Heating Power
500W
Hot Water Temperature
85-95℃
Hot Water Tank
1L
Cold Water Tank
3L
Cooling Power
80W
Cooling Current
0.8A
Cold Water Temperature
≤10℃
Refrigerant Code
R134a
Refrigerant Capacity
32g
Dimension W x D x H (cm)
32 x 35 x 50
NW/GW
10.0/11.0(Kgs)
Climate Type
T
Type of Electrical Protection
I

Page 10 of 10
Limited Warranty:
RASLOK Pte Ltd warrants this Product will be free from defects in material and manufacture for the following periods
from the date of purchase: 1) One (1) year for the Product, or 2) 5-year or lifelong warranty subject to terms and
conditions. This warranty does not cover failures resulting from abuse, misuse, alteration, or damage not caused by
RASLOK Pte Ltd or failure to follow installation and use instructions.
This warranty gives you specific legal rights in Singapore, and you may have other rights which may vary from country to
country.
Limitation of Liability:
RASLOK Pte Ltd will not be liable for any loss or damage arising from this product, whether direct, indirect, special,
incidental, or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict
liability. Some countries do not allow the exclusion of limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
