Ravenna RT 250 User manual

Pagina 1 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
30020 Annone Veneto (Ve) – ITALIA
Via Quattro Strade, 69 (Zona Art.)
Tel. [phone] – Fax [phone]
www.omravenna.it - [email protected]
INFORMATIONS AND TECHNICAL DATES
AGRICULTURAL TRAILER FOR TRACTOR
Model:
Typ: 3 ways tipping trailer
Number:
Construction Year:
RT 250
788
2014

Pagina 2 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE
CE Certificate of conformity
RAVENNA s.n.c. OFFICINE METALMECCANICHE
30020 Annone Veneto (Ve) – ITALIA
Via Quattro Strade, 69 (Zona Art.)
Tel.: [phone] – Fax: [phone]
E-mail: [email protected]
It is hereby certified that the trailer:
AGRICULTURAL TRAILER
Model:
Typ: 3 ways tipping trailer
Number:
Construction Year:
IS CONFORMABLE TO THE LAW:
Direttiva 98/37/CEE e successive modificazioni
Direttiva 89/336/CEE e successive modificazioni.
UNI EN 292-1, UNI EN 292-2, UNI EN 294, UNI EN 982, UNI EN 1853, EN 1553, ISO 5676,
ISO 5692
TRAILER MUST BE HOOKED ON TO A TRACTOR
Tractor must be conformable to the CE European Comunity
Annone Veneto, 22.01.2015 RAVENNA s.n.c.
CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE-CE
RT 250
788
2014

Pagina 3 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
Manufacturer:
RAVENNA s.n.c. OFFICINE METALMECCANICHE
30020 Annone Veneto (Ve) – ITALIA
Via Quattro Strade, 69 (Zona Art.)
Tel.: [phone] – Fax: [phone]
E-mail: [email protected]
Trailer describion:
AGRICULTURAL TRAILER FOR TRACTOR
MARKING: CE
Model:
Typ: 3 ways tipping trailer
Number:
Construction Year:
Dead weight capacity:
Trailer weight:
Tyre pressure:
RT 250
7
88
2014
Kg 2000
Kg 500
0
2,8 bar

Pagina 4 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
TECHNICAL DATES
Model
RT 25 RT 250
Dead weight capacity Kg 2500 2000
Loading weight on the hitch Kg 280 280
Trailer dimension
Lenght Mm 3.480 3.480
Width mm 1.550 1.550
Height mm 1.180 1.180
Trailer weight Kg 500 500
Body dimension
Lenght mm 2.500 2.500
Width mm 1.500 1.500
Height mm 350 350
Tyres 10.080.12 PR 8 10.080.12 PR 6
Tyre pressure bar 2,8 2,8
Max speed Km/h 25 25
Tipping hydraulic hydraulic
Max oil pressure bar 70 70
Typ 3 ways tipping 3 ways tipping
Max tipping ° 45 45
Brakes mechanic mechanic
Light system
Volts 12/24
12/24 12/24

Pagina 5 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE

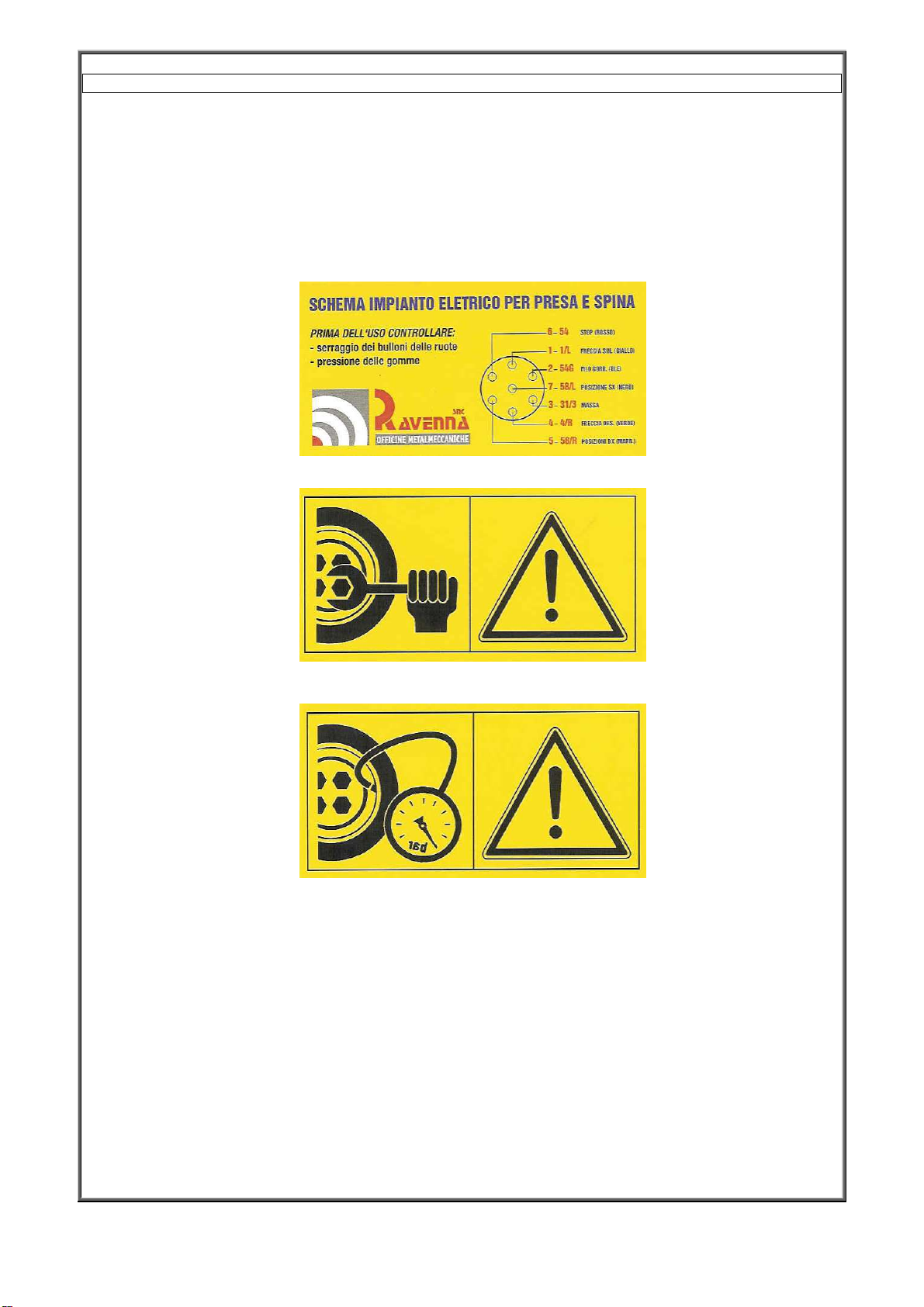

INSTRUCTION FOR USE SUMMARY
BY SYMBOLS AND PLATES ON THE TOWING TRAILER
PLUG AND SOCKET DIAGRAM OF THE ELECTRICAL SYSTEM
PRELIMINARY CHECKS

Pagina 6 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE

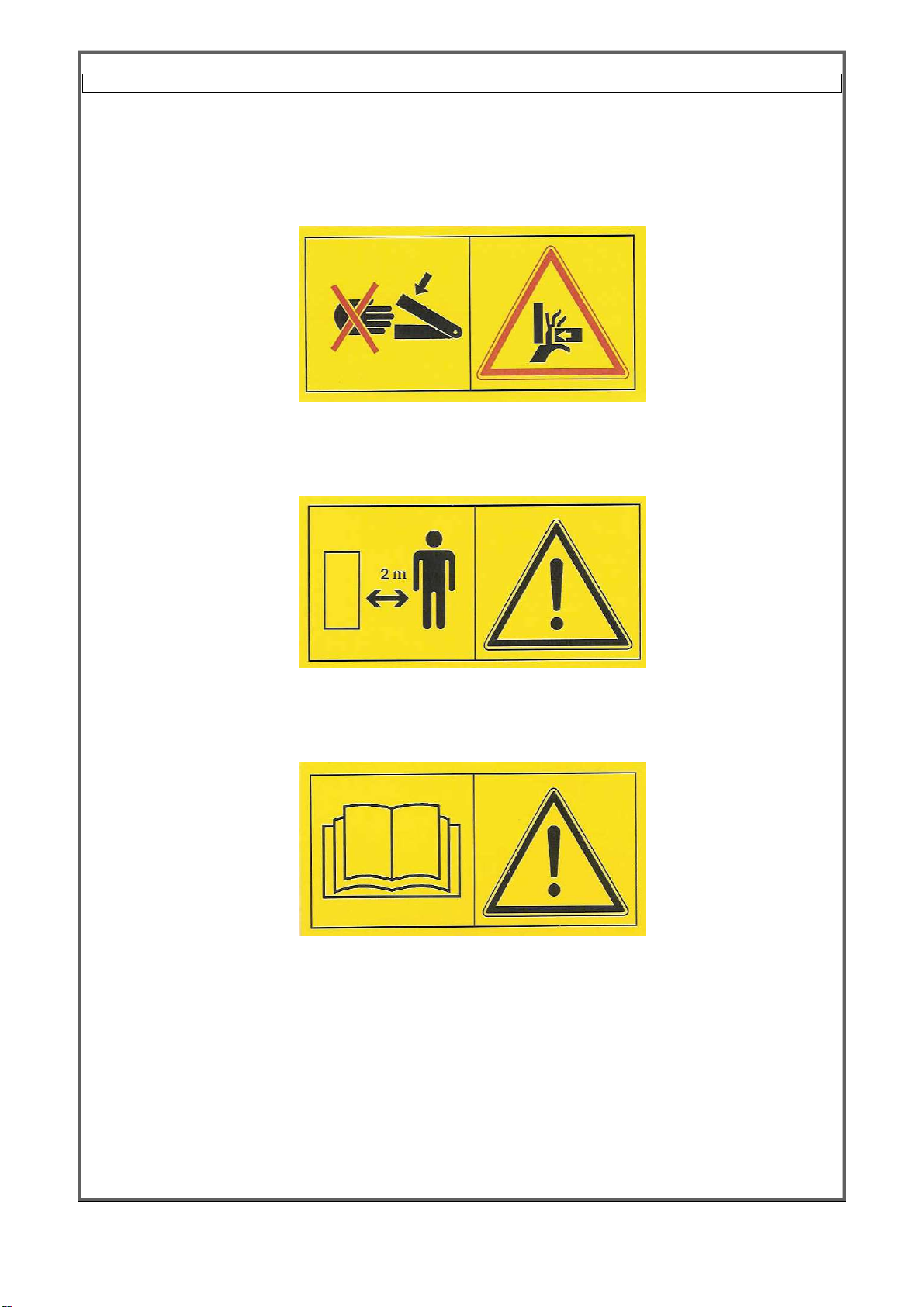

WARNING!
DANGER OF CRUSHING HANDS AND FINGERS
TAKE PARTUCULAR CARE WHEN RELEASE SIDES, POSSIBLE RELEASE OF AUTOMATIC DISCHARGE
DOORS , TIPPING
(LIFTING AND LOWERING)
WARNING!
KEEP DISTANCE FROM THE TOWING TRAILER, IN PARTICULAR DURING
TIPPING OPERATIONS
WARNING!
READ WITH ATTENTION THIS MANUAL BEFORE USING THE TOWING
TRAILER

Pagina 7 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
ON THE TOWING TRAILER FRONT THERE IS ALSO A PLATE WITH THE FOLLOWING
IFORMATIONS:
1. IS FORBIDDEN: MOVE THE TOWING TRAILER MANHANDLE
2. IS FORBIDDEN: STEP ON TOWING TRAILER ON THE MOVE
3. IS FORBIDDEN: CARRYING PEOPLE BY THE TOWING TRAILER
4. IS FORBIDDEN: MOVE THE TRAILER WHEN THE TRAILER IS TIPPING
5. IS FORBIDDEN: WORK UNDER THE TIP TRAILER IF THERE ISN’T A
MECHANICAL SUPPORT
WARNING!
DON’T REMOVE TRAILER SYMBOLS AND PLATE!

Pagina 8 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
CHAPTER 1
GENERAL SAFETY DEFINITIONS AND CONDITIONS
In compliance with the current regulations on safety of work, this machine has been
designed, approved and built keep to limitations of good technique for mechanical units,
hydraulic circuit, electrical system and their security devices.
This “Procedure and maintenance manual” has been edited keep to 98/37/CE Directive and
in regard with machine normal condition in use in order to inform operators/users about
residual risks that it presents.
1.1 WARNING
The costumer, getting this Instruction Manual, is committed to make a strictly confidential
use for operators during operation, carrying, installation, assembling, disassembly and use
of the machine.
He must follow the machine including case of transfer of use to a third party.
In this Instruction Manual there are the following definitions:
a)"Danger zone" (98/37/CE Directive): Every zone inside and next to the machine where
is dangerous for the health of people;
b)"Exposed person" (98/37/CE Directive): Every person who are totally or partly exposed
to a dangerous zone;
c)"User" (98/37/CE Directive): The person or people who are authorized to instal, work,
set, doing maintenance, clean, repair and transport the machine;
d)"PPE" (98/37/CE Directive): Personal protective equipment: Every equipment that the
user must use and wear for protect himself to every risk of dangerous situation.
e)”Consumer": the person, entity or society who bought or rent the machine and want to
use for the intended use;
f)“Specialized personnel”: person who is trained and qualified to perform maintenance or
repair operation, who require a knowledge of safety devices and the operation of the
machine;
g)”Dealer”: structure legally authorized by the manufacturer that has specialized staff and
enabled to carry out all servicing, maintenance and repairs that are necessary to maintain
the machine in good working.

Pagina 9 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
Before use and / or intervene on the machine, the operator must be fully aware of the
function and the position of all the commands of the machine and of the technical and
functional characteristics of the same.
The Manual is a guide for proper use and maintenance of a good trailer can also be useful
to more experienced operators. It contains important information to ensure your own and
others' safety and useful for a fair and effective use of this medium: it will always be
available to made known to the operator.
A prudent operator is the best insurance against accidents.
If you are in doubt about the exact interpretation of the instructions in this manual or the
use of the vehicle, contact a dealer without hesitation.
Always keep the manual handy for future reference in case of need, in case the copy in
your possession deteriorate, do not hesitate to ask your dealer to another.
If the trailer is not used carefully following the instructions given in this
manual, the manufacturer declines all responsibility for any damage to people,
animals and / or property. This Manual has been prepared with particular
attention to the prevention of harm and dangerous situations that may arise
using the trailer improperly, it provides specific information necessary for the
use of the vehicle safely, for inspection and for maintenance.
IT IS FORBIDDEN TO COPY THIS MANUAL WITHOUT PERMISSION
1.2 SAFETY INSTRUCTIONS
The operator must:
1 - Keep in an easily and quickly accessible to this user.
2 - Use with care and make appropriate safety devices and protective equipment prepared
and provided by the employer.
3 - FOLLOW the rules and instructions given by the manufacturer of trailer, by the
employer or person in charge of the collective security and individual.
4 - Report immediately to the proper authorities any deficiencies of these safety devices
and protective equipment, as well as other dangerous condition of which it becomes
knowledge, by intervening directly and promptly, in an emergency, within its competence
and ability to eliminate or reduce the causes which have produced the danger.

Pagina 10 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
5 - Keep the machine in order: Have any repairs to the machine by qualified personnel
using original spare parts.
6 - Dress appropriately, his clothing should be as fit as possible, not too wide and free of
loose and footholds, the sleeves must have the elastic outside of work clothing should not
be present belts, braces rings and necklaces; PPE provided must be used.
It’s absolutely forbidden to use loafers, clogs, slippers or other footwear that may limit or
affect the stability and mobility of the operator.
7 - Avoid unstable positions, arranged always in a safe position in relation to the trailer and
balance: in particular it off of the trailer moving and do not move the trailer to push.
8 - Disconnect the battery power before any repair and / or maintenance on the electrical
system. Carefully follow the instructions given in this manual.
9 - Remove the hydraulic pressure before working on the same.
10 - Make sure, before using the trailer, the proper functioning of the safety devices and
protective equipment
The operator must not:
1 - Remove or modify, without prior permission, the safety, protection, measuring and
reporting the trailer is equipped.
2 - Perform operations on its own initiative or maneuvers within its competence that could
endanger the safety of self or others.
Specific instructions for the use of the trailer:
The 3-ways tipping trailer can never be used alone, but always and only coupled to a
tractor to be towing.
Operate a tractor with or without a trailer is not the same thing: the presence of the trailer
limits the manoeuvrability of the tractor and requires more precautions in the use of the
whole.
It is therefore considered appropriate to summarize below some specific instructions for
the use of the tractor and towed trailer.
The trailer, having passed the stability tests provided for by the rules, is not subject to any
kind of tipping on the condition that do not exceed the maximum permissible loads and
shown on the rating plate on the machine and follow the instructions given in this manual.

Pagina 11 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
The operator of a tractor with a trailer, whether it operates in a continuous manner that
occasionally, must possess appropriate knowledge and skills, and follow simple and
fundamental rules of conduct to ensure the safety of himself and others.
The tractor operator must:
•Have quick reflexes;
•Be able to evaluate the weight, stability and balance of the load;
•Be able to evaluate size, distance and speed;
•Be careful and with great sense of responsibility;
•Carefully check the instructions for the maximum transportable load from the trailer;
•Be sensitive to the safety
•Use on land eligible
•Keep a safe distance from other vehicles;
•Keep to the right, especially in bends and junctions;
•Give priority at intersections to those coming from the right;
•Always give way to pedestrians;
•When driving on the road follow the signs
•Always be able to control tractor, trailer and, except in special cases, also the load;
•Drive the caisson always lowered, both trailer load discharge;
•Always make sure that the height is sufficient for the passage of the trailer and its load;
•Slow down in poor visibility, the curves, in the crossroads, narrow passages, in
underpasses, in all zones which provide a limited height and downhill;
•Adapt the speed to ground conditions, visibility and load;
•Signal their presence with the tone of which the tractor is fitted;
•Move on flat surfaces, and sufficiently compact as possible without harshness, without
sharp bends, marked descents and narrow passages.
•Before crossing a bridge or walkway, check the size and stability
•Before moving check for people, animals and obstacles, if need to move people and
animals and removing obstacles;
•Work with the trailer at a safe distance from power lines;

Pagina 12 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
•After use, place the trailer, unhooked from the tractor protected from the weather and
enter the parking brake.
The tractor operator must not:
•Exceed the maximum capacity of the trailer provided by the manufacturer;
•Distracted while driving
•Run, or race with the trailer
•Make sudden accelerations, steering and braking because the inertia of the load can
cause skidding and / or scuffs.
•Carry out the operation of tipping trailer at the same time advancing;
•Transporting people on the trailer
•Leave the trailer with the body raised
•Driving over obstacles on the ground;
•Drive with wet or oily hands or shoes;
1.2 RESIDUAL RISKS ZONE
They were adopted on the machine all necessary measures to eliminate the possible risks of
use for the operator, it has areas called "Residual risk".
The areas designated as such are related to moving parts of the machine that could be
dangerous for the operator, if it so improper use or commit an error of judgment or
inattention: the machine is however equipped with suitable signs placed on these areas.
The majority of the residual risks of this type of machine is due to the mode of use: Use a
careless, clumsy and disrespectful of safety requirements can lead serious consequences for
the operator.
It is very important that the operator is strictly and scrupulously abide by the instructions
provided both by signs placed on the trailer in this Manual.

Pagina 13 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
CHAPTER 2
GENERAL SAFETY DEFINITIONS AND CONDITIONS
The trailer towed by tractor tipping trilateral manufactured by Officine Ravenna is towing
type and is designed to be towed by a tractor and transport goods of all kinds

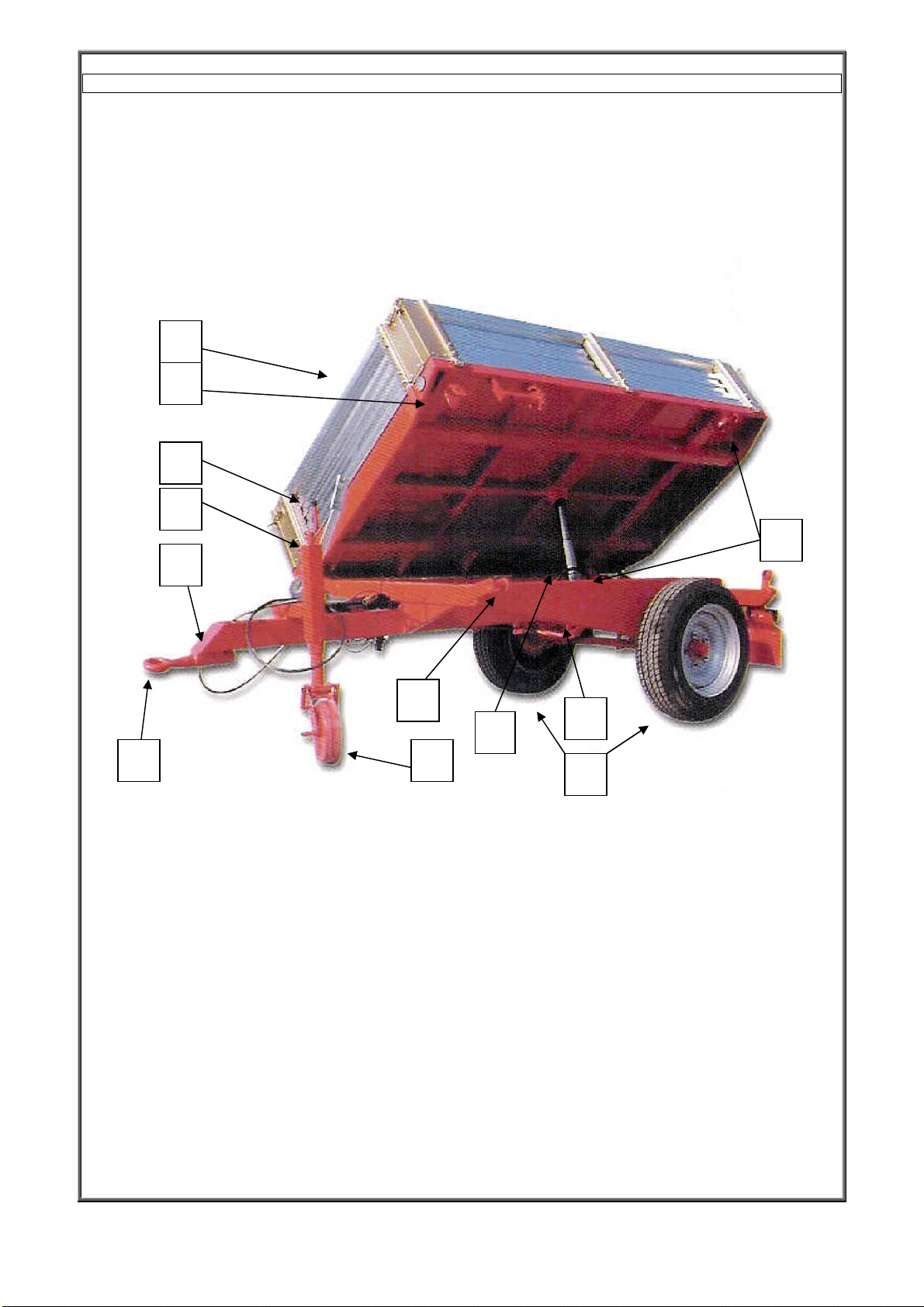

Photo 1
•It consists essentially of (Photo 1):
•A frame A rectangular shaped metal profiles;
•An axle with two tires B C inflatable tires;
•A compact D height adjustable via the knob E to support and maintain a horizontal
position when the trailer is disconnected from the tractor
•A jockey wheel D with E to support and maintain a horizontal position when the trailer
is disconnected from the tractor
•F a rudder fixed to the frame complete with eye G for attachment to the tractor.
A
B
C
D
E
F
G
H
K
L
M
C

Pagina 14 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
•A body H equipped with four manually removable sides, of rectangular shape, attached
to the frame by means of two K (arranged at the top front of the base) and two nuts
spherical I (arranged at the top rear) all equipped with locking pins; on the four sides are
provided hooks for locking the rope load on the two longitudinal sides and two devices
(one per side) for tensioning the same
•A hydraulic tipping system constituted by the lifting cylinder body L connected to the
hydraulic system of the tractor by means of a flexible pipe quick coupling so as to be
able to control the tilting from the tractor seat
•The braking system is connected by mechanic wire to a handbrake lever(M) wich can be
moved and fixed to the tractor. When the trailer is disconnected by tractor, the
handbrake lever is locked in a special housing in the trailer rudder and works as parking
brake.
•A lighting system, fixed in the back of trailer for road travelling, is connected by quick
plug and cable to tractor and works to 12/24 volt. O
On request the trailer can be equipped without braking system and\or without lighting
system. The client must provide install of the respective system before use.
2.1 RECOMMENDED USE
The trailer towing made by Officina Metalmeccaniche Ravenna it’s a machine that can be
use for carrying various type of material. The side allow you to load bulk material.
The load must be positioned in line with the barycentre of trailer avoiding the risk of
overturning above all if the trailer is disconnected by the tractor. To facilitate the loading
and unloading of material the side can be removed, the load must be secured with rope or
belt fixed to dedicated hook in the side of flat bed.The bulky loads must not exceed the size
limit of the trailer and 4 meters above the ground.
The trailer can be used only by an expert and authorized operator.
WARNING!
The trailer can not be used for other purpose of those provided and not comply
in this manual. The trailer can not be used for other purpose of those provided
and not comply of those described in this manual: each other use is considered
improper and forbidden.
Officina Metalmeccaniche Ravenna decline each responsibility for people,
animal or object injury caused by improper use of the machine or modification
to the same not authorized.

Pagina 15 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
2. 2 WORKING CAPACITY
The trailer can carry load of different type and nature compatibility with the dimension of
side and flat bed in function of barycentre of machine: The bulk don’t exceed the values
indicate in the plate fixed on trailer and in the top of this manual. Is necessary to respect
the values or risk overturning the machine.
The machine is provided with its box with specific dimension and carrying
capacity: In this situation is calculated the maximum carrying capacity
reported in table and predisposed the relative safety system.
If the trailer is equipped with another configuration, who set up the equipment
must ensure the working safety operation of machine. Officina
Metalmeccaniche Ravenna decline each responsibility at about!
2.3 USE RESTRICTIONS
The machine can not be used with other terms provided in the paragraph 2.1
Is strictly forbidden remove, camper and modify in any way the safety system
present in the machine.
2.4 SOLUTIONS ADOPTED TO PREVENT RISK
2.4.1 DESCRIPTION OF SAFETY DEVICES
The trailer is equipped with the following safety devices:
•Mechanical service brake;
•Parking brake;
•Device height adjustment wheel parking;
•Lock box with pins and cotter safety to prevent accidental overturning:
•Side with safety cotter;
•Limit wire to prevent the exceed tipping max limit;
•Safety catch (to prevent the accidental fall of box during repairing or maintenance
operation);
•Latches and locking tensioning ropes load;
•Electrical system performed according to the existing norms;
•Plates showing max flow attached to the frame;
•Plates with main operational instructions, attached to the frame;
•Signs warning of danger in areas of residual risk;

Pagina 16 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
2.4.2 AREA OF WORK
The tractor operator to use the trailer in a safe condition must remain seated in the driving
seat: any other position is not allowed since it could be dangerous: the loading, positioning,
loading and unloading can also be performed with ground operators or on the chest
In these cases, act with extreme caution! It’s still anyone FORBIDDEN rest on the floor
during transfers.
Operators should pay close attention during the loading and maintenance
operations as may be in the danger zone: should pay attention to the directions
of this manual and the warning signs of danger on the machine!
CHAPTER 3
TRANSPORT TRAILER
3.1 PRELIMINARIES
The transport of the trailer can be made by trucks, containers and / or possibly railway
wagons: You must use a vehicle of a size suited to mass and dimensions of the trailer
shown in "SPECIFICATIONS".
To work safely you need to consult the manual and its appendices before carrying out any
work on the machine
3.2 HANDLING, LOADING AND UNLOADING
The trailer is normally provided free packaging and in a horizontal position: You must use
a lifting system (forklifts, cranes, bridge cranes, ...) of adequate capacity hooking on ropes
or chains to the frame of the right dimensions and the rudder to keep it horizontal.
Before proceeding to lifting, make sure that any moving parts of the trailer are securely
locked. Lift the machine with extreme caution and put it slowly, without shock or sudden
movements, be careful not to tilt it to avoid losing stability.
The lifting and transport can be very dangerous if not done with extreme caution away so
the uninitiated, clean, clear and delimit the area transfer, to verify the integrity and
suitability of the available means, do not touch the suspended load and observe the safety
distances.
The surface on which you want to load the trailer, it must be horizontal to prevent
movement of the load. Once loaded onto the means of transport, make sure that the trailer
remains locked in its position: set the plane on which is supported by the aid of ropes or

Pagina 17 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
chains of adequate size. The ropes (or chains) must be securely fastened to the trailer and
well stretched toward the anchor point on the ground.
Once the transport, before releasing the trailer from all constraints, verifies that the status
and location of the same are such there is no danger.
Then proceed to the discharge using methods similar to those used for the load.
CHAPTER 4
USING THE TRAILER
4. 1 GENERALITY
The tractor operator must be trained in the conduct of the tractor and trailer coupled:
during working hours he is responsible for the vehicle and as such have to worry about
prohibit its use by unauthorized persons.
Before starting the machine complete, the operator must make sure it is in perfect working
order.
Any problems should be reported immediately to security managers.
The terms "forward, backward, left and right" reported in the following, refer
to an operator sitting in the driving seat.
4.2 GETTING STARTED
Before attaching the trailer to the tractor:
•Check the integrity of the side and the correct positioning of themselves and their
attachment systems.
•Check the correct insertion of the four locking pins in the union U of the body to the
frame.
•Check for oil leaks through gaskets, fittings and pipes of the hydraulic circuit control
tipping body
•Check the integrity of the flexible cable and brake levers
•Check the integrity of the rear lights
•Check for proper tire pressure.

Pagina 18 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
4.3 ATTACHMENT TO A TRACTOR
First of all check that the tractor’s attachment system is approved. To attach the trailer to
the tractor, approach it with appropriate maneuvers in such a way that the coupling on the
tractor and the towing eye on the drawbar of the trailer are located very close. Perform the
operation by moving the tractor and avoiding the manual maneuvers.

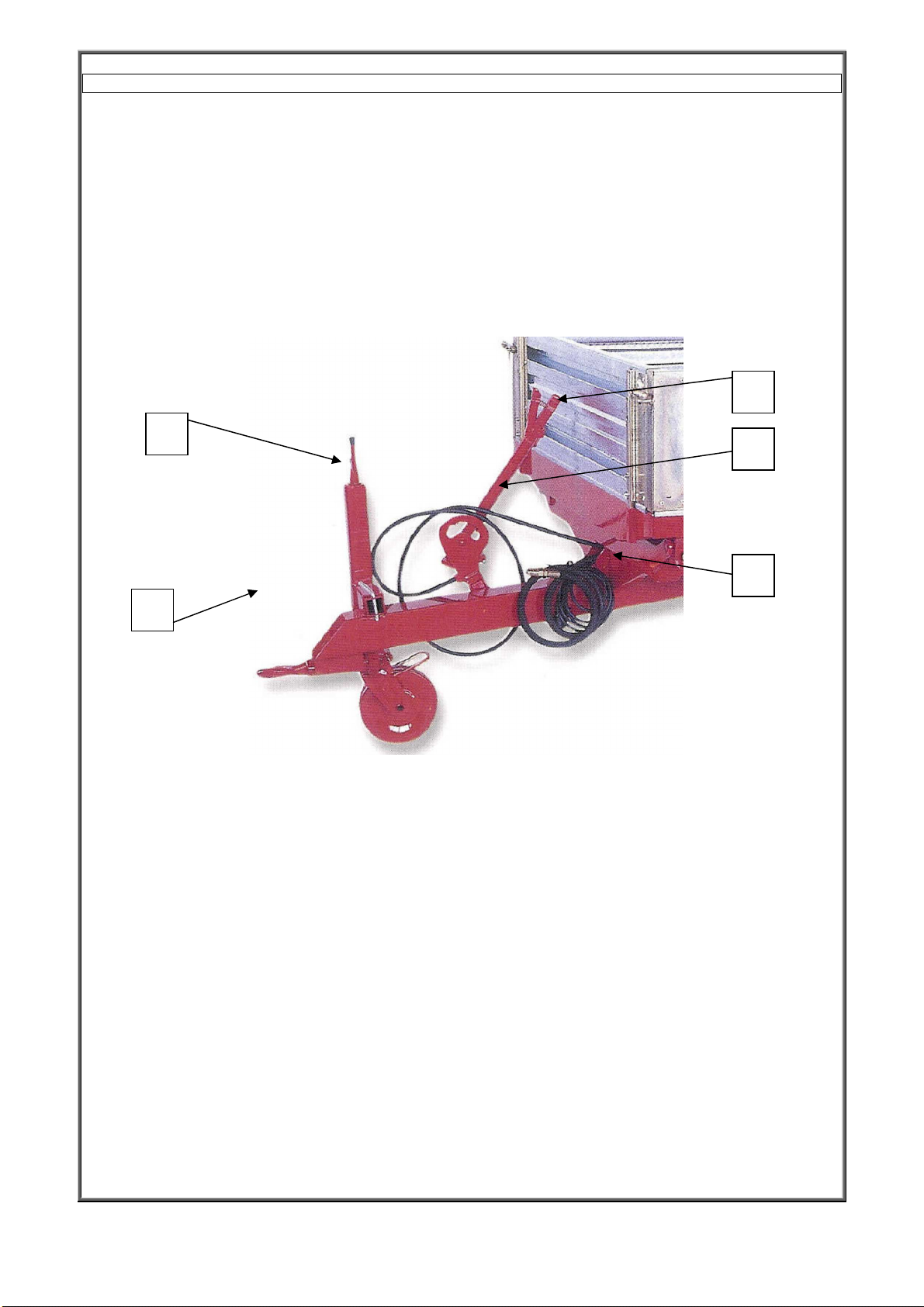

Photo 2
Raise the trailer drawbar, turning the hand wheel N, the height of the hook of the tractor,
pull the coupling pin after removing the cotter pin from it, then take it with the eye of the
trailer, put the pin in eye and insert the cotter pin in the pin.
Perform the above steps carefully: on the rudder there are vertical forces that may act make
it difficult to control!
Using the hand wheel N raise from the ground as much as possible the wheel: in this way
the trailer rests on the rear axle on the one hand and on the coupling on the tractor other.
The wheel can be further raised from the ground, turning it upwards: the spring P (Photo 3)
holds it in this position: pulling the retaining pin Q the wheel, if necessary, can also be
removed from the trailer.
N
O
R
S
T

Pagina 19 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE

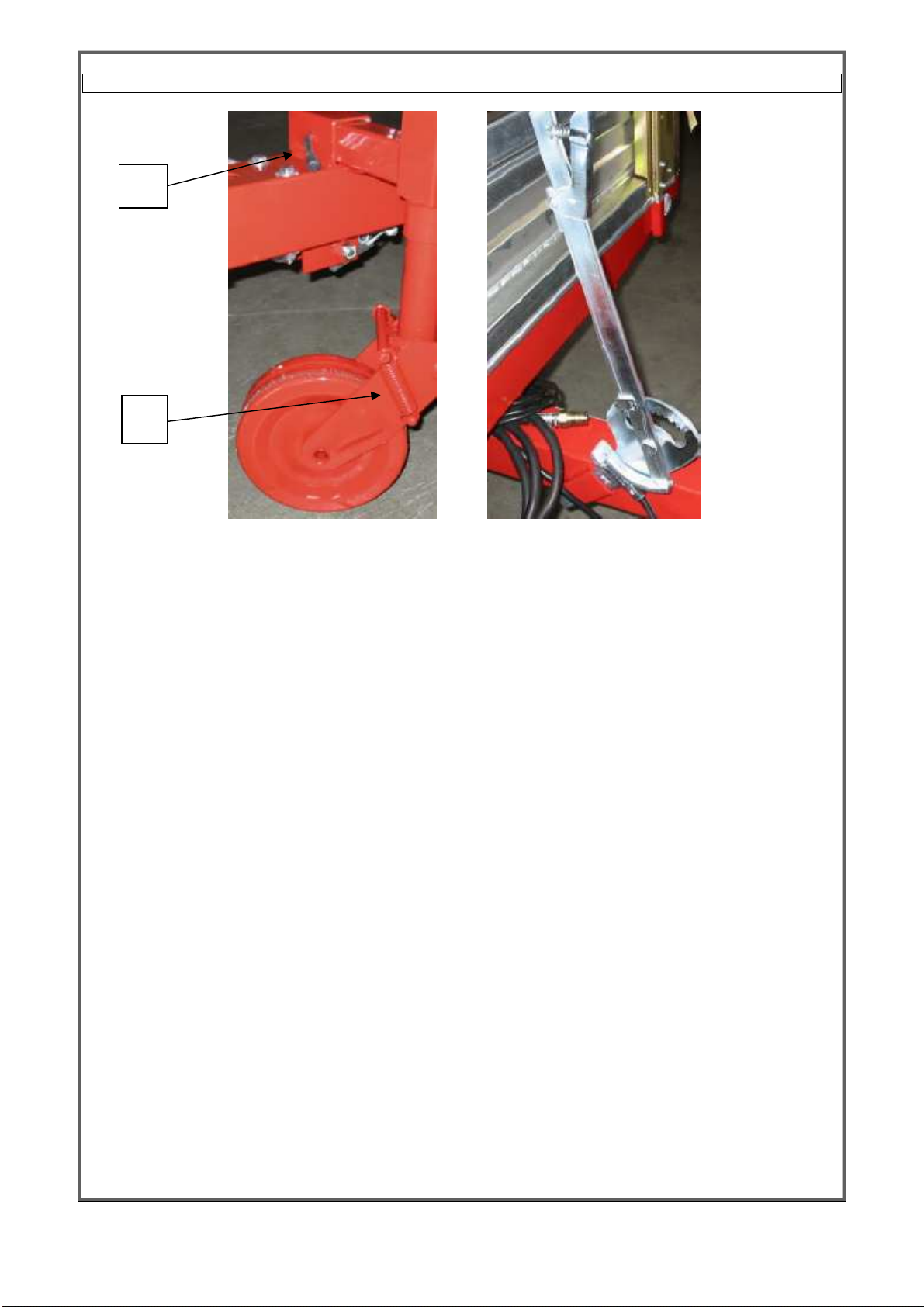

Photo 3 Photo 4
If the tractor there is a system of automatic hookup, verify that the connection was
successful. Pull the brake lever from its R bayonet mount on the rudder S and assemble in
the same slot on the tractor (Photo 4).
Connect finally, using the respective quick connections, the pipe of the tipping cylinder
body and the power cable of the rear lights respectively to the hydraulic system and the
electrical system of the tractor.
After attaching the trailer to the tractor, check:
•The correct functioning of the hydraulic tipping body correct operation of the braking
system
•The correct functioning of the electrical system.
4.4 LOADING TRAILER PROCEDURE
Before proceeding with the loading, turn off the tractor engine and enter the parking brake.
With the trailer horizontal as possible and using suitable lifting tackle, place the load in a
central position with respect to the body: With the trailer horizontal as possible and using
suitable lifting tackle, place the load in a central position with respect to the body: for bulk
materials do not exceed the top of the side. Fix the load with ropes or chains of adequate
size pulling them with suitable devices of the trailer.
P
Q

Pagina 20 di 33
RAVENNA s n c - OFFICINE METALMECCANICHE RIMORCHIO PER TRATTORE
In any case, always make sure that the mass of the load is less than the rated capacity
stated by the manufacturer and indicated on the label attached on the machine.
WARNING!
If the trailer is not used carefully following the instructions given in this
manual, the company RAVENNA Mechanical Workshops snc declines from
now all responsibility for any damage to people, animals and / or property
damage caused by improper use.
WARNING!
For loading and unloading, if necessary, use personal protective equipment:
gloves, safety glasses, work boots.
4.5 IN GEAR
After disconnecting the parking brake, the operator driver can move the tractor with the
trailer hooked.
While driving he must move with extreme caution to avoid risk to themselves and to other
persons present within the operating range of the vehicle due to possible movements of the
load. The maneuverability of the tractor is in fact heavily influenced by the presence of the
trailer, especially if the load is full and you have to move in confined spaces and / or slope.
If necessary, in the slopes and in reverse, use the service brake of the trailer.
4.6 UNLOADING THE TRAILER
After stopping the vehicle and entered the parking brake, for unloading, we can distinguish
two cases:
•Bulky items that need to be downloaded using forklifts, cranes or other similar means.
After releasing the load from ropes or chains anchoring the lower body any one or more
banks engage the load with appropriate means and proceed.
