Raxikol RYW-116 User manual

Operation Manual
RYW-116

Antenna Jack
XLR(Balanced Output Socket)
DC Power Matching Jack
menu
push enter
reset power
Power Switch
Return /Cancel Key
(Left and Right Spin) Selection;Press to confirm
Factory Reset
With the power off,press and hold the
“menu”,then press the key ”power” to
turn on. The LCD display ”reset”, the
factory setting successful recovery.
Release all buttons.
IR Window
(Short Press) SYNC, (Long Press ) SCAN
Scan/IR synchronization
Press and hold the key “SYNC/SCAN”
to scan the optimum frequency.After
scanning,then press short on the key
“SYNC/SCAN” to finish the infrared
synchronous operation.
Receiver-Front Panel,Rear Panel
02

Audio Output Level
“PEAK”=Overload
Receiver Mute
Equalizer
Main Volume
Transmitter Mute
Antenna
Indication
RF
Squelch “B” BAND
“Ch” Channel
Pilot Tone Transmitter
Battery
Function for LCD of the Receiver
Lock Mode / Temporary Unlock
Press the “menu” button to choose the “UNLOCK” to confirm.
03

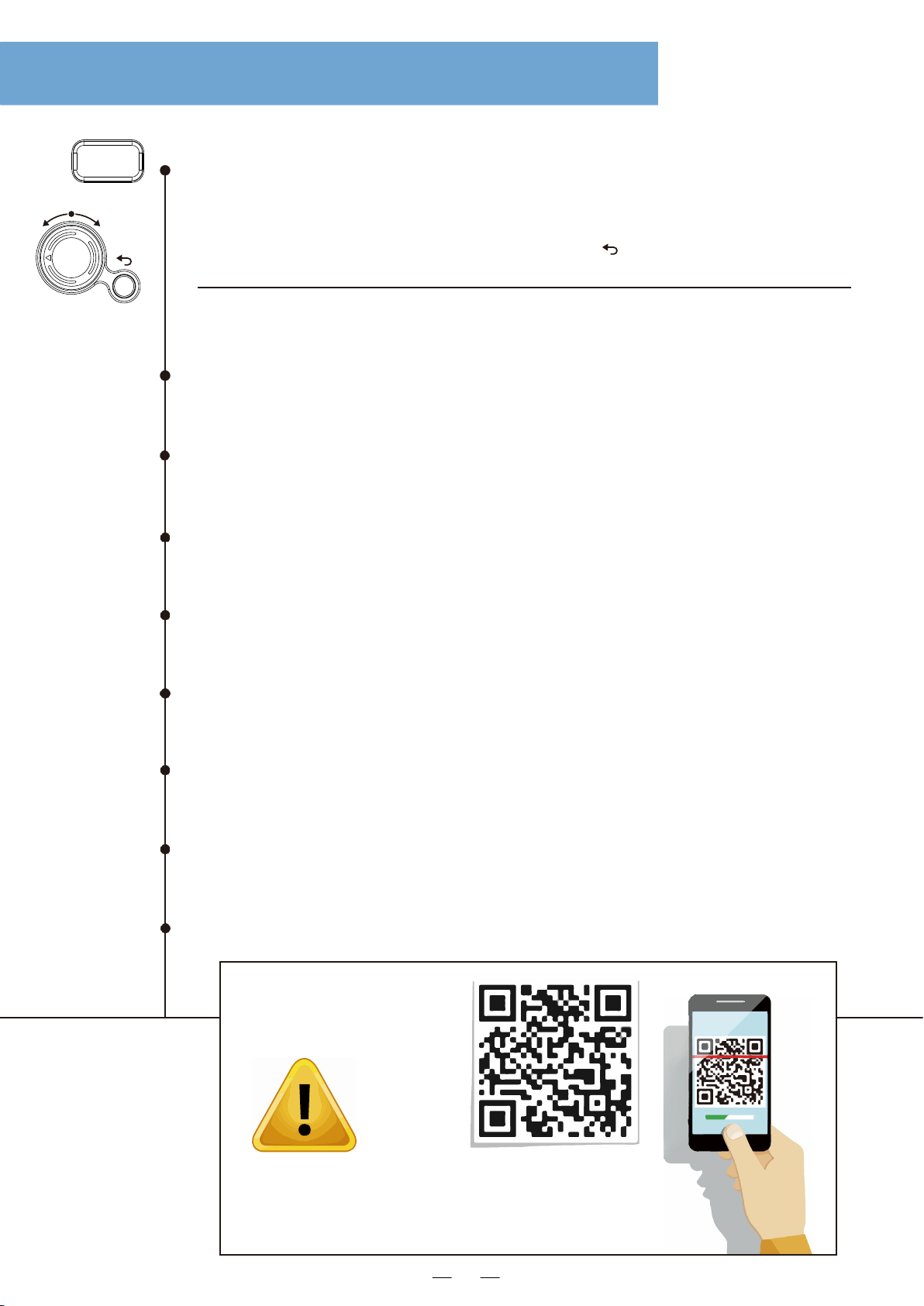

“SET” Key→Enter “menu” Key→Selection
Channel Adjustment.The channel “U” is predetermined frequency.
Scan Optimum Channel
Pilot Tone
Autolock Function
Equalizer Adjustment (Flat,Low Cut,Low Cut/High Bosst,High Boost)
Main Volume Adjustment
Enters a freely selectable name
Squelch Adjustment (-100dbm,-90dbm,-80dbm)
Press the“ menu” button=OK/save
Press the“ ” button=cancel/return
↗
↘
CHAN
SCAN
PILOT
LOCK
EQ
AF OUT
NAME
SQELCH
Please scan the QR codes(Receiver/Package) to
get the lastest electronic version of the manual.
Operation of Receiver
Handheld Transmitter
m en u
SE T
04

201705000001
U p
D o w n
FR E Q : 6 4 2 - 69 7 M H z
A d ju s t th e g a in
D isp l a y m od e
Handheld Transmitter
Bodypack Transmitter
888. 888
-18
GAIN: dB
MHz
B. Ch
P
GAIN:
B. Ch
P

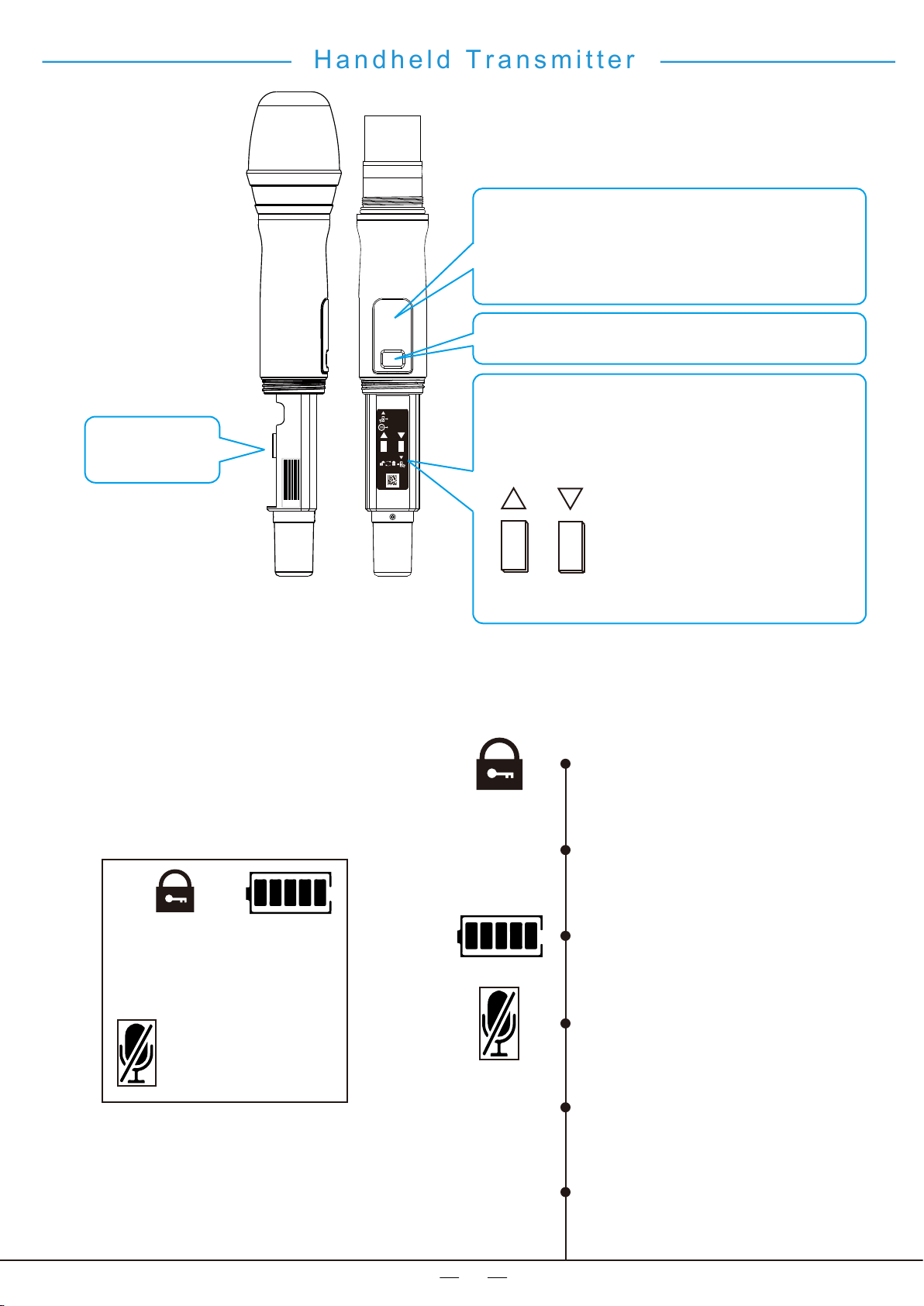

LCD function for handheld and bodypack transmitters
Lock Mode
Pilot Tone
Battery Status
Mute
Band. Channel
Gain
LCD display;
IR Window.
Power Switch/Mute Button
“▼Down” Button,Lock/Unlock.
“▲Up” Button,
Short Press=Disaply Mode
Long Press=Adjust the Gain
Battery Rack
05

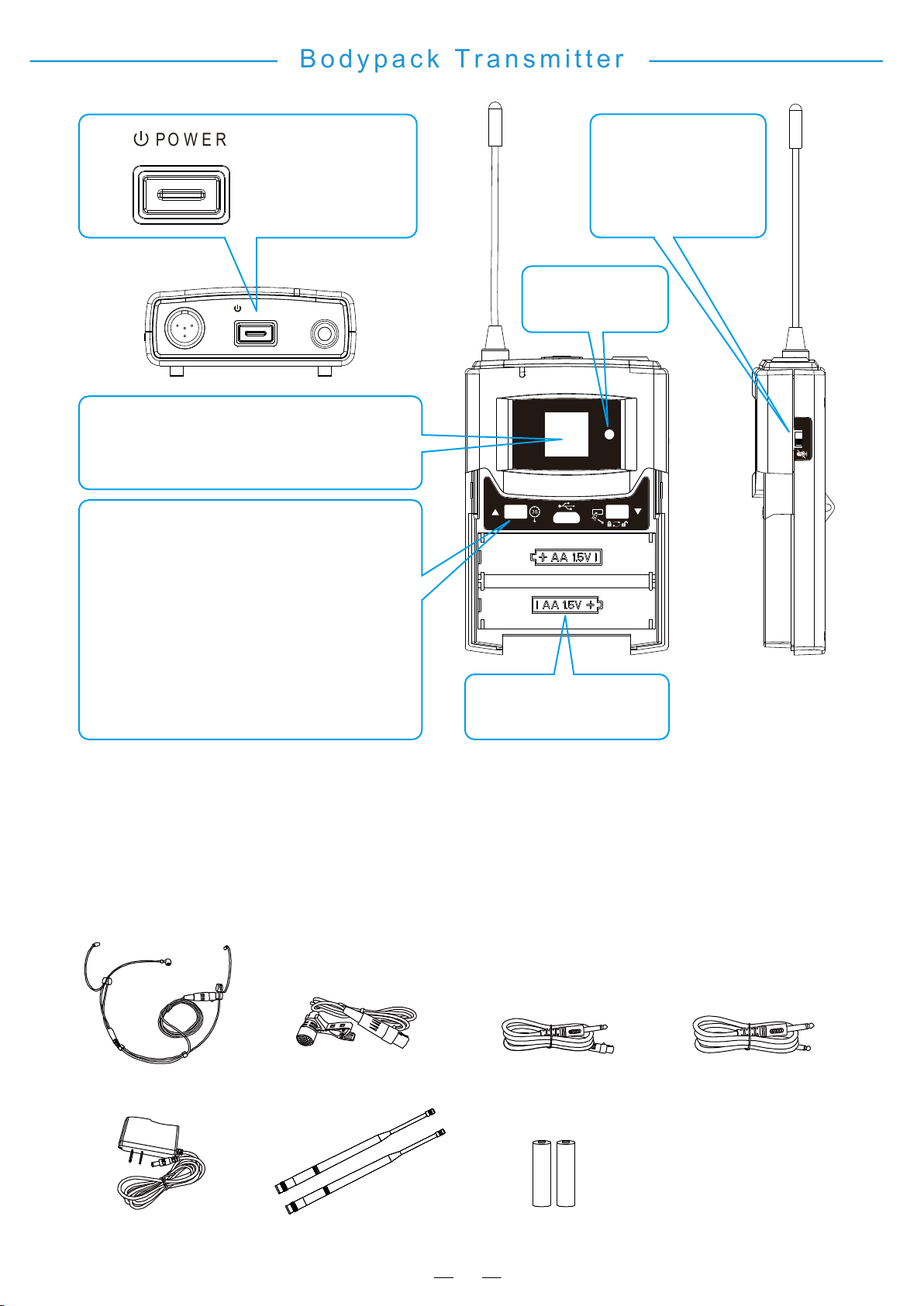

Accessories list
Signal Cable
Headset Mic(Option) Lavalier Mic Guitar Cable
Power Adapter BNC Antenna AA Battery
IR
IR
L O W B A T TM U T E
Ad ju s t th e g a i n
Battery Rack
Power Switch Mute Button
IR Window
LCD Display
“▲Up” Button,
Short Press=Disaply Mode
Long Press=Adjust the Gain
“▼Down” Button,Lock/Unlock.
P O W E R
P O W E R
Handheld Transmitter
Bodypack Transmitter
06

Ｉｎｓｔｒｕｃｔｉｏｎ ｆｏｒ ｓｅｃｕｒｉｔｙ ａｎｄ ｗａｒｒａｎｔｙ
１.Please read this operating manual carefully before installation and use,and keep
this manual for later reference.
２.Cleaning:please turn off the power supply before you clean the units,and wipe with
the dry and soft cloth.
３.Do not use any unmatched accessories without the permission of the factory.
４.Do not put the equipment on the enivironment of wet or high temperature to avoid
risk to happening.
５.Power Supply:USA/Japan:AC 110V-120V 60Hz ；Europe:AC 220V-240V 50Hz
６.When it is lighting,please pull off the power the power plug to protect the equipment.
７.If the equipment will not be used for a long time,please turn off the power or even
pull off the power plug,and take off the batteries in the transmitter.
８.Please contact the dealer directly when you have any needs for maintenance or
after service for the equipment,and do not dissemble the equipment by yourself.
Ｗａｒｒａｎｔｙ Ｐｏｌｉｃｙ
All the equipment will have 12 months for free maintenance except the
man-made damage,such as:
１.Fell and broken by man-made reason.
２.Damaged by disoperation.
３.Disassemble the equipment by yourself and damaged or lost components.
For equipment over the warranty policy,we also offer maintenance
service with reasonable cost.
Tips for Improving System Performance
Assure that there are no obstacles between the transmitter and receiver.
Do not put the receiver close to the metal surface or any other digital equipment(such as CD,PC etc).
The receiver should be 1 M above the ground,and keep away form the walls.
For better ventilation,keep more than 20cm for the surrounding distance.
The ventilation holes should not be covered.
Cellular phone and bidirectional radio will interfer,please keep away from these equipment and other poten-
tial interference.
Do not put the equipment on the sunshine,or in the wet environment.
Do not disassemble the equipment by yourself.
Do not put the any fire source such as candle on the receiver.
Please put used batteries to the appointed recycle box.
The working temperature for the equipment is -5°C ~ +50°C.
Bodypack Transmitter
07

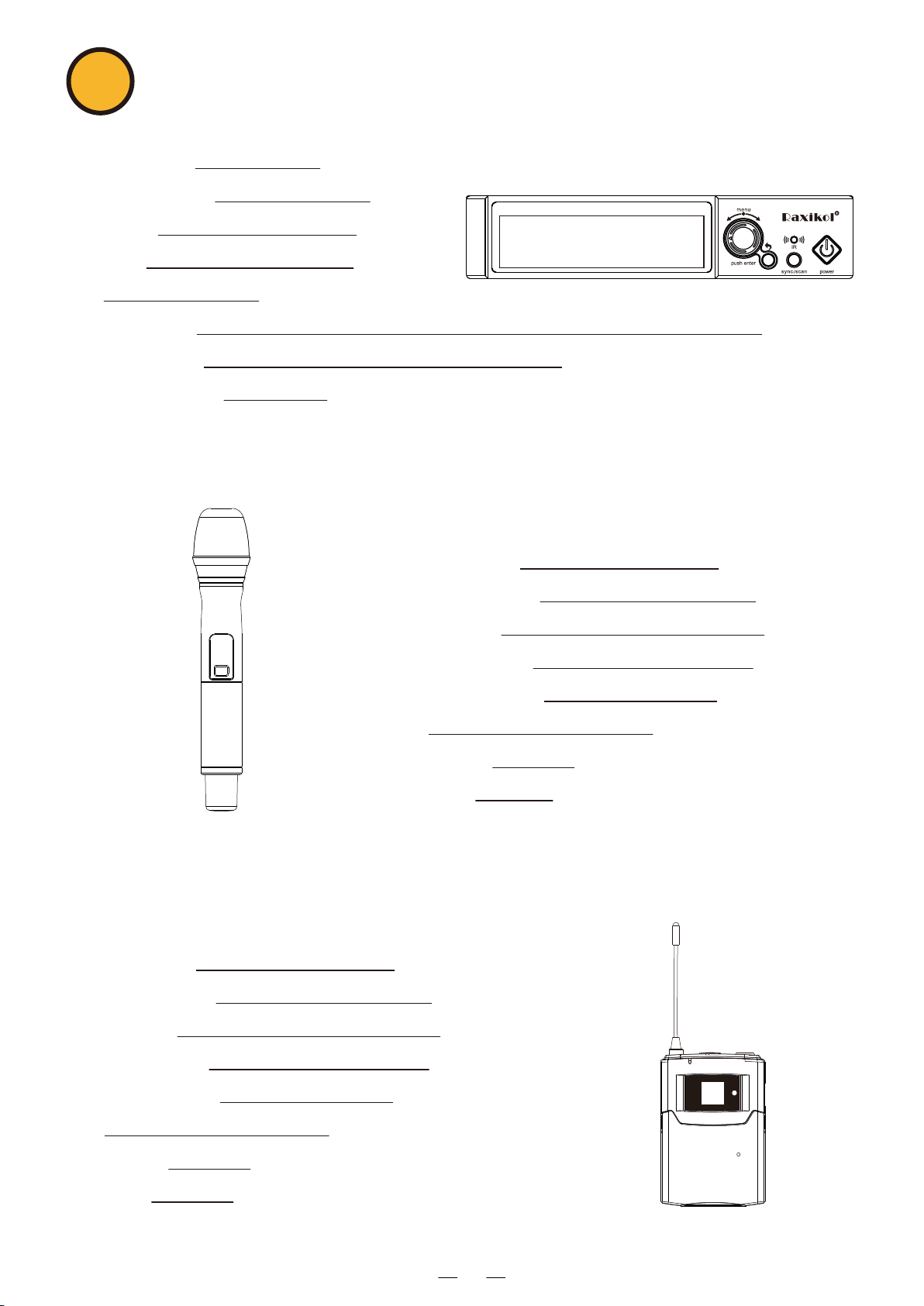

Technical Data
641~698 MHz
57MHz
-106dBm
112dB(A)
<1%(Without Cartridge)
Ｒｅｃｅｉｖｅｒ
Frequency Range
Switching Bandwidth
Sensitivity
Dynamic
THD
Receiver Principle true diversity
Audio Output Level (Jack)+6dBV max;(XLR)+12dBV max
Frequency Response Flat 60Hz~15KHz(-3dB);Low Cut/High Bosst(-3dB at 180Hz/+6dB at 10KHz)
08
i
641~698MHz
57MHz
48KHz
≥60dBc
50Hz~15KHz
<1%(Without Cartridge)
2*AA Alkaline/Rechargeable Battery
≈≈≈6~8H(Alkaline)；Current≥150mA(3V)≥
Handheld Transmitter
Frequency Range
Switching Bandwidth
Peak Deviation
Spurious Emissions
Frequency Response
THD
Power Supply
Battery Life
641~698MHz
57MHz
48KHz
≥≥60dBc
50Hz~15KHz
<1%(Without Cartridge)
2*AA Alkaline/Rechargeable Battery
≈6~8H(Alkaline)；Current≥150mA(3V)
Bodypack Transmitter
Frequency Range
Switching Bandwidth
Peak Deviation
Spurious Emissions
Frequency Response
THD
Power Supply
Battery Life
I R
LO W B AT T MU TE
R a x i k o l R
R YP - 60
Bodypac k T ransmitter

Technical DataTechnical Data
Model Name Product Description Size Cover
Stainless Steel
RYH-32 Handheld Transmitter ≈322g (Wihtout Bettery) 250mm×51mm
Length×OD
Aluminium
Fabrication
RYH-53 Handheld Transmitter ≈320g (Wihtout Bettery) 260mm×51mm
Length×OD
Aluminium
Fabrication
RYP-60 Beltpack Transmitter ≈87g (Wihtout Bettery) 91mm×64mm×23mm
Height×Width×Depth ABS
RYP-86 Beltpack Transmitter ≈81g (Wihtout Bettery) 71mm×64mm×23mm
Height×Width×Depth ABS
09
Dimensions
RYW-116 Single Channel Receiver ≈1025g
(Without Rubber Antenna)
45mm×210mm×172mm
Height×Width×Depth
