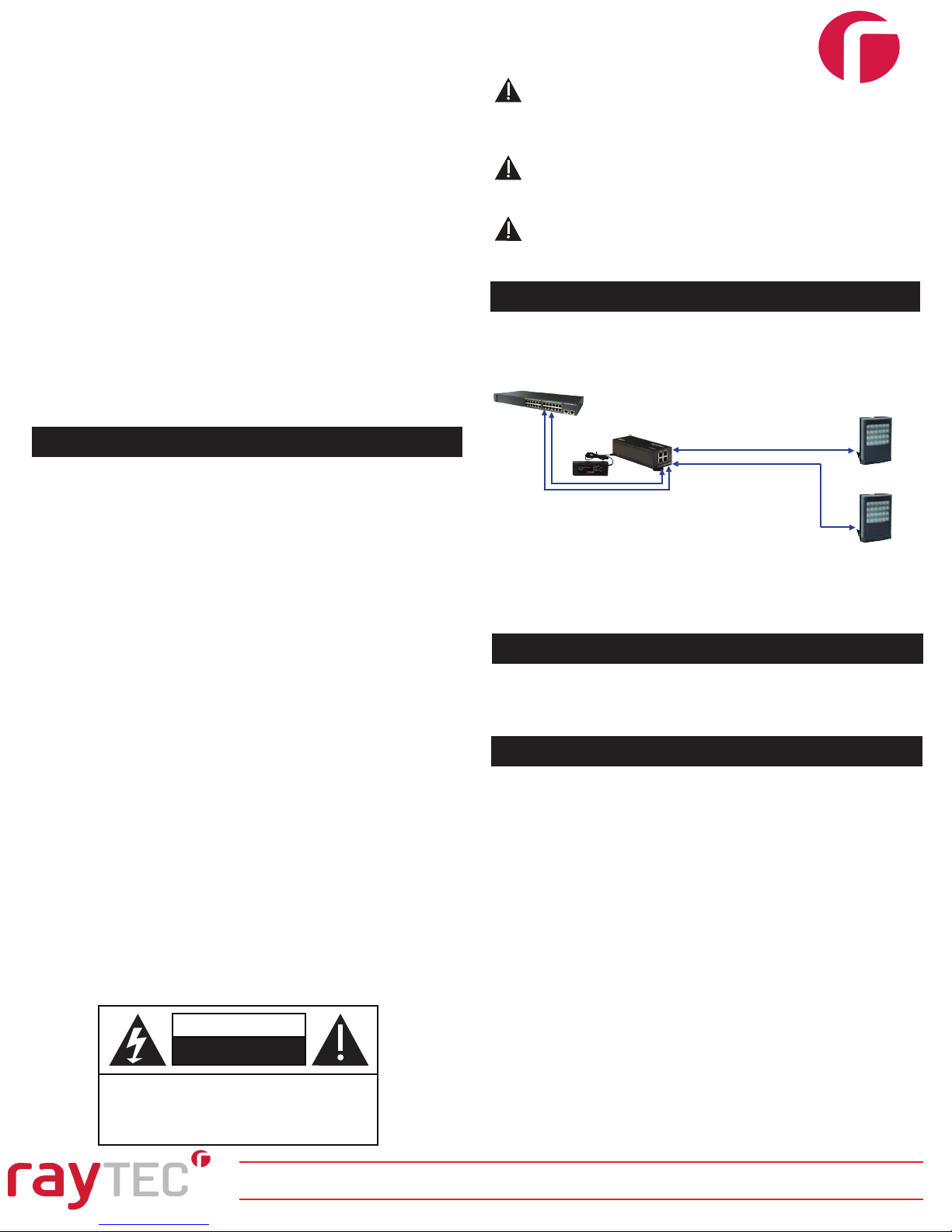

Application Drawing
RVi1120 120W Power Supply Installation Manual
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Midspan Connection
The Global Leader in LED Lighting for Security and Saftey www.rayteccctv.com
Important Safety Warning
- Connect the DC round connector to the input of the RVi2202
AC Connection
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer’s instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP signal wires in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on equipment.
- DO NOT install the unit in a place where the operating ambient tempera-
ture exceeds 75° C.
- Make sure that the external power supply output voltage is in the recom-
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet through an AC to DC Power supply
when using DC input.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Network Switch
RVi1120
RVi2202
Up to 60W PoE and data
VAR-IPPOE-i8-1
VAR-IPPOE-i8-1
The Raytec Model RVi1120 is a universal input AC/DC wall mount power
supply. It is designed to work with the most demanding PoE Midspan
devices for CCTV applications. It can provide up to 120W at 56V.
It is highy reliable with sevearl internal protection circuits including Short
Circuit, Overload, Over Volatge and Over Temperature. The RVi1120 is a
class I power supply with earth pin. It has a buit-in active PFC circuit.
It meets the EISA 2007 Energy Independence and Security Act.
- Plug the AC power cord provided with the unit to the mains. The Green
LED will indicate the power status.
Warning: In order to turn the power supply off unplug the
AC power cord from the unit and the mains.

Raytec 5 Year Warranty
The warranty requires return of a product directly to Raytec in the UK. Replacement
of parts or product may be new or refurbished and will meet or exceed specifications
of the original parts or products.
- Registration of the product is required to validate the warranty
- Proof of purchase may be required
- The repair or replacement of a faulty product within the warranty period remains at
the discretion of Raytec
The Raytec warranty covers defects in parts on workmanship but does not cover fair
wear and tear, defect resulting from misuse, unauthorized modification, operation or
storage outside the environment specification for the product or in-transit damage.
The warranty may only be enforced by the first installer.
Should you have any questions relating to the Warranty of any Raytec product or
require any technical support please contact Raytec on 613 - 270 - 9990
Technical Specications*
RoHS

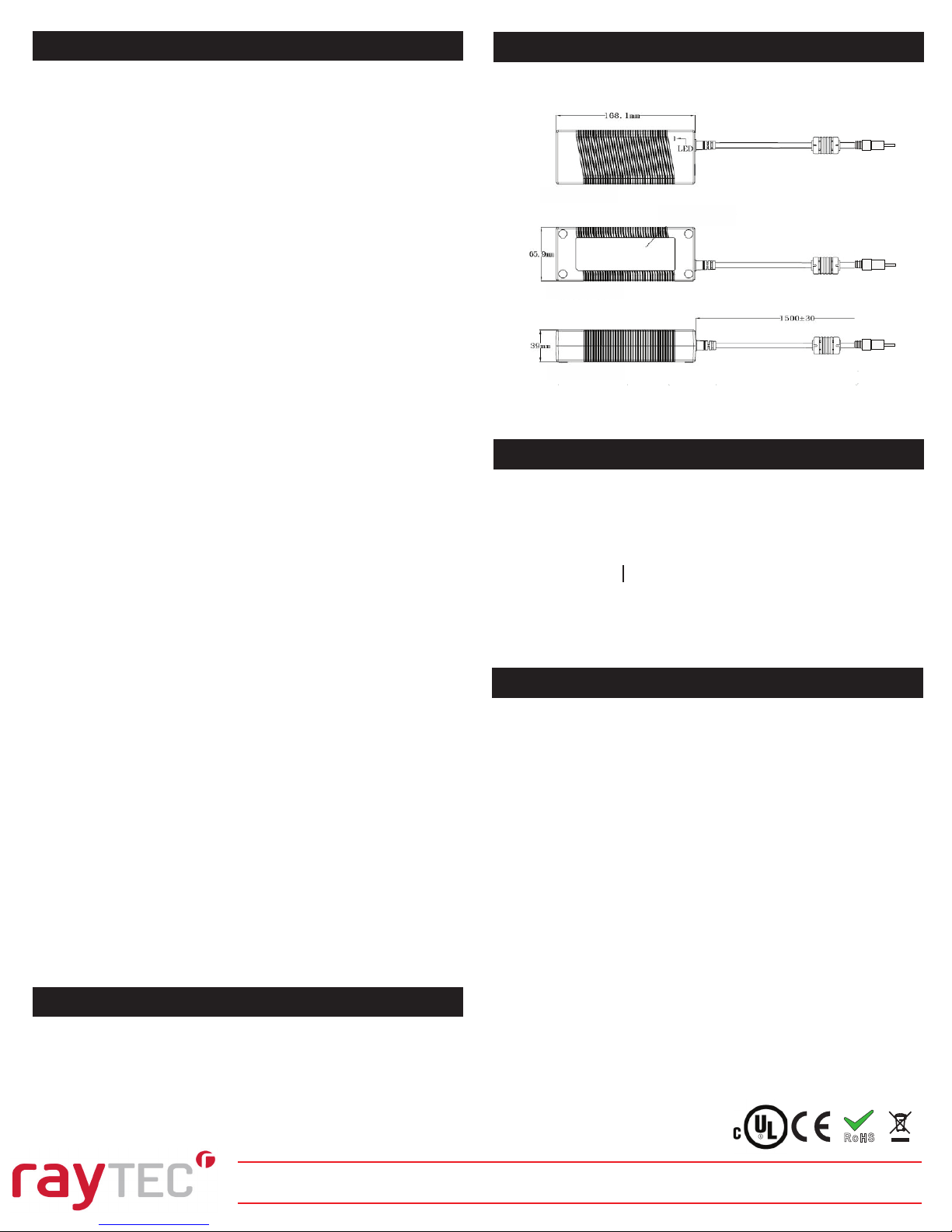

Drawings
Ordering Information
Status LEDs
TEL [phone] • FAX [phone]
800 - 300 Terry Fox Drive Kanata, Ontario Canada K2K 0E3 • [e-mail] • www.rayteccctv.com
Ordering Information
Part No.
RVi1120 120W External Power Supply
Electrical (Input)
Voltage Universal 100 ~240 V.A.C, single phase
Line Frequency 47~63 Hz
Current 1.6A Maximum
Inrush Current 80A Max./ 230 V.A.C.
Cold Start 25 degrees C @ full load
Average Efficiency >= 87% @ 115VAC and 230VAC
Power Consumption Pi <= 0.5W rated at 230VAC with no load
Power Factor Pi>= 0.9 rated at full load
Electrical (Output)
Voltage +56VDC =/-5%
Current 2.15A
Regulation 53.2V minimal ~56V typical~58.8V Maximum
Ripple/Noise 300mV Maximum
Total Power 120 Watts
Output Plug Pin Assignment Center Pin: Power
Shield: Ground
Output Pin Wire UL1185 AWG18
Electrical (Protection)
Over Voltage Protection (OVP) Voltage out = 105% ~150%
Over Current Protection (OCP) Current out =105%~150%
Short Circuit Protection (SCP) Automatic recovery after fault is
removed
Power Method Switching EMI conduction & Radiation
Harmonic Current
EMS Immunity EMC Directive 2004/108/EC
(EN55022/EN55024)
MTBF 50,000 hours 2 25degrees C by MIL-HDBK-217F
Environmental
Temperature Operating: 0 C (32F) ~+40C (104F)
Storage: -20C (-4F) ~+80C (176F)
Humidity Relative Operating: 20% ~ 80% RH
Relative Storage:10%~90%
Cooling Natural Air- No fan required
Mechanical
Dimensions Case: 6.6x2.3x1.5 in., 168x65.9x39 mm. (LxWxH)
Cable Length: 59 in., 1500 mm
Weight 1.3 lbs., 580g
Top View
Bottom View
Side View
Raytec
Power Green LED
*Specifications subject to change without notice.
