Razer Naga Chroma User manual

1 | razer™
The Razer Naga Chroma multi-color MMO gaming mouse makes late night raids, intense
guild battles, and exciting dungeon crawling even more fun for MMO gamers.
It comes with 12 mechanical thumb-grid buttons for faster in-game actuations and
assured tactile feedback. The concave button design also allows for blind-find so you stay
focused on the game, letting your instincts lead you to victory.
Maximize the best strength of your gaming mouse and be the boss of your own game.

2 | For gamers by gamers™
TABLE OF CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS..................................................2
2. REGISTRATION / TECHNICAL SUPPORT.................................................................4
3. TECHNICAL SPECIFICATIONS.................................................................................5
4. DEVICE LAYOUT....................................................................................................6
5. USING YOUR RAZER NAGA CHROMA....................................................................7
6. INSTALLING YOUR RAZER NAGA CHROMA ...........................................................7
7. CONFIGURING YOUR RAZER NAGA CHROMA .......................................................8
8. USING THE IN-GAME CONFIGURATOR ...............................................................40
9. SAFETY AND MAINTENANCE ..............................................................................55
10. LEGALESE .........................................................................................................57
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
•Razer Naga Chroma wireless MMO gaming mouse

3 | razer™
•Important Product Information Guide
SYSTEM REQUIREMENTS
•PC or Mac with a free USB port
•Windows® 10 / Windows® 8 / Windows® 7 / Mac OS X (10.8 - 10.10)
•Internet connection
•100MB of free hard disk space

4 | For gamers by gamers™
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Sign up now for a Razer Synapse account to get real-time information on your product’s
warranty status. To learn more about Razer Synapse and all its features, visit
If you are already a Razer Synapse user, register your product by clicking on your email
address at the Razer Synapse application and select Warranty Status from the dropdown
list.
Please note that you will not be able to view your warranty status if you register via the
website.
Your product’s serial
number can be found here.
TECHNICAL SUPPORT
What you’ll get:

5 | razer™
•2 years limited manufacturer’s warranty.
3. TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
•Total of 19 MMO optimized programmable buttons
•12 button mechanical thumb grid
•Tilt click scroll wheel
•16000 DPI 5G Laser Sensor
•Up to 210 inches per second / 50 G acceleration
•1000 Hz Ultrapolling / 1 ms response time
•Chroma lighting with 16.8 million customizable color options
•Inter-device color synchronization
•Razer Synapse enabled
•Zero-acoustic Ultraslick mouse feet
•2.1 m / 7 ft braided fiber USB cable
APPROXIMATE SIZE & WEIGHT:
•Length 119mm/4.68”
•Width 75mm/2.95”
•Height 43mm/1.69”

6 | For gamers by gamers™
•Weight 150g/0.33lbs
4. DEVICE LAYOUT
A. Left mouse button
B. Right mouse button
C. Scroll wheel
D. DPI stage up
E. DPI stage down
F. Left tilt-click –repeat scroll down
G. Right tilt-click –repeat scroll up
H. 12 Programmable mechanical thumb grid buttons
I. 16000 DPI 5G laser sensor
J. Ultraslick mouse feet

7 | razer™
5. USING YOUR RAZER NAGA CHROMA
The 12-button thumb grid works the same as a keyboard’s numerical keys. These buttons
allow you to replicate the action bar of most games onto the thumb grid buttons.
6. INSTALLING YOUR RAZER NAGA CHROMA

8 | For gamers by gamers™
Step 1: Connect your Razer device to the USB port of your computer.
Step 2: Register for a Razer ID or log in to Synapse with an existing account.
*Applicable for Windows 8 or later.
7. CONFIGURING YOUR RAZER NAGA CHROMA
Disclaimer: The features listed here require you to log in to Razer Synapse. These features are also subject to
change based on the current software version and your Operating System.
MOUSE TAB
The Mouse Tab is your default tab when you first install Razer Synapse. This tab allows
you to customize your device’s profiles, button assignments, performance, and lighting.

9 | razer™

10 | For gamers by gamers™

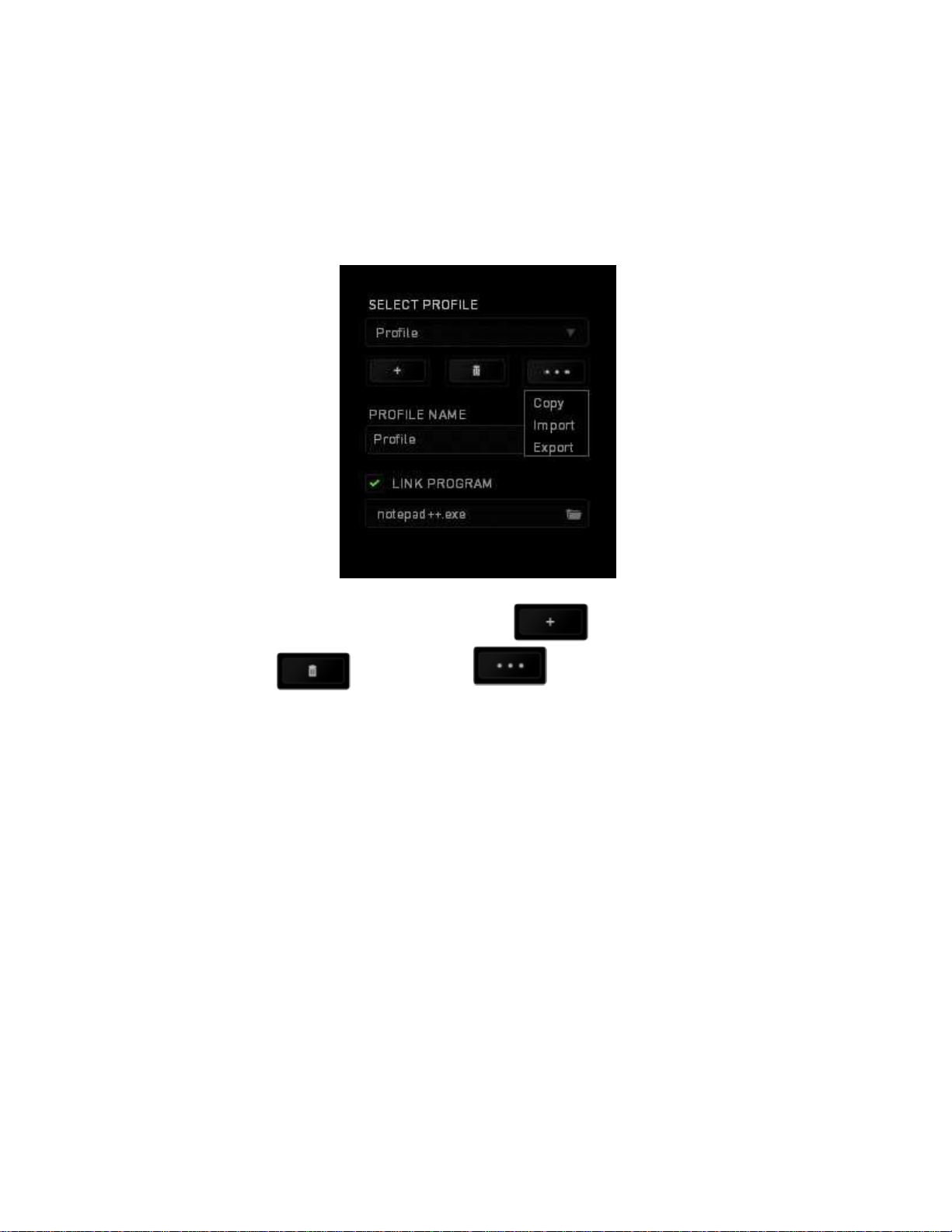

Profile
A profile is a convenient way of organizing all your custom settings and you can have an
infinite number of profiles at your disposal. Any changes made within each tab are
automatically saved to the current profile and stored into the cloud servers.
You can create a new profile by clicking the button or delete the current
profile by clicking the button. The button allows you to copy, import, and export
profiles. Your current profile by default is named “Profile” however; you can rename it
by typing on the text field below PROFILE NAME. Each profile can also be set to
automatically activate when you run a program or application through the use of the
LINK PROGRAM option.

11 | razer™
Customize Tab
The Customize Tab is where you can modify the basic functionalities of your device such
as button assignments to suit your gaming needs. The changes made in this tab are
automatically saved to your current profile.

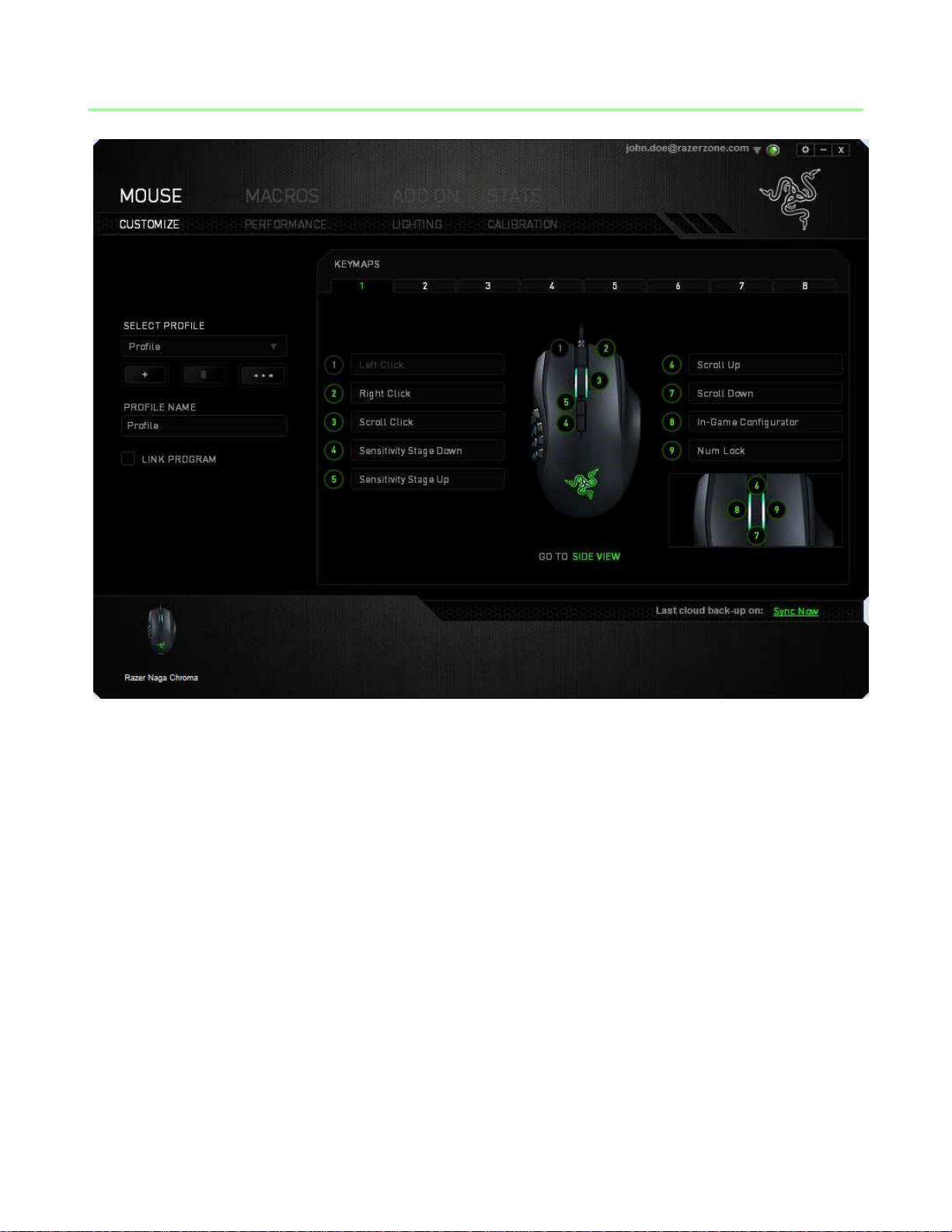

Top View
The Top View is where you can customize the mouse buttons and the scroll wheel.

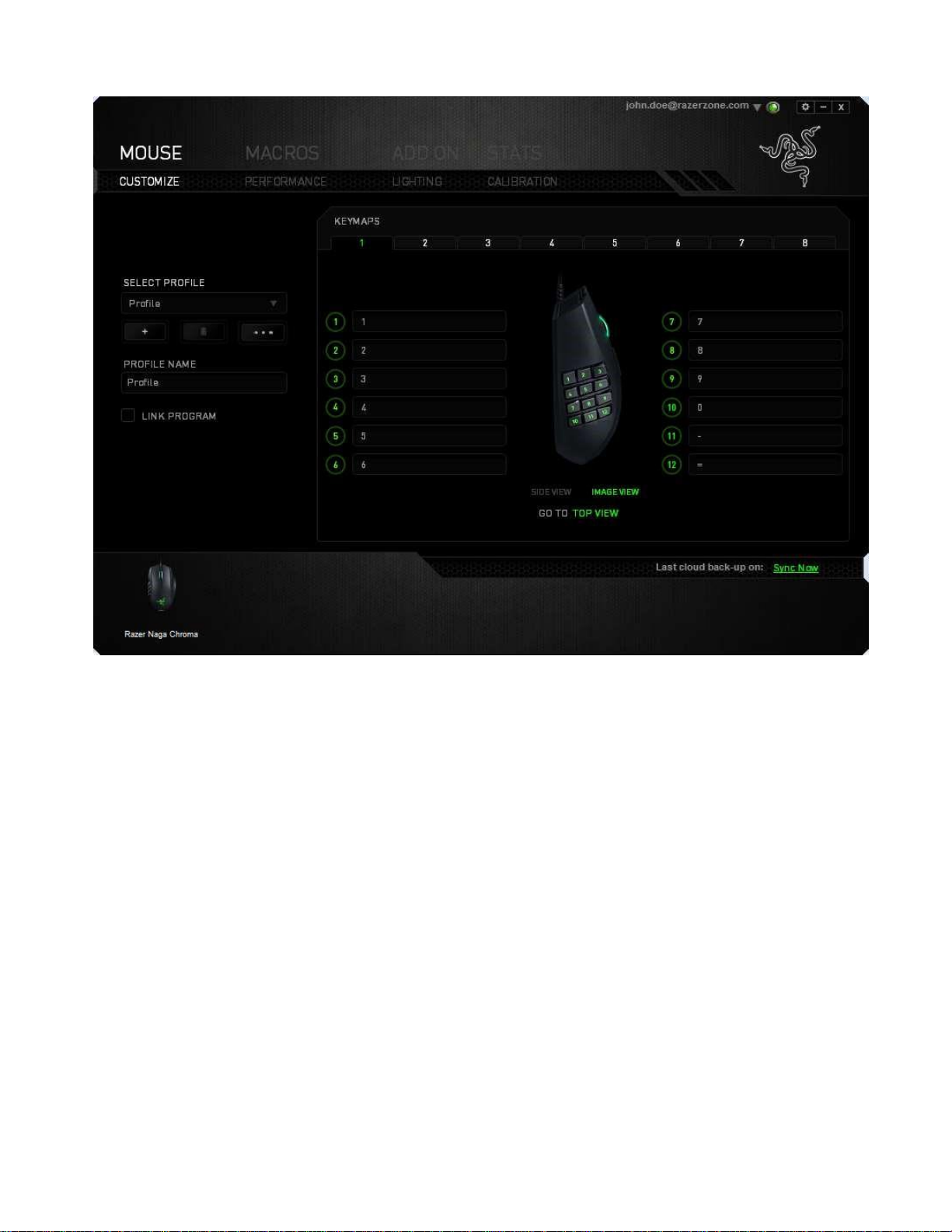

Side View
The Side View is where you can customize the 12-button thumb grid.

12 | For gamers by gamers™
You can save up to 8 sets of KEYMAP configurations, allowing you to easily set up and
switch between customized key mappings for different games.
Button Assignment Menu
Initially, each of the mouse buttons is set to DEFAULT.However, you may change the
function of these buttons by clicking the desired button to access the Button Assignment
Menu.

13 | razer™
Listed below are the customization options and their description.
Default
This option enables you to return the key to its original function. To choose the DEFAULT,
simple select it from the Button Assignment Menu.
Keyboard Function
This option enables you to change the mouse buttons into keyboard functions. To choose
a keyboard function, select KEYBOARD FUNCTION from the Button Assignment Menu
and enter the key you wish to use on the given field below. You may also include modifier
keys such as Ctrl, Shift, Alt or any of those combinations.

14 | For gamers by gamers™
Mouse Function
This option allows you to change the mouse buttons into other mouse functions. To
choose a mouse function, select MOUSE FUNCTION from the Button Assignment Menu
and an ASSIGN BUTTON submenu will appear.
Listed below are the functions which you can choose from the Assign Button submenu:
Left Click
- Performs a left mouse click using the assigned button.
Right Click
- Performs a right mouse click using the assigned button.
Scroll Click
- Activates the universal scrolling function.
Double Click
- Performs a double left click using the assigned button.
Mouse Button 4
- Performs a “Backward” command for most internet browsers.
Mouse Button 5
- Performs a “Forward” command for most internet browsers.
Scroll Up
- Performs a “Scroll Up” command using the assigned button.
Scroll Down
- Performs a “Scroll Down” command using the assigned button.
Scroll Left
- Performs a “Scroll Left” command using the assigned button.
Scroll Right
- Performs a “Scroll Right” command using the assigned button.
Sensitivity
Sensitivity refers to how fast the mouse pointer can travel across the screen. When you
select the Sensitivity function from the dropdown menu, a sub-menu will appear which
gives you access to the following options:
Sensitivity Clutch
- Change to a predefined sensitivity as long as the
designated button is pressed. Releasing the button will
return it to the previous sensitivity.
Sensitivity Stage Up
- Increase the current sensitivity by one stage. See the
PERFORMANCE TAB to learn more about sensitivity
stages.
Sensitivity Stage Down
- Decrease the current sensitivity by one stage. See the
PERFORMANCE TAB to learn more about sensitivity
stages.

15 | razer™
On-The-Fly Sensitivity
- Readily adjust the current sensitivity using the
assigned button. If On‐The‐Fly Sensitivity has been set,
pressing the designated button and moving the scroll
wheel will produce a bar on your screen which would
indicate your current sensitivity level.
Cycle Up Sensitivity Stages
- Increase the current sensitivity stage by one and once
it reaches the highest sensitivity stage, it will return to
stage 1 when the button is pressed again. See the
PERFORMANCE TAB to learn more about sensitivity
stages.
Cycle Down Sensitivity Stages
- Decrease the current sensitivity stage by one and
once it reaches stage 1, it will return to the highest
sensitivity stage when the button is pressed again. See
the PERFORMANCE TAB to learn more about
sensitivity stages.
Inter-device
Inter-device allows you to change the functionality of other Razer Synapse-enabled
devices. Some of these functionalities are device-specific such as using your Razer
gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse. When you
select Inter-device from the Button Assignment Menu, a sub-menu will appear.
DEVICE TO LINK allows you to choose which currently connected Razer device can be
linked while FUNCTION allows you to choose which functionality you want to use for the
linked device.
Switch Keymap
The Switch Keymap allows you to easily swap key assignments with a press of a key.
When you select Switch Keymap from the Key Assignment Menu, a submenu will appear
wherein you can choose which keymap to use. The LED on the thumb module will
automatically change color to correspond with the keymap.

16 | For gamers by gamers™
Macro
A Macro is a pre-recorded sequence of keystrokes and button presses that is executed
with precise timing. By assigning a Macro to a button, you can execute complex
combinations with ease. The ASSIGN MACRO allows you to choose which recorded
Macro to use while the PLAYBACK OPTION enables you to choose the behavior of the
Macro. See the MACROS TAB to learn more about creating Macro commands.
Switch Profile
The Switch Profile enables you to change profiles on the fly and immediately load all your
pre-configured settings. When you select Switch Profile from the Button Assignment
Menu, a sub-menu will appear that will allow you to choose which profile to use. An on-
screen display will automatically appear whenever you switch profiles.
Launch Program
The Launch Program allows you to run a program or application using the assigned
button. When you select Launch Program from the dropdown menu, a button will
appear which allows you to search for the specific program or application you want to
use.
In-game Configurator
The In-Game Configurator enables you to assign the button to launch the configurator
while gaming. See USING THE IN-GAME CONFIGURATOR to learn more.
Multimedia Function
This option allows you to bind multimedia playback controls to your device. After
selecting Multimedia Function, a submenu will appear. Listed below are the multimedia
playback controls you can choose from the submenu:
Volume Down
- Decreases the audio output.
Volume Up
- Increases the audio output.
Mute Volume
- Mutes the audio.
Mic Volume Up
- Increases the microphone volume.

17 | razer™
Mic Volume Down
- Decreases the microphone volume.
Mute Mic
- Mutes the microphone.
Mute All
- Mute both microphone and audio output.
Play / Pause
- Play, pause, or resume playback of the current media.
Previous Track
- Play the previous track.
Next Track
- Play the next track.
Windows 8 Charms
This option enables you to assign the button into an Operating System shortcut
command.
Windows Shortcuts
This option enables you to assign the button into an Operating System shortcut command.
Shortcuts
This option enables you to assign the button into an Operating System shortcut
command.
Disable
This option renders the assigned button unusable. Use Disable when you have no need
for a button or if a particular button interferes with your gaming.
Performance Tab
The Performance Tab allows you to enhance the speed and precision of your mouse
pointer. Similar to the Customize Tab, the changes made here are automatically saved
to your current profile.

18 | For gamers by gamers™
Listed below are the performance options and their descriptions.
Sensitivity
Sensitivity pertains to how much effort is needed to move the mouse pointer in any
direction. The higher the sensitivity, the more responsive the mouse will be.
(Recommended setting: 1600 –1800)
Enable X-Y Sensitivity
By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values.
However, you may set different sensitivity values to each of the axes by selecting the
“Enable X-Y Sensitivity” option.

19 | razer™
Configure Sensitivity Stages
A sensitivity stage is a preset sensitivity value. You can create up to 5 different sensitivity
stages which you can cycle through using the sensitivity stage up/down buttons. You may
use the “Enable X-Y Sensitivity” concurrently with this option. Note that whenever you
configure a sensitivity stage, your current sensitivity will match that setting.
Acceleration
Acceleration increases the cursor’s movement speed depending on how quickly you
move the mouse. The higher the value, the faster the mouse accelerates.
(Recommended settings: Windows 0, Mac 5)
Polling Rate
The higher the polling rate, the more often the computer receives information about the
status of your mouse, thus increasing the mouse pointer’s reaction time. You can switch
between 125Hz (8ms), 500Hz (2ms) and 1000Hz (1ms) by selecting your desired polling
rate on the dropdown menu. (Recommended setting: 500Hz –1000Hz)

20 | For gamers by gamers™

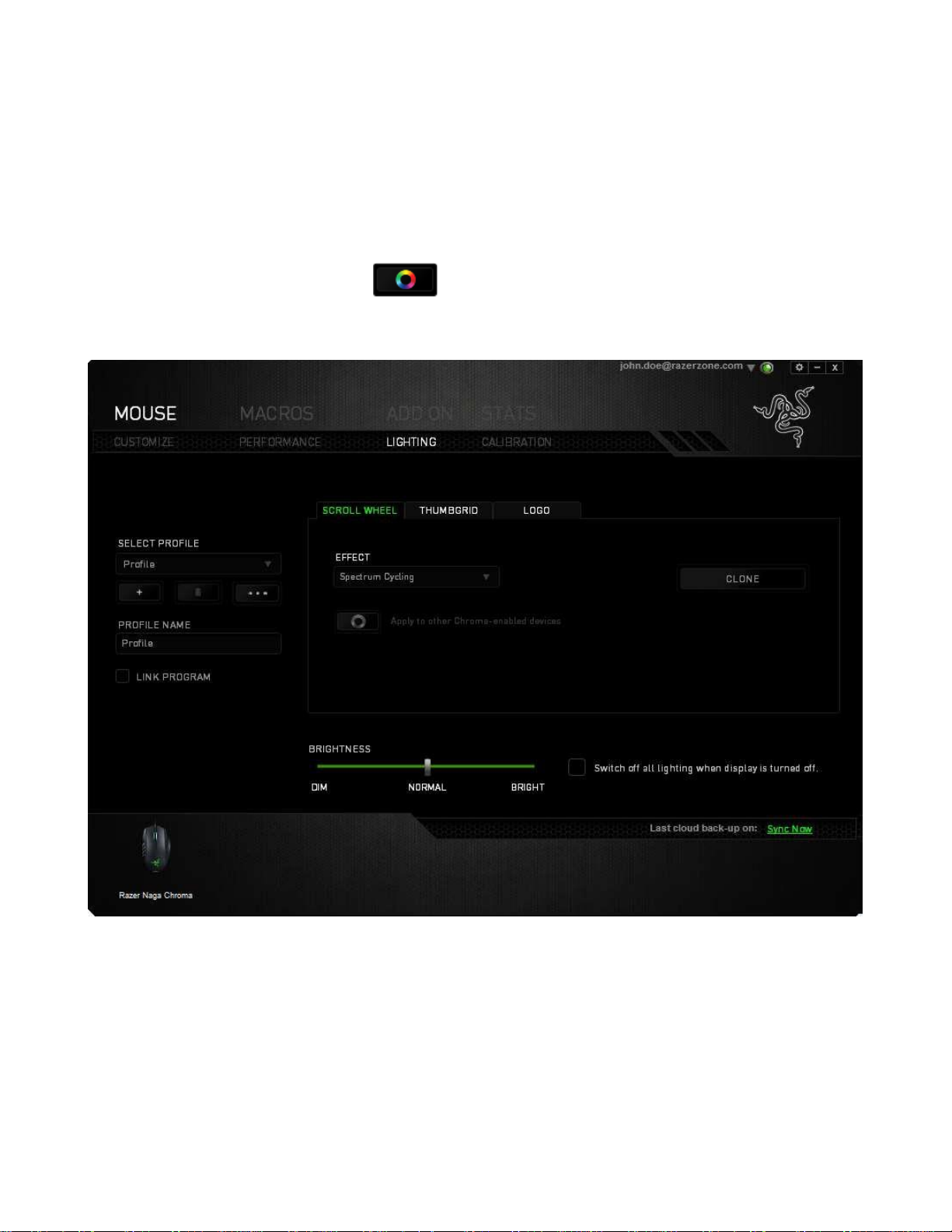

Lighting Tab
Each Chroma enabled device has a Lighting Tab on Razer Synapse. This Lighting Tab
allows you to customize the look of your Razer Naga Chroma by being able to choose
from 16.8 million colors for the Razer logo, 12 button thumb grid, and scroll wheel. This
tab also allows you to adjust the intensity of the lighting using the BRIGHTNESS
dropdown menu. If you have other Chroma enabled devices, you can synchronize all
lighting schemes by clicking the button. Note that this synchronization function
will only apply on devices that support the selected scheme.
Calibration Tab
The Calibration Tab allows you to optimize your Razer Precision Sensor to any mousing
surface for better tracking. To use this feature, you must select the ON option under
SURFACE CALIBRATION.
