TrueDRY DH90
Ventilating Dehumidification System
SPECIFICATION DATA
69-2146-01
DH90 Capacities and Performance
Part Number: DH90
Blower: 240 CFM @ 0.0 in. WG
220 CFM @ 0.4 in. WG
Supply Voltage: 110–120 Volt; 60 Hz.
Amps: 6.3
Operating Exterior Temp:
56-130ºF (13-54ºC) ducted
56-100ºF (13-38ºC) unducted
Capacity:
97 Pints/Day (80ºF [27ºC], 60% RH)
114 Pints/Day (90ºF [32ºC], 60% RH)
130 Pints/Day (100ºF [38ºC], 60% RH)
Coverage (sq ft): Up to 3120
Discharge 105ºF (41ºC)
Air Temp: (80ºF [27ºC], 60% RH intake)
Duct Connections: 6 in. Round Inlet
10 in. Round Inlet
10 in. Round Outlet
Filter Efficiency: Standard MERV-11
(65% ASHRAE Dust Spot)
Power Cord: 7.5 ft, 115V With Ground
Drain Connection: 3/4 in. Threaded MPT
Dimensions (See Fig. 1):
Width: 15 3/4 in.
Height: 20 7/8 in.
Length: 34 1/2 in. without collars
40 1/2 in. with collars
Weight: 92 lbs
Shipping Specs:
Length: 42 in.
Height: 25 7/8 in.
Width: 20 1/2 in.
Weight: 99 lbs
OPTIONAL PARTS
MERV 11 Filter: 50018994-001
Motorized Damper: EARD6
10-in. Backdraft
Damper: 50018995-001
Blower Assembly: 50027976-001
24VAC Transformer: 50027977-001
SPDT 15A Relay: 50027978-001
SPST 30A Relay: 50027979-001
Compressor: 50027980-001
Leveling Feet (4): 50027981-001
ETL listed. Conforms to UL Std 1995.
The TrueDRY DH90 performs multiple indoor air quality functions in a
single, compact unit:
• High-Capacity Dehumidification
• Fresh Air Ventilation
• Air Filtration
Dehumidification
The TrueDRY DH90 dehumidifier utilizes refrigeration and internal air cir-
culation to cool the incoming air stream below its dew point. This cooled
and drier air is used to pre-cool the incoming air stream resulting in a
significant increase in overall efficiency.
After helping to cool the incoming air, the processed air is reheated by
passing through the condenser coil. The heat removed by the evapora-
tor coil is returned to the air stream, resulting in an overall temperature
increase to the processed air.
The TrueDRY DH90 is controlled by a variety of 24 volt remote wired con-
trols.
Fresh Air Ventilation
Optional fresh outdoor air may be ducted to the unit via a six-inch round
duct. This provides fresh air to dilute pollutants and maintain a normal
oxygen content in the air. The amount of fresh air ventilation can be
regulated by a variety of dampers and controls.
Air Filtration
The TrueDRY DH90 includes a MERV-11 air filter to keep the DH90’s con-
denser coils clean.
Length: 24 in.
Height: 19 15/16 in.
Width: 7 3/4 in.
Weight: 19 lbs

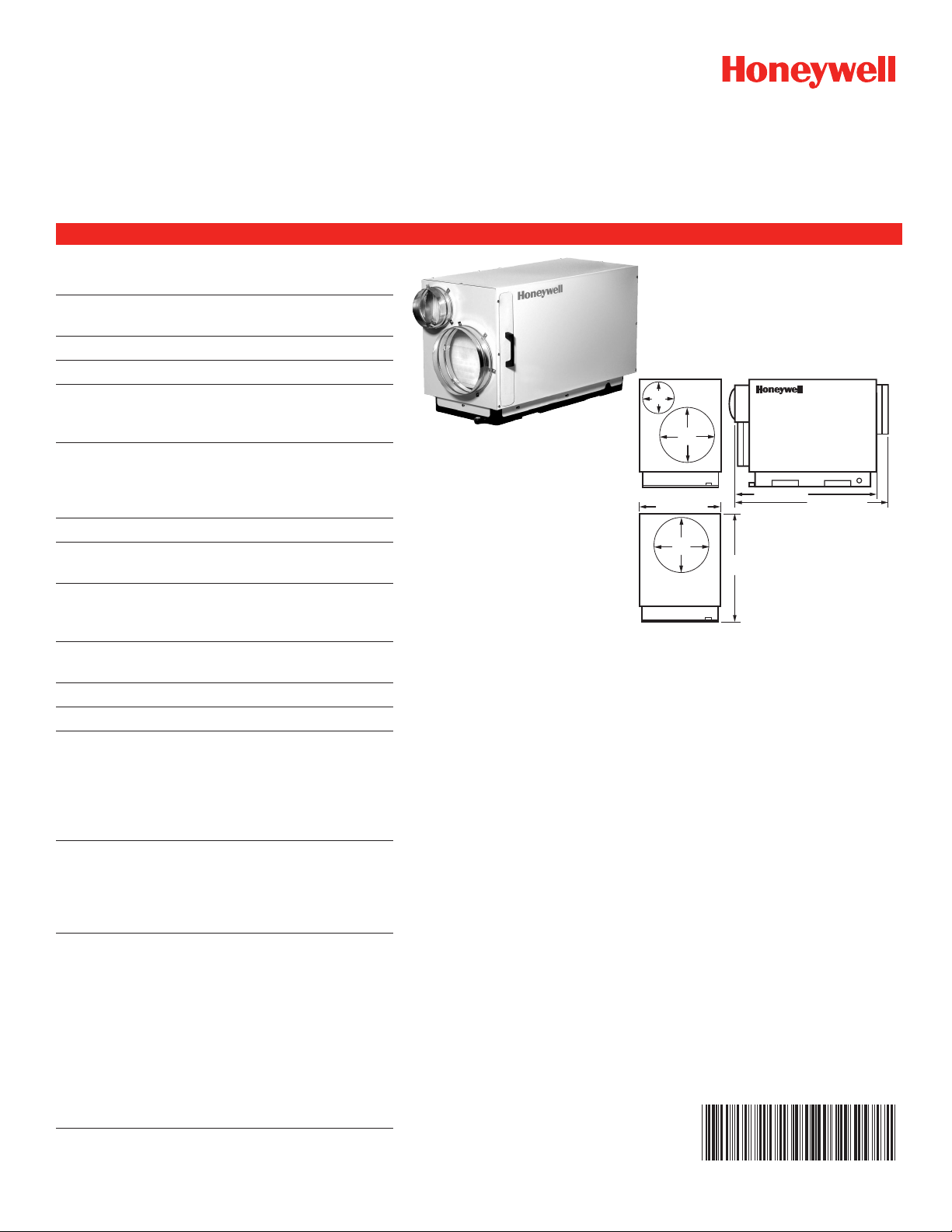

Fig. 1. Dimensions in in. (mm).
M27602
6
(152)
10
(254)
INLET VIEW
10
(254)
OUTLET VIEW
SIDE VIEW
15-3/4 (400)
20-7/8
(530)
34-1/2 (876) 43-1/2 (1092)

Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com
Automation and Control Solutions
® U.S. Registered Trademark.
© 2008 Honeywell International Inc.
69-2146—01 M.S. 07-08
Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Toronto, Ontario M1V 4Z9
Printed in U.S.A. on recycled
paper containing at least 10%
post-consumer paper fibers.
Installation Recommendations and Options
SUPPLY
RETURN
AIR HANDLER
TrueDRY M27325
AMain Return to Main Return
M27327
E
Unducted
Ideal when…
• Running TrueDRY DH90 with A/C operation.
• Minimizing discharge air temperature (DAT) increase
is preferred.
• Space dictates.
SUPPLY
RETURN
AIR HANDLER
TrueDRY
M27324
BACKDRAFT
DAMPER
B
Main Return to Main Supply
Ideal when…
• Running TrueDRY DH90 opposite A/C operation.
Running with A/C operation requires damper on the
exhaust port to minimize backdraft when TrueDRY
DH90 is not on but A/C is.
• Minimizing DAT increase is preferred.
• Space dictates.
Ideal when…
• Drying a specific area of the house.
• Running with A/C operation requires backdraft
damper on the exhaust port to minimize backdraft
when TrueDRY DH90 is not on but A/C is.
• Minimizing DAT increase is preferred.
SUPPLY
RETURN
AIR HANDLER
TrueDRY M27326
SEPERATE
RETURN
BACKDRAFT
DAMPER
C
Dedicated Return to Main Supply
Ideal when…
• Drying a specific conditioned or unconditioned area,
such as attic, basement, or crawl space.
• Balanced dehumidification is needed without
ventilation.
• Minimizing DAT is not a concern.
Ideal when…
• Running TrueDRY DH90 with A/C operation.
• Drying a specific area of the house.
• Minimizing DAT increase is preferred.
SUPPLY
RETURN
AIR HANDLER
M27601
TrueDRY
SEPERATE
RETURN
D
Dedicated Return to A/C Return
