RC Aerodyne UH-60 User manual

Thank yiu for buying an RC Aerodyne product.The 600 scale fuselage is designed as an easy to install kit. Please read
the manual.
carefully before assembling the model,and follow all precautions and recommendations located within the manual.Be
sure to retain the manual for future reference,routine maintenance,and tuning.The scale fuselage is designed for
Chaos 600 Pro and T-REX 600 ESP Electric Helicopter series.
感謝你選擇躍邦産品，爲了讓你容易方便的使用600像真機殼，請你詳細的閱讀完這本說明書之後再進行組裝以及操
作這台直升機，同時請你妥善的保存這本說明書、作爲日後進行調整以及維修的參考。本像真機殼爲 T-REX600ESP
直升機之規格所設計，只要你擁有T-REX600ESP直升機，就可以輕松爲它換件新衣，讓你成爲衆所注目的焦點。
IMPORTANT NOTES 重要聲明
R/C helicopters are not toys.R/C helicopter utilize various high-tech products and technologies to provide superior
performance.lmproper use of this product can result in serious injury or even death.Please read this manual carefully
before using and make sure to be conscious of your own personal safety and the safety kf others and your environment
when operating all RCA products.
Manufac turer and seller assume no liability for the operation or the use kf this product.lntended for use only by adults
with experience flying remote control helicopters at alegal flying field.After the sale of this product we cannot maintain
any control over its operation or usage.
After assembling the scale fuselage,the weight will increase and the structure will more complex,so we recommmend
not flying 3D to avoid any accident and damage.
遙控直升機並非玩具，它是結合了許多高科技産品所設計出來的休閑用品，所以商品的使用不當或不熟悉都可能會造
成嚴重傷害甚至死亡，使用之前請務必詳細讀本說明書，勿輕忽並注意自身安全。注意！任何遙控直升機的使用，制
造商和經銷商是無法對使用者于零件使用的損耗異常或組裝不當所發生之意外負任何責任，本産品是提供給有操作過
模型直升機經驗的成人或有相當技術的人員在旁指導于當地合法遙控飛行場飛行，以確保安全無慮下操作使用，産品
售出後本公司將不負任何操作和使用控制上任何性能與安全責任。安裝像真機殼後由于重量加重，且增加了結構複雜
性，故不建意進行3D飛行，以免發生不可預期的意外及損失。
R/C products require a certain degree of skill to opeate,and is a consumer item. Any damage or dissatisfaction as a
result of accidents or modifications are not covered by any warrantee and cannot be returned for repair or experience
problems during op eration or maintenance.
模型商品屬于需高操作技術且爲消耗性之商品，如經拆裝使用後，會造成不等情況零件損耗，任何使用情況所造成不
良或不滿意，將無法于保固條件內更換新品或退貨，如遇有使用操作維修問題，本公司全省分公司或代理商將提供技
術指導、特價零件供應服務。
600象真机壳注意事项：电机齿轮用12T-14T 电机510KV-1200KV 电调80A-120A
Thank yiu for buying an RC Aerodyne product.The 600 scale fuselage is designed as an easy to install kit. Please read
the manual.
carefully before assembling the model,and follow all precautions and recommendations located within the manual.Be
sure to retain the manual for future reference,routine maintenance,and tuning.The scale fuselage is designed for
Chaos 600 Pro and T-REX 600 ESP Electric Helicopter series.
感謝你選擇躍邦産品，爲了讓你容易方便的使用600像真機殼，請你詳細的閱讀完這本說明書之後再進行組裝以及操
作這台直升機，同時請你妥善的保存這本說明書、作爲日後進行調整以及維修的參考。本像真機殼爲 T-REX600ESP
直升機之規格所設計，只要你擁有T-REX600ESP直升機，就可以輕松爲它換件新衣，讓你成爲衆所注目的焦點。
IMPORTANT NOTES 重要聲明
R/C helicopters are not toys.R/C helicopter utilize various high-tech products and technologies to provide superior
performance.lmproper use of this product can result in serious injury or even death.Please read this manual carefully
before using and make sure to be conscious of your own personal safety and the safety kf others and your environment
when operating all RCA products.
Manufac turer and seller assume no liability for the operation or the use kf this product.lntended for use only by adults
with experience flying remote control helicopters at alegal flying field.After the sale of this product we cannot maintain
any control over its operation or usage.
After assembling the scale fuselage,the weight will increase and the structure will more complex,so we recommmend
not flying 3D to avoid any accident and damage.
遙控直升機並非玩具，它是結合了許多高科技産品所設計出來的休閑用品，所以商品的使用不當或不熟悉都可能會造
成嚴重傷害甚至死亡，使用之前請務必詳細讀本說明書，勿輕忽並注意自身安全。注意！任何遙控直升機的使用，制
造商和經銷商是無法對使用者于零件使用的損耗異常或組裝不當所發生之意外負任何責任，本産品是提供給有操作過
模型直升機經驗的成人或有相當技術的人員在旁指導于當地合法遙控飛行場飛行，以確保安全無慮下操作使用，産品
售出後本公司將不負任何操作和使用控制上任何性能與安全責任。安裝像真機殼後由于重量加重，且增加了結構複雜
性，故不建意進行3D飛行，以免發生不可預期的意外及損失。
R/C products require a certain degree of skill to opeate,and is a consumer item. Any damage or dissatisfaction as a
result of accidents or modifications are not covered by any warrantee and cannot be returned for repair or experience
problems during op eration or maintenance.
模型商品屬于需高操作技術且爲消耗性之商品，如經拆裝使用後，會造成不等情況零件損耗，任何使用情況所造成不
良或不滿意，將無法于保固條件內更換新品或退貨，如遇有使用操作維修問題，本公司全省分公司或代理商將提供技
術指導、特價零件供應服務。
Fly only in safe areas,away from other people.Do not operate R/C aircraft within the vicinity of homes or crowds of
people.R/C aircraft are prone to accidents,failures,and crashes due to a variety of reasons including,lack of
maintenance,pilot error,and radio interference.pilots are responsible for their actions and damage or injury occurring
during the operation or as of a result of R/C aircraft models.
遙控模型飛機、直升機屬于高危險性商品，飛行時務必遠離開人群，人爲組裝不當或機件損壞、電子控制設備不良，以
及操控上的不熟悉、都有可能導致飛行失控損傷等不可預期的意外，請飛行者務必注意飛行安全，並需了解自負疏忽所
造成任何意外之責任。

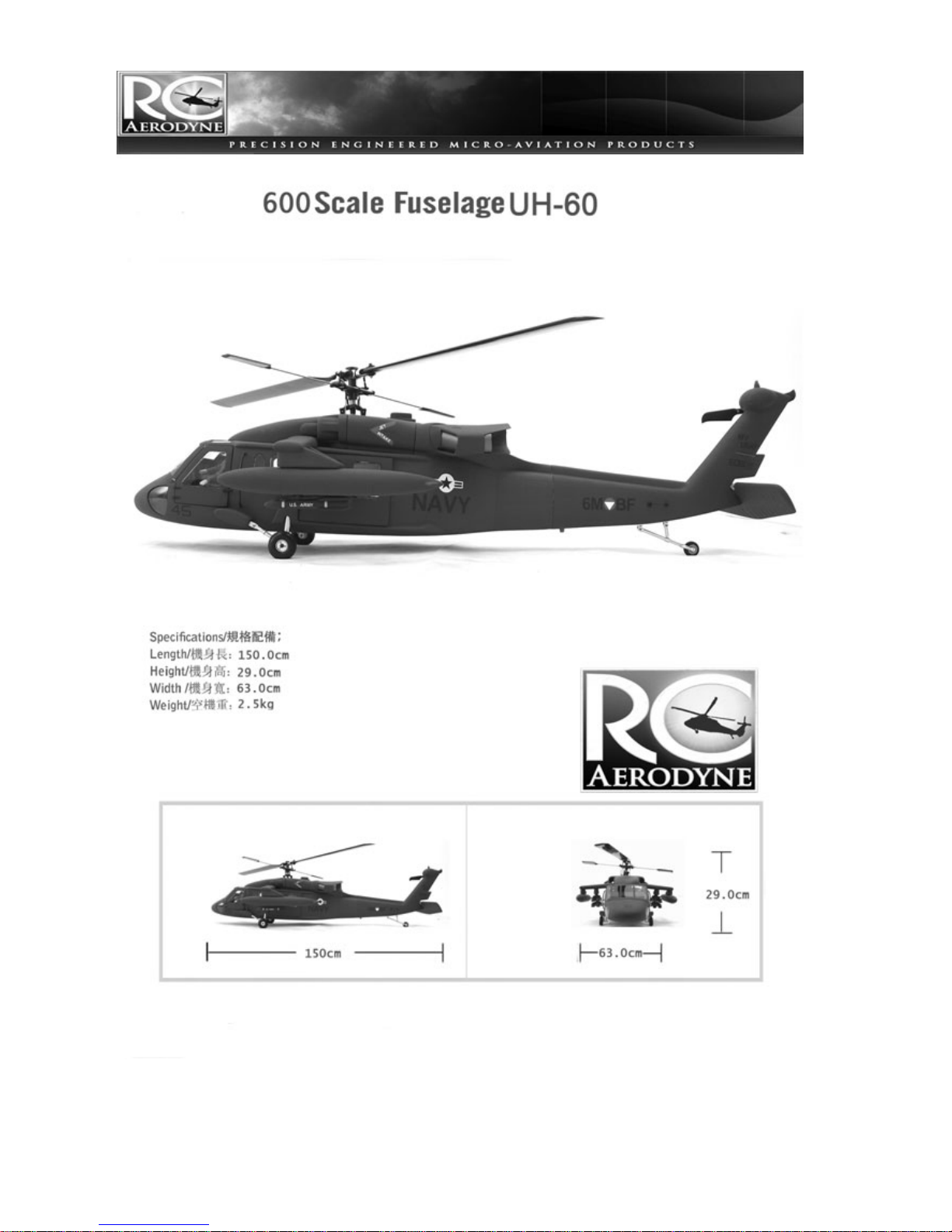

600scale fuselge,suitable for Chaos 600 Pro and T-REX600 ESP Helicopter series
600像真機殼，適用于T-REX600ESP遙控直升機系列。
BEFORE ASSEMBLING組裝前准備事項。
1:Check for all the psrts in the list come with the manual.
2:Some basic tools are needed to help the assembly.
1:組裝之前請先確定內容是否有缺失，仔細詳對後方可進行組裝。
2:組裝過程裏需要一些簡單的工具協助組裝。
TOOL自備工具
1:Cutter knife. 2:Hexagon screw driver
3:Phillips screw driver. 4:File.
5:Diagonal cutting pliers.6:Silicone
7:CA glue. 8:AB glue 9:Fine sandpaper.
10:Scissors.
1:美工刀 2:六角起子 3:十字起子 4:锉刀
5:斜口鉗 6:透明矽膠 7:瞬間膠 8:AB膠
9:細沙紙 10:剪刀
9
1
6
23
45
8
7
11 12
13 14 15
16 17 18
19 20 21
10

26
25
22 23 24
27
28 29
31 32 33
30
34 35 36
1.Tail Transmission Gear Box 2.Vertical Tail Boom， 3. Vertical Torque Tube 228mm
4. Ball Linkages for Tail x2pcs 5. Brass Gear 1x1pcs， 6. Gear Shat 109.0mmx1pcs
7. Vertical Linkage Rod x 1pcs 8. Mounting Brackets x2PCS 9. Spacers
10. Boom Support Mount x1psc 11. CF Side Frames x2pcs 12. Frame Bearings x2pcs
13. Bearing Blocks x2pcs 14. Frame Spacer 47mmx1pcs 15. Landing Gear Pin 3.0mm X4pcs
16. Landing Gear Mounts x2pcs 17. Main Landing Gear x2pcs 18. C Clips x8pcs
19. Rear Landing Gear x1pcs 20. Rear Landing Gear Mount x2pcs 21. Windows x4pcs
22. Windows x2pcs， 23. Windows x2pcs, 24. Windows
25. Windows x2pcs, 26. Windows x4pcs, 27. Scale Fittings x2pcs
28. Foam Boom Mount x1pcs 29. Scale Fittings x2pcs 30. Weapons Pylon x2pcs
31. Weapons x2pcs 32. Aux Fuel Tanks x2pcs 33. HIRSS Exhaust x2pcs
34. HIRSS Exhaust x2pcs 35. Rear Stabilator x1pcs 36. Stabilator Hinges x1pcs
37. Screws 3x10mmx6pcs 38. Screws 4x18mm x3pcs, 39、Screws 2x5mm x4pcs
40. Screws 3.0x16mmx10pcs 41. Screws 3x8mm x10pcs
37
40
38
41
39

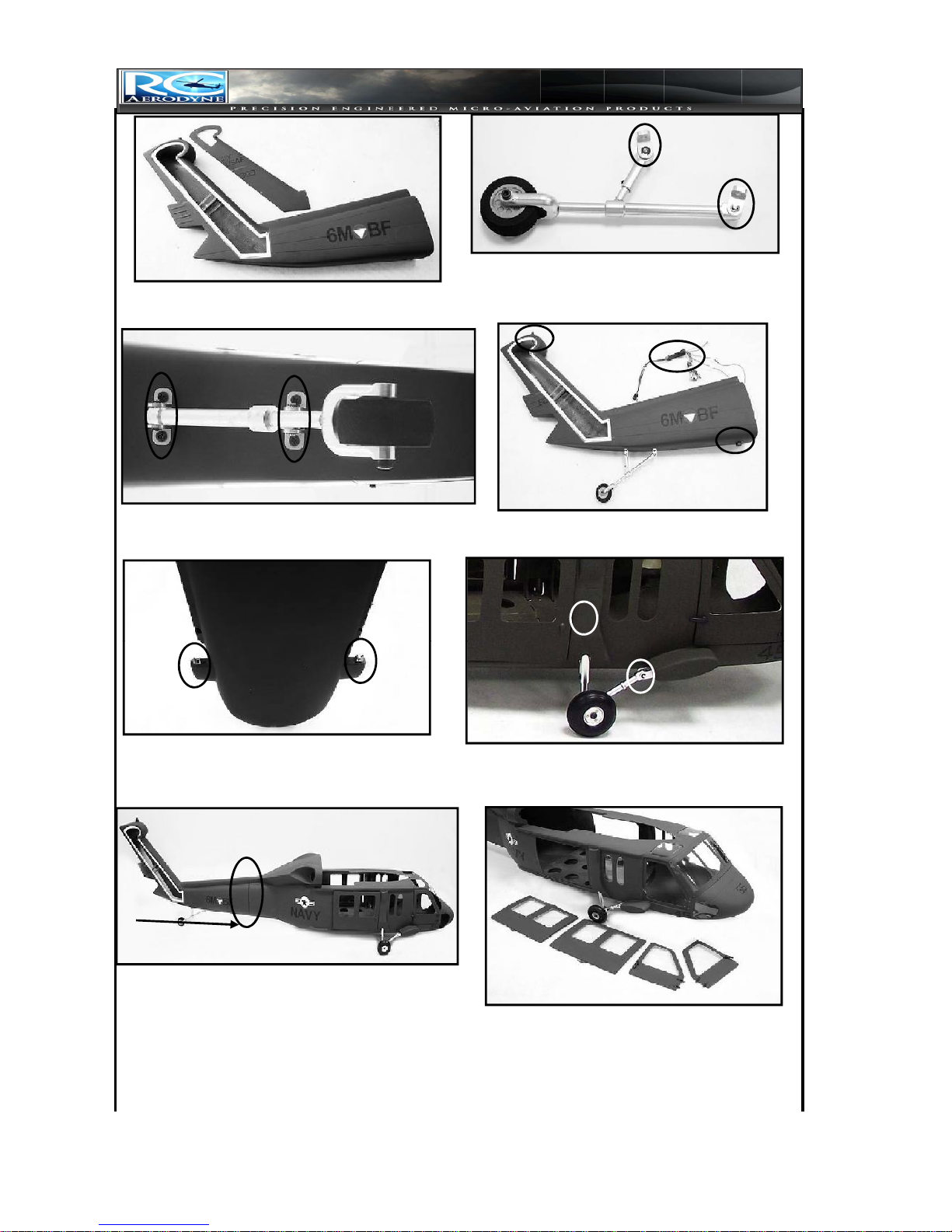

Use the 3.0x10.0mm screws and install in tail
Use the 3.0mm mounting pins and C clips and
install as shown above
Remove Rear Tail Cover
Install the rear lights in the tail boom.
12
4
3
56
Using 3.0x10.0mm screws, install the main
gear mounts on the front fuselage pylons.
Use the 4.0x18mm Allen bolts to install the
main gear and the φ3.0mm pins for the pivot
point. Use the C clips to lock in place
Attach the Tail section to main fuselage
Install doors
78

Install Windshield. U can use screws or
canopy glue 550 works well.
Install the Rear Drop down transmission
gear system as shown.
The seats for the cockpit must be
installed separately
O
p
tional Cock
p
it
91
112
13
14

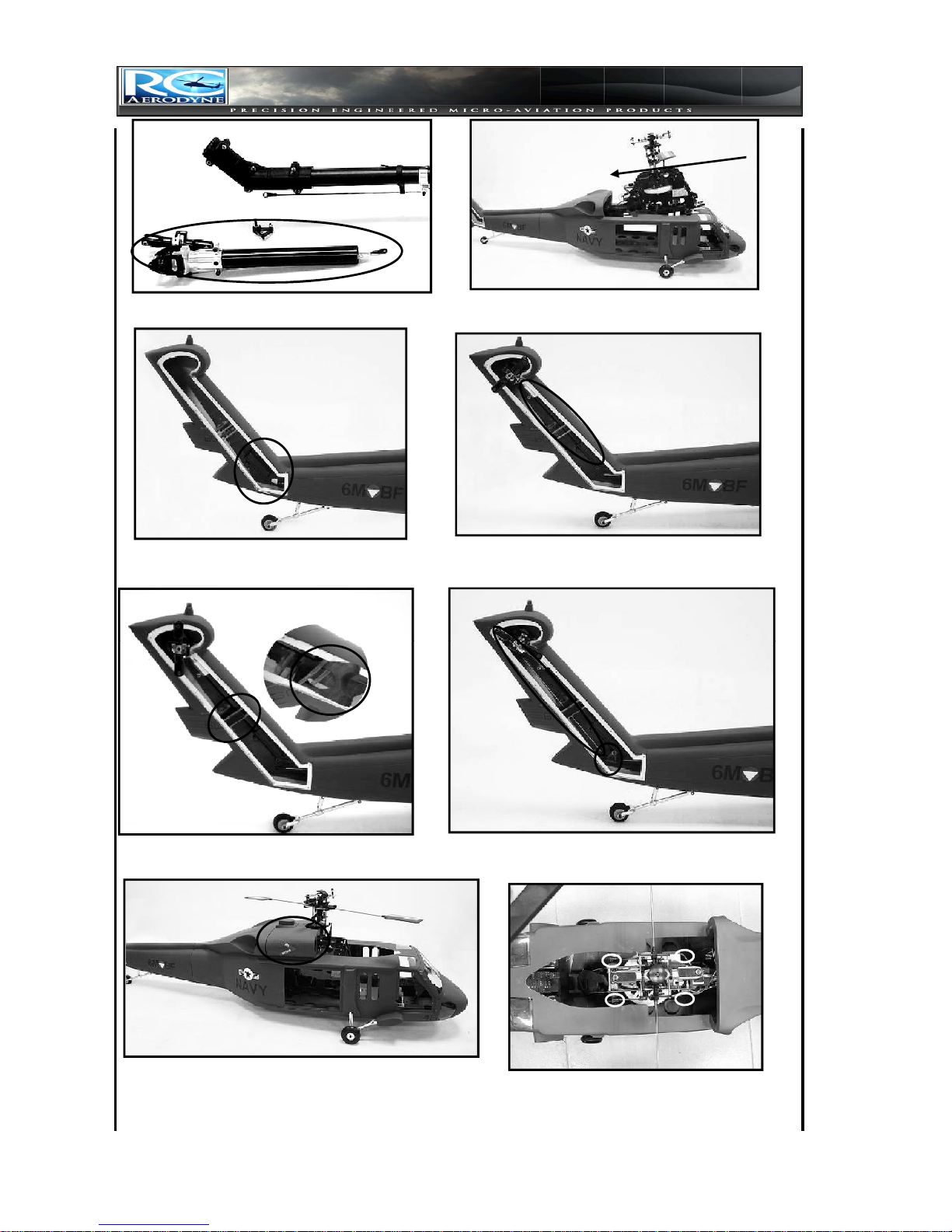

Install the Tail gear box, vertical tail
boom, torque tube and tail gear box.
Install the boom supports using the
boom support mount
Install the black mounting blocks on the
bottom of the mechanics using the
exsisting holes in the bottom plate of
your mechanics
Now is a good time to test fly the mechanics before
you install it inside the fuselage. Make sure
everything is in good working order and no
adjustments are needed before installing inside the
fuselage.
15 16

。
Tighten lower gear box。 Re attach rudder control rods
17 18
19 20
22
21
Install the foam insert
Use the 3.0x16mm mounting screws and
install in the factory wood platform
23 24

27 28
30
29

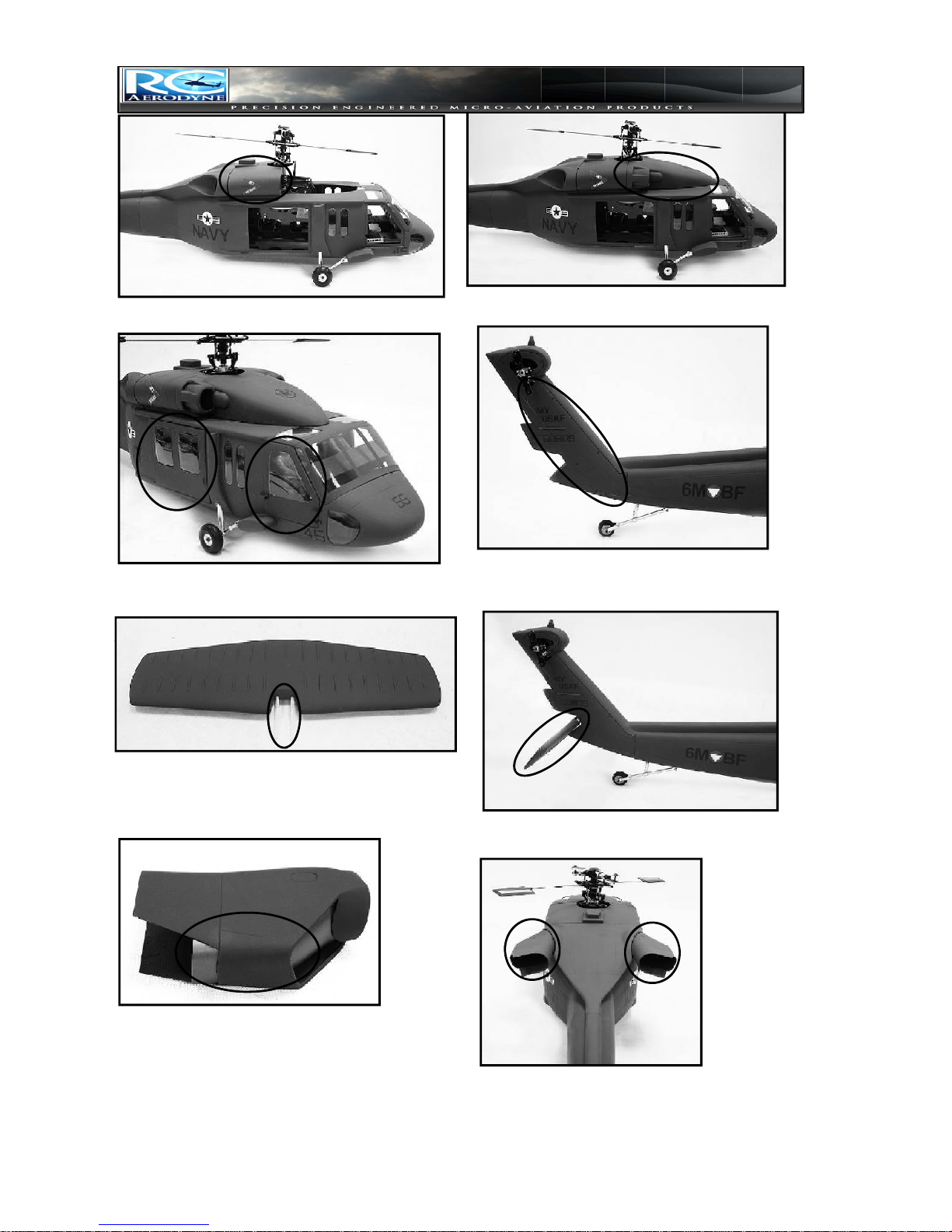

Re attach the tail cover
25 26
31
32
Install the stabilator hinges
Use epoxy and set in tail
Install HIRRS Exhaust using 5 min epoxy

34
36
01 02
Weapons Set install
33
35
开关
1
开关
2
开关
2
开关
03 04
The optional lighting system can be plugged into an open channel and controlled by the
radio system.
开关
1
开关
1
开关
1
开关
1
开关
2
开关
2
