INSTRUCTION MANUAL
LED TV
RLDED5078A-F

Table of Contents
1
Caution
Important Safety Precautions
Top/Side panel diagram
Remote Controller
Battery Installation
Using the Remote Control
Install TV
Set your TV
Connect Antenna and power
Turn On TV
Help
2
3
4
6-7
8
9
12-13
15-31
34
35
TV Bracket assembly 5
Specifications
Setup Wizard
Wall Mount Installation
Main Menu Operation
Sound Menu
Time Menu
Setup Menu
Close Caption
Lock Menu
US Rating
TV
MPAA
Canada Rating
Hotel Menu
Channel Menu
15-17
17-18
19
20
21-23
Systems Connection 10
14
Select Input Source
TV
24-25
26
26
27
27
28-29
30-31
PC 32-33
PC Menu

The lightening flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of un-insulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Correct disposal of this Product
Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life,
should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste
collection/recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products. Please help us to conserve the environment we live in!
Caution
2

3

4
8
7.87”
7.87”
4
3.95” x 3.95”
100 100

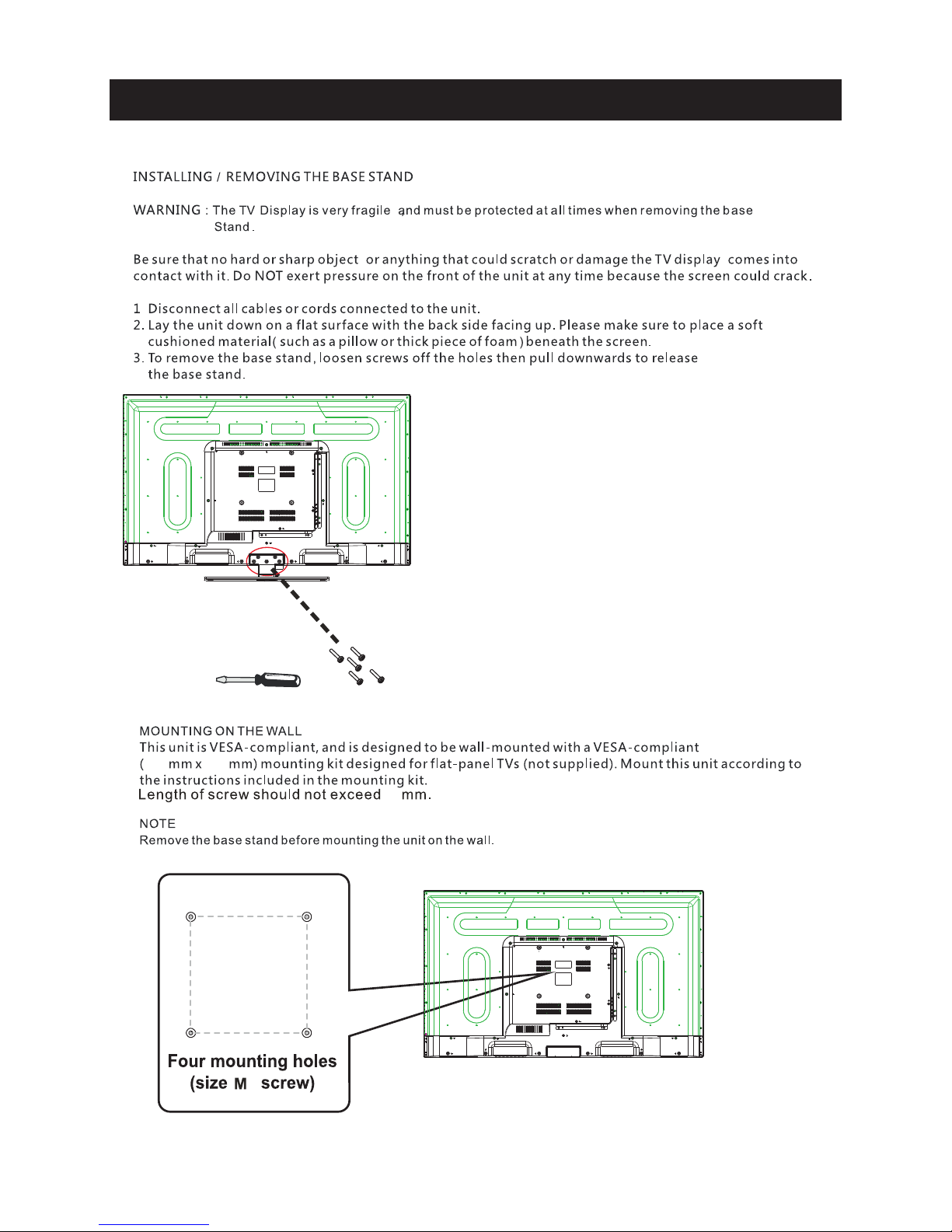

Wall Mount Installation

1.Match the TV unit into the stand, then hold the TV stand,
revolve and lock the tv unit tightly as the arrowhead point.
2.Fix the screws into the TV stand after installing the tv
unit and tv stand.
3screws
TV Bracket assembly
5

Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED Indicator: Press to turn on and off
VOL
The functions of the buttons on the are as follows:TV
CH+/-:When watching TV: select channels.
MENU:
1.Press Menu.
2.Press SOURCE to enter.
3.Use CH+/- to shift UP/DOWN.
4.Press SOURCE to confirm,then press VOL+/-to adjust.
5.Press SOURCE to confirm
Top panel diagram
6
SOURCE External signal input selection and confirm the
item selected.

Side Panel Diagram
7
(Left Side)
(Back Side)
Connect to ANT or cable source
PC AUDIO IN PC audio input
VGA IN VGA signal from computer output
YPbPr Connect to the composite terminal of your DVD/VCR
ANT 75 Ω
EARPHONE
For Upgrade Use
AV INPUT
Earphone output
COAXIAL Digital Audio Output
Service Port
HDMI IN Connect to HDMI of DVD or other equipment
Name Function Description
VIDEO/Y
Pb Pr
AC 10 0- 24 0V ~
50/60 Hz
HDMI1 HDMI2 HDMI3
COAXIAL
service port

Remote Controller
8
Universal remote code
This is the code for remote control of
RLDED5078A-F,if you want to change to a
universal remote control,you can edit
this code into your universal remote control.
(1)Open the battery compartment cover
on the back side
(2)Insert two 1.5V batteries of AAA type
with correct polarity
(3)Close the battery compartment cover
on the back side
Universal Remote Control code:007F
(Universal Remote control is not included)
15
10
1.Power: Set your TV to power on or standby mode.
2.MUTE: Press to mute the sound. Press again or press VOL+
to unmute.
3.0-9: Press 0-9 to select a TV channel directly when you are
watching TV. The channel will change after a few seconds.
4.- : Press “-” to enter a program number for multiple program
channel, such as2-1etc.Return to the previous channel
viewed.
5. : Return to the previous channel viewed.
6.P.MODE: Press to cycle through the different picture settings.
7.SLEEP: Select the amount of time before TV turns off
automatically.
8.S.MODE: Press to cycle through the different sound settings.
9.MENU: Allows you to navigate the on-screen menus.
10.SOURCE: Press to cycle through the input source in following:
TV → AV → YPBPR→ HDMI1 → HDMI2 → HDMI3→PC
11.THUMBSTICK( / / / / ENTER):
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
12.EXIT: Exit from the menu or sub- menu and cancel the
function in progress (if possible).
13.DISPLAY: Press to display the source and channel’s
information.
14.MTS: Press to select the audio mode,you can select Stereo,
Mono,or SAP (second audio program).
15.V +/-: Press to increase or decrease the sound level.
16.CH+/-: Press to scan through or to select a channel.
17.AUTO: Adjusting the PC image rate automatically.
18.FAV: Set or cancel current channel to be a favourite channel.
19.FAV+: Down move Favourite program.
20.FAV-: Up move Favourite program.
21.CC: Press to display the closed caption.
22.ZOOM: Select display mode.

3
side
indicator
9
10cm
10cm 10cm
LED TV

2
10
Component
VIDEO/Y
Pb Pr
VIDEO/Y
Pb Pr

11
AC 10 0- 240V~
50/60H z
HDMI1 HDMI2 HDMI3
COAXIA L
service port
AC 10 0- 240V~
50/60H z
HDMI1 HDMI2 HDMI3
COAXIAL
service port

12
Setup Wizard
Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket.
Select Language
Press </ > button to select the language to be used for menus and message.
Press ▼ / ▲ button to select go to next step and press ENTER/ button to go.
Select Time
Press ▼ / ▲ button to select the time zone, daylight saving time and time format you want to.
Press </ > button on the remote control to adjust.
Press ▼ / ▲ button on the remote control to select go to next step and press ENTER/ button
to go.

13
Auto Scan
Press </ > button to select the antenna type.
Press ▼ / ▲ button to select go to next step and press ENTER/> button to start auto scan.
Setup Wizard

14
Select Input Source
Press INPUT button to display the input source list,
Press ▼ / ▲ or button to select the input
source you want to,
Press ENTER button to enter the input source,
Press EXIT button to quit.
INPUT
Main Menu
Press MENU to display the main menu or return to the previous menu or close the main menu.
Press </ > to highlight the desired menu icon, and press ENTER to select.
Source Select
TV
AV
Component
HDMI 1
PC
HDMI 2
HDMI 3

15
TV
Picture Menu
Pre ss
Pre ss
Pre ss
Pre ss
ENU to enter th e main menu, Pre ss button to select.
Pre ss to ente r.
ENU again to exit or back to parent menu.
button to select among Picture Mode /Brightness/ Contra st / Color / Tint / Sharpness / Color
Temperature / Advanced Settings.
Pre ss to enter.
Pre ss button to adjust.
ENU again or back to pare nt menu.
M</ >
ENTER / ▼
M
▼ / ▲
ENTER / ▼
</ >
M
【Pic ture Mode】
Adjust picture mode to change picture appearance.
Pre ss button to select(S tandard / Dynamic / Soft / User).
【Brig htness】
Pre ss button to adjust.
【Contra st】
Pre ss button to adjust.
</ >
Adjust the visual perception output of the entire picture , it will effe ct the iuminousness of the picture.
</ >
Adjust the highlight intensity of th e picture, but the shadow of the picture is invariable.
</ >
Note:T he brightn ess,contra st,color, tint and sharpness are only available in User mode,y ou can adjust as
you like.
Sta ndard Produces a highly defined image in a norm ally lit room.
Dynamic Produces a highly defined image in a brightly lit ro om.
Soft Produces a highly defined image in a soft lit room.
User Select to customize picture settings.
Main Menu Operation

16
TV
【Color】
【Tint】
Adjust the hue(Red,G reen,B lue) of th e pictu re.
Pre ss button to adjust.
【Sharp ness】
Pre ss button to adjust.
【Color Temperature】
【Advanced Settin gs】
Adjust advanced video fe atu res to fine tu ne th e picture.
Pre ss butt on to enter .
【Aspect Ratio】
Adjust how the picture fi lls the scre en.
【Noise Reductio n】
Set options to reduce video noise.
Adjust the satu ration of the color based on your own like.
</ >
</ >
Adjust the peaking in th e detail of th e picture.
</ >
Increase or reduce warm color of the picture pers onally(re d),a nd the cool color pers onally(b lue) according
to your like.
> sub-m enu.
Pre ss butt on to adjust.
Normal
Normal Automatically adjust Aspect Rati o based on TV size and TV program.
Wide Use to watc h wide screen(1 6:9 ) content.
Zoom Expands image to fill scre en. Top and button maybe cut off.
Cinema Stre tc hes image at edges but keeps a clear image in th e cente r.
Off Select to turn off video noise detection.
Low Detect and re duce low video noise.
Medium Detect and reduce moderate video noise.
High Detect and reduce enhanced video noise.
Auto Detect and reduce video noise automatically.
Increase th e sex-l inked colors for th e white.
Warm In cre ase the re d color for the white.
Cool In cre ase the blue to ne for the white.

17
TV
Sound Menu
Pre ss
Pre ss
Pre ss
Pre ss
ENU to enter th e main menu, Pre ss button to select.
Pre ss to ente r.
ENU again to exit or back to parent menu.
button to select among /Sound Mode / Bass / Treble / Balance /MTS/ Audio Language
/Digital Audio Outp ut/ Surro und Sound/ AVL .
Pre ss to enter.
Pre ss button to adjust.
ENU again or back to parent menu.
M</ >
ENTER / ▼
M
▼ / ▲
ENTER / ▼
</ >
M
【HDMI Mode】
Only available in HDMI input.
【Dynamic Contra st】
Automatically adjust picture detail and brightness.
Pre ss button to select (O ff/O n).
Pre ss button to select (Video/Graphic).
</ >
</ >

18
TV
【Sound Mode】
Select a sound mode to achieve ideal sound.
Pre ss button to select(S tandard / Music / Movie / Sports / User) .</ >
Note:T he bass and tre ble are only available in User mode,y ou can adjust as you like.
Sta ndard Produces a balanced sound in all enviro nments.
Music Preserv es th e original sound. Good for musical pro gra ms.
Movie Enhances tre ble and bass for a rich sound experience.
Sports Enhances vocals for TV audio.
User Select to customize audio settings.
【Bass】
Adjust the bass effe ct. Increases or decreases lower-p itched sounds.
Pre ss butt on to adjust.</ >
【Treble】
Adjust the tre ble effe ct.Incre ases or decreases high-pitched sounds.
Pre ss butt on to adjust.</ >
【Balance】
Adjust the balance between left and right speakers to adapt to your listening position.
Pre ss butt on to adjust.</ >
【MTS】
It is only available in ATV. Confi gures th e multi-tra ck sound.
Pre ss button to select(M ono/S tereo/SAP).</ >
Mono Sets th e sound to mono.
Ste reo Sets the sound to stere o when stere o is not available, the sound is automati cally switched
to mono.
SAP Sets th e sound to the second audio pro gra m.
【Audio Language】
. It is only available in DTV. Select the language supporte d by the chosen digital channel
Pre ss button to select(E nglish / / ).</ > Fre nch Spanish
【Dig ita l Audio Outp ut】
Send digital audio to exte rnal audio system.
Pre ss button to select.</ >
PCM Select to output audio in 2-c hannel ste reo.
Raw Ori ginal image coded date .
Off Set digital audio output off.
【AVL】
Set the auto volume contro l.
Pre ss button to </ > select(O n / Off) .
NOTE:
Balance: This item can adjust the speaker’s output, it enables you to listen to best at your position.
AVL: This item uses for reducing the difference between channel and program’s
volume automatically.
it made the overall water to be even. This function will also reduce the fluctuation of the sound.
【Surround Sound】
Pre ss button to </ > select(O n / Off) .

19
TV
Time Menu
Pre ss
Pre ss
Pre ss
Pre ss
ENU to enter th e main menu, Pre ss button to select.
Pre ss to ente r.
ENU again to exit or back to parent menu.
button to select among Sleep Timer / Time Zone / Daylight Saving Time / Time Format / Auto
Clock / Clock.
Pre ss to enter.
Pre ss button to adjust.
ENU again or back to parent menu.
M</ >
ENTER / ▼
M
▼ / ▲
ENTER / ▼
</ >
M
Time Zone
Dayli ght Saving Tim e
Time Form at
Auto Clock
【Sle ep Tim er】
Set a timer fo r the TV to turn off automati cally.
Pre ss button to select(O ff / 5min/10min /15min/ 30min / 60min / 90min / 120min/180min/240min).
【 】
Select your ti me zone.
Pre ss button to select(E astern / Centra l / Mountain / Pacific / Alaska / Hawaii /Samoa/
Newfo undland / Atlantic).
【 】
Set the daylight saving time fo r your are a.
Pre ss button to select(O n / Off) .
【 】
Select your ti me fo rmat.
Pre ss button to select(1 2-h our / 24-hour).
【 】
It is only available in DTV.
Pre ss button to select(O n / Off) .
</ >
</ >
</ >
</ >
</ >
Use to synchro nize the display automati cally.
