RCA RLCDV3282A User manual

32” LCD Television TV with DVD
MODEL: RLCDV3282A

Contents
Contents
Caution
Safety Information
Unit and Accessories
Introduction
1. Front View
2. Rear View
4. Remote Control
Basic Operation
OSD Menu

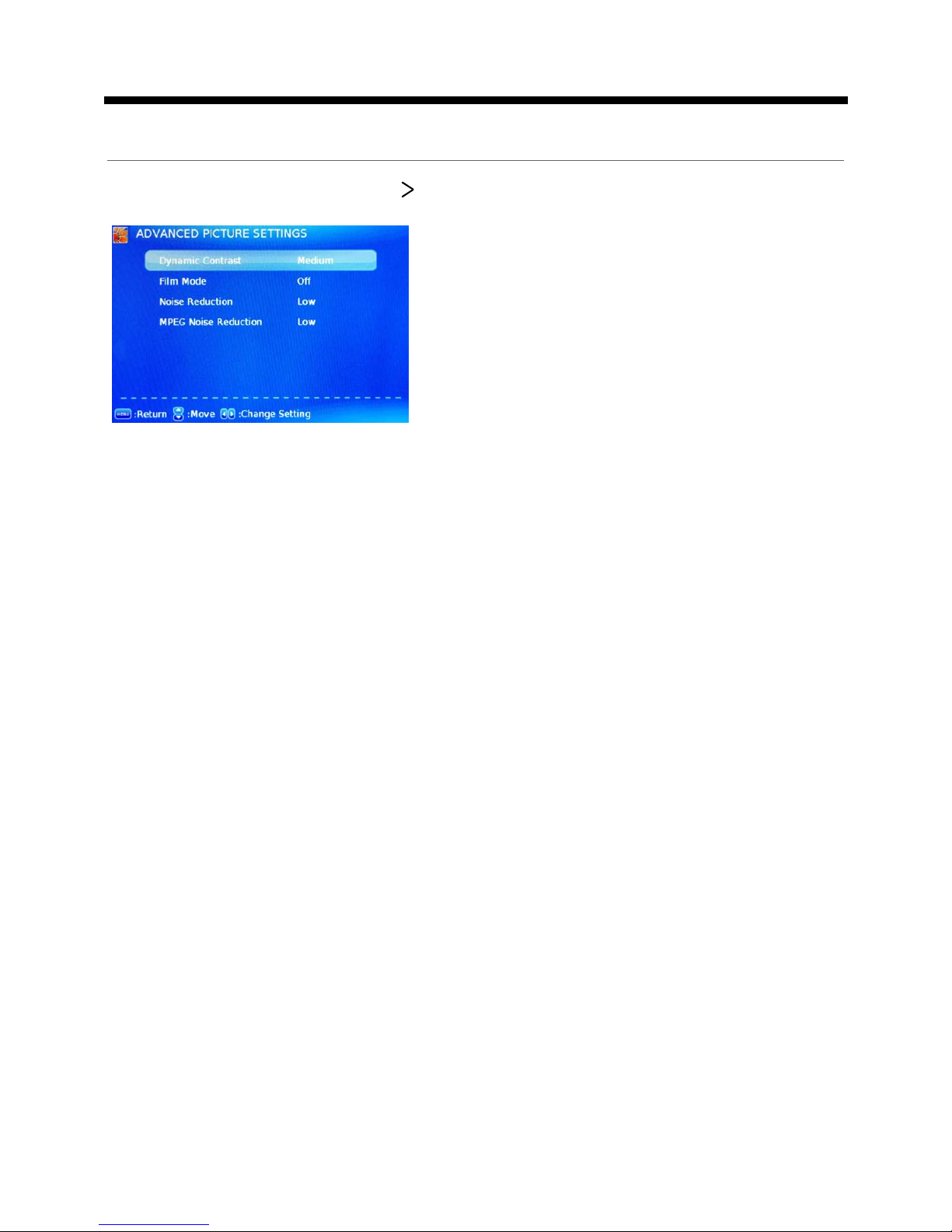

1. Picture menu
2. Sound menu
3. Channel menu
4. Parental Control menu

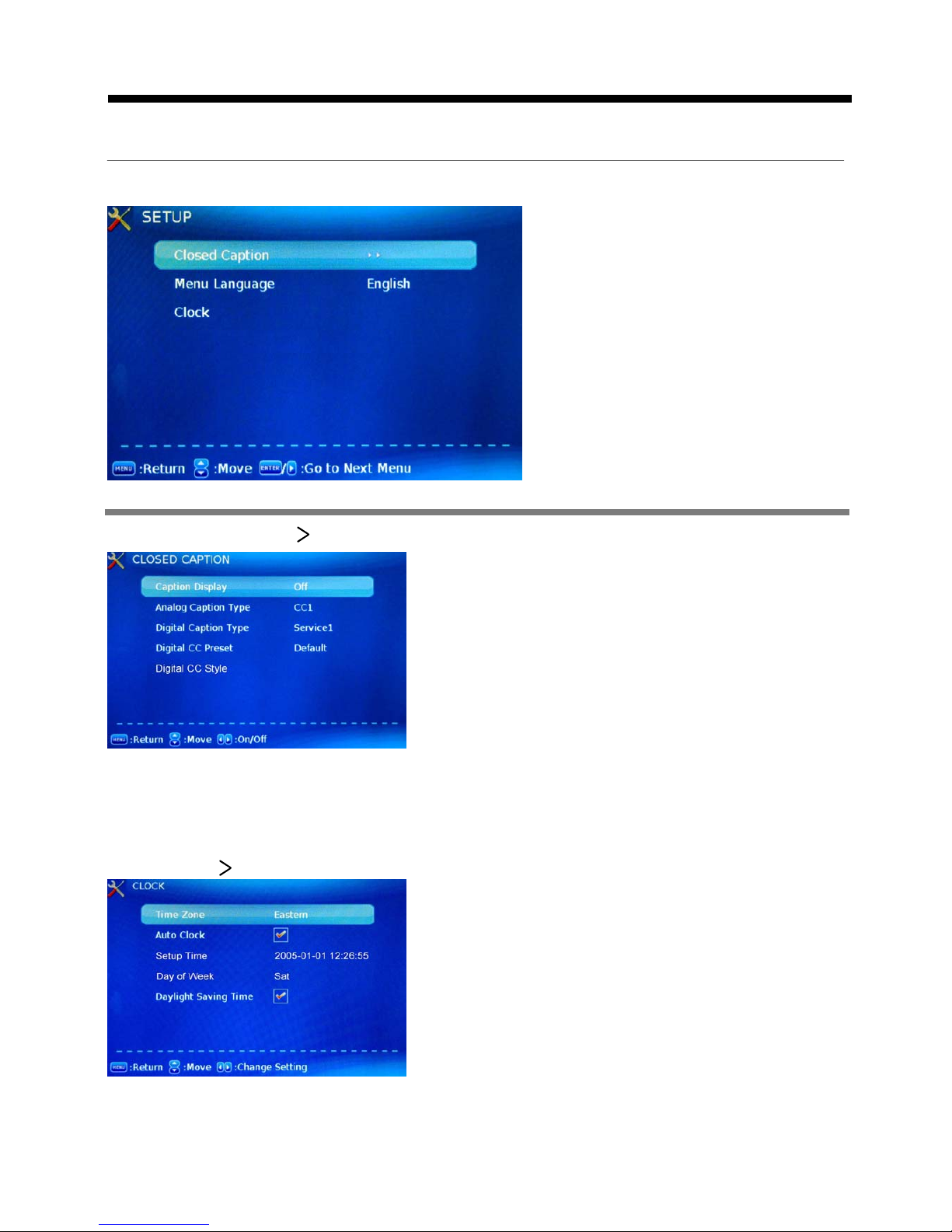

5. Setup menu
6. Others menu
Simpl
DVD Operation 20-27
e Troubleshooting
2
3
4
5-10
5
6
8-10
11
12-19
12-13
14
15
16-17
18
19
28
29
3. Instruction for Wall Mount 7
03
LIMITED PRODUCT WARRANTY
1

Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
2

Safety Information
Safety Information
Electrical safety
Physical safety
3
power

Unit and Accessories
Unit and Accessories
TV set
User's manual
Remote control
Batteries: 2xAAA
Instructions for fixing stand
Instructions for
fixing stand
AC Cord
4

Introduction
Introduction

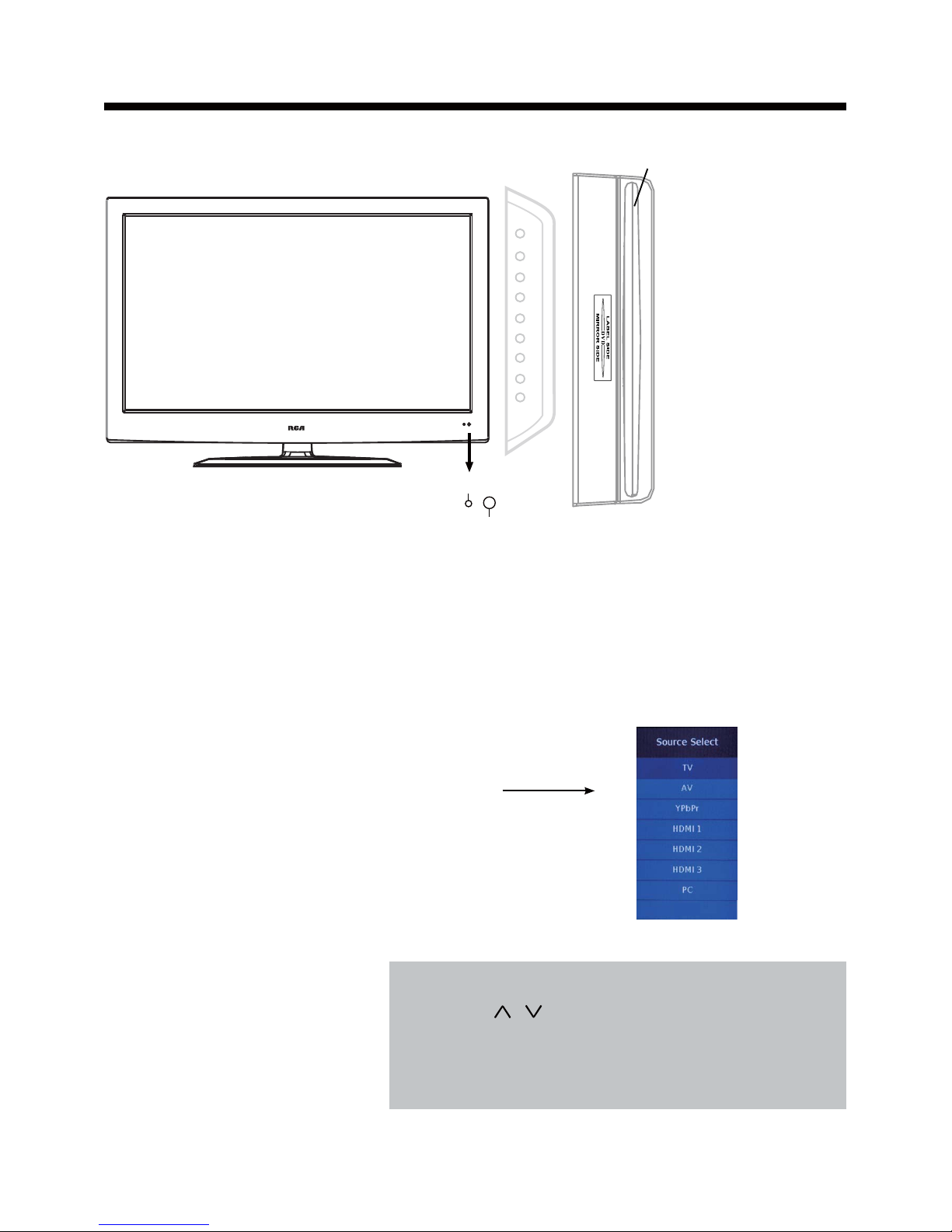

1. Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER:
PLAY: Play/pause the disc playing.
EJECT: Eject the disc.
Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.
Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or / button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
Power Indicator
Remote Control window (Keep clear)
5
Please insert a 12cm disc
according to the silk
INPUT MENU CH+ CH- VOL+ VOL- PLAY EJECT POWER
DVD

Introduction
2. Rear View
Headphone out: Connect it to your headphone or audio equipments.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
COAX : Digital audio output.
: Connect it to the HDMI output of video device.
HDMI1/2/3
L/R in : Connect them to audio output of video device.
AUDIO L/R out : Connect them to audio equipments.
VIDEO : Connect it to video output of video device.
USB(Service) : For service use only.
Coax RF VGA PC-IN HDMI1 HDMI2 HDMI3
USB
(Service)
R in L inVideo R
AUDIO OUT
L
YPb Pr RL
YPbPr : Connect them to the video output terminal of DVD.
L/R : Connect them to the audio output terminal of DVD
6
AC POWER IN: Connect it to AC100-240V~ 50/60Hz power supply with the mains cable.

Introduction
3. Instruction for Wall Mount
-
- Do not mount your RCA TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
The wall mount kit (not included) with your purchase allows you to mount your
RCA TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. RCA is not responsible for any damage to the product or injury to
yourself or others resulting from the wall-mounting.
- 4 pcs of type M6 screws are required for installing the wall mount bracket to
your RCA TV. Do not use screws that are longer than 10 mm. Screws that
are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. RCA is not liable for these kinds of
incidents

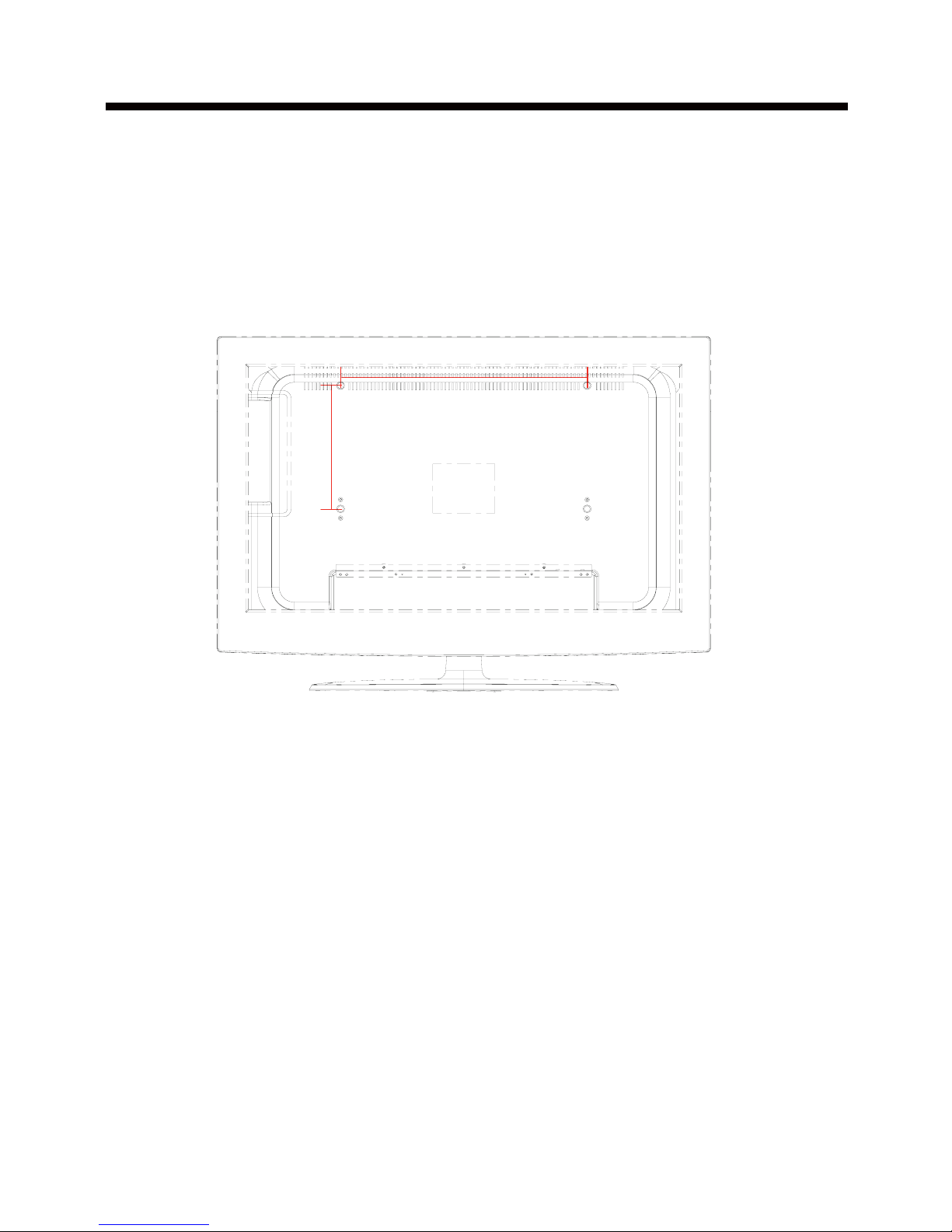

Dimensions for Mounting Hole Pattern
This RCA TV is compatible with a 400mm x 200mm mounting hole pattern.
400mm
200mm
7

Introduction

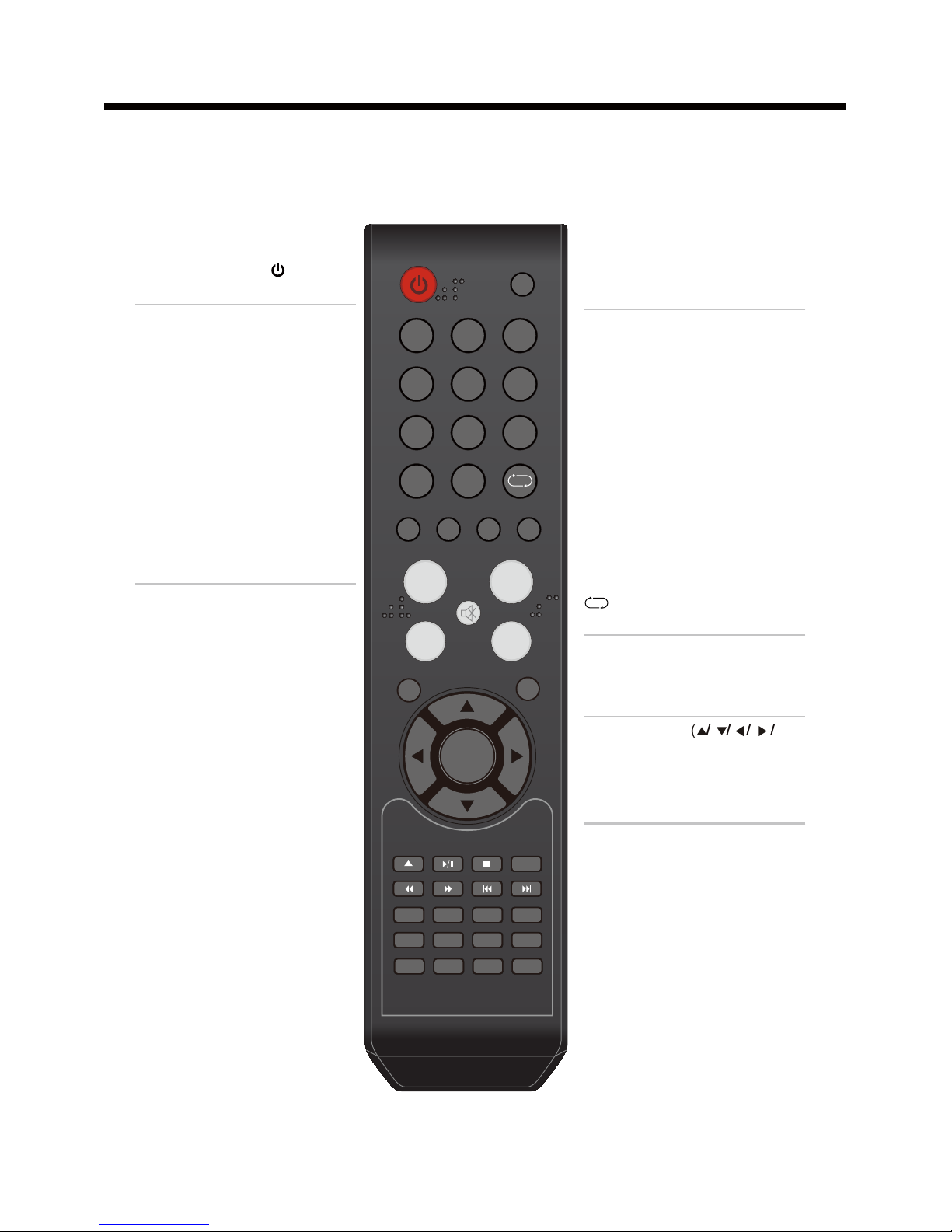

4. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
Universal Remote Code:11359
Universal Remote Control not included.
8
POWER
Press to turn the TV on/standby
INPUT
Press to display the input source
menu
To select the program directly.
e.g.:
Select channel 5,
press “5” button.
Select channel 62
press “6” button, and press “2”
button in 2 seconds.
Select channel 152
press “1” button, and press “5”
button, then press “2” button
in 2 seconds.
select channel “5-1”,
press “5” then “-/--” and “1”.
NUMBER BUTTONS
Return to the previous channel viewed.
MUTE
Press to mute the sound.
Press again or press VOL+ to
unmute.
DISPLAY
Press to enter the EPG menu
directly.
Press repeatedly to cycle
through the available video
picture modes.
SOUND
Press to cycle through the
different sound settings.
SLEEP
Press to setup the sleep time
CH+/-
Channel/Program +/-
VOL+/-
Volume +/-
MENU
Press to display the OSD menu.
EXIT
Press to exit form the OSD menu.
Allows you to navigate the
on-screen menus and adjust the
system settings to your
preference.
THUMBSTICK OK )
CC
Press to display the closed caption.
MTS
Press to select the audio channels.
FAV
Press to display teh favorite
channels list.
EPG
Press to enter the EPG menu
directly.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0
CC MTS EPG FAV

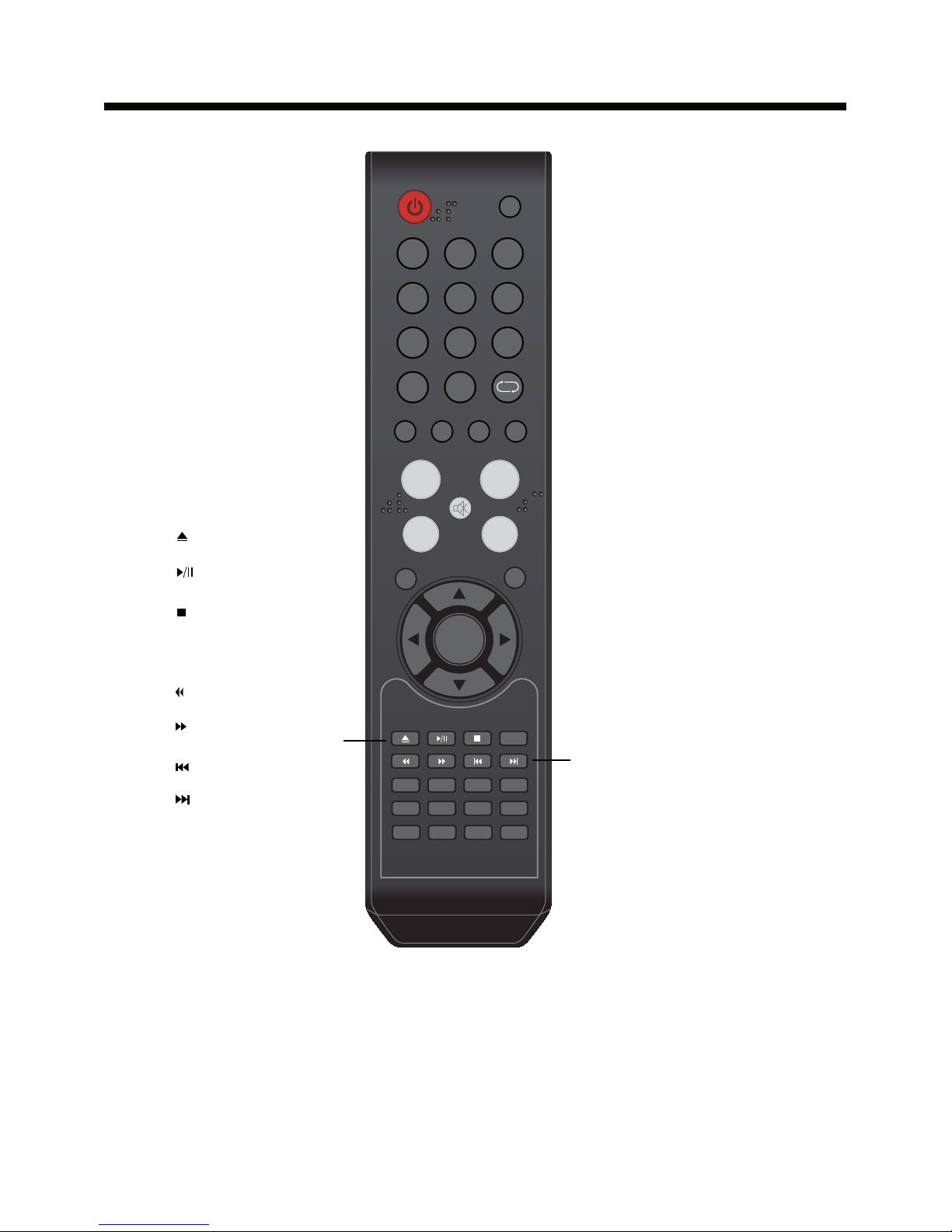

SETUP
TITLE ANGLE GOTOMENU
REPEAT INTRO A-B
PROGRAM

LANGUAGE
ZOOM
SUBTITLE
SLOW
