RCA TruFlat T27TF668 User manual

TV/VCR
User's G ade
Changing Entertainment. _in.

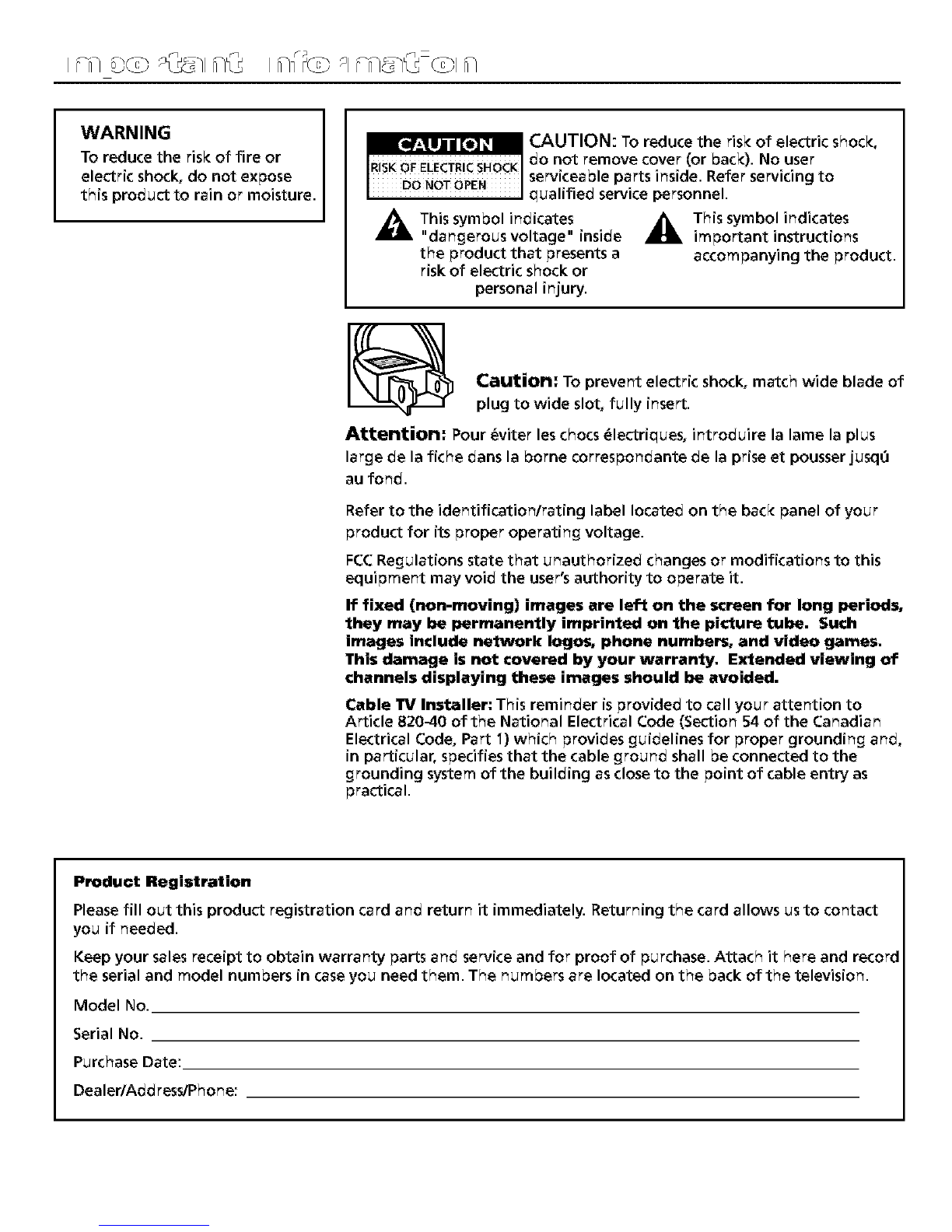

WARNING
To reduce the risk of fire or
electric shock, do not expose
this product to rain or moisture.
_ AUTION: To reduce the risk of electric shock,
do not remove cover (or back). No user
serviceable parts inside. Refer servicing to
qualified service personnel.
_k This symbol indicates This symbol indicates
"dangerous voltage" inside _r_ important instructions
the product that presents a accompanying the product.
risk of electric shock or
personal injury.
Caution: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
Attention: Four _viter les chocs _lectriques, introduire la lame la plus
large de la fiche dans la borne correspondante de la prise et pousser jusqt_
au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
If fixed (non-moving) images are left on the screen for long periods,
they may be permanently imprinted on the picture tube. Such
images include network Iogos, phone numbers, and video games.
This damage is not covered by your warranty. Extended viewing of
channels displaying these images should be avoided.
Cable TV Installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.
Product Registration
Please fill out this product registration card and return it immediately. Returning the card allows us to contact
you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record
the serial and model numbers in case you need them. The numbers are located on the back of the televisiom
Model No.
Serial No.
Purchase Date:
Dealer/Add tess/Phone:

Key Features Overview
Your T%WCR is equipped wifll features that will add to your TV:%rCR viewing experience, The
follo_dng information summarizes these %atures. Chapter 3 provides more information about tile
rest of file q%r/_zCR's features and how to use them,
V-Chip: Parental Controls
De_crtpttote You can block programs and movies by content, age-based
ratings, ancUor movie ratings,
Reqldrements:
•Set up tlle 7%7GI37DELL'_S and MR'4.4 menus in the T_tVCR's main MF_7
(Chapter 3 has details).
• The broadcasters must use the eating system when they send the program to
your TV,_ZCR tn order for your TV,_ZCR to block the program,
TV!VCRb_k _a_el
ANT_BLE JZ_ _H[ CO_aeml&
t_Q ml Oun
".® ®"
This is the back of model 1-20TF668.
If you have model T27TF668, you'll
notice the ANT/CABLE jack is on
the right side and has a VIDEO LINE
OUT jack,
Component Input Jacks
De_crlptiote The jacks on the back of }'our TV,_ZCR labeled COMPONENT-IN
can be used to connect a component with Component Output [acks 0tke a DVD
Player), Component video connections provide a higher quali W picture because
the xqdeo signal is dixqded into three parts instead of being compressed into
one.
ReqlxLvements: A component with Component Output Jacks, and three video
grade cables that you'll use to connetrt the component to the TV,_ZCR,
Index Search
De_¢rlptiote Provides a quicker way to find segments of a program on a
videotape, The details are explained on page 30.
1

(This page intentionally left blank)

Chapter 1: Introduction
Key Features Overview ....................................................................................................
V-Chip: Parental Controls ..................................................................
Component Input Jacks .............................................................................................
Index Search ...............................................................................................................
Chapter 2: Connections & Setup
Things to Consider Before You Connect .........................................................................
Protect Against Power Surges ...................................................................................
Protect Components from Overheating ...................................................................
Position Cables Properly to Avoid Audio Interference ............................................
Important Stand and BaseSafety Information ........................................................
Use Indirect light ......................................................................................................
Cables Needed to Connect Components to Your TVNCR ..............................
Choose Your Connection .......................................................................

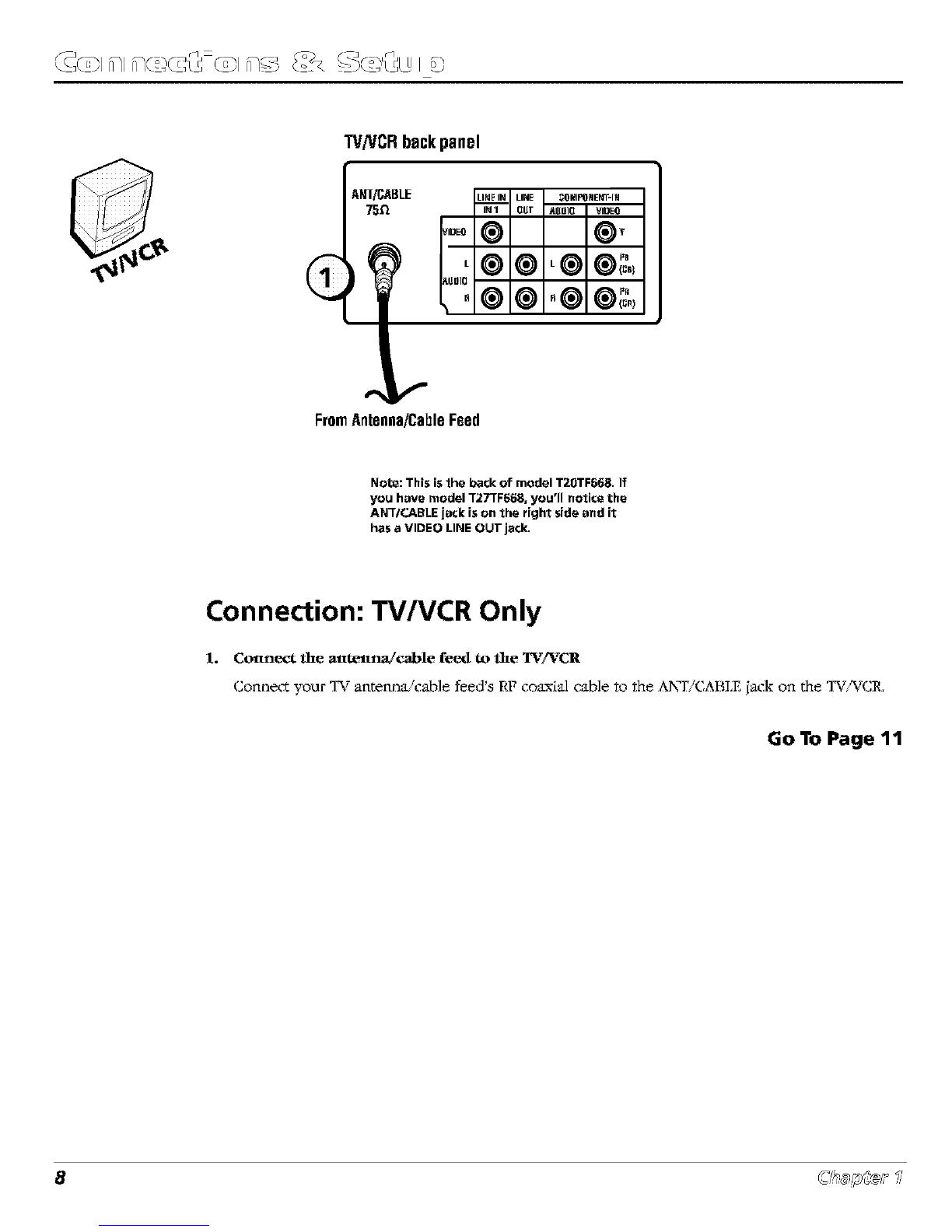

Connection: TV/VCR Only ................................................................................................
Connection: TV/VCR +DVD Player ...........................................................

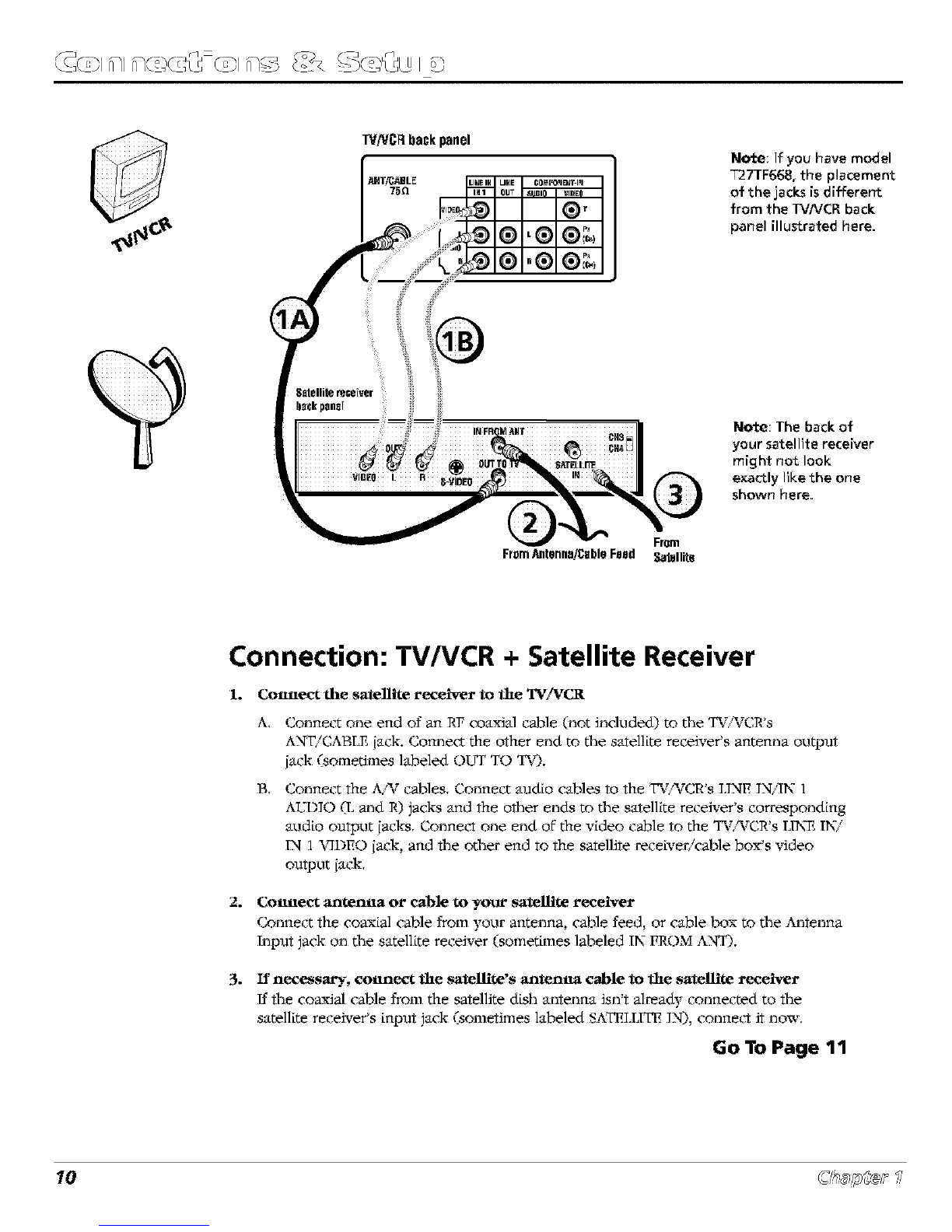

Connection: TV/VCR + Satellite Receiver ................................................... 11

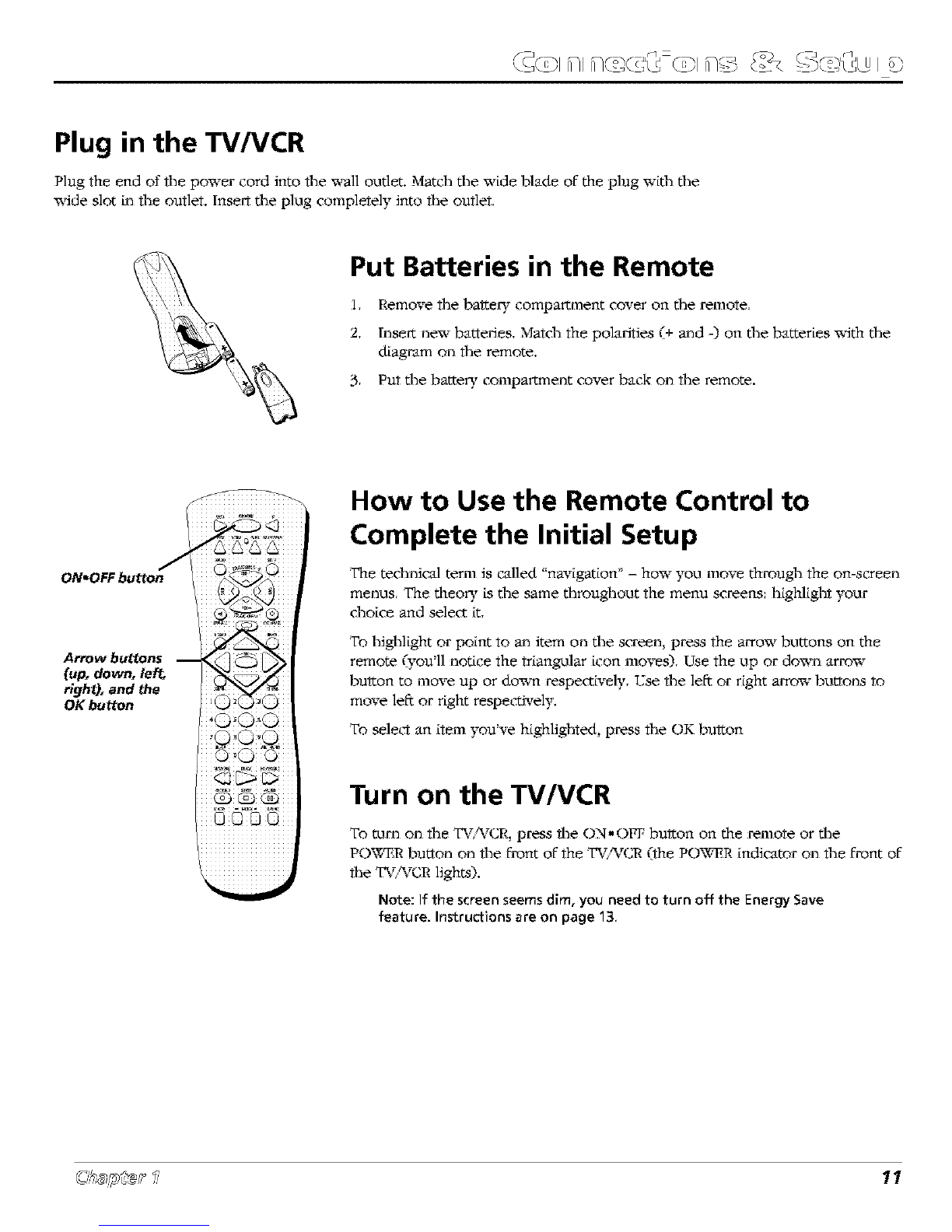

Plug in the TV/VCR ............................................................................ 11
Put Batteries in the Remote .................................................................. 11
Now to Use the Remote Control to Complete the Interactive Setup ................... 11
Turn on the TV/VCR ........................................................................... 11

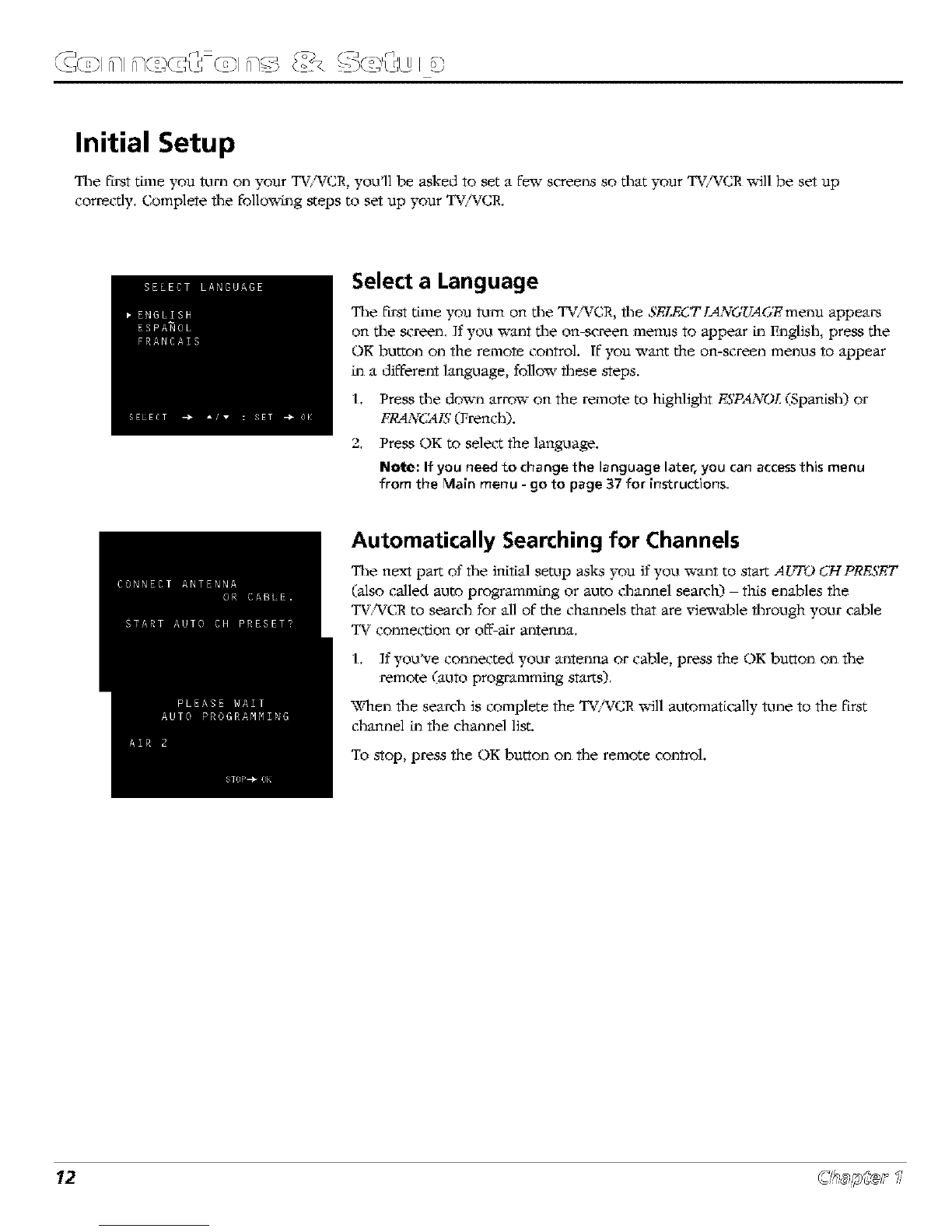

Initial Setup ..................................................................................... 12
Select a Language .................................................................................................... 12
Automatically Searching for Channels ................................................. 12
Add or Erase Channels .................................................................... 13
Turn off the Energy Save feature ....................................................... 13

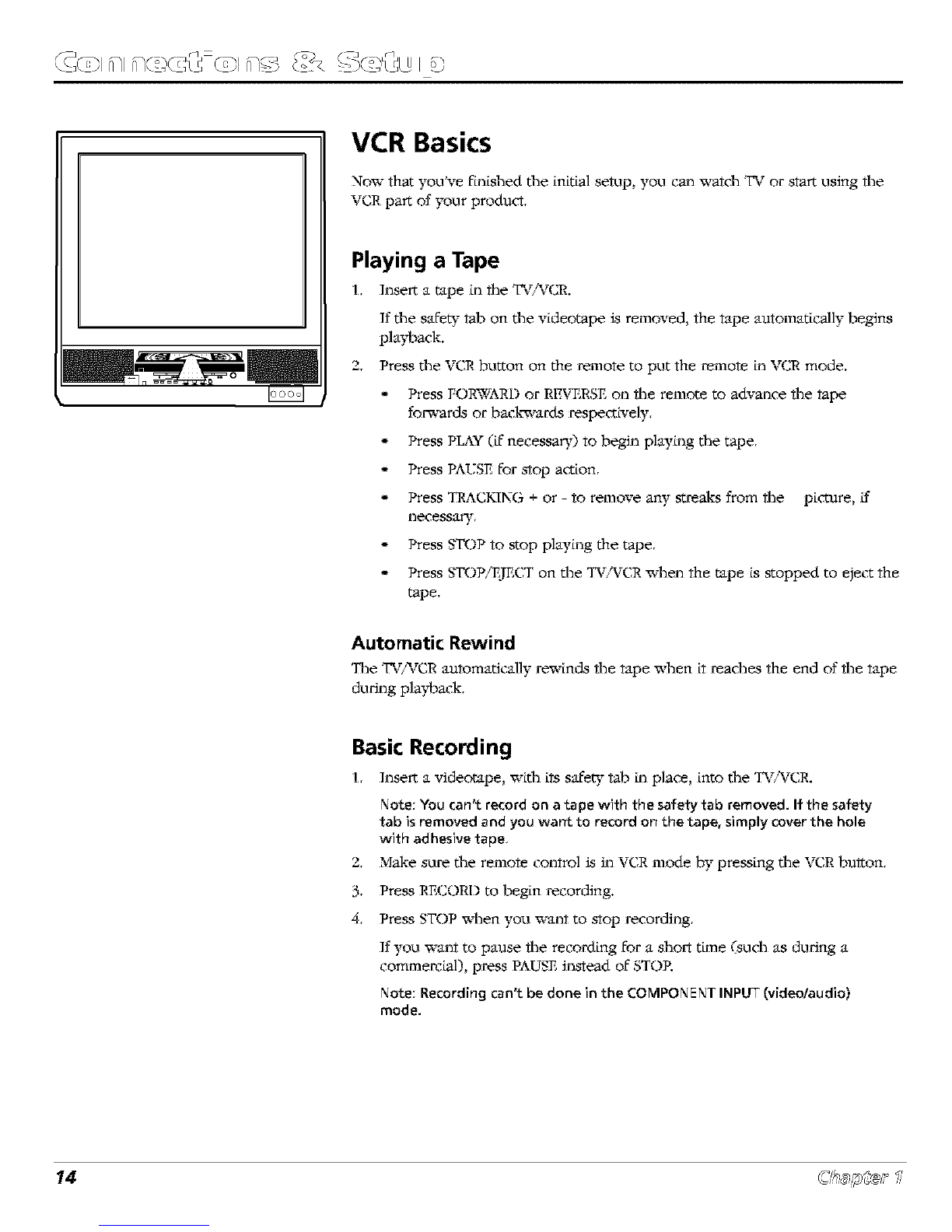

VCR Basics ....................................................................................................................... 14
Playing a Tape .............................................................................. 14
Basic Recording ....................................................................................................... 14
Chapter 2: The Remote Control

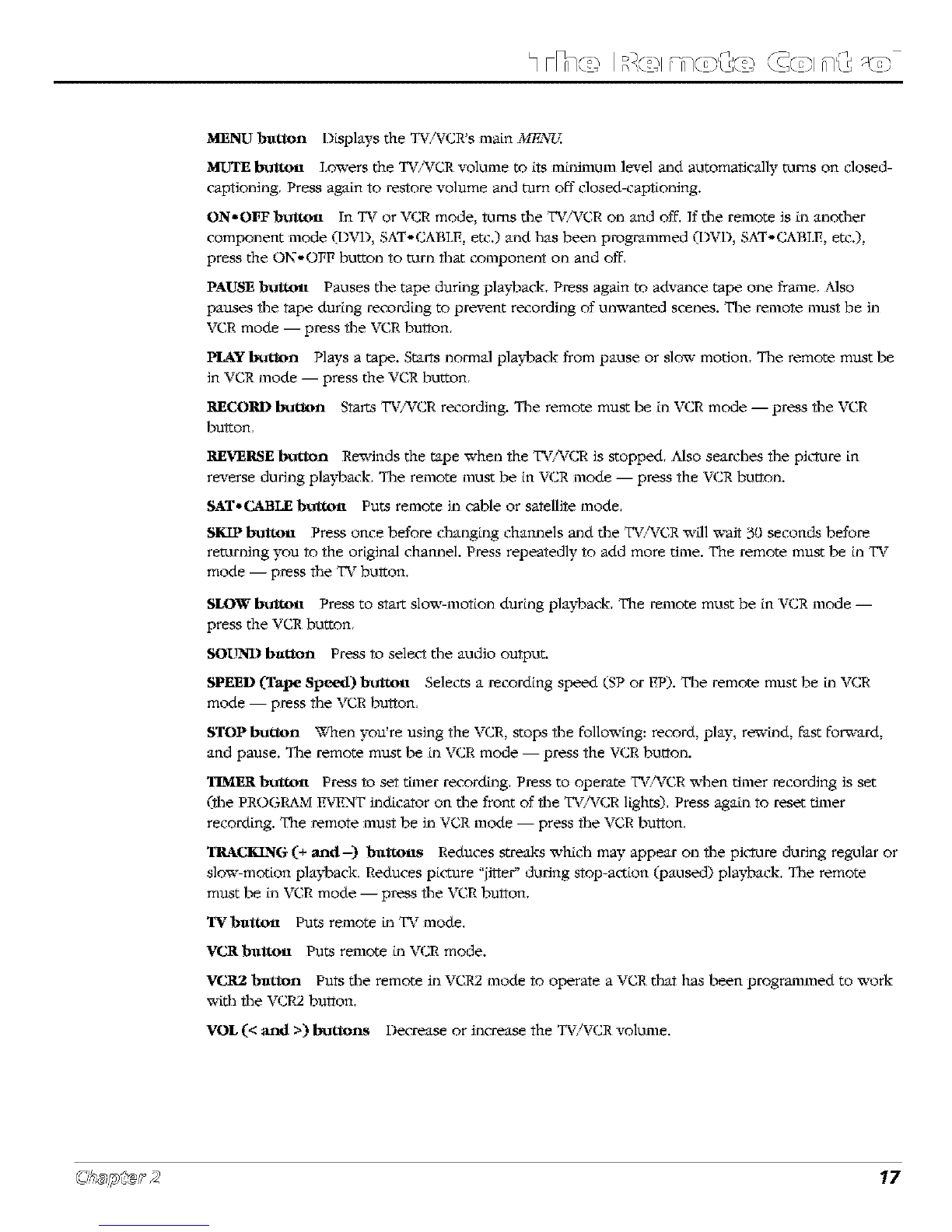

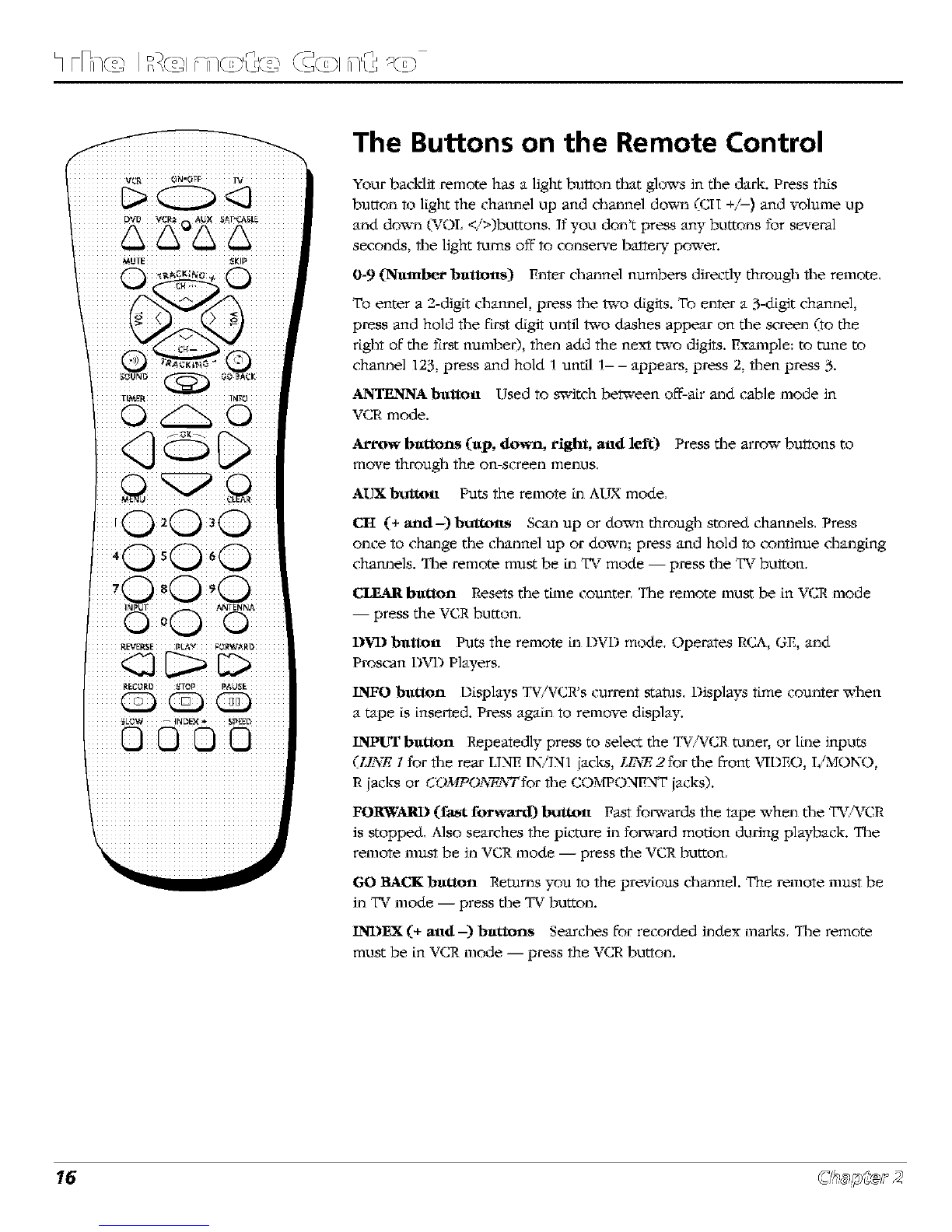

The Buttons on the Remote Control ........................................................ 16
Programming the Remote to Operate Other Components .............................. 18
Find Out If You Need to Program the Remote ...................................................... 18
How to Program the Remote ............................................................ 18
How to Use the Remote After You've Programmed It ............................................... 19
How to Order A New Remote Control ...................................................... 19
3

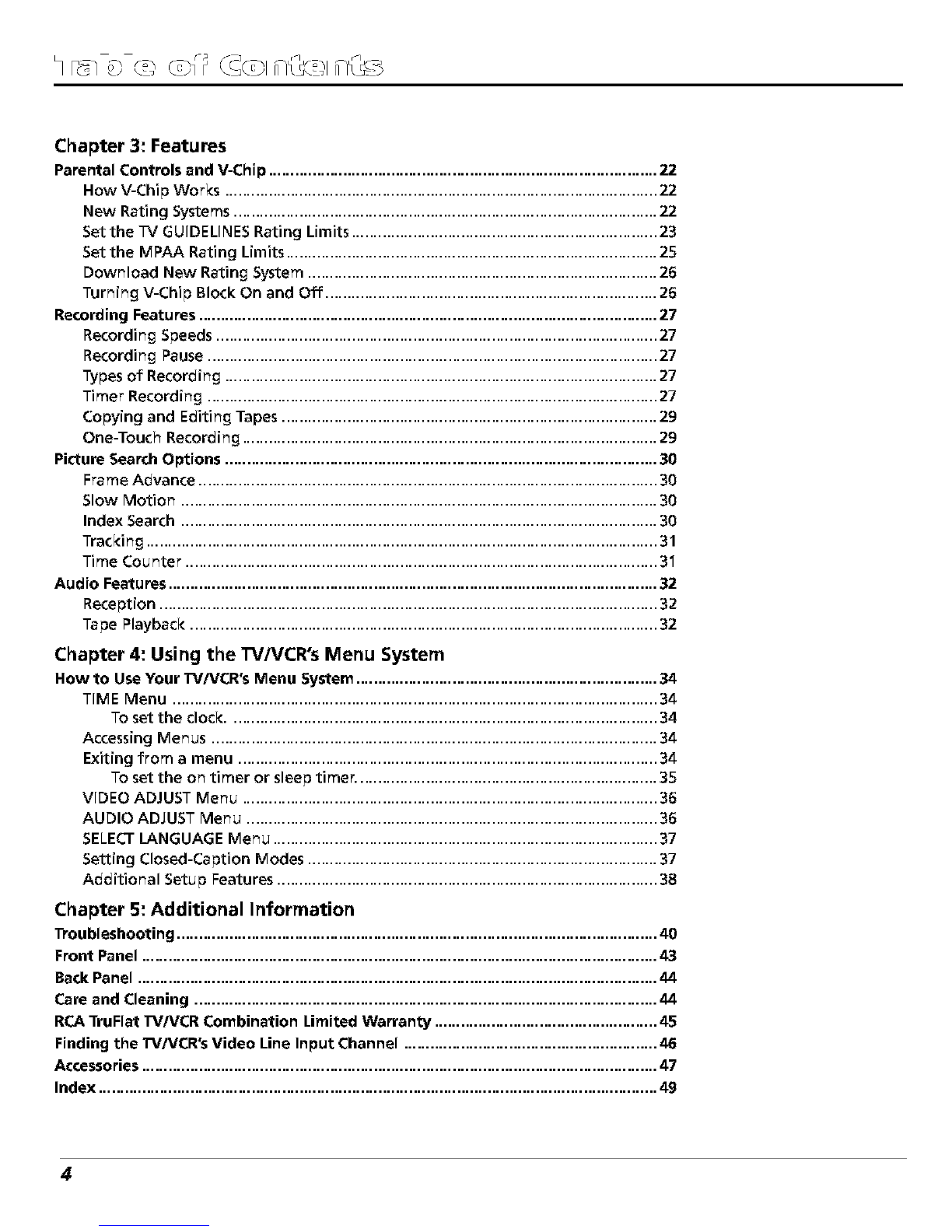

Chapter 3: Features
Parental Controls and V-Chip ................................................................ 22
How V-Chip Works .................................................................................................. 22
New Rating Systems ...................................................................... 22
Set the TV GUIDELINES Rating Limits ................................................... 23
Set the MPAA Rating Limits ............................................................. 25
Download New Rating System .......................................................... 26
Turning V-Chip Block On and Off ............................................................................ 26
Recording Features ............................................................................ 27
Recording Speeds .......................................................................... 27
Recording Pause ........................................................................... 27
Types of Recording ................................................................................................... 27
Timer Recording ........................................................................... 27
Copying and E_iting Tapes ..................................................................................... 29
One-Touch Recording .................................................................... 29
PWture Search Options ........................................................................ 30
Frame Advance ............................................................................. 30
Slow Motion ............................................................................... 30
Index Search ............................................................................................................. 30
Tracking ..................................................................................................................... 31
Time Counter ............................................................................... 31
Audio Features ................................................................................. 32
Reception .................................................................................................................. 32
Tape Playback ........................................................................................................... 32
Chapter 4: Using the TV/VCR's Menu System
How to Use Your TV/VCR's Menu System .................................................. 34
TIME Menu ............................................................................................................... 34
To set the dock. ....................................................................... 34
Accessing Menus .......................................................................... 34
Exiting from a menu ...................................................................... 34
To set the on timer or sleep timer. ................................................. 35
VIDEO ADJUST Menu ............................................................................................... 36
AUDIO ADJUST Menu .............................................................................................. 36
SELECTLANGUAGE Menu ........................................................................................ 37
Setting Closed-Caption Modes ............................................................................... 37
Additional Setup Features ................................................................ 38
Chapter 5: Additional Information
Troubleshooting ................................................................................ 40
Front Panel ..................................................................................... 43
Back Panel ...................................................................................... 44
Care and Cleaning ............................................................................. 44
RCA TruRat I"V/VCR Combination Limited Warranty ..................................... 45
Finding the I"V/VCR's Video Line Input Channel .......................................... 46
Accessories ..................................................................................... 47
Index ............................................................................................ 49
4

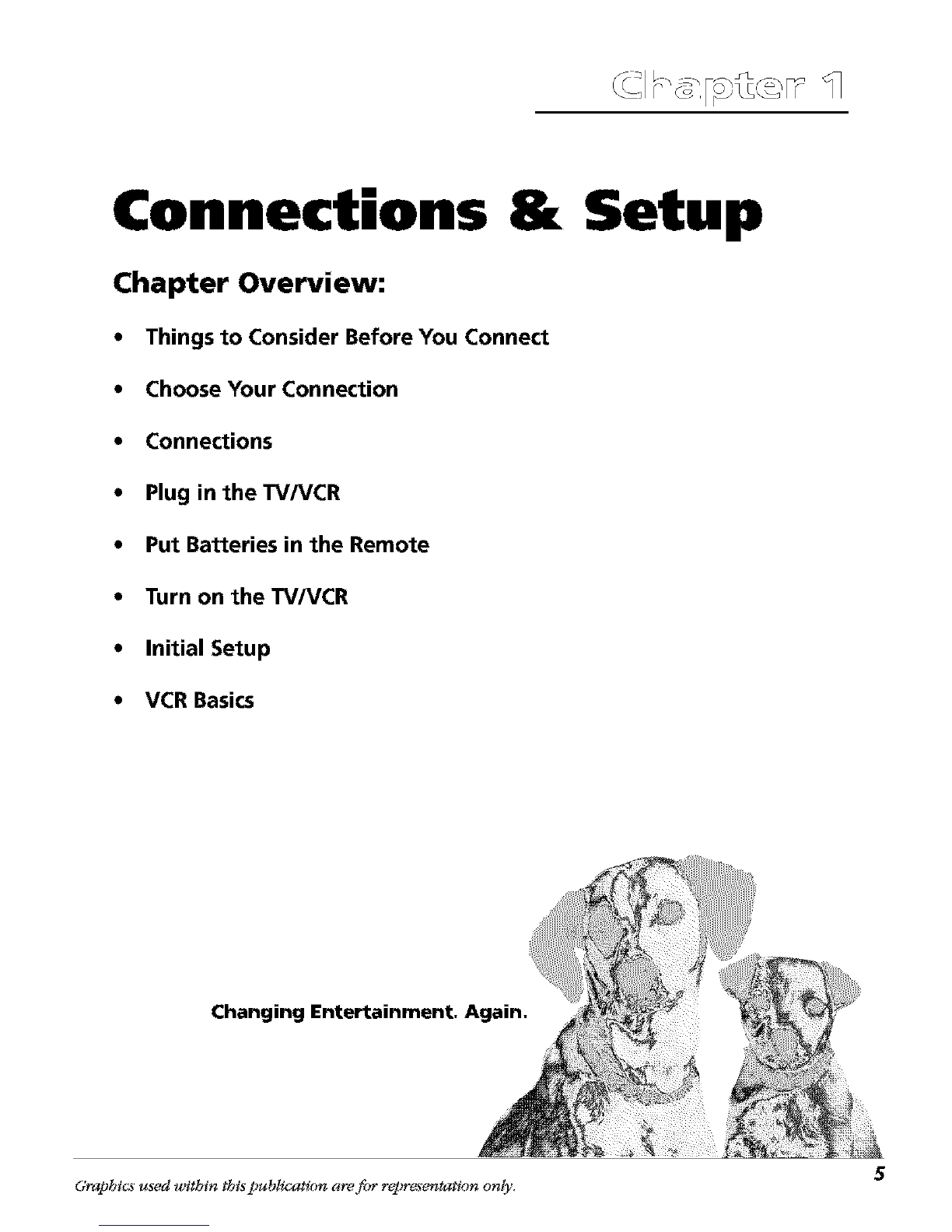

Connections & Setup
Chapter Overview:
*Things to Consider Before You Connect
Choose Your Connection
Connections
Plug in the TV/VCR
Put Batteries in the Remote
Turn on the TV/VCR
Initial Setup
VCR Basics
Changing Entertainment.
Grapbic, s'used within tbis publication are j_or representation only. 5

Things to Consider Before You Connect
Protect Against Power Surges
•Connect all components before you plug any of their power cords Lnto the wall outlet,
•Turn off tlle TV/WCR and/or component before you connect or disconnect an}" cables,
• Make sure all antennas and cables are properly grounded. Refer to the rmportant
Safeguards sheet packed with your TV/%ZC,R,
Protect Components from Overheating
•Don't block ventilation holes on an}, of the components. Arrange the components so that
aLrcan cLrcolate freely,
• Don't stack components.
• When you place components Lna stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or ampl[eler, place [t on the top shelf so the heated air
from it won't flow around other components.
Position Cables Properly to Avoid Audio Interference
•Insert each cable firmly into _e designated iack,
•If you place components above the TV/WCR, route all cables down the side of the back of
the TV/WCR Lnstead of straight down the middle of the back of the TV/%TCR.
• If your antenna uses 300-ohm twin lead cables, do not coil the cables. Also, keep the twin
lead cables away from audio/video cables,
Important Stand and Base Safety Information
Choose the location for your TV/_ZGRcarefully. Place the TV/WCR on a stand or base that is of
adequate size and strength to prevent the TV/_.zCRfrom being accidentally tipped over, pushed
off, or pulled off, This could cause personal [njuW and/or damage to the TV/AZCR,Refer to the
Important Safeguards sheet packed x_'ithyour TV/_ZGR.
Use Indirect Light
Don't place _e TV/WCR _x_lere sunlight or room lighting will be directed to_x_ard_e screen,
Use soft or indLrect lighting.
Cables Needed to Connect Components to Your TV/VCR
The pictures below show the cables needed for the connections represented in this book.
Note: AudioNideo cables (AN cables for short) are usually sold as a bundled set, but the
connection picture in this book shows each cable separately for better visibility.

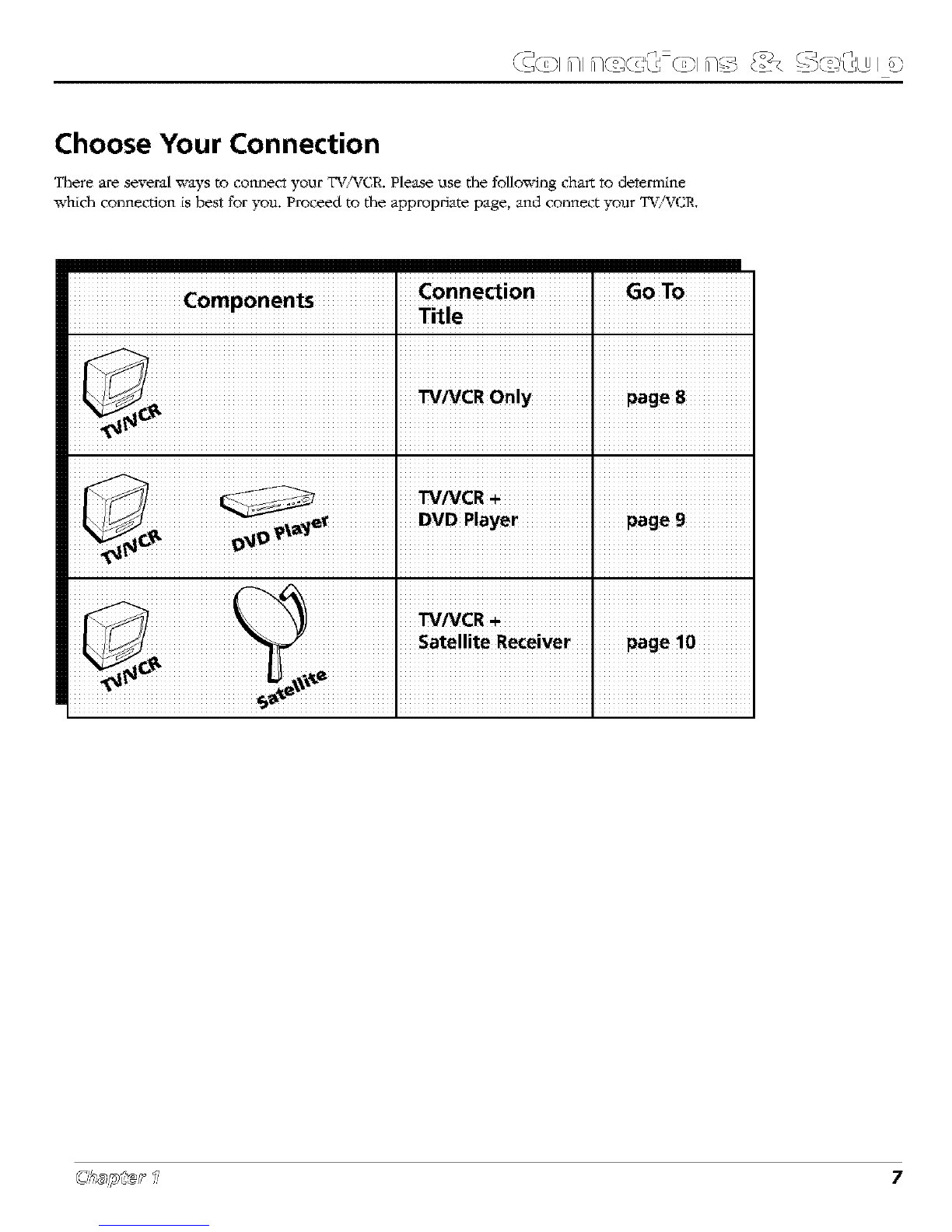

Choose Your Connection
There are several ways to connect your T%%rCR. Please use the fol]o_dng chart to determine
whidl connection is best for you. Proceed to the appropriate page, and connect your T%WCR,
Com.onents, Connection I GoTo
P Title J
iiiiiiIiiiii
(7"8 I_ I
6,,,,_,_@/, ,_ 7

TV/VCRbackpanel
ANI/CABLE
751"Z
,.f-
LINEI._.M LINE _OMFOHEMT-IH
IN 1 CUT AIJ[IIC VIDEO
FromAntenna/CableFeed
Note: Thin iNthe back of model T20TF668. If
you have model T27TF668, you'll notice the
ANT/CABLE jack iNon the right side and it
has a VIDEO LINE OUT jack.
Connection: TV/VCR Only
1. Coim_-f the aitteim_¢able feed to the "I%'/VCIi
Cormect yoor TV anterma¢cable feed's RF coaxial cable to the AN_iCABI.E jack on the TV,_TCR,
Go To Page 11
©,,,_,_®/,
