RCA T25003BC User manual

iiii___!_i__i_iiiiii_ii_i!_i_:_ii_ii__iiI
USER'S
GUIDE
TV/VCR CO

Important Information
I_SK OFELECTHK_SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates "dangerous
voltage" inside the product that
presents a risk of electric shock or
personal injury.
This symbol indicates important
instructions accompanying the
product.
WARNING
To reduce the risk of fire or shock hazard, do not expose this
TV/VCR combination to rain or moisture.
CAUTION: To prevent electric shock, match wide blade of plug
to wide slot, fully insert.
ATTENTION: Pour 6viter les chocs 61ectriques, introduire la
lame la plus large de la fiche dans la borne correspondante de la
prise et pousser jusqd au fond.
Cautions
Do not defeat the safety feature of the plug. The wide blade fits into the wall
socket only one way. If you need an extension cord, make sure it matches the
plug of the TV/VCR combination.
FCC regulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
Note To Cable TV Installer
This reminder is provided to call your attention to Article 820-40 of the National
Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which
provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as
close to the point of cable entry as practical.
Product Registration
Please fill out the product registration card and return it immediately.
Returning this card allows us to contact you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof
of purchase. Attach it here and record the serial and model numbers in
case you need them. The numbers are located on the back of the TV/VCR
combination.
Model No. T25003BC
Serial No.
Purchase Date:
Dealer /Address /Phone:

Table of Contents
Important Information
Warning i
Cautions . i
Note to Cable TV Installer ........ i
Product Registration i

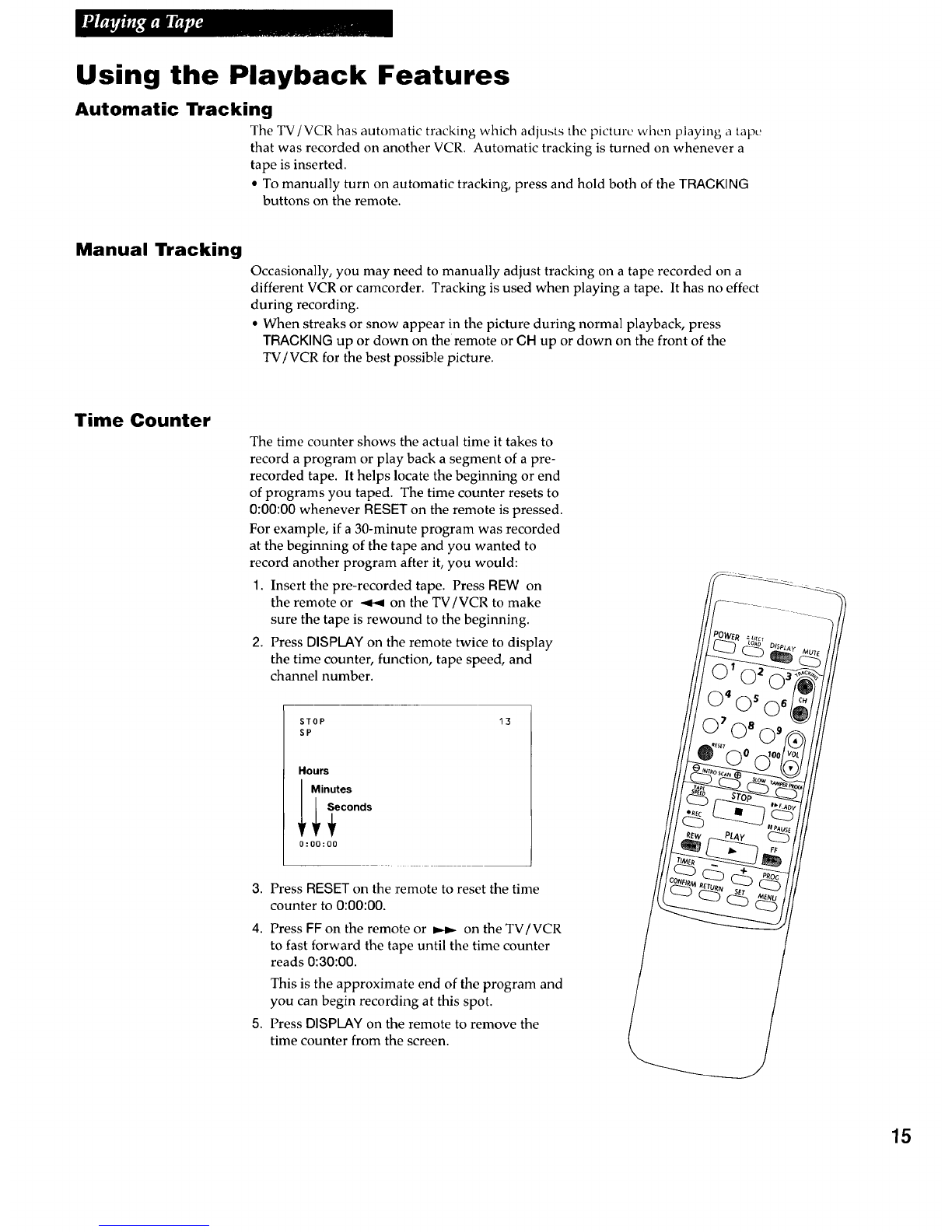

Automatic Tracking _ 15
Manual Tracking__ _ 15
Time Counter 15
Repeat Play Feature 16
Intro Scan Index Playback 17
Setting Up the TV/VCR
Startup
Check Accessories With TV/VCR .... 2
Insert Batteries in Remote 2
Connect Antenna or Cable-TV
System 2
Place the TV/VCR Where You Want to
Operate It 2
Turn on TV/VCR 3
Set the Clock 3
Set the Signal Type 3
Place Channels in the TV/VCR's
Memory 4
Add or Erase Channels from
TV /VCR's Memory 4
Select the Language (Seleccione el
Idioma /Choisissez une Langue) _ 5
Select a Channel and Adjust
the Volume 5
Using the Remote Control
Buttons 6-7
Using the TV/VCR Features
On-Screen Displays 8
Tamper Proof Lock 8

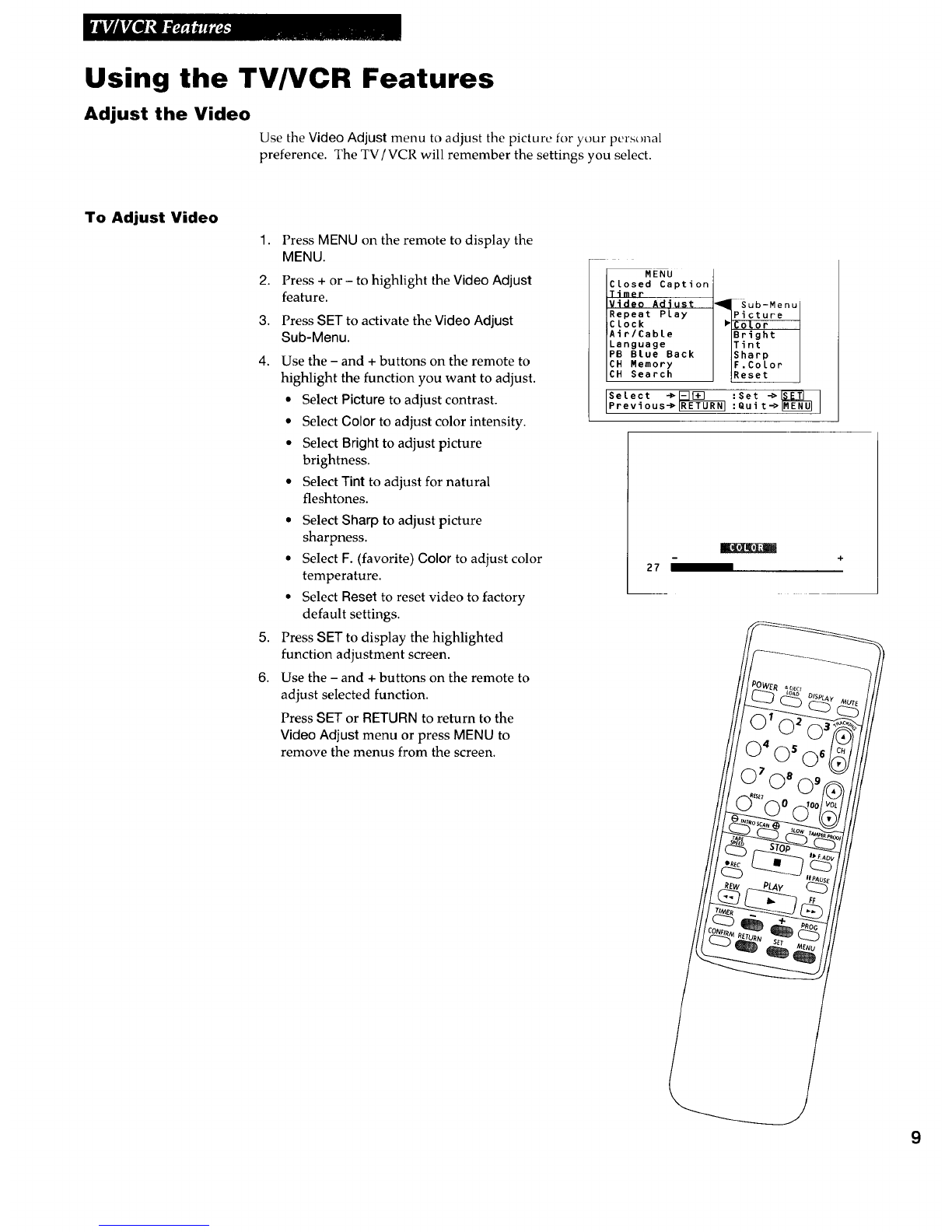

Adjust the Video 9
Closed Captions 10
Wake-Up Timer 11

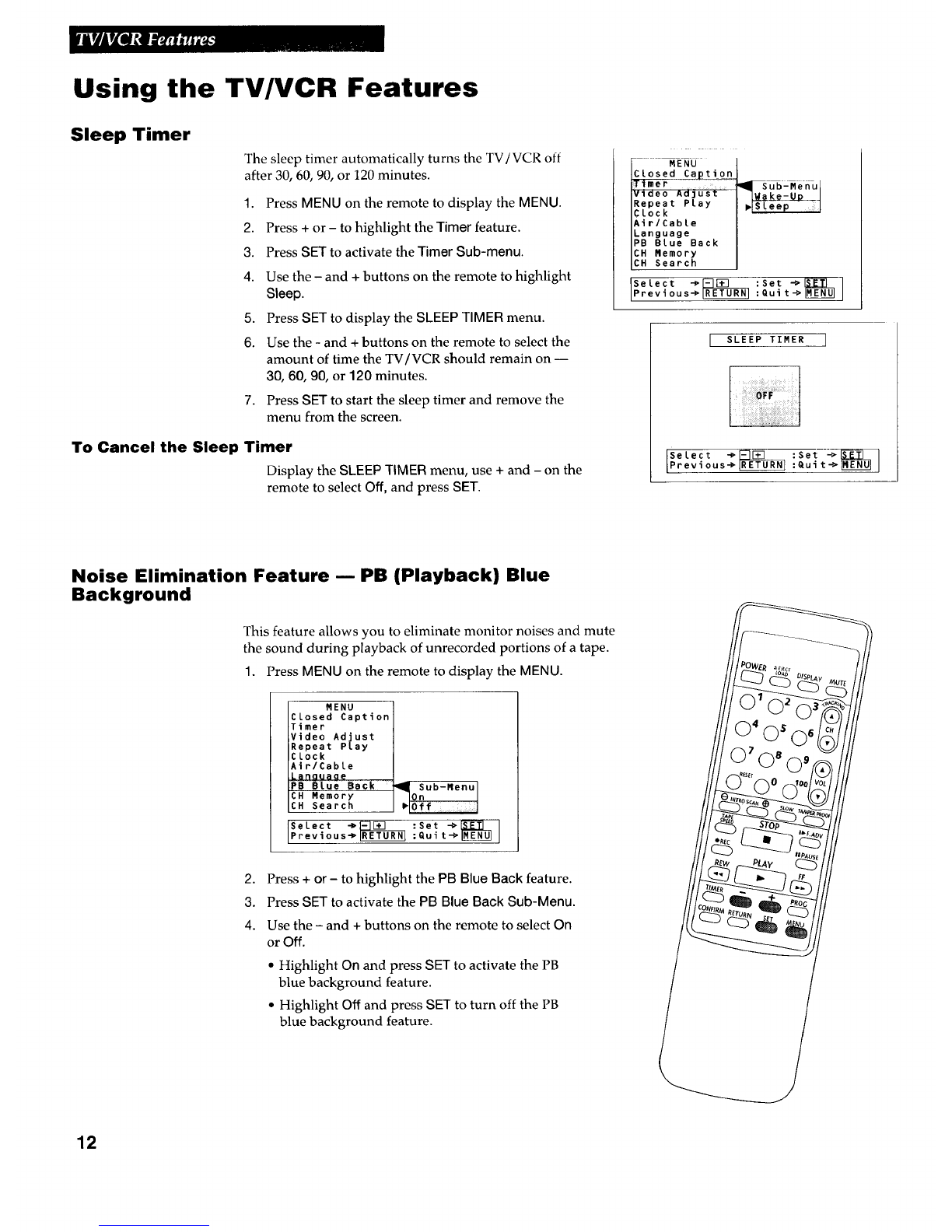

Sleep Timer 12
Noise Elimination Feature -- PB
(Playback) Blue Background __ 12
Playing a Tape

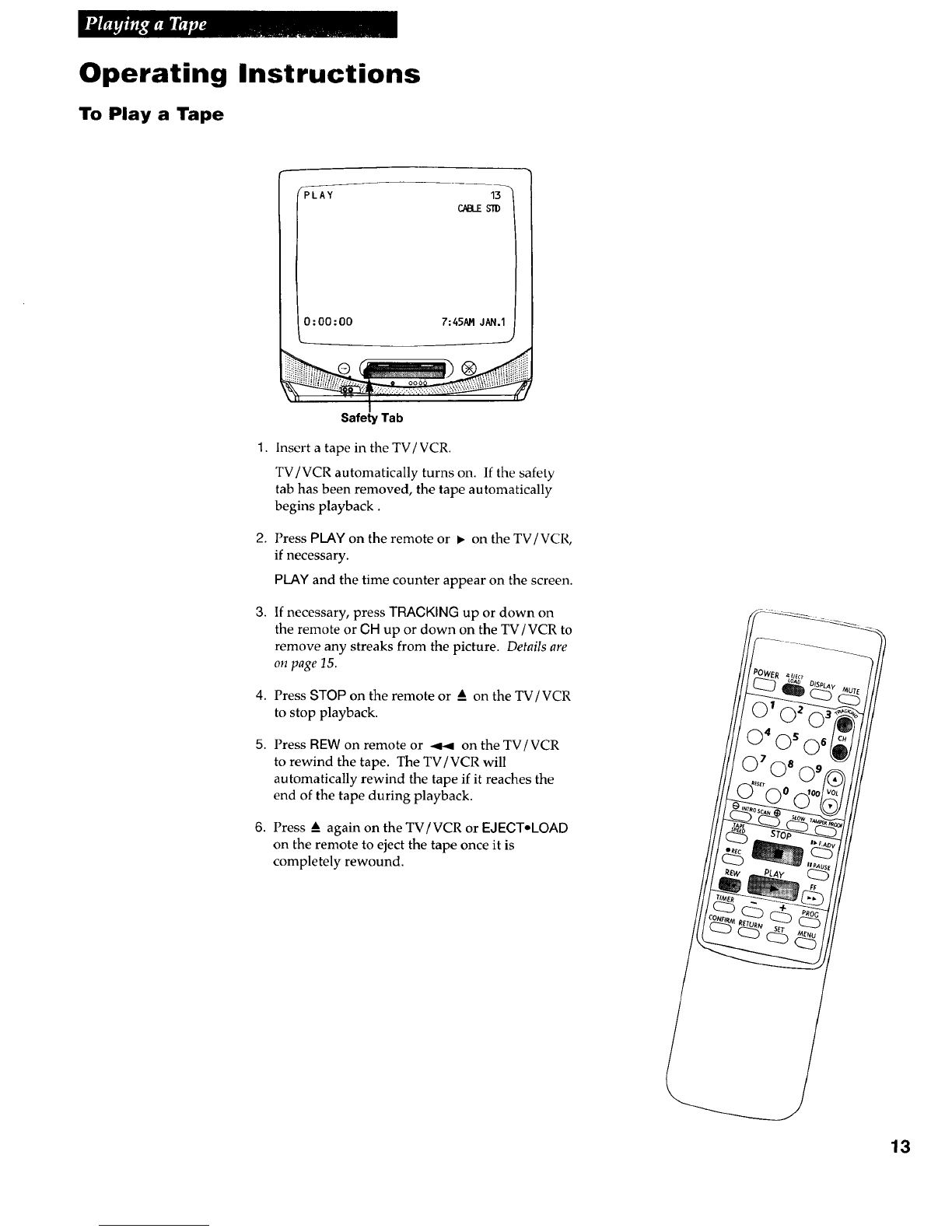

Operating Instructions 13
Using the Playback Features
Pause for Stop-Action 14
Frame Advance 14
Slow Motion 14
Picture Search 14
Recording a Program
Recording Features
Recording Speeds 18
Recording Pause 18
Types of Recordings
Basic Recording --
Operating Instructions .19
Recording While You're Away --
Timer Recording 20
Changing or Deleting
Timer Recordings .21
Stopping a Timer Recording __ 21
Copying and Editing Tapes 22
Location of Controls
Front Panel 23
Back Panel 24
Hooking Up the TV/VCR
Choosing a Hookup
Antenna, or Cable System
Without Cable Box
Cable System With Cable Box to
Unscramble All Channels
Cable System With Cable Box to
Unscramble Only Pay Channels
Connecting a VCR or Camcorder
for Copying Tapes
References
Trouble Checks
Cleaning the TV /VCR
Specifications
Limited Warranty
Index
24
25
26
26
27
28-29
3O
30
31
32-33

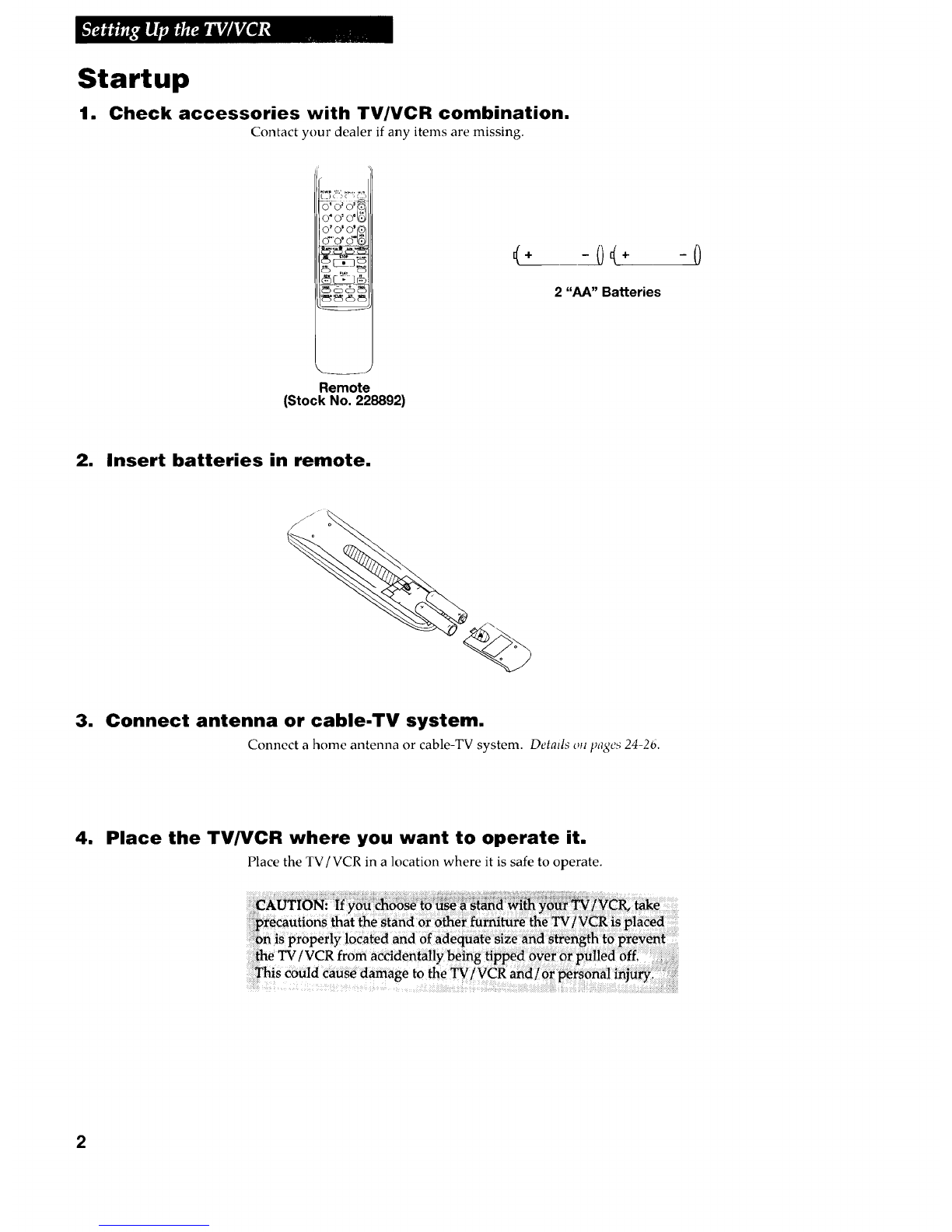

Startup
1. Check accessories with TV/VCR combination.
Contact your dealer if any items are missing.
!_)c )c ,c_
O" O' O'
0 _O' O' [_
O'10 ' d"_
_56dD_5
4÷ -()4÷ -0
2"hA" Batteries
Remote
(Stock No. 228892)
2. Insert batteries in remote.
3. Connect antenna or cable-TV system.
Connect a home antenna or cable-TV system. Details ou pages 24-2b.
4. Place the TV/VCR where you want to operate it.
Place the TV/VCR in a location where it is safe to operate.
2

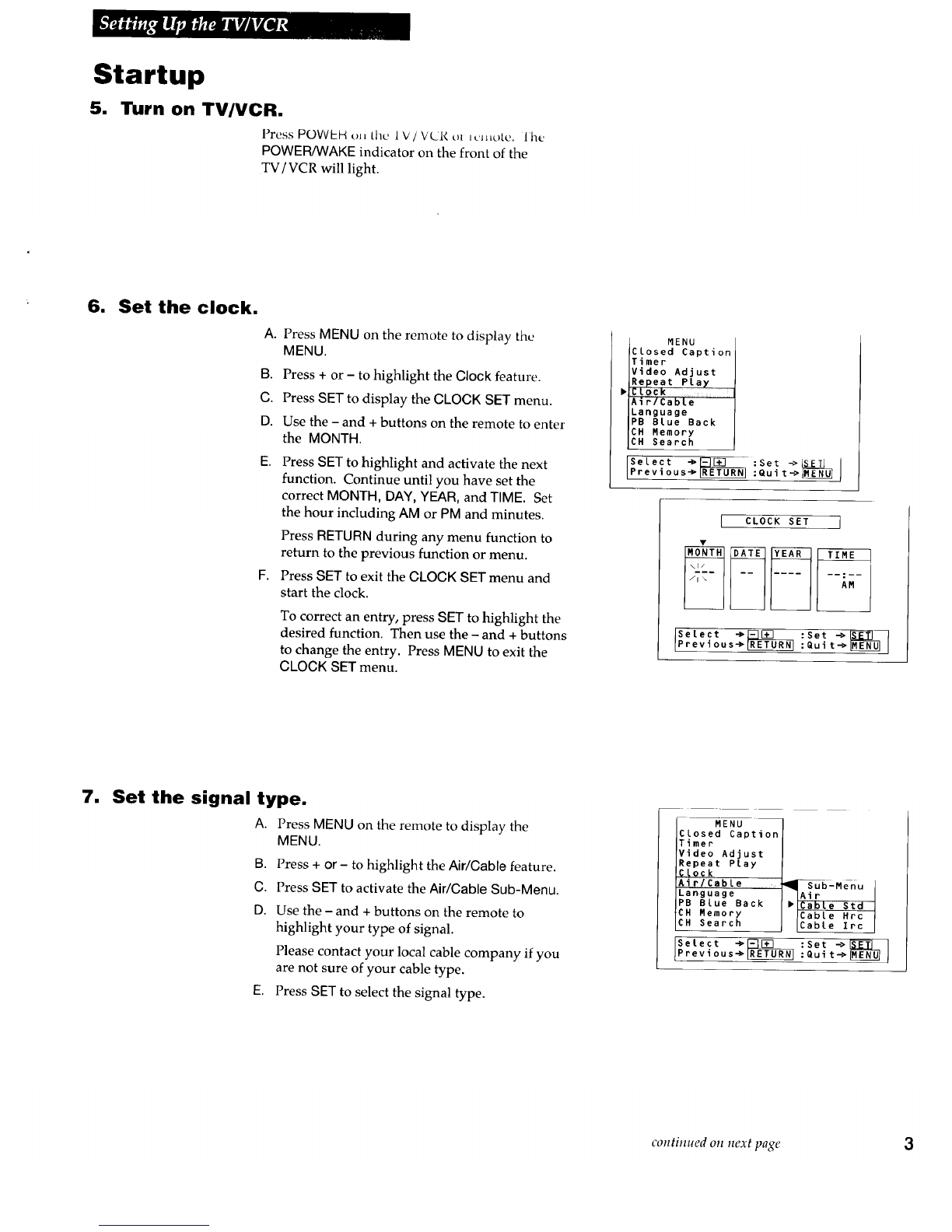

Startup
5. Turn on TV/VCR.
Press POWEH (n, the 1V/VCR o_ lClltolL'. Jhe
POWEPgVVAKEindicator on the front of the
TV/VCR will light.
6. Set the clock.
A. Press MENU on the remote to display the
MENU.
B. Press + or - to highlight the Clock feature.
C. Press SET to display the CLOCK SET menu.
D. Use the - and + buttons on the remote to enter
the MONTH.
E. Press SET to highlight and activate the next
function. Continue until you have set the
correct MONTH, DAY,YEAR,and TIME. Set
the hour including AM or PM and minutes.
Press RETURN during any menu function to
return to the previous function or menu.
F. Press SET to exit the CLOCK SET menu and
start the clock.
To correct an entry, press SET to highlight the
desired function. Then use the - and + buttons
to change the entry. Press MENU to exit the
CLOCK SET menu.
MENU
Closed Caption
Timer
Video Adjust
Repeat Play
CLoCk
Air/Cable
Language
PB Blue Back
CH Memory
CH Search
Select +_[=_L_ :Set ->_::_
Previous+_ :Quit->
I CLOCK SET j
Select -_
Previous+_ :Set.0oit: I
mSet the signal type.
A. Press MENUon the remote to display the
MENU.
B. Press+ or - to highlight theAir/Cable feature.
C. PressSETto activate theAir/Cable Sub-Menu.
D. Use the -and +buttons on the remote to
highlight your type of signal.
Please contact your local cable company if you
are not sure of your cable type.
E. Press SET to select the signal type.
MENU
Closed Caption
Timer
Video Adjust
Repeat PLay
CLo_k
Air/Cable _ _bLMenu
Language [Air
PB Blue Back 'lCable Std
CH Memory ICabte Hrc
CH Search ICable Irc
Setect _ _E___ :Set _
Previous_ RETLRETURNJ:Quit_
continued o!1 next page 3

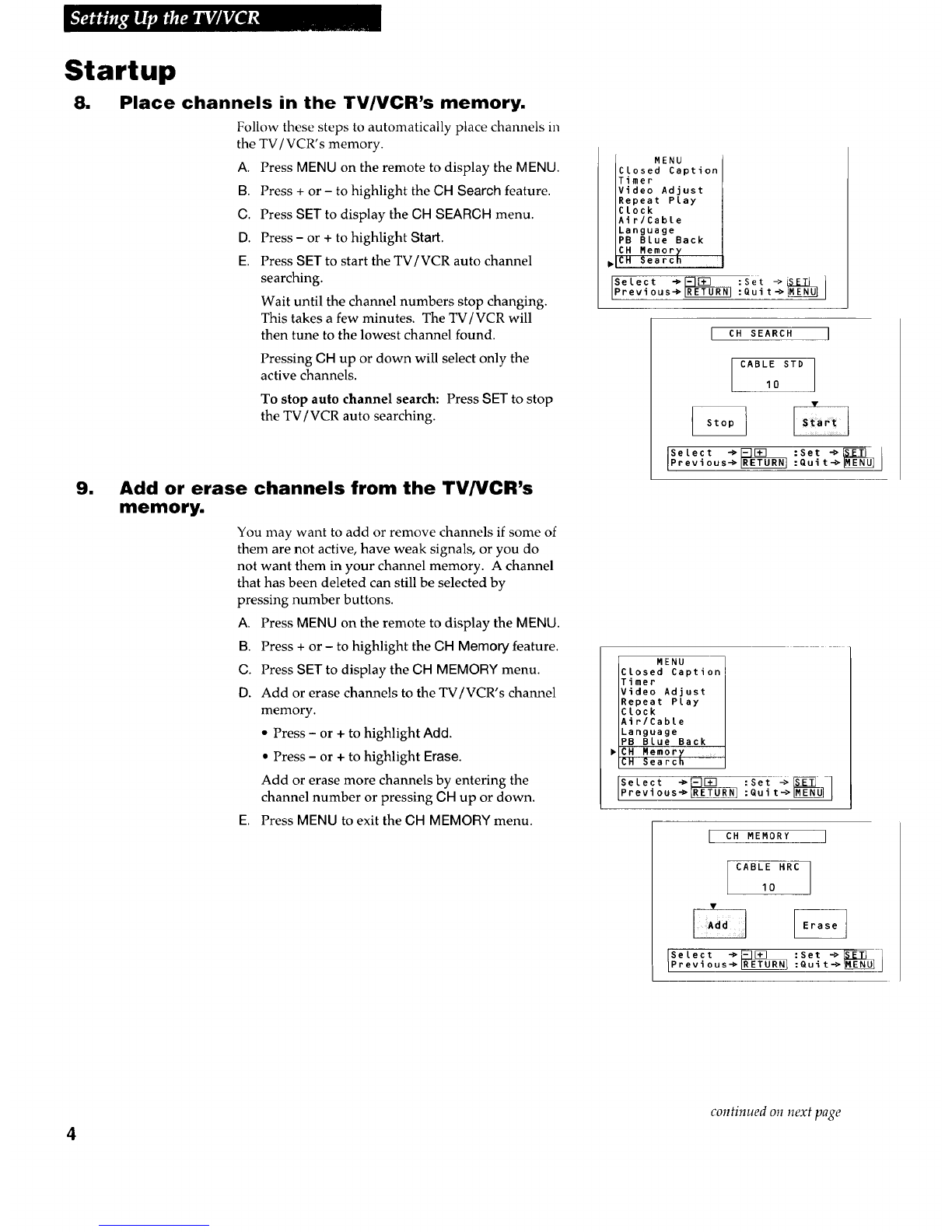

Startup
Place channels in the TV/VCR's memory.
Follow these steps to automatically place channels in
the TV/VCR's memory.
A. Press MENU on the remote to display the MENU.
B. Press + or- to highlight the GH Search feature.
G. Press SET to display the CH SEARCH menu.
D. Press - or + to highlight Start.
E. Press SET to start the TV/VCR auto channel
searching.
Wait until the channel numbers stop changing.
This takes a few minutes. The TV/VCR will
then tune to the lowest channel found.
Pressing GH up or down will select only the
active channels.
To stop auto channel search: Press SET to stop
the TV /VCR auto searching.
am
mAdd or erase channels from the TV/VCR's
memory.
You may want to add or remove channels if some of
them are not active, have weak signals, or you do
not want them in your channel memory. A channel
that has been deleted can still be selected by
pressing number buttons.
A. Press MENU on the remote to display the MENU.
B. Press + or- to highlight the CH Memory feature.
G. Press SET to display the GH MEMORY menu.
D. Add or erase channels to the TV/VCR's channel
memory.
• Press - or + to highlight Add.
• Press - or + to highlight Erase.
Add or erase more channels by entering the
channel number or pressing GH up or down.
E. Press MENU to exit the GH MEMORY menu.
MENU
Closed Caption
Timer
Video Adjust
Repeat Play
Clock
Air/Cable
Language
PB BLue Back
CH Memory
CH Search !
, ,,,1
Select _ :Set ->L_X_T] j
Previous_ :Quit_
[CH SEARCH ]
CABLE STD
10
Select -_ -_
MENU
Closed Caption
Timer
Video Adjust
Repeat Play
Clock
Air/Cable
Language
PB Blue Back
CH Memory
CH Search
Selec, =Set
Previous-> :Quit
[ CH MEMORY ]
CABLE 10 HRC ]
SeleotPrevious-_ _:Set
:Qui t-_
4continued oll next page

Startup

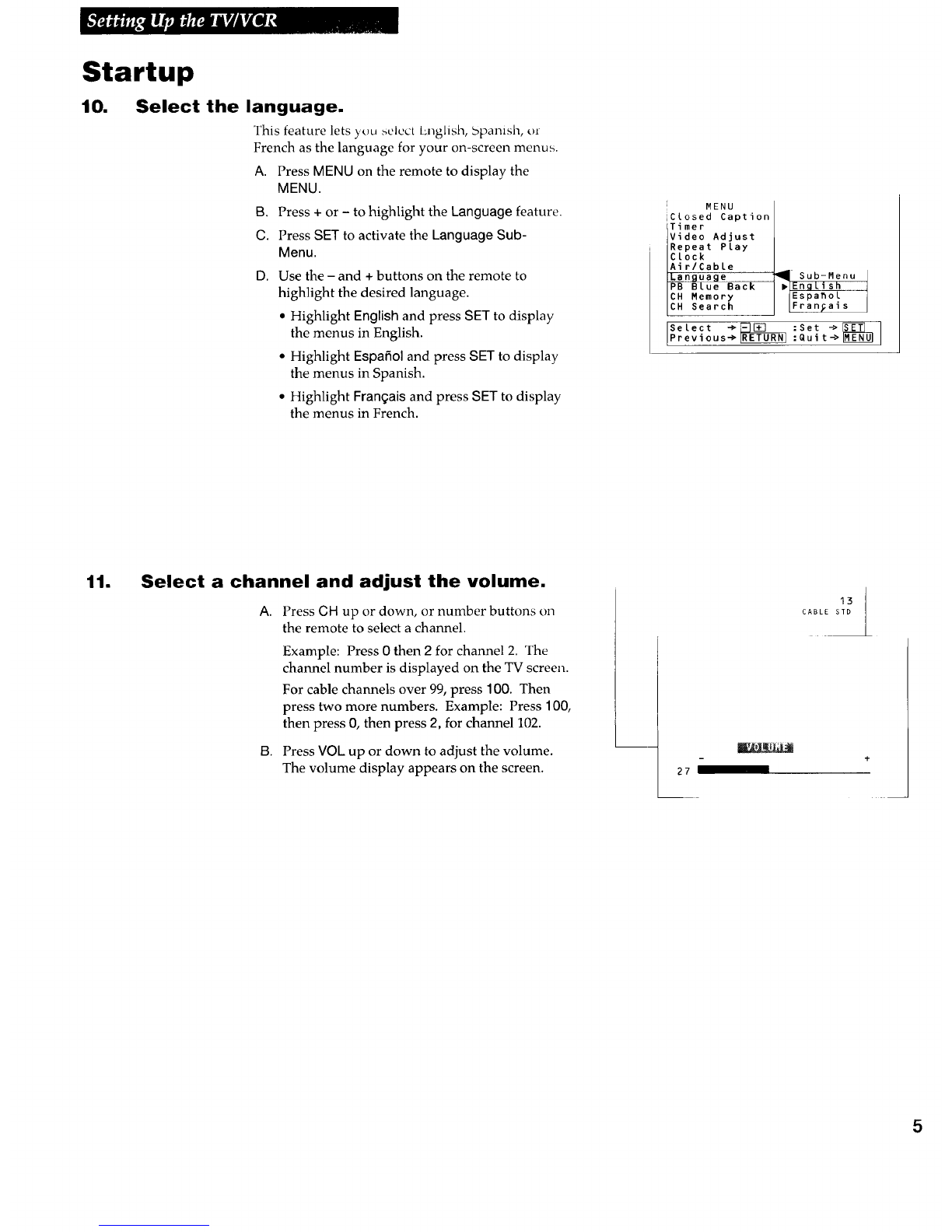

10, Select the language.
This feature lets y_)u _uh_'ctLnglish, bpamsh, or
French as the language for your on-screen menus.
A. Press MENU on the remote to display the
MENU.
B. Press + or -to highlight the Language feature.
C. Press SET to activate the Language Sub-
Menu.
D. Use the - and + buttons on the remote to
highlight the desired language.
• Highlight English and press SET to display
the menus in English.
• Highlight Espafiol and press SET to display
the menus in Spanish.
• Highlight Frangais and press SET to display
the menus in French.
[MENU
iClosed Caption
Timer
Video Adjust
Repeat Play
Clock
Air/Cable
Language
PB Blue Back
CH Memory
CH Search
Sub-Menu I
English
Espa_ol ]
Fran_ais [
Select _ :Set ->_ I
Previous_ Quit->_ I
11. Select a channel and adjust the volume.
A.
B.
Press CH up or down, or number buttons on
the remote to select a channel.
Example: Press 0 then 2 for channel 2. The
channel number is displayed on the TV screen.
For cable channels over 99, press 100. Then
press two more numbers. Example: Press 100,
then press O,then press 2, for channel 102.
Press VOL up or down to adjust the volume.
The volume display appears on the screen. 27
13
CABLE STD
5

Buttons
:)OWER -"E_ECT
LOAD DISPLAY MUTE
O' 0 _03_ -
0 4O_O_
O' O_O_
ovood °°
0 l.r=oscA=(9 SLOW.r_= P=OOE
CZ) _ CZ) 0
.rAPE STOP I1_F.ADV
SPEED
o( .}o
•REC II PAUSE
CZD C_)
PLAY
TIMER -- -'1- PROG
(]Z) (]Z) 0 0
CONFIRMRETURN SET MENU
0 C]) CZ) CZ)
J
- and +Buttons
Used to select and set featurcs when using the
on-screen menus.
CH (Channel)/TRACKING Up or Down
Selects next higher or lower channel in channel
memory.
Lets you manually reduce the streaks that may
appear in the picture during playback.
CONFIRM
Lets you confirm the timer programs that have
been set.
DISPLAY
Shows TV and VCR operating displays on
TV /VCR screen.
Removes displays from the TV/VCR screen.
EJECT'LOAD
Used to eject or load a tape.
F.ADV (Frame Advance)
Advances the tape one frame at atime when the
TV/VCR is in play pause.
FF (Fast Forward)
Fast forwards the tape when the TV/VCR is
stopped.
Searches the picture in forward motion during
playback.
INTRO SCAN Oand
Used to search the tape for index marks.
Use e and _ to adjust speed of slow motion
playback
MENU
Displays the MENU on the screen.
Removes a menu from the screen.
6

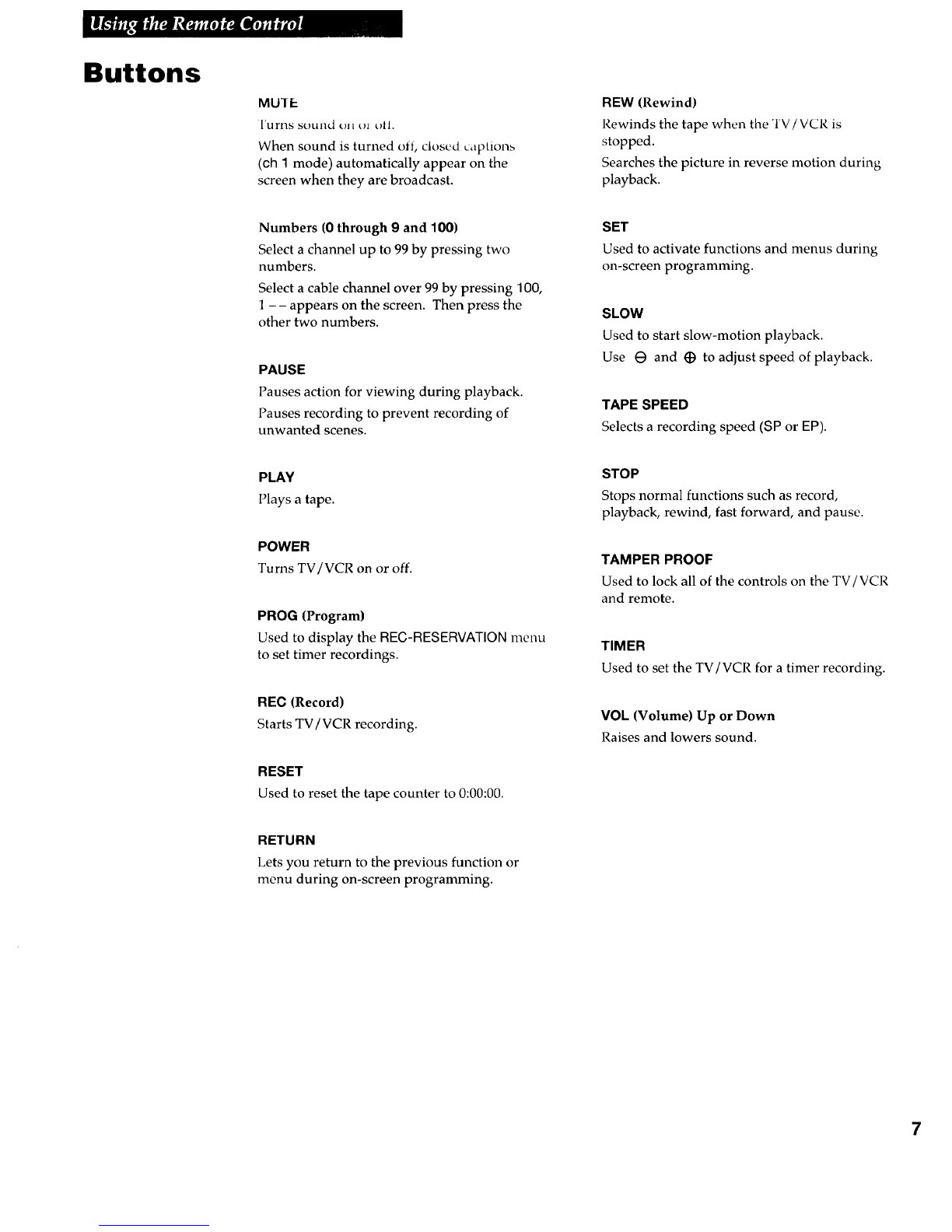

Buttons
MUlE
['urns soul/d t)ll t)l t)ll.
When sound is turned off, closed captions
(ch 1 mode) automatically appear on the
screen when they are broadcast.
REW (Rewind)
Rewinds the tape when the TV /VCR is
stopped.
Searches the picture in reverse motion during
playback.
Numbers (0 through 9 and 100)
Select a channel up to 99 by pressing two
numbers.
Select a cable channel over 99 by pressing 100,
1 - - appears on the screen. Then press the
other two numbers.
PAUSE
Pauses action for viewing during playback.
Pauses recording to prevent recording of
unwanted scenes.
SET
Used to activate functions and menus during
on-screen programming.
SLOW
Used to start slow-motion playback.
Use e and (_ to adjust speed of playback.
TAPE SPEED
Selects a recording speed (SP or EP).
PLAY
Plays a tape.
POWER
Turns TV/VCR on or off.
PROG (Program)
Used to display the REC-RESERVATION menu
to set timer recordings.
REC (Record)
Starts TV /VCR recording.
STOP
Stops normal functions such as record,
playback, rewind, fast forward, and pause.
TAMPER PROOF
Used to lock all of the controls on the TV /VCR
and remote.
TIMER
Used to set the TV/VCR for a timer recording.
VOL (Volume) Up or Down
Raises and lowers sound.
RESET
Used to reset the tape counter to 0:00:00.
RETURN
Lets you return to the previous function or
menu during on-screen programming.

Using the TV/VCR Features
On-Screen Displays
Whenever a function button is pressed
or you change channels, the function
(or channel number) is automatically
displayed on the screen.
To Manually Call Up On-Screen Displays
1. Press DISPLAYon the remote.
•Tape in TV/VCR: To display the
function, tape speed, channel
number, signal type, time counter,
date, and time.
•No tape in TV/VCR: To display
the channel number, signal type,
date, and time.
2.
If you do not press DISPLAY again,
these displays will time out.
Press DISPLAY again:
• Tape in TV/VCR: Time counter,
function, tape speed, and channel
number remain on the screen.
•No tape in TV/VCR: Small
channel number remains on screen.
These displays will not time out.
3. Press DISPLAY again to remove all
displays from the screen.
0:00:00 7:45AM JAN. 1 7:45AM JAN. 1
STOP 13 13
SP
Press DISPLAY Press DISPLAY
again again
0:00:00
Press DISPLAY
Again to Remove
All Displays
Press DISPLAY
Again to Remove
All Displays
Tamper Proof Lock
This feature allows you to lock all of the
controls on the front of the TV/VCR and the
remote. The TV/VCR will not respond to any
control. This prevents someone from
accidentally turning off a timer recording.
Turn On the Tamper Proof Lock
•Press and hold the TAMPER PROOF button
on the remote for several seconds to turn on
the tamper proof lock.
The TAMPER PROOF indicator on the
TV /VCR will flash while the lock is setting
and then remain on when the lock is set.
Turn Off the Tamper Proof Lock
•Press and hold the TAMPER PROOF button
on the remote for several seconds to turn off
the tamper proof lock.
The TAMPER PROOF indicator on the
TV/VCR will turn off.
8
