RCA F32649YX71 User manual

Tele tsto
User's G tde
Changing Entertainment. _m.

WARNING
To reduce the risk of fire or
electric shock, do not expose
this TV to rain or moisture.
To reduce the risk of electric shock, do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
_ik This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
_ This symbol indicates
important instructions
accompanying the product.
personal injury.
Caution: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
Attention: Pour _viter les chocs _lectriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusq_ au fond.
Refer to the identificationlrating label located on the back panel of your
product for its proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
If fixed (non-moving) images are left on the screen for long periods,
they may be permanently imprinted on the picture tube. Such
images include network Iogos, phone numbers, and video games.
This damage is not covered by your warranty. Extended viewing of
channels displaying these images should be avoided.
Cable TV Installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.
Product Registration
Please fill out the product registration card and return it immediately. Returning the card allows us to contact
you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record
the serial and model numbers in case you need them. The numbers are located on the back of the television.
Model No.
Serial No.
Purchase Date:
DealerlAdd resslPhone:
G-LINK, VCR Plus+, C3,PlusCode, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development
Corporation.
The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.
Thomson Consumer Electronics and Gemstar are not in any way liable for the accuracy of the program information
provided by the GUIDE Plus+ System. In no event shall Thomson Consumer Electronics or Gemstar be liable for any
amount representing loss of profits, loss of business, or indirect, special, or consequential damages in connection
with the provision or use of any information equipment, or services relating to the GUIDE Plus+ System.

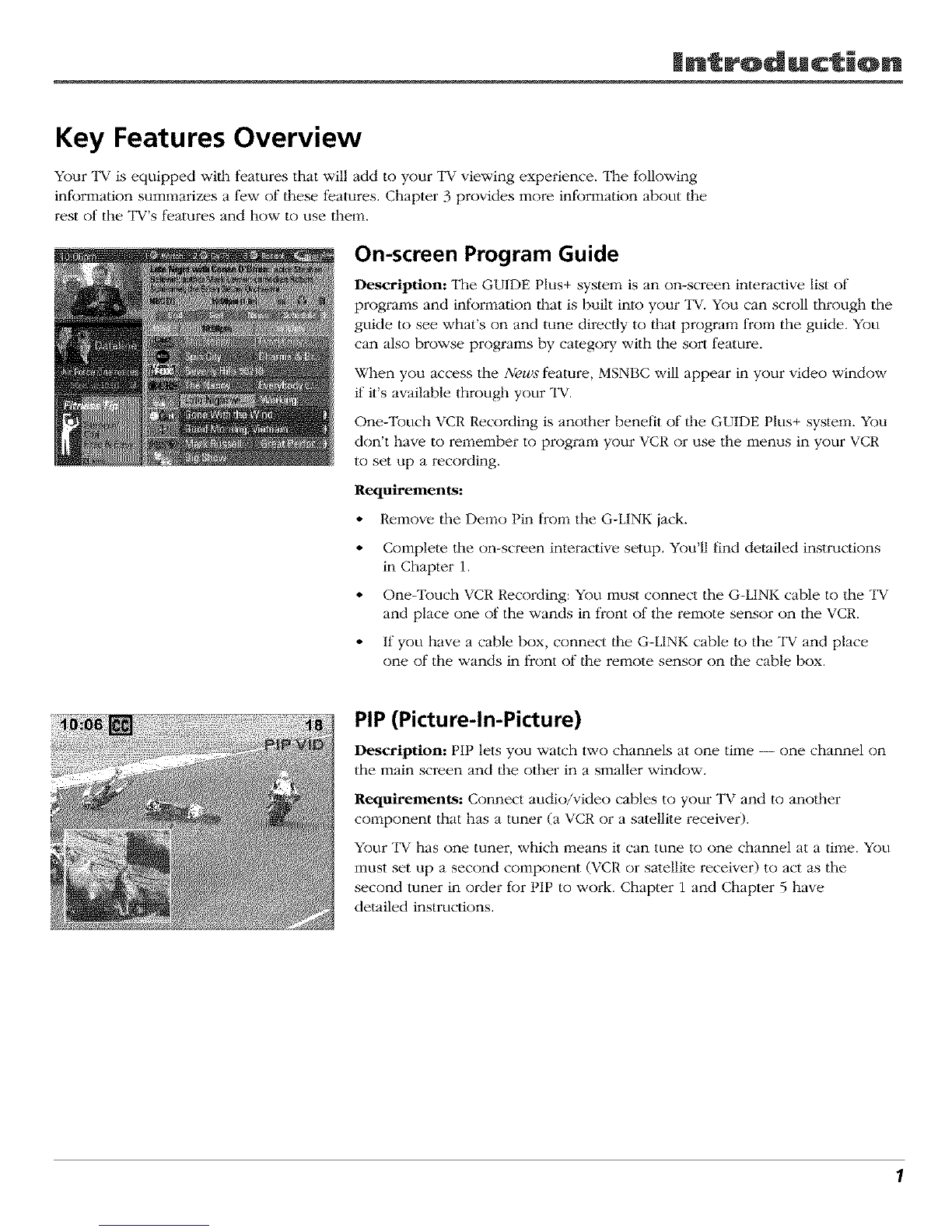

Key Features Overview
Your "IV is equipped with features that will add to your TV viewing experience. "II_e following
intSrmation summarizes a l)w of these features. Chapter 3 provides more information about the
rest of the TV's features and how to use them.
On-screen Program Guide
Description: The GUIDE Plus+ system is an on-screen interactive list of
programs and intormation that is built into your "IV. You can scroll through the
guide to see what's on and tune directly to that program from the guide. You
can also browse programs by category wilh the sort l)ature.
When you access the News feature, MSNBC will appear in your video window
if it's available through your "IV.
One-Touch VCR Recording is another benefit of the GUIDE Plus+ system. You
don't have to remember to program your VCR or use the menus in your VCR
to set up a recording.
Requirements:
• Remove the Demo Pin from the G-LINK jack.
• Complete the on-screen interactive setup. You'll find detailed instructions
in Chapter 1.
• One-Touch VCR Recording: You must connect the G-LINK cable to lhe "IV
and place one of the wands in front of the remote sensor on the VCR.
• If you have a cable box, connect the G-LINK cable to the "IV and place
one of the wands in front of the remote sensor on the cable box.
PIP (Picture-In-Picture)
Description: PIP lets you watch two channels at one time -- one channel on
the main screen and the other in a smaller window.
Requirements: Connect audio/video cables to your "IV and to another
component that has a tuner (a VCR or a satellile receiver).
Your "IV has one tuner, which means it can tune to one channel at a time. You
must set up a second component (VCR or satellile receiver) to act as the
second tuner in order for PIP to work. Chapter 1 and Chapter 5 have
detailed instructions.
1

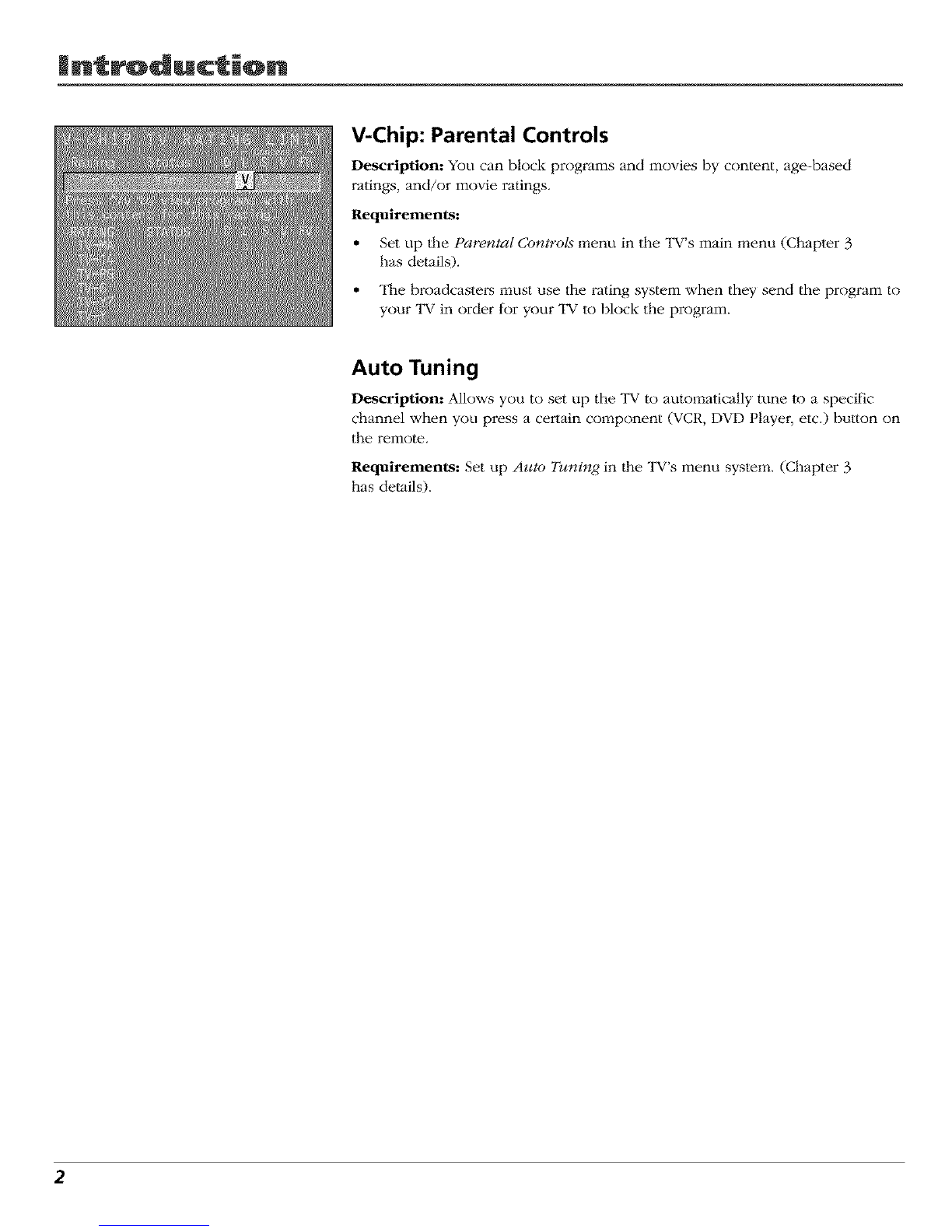

V-Chip: Parental Controls
Description: You can block programs and movies by content, age-based
ratings, and/or movie ratings.
Requirements:
• Set up the Parerzlal Controls menu in the "l_'s main menu (Chapter 3
has details).
• "Ilae broadcasters must use the rating system when they send the program to
your "IV in order for your TV to block the program.
Auto Tuning
Description: Allows you to set tip the TV to automatically tune to a specific
channel when you press a certain component (VCR, DVD Player, etc.) button on
the remote.
Requirements: Set up Auto Tuning in d_e "lW's menu system. (Chapter 3
has details).
2

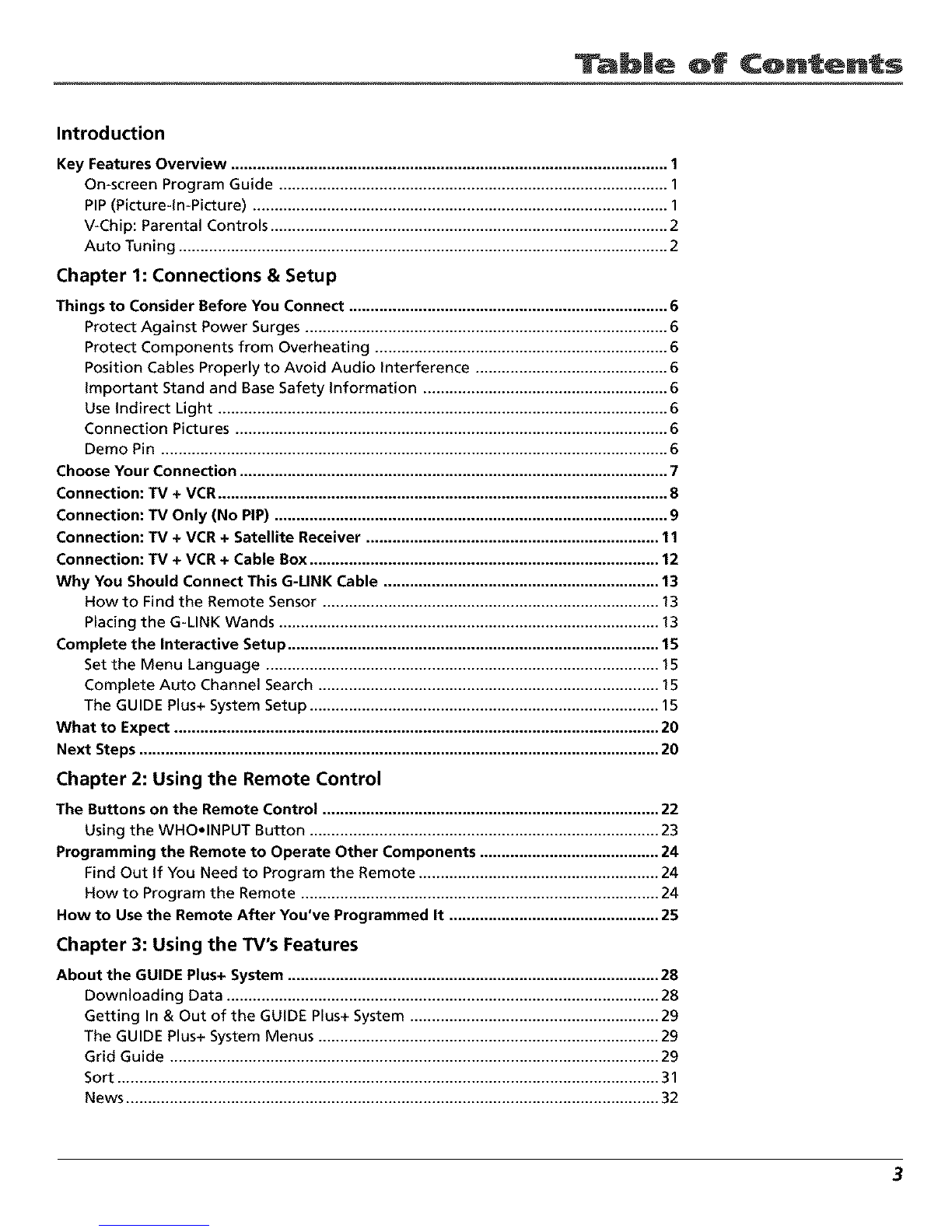

3Pab|e of Contents
Introduction
Key Features Overview .................................................................................................... 1
On-screen Program Guide ......................................................................................... 1
PIP(Picture-in-Picture) ............................................................................................... 1
V-Chip: Parental Controls ........................................................................................... 2
Auto Tuning ................................................................................................................ 2
Chapter 1: Connections & Setup
Things to Consider Before You Connect ......................................................................... 6
Protect Against Power Surges ................................................................................... 6
Protect Components from Overheating ................................................................... 6
Position Cables Properly to Avoid Audio Interference ............................................ 6
Important Stand and BaseSafety Information ........................................................ 6
Use Indirect Light ....................................................................................................... 6
Connection Pictures ................................................................................................... 6
Demo Pin .................................................................................................................... 6
Choose Your Connection .................................................................................................. 7
Connection: TV + VCR....................................................................................................... 8
Connection: TV Only (No PIP) .......................................................................................... 9

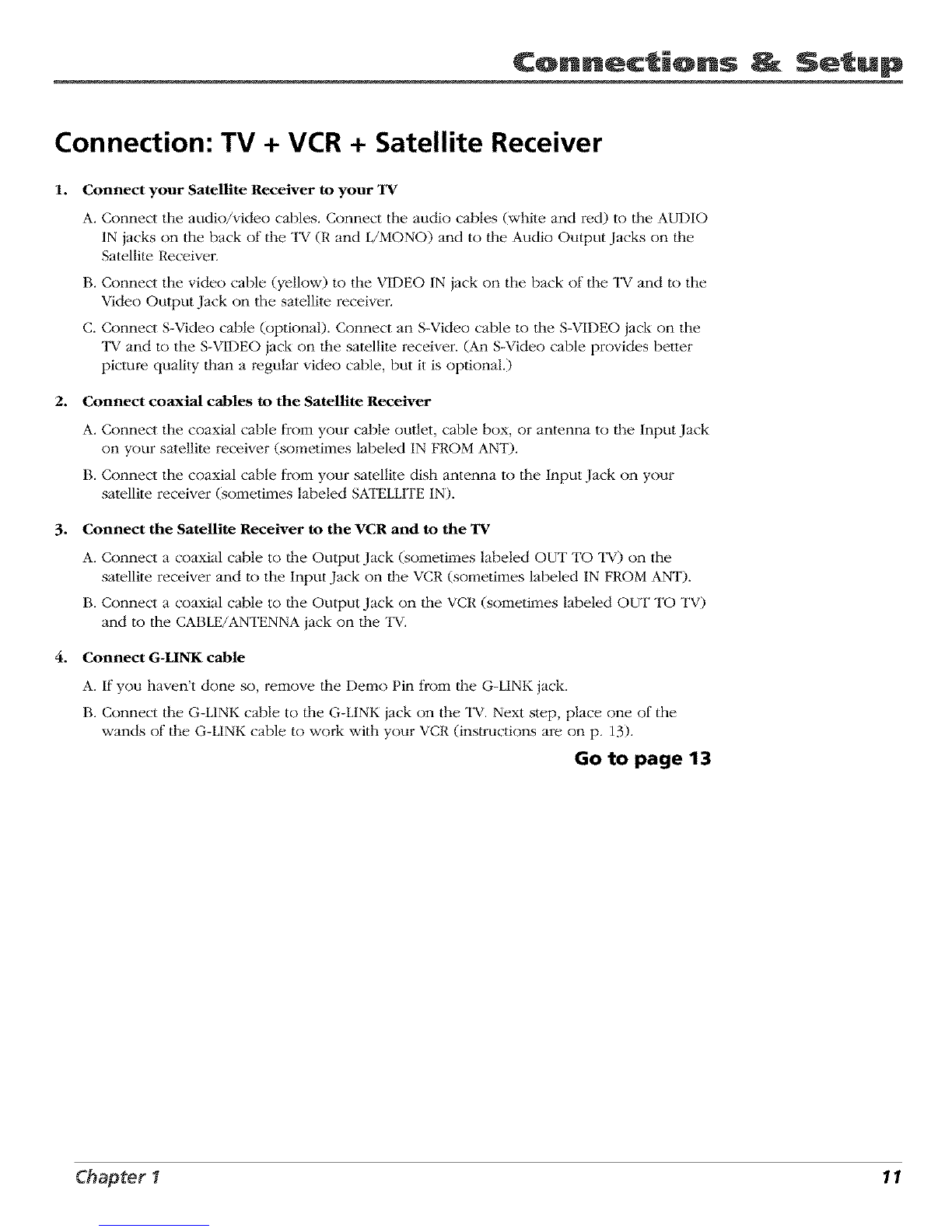

Connection: TV + VCR+ Satellite Receiver ................................................................... 11
Connection: TV + VCR+ Cable Box ................................................................................ 12

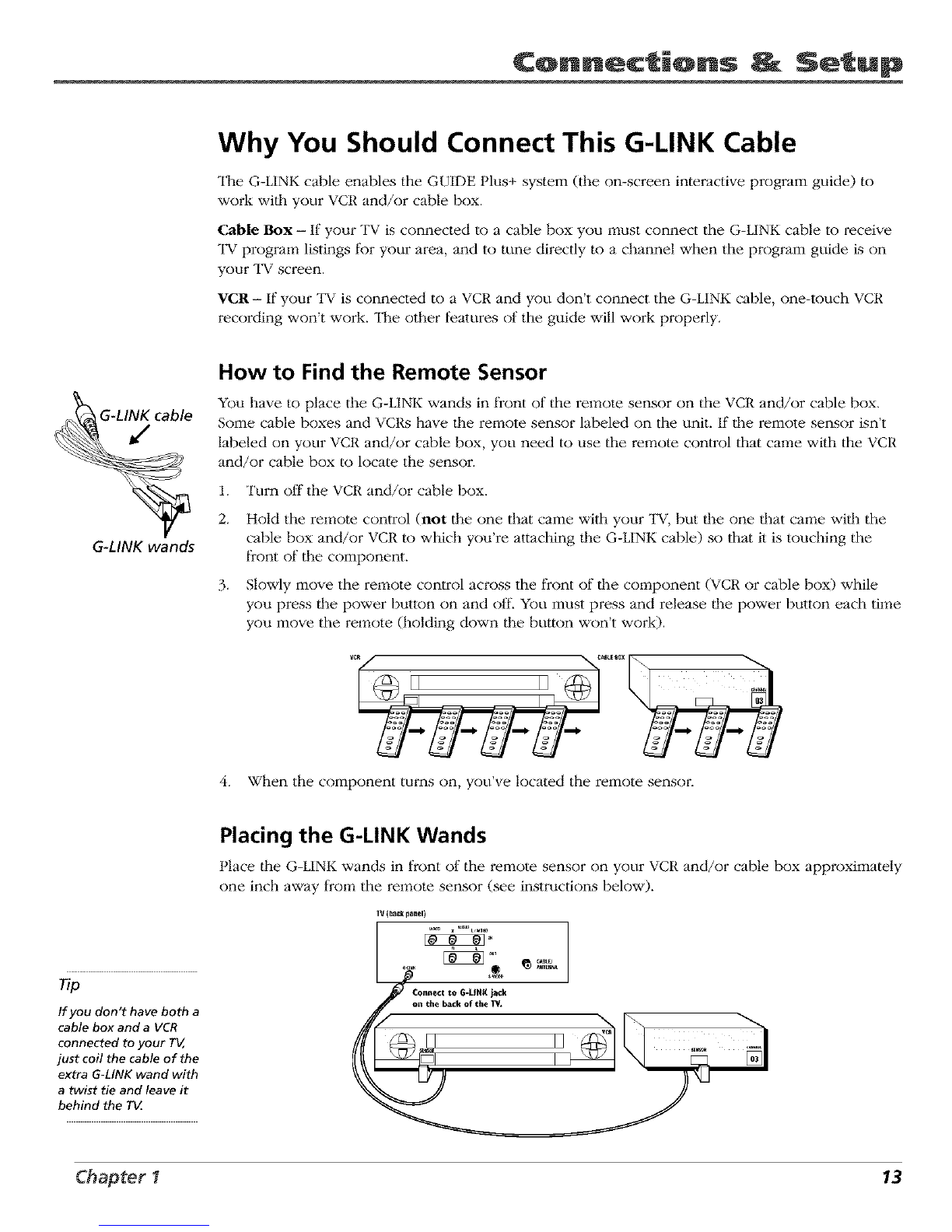

Why You Should Connect This G-LINK Cable ............................................................... 13
Howto Find the Remote Sensor ............................................................................. 13
Placing the G-LINK Wands ....................................................................................... 13

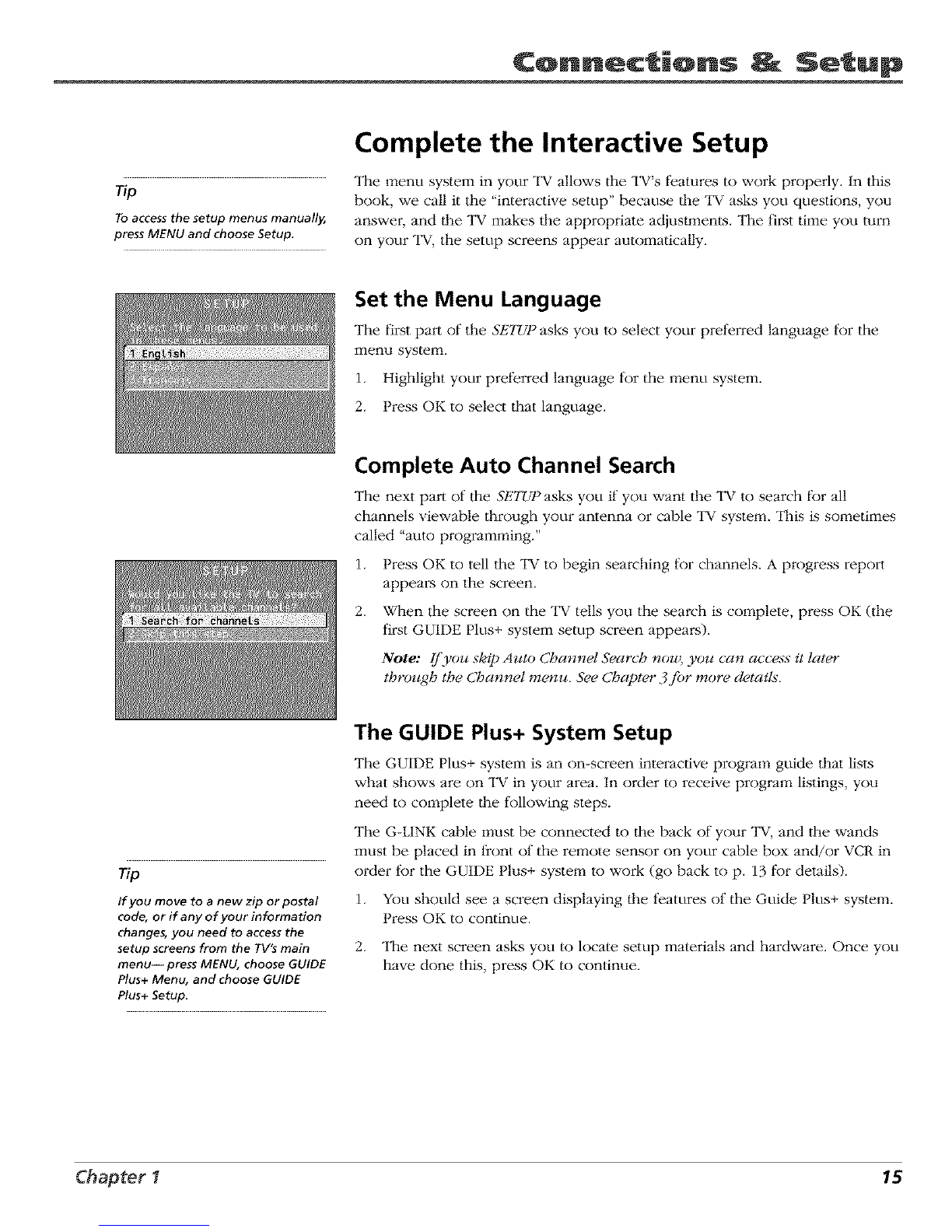

Complete the Interactive Setup ..................................................................................... 15
Set the Menu Language .......................................................................................... 15
Complete Auto Channel Search .............................................................................. 15

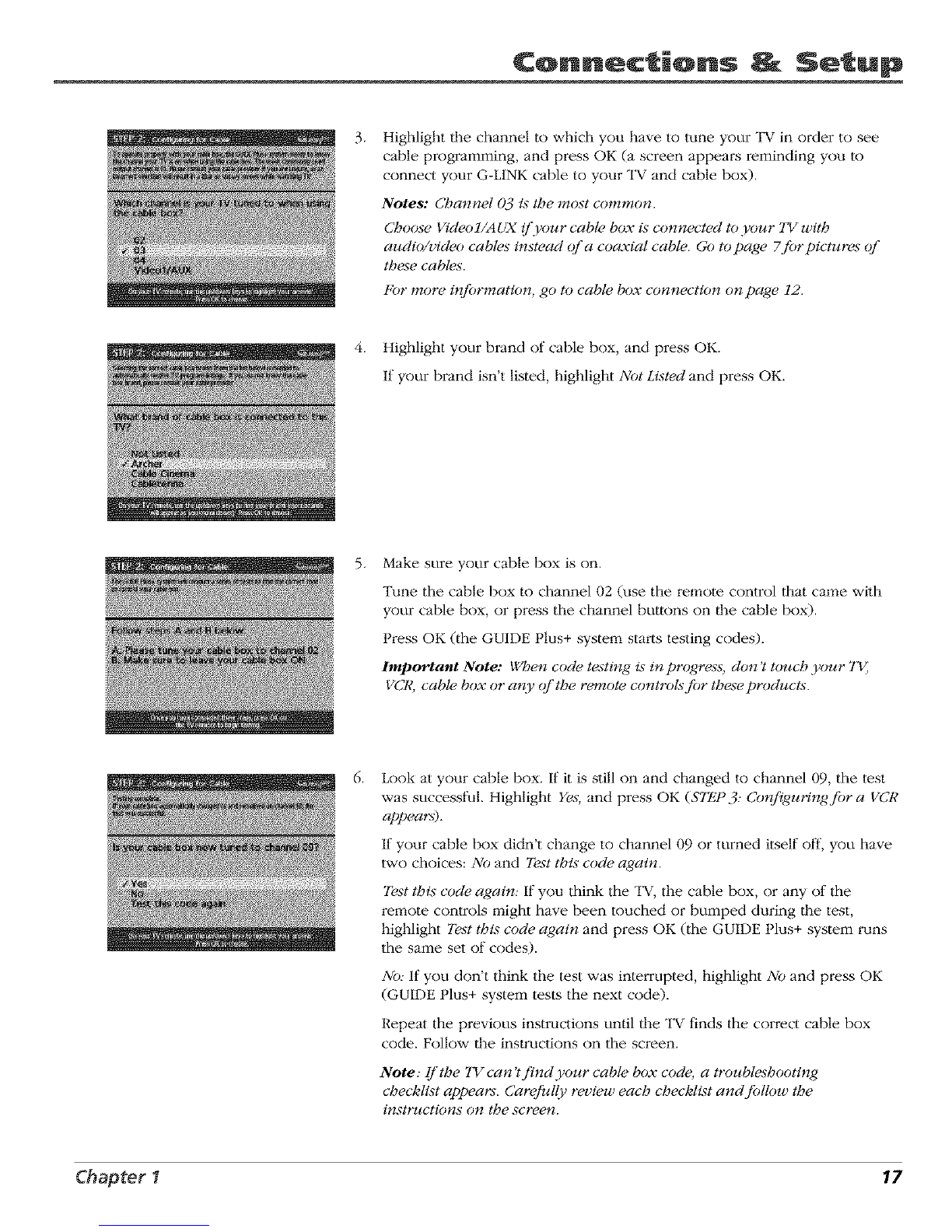

The GUIDE Plus+ System Setup ................................................................................ 15
What to Expect ............................................................................................................... 20
Next Steps ....................................................................................................................... 20
Chapter 2: Using the Remote Control
The Buttons on the Remote Control ............................................................................. 22
Using the WHO=INPUT Button ................................................................................ 23
Programming the Remote to Operate Other Components ......................................... 24
Find Out If You Need to Program the Remote ....................................................... 24
How to Program the Remote .................................................................................. 24
How to Use the Remote After You've Programmed It ................................................ 25
Chapter 3: Using the TV's Features
About the GUIDE Plus+ System ..................................................................................... 28
Downloading Data ................................................................................................... 28
Getting In & Out of the GUIDE Plus+ System ......................................................... 29
The GUIDE Plus+ System Menus .............................................................................. 29
Grid Guide ................................................................................................................ 29
Sort ............................................................................................................................ 31
News .......................................................................................................................... 32
