RCA G27669YX2AX1 User manual

WARNING
To reduce the risk of fire or
shock hazard, do not expose
this TV to rain or moisture. ]To reduce the risk of electric shock, do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
_, This symbol indicates
important instructions
accompanying the product.
personal injury
Caution: To reduce the risk of electric shock, match
wide blade of plug to wide slot, fully insert.
Attention: Pour _viter les chocs 6lectriques, introduire
la lame la plus large de la fiche dans la borne
correspondante de la prise et pousserjusqu au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
If fixed (non-moving) images are left on the screen for long
periods, they may be permanently imprinted on the screen. Such
images include network Iogos, phone numbers, and video games.
This damage is not covered by your warranty. Extended viewing
of channels displaying these images should be avoided.
Cable TV installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.
Product Registration
Please fill out the product registration card and return it immediately. Returning the card allows us to contact you
needed.
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the
serial and model numbers in case you need them. The numbers are located on the back of the television.
Model No.
Serial No.
Purchase Date:
Dealer/Address/Phone:
VCR Plus+, C3,PlusCode, GUIDE Plus+, and GUIDE Plus+ Gold are trademarks of Gemstar Development
Corporation.
The GUIDE Plus+ Gold system is manufactured under license from Index Systems Inc.

SETUP AND CONNECTIONS .......................................................... 3
Step 1: Unpack the TV ...................................................................... 4
Step 2: Connect Your TV .................................................................. 4
TV Only (PIP Not Available) ....................................................... 4
The Basic Connection (PIPNot Available) ................................ 5
Advanced Connections .............................................................. 6
Back of the TV ............................................................................ 6
Sample Connections .................................................................. 7
Step 3: Connect the IR Controller .................................................... 9
Step 4: Plug in the TV ..................................................................... 10
Step 5: Place Batteries in the Remote ........................................... 10
Step 6: Turn On the TV ................................................................... 10
On-Screen Program Guide ....................................................... 10
Step 7: Program the TV .................................................................. 10
INTERACTIVE SETUP .................................................................... 11

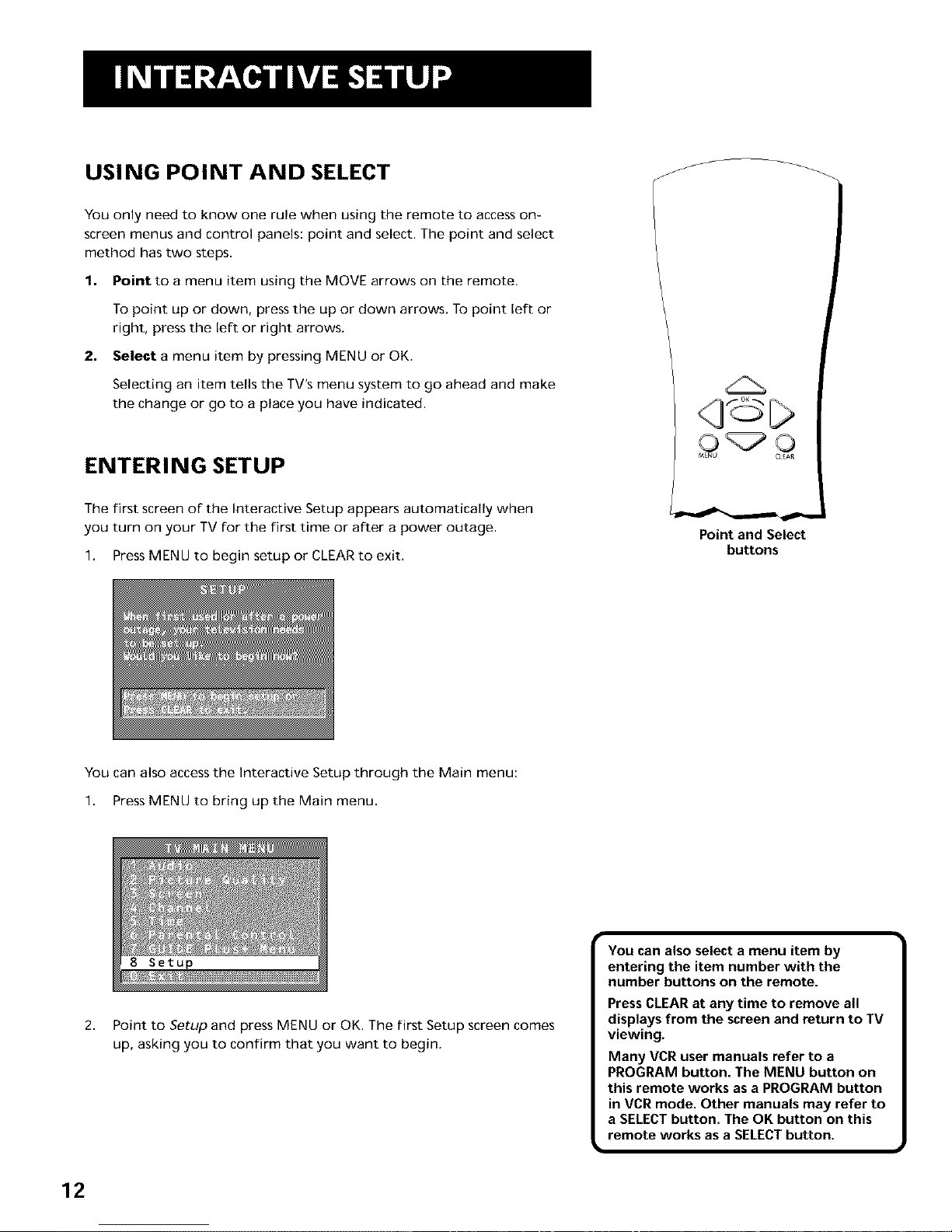

Using Point and Select ................................................................... 12
Entering Setup ................................................................................ 12

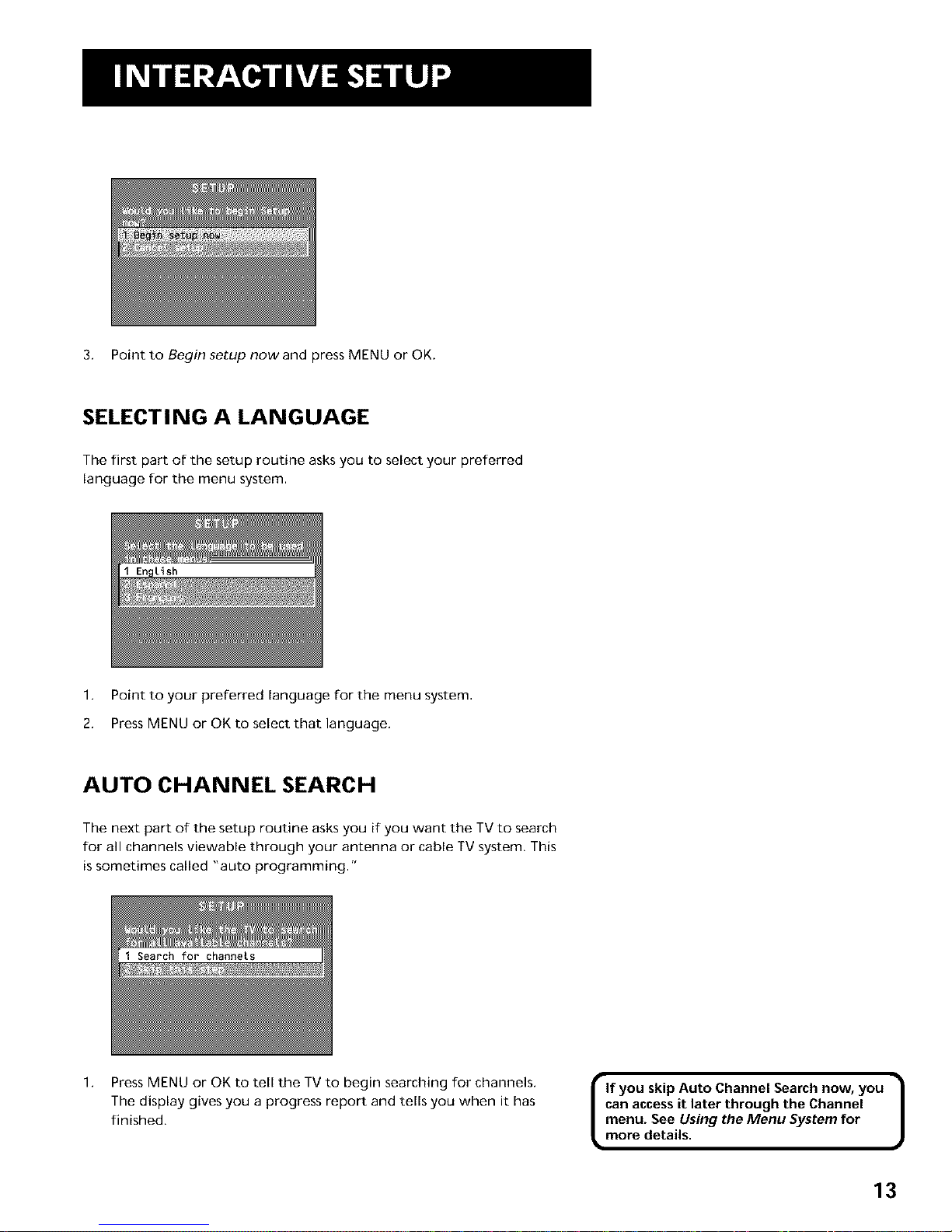

Selecting a Language ..................................................................... 13
Auto Channel Search ..................................................................... 13
The GUIDE Plus+ Gold System ....................................................... 14

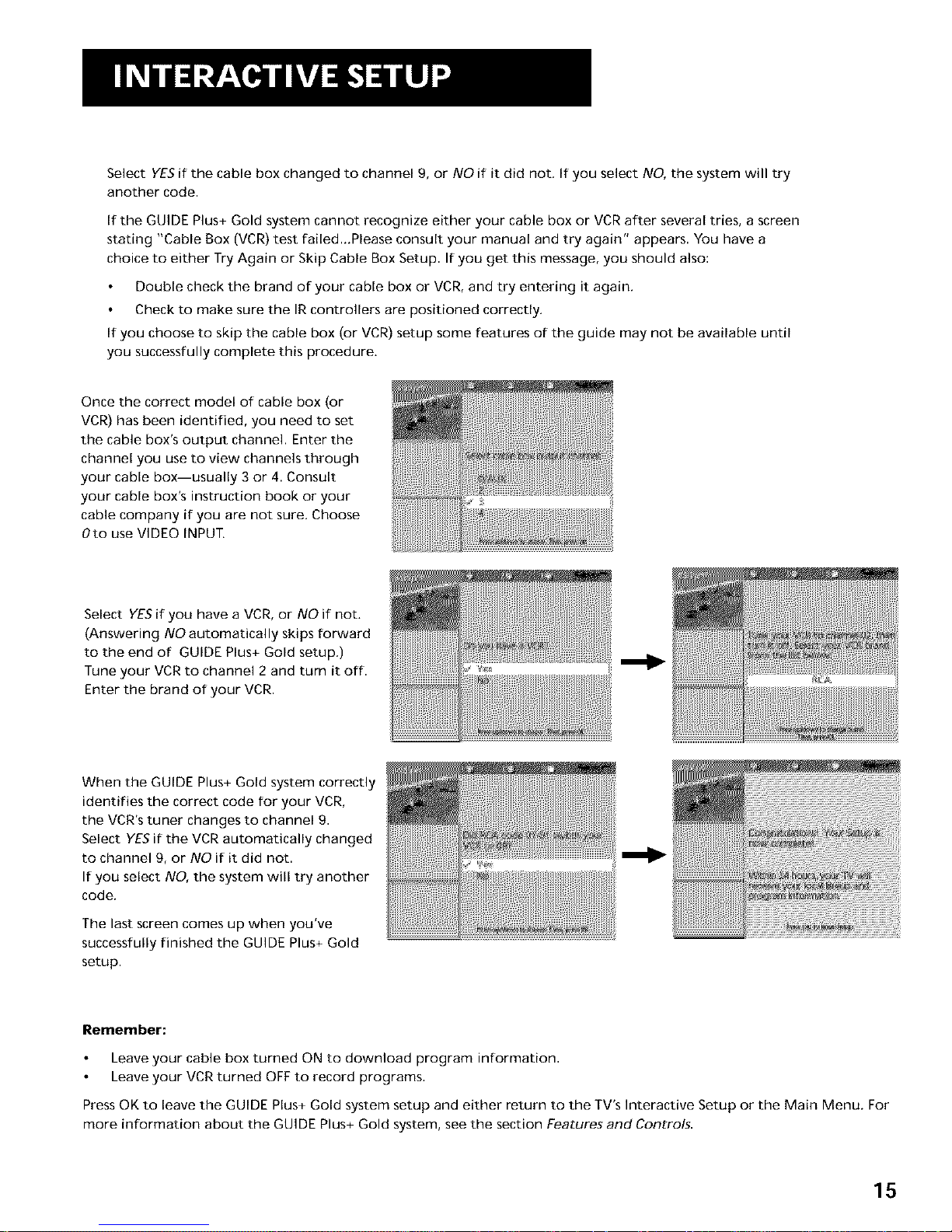

Setting Up the GUIDE Plus+ Gold System ............................... 14
Setting the Time ............................................................................. 16
Setting the VCR1 Channel (auto tuning) ..................................... 17
Setting the VCR2 Channel (auto tuning) ...................................... 17

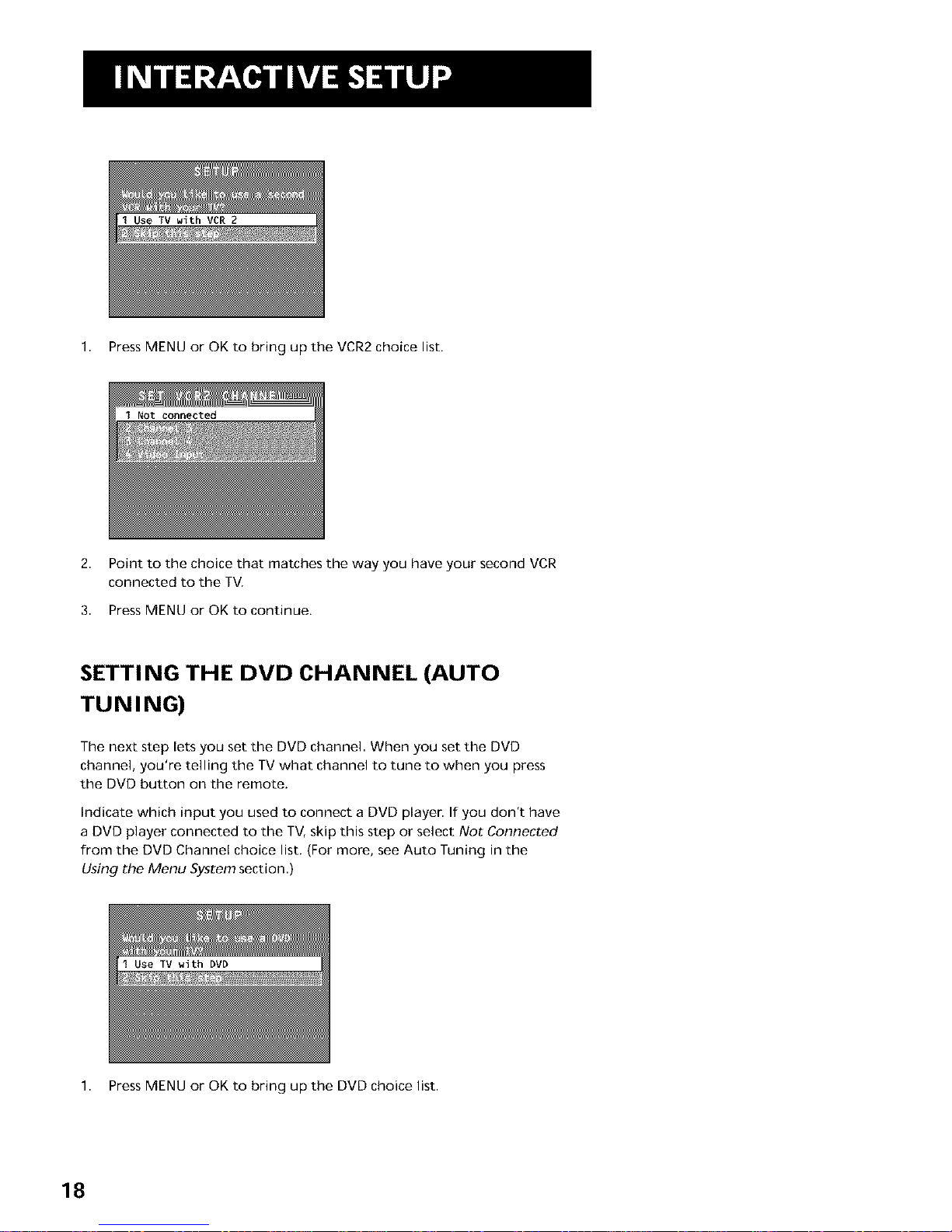

Setting the DVD Channel (auto tuning) ....................................... 18
Setting the SAT/CABLE Channel (auto tuning) ............................. 19
Labeling the Channels ................................................................... 20
USING THE REMOTE ..................................................................... 21
Remote Buttons .............................................................................. 22
Using the WHO,INPUT Button ................................................ 23
Programming the Remote ............................................................. 24
Testing the Remote .................................................................. 24
Using the Remote to Control a Device ................................... 25
Modes of Operation ................................................................ 25
Front Panel ..................................................................................... 25
1

USING THE MENU SYSTEM ......................................................... 27
Menus and Control Panels ............................................................. 28
Audio Menu ....................................................................................30
Using the Remote to Select an Audio Processor .......................... 31
Picture Quality Menu ..................................................................... 32
Screen Menu ................................................................................... 33
Using Closed Captioning ......................................................... 34
Channel Menu ................................................................................ 35
Time Menu ...................................................................................... 36
Other Menus ................................................................................... 36
FEATURES AND CONTROLS ......................................................... 37
GUIDE Plus+ Gold Menu ................................................................ 38
About the GUIDE Plus+ Gold System ............................................ 38
Getting In & Out of the GUIDE Plus+ Gold System ................ 39
Downloading Data .................................................................. 39
The Different GUIDE Plus+ Gold System Menus .................... 39
Grid Guide ........................................................................... 40
Sort ...................................................................................... 41
Schedule .............................................................................. 42
Messages ............................................................................. 43
Editor ................................................................................... 43
PIP (Picture-in-Picture) Operation ................................................. 45
Channel Marker .............................................................................. 46
Parental Controls and V-Chip ........................................................ 47
V-Chip TV Rating Limit ............................................................ 48
V-Chip Movie Rating Limit ...................................................... 52
V-Chip Unrated Program Block ............................................... 53
Channel Block .......................................................................... 53
Front Panel Block ..................................................................... 53
Lock/Unlock Parental Controls ................................................ 53
REFERENCE ..................................................................................... 54
Troubleshooting ............................................................................. 54
Care and Cleaning .......................................................................... 55
RCA Limited Warranty ................................................................... 56
Accessory Information ................................................................... 58
INDEX ............................................................................................. 61
2

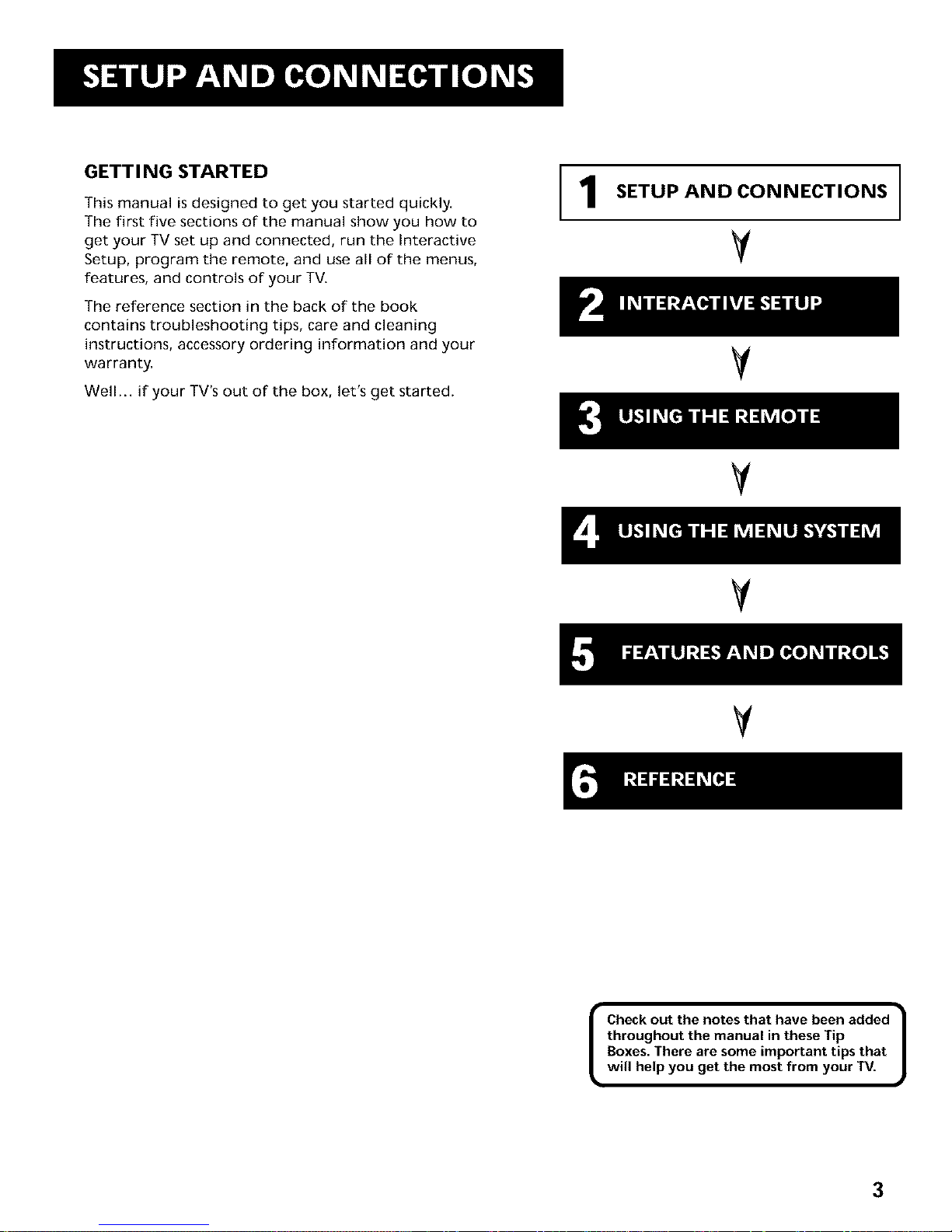

GETTI NG STARTED
This manual is designed to get you started quickly.
The first five sections of the manual show you how to
get your TV set up and connected, run the Interactive
Setup, program the remote, and use all of the menus,
features, and controls of your TV.
The reference section in the back of the book
contains troubleshooting tips, care and cleaning
instructions, accessory ordering information and your
warranty.
Well... if your TV's out of the box, let's get started.
SETUP AND CONNECTIONS
V
V
V
V
V
I •
Check out the notes that have been added
throughout the manual in theseTip
Boxes.There are someimportant tips that
will help you get the mostfrom your TV. #
3

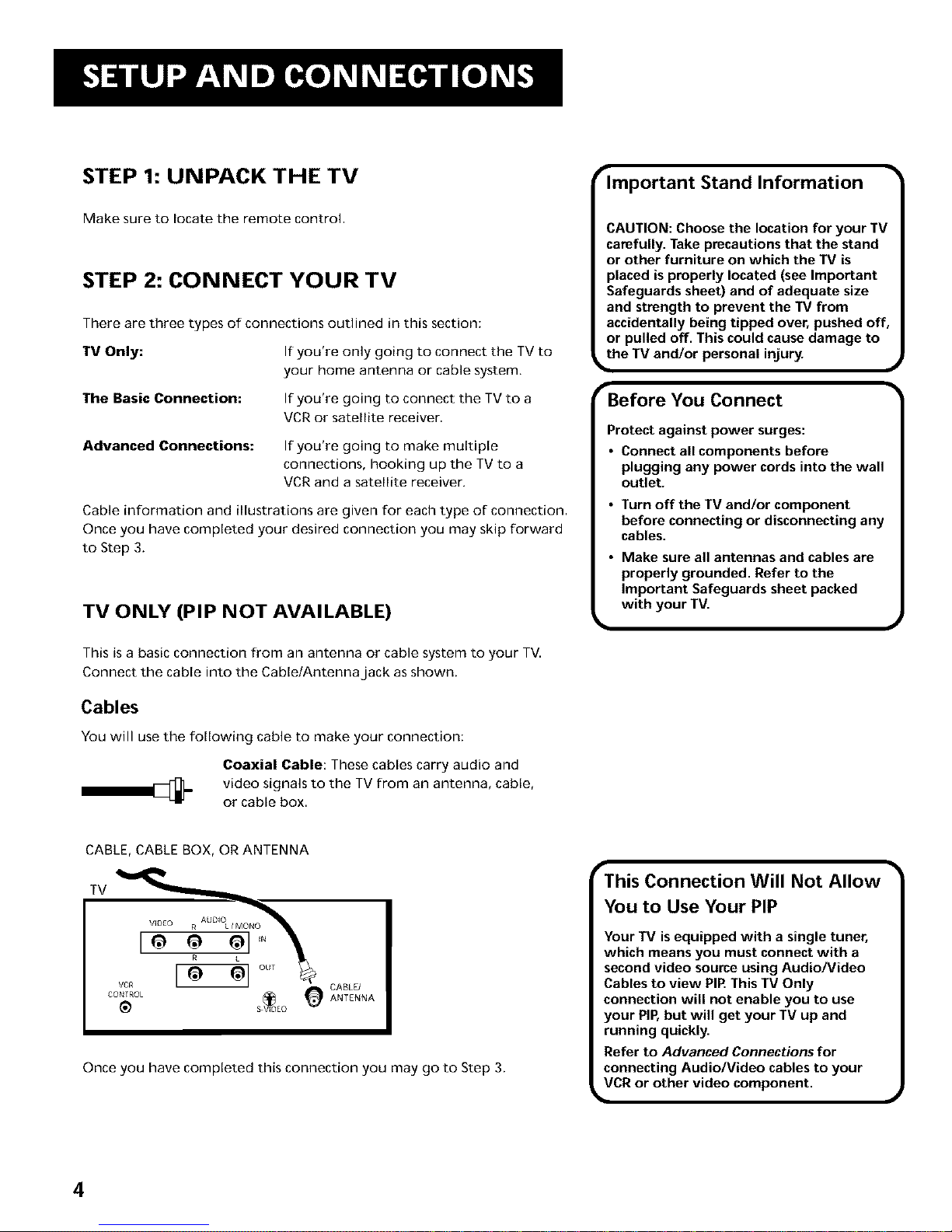

STEP 1: UNPACK THE TV
Make sure to locate the remote control.
STEP 2: CONNECT YOUR TV
There are three types of connections outlined in this section:
TV Only: If you're only going to connect the TV to
your home antenna or cable system.
The Basic Connection: If you're going to connect the TV to a
VCR or satellite receiver.
Advanced Connections: If you're going to make multiple
connections, hooking up the TV to a
VCR and a satellite receiver.
Cable information and illustrations are given for each type of connection.
Once you have completed your desired connection you may skip forward
to Step 3.
TV ONLY (PIP NOT AVAILABLE)
This is abasic connection from an antenna or cable system to your TV.
Connect the cable into the Cable/Antenna jack as shown.
Cables
You will use the following cable to make your connection:
Coaxial Cable: These cables carry audio and
video signals to the TV from an antenna, cable,
or cable box.
rImportant Stand Information
CAUTION: Choose the location for your TV
carefully. Take precautions that the stand
or other furniture on which the TV is
placed is properly located (see Important
Safeguards sheet) and of adequate size
and strength to prevent the TV from
accidentally being tipped over, pushed off,
or pulled off. This could cause damage to
the TV and/or personal injury.
rBefore You Connect
Protect against power surges:
•Connect all components before
plugging any power cords into the wall
outlet.
•Turn offthe TV and/or component
before connecting or disconnecting any
cables.
•Make sure all antennas and cables are
properly grounded. Refer to the
Important Safeguards sheet packed
with your TV.
CABLE, CABLE BOX, OR ANTENNA
TV
CABLE/CONTROL (_ ANTENNA
Once you have completed this connection you may go to Step 3.
rThis Connection Will Not Allow
You to Use Your PIP
Your TV is equipped with a single tuner,
which means you must connect with a
second video source using Audio/Video
Cables to view PIR This TV Only
connection will not enable you to use
your PIP,but will get your TV up and
running quickly.
Refer to Advanced Connections for
connecting Audio/Video cables to your
VCR or other video component.
4

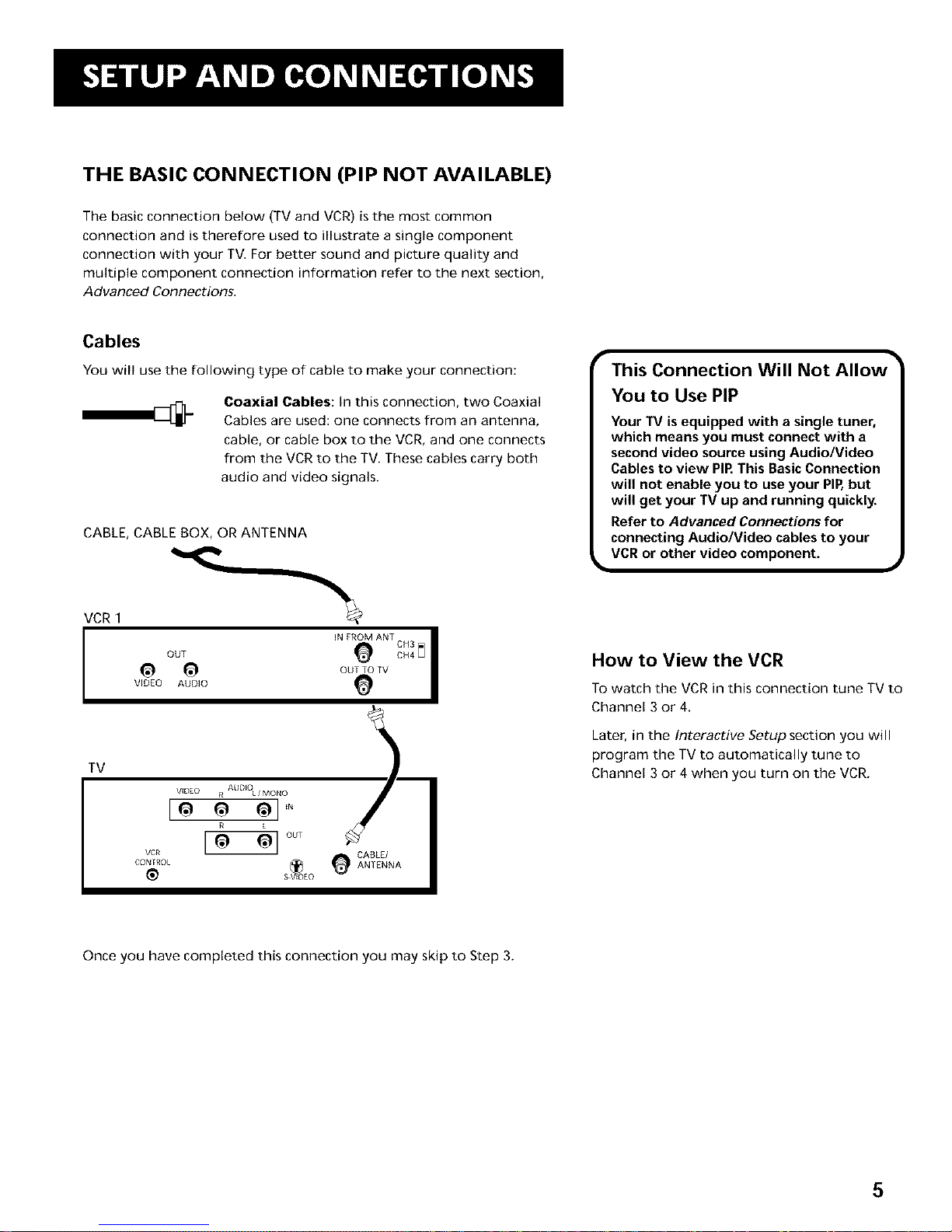

THE BASIC CONNECTION (PIP NOT AVAILABLE)
The basic connection below (TV and VCR) is the most common
connection and is therefore used to illustrate asingle component
connection with your TV. For better sound and picture quality and
multiple component connection information refer to the next section,
Advanced Connections.
Cables
You will use the following type of cable to make your connection:
Coaxial Cables: In this connection, two Coaxial
Cables are used: one connects from an antenna,
cable, or cable box to the VCR, and one connects
from the VCR to the TV. These cables carry both
audio and video signals.
CABLE, CABLE BOX, OR ANTENNA
This Connection Will Not Allow
You to Use PIP
Your TV isequipped with a single tuner,
which means you must connect with a
second video source using Audio/Video
Cables to view PIR This Basic Connection
will not enable you to use your PIP,but
will get your TV up and running quickly.
Refer to Advanced Connections for
connecting Audio/Video cables to your
VCR or other video component.
VCR 1
IOUT
Q 0
VIDEO AUDIO
TV
IN FROMANTCH3ouT__TO TV CH4[_ I
CABLE]
ANTENNA
How to View the VCR
To watch the VCR in this connection tune TV to
Channel 3 or 4.
Later, in the Interactive Setup section you will
program the TV to automatically tune to
Channel 3 or 4 when you turn on the VCR.
Once you have completed this connection you may skip to Step 3.
5

ADVANCED CONNECTIONS
Advanced connections give you better sound and video by separating
the audio and video signals and enabling you to connect multiple
components.
This section describes the types of inputs available on the back of your
TV and suggests ways you can use them for optimum performance.
BACK OFTHETV
Once you have made your connections,
you will need to program the TV to tune
to the correct Video Input channel in
order to see and hear audio and video
from a component such as a VCR or DVD
player. You will program this later in the
Interactive Setup.
k
The diagram below describes each of the back panel jacks. When
connecting A/V cables, be sure to connect corresponding OUTPUTS and
INPUTS (Video to Video, Right Audio to Right Audio, etc.).
VIDEO and Audio Inputs |
J
Connect any one of thefollowing components:
VCR Internet Access Device
•Laserdisc Player • DVD Player
•Satellite Receiver
To view the component connected to VIDEO,
use the WHO,INPUT button on the remote,
\_ VID[O
[o
VCR
CONTROL
Audio Outputs
Connect to an audio receiver or
amplifier for variable controlled
or fixed level stereo output.
/
our CABLE/
S._DEO O ANTENNA
VCR Control
Connect the GUIDE Plus+
Gold system IR controller
for one-button recording
and channel tuning from
the GUIDE Plus+ Gold
system.
T/
S-Video
This optional
connection can
be used for
better video
quality picture.
ICablelAntenna
Takes the signal input from a cable,
cable box, or an off-air antenna. Can als(
be used for basic component connections.
6

SAMPLE CON NECTIONS
The following are sample connection scenarios you may encounter
when connecting components to your TV. Note: components that offer
an S-Video connection, such as DVDs, VCRs or satellite receivers, must
match their S-Video connection with their audio INPUT connection.
Cables
You will use the following types of cables to make your connection:
Coaxial Cables: Carries the signal from the
antenna or cable directly to the television or
through a cable box, as needed by your cable
system.
Audio/Video Cables: Carries audio and video
from a component to the TV.
S-Video Cable: Carries video from an S-Video
capable component which provides best picture
quality.
TV and Stereo VCR
Compared to the Basic Connection, using Audio/Video and
S-Video (if available) cables will enhance the sound and picture
quality from a component.
CABLE, CABLE BOX, OR ANTENNA
VCR 1
DEO R L
Io o o]'"
R
CONTROL _
_ S VEDEO
Cautions:
Position cables to avoid audio hum
or interference
• Insert all cables firmly into jacks.
•Place the audio/video cables to the
sides of the TV's back panel instead of
straight down the middle.
•Try not to coil any twin-lead cables and
keep them away from the audio/video
cables.
Protect your components from
overheating
•Do not block ventilation holes in any of
the components. Arrange the
components so that air can circulate
freely.
•Do not stack components.
•Allow adequate ventilation when
placing your components in a stand.
•Place an amplifier on the top shelf of
the stand so heated air rising from it
will not flow around other
components.
How to View Your VCR
To watch the VCR in this connection, press
TV to put the remote control into TV
mode, then press WHO.iNPUT to toggle to
the video (VID) inputs.
In the Interactive Setup section you can
program the TV to automatically tune to
the VID input channel when you turn on
the VCR.
Most Audio/Video cables are combined
into one cable with three heads on each
end.
We show individual
cables in these sample V,deo(yellow)
connections. Either
may be used, but _ ReghtAud,o(red)
yOU must be sure to
connect Video to _Left Audio (wh te)
Video, Right to Right
and Left to Left.
7

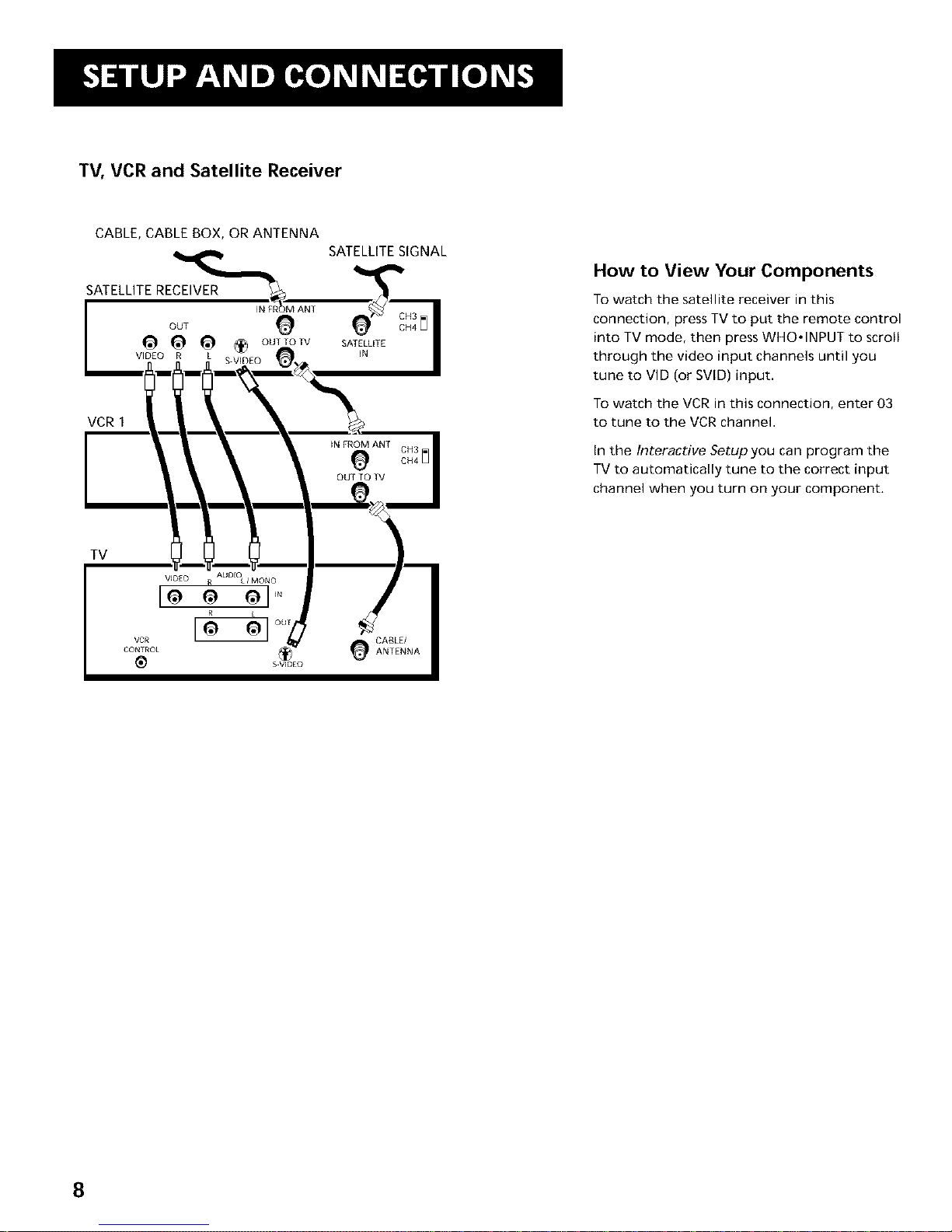

TV, VCR and Satellite Receiver
CABLE, CABLE BOX, OR ANTENNA
SATELLITE RECEIVER
VCR 1
SATELLITE SIGNAL How to View Your Components
To watch the satellite receiver in this
connection, press TV to put the remote control
into TV mode, then press WHO*INPUT to scroll
through the video input channels until you
tune to VID (or SVID) input.
To watch the VCR in this connection, enter 03
to tune to the VCR channel.
In the Interactive Setup you can program the
TV to automatically tune to the correct input
channel when you turn on your component.
TV
8
