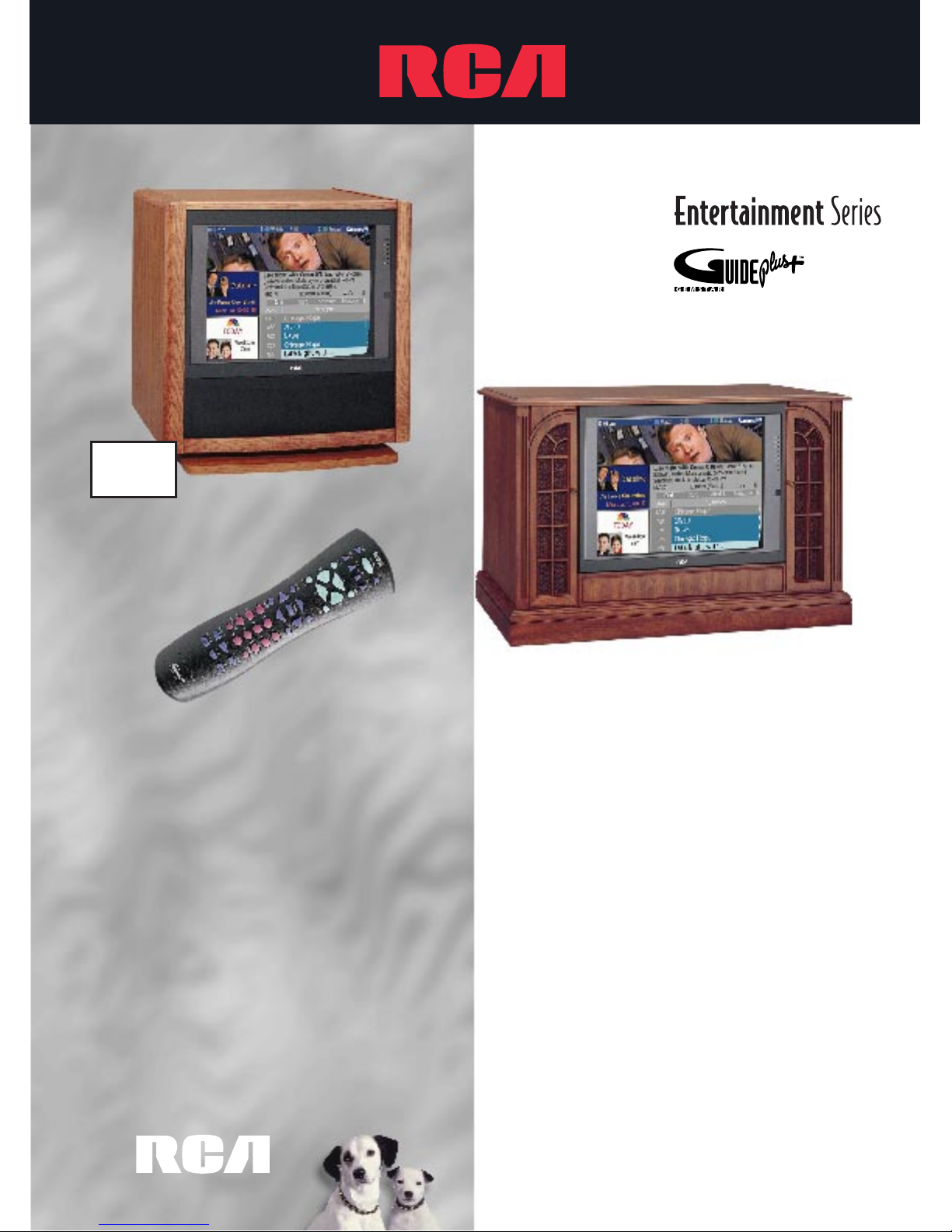

TELEVISION
G27646
G27647
27" Stereo
Monitor-Receiver
• High-Performance Video System with
680 Lines of Horizontal Resolution2
➤Comb Filter
➤Dark-Tint, High-Contrast Picture Tube
➤GUIDE Plus+1On-Screen Program Guide
➤Master Touch®Universal Glo-In-The-Dark
Remote
➤Audio/Video Input with S-Video Input
• One Pair of Switchable (Variable/Fixed)
Audio Outputs
• Sound Logic™Audio Leveler
diagonal
1
G27646
G27647
Swivel Base
Changing Entertainment. Again.

• Broadcast Stereo with dbx4
Noise Reduction
Improves the clarity and fidelity
of stereo broadcasts by restoring
dynamic range and suppressing
unwanted noise.
• Low-Noise Audio System
Delivers a 60dB signal-to-noise
ratio for spectacular quality sound.
• Second Audio Program
(SAP)
Decodes the second audio
program available on some
broadcasts.
• Separate Bass/Treble
Control
Customize audio sound output
to specific room environment or
personal preference via on-screen
menu adjustment.
• Front-Fired Speaker System
Front-fired full-range frequency
drivers provide excellent imaging
while localizing voices at the
screen.
• Sound Logic™Audio Leveler
When turned on, eliminates the
annoying “blast” of sound during
commercial breaks. Additionally,
soft sounds are amplified, main-
taining a constant volume level.
Picture Remote
Sound
➤Master Touch®Universal
Glo-In-The-Dark Remote
CRK76TE1
Ergonomic design with glo-in-the-
dark buttons provides complete
TV operation plus control of the
primary functions of virtually every
brand of remote-controllable
VCRs and cable boxes, and RCA
Satellite Systems. Also controls
most functions of RCA DVD
Players and select functions of
some brands of audio com-
ponents. Frequently used buttons
glow in the dark, making it easy
to find the correct functions even
at night.
• Adjustable Picture Control
Custom picture settings are just
a button-press away. Adjust and
store Contrast, Color, Tint, Black
Level, and Sharpness settings for
personal picture performance
depending on your own
individual tastes.
➤Dark-Tint, High-Contrast
Picture Tube
Dark glass picture tube delivers
outstanding picture contrast for
blacker blacks, brilliant whites,
and deep rich colors even in
bright room conditions.
• Preferred Picture Presets
Optimize the picture by selecting
the correct setting depending on
the lighting conditions of the
room. Choose between four set-
tings for bright lighting, normal
lighting, dim (soft) lighting, and a
customer-selectable and savable
“personal” setting.
• Deluxe Shielded Tuner
with 181-Channel Tuning
Capability3
Special shielding dramatically
reduces ghosting caused from
off-air pick-up when watching
cable channels. Digitally-controlled
frequency synthesis tuning
system “locks on” to cable and
standard signals with unsurpassed
accuracy.
➤Comb Filter
Separates black-and-white detail
from color information to virtually
eliminate edge crawls and
rainbow effects while extending
picture resolution.
• High-Performance Video
Amplifier
Delivers high resolution and clarity
by extending the video frequency
response. Optimizes performance
from high-resolution sources
such as the RCA Satellite System,
DVD players, and S-Video signals
(S-VHS, Hi8).
• Dynamic BlackStretch
Circuitry
Extends black levels in bright
scenes to enhance contrast
and detail.
•
Automatically maintains natural
flesh tones and color fidelity
from channel to channel and
scene to scene.
• Adjustable Color Warmth
Customer-selectable color
temperature system allows
for background color balance
adjustment of the picture to
personal preference. Setting
choices are Cool, Warm, or
Normal.
• Contrast/Color Tracking
System
Synchronizes contrast
and color settings to maintain
vibrant images.
High-Performance Video System
Advanced circuitry delivers outstanding picture performance with up to 680 lines of horizontal resolution2
.
G27646/G27647

•
Countdown timer returns TV
to original channel, so other
channels can be browsed during
program breaks.
• Auto Tune
After initial setup, just pressing one
component button on the TV’s
remote (either VCR, RCA Satellite
System, cable, or DVD) turns on
both the TV and the component
and also automatically tunes the
TV to the correct viewing channel.
Just one press!
• Picture Memory for Video
Inputs
Custom picture settings are
activated whenever direct video
inputs are selected. Allows tailored
picture performance with each
video source.
• Picture Reset
Instantly returns picture to factory
settings for Color, Tint, Contrast,
Brightness, and Sharpness.
• Advanced Auto Channel
Search
Auto Cable/Air Switch sets tuner
to cable or “off-air” frequencies
during initial setup. Then system
automatically scans for and locks
active channels into channel
memory.
• On-Screen Menu System
On-screen displays make it easy
to adjust most picture, sound, and
convenience features from either
the remote control or the TV front
panel buttons.
• Interactive Setup Menu
Convenient on-screen menu system
automatically steps user through
the initial setup procedures.
• Trilingual On-Screen Display
Allows the on-screen menu system
to be displayed in one of three
languages (English, French, or
Spanish).
• On-Screen Time and Channel
Display
Displays time and channel number
during channel change or at the
press of a button.
• Programmable Timer
System
Convenient scheduling system can
be used in a variety of ways:
–Sleep Timer
Automatically turns off the TV
after a preset time period — for
those times when you drift off to
sleep in front of the television.
–Alarm Timer
Wake up to your favorite morning
show or turn on your television
automatically to catch your
favorite program.
–Scheduling Timer
Since the alarm setting remains in
the TV memory indefinitely, the
TV can be scheduled to turn on
at the same time every day.
• On-Screen Picture Tilt
Convenient on-screen adjustment
of picture tilt for large screen TVs
affected by Earth’s magnetic field.
•
Assign on-screen characters to easily
identify channels (e.g., NBC, HBO,
ESPN, VH-1).
• Front Panel Lockout
Completely disables front panel
controls to prevent toddlers from
altering settings.
• V-Chip Parental Control
Puts control back into the hands of
the viewer by blocking unwanted
television broadcasts with NEW
U.S. Government required circuitry.
Blocks three types of programs:
regular television programs,
broadcast movies and unrated
programs.
Program rating information is
sent by the broadcaster before the
beginning of each program. The
television will match program
rating to user preference and
block the entire program. User
preference is secured using a
four-digit password.
• Non-Volatile Memory
In case of most power outages,
the picture adjustments and
channel selections are stored in
electronic memory.
• Caption Vision Closed
Caption Capability5
Assists the hearing impaired, helps
children learn to read, and aids in
the teaching of English as a second
language. Built-in Closed Caption
Decoder displays the audio portion
of a program as text on the TV
screen (when program is aired
with the encoded signal).
CC
:30
Convenience
“Command” Buttons
TV Onscreen
Promotional
Windows
Networks Program
Grids
The Program Guide appears
on your television.
Program Listings and One-Touch
Record...Right through your
remote control!
2 ways to find your programs
And The Benefit
of One-Touch Record
Even if your VCR is flashing 12:00,
GUIDE Plus+1can record your favorite show.
Simply highlight the program you would like
to record and press the Record button on
the remote. In the Schedule Menu, you can
choose to record shows once, daily, or weekly.
➁
GUIDE Plus+1Interactive Program Guide
Find out what’s on! GUIDE Plus+1is a built-in feature that
provides an instant summary of your favorite TV shows at the
touch of a button—yet requires no monthly fee! The
two-day Guide also allows you to view listings up to 48 hours
in advance and delivers the capability for One-Touch Tuning
and VCR recording with the press of a button.
Using the directional arrow pads on your remote,
you may scroll through up-to-the-minute TV
listings, or scroll to future programs. As each
channel grid is highlighted, a description of the
current program appears in the information area
above the channel listing.
The Grid Guide
Want to relax and watch a movie? SORT lists
movies by theme that are on for the next seven
days. SORT can also help you find your favorite
game or sports or children’s programs.
The Sort Guide
Press
Here.
➀

TELEVISION
©1999 Thomson Consumer Electronics, Inc.
Form S-G27646/G27647
Trademark(s) ® Registered
Marca(s) Registrada(s)
Photos and features subject to change
without notice. Illustration of product finish
may vary from actual color.
PC13111
➤Audio/Video Monitor Panel
Color-coded monitor panel
provides direct audio and video
connections for optimum
performance and system flexibility.
Includes audio/video input, one
S-Video input, plus switchable
audio outputs for fixed and
variable level control.
• One Pair of Switchable
(Variable/Fixed) Audio
Outputs
Connect TV to an external audio
source with speakers (AV receiver,
subwoofer, power amplifier) to
create a true home theater setup.
Switchable outputs offer maxi-
mum flexibility for connecting
various types of external audio
components.
➤S-Video Input
Direct Y/C input connects TV to
compatible S-Video source (e.g.,
DVD player, RCA Satellite System,
S-VHS VCR/Hi8 VCR/camcorder,
or Internet set-top device) for high-
resolution playback.
1 GUIDE Plus+ is a trademark of Gemstar Development Corporation.
2 Lines per picture width, 510 lines based on EIA measurement criteria.
3 Check your cable company’s compatibility requirements.
4 dbx is a registered trademark of Carillon Electronics Corporation.
5 This television receiver provides display of television closed captioning in accordance
with §15.119 of the FCC rules. This television receiver does not support color attributes
of television closed captioning.
Connections
Specifications
G27646 G27647
Screen Size (diagonal) 27" 27"
Finish Western Oak Stain Deep Autumn Tone
Cabinet Dimensions 323⁄4" H, 327⁄8" W, 207⁄8" D 297⁄8" H, 451⁄2" W, 197⁄8" D
Approx. Shipping Weight 170 Lbs. 176 Lbs.
Lines of Horizontal Resolution 68026802
VIDEO RL / MONO
S-VIDEO
AUDIO
RL
CABLE/
ANTENNA
VCR
CONTROL
IN
OUT
• Back Panel
Plus
• Limited Warranty
–90 days for labor charges.
–One year for parts.
–Two years for picture tube.
–See RCA dealer for complete
details.
G27646
G27647
Changing Entertainment. Again.
