RCS TR65 User manual

1
Model TR65
RS485 Thermostat
OPERATION MANUAL
DCN: 141-02165-01
5/03/12
RCS

2
Model: TR65
RS485 Thermostat
This manual applies to the following product revisions or later revisions up to the next manual revision
release:
Product
Part No:
Firmware Revision
TR65 RS485 Thermostat
001-02165
Includes
TS65 Wall Display Unit
001-02102
ZCV1 HVAC Control Unit
001-01065
Document Revision History
Revision
Date
Changes
01
5/03/12
Original release
Product Specifications
Product Model: TR65
Product: Thermostat for Heating and Cooling HVAC System control.
RS485 Half Duplex 2 wire (plus gnd) communications
Wall Display Unit
Model: TS65
Size: 5.7” wide x 4.0” height x 1.2” depth
Display: Graphical LCD, 2.75” x 1.5”, 64x128 pixel
Backlight: Yes, Blue/white, Controllable, on, off, timeout
Contrast: Adjustable on screen
Buttons: 6
LEDs: 4 (3 green, 1 red)
Remote Sensors: 2, two wire, remote primary, averaging
Power: 12VDC from HVAC Control Unit
HVAC Control Unit
Model: ZCV1
Size: 8” x 6” x 1.5”
HVAC System Type Compatible: Standard (gas/electric) or Heat Pump
Multistage System Compatible:
Standard HVAC Systems: 2 stage heating, 2 stage cooling
Heat Pump Systems: 3 stage heating (2 compressor, 1 aux heat), 2 stage cooling
Heat Pump change over valve: Selectable change over with cool or with heat ( O or B)
Communications: RS485 Half Duplex 2 wire (plus gnd)
Power: 24VAC from HVAC system

3
Table of Contents
Overview ......................................................................................................................................................4
Thermostat Control Screen........................................................................................................................5
Temperature Display.................................................................................................................................5
Setpoint Display.........................................................................................................................................6
Thermostat Operation Buttons ..................................................................................................................6
Pressing these buttons will take you to the following screens:..................................................................6
Setpoint Up/Down Buttons.........................................................................................................................6
Press either the Up or Down buttons to go to the Heating or Cooling Setpoint screen.............................6
Time Display..............................................................................................................................................6
LED Displays .............................................................................................Error! Bookmark not defined.
Heating/Cooling Setpoint Setting..............................................................................................................7
Setting Heating or Cooling Setpoints.........................................................................................................7
System Mode...............................................................................................................................................8
Setting the System Mode...........................................................................................................................8
Fan Mode .....................................................................................................................................................9
Setting the Fan Mode ................................................................................................................................9
Schedule Operation ..................................................................................................................................10
Setting the Schedule Mode......................................................................................................................10
Main Menu..................................................................................................................................................11
Main menu - Schedules............................................................................................................................12
Thermostat Schedule Selection...............................................................................................................12
Main Menu - Schedules - Heat and Cool Schedule Screen...................................................................13
Schedule Edit Screen..............................................................................................................................13
Main Menu - Schedules - Heat and Cool - Copy Schedule....................................................................14
Copying a Day Schedule to another Day.................................................................................................14
Main Menu - User Settings.......................................................................................................................15
Main Menu - User Settings - Set Clock ...................................................................................................16
Main Menu - User Settings - Filter Service.............................................................................................17
Main Menu - User Settings - Maint Service.............................................................................................18
Main Menu - User Settings - Sensor Calibration....................................................................................19
Main Menu - User Settings - Backlite/Display........................................................................................20
Main Menu - Thermostat Info...................................................................................................................21
Main Menu –SmartVent (optional)..........................................................................................................22
Main Menu –Messaging (optional) .........................................................................................................25
Main Menu > Installer Settings (Hidden Screen).................................................................................26

4
Overview
RS485 Thermostat
The TR65 thermostat provides typical thermostat control of a central heating and cooling HVAC system
plus has the added feature of RS485 communications for remote control. The TR65 is a two part
thermostat with a Wall Display Unit and a HVAC Control Unit.
The Wall Display Unit (WDU) has a large, backlit graphical display, control buttons, status LEDs and a
temperature sensor. The WDU can display multiple screens for different functions of the thermostat. In
the default thermostat control screen, shown below, it displays the current room temperature, heating and
cooling setpoints, system mode, manual fan mode, time, and status information.
Display operation
Thermostat control screen

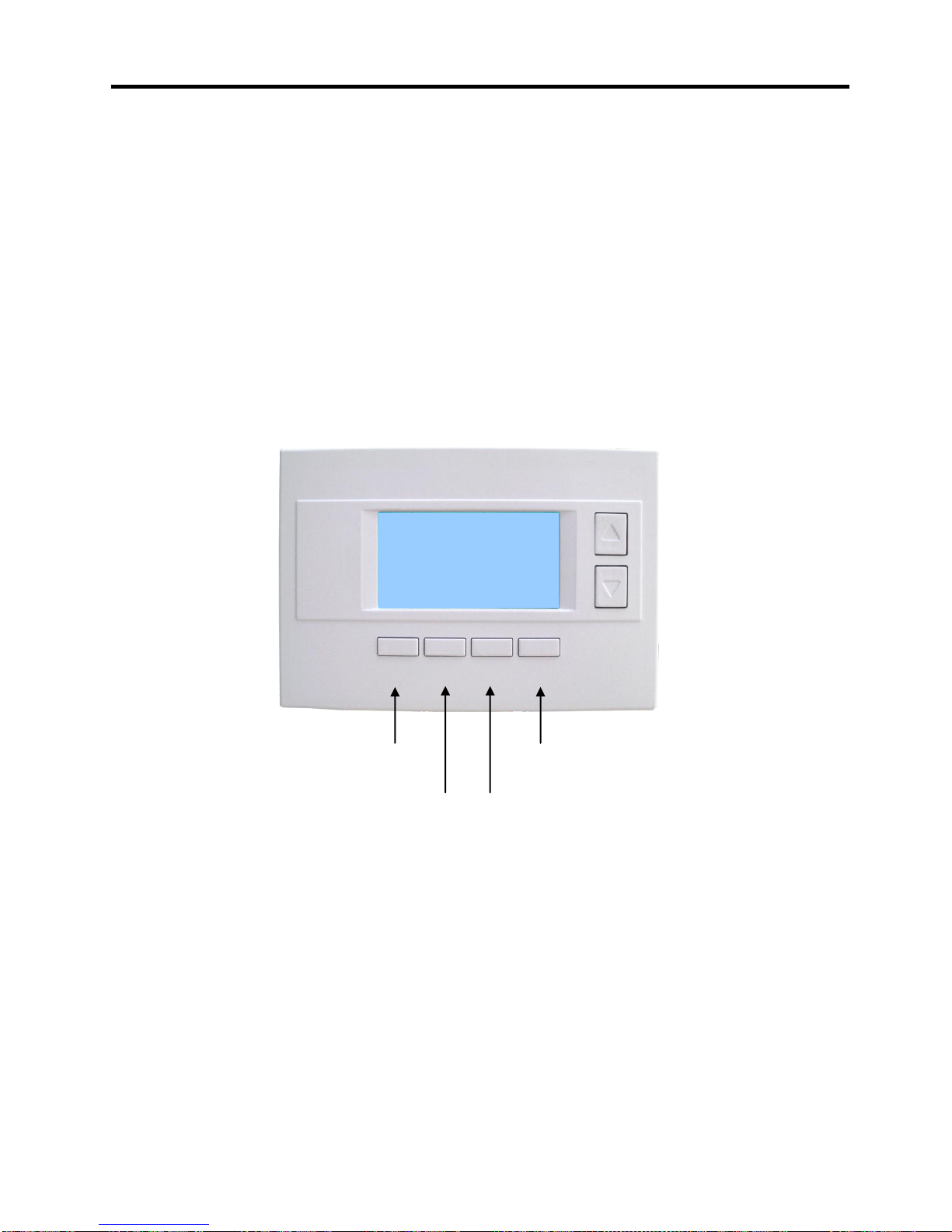

Normally the thermostat displays the thermostat control screen as shown above. Using the “Menu”
button, you can access other screens and functions of the thermostat.
Minimized Display Mode
Optionally, you can set the thermostat to show only the temperature in a “minimized” display mode.
This mode can be set on or off in the thermostat “Users Settings” menu.
Backlight
The thermostat has a backlit display for low light and night visibility. It can be set to remain on constantly,
or to turn off after a 20-120 second delay. These are selectable in the User Settings menu.
Function Control Buttons
The thermostats buttons are “Soft Keys” meaning that they change functions when you change screens.
The function of the button is defined by “on-screen labels” that are dynamic and change when you change
screens
Setpoint
Up/Down
Buttons
Function Control Buttons
Heating (H)
And
Cooling (C)
Setpoints
On-screen
dynamic
button labels

5
Thermostat Control Screen
Minimized Screen
Main Thermostat Control Screen
The main Thermostat Control Screen is the screen that is normally displayed on the thermostat.
Temperature Display
The thermostat will normally display the current room temperature from the internal temperature sensor
(or a remote sensor, if installed).
Outside Temperature Display
It the thermostat has an outside temperature sensor installed, the outside temp will be displayed.
75
72
Press any button to return to
the thermostat control screen
The Minimized Screen
shows only the room
temperature.
It is displayed if you set the
“Screen Timeout” in the
User Settings Menu to a
time greater than 0.
If set to 0, the minimized
screen is disabled, and the
main thermostat screen is
normally displayed
MENU
COOL
MODE
72 H
AUTO
FAN
HOLD
74
2
75 C
4:30 PM
SYS OFF
ECON
HOLD
NO MSG
On-screen
dynamic
button labels
Setpoint
Up/Down
Buttons
Heating (H)
And
Cooling (C)
Setpoints
Main
Menu
System
Mode
Fan
Mode
Schedule
Mode
Outside 85
Outside
Temperature
Display
Time
Display

6
Setpoint Display
The current heating and cooling setpoints are displayed next to the Setpoint Up/Down buttons.
Thermostat Operation Buttons
Pressing these buttons will take you to the following screens:
Menu –go to the Main Menu Screen to select other thermostat
settings screens.
System Mode –go to the System Mode screen to set
thermostat operating mode.
Fan Mode –go to the Fan mode screen to set the fan mode.
Schedule Mode –go to the Schedule mode screen to set
schedule mode or setback.
Setpoint Up/Down Buttons
Press either the Up or Down buttons to go to the Heating or Cooling Setpoint screen.
NOTE: If the thermostat is in the OFF mode, pressing the setpoint Up/Down buttons will take you
to the System Mode Screen. You must first select an operating mode to be able to change the
setpoint for that mode.
Time Display
The current time is displayed in the upper left corner of the main screen. Set the clock from the User
Settings Menu. The time will blink when the clock has not been set.

7
Heating/Cooling Setpoint Setting
Setting Heating or Cooling Setpoints
Setpoint Up and Down Buttons

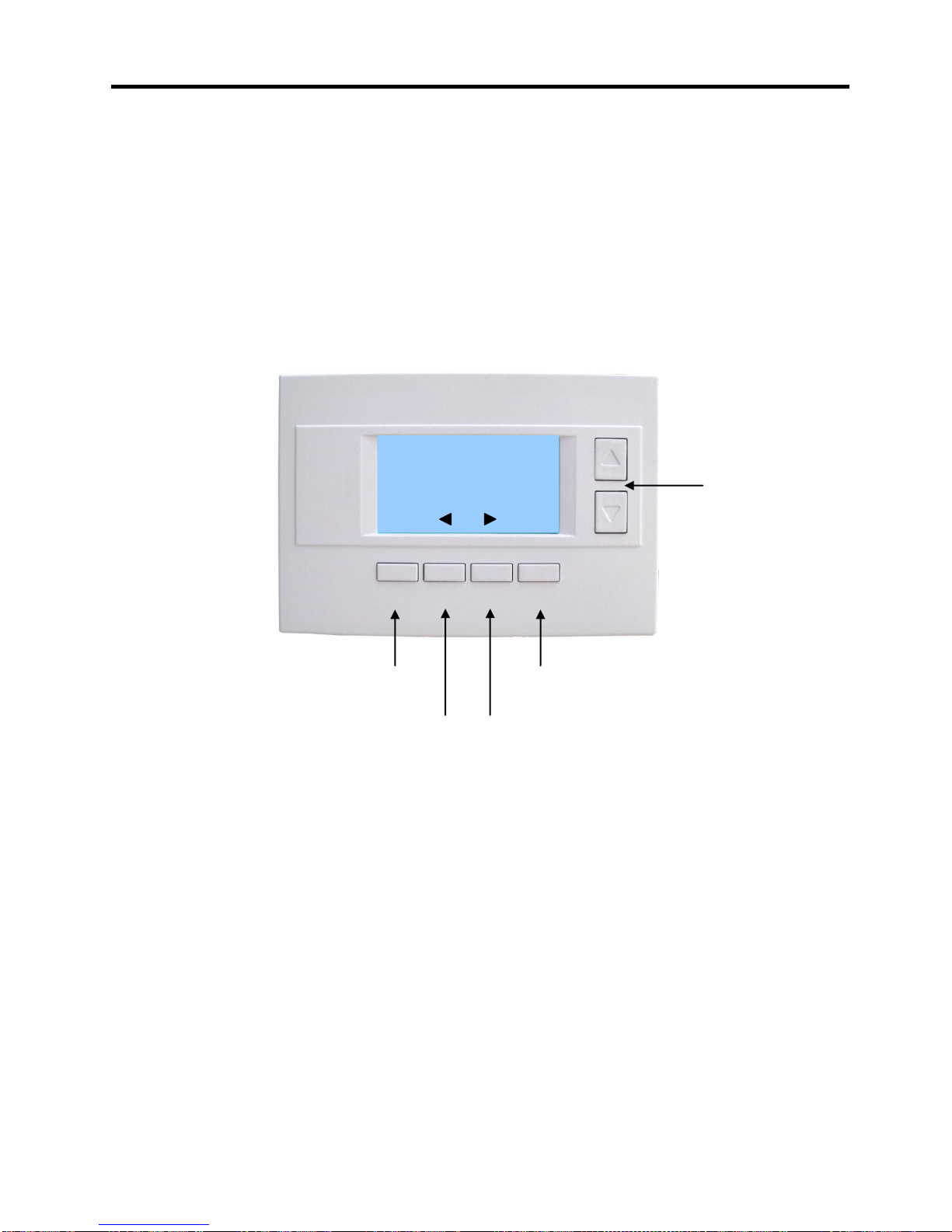

Press either the Up or Down button in the main Thermostat Control Screen to go to the current system
operating mode (Heating or Cooling) Setpoint screen, as shown below.
Heating /Cooling Setpoint Adjustment Screen
The UP and DOWN buttons adjust the setpoint temperature. Pressing the UP button will increment the
setpoint value by one degree and conversely, pressing the Down button will decrement the setpoint one
degree. Pressing and holding a button will cause the setpoint to continuously change until the button is
released.
Setpoint Range: The setpoints can be set from 50F to 90F (4C to 32C) for heating or 55F to 99F
(10C to 37C) for cooling.
Setpoint Push: Note that you cannot lower the cooling setpoint below the heating setpoint. The
thermostat will “push” the heating setpoint lower if you try to lower the cooling setpoint below the heating
setpoint. It maintains a 4 degree separation between the heating and cooling setpoint. The same is true
for raising the heating setpoint above the cooling setpoint. Again the thermostat will “push” the cooling
setpoint up to maintain the 4 degree separation. (Setpoint delta is adjustable in the Installer Settings)
NOTE: If the system mode is OFF, pressing either the Up or Down buttons will take you to the
System Mode screen. You must first set an operating mode before you can change the setpoints.
To change the Heat Setpoint you must be in Heating mode, to change the Cool Setpoint you must
be in the Cooling mode. If you are in Auto mode, the mode of the last system call will be the
setpoint screen displayed.
Heating and Cooling
setpoint setting buttons.
Adjust setpoint to
desired temperature.
HEATING SETPOINT
72
DONE
Down
Up
Press Done button to select new setpoint
and exit back to main thermostat screen.

8
System Mode
Setting the System Mode

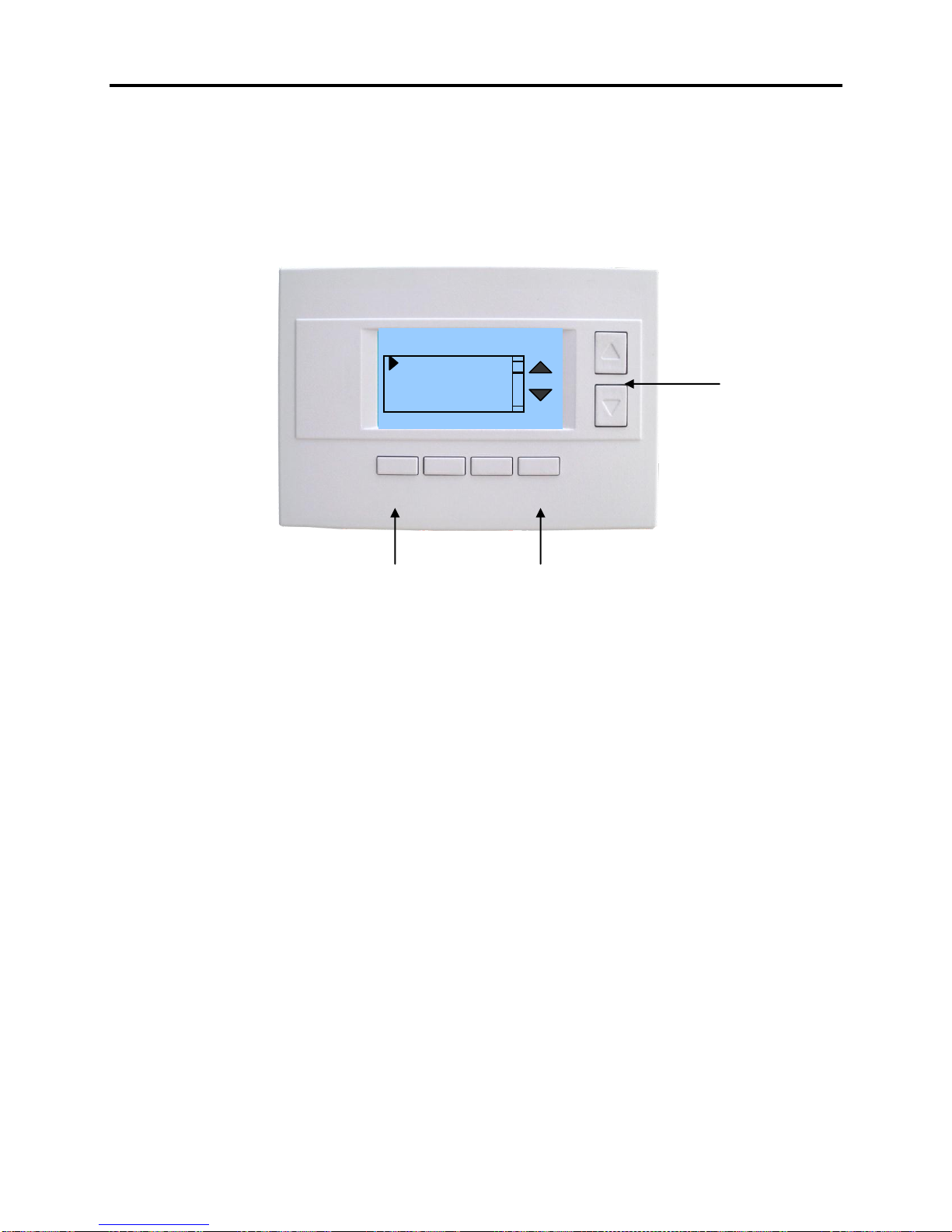

In the main Thermostat Control Screen, press the System Mode button to display the System Mode
selection screen, as shown below.
Select the mode desired with the Up/Down buttons. Press the Done button to select and exit.
System Mode Screen
Mode Operation
OFF Mode: System is off. No heating or cooling will come on. If system was on, it will turn off.
HEATING Mode: Only heating will occur.
COOLING Mode: Only cooling will occur.
AUTO Mode: Heating or cooling will come on according to the heating and cooling setpoints. The
system will automatically switch between heating and cooling modes as needed to maintain the
setpoints.
Special Heat Pump Mode
EHEAT Mode: An additional system mode, “EHEAT” for Emergency Heat will be displayed if the
HVAC system type is set to Heat Pump. If there is a compressor failure with the Heat Pump system,
setting the mode to EHEAT will allow the stage 3 supplemental or aux heat (W1) to come on first
whenever there is a call for heating. It also disables the compressor outputs (Y1/Y2) to prevent
further damage to the HVAC system.
Select system mode
with Up or Down
buttons.
.
SYSTEM MODE
OFF
HEATING
COOLING
AUTO
DONE
Down
Up
Press DONE button to select mode and
exit back to main thermostat screen.
MODE
Pressing the MODE button will also step
through the mode selections.

9
Fan Mode
Setting the Fan Mode
The FAN button controls the HVAC system’s MANUAL fan mode. The current manual fan mode is
displayed above the button, Auto or On.
Normally the FAN mode is in the Auto mode (the system fan is automatically controlled by HVAC system).
If you want the FAN on manually, select the ON mode. The fan will run continuously until it is turned off by
selecting AUTO mode.

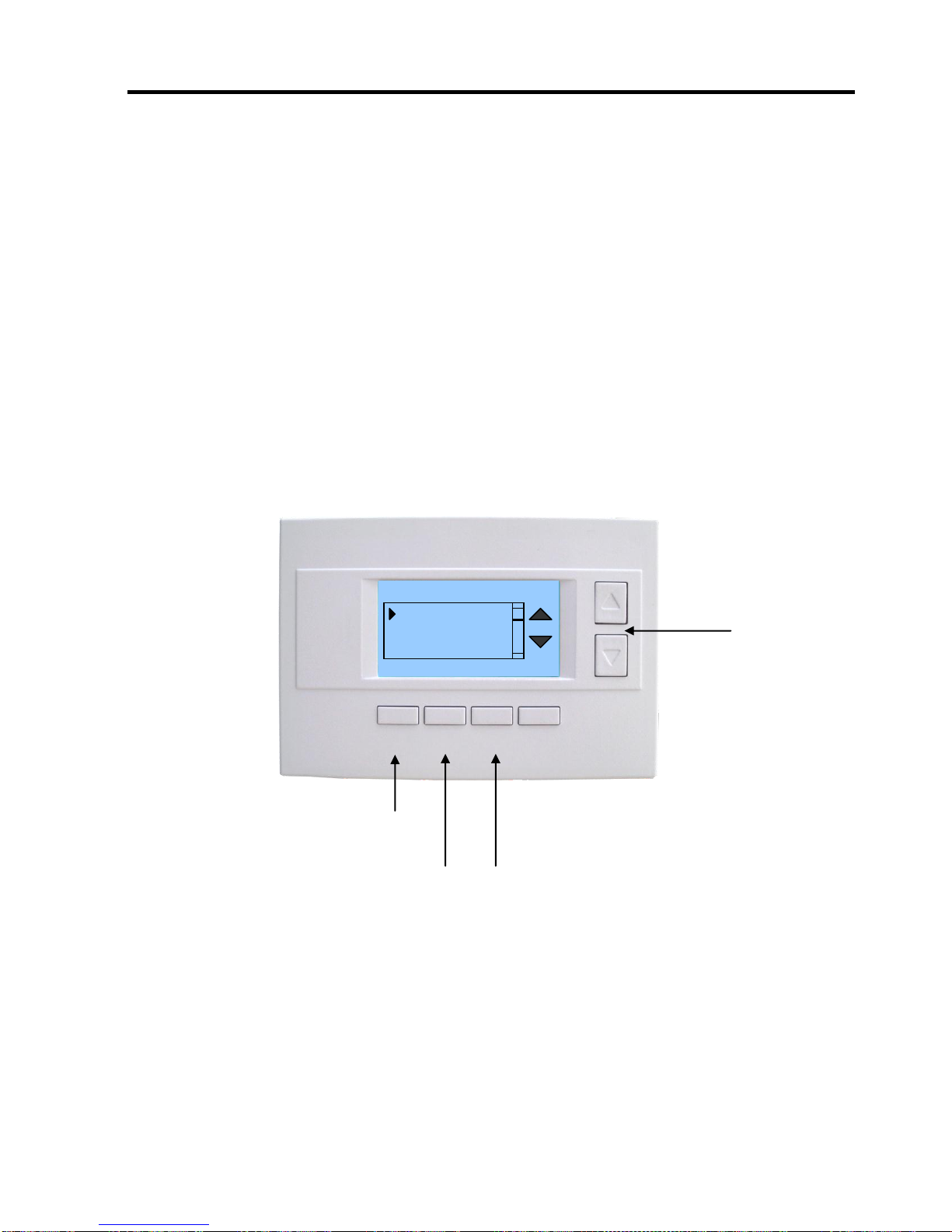

In the main Thermostat Control Screen, press the FAN button to go to the FAN MODE selection screen,
as shown below.
Select the mode desired with the Up/Down buttons. Press the Done button to select and exit.
Fan Mode Screen
Select Fan mode with
Up or Down buttons.
FAN MODE
AUTO
ON
DONE
Down
Up
Press DONE button to select mode and exit
back to main Thermostat Control Screen.
FAN
Pressing the FAN button will also step
through the fan modes.

10
Schedule Operation
Setting the Schedule Mode
The Schedule button sets the schedule operation to RUN or HOLD mode. It also allows you to select
three different setback modes, HOME, AWAY and VACATION.

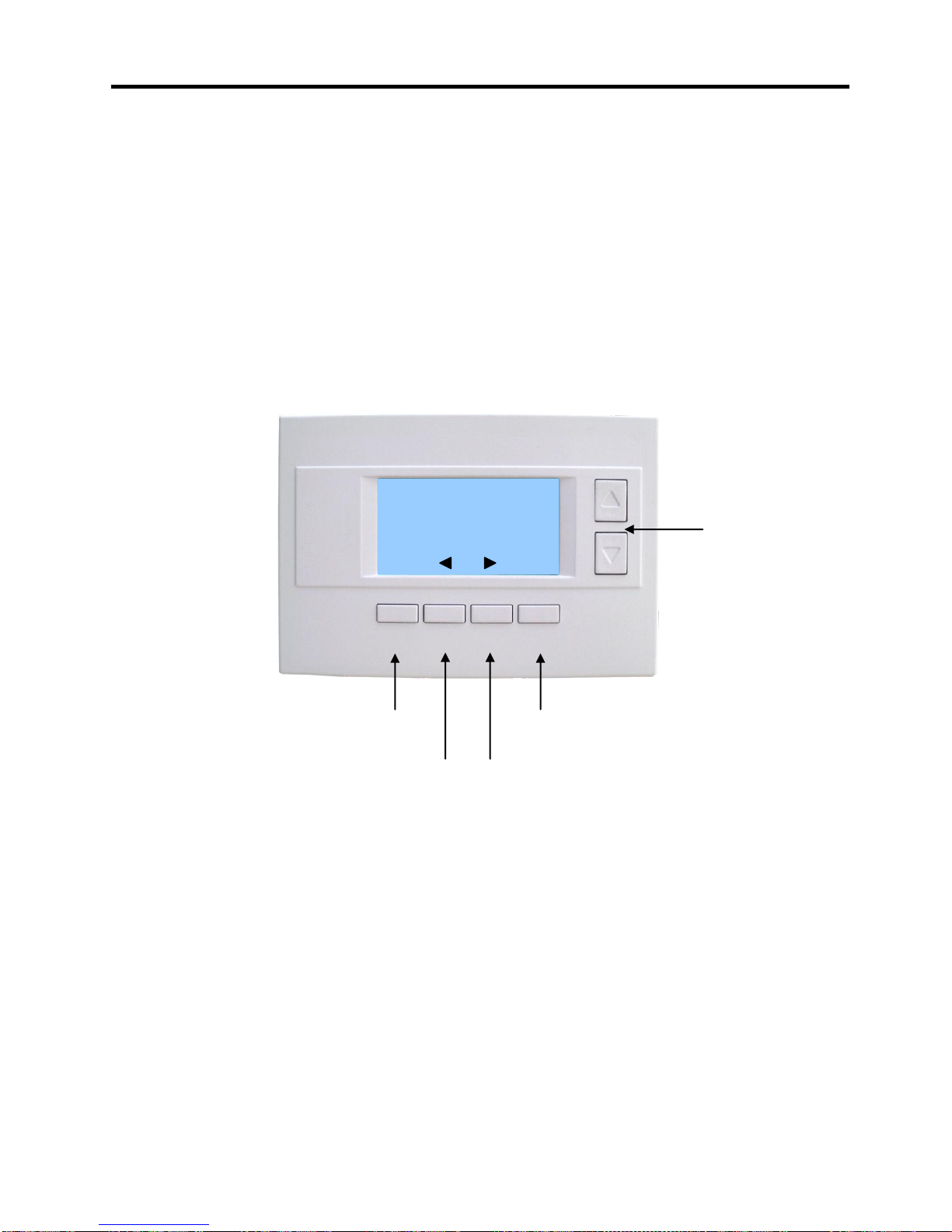

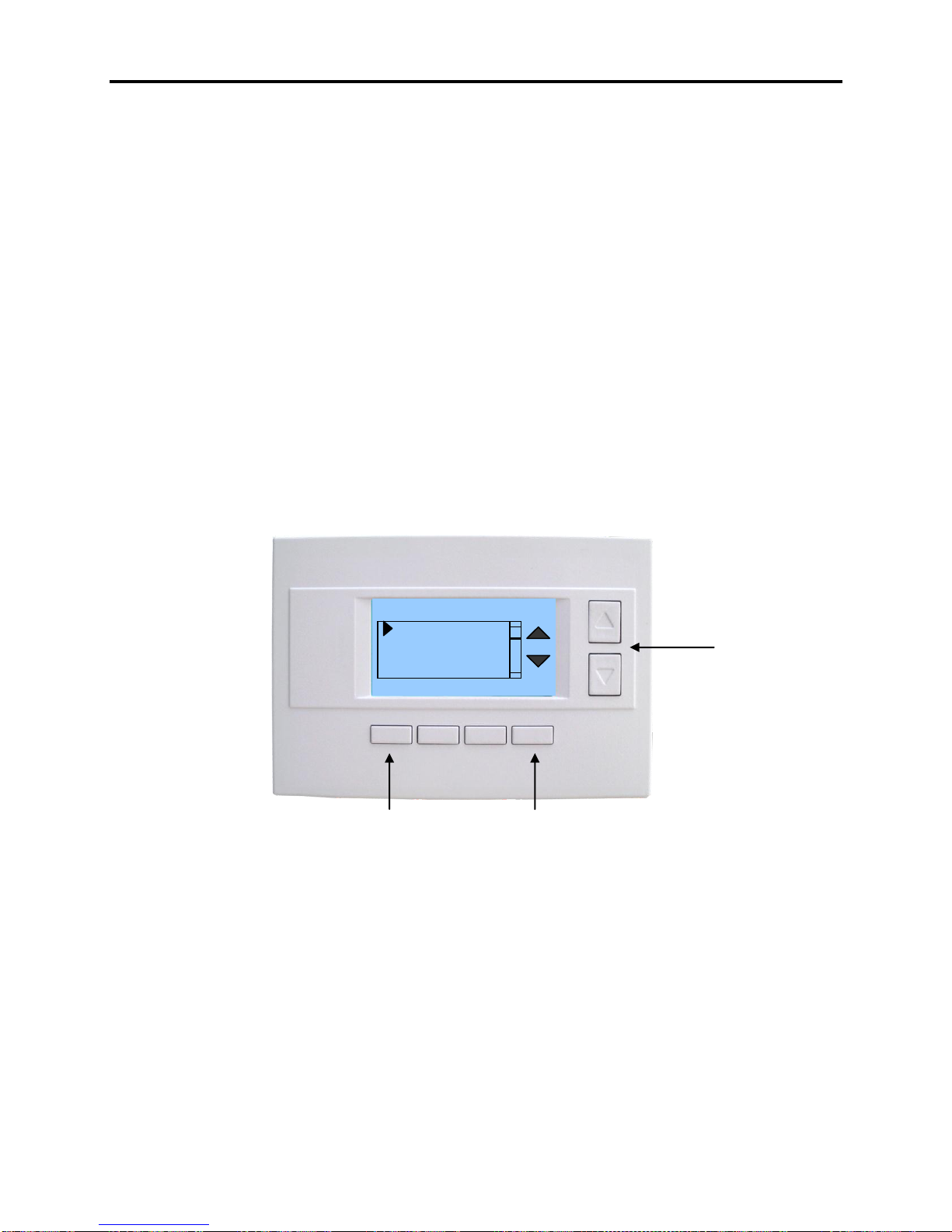

Pressing the Schedule button in the main Thermostat Control Screen will take you to the SCHEDULE
MODE menu screen as shown below.
Select the mode desired with the Up/Down buttons and press the Done button to select and exit.
Schedule Mode Screen
Schedule Modes:
RUN Mode. In the run mode, the thermostat schedule is running and setpoints will change according the
times and temperatures in the internal schedule.
HOLD Mode. This holds the current temperature setpoint settings. The schedule operation is disabled.
HOME Mode. This is an energy saving setback mode. When selected, the HOME mode setback heating
and cooling setpoints are used. It also inhibits schedule operation. HOME mode setpoints are set in the
Main Menu “Economy Settings” submenu.
AWAY Mode. This is an energy saving setback mode. When selected, the AWAY mode heating and
cooling setback setpoints are used. It also inhibits schedule operation. AWAY mode setpoints are set in
the Main Menu “Economy Settings” submenu.
VACATION Mode. This is an energy saving setback mode. When selected, the VACATION mode
heating and cooling setback setpoints are used. It also inhibits schedule operation. VACATION mode
setpoints are set in the Main Menu “Economy Settings” submenu.
Select Schedule mode
with Up or Down
buttons.
.
SCHEDULE MODE
RUN
HOLD
HOME
AWAY
VACATION
DONE
Down
Up
Press DONE button to select mode and exit
back to main thermostat Control screen.
HOLD
Pressing the Schedule button will also step
through the Schedule modes.
