Real-El X-703 User manual

OPERATION MANUAL
X-703
PORTABLE
RADIO RECEIVER

Technical support: www.real-el.com
ENG
1
Operation Manual
X-703
ENG
Congratulations on your purchase of the REAL-EL speaker system!
COPYRIGHT
© 2022. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
1. BUYER RECOMMENDATIONS
ϜUnpack the device carefully. Make sure there are no accessories left in the box. Check up the device for
GDPDJH LI WKH SURGXFW ZDV GDPDJHG GXULQJ WUDQVSRUWDWLRQ DGGUHVV WKH ԛUP ZKLFK FDUULHG RXW WKH
delivery; if the product functions incorrectly, address the dealer at once.
ϜCheck up the package contents and availability of the warranty card. Make sure the warranty card has a
shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or discrepancy
of numbers you forfeit the right for warranty repairs.
ϜDo not switch on the speaker system immediately after you bring it into a room from environment with
negative temperature! After unpacking, the speaker system should be kept in conditions of room
temperature for at least 4 hours.
ϜBefore installing and using the speaker system, read this Manual carefully and keep it for future
reference.
2. PACKAGE CONTENTS
ϜPortable radio receiver — 1 pc
Ϝ3.5 mm mini-jack to 3.5 mm mini-jack signal cable — 1 pc
ϜUSB to Micro USB power cable — 1 pc
ϜUser manual — 1 pc
ϜWarranty card — 1 pc
1
1
2
2
4
5
CONTENTS
1. BUYER RECOMMENDATIONS ....................................................................
2. PACKAGE CONTENTS .............................................................................
3. SAFETY PRECAUTIONS ...........................................................................
4. TECHNICAL DESCRIPTION ........................................................................
5. CONNECTION AND OPERATION ................................................................
6. TECHNICAL SPECIFICATIONS ...................................................................

Technical support: www.real-el.com
ENG
X-703
2
Operation Manual
3. SAFETY PRECAUTIONS
ϜDo not open the portable speaker system (PSS) and do not perform repairs by yourself. Service and
UHSDLUV VKRXOG EH SHUIRUPHG RQO\ E\ TXDOLԛHG VSHFLDOLVWV DW DXWKRUL]HG VHUYLFH FHQWHUV 7KH OLVW RI
DXWKRUL]HGVHUYLFHFHQWHUVLVon www.real-el.com
ϜMake sure that foreign objects do not get inside the holes of the PSS.
ϜProtect the PSS from high humidity, water and dust.
ϜProtect the PSS from heating: do not place it closer than 1 m from a heat source. Do not expose it to
direct sunlight.
ϜDo not use any chemical agents for cleaning. Clean it with dry soft cloth only.
ϜIn case of PSS does not work properly. Please contact place of purchase or service center.
Special features
ϜBuilt-in FM/AM/SW radio
ϜBluetooth wireless signal transmission
ϜRadio scale backlight
ϜAUX cable connection
Ϝ86%ԜDVKDQG0LFUR6'SOD\EDFN
ϜTelescopic rotary antenna
ϜBuilt-in battery
4. TECHNICAL DESCRIPTION
Control panel
"USB port.
#AUX: 3.5 mm mini-jack for audio signal
connecting (phone, MP3 player, etc.).
$Mode control (Player/AUX/Bluetooth/FM/AM/SW Radio)
%TF CARD: TF/micro SD card slot.
&Power ON/OFF.
'Indicator.
(Charging DC 5V.

Technical support: www.real-el.com
3
ENG
Operation Manual
X-703

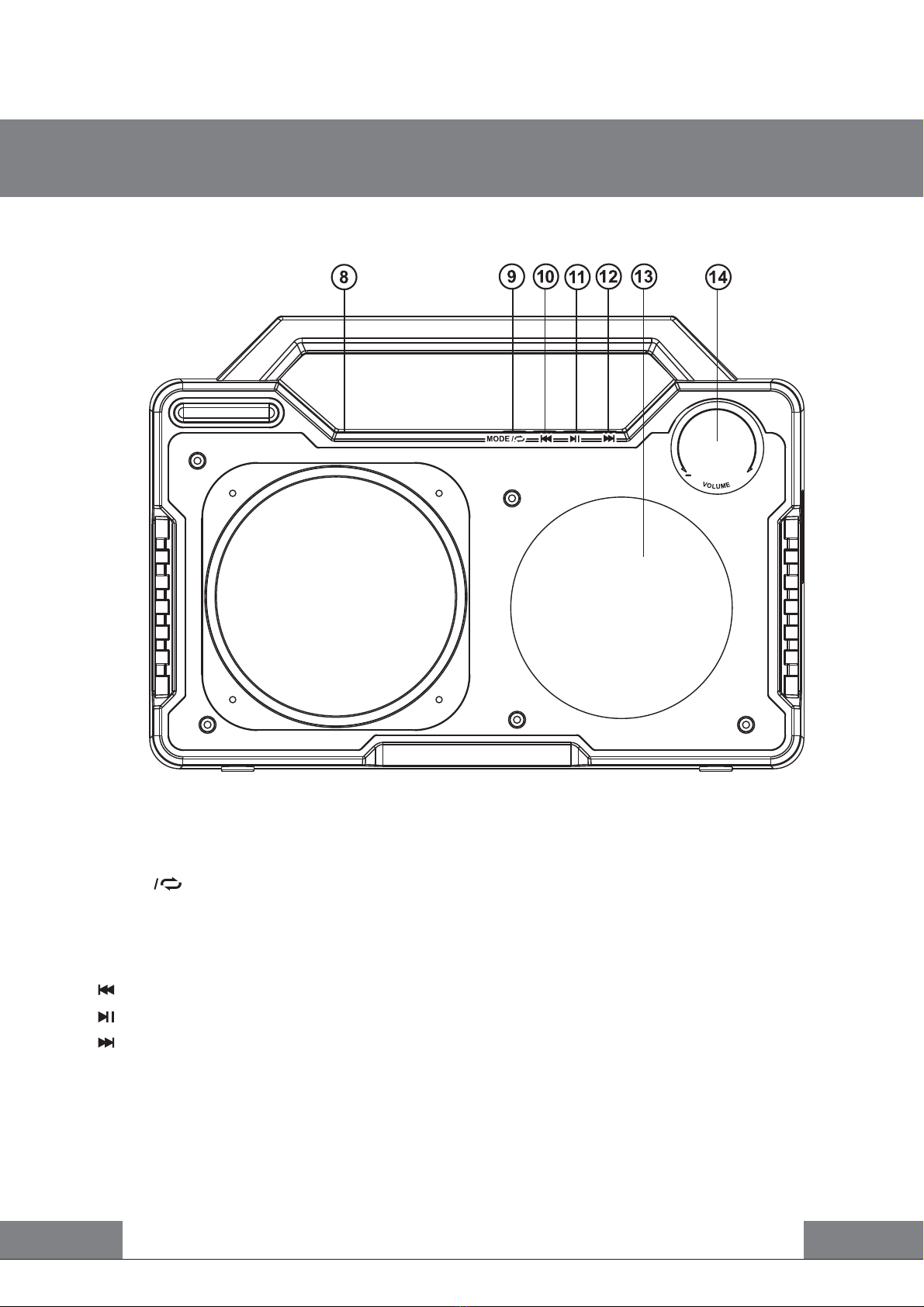

) Telescopic swivel antenna.
* MODE : USB, SD Player/AUX/Bluetooth mode switching button (short press in the BT/MP3
switch position);
Repeat mode selection button (long press in Player mode):
UHSHDWWKHFXUUHQWWUDFNIUHTXHQWԜDVKLQJRIWKHEOXH/('RQWKHIURQWSDQHO
SOD\EDFNRIDOOWUDFNVVORZԜDVKLQJRIWKHEOXH/('RQWKHIURQWSDQHO
+ : Previous station (in Radio mode).
, : Play/Pause button (in Player mode).
- : Next track (in Player mode).
. Station tuning knob.
/ Volume control.

ENG
Technical support: www.real-el.com
X-703
4
Operation Manual
SD
TF
CARD
POWER
BANK
230 V
5. CONNECTION AND OPERATION
Charging the battery
ϜBefore operation, fully recharge the battery. The charger is not included. Charge this device with a DC
5V universal charger with output current ƴ
Ϝ Insert the charging cable into the charger connector, connect the other end to the charger, the
charging indicator will be activated. The red charging indicators will light up until in full charge.
It is not recommended to leave the device for a long time connected to the charger after it is fully
charged.
Do not charge the speaker at low ambient temperatures. The minimum charge temperature is at least
10 ° C.
Bluetooth mode
Ϝ Turn on the device in Bluetooth mode using switch $«BT/MP3». If necessary, change the mode with
the "MODE" button.
ϜSelect a Bluetooth device search mode on the audio source (mobile phone, tablet, etc.). The display
will show the name «REAL-EL X-703»which need to establish a connection. After a successful
connection, the loudspeaker will sound a signal.

Technical support: www.real-el.com
5
ENG
X-703
Operation Manual
FM mode
Ϝ
Switch the device to radio mode using the FM, AM, SW switch.
Ϝ
Adjust the required frequency
Playback mode
Ϝ
,QVHUW D 6' FDUG RU 86% ԜDVK GULYH LQWR WKH FRUUHVSRQGLQJ VORW WKH DXGLR WUDFN ZLOO EH SOD\HG
DXWRPDWLFDOO\ ,Q WKH SOD\EDFN PRGH EULHԜ\ SUHVV WKH RUEXWWRQ WR VHOHFW WKH GHVLUHG
tracks.
Ϝ
Press the " " button to play or pause.
Note: During Bluetooth playback mode, if you insert a SD card or USB, Bluetooth will be turned off
and USB or SD card will play. Press the «MODE» button to return to Bluetooth mode again.
The USB port is designed for connecting USB storage media only. Do not use this connector for
charging purposes, as this may cause damage of the speaker.
AUX mode
Ϝ
For compatible music devices, use an audio cable with the 3.5 mm mini jack supplied in the box.
Connect the cable to the audio input of the AUX and to any audio source with a 3.5 mm mini jack the
screen will display LINE automatically. Or you can choose this by
«MODE»
button.
Note: You must turn off the power button "OFF / ON." If the system is not used for a long time.
6. SPECIFICATION
Notes:
Ϝ 7HFKQLFDO VSHFLѷFDWLRQV JLYHQ LQ WKLV WDEOH DUH VXSSOHPHQWDO LQIRUPDWLRQ DQG FDQQRW JLYH
occasion to claims.
Ϝ 7HFKQLFDOVSHFLѷFDWLRQVDQGSDFNDJHFRQWHQWVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFHGXHWRWKH
improvement of REAL-EL production.
Parameter
Output power (RMS)
Frequency range
Frequency range FM
Frequency range AM
Frequency range SW
Dimension of the speaker drivers
6XSSRUWHG%OXHWRRWK3URԛOHV
Connection types
Power supply
Battery
Case material
Dimensions of the product
Weight
Value
8 W
+]
0+]
К+]
0+]
Ø 90 mm
A2DP / AVRCP
Bluetooth 5.0 / USB / Micro SD / Aux
0LFUR86%9'&ƴ
Lithium-ion 1500 mAh, DC 3.7 V
ABS plastic
260 x 98 x 180 mm
1 kg

Manufacturer: ENEL GROUP OU, Harju maakond, Rae vald, Jüri alevik, Aruküla tee 55a, 75301, Estonia.
® Registered Trademark of ENEL GROUP OU. Estonia.
