Real-El M-350 User manual

M-350
2.1 MULTIMEDIA
SPEAKER SYSTEM
OPERATION MANUAL

Technical support www.real-el.com
1
Operation Manual
M-350
ENG
1
2
2
2
5
5
7
7
CONTENTS
1. BUYER RECOMMENDATIONS ...................................................................
2. PACKAGE CONTENTS ............................................................................
3. SAFETY PRECAUTIONS ..........................................................................
4. TECHNICAL DESCRIPTION ......................................................................
5. CONNECTION ......................................................................................
6. OPERATION MODES..............................................................................
7. TROUBLESHOOTING .............................................................................
8. TECHNICAL SPECIFICATIONS ..................................................................
Congratulations on your purchase of the REAL-EL speaker system!
COPYRIGHT
© 2019. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm, which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or
discrepancy of numbers you forfeit the right for warranty repairs.
•Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.

Technical support: www.real-el.com
2
ENG
2.1 USB Multimedia Speaker System
2. PACKAGE CONTENTS
• Subwoofer – 1 pc
• Satellites – 2 pcs
• Remote control (RC) – 1 pc
• AAA type batteries – 2 pcs
• Signal cable – 1 pc
• FM antenna – 1 pc
• Operation manual – 1 pc
• Warranty card – 1 pc
3. SAFETY PRECAUTIONS
• Do not open Multimedia Speaker System (MSS) and do not perform repairs by yourself. Service
and repairs should be performed by qualified specialists in an authorized service center only. The list
of authorized service centers is available at www.real-el.com
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer heat source. Do not expose it to direct sunlight.
• Do not place any open flame sources on or close to MSS.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
• In case of MSS does not work properly, power cable must be disconnected. Please contact place
of purchase or service center.
4. TECHNICAL DESCRIPTION
M-350 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS tnabling to connect to virtual to any audio source (CD/DVD-player, TV,
phone, PC, etc.) without using an additional power amplifier. The MSS has a built-in FM radio,
Bluetooth module and audio files player USB flash, SD card.
Features
• Audio playback via Bluetooth
• USB flash drive, SD card
• Stylish backlight
• Digital display
• FM radio
• Remote control
• Wooden case of subwoofer and satellites
M-350

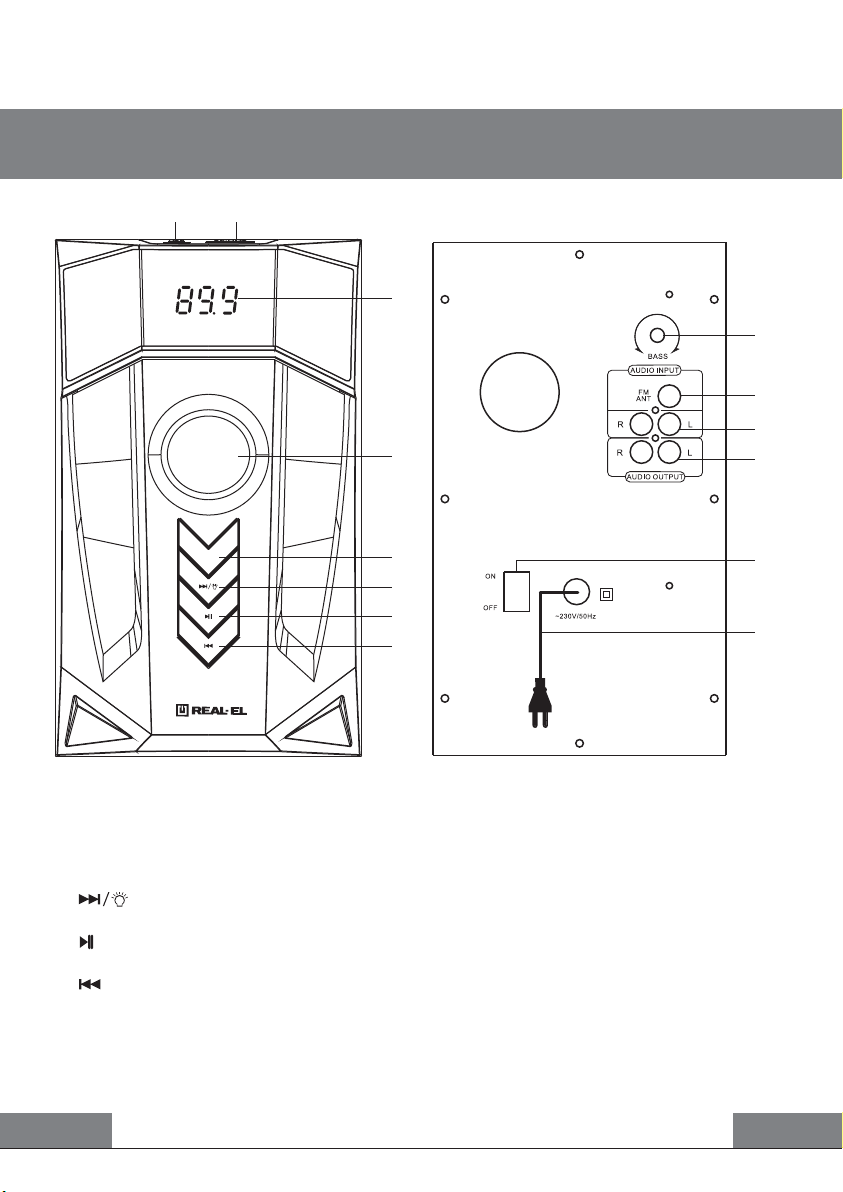

Fig. 1. Subwoofer control panel Fig. 2. Subwoofer rear panel
Subwoofer control panels:
aLED display.
bVOL -/+: Volume control
cMODE: switch button of AUX/Bluetooth/FM/USB/SD (MMC).
d:Next track (press shortly in the Player and Bluetooth mode);
next station (Radio mode); On/OFF backlit (press and hold for 2-3 sec).
e: Play/Pause (press shortly in the Player mode);
Start/Stop auto scan (press and hold for 2-3 sec in the Radio mode).
f: Previous track (press shortly in the Player and Bluetooth mode);
previous station (press shortly in the Radio mode).
gUSB: port for a USB flash device* containing МР3, WAV audio files.
hSD/MMC: slot for SD/MMC cards containing МР3, WAV audio files.
j
k
l
m
n
a
b
c
d
e
f
gh
MODE
i
Technical support: www.real-el.com
3
ENG
Operation Manual
M-350

Technical support: www.real-el.com
4
ENG
2.1 USB Multimedia Speaker System
M-350
j
k
l

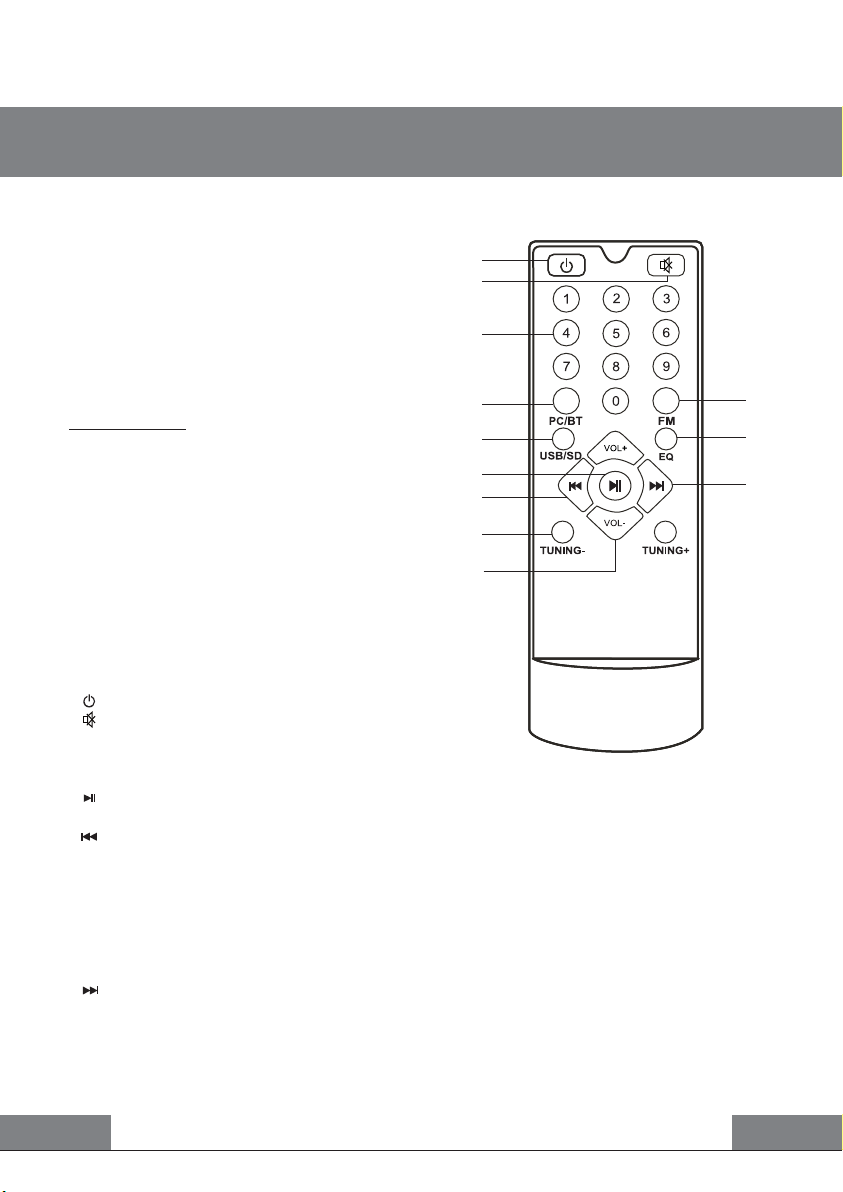

Fig. 3. Remote control
Remote control:
a:On/Offbutton.
b:sound on/offbutton.
c0-9: numeric pad.
dPC/BT: PC line input or Bluetooth mode selection.
eUSB/SD: playback audio files mode selection.
f:Play/Pause (press shortly in the Player mode);
auto scan start/stop (press shortly in the Radio mode).
g:previous track (press shortly in the Player and Bluetooth mode);
previous station (pressed short in the Radio mode).
hTUNING-/+: buttons for manual radio frequency scanning. Increase/decrease the frequency up
to 100 kHz by pressing short. By pressing long the search mode is activated the first station up/down
the frequency range).
iVOL+/-: volume level control buttons.
jFM: Radio mode switch button.
kEQ: equalizer mode switch button (in the Player mode).
l:next track (press shortly in the Player and Bluetooth mode);
next station (press shortly in the Radio mode).
a
b
c
d
e
h
i
g
f
iBASS: bass level control.
jFM ANT: radio antenna input jack.
kAUDIO INPUT: jack to connect PC, mobile
devices, and other audio sources.
lAUDIO OUTPUT: jack to connect satellites.
mON/OFF : power switch.
nPower cord.
* Connection of external hard disks other than USB flash
drive is not recommended, otherwise it can cause the MSS
damage.

Technical support: www.real-el.com
5
ENG
2.1 USB Multimedia Speaker System
M-350
5. CONNECTION
Connection MSS
M-350 speaker system can be connected to most of audio devices: DVD/CD players, PCs,
laptops, etc. (see connection diagram in Fig. 4).
•Before making any connections, make sure the MSS is offand unplugged. Then connect
satellites to the subwoofer AUDIO OUTPUT L/R ljacks using built-in audio cables. Connect the
right satellite to the subwoofer AUDIO OUTPUT R and the left satellite – to the AUDIO OUTPUT L
(see connection diagram in Fig. 4).

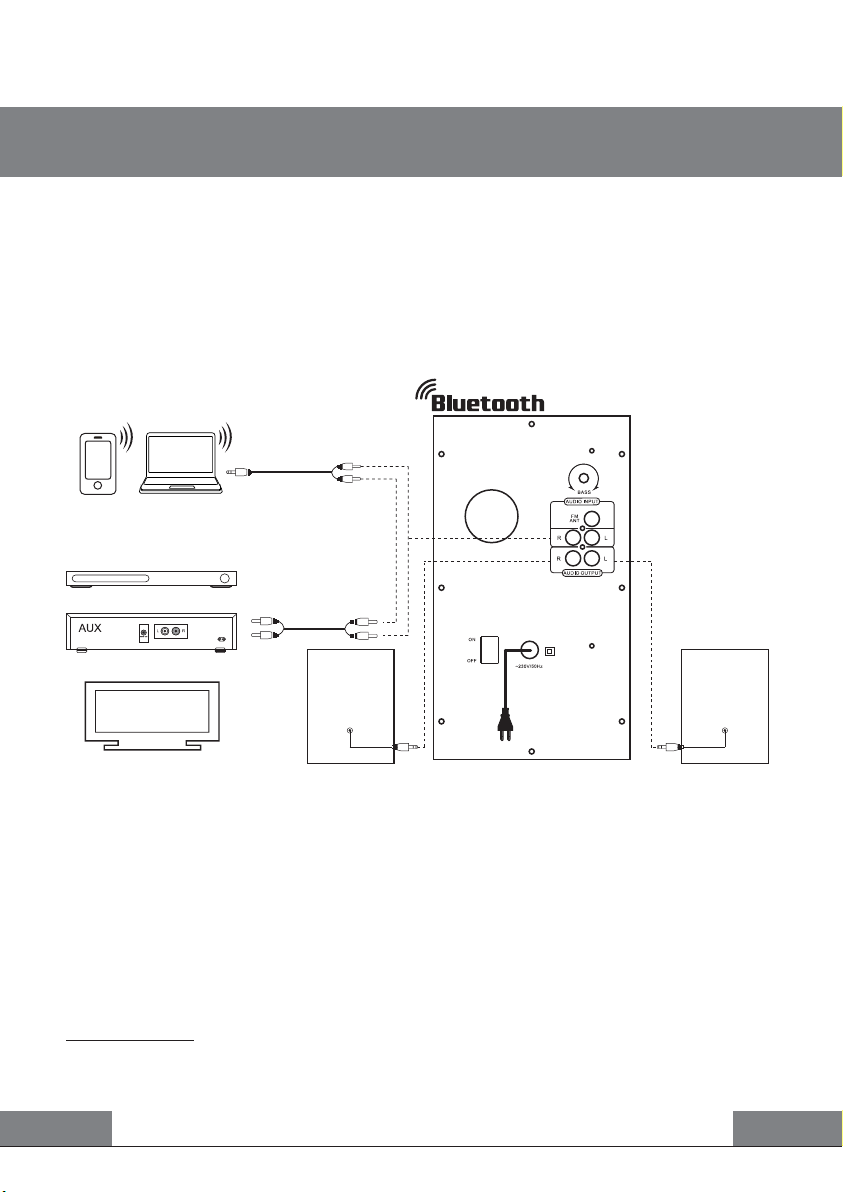

Fig. 4. Connection diagram
Left
satellite
Right
satellite
CD player
TV
2RCA to 2RCA
signal cable
2RCA to mini-jack
signal cable
(Cable included)
PC
DVD
Phone
6. OPERATION MODES
Player Mode
•The system will enter the Player mode automatically when a carrier (USB flash or SD/MMC
card)* is connected to corresponding ports gor h; or press MODE button con the front panel of
the subwoofer or USB/SD button eon the remote control. The LED display will show the selected
mode, number of the tracks found and the track’s number on the play list and then the
playback time. The playback will start automatically.
•To select a track, you can directly enter its number on the remote control using the numeric pad
buttons a. The display a will show the track number for a short time and then the playback time
elapsed.
•EQ mode (in the Player mode). There are 7 available preset settings: bas; pop; roc; jaz; cla; cou; nor.
* The operation may be incorrect if a SD card of 512 Mb capacity or lower is used. If a USB flash device of 8 Gb
capacity or more is used, command processing time may be extended.

Technical support: www.real-el.com
6
ENG
2.1 USB Multimedia Speaker System
M-350
* You might have to enter “0000” code to connect some models via Bluetooth.
** If an item has been already registered in the device list of sources, then the second search mode activation is
not needed. Choose only the item name and the “connect” command on the source.
Bluetooth mode
• Bluetooth mode requires connection of MMS with a signal source. For this purpose select the
Bluetooth mode using MODE button con the front panel of the subwoofer or PC/BT 
button don the remote control. After 2-3 seconds the speaker system starts the search mode.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (phone,
notebook, smartphone, etc.). “M-350” device will be displayed on the screen which should be
connected to*.
• Indicator light continuously when connection is successful. If there is no connection, indicator
will blink. In this case the system should be switched over to the search mode once again (turn off
and turn on Bluetooth mode)**.
FM Mode
• Use MODE button con the front panel of the subwoofer or FM button jon the remote control to
enter the Tuner mode. The display will backlight the current adjustment frequency.
• Press and hold button eon the front panel of the subwoofer or button fon the remote control
short to auto scan and memorize the found stations. The second pressing of this button before
the scanning is over will stop the auto scanning process. The display a shows the frequency being
scanned, when a radio station is being memorized, the display shows its assigned sequence
number for a short moment.
• For manual scanning, use buttons TUNING -/+ hon the remote control (up/down the frequency
range).
• If preset radio stations are available in the memory, you can switch from one to another by short
pressing buttons d, and fon the front panel of the subwoofer or buttons gand lon the remote
control. You can also enter the frequency or the number of the preset station using numeric pad
buttons con the remote control. The display will show the station number for a short moment and
then its frequency.
“Line input” Mode (AUDIO INPUT)
• Press MODE button con the front panel of the subwoofer or PC/BT button don the remote
control to switch to the PC mode. The display will show PC inscription.
MUTE Mode
• To enter the MUTE mode, press button bon the remote control. To quit the MUTE mode
press the button grepeatedly or press one of the buttons VOL +/- ion the remote control
Note. Due to the constant development of the software, the actual MSS operation may differ from described in
this Manual. The most recent version of the Manual is available at www.real-el.com

Technical support: www.real-el.com
7
ENG
2.1 USB Multimedia Speaker System
M-350
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound or the
sound is too quiet.
Distortion of sound.
The remote control
is not working.
Cause
The MSS isn’t connected to a mains
outlet.
The power switch is off.
Volume level is set at minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
The batteries are discharged.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect the audio sources correctly.
Turn down the source volume
and the MSS volume.
Replace the batteries with new ones.
7. TROUBLESHOOTING
8. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement
of REAL-EL production.
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency response, Hz
subwoofer
satellites
Speaker diameter, mm
subwoofer
satellites
Bluetooth version
Bluetooth operating range, m
Power supply, V/Hz
Dimensions, mm
subwoofer
satellites (one speaker)
Weight, kg
Value
44 (20 + 2 × 12)
20
2 × 12
40 – 200
200 – 20 000
Ø 127
Ø 76
4.2
up to 10
~230/50
160 × 258 × 273
105 × 110 × 172
3.2

Manufacturer: ENEL GROUP OU, Harju maakond, Rae vald, Jüri alevik, Aruküla tee 55a, 75301, Estonia.
® Registered Trademark of ENEL GROUP OU. Estonia.
