Real-El M-390 User manual

2.1 MULTIMEDIA SPEAKER SYSTEM
M-390
OPERATION MANUAL

Technical support: www.real-el.com
ENG
1
Operation Manual
M-390
ENG
1
1
2
2
2
5
5
7
7
CONTENTS
ENG ................................................................................................
1. BUYER RECOMMENDATIONS ....................................................................
2. PACKAGE CONTENTS .............................................................................
3. SAFETY PRECAUTIONS ...........................................................................
4. TECHNICAL DESCRIPTION .......................................................................
5. CONNECTION .......................................................................................
6. OPERATION MODES...............................................................................
7. TROUBLESHOOTING ..............................................................................
8. TECHNICAL SPECIFICATIONS ...................................................................
Congratulations on your purchase of the REAL-EL speaker system!
COPYRIGHT
© 2020. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm, which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or
discrepancy of numbers you forfeit the right for warranty repairs.
•Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.

Technical support: www.real-el.com
ENG
M-390
2
Operation Manual
2. PACKAGE CONTENTS
• Subwoofer – 1 pc
• Satellites – 2 pcs
• Remote control (RC) – 1 pc
• Signal cable – 1 pc
• FM antenna – 1 pc
• Operation manual – 1 pc
• Warranty card – 1 pc
3. SAFETY PRECAUTIONS
• Do not open Multimedia Speaker System (MSS) and do not perform repairs by yourself. Service
and repairs should be performed by qualified specialists in an authorized service center only. The list
of authorized service centers is available at www.real-el.com
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer heat source. Do not expose it to direct sunlight.
• Do not place any open flame sources on or close to MSS.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
• In case of MSS does not work properly, power cable must be disconnected. Please contact place
of purchase or service center.
4. TECHNICAL DESCRIPTION
M-390 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS enabling to connect to virtual to any audio source (CD/DVD-player, TV,
phone, PC, etc.) without using an additional power amplifier. The MSS has a built-in FM radio,
Bluetooth module and audio files player USB flash.
Features
• Audio playback via Bluetooth
• USB flash drive
• Digital display
• FM radio
• Remote control
• Wooden case of subwoofer

Technical support: www.real-el.com
3
ENG
Operation Manual
M-390
h
g
i
j
a
f
e
b dc

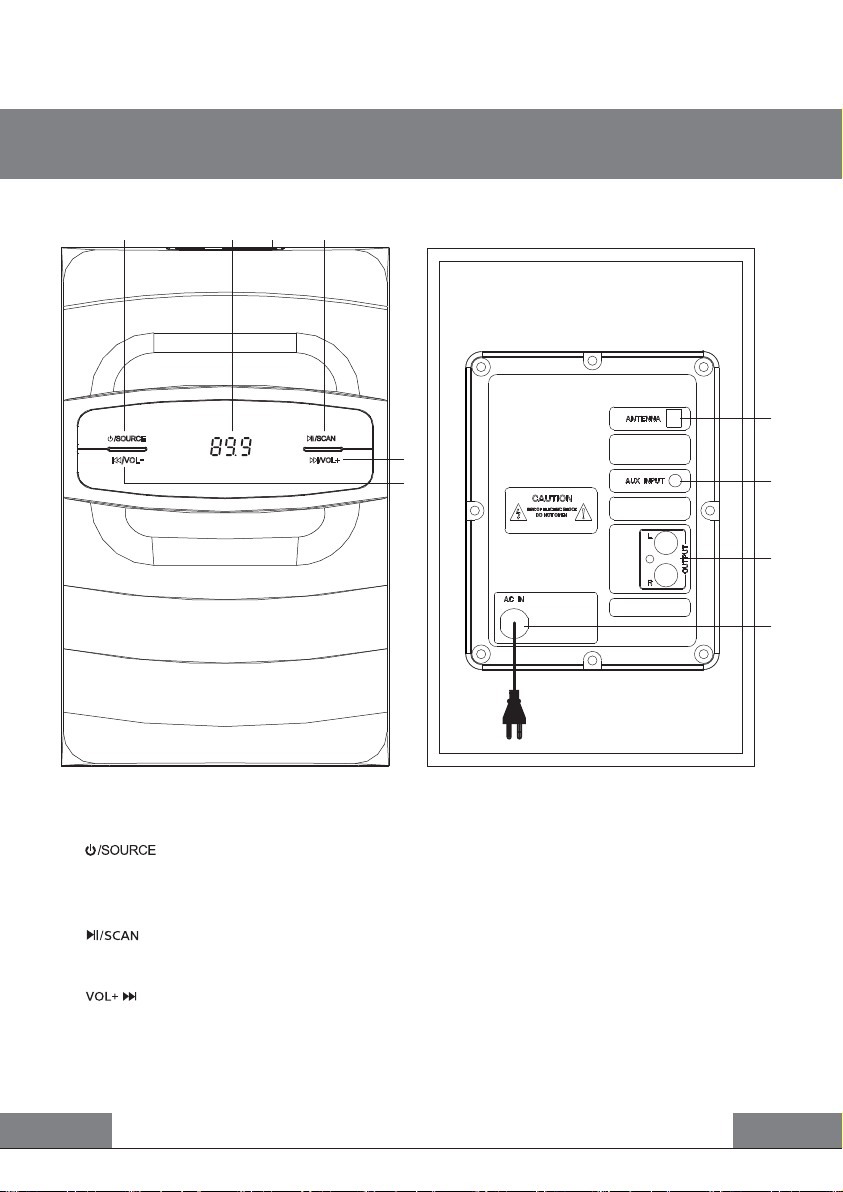

Fig. 1. Subwoofer control panel
Subwoofer control panels:
a: On/Off(Standby mode);
SOURCE: switch button of AUX/Bluetooth/FM/USB.
bLED display.
cUSB: port for a USB flash device
d: Play/Pause (press shortly in the Player and Bluetooth mode);
SCAN: Start/Stop auto scan (press and hold for 2-3 sec in the Radio mode).
Bluetooth function can be forced disconnected (press and hold for 2-3 sec in the Bluetooth mode)
e: next track (press shortly in the Player and Bluetooth mode);
next station (press shortly the Radio mode);
VOL+ volume increase button (press and hold for 2-3 sec).
Fig. 2. Subwoofer rear panel

ENG
Technical support: www.real-el.com
M-390
4
Operation Manual
Fig. 3. Remote control
*Attention! USB output is for USB flash connection only!
Do not charge any device using this port otherwise it may
be damaged!
Remote control:
a : On/Off(Standby mode).
bAUX: AUX line input mode.
cUSB: playback audio files mode selection USB flash.
dEQ/TUNE-: equalizer (Player mode);
manual radio frequency scanning;
decrease the frequency each step is 0.1MHz by short pressing.
long press activates auto search mode.
eVOL+/-: volume level control buttons.
f: previous track (press shortly in Player and Bluetooth mode);
previous station (press shortly in Radio mode).
g0-9: numeric pad.
h: sound on/off.
iFM: Radio mode.
jBT: Bluetooth mode.
k /TUNE+: all or one track replay;
Increase the frequency each step is 0.1MHz by short pressing.
long press activates auto search mode
l: Play/Pause (Player mode).
m: next track (pressed short in the Player and Bluetooth mode);
next track (short press in Player and Bluetooth mode)
h
i
j
k
l
m
a
b
c
d
e
f
e
g
TUNE+
EQ
TUNE-
h: previous track (press shortly in the Player and
Bluetooth mode);
previous station (press shortly in the Radio mode);
VOL-: volume decrease button (press and hold for 2-3 sec).
gFM ANT: radio antenna input jack.
hAUX: auxiliary audio input.
iOUTPUT: satellites connection.
jPower cord.

Technical support: www.real-el.com
5
ENG
M-390
Operation Manual
5. CONNECTION
Connection MSS
M-390 speaker system can be connected to most of audio devices: DVD/CD players, PCs,
laptops, etc. (see connection diagram in Fig. 4).
•Before making any connections, make sure the MSS is offand unplugged. Then connect
satellites to the subwoofer OUTPUT L/R ijacks using built-in audio cables. Connect the right
satellite to the subwoofer OUTPUT R and the left satellite – to the OUTPUT L (see connection
diagram in Fig. 4).
6. OPERATION MODES
Player Mode
•The system start Player mode automatically when a storage (USB flash) is connected to
corresponding ports; or press SOURCE button aon the front panel of the subwoofer or remote
control. The playback will start automatically.
•To select a track, you can directly enter its number on the remote control using the numeric pad
buttons.
2RCA to mini-jack
signal cable
mini-jack to mini-jack
signal cable
Fig. 4. Connection diagram
Left
satellite
Right
satellite
CD player
TV
PC
DVD
Phone
FM antenna

ENG
Technical support: www.real-el.com
6
M-390
Operation Manual
* You might have to enter “0000” code to connect some models via Bluetooth.
** If an item has been already registered in the device list of sources, then the second search mode activation is
not needed. Choose only the item name and the “connect” command on the source.
Bluetooth mode
• Select the Bluetooth mode using SOURCE button aon the front panel of the subwoofer or BT
button jon the remote control. After 2-3 seconds the speaker system starts the search mode.
• Activate Bluetooth search mode of your device (phone, notebook, smartphone, etc.). “M-390”
will be displayed which should be connected to*.
• Indicator light continuously when connection is successful. If there is no connection, indicator
will blink. In this case the system should be switched over to the search mode once again (turn off
and turn on Bluetooth mode)**.
FM Mode
• Use SOURCE button aon the front panel of the subwoofer or FM button ion the remote
control to enter the Tuner mode.
• Press and hold SCAN don the front panel of the subwoofer or TUNE on the remote control to
auto scan the stations.
• If preset radio stations are available in the memory, you can switch from one to another by short
pressing buttons eand fon the front panel of the subwoofer or buttons fand mon the
remote control. You can also enter the frequency or the number of the preset station using
numeric pad buttons gon the remote control.
“Line input” Mode (AUX)
• Press SOURCE button aon the front panel of the subwoofer or AUX button bon the remote
control to switch to the AUX mode. The display will show AUX inscription.
MUTE Mode
• To enter the MUTE mode, press button hon the remote control. To quit the MUTE mode
press the button hrepeatedly or press one of the buttons VOL +/- eon the remote control
Note. Due to the constant development of the software, the actual MSS operation may differ from described in
this Manual. The most recent version of the Manual is available at www.real-el.com

ENG
Technical support: www.real-el.com
M-390
7
Operation Manual
If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound or the
sound is too quiet.
Distortion of sound.
The remote control
is not working.
Cause
The MSS isn’t connected to a mains
outlet.
The power switch is off.
Volume level is set at minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
The batteries are discharged.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect the audio sources correctly.
Turn down the source volume
and the MSS volume.
Replace the batteries with new ones.
7. TROUBLESHOOTING
8. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement
of REAL-EL production.
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency response, Hz
subwoofer
satellites
Speaker diameter, mm
subwoofer
satellites
Bluetooth version
Bluetooth operating range, m
Power supply, V/Hz
Dimensions, mm
subwoofer
satellites (one speaker)
Weight, kg
Value
32 (20 + 2 × 6)
20
2 × 6
30 – 150
150 – 20 000
Ø 100
Ø 76
4.2
up to 10
~230/50
155 × 262 × 264
90 × 130 × 77
3.1

Manufacturer: ENEL GROUP OU, Harju maakond, Rae vald, Jüri alevik, Aruküla tee 55a, 75301, Estonia.
