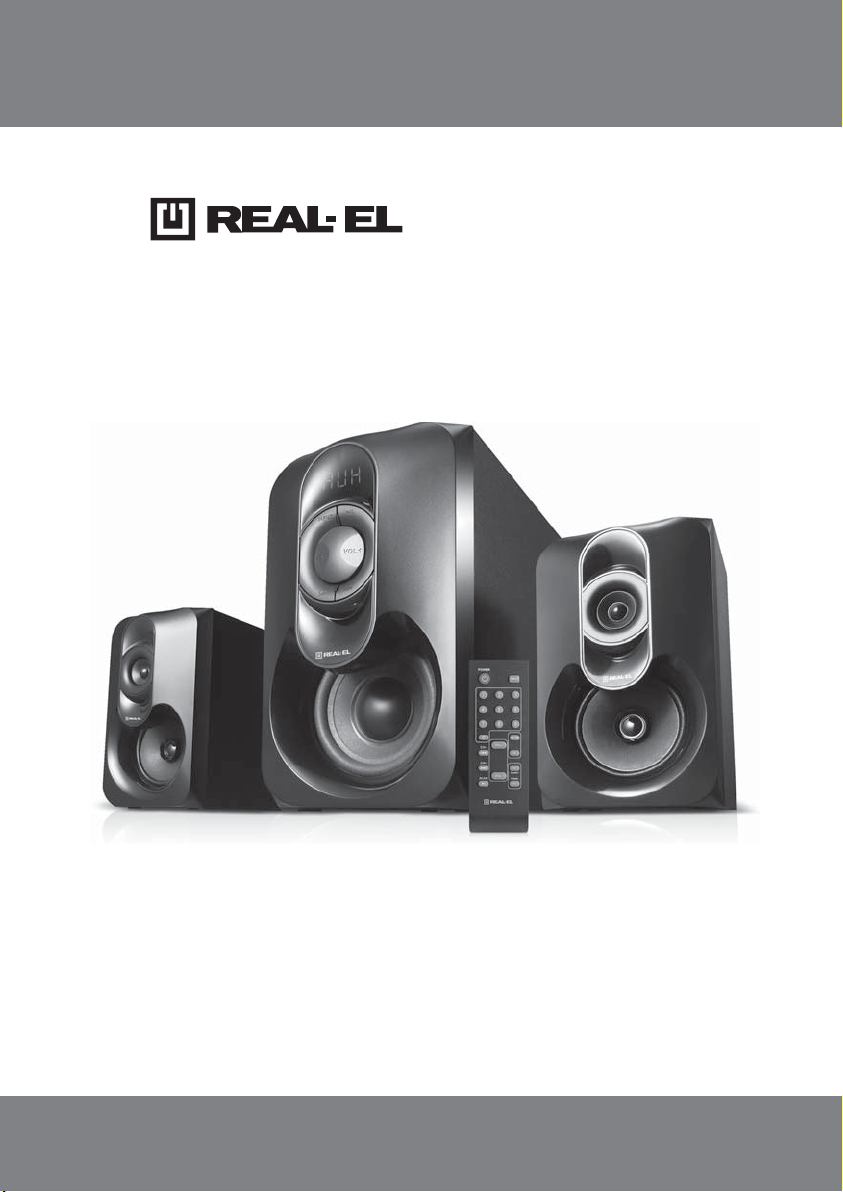

Real-El M-360 User manual

M-360
2.1 MULTIMEDIA
SPEAKER SYSTEM
OPERATION MANUAL

Technical support www.real-el.com
1
Operation Manual
M-360
ENG
1
2
2
2
5
6
7
7
CONTENTS
1. BUYER RECOMMENDATIONS ....................................................................
2. PACKAGE CONTENTS .............................................................................
3. SAFETY PRECAUTIONS ...........................................................................
4. TECHNICAL DESCRIPTION .......................................................................
5. CONNECTION .......................................................................................
6. OPERATION MODES...............................................................................
7. TROUBLESHOOTING ..............................................................................
8. TECHNICAL SPECIFICATIONS ...................................................................
Congratulations on your purchase of the TM REAL-EL speaker system!
COPYRIGHT
© 2018. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some discrepancies may occur. The
information of this Manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
1. BUYER RECOMMENDATIONS
•Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the firm, which
carried out the delivery; if the product functions incorrectly, address the dealer at once.
•Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods
number corresponds to that in the warranty card. Remember: in case of warranty card loss or
discrepancy of numbers you forfeit the right for warranty repairs.
•Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of
room temperature for at least 4 hours.
•Before installing and using the speaker system, read this Manual carefully and keep it for future
reference.

Technical support: www.real-el.com
2
ENG
2. PACKAGE CONTENTS
• Subwoofer – 1 pc
• Satellites – 2 pcs
• Remote control (RC) – 1 pc
• AAA type batteries – 2 pcs
• Signal cable – 1 pc
• FM antenna – 1 pc
• Operation manual – 1 pc
• Warranty card – 1 pc
3. SAFETY PRECAUTIONS
• Do not open acoustic system (MSS) and do not perform repairs by yourself. Service and repairs
should be performed by qualified specialists in an authorized service center only. The list of
authorized service centers is available at www.real-el.com
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer heat source. Do not expose it to direct
sunlight.
• Do not place any open flame sources on or close to MSS.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
• In case of MSS does not work properly, power cable must be disconnected. Please contact place
of purchase or service center.
4. TECHNICAL DESCRIPTION
M-360 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games,
movies, etc. The MSS can be connected to most of audio source (CD/DVD-player, TV, phone,
PC, etc.) without using an additional power amplifier. The MSS has a built-in FM radio and audio
files player USB flash, SD card.
Features
• USB flash drive, SD card
• Digital display
• FM radio
• Remote control
• Wooden case of subwoofer and satellites
2.1 USB Multimedia Speaker System
M-360

Technical support: www.real-el.com
3
ENG
Operation Manual
a
c
e
d
b
g
f
hi
INPUT
Fig. 1. Subwoofer control panel
Subwoofer control panels:
aLED display
b: previous track (press shortly in the Player mode); previous station (press shortly in the Radio
mode)
c: next track (press shortly in the Player mode); next station (press shortly in the Radio mode)
dINPUT: switch button of PC/FM/USB/SD (MMC)
e: Play/Pause (press shortly in the Player mode); Start/Stop auto scan (press shortly in the
Radio mode)
fVOL-: volume decrease button
gVOL+: volume increase button
hUSB: port for a USB flash device* containing МР3, WAV audio files
j
k
l
m
n
o
Fig. 2. Subwoofer rear panel
M-360

Technical support: www.real-el.com
4
ENG
2.1 USB Multimedia Speaker System
f
g
h
j
i
a
b
c
d
e
Fig. 3. Remote control
iSD/MMC: slot for SD/MMC cards* containing
МР3, WAV audio files
jBASS: bass level control
kFM ANT: radio antenna input jack
lAUDIO INPUT: jack to connect PC, mobile
devices, and other audio sources
mAUDIO OUTPUT: jack to connect satellites
nON/OFF : power switch
oPower cord
* Connection of external hard disks other than USB flash
drive is not recommended, otherwise it can cause the MSS
damage.
Remote control:
a: long press for ON/OFF ;
short press - reset to factory settings
b0-9: numeric pad
c: previous track (press shortly in the Player); previous station (press shortly in the Radio mode)
d: next track (press shortly in the Player); next station (press shortly in the Radio mode)
e: Play/Pause (press shortly in the Player mode);
auto scan start/stop (press shortly in the Radio mode)
fINPUT: choose a mode
gMUTE: sound on/offbutton
hEQ: equalizer mode switch button (in the Player mode)
iVOL+/-: volume level control buttons
jTUNING-/+: buttons for manual radio frequency scanning.
M-360

5. CONNECTION
Connection MSS
M-360 speaker system can be connected to most of audio devices: DVD/CD players, PCs,
laptops, etc. (see connection diagram in Fig. 4).
•Before making any connections, make sure the MSS is offand unplugged. Then connect
satellites to the subwoofer AUDIO OUTPUT L/R mjacks using built-in audio cables. Connect the
right satellite to the subwoofer AUDIO OUTPUT R and the left satellite – to the AUDIO OUTPUT L
(see connection diagram in Fig. 4).
Fig. 4. Connection diagram
Left
satellite
Right
satellite
CD player
TV
2RCA to 2RCA
signal cable
2RCA to mini-jack
signal cable
(Cable included)
PC
DVD
Phone
6. OPERATION MODES
Player Mode
•The system will enter the Player mode automatically when a carrier (USB flash or SD/MMC
card)* is connected to corresponding ports hor i; or press INPUT button don the front panel of
the subwoofer or INPUT fbutton on the remote control. The LED display will show selected
mode, number of the tracks found and the track’s number on the play list and then the
playback time. The playback will start automatically.
•To select a track, you can directly enter its number on the remote control using the numeric pad
buttons b. The display a will show the track number for a short time and then the playback time
elapsed.
•EQ mode (in the Player mode). There are 7 available preset settings: bas; pop; roc; jaz; cla; cou; nor.
* The operation may be incorrect if a SD card of 512 Mb capacity or lower is used. If a USB flash device of 8 Gb
capacity or more is used, command processing time may be extended.
Technical support: www.real-el.com
5
ENG
2.1 USB Multimedia Speaker System
M-360

Tuner Mode
• Use INPUT button don the front panel of the subwoofer or INPUTfon the remote control
to enter the Tuner mode. The display will backlight the current adjustment frequency.
• Press and hold button eon the front panel of the subwoofer or button eon the remote control
short to auto scan and memorize the found stations. The second pressing of this button before
the scanning is over will stop the auto scanning process. The display a shows the frequency being
scanned, when a radio station is being memorized, the display shows its assigned sequence
number for a short moment.
• For manual scanning, use buttons TUNING -/+ jon the remote control (up/down the frequency
range).
• If preset radio stations are available in the memory, you can switch from one to another by short
pressing buttons band con the front panel of the subwoofer or buttons cand don the remote
control. You can also enter the frequency or the number of the preset station using numeric pad
buttons bon the remote control. The display will show the station number for a short moment and
then its frequency.
“Line input” Mode (AUDIO INPUT)
• Press INPUT button don the front panel of the subwoofer or INPUTfon the remote control
to switch to the PC mode. The display will show PC inscription.
MUTE Mode
• To enter the MUTE mode, press button gon the remote control. To quit the MUTE mode
press the button grepeatedly or press one of the buttons VOL +/- ion the remote control
Note. Due to the constant development of the software, the actual MSS operation may differ from described in
this Manual. The most recent version of the Manual is available at www.real-el.ua
Technical support: www.real-el.com
6
ENG
2.1 USB Multimedia Speaker System
M-360

If none of the above methods can solve the problem, please seek professional advice at your
nearest service center. Never attempt to repair the product yourself.
Problem
The MSS does not
turn on.
No sound or the
sound is too quiet.
Distortion of sound.
The remote control
is not working.
Cause
The MSS isn’t connected to a mains
outlet.
The power switch is off.
Volume level is set at minimum value.
Improperly connected audio source.
Large amplitude of the input signal.
The batteries are discharged.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect the audio sources correctly.
Turn down the source volume
and the MSS volume.
Replace the batteries with new ones.
7. TROUBLESHOOTING
8. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications and package contents are subject to change without notice due to the improvement
of REAL-EL production.
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Frequency response, Hz
subwoofer
satellites
Speaker diameter, mm
subwoofer
satellites
Power supply, V/Hz
Dimensions, mm
subwoofer
satellites (one speaker)
Weight, kg
Value
44 (20 + 2 × 12)
20
2 × 12
40 – 200
200 – 20 000
Ø 127
Ø 76
~230/50
160 × 258 × 273
105 × 110 × 172
3.1
Technical support: www.real-el.com
7
ENG
2.1 USB Multimedia Speaker System
M-360

Models: M-360
Manufacturer: ENEL GROUP OU, Katusepapi tn 6, Lasnamäe linnaosa, Tallinn,
Harju maakond, 11412, Estonia. Made in China.
® Registered Trademark of ENEL GROUP OU. Estonia.
