Realtek Ameba-Z DEV01 User manual

Realtek
Ameba-Z DEV01 User Manual
This document defines pin out of Ameba-Z DEV01 demo board.

Realtek
Ameba-Z DEV01 1V0
2/19
Table of Contents
1. HARDWARE BLOCK DIAGRAM........................................................................................................................5
2. SYSTEM REQUIREMENTS..................................................................................................................................5
3. PIN MUXALTERNATE FUNCTIONS .................................................................................................................6
3.1. PIN MUX TABLE...................................................................................................................................................6
3.2. PIN OUT REFERENCE............................................................................................................................................8
4. FEATURES...............................................................................................................................................................9
5. HARDWARE CONFIGURATION.......................................................................................................................11
5.1. LOGUARTPIN SEL........................................................................................................................................11
5.2. SWD &LOGUART .........................................................................................................................................11
5.3. CMSIS-DAP &LOGUART.............................................................................................................................12
6. DAPFIRMWARE UPDATE .................................................................................................................................13
7. REFERENCE ELECTRICAL SCHEMATICS...................................................................................................14
7.1. DC POWER........................................................................................................................................................14
7.2. DAP .................................................................................................................................................................15
7.3. FT232...............................................................................................................................................................16
7.4. GPIO GROUPAND FUNCTION-MUX................................................................................................................17
7.5. SWD.................................................................................................................................................................18
7.6. UARTLOG SELECTION ...................................................................................................................................18
7.7. 8710BN MODULE..............................................................................................................................................19

Realtek
Ameba-Z DEV01 1V0
3/19
List of Tables
Table 1 Ameba-Z pinmux table................................................................................................................................6
Table 2 Ameba-Z Features........................................................................................................................................9
Table 3 Ameba-Z LOGUART EFUSE ..................................................................................................................11

Realtek
Ameba-Z DEV01 1V0
4/19
List of Figures
Figure 1 Ameba-Z DEV Diagram............................................................................................................................5
Figure 2 Ameba-Z SWD & LOGUART................................................................................................................11
Figure 3 Ameba-Z CMSIS-DAP............................................................................................................................12
Figure 4 Ameba-Z CMSIS-DAP Firmware update...............................................................................................13
Figure 5 Ameba-Z Schematics DC-Power............................................................................................................14
Figure 6 Ameba-Z Schematics DAP......................................................................................................................15
Figure 7 Ameba-Z Schematics FT-232..................................................................................................................16
Figure 8 Ameba-Z Schematics GPIO Group & Function-Mux ...........................................................................17
Figure 9 Ameba-Z Schematics SWD.....................................................................................................................18
Figure 10 Ameba-Z Schematics UART-LOG Selection.......................................................................................18
Figure 11 Ameba-Z Schematics 8710BN module ................................................................................................19

Realtek
Ameba-Z DEV01 1V0
5/19
1. Hardware block diagram
IC: RTL8710B
Module HDK version: HDK-XXXX
DEV HDK version: RTL-AMEBAZ_DEV01_1V0

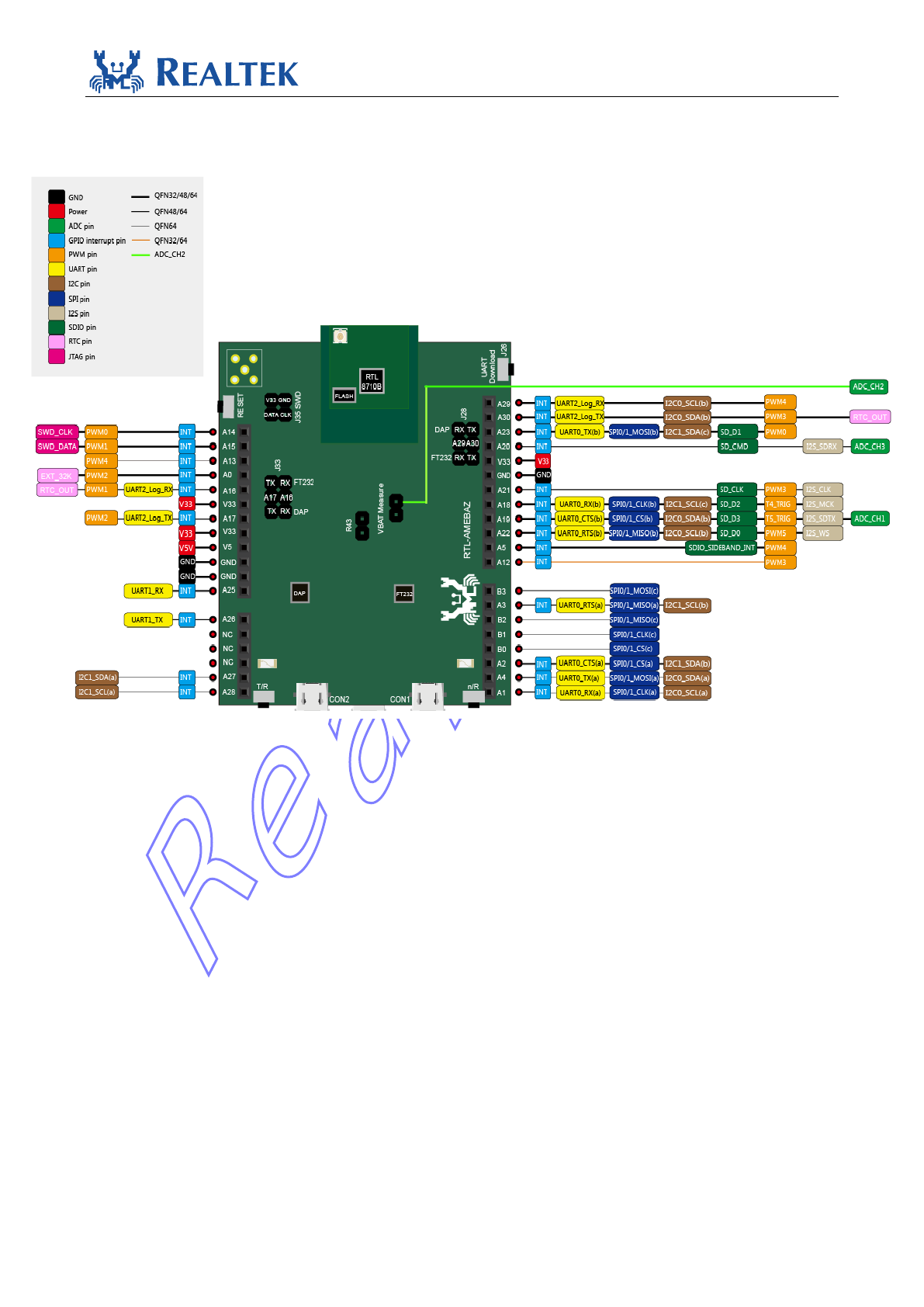

Figure 1 Ameba-Z DEV Diagram
2. System requirements
Windows PC(XP,Vista,7)
USB type

Realtek
Ameba-Z DEV01 1V0
6/19
3. Pin muxAlternate Functions
3.1. Pin mux table
Table 1 Ameba-Z pin mux table
QFN68
8711BG
QFN48
8711BN
QFN32
8710BN
GPIO
UART
SPI Master
SPI Slave
SPI Flash
I2C
SDIO
PWM/
TIMER
EXT32K
I2S
Others



PA_14
PWM0
SWD_CLK



PA_15
PWM1
SWD_DATA

PA_13
PWM4



PA_0
PWM2
ext_32K


PA_16
UART2_log_RXD
PWM1
RTC_OUT


PA_17
UART2_log_TXD
PWM2


PA_25
UART1_RXD


PA_26
UART1_TXD

PA_28
I2C1_SCL

PA_27
I2C1_SDA


PA_12
PWM3


PA_4
UART0_TXD
SPI1_MOS
I
SPI0_MOS
I
I2C0_SDA


PA_1
UART0_RXD
SPI1_CLK
SPI0_SCK
I2C0_SCL


PA_2
UART0_CTS
SPI1_CS
SPI0_CS
I2C1_SDA


PA_3
UART0_RTS
SPI1_MIS
O
SPI0_MIS
O
I2C1_SCL



PA_6
SPIC_CS
SD_D2



PA_7
SPIC_DATA1
SD_D3



PA_8
SPIC_DATA2
SD_CMD



PA_9
SPIC_DATA0
SD_CLK



PA_10
SPIC_CLK
SD_D0



PA_11
SPIC_DATA3
SD_D1



PA_5
SDIO_SIDEBAN
D_INT
PWM4
WAKEUP_1



PA_18
UART0_RXD
SPI1_CLK
SPI0_SCK
I2C1_SCL
SD_D2
TIMER4_TRIG
I2S_MCK
WAKEUP_0

Realtek
Ameba-Z DEV01 1V0
7/19
QFN68
8711BG
QFN48
8711BN
QFN32
8710BN
GPIO
UART
SPI Master
SPI Slave
SPI Flash
I2C
SDIO
PWM/
TIMER
EXT32K
I2S
Others



PA_19
UART0_CTS
SPI1_CS
SPI0_CS
I2C0_SDA
SD_D3
TIMER5_TRIG
I2S_SD_T
X
ADC1


PA_20
SD_CMD
I2S_SD_R
X
ADC3


PA_21
SD_CLK
PWM3
I2S_CLK



PA_22
UART0_RTS
SPI1_MIS
O
SPI0_MIS
O
I2C0_SCL
SD_D0
PWM5
I2S_WS
WAKEUP_2



PA_23
UART0_TXD
SPI1_MOS
I
SPI0_MOS
I
I2C1_SDA
SD_D1
PWM0
WAKEUP_3

PB_1
SPI1_CLK
SPI0_SCK

PB_0
SPI1_CS
SPI0_CS

PB_2
SPI1_MIS
O
SPI0_MIS
O

PB_3
SPI1_MOS
I
SPI0_MOS
I

PB_4
SWD_CLK
I2S_MCK

PB_5
SWD_DATA
I2S_SD_T
X

PA_24
I2S_SD_R
X

PA_31
I2S_CLK

PB_6
I2S_WS



PA_30
UART2_log_TXD
I2C0_SDA
PWM3
RTC_OUT



PA_29
UART2_log_RXD
I2C0_SCL
PWM4

Realtek
Ameba-Z DEV01 1V0
8/19
3.2. Pin out reference

Realtek
Ameba-Z DEV01 1V0
9/19
4. Features
Table 2 Ameba-Z Features
Feature list
QFN68
RTL8711BG
QFN48
RTL8711BN
QFN32
RTL8710BN
Integrated core
Core type
ARM CM4F
Core clock maximum freq.
125MHz
Memory
Internal ROM
512KB
Internal SRAM
256KB
External FLASH
128MB
FPU
Float process unit
Yes
SWD/JTAG
SWD
Backup register
Backup register for power save
16B
Boot Reason
Yes
F/W protection
Yes
Read protection
RAM read protection
4KB
WIFI
802.11 B/G/N
Yes
BOR
BOR Detection
Yes
peripherals
UART
Normal-UART
2
2
1
Log-UART
1
1
1
SPI Master
Max. 31.25Mbps
1
1
1
SPI Slave
Max. 31.25Mbps
1
1
1
I2C
Max. 400Kbps
2
2
2
ADC
VBAT
1
0
1
Thermal
1
1
1

Realtek
Ameba-Z DEV01 1V0
10/19
Feature list
QFN68
RTL8711BG
QFN48
RTL8711BN
QFN32
RTL8710BN
Normal
2
2
0
GDMA
2*6 channels
2
2
2
GPIO
IN/OUT/INT
39
26
17
I2S
1
1
0
RTC
D/H/M/S
1
1
1
OUTPUT
1
1
1
Timer
Basic timer use 32K
4
4
4
Advanced timer use XTAL
2
2
2
PWM
OUTPUT
6
6
6
INPUT Capture
2
2
2
WDG
1
1
1
USB device
1
0
0
SDIO 2.0 Device
1
1
1
External 32K
External 32K
1
1
1
Dsleep Wakepin
Deep sleep wake pin
4
4
4
Package
trays and tape-in-reel
(8x8mm^2)
(6x6mm^2)
(5x5mm^2)
Part Number
RTL8711BG
RTL8711BN
RTL8710BN

Realtek
Ameba-Z DEV01 1V0
11/19
5. Hardware configuration
5.1. LOGUART PIN SEL
Table 3 Ameba-Z LOGUART EFUSE
EFUSE
LOGUART PIN
EFUSE NOT PG
EFUSE 0x19[6]=0
GPIOA_29 & GPIOA_30
EFUSE PG
EFUSE 0x19[6]=0
GPIOA_29 & GPIOA_30
EFUSE 0x19[6]=1
GPIOA_16 & GPIOA_17
5.2. SWD & LOGUART

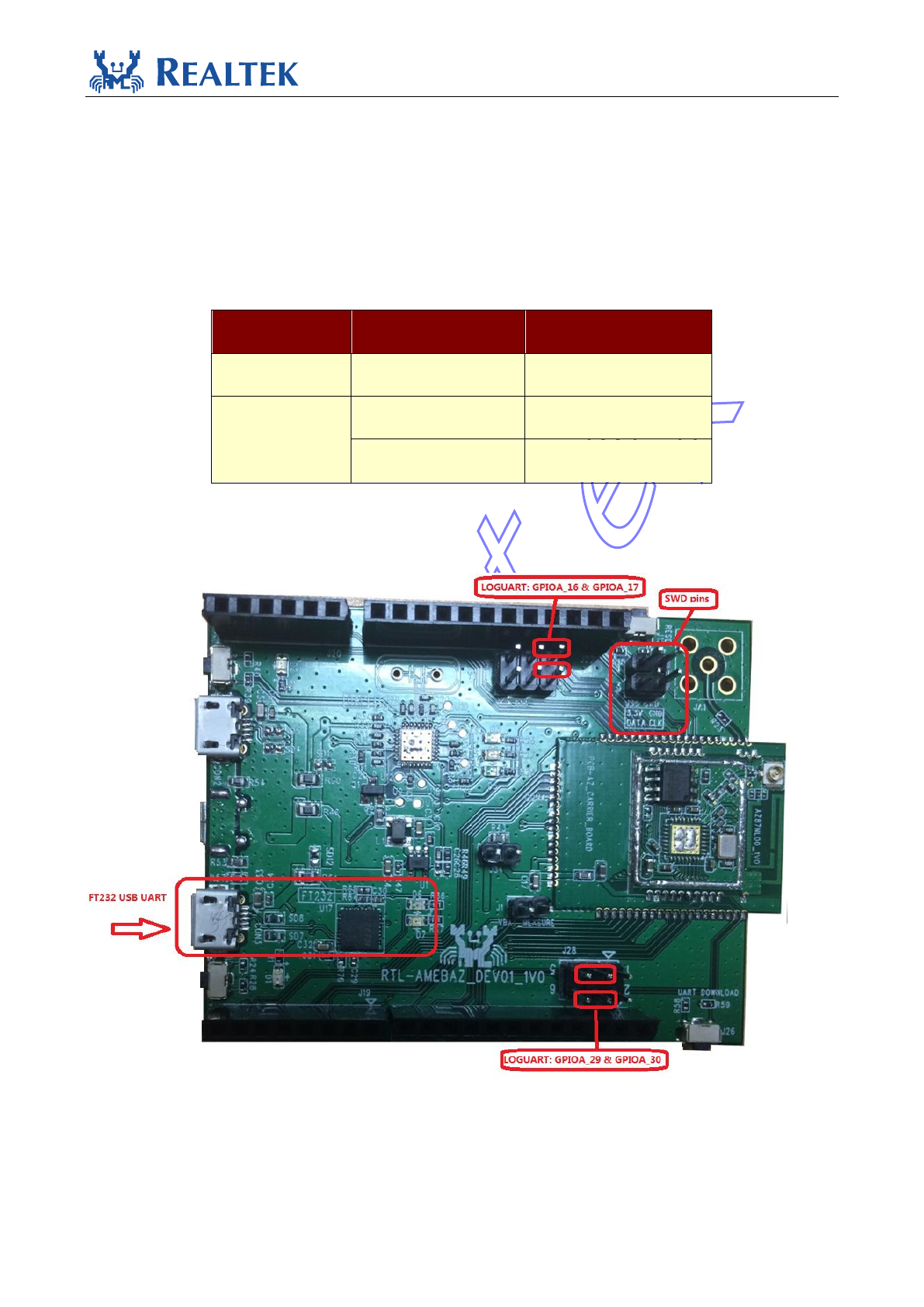

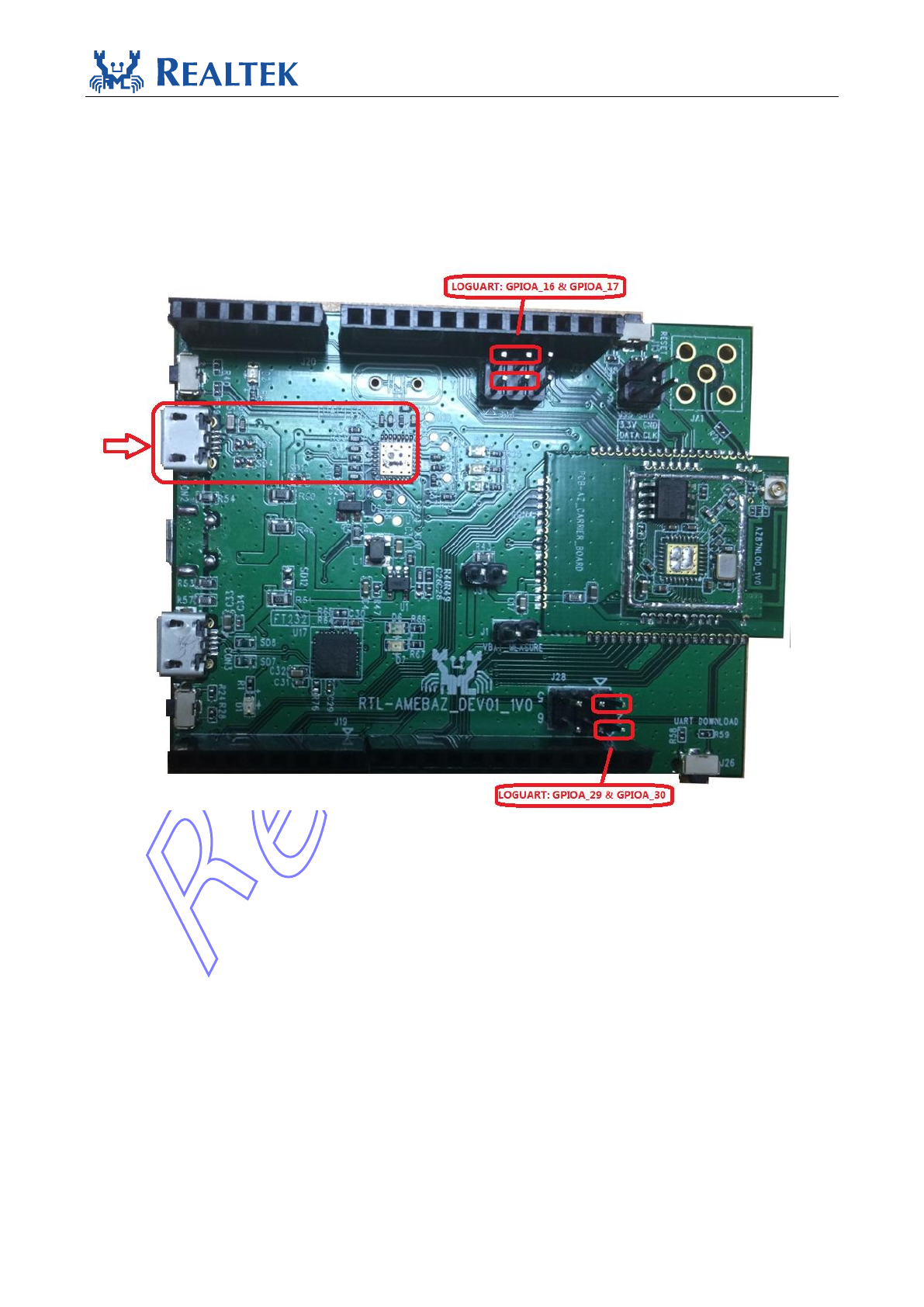

Figure 2 Ameba-Z SWD & LOGUART

Realtek
Ameba-Z DEV01 1V0
12/19
5.3. CMSIS-DAP & LOGUART
RTL-AMEBAZ_DEV01 supports CMSIS-DAP debugger. It requires installing “serial to USB driver” at first.
Serial to USB driver can be found in tools\serial_to_usb\mbedWinSerial_16466.
Connect board to the PC with micro-USB cable.
Figure 3 Ameba-Z CMSIS-DAP

Realtek
Ameba-Z DEV01 1V0
13/19
6. DAP Firmware update
In DAP mode, the DAP firmware can be updated. Holding TGT_NRESET button (J24, red-circled) then press
nRESET button (J17, blur-circled). Then the DAP mode window will show up.

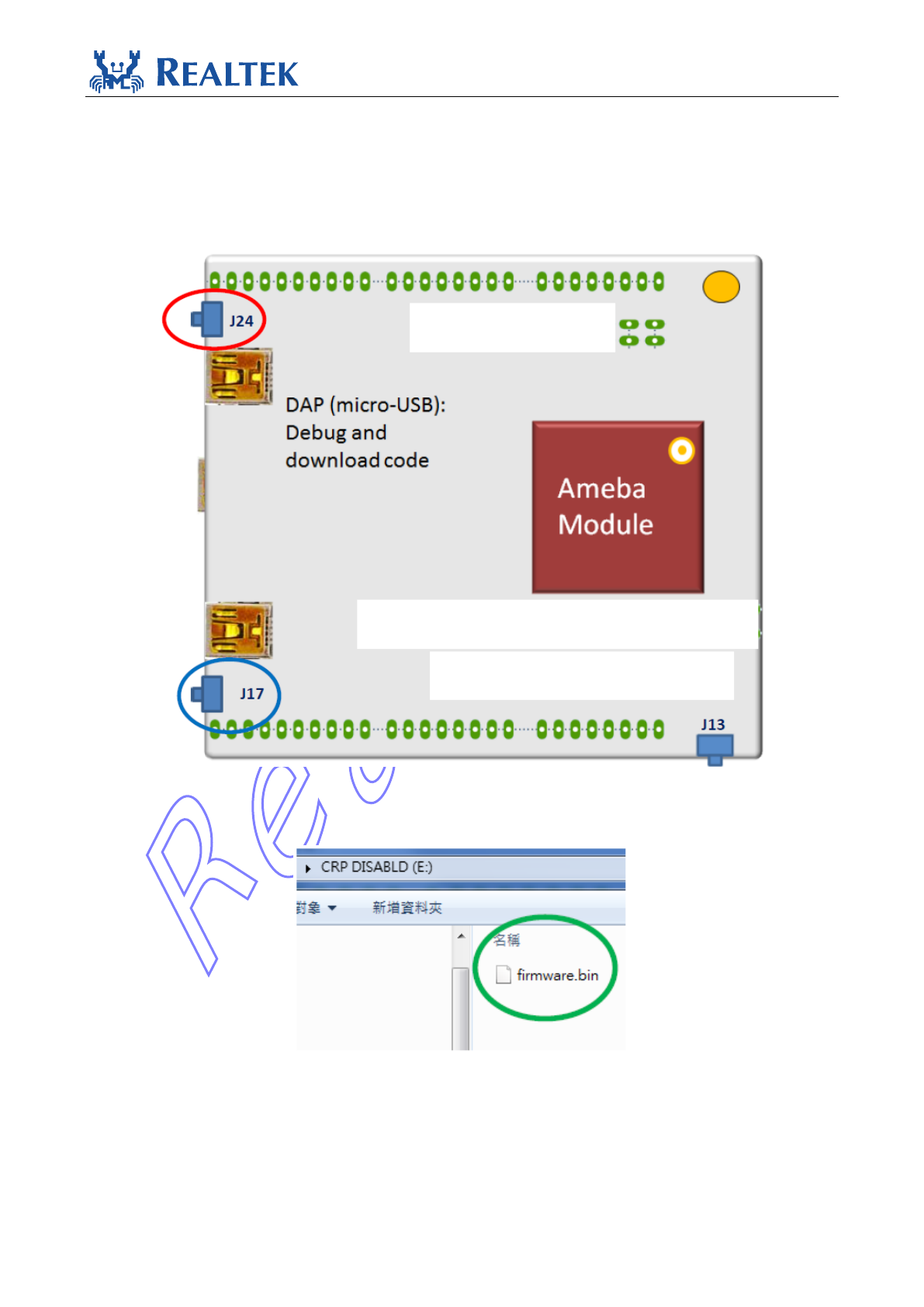

Figure 4 Ameba-Z CMSIS-DAP Firmware update
DAP window will show up when entering DAP mode.

Realtek
Ameba-Z DEV01 1V0
14/19
7. Reference electrical schematics
7.1. DC power

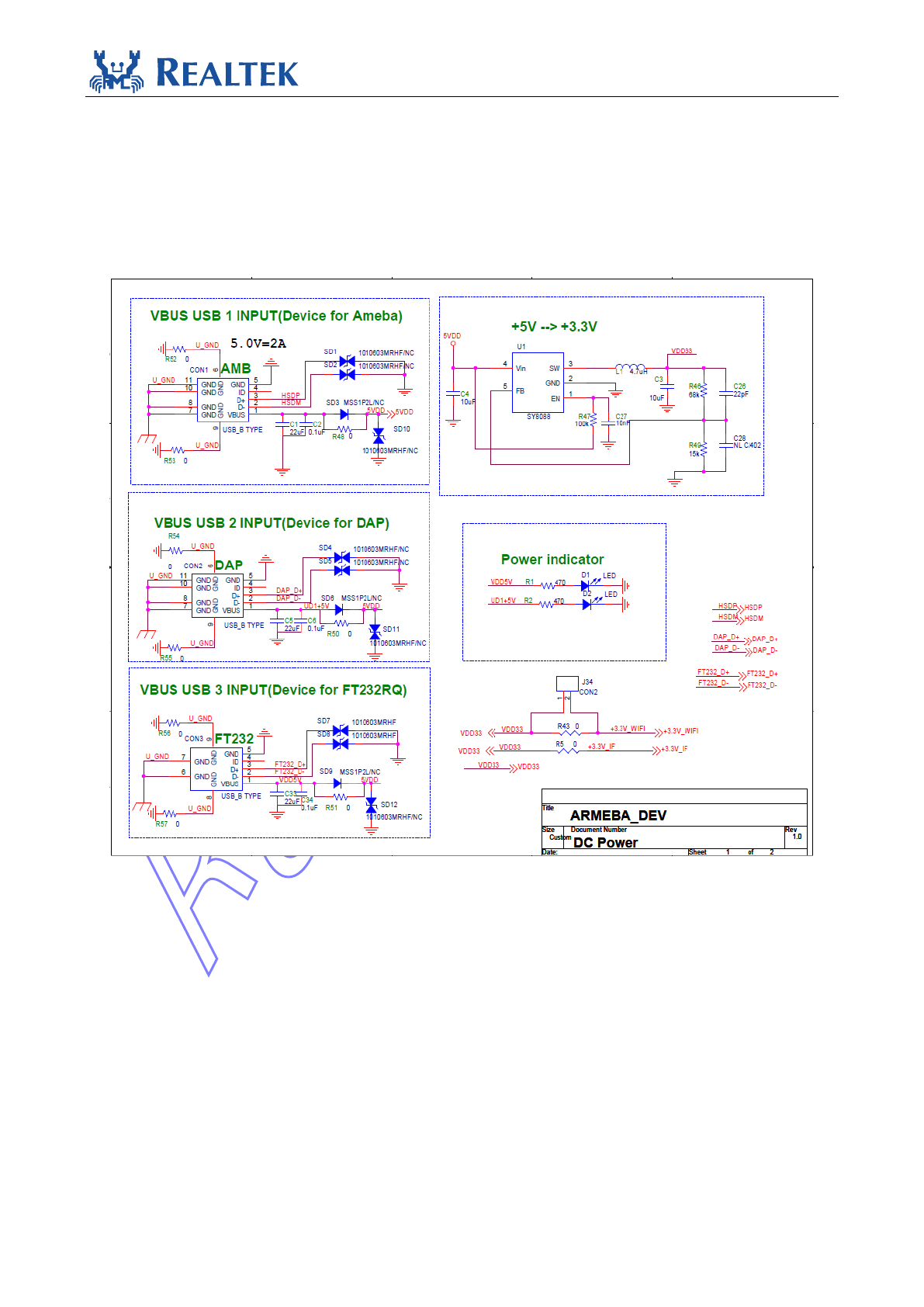

Figure 5 Ameba-Z Schematics DC-Power

Realtek
Ameba-Z DEV01 1V0
15/19
7.2. DAP
Figure 6 Ameba-Z Schematics DAP

Realtek
Ameba-Z DEV01 1V0
16/19
7.3. FT232

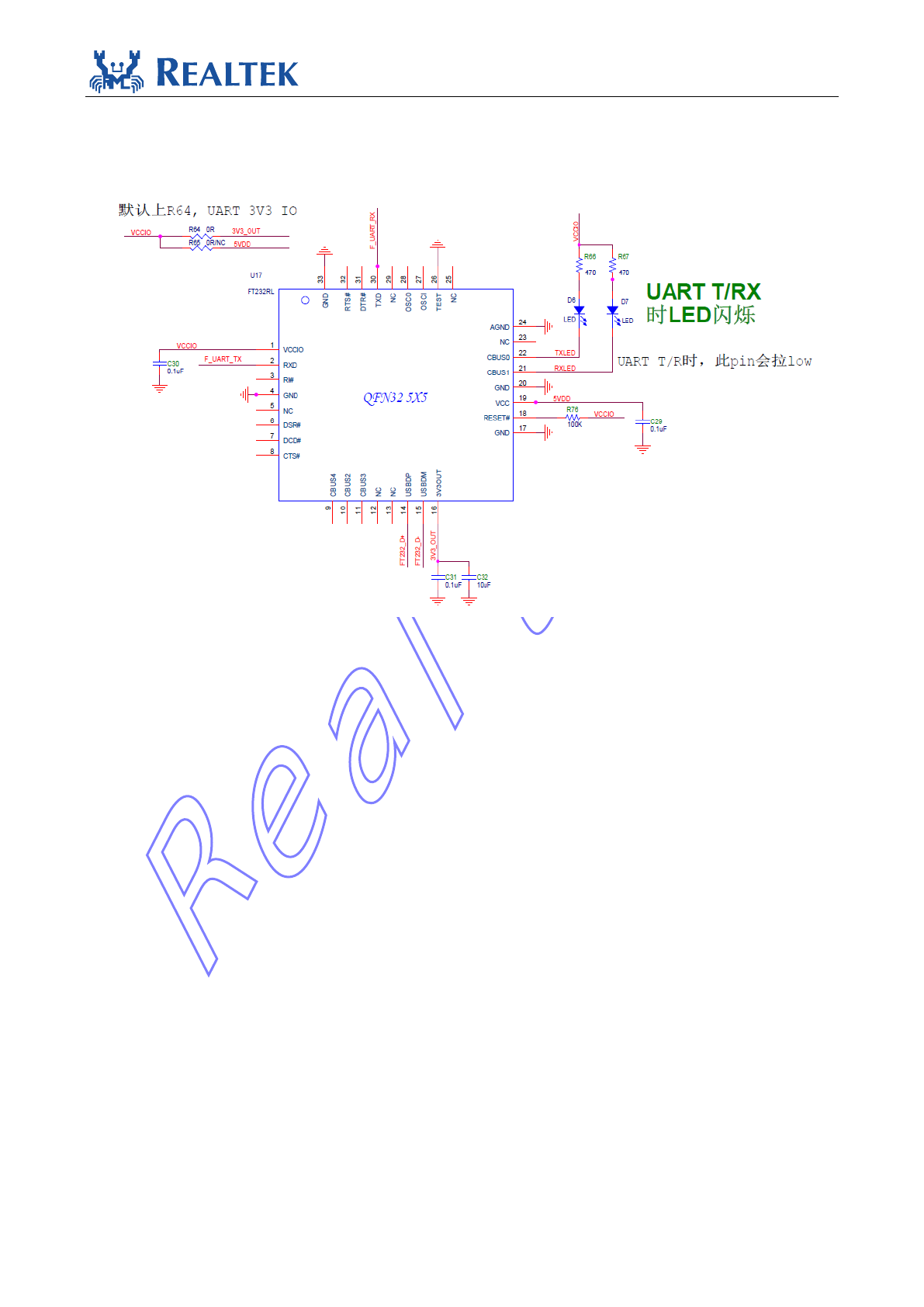

Figure 7 Ameba-Z Schematics FT-232

Realtek
Ameba-Z DEV01 1V0
17/19
7.4. GPIO GROUP and Function-Mux
Figure 8 Ameba-Z Schematics GPIO Group & Function-Mux

Realtek
Ameba-Z DEV01 1V0
18/19
7.5. SWD

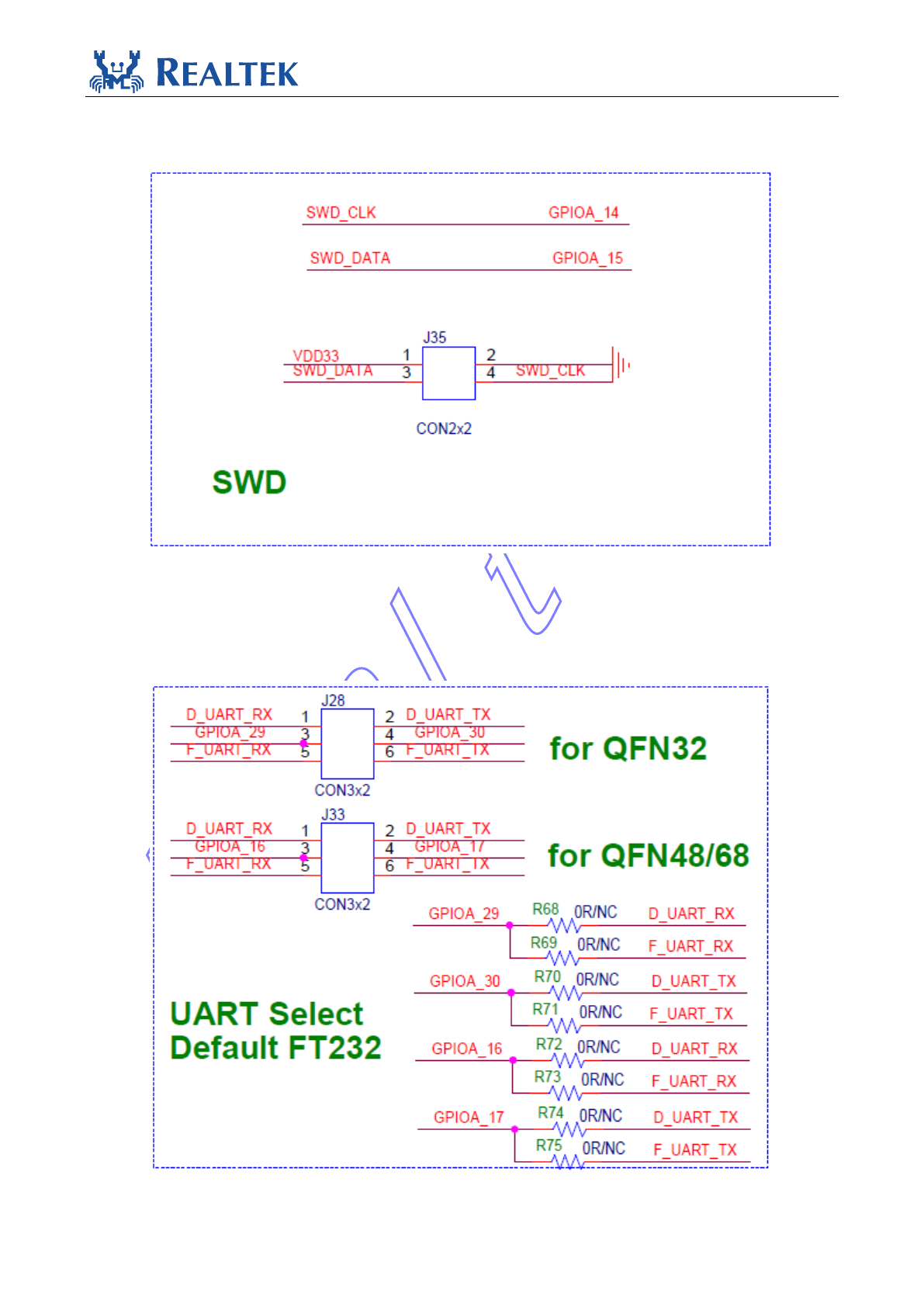

Figure 9 Ameba-Z Schematics SWD
7.6. UART LOG Selection
Figure 10 Ameba-Z Schematics UART-LOG Selection

Realtek
Ameba-Z DEV01 1V0
19/19
7.7. 8710BN module

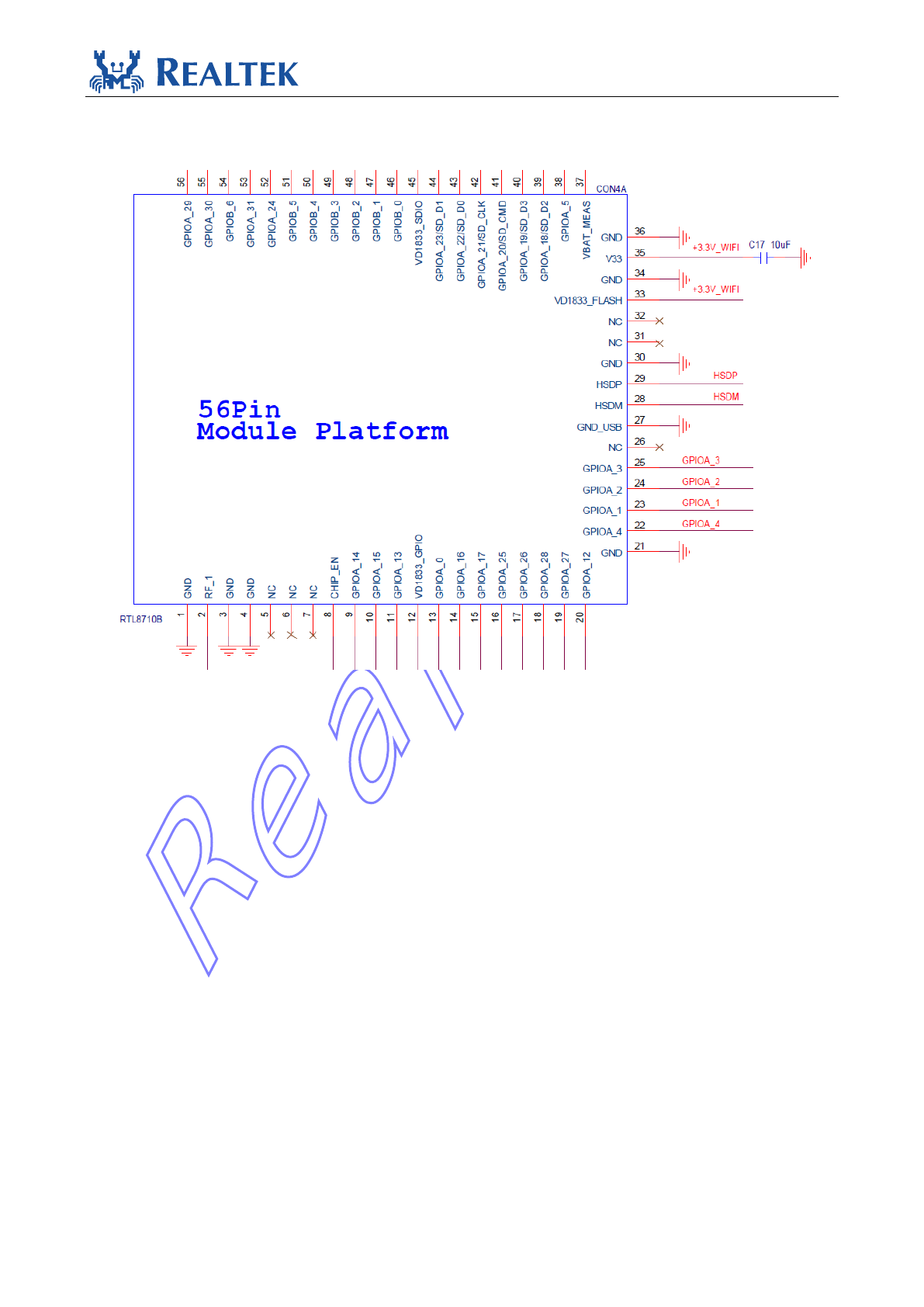

Figure 11 Ameba-Z Schematics 8710BN module
