RED DEVIL RED23306 User manual

Page | 1 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
270 West Park Avenue
Huron, SD 57350
866-526-5682
Serial Number: _____________________ Date of Purchase: ______________
RED23306
Owner’s Manual
6 foot, 3-Point Mounted Snow Blower

Page | 2 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
See Figure 1.
1. The Red Devil Snow Blower will arrive on a pallet as shown in Figure 1.
In the accompanying box you will nd the following:
Part Numbers Descripon Quanty
RED56SH-0007 Chute Gear Ring 1
RED56SH-0006 Half-Moon Chute Gear Clamps 2
Bag of Hardware 1
Figure 1

Page | 3 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.

Page | 4 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
1. Slide the chute gear ring (RED56SH-0007) over the top of the impeller housing chimney as shown in gure 2. The teeth should engage with the sprocket as shown
in gure 3.
2. Place the two half moon chute gear clamps (RED56SH-0006) underneath the chute gear ring.
3. Set the chute on top of the impeller housing chimney and align bolt holes of all three components as shown in gure 4.
4. Use (8) bolts (LAN4A16A16) and (8) lock nuts (REDKRJ8) to aach chute gear, half moon clamps, and chute together to complete assembly.
5. Grease the ange with the zerk installed on the boom side of chimney ange. Rotate chute as you grease to ensure even grease distribuon.
6. Tighten or loosen nuts aer greasing to maintain a rm grip that will rotate easily.
7. Slide motor and gear assembly forward to make a ght t with the chute gear and ghten bolts aaching the motor to the housing as shown in gure 5.
Figure 2
Figure 4
Figure 3
Figure 5

Page | 5 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
Use the diagram for installaon assistance
1. Aach the orbital motor (RED10110) to the back of the snow blower housing
with the sha of the orbital motor pointed up.
2. Aach the ngs and hoses to the motor.

Page | 6 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
Use the diagram for installaon assistance
1. Aach the gearbox mount (RED56MSH-0018) to the back of the snow blower so
that it will hold the gearbox to the right side of the blower (when looking
from the tractor side).
2. Aach the gearbox (RED910400640) to the mount with the shorter sha
poinng upward and the longer sha pointed toward the tractor.
3. Aach the handle to the U-Joint and adjust it to the length that best suits your
applicaon.
4. Adjust the hook (RED56MSH-0034) so the handle sits in an ideal locaon for
your tractor - this will act as a holder for your handle during operaon.

Page | 7 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
Use the diagram for assembly assistance
Aach the hydraulic cylinder (RED2010111) to the snow blower chute (RED56SH). Then aach the hydraulic hoses and ngs to the cylinder.

Page | 8 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
Use the diagram for assembly assistance
Aach the manual chute deector assembly (REDMSH0030) to the snow blower chute (RED56SH).

Page | 9 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
1. A stainless steel serial number tag is located on the bracket that holds the Chute Rotaon
Motor.
2. This serial number is required for product registraon and is needed for all warranty issues. (As
shown in Figure 7)
Figure 7

Page | 10 7/25/2017 www.reddevilsnowblowers.com | Red Devil Snow Blowers Red Devil Snow Blowers is a registered trademark of Lankota Group.
Preliminary Check
MAKE SURE PTO IS DISENGAGED, ENGINE IS SHUT OFF AND KEYS ARE REMOVED
Visually check the shipping pallet and packaging for any shipping damage.
Unpack the snow blower from the shipping pallet.

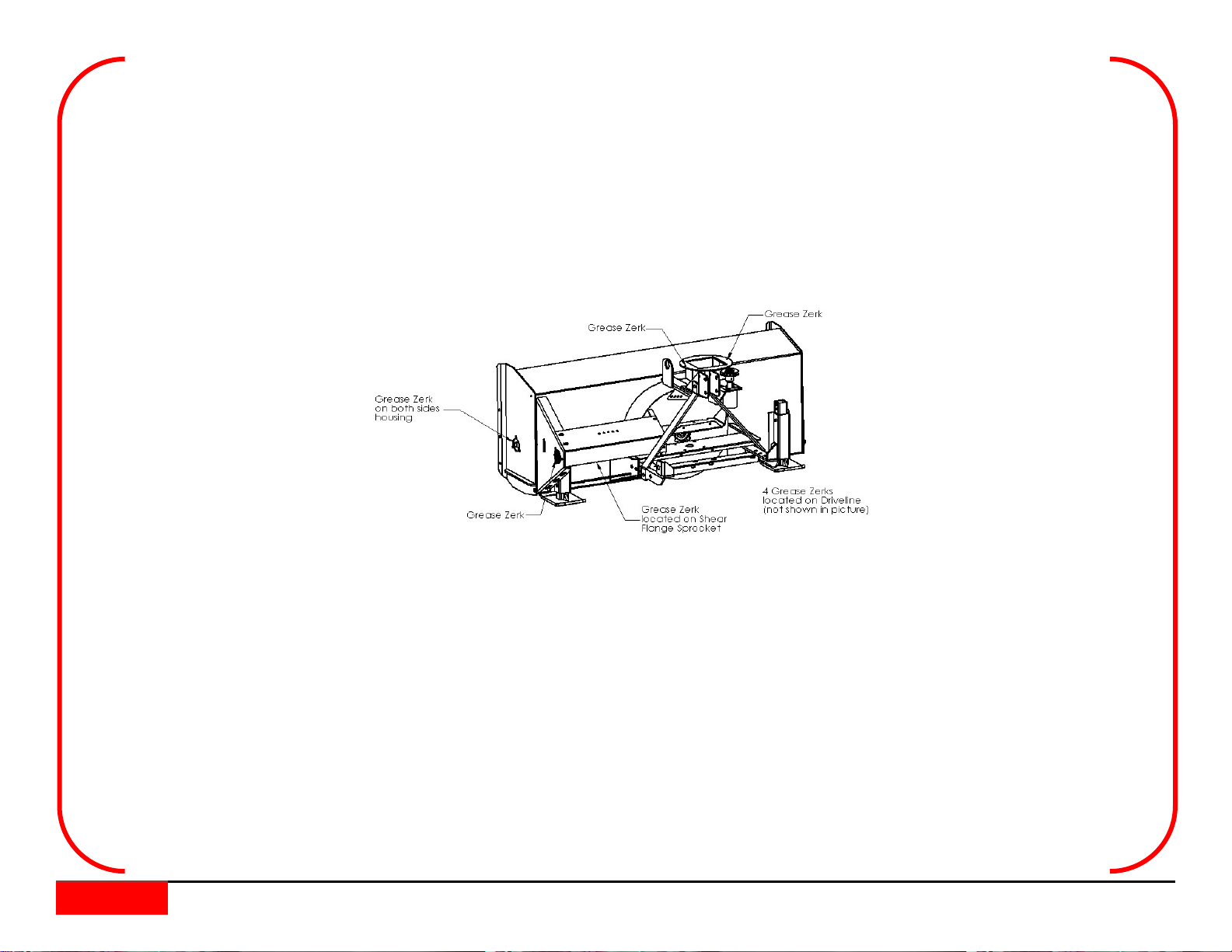

Grease all of the grease zerks on your snow blower. (See below drawing)
One on each end of the auger outer bearing holder.
One on the cross drive outer bearing holder.
One on the shear ange sprocket.
Two on chute rotaon.
Four on the driveline
Check the chain tension. Adjust idler sprocket if needed.
Check the gear box oil level by removing the ll plug and checking for 9 ounces of oil.
Make sure the chute rotaon mechanism is working freely.
Make sure the deector mechanism is working freely.
Make sure the impeller and auger are free of foreign objects.
Make sure all decals and safety signs are clean and readable.
Make sure all safety shields are in place and in good condion.
Make sure driveline shield spins freely.
Make sure the drive line is the proper length for your 3-Point setup.
Make sure all nuts, bolts, and pins are ghtened and secure in place.
Make sure the hydraulics are in good working condion by tesng each funcon and checking for leaks.
Use Synthetic 80/90 Gear Oil In Gear Box
