RED2S304
Owner’s Manual
4 foot, Skid Steer Mounted Snow Blower
270 West Park Avenue
Huron, SD 57350
866-526-5682
Serial Number: _________________________ Date of Purchase: ___________________

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 2 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Red Devil Snow Blower
See Figure 1
1. The Red Devil Snow Blower will arrive on a pallet as shown.
2. In the accompanying box you will nd the following:
Part Numbers Descripon Qty
RED56SH-0006 Half-Moon Chute Gear Clamps 2
RED56SH-0007 Chute Gear Ring 1
Bag of Hardware 1
Electrical Wiring Kit 1
Figure 1

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 3 Red Devil Snow Blowers is a registered trademark of Lankota Group.

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 4 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Chute Installaon
Figure 3
1. Slide the chute gear ring (RED56SH-0007) over the top of the impeller housing chimney as shown in gure 2. The teeth should engage with the sprocket
as shown in gure 3.
2. Place the two half moon chute gear clamps (RED56SH-0006) underneath the chute gear ring.
3. Set the chute on top of the impeller housing chimney and align bolt holes of all three components as shown in gure 4.
4. Use (8) bolts (LAN4A16A16) and (8) lock nuts (REDKRJ8) to aach chute gear, half moon clamps, and chute together to complete assembly.
5. Grease the ange with the zerk installed on the boom side of chimney ange. Rotate chute as you grease to ensure even grease distribuon.
6. Tighten or loosen nuts aer greasing to maintain a rm grip that will rotate easily.
7. Slide motor and gear assembly forward to make a ght t with the chute gear and ghten bolts aaching the motor to the housing as shown in gure 5.
8. Aach hoses labeled Chute to the hydraulic cylinder.
Figure 2
Figure 5
Figure 4

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 5 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Skid Steer Wiring Installaon - Pin Connector
Figure 6
• In the wiring kit, there are 2 bags with similar pigtails and pin connectors:
a 8-Pin and a 14-Pin. These cover most skid loaders makes and models.
Determine which connector your skid steer can use and set the other
aside. If yours does not have a receptacle or one that doesn’t match the
pin connectors provided, skip these steps and go to the Rocker Switch
Installaon.
1. Either consult your skid loader owner’s or use a test light to determine
which pins in the skid loader connect with the switches in the cab and
which pin is ground.
2. Assemble the pin connector with what you learn. As long as the ground
(black) pin is placed correct, the other 4 wires can be mixed around.
Figure 7
Figure 8

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 6 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Skid Steer Wiring Installaon - Rocker Switches
Figure 9
Use these instrucons if the 8-Pin and 14-Pin connectors will not work on your skid loader.
The switches may be located in the provided switch plates, or in available switch knockouts in the skid steer. The below instrucons show a
typical skid steer installaon. Locaon details will vary between makes and models.
1. Insert two momentary switches (REDRS1093) into the upper cab panel (Figures 9 & 10).
2. Aach the one of the short red wires from RED56WIR-4 to the middle post of a momentary switches. (The momentary switches are idencal.)
Then aach the blue wire and the brown wire of harness RED56WIR-3 to the same switch, one on either side of the red wire (Figure 11). This
will be your chute rotaon motor switch.
3. Aach the other short red wire from RED56WIR-4 to the middle post of the second momentary switch. Then aach the green wire and yellow
wire of harness RED56WIR-3 to the switch, one on each side of the red wire (Figure 12). This will be your deector control switch.
4. Connect the free end of the Red wire (RED56WIR-4) to the power wire on the skid loader and the free end of the Black wire of harness
(RED56WIR-3) to a ground wire on the skid loader (Figure 13).
Figure 10

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 7 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Figure 12
Figure 11
Figure 13
Skid Steer Wiring Installaon - Rocker Switches

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 8 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Skid Steer Wiring Installaon - Solenoid Connecons
1. Connect the 4 connectors shown in Figure 15 and labeled 1-4 to the
solenoid receptacles in the hydraulic block of Figure 14.
2. Pair connector 1 with 2 and 3 with 4 on the solenoids.
Note: Reconguring which ports or solenoids the connectors mate with
will depend on your preference. Switching upper and lower ports within a
pair (ex. 1 & 2) will reverse the switch direcon in the cab. Swapping the
pairs with each other (1 & 2 with 3 & 4) will change what a switch in the
cab controls (chute rotaon or deector).
3. Connect the female end of the harness to either the pin connector
harness or the rocker switch harness.
Figure 15
Figure 14

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 9 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Red Devil Serial Number
• A stainless steel serial number tag is located on the bracket that
holds the Chute Rotaon Motor.
• This serial number is required for product registraon and is
needed for all warranty issues (Figure 16).
Figure 16

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 10 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Preliminary Check
MAKE SURE ENGINE IS SHUT OFF AND KEYS ARE REMOVED
 Visually check the shipping pallet and packaging for any shipping damage.
 Unpack the snow blower from the shipping pallet.
 Grease all of the grease zerks on your snow blower. (See below drawing)
 One on each end of the auger outer bearing holder.
 One on the cross drive outer bearing holder.
 One on the shear ange sprocket.
 Two on chute rotaon.
 Check the chain tension. Adjust idler sprocket if needed.
 Check the gear box oil level by removing the ll plug and checking for 9 ounces of oil.
 Make sure the chute rotaon mechanism is working freely.
 Make sure the deector mechanism is working freely.
 Make sure the impeller and auger are free of foreign objects.
 Make sure all decals and safety signs are clean and readable.
 Make sure all safety shields are in place and in good condion.
 Make sure all nuts, bolts, and pins are ghtened and secure in place.
 Make sure the hydraulics are in good working condion by tesng each funcon and checking for leaks.
Use Synthetic 80/90 Gear Oil In Gear Box

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 11 Red Devil Snow Blowers is a registered trademark of Lankota Group.
OPERATING THE SNOW BLOWER
• Make sure the impeller and auger are free of any loose objects.
• Check to see that all the shields and guards are in place and in good condion.
• Lubricate the snow blower before and aer every use.
• Aer starng the engine, engage the auxiliary hydraulics.
• Ease the blower slowly into the snow.
• When clearing deep snow you may have to take more than one cut, starng at the top of the dri.
• Stop the blower’s forward moon in order to assure that all snow has passed through the snow blower.
• Shallow snow can normally be cleared in one pass, depending on the density of the snow.
DO NOT BULLDOZE – THE BLOWER WAS NOT DESIGNED FOR BULLDOZING
• The most eecve method of dispensing snow is to blow the snow as high as possible downwind, if room permits.
• The chute deector will allow you to adjust the height that the snow is thrown.
• Reducing the Engine RPM will reduce the distance the snow is thrown.
• You can change the direcon of the snow being thrown by using the hydraulic chute rotaon controls. Always be aware of where you are throwing the
snow.
• DO NOT throw the snow toward buildings, livestock, the skid steer or any other object that may be damaged.
• DO NOT change the chute direcon or adjust the deector while snow is being discharged. This may cause damage to both the chute and deector.
• DO NOT use hydraulic controls unl you check to see that the chute moves freely. Damage to chute and controls may occur.
OPERATION SAFETY
• Stop engine and remove the engine key whenever you leave the equipment seat.
• Stop engine and remove the engine key aer striking a foreign object. Thoroughly inspect the blower before restarng unit.
• Stop engine and remove the engine key before aempng to service your snow blower or unplugging the impeller and chute.
• Do not rotate the chute so that discharge material will be directed toward people, your tractor, or any other object that could be damaged.
• Rotang components can catch feet, hands, and loose clothing. Stand clear of all moving parts.
• Do not climb or step on or over the snow blower for any reason.
• Never operate the snow blower in bad light or poor visibility.
• Make sure to read and understand every safety sign on your machine.
• Stay clear of the blower at all mes while the hydraulics are engaged.
• Do not bulldoze. Let the machine throw the snow.
• Be aware of your surroundings and know the area you are removing the snow from.
• Do not allow anyone to ride on the snow blower at any me.
• Keep all shields in place and safety equipment intact.

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 12 Red Devil Snow Blowers is a registered trademark of Lankota Group.
Red Devil Statement of Limited Warranty
Red Devil warranes its new products to be free from defects in material and workmanship for a period of one (1) year following the date of purchase by the retail purchaser.
Red Devil warrants genuine Red Devil replacement parts and components to be free from defects in material and workmanship for a period of ninety (90) days following the date of purchase
or the remainder of the original equipment warranty period, whichever is longer. Red Devil's obligaon under these warranes shall be limited to repairing or replacing, free of charge to the
original purchaser, any part that, in Red Devil's judgment, shows evidence of such defect
Limitaons to Warranty
This warranty does not cover:
1) Warranty claims directly resulng from improper installaon of the product.
2) Any product damaged by accident, abuse, misuse, or negligence aer shipment from Red Devil.
3) Any unauthorized product alteraon or modicaon.
4) Any unauthorized repairs made with parts other than genuine Red Devil parts.
5) Any repairs performed by anyone other than Red Devil or an authorized Red Devil dealer unless specically authorized by Red Devil.
6) Snow Blower Fan Shas.
7) Snow Blowers being used on a rental basis.
Warranty Procedure
Warranty registraon form must be lled out and returned to Red Devil to validate all future warranty claims.
1) Troubleshoong should be done between end user/dealer and Red Devil through our technical assistance @ 866-526-5682.
2) Labor reimbursement will occur only when pre-arranged through Red Devil's technical assistance. Lankota will reimburse labor based on it’s current shop rate completed within a
reasonable me using Red Devil's judgment.
3) There is no mileage reimbursement.
4) Diagnosc me will not be reimbursed except in pre-arranged circumstances.
5) Warranty claims should be on typical dealer service work order with a number and name to be aached for any future correspondence.
6) All warranty work must be performed and claims submied within thirty (30) days of the occurrence of the claim and within the warranty period.
7) All parts removed during warranty repair should be held for a period of thirty (30) days aer the warranty claim has been submied to Red Devil.
8) Red Devil reserves the right to either inspect the product at the original retail purchaser's locaon or require it to be returned to Red Devil for inspecon.
Limitaon of Liability
Red Devil makes no express warranes other than those, which are specically described herein. Any descripon of the goods sold hereunder, including any reference to buyer's specica-
ons and any descripons in circulars and other wrien material published by Red Devil is for the sole purpose of idenfying such goods and shall not create an express warranty that the
goods shall conform to such descripon.
THIS WARRANTY IS EXPRESSLY IN LEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED. There are no warranes of merchantability or tness of a parcular purpose. This warranty states
Red Devil's enre and exclusive liability and buyer's exclusive remedy or any claim for damages in connecon with the sale of furnishing of Red Devil products, their design, suitability for use,
installaons or operaon or for any claimed defects herein. RED DEVIL WILL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, NOT FOR ANY SUM
IN EXCESS OF THE PRICE RECEIVED FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
No representave of Red Devil nor any dealer associated with Red Devil has the authority to change the items of this warranty in any manner whatsoever and no assistance to purchase by
Red Devil in the repair of operaon of any Red Devil product shall constute a waiver of the condions of this warranty nor shall such assistance extend or revive it.
Lankota reserves the right to make improvements in design or changes in specicaons at any me, without incurring any obligaon to owners of units previously sold.

3/16/2020 www.reddevilsnowblowers.com | Red Devil Snow BlowersPage | 13 Red Devil Snow Blowers is a registered trademark of Lankota Group.

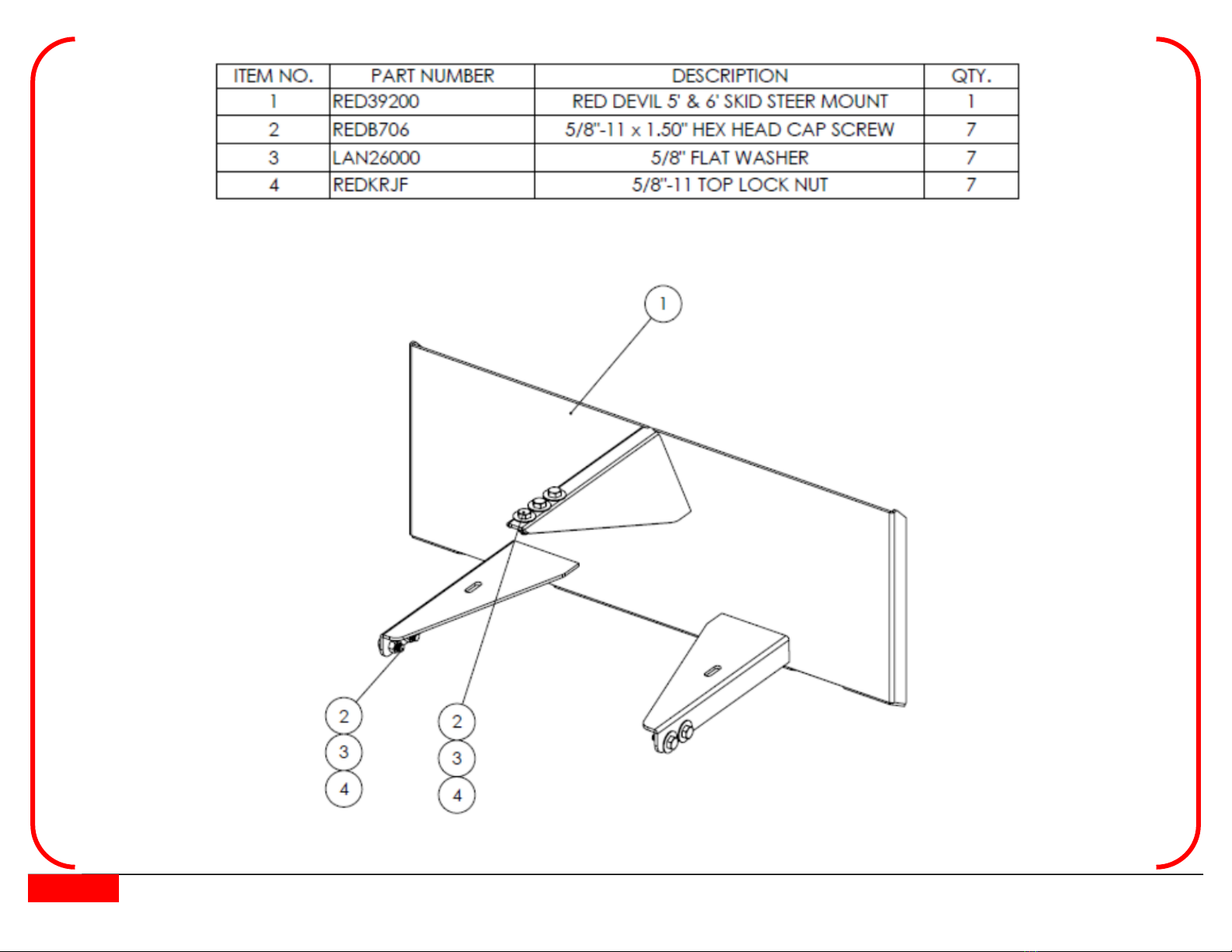

Parts Book
