red lighting Classe BS 2 User manual

Classe BS2 v1.0
1
Contents
1. FEATURES......................................................................................................................................................2
2. FIXTURE OVERVIEW..................................................................................................................................3
3. SAFETYINSTRUCTIONS............................................................................................................................3
3.1) Important safety warns........................................................................................................................3
3.2) GENERAL GUIDELINES ..................................................................................................................4
4. INSTALLATION INSTRUCTIONS..............................................................................................................5
4.1) Installing or replacing the lamp ..........................................................................................................5

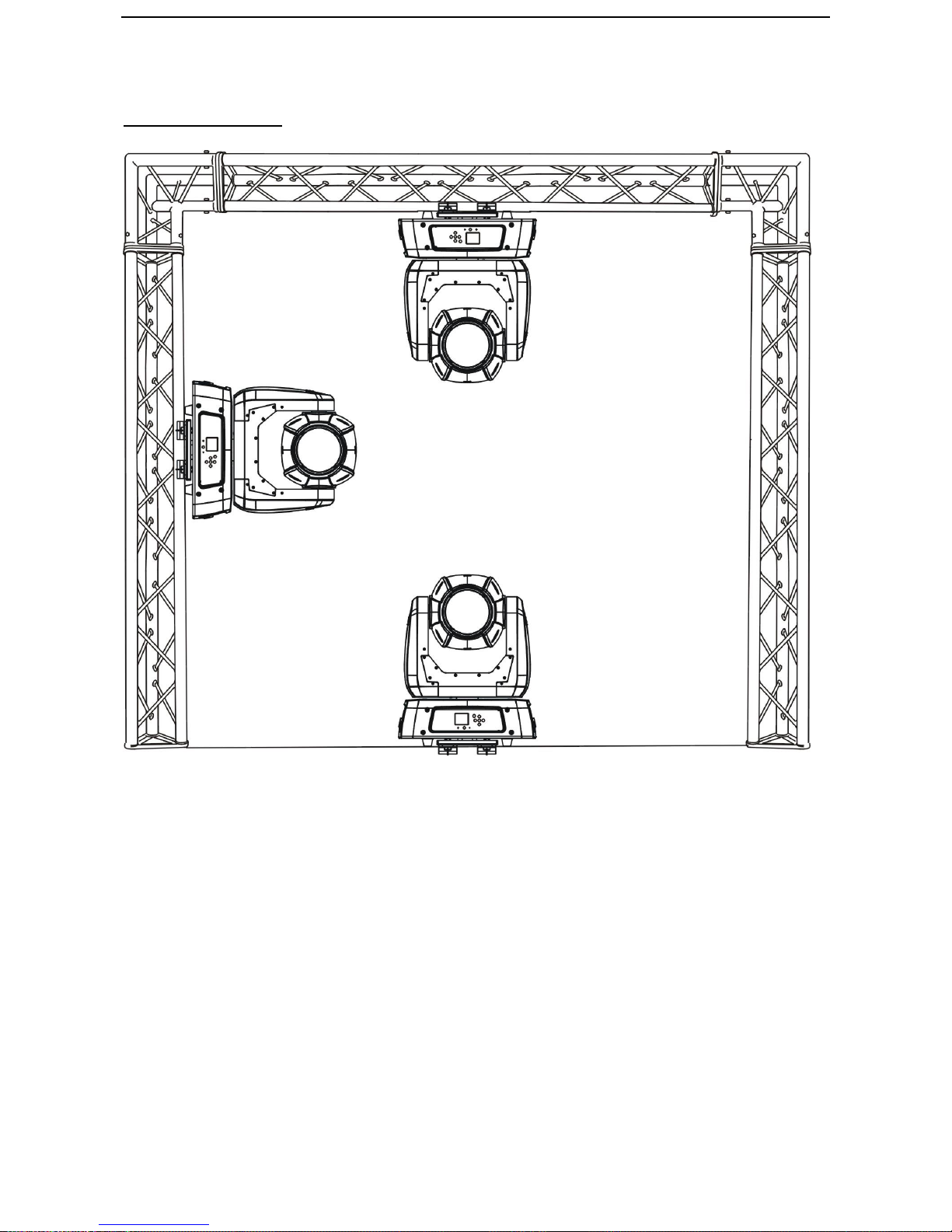

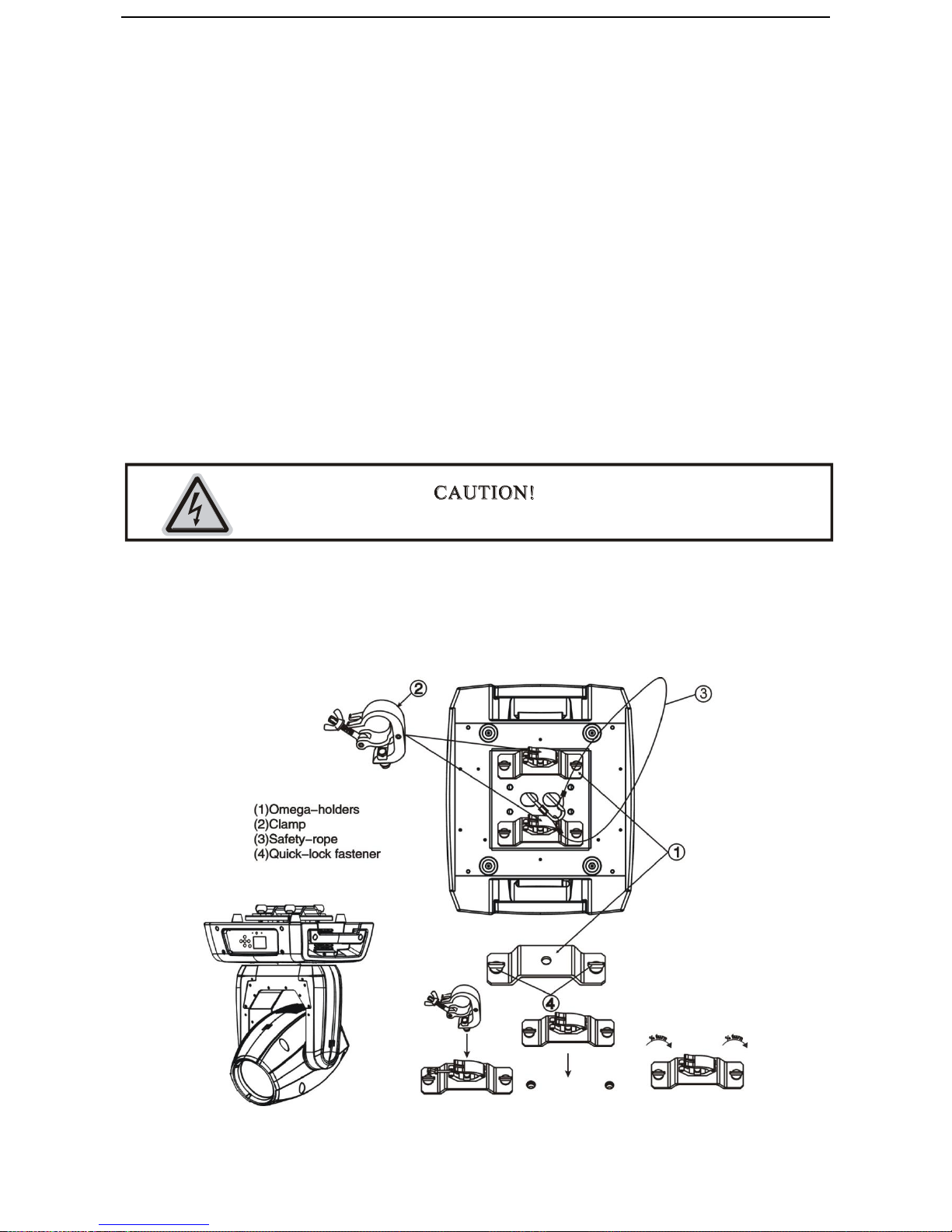

4.2) Mounting the device.............................................................................................................................6

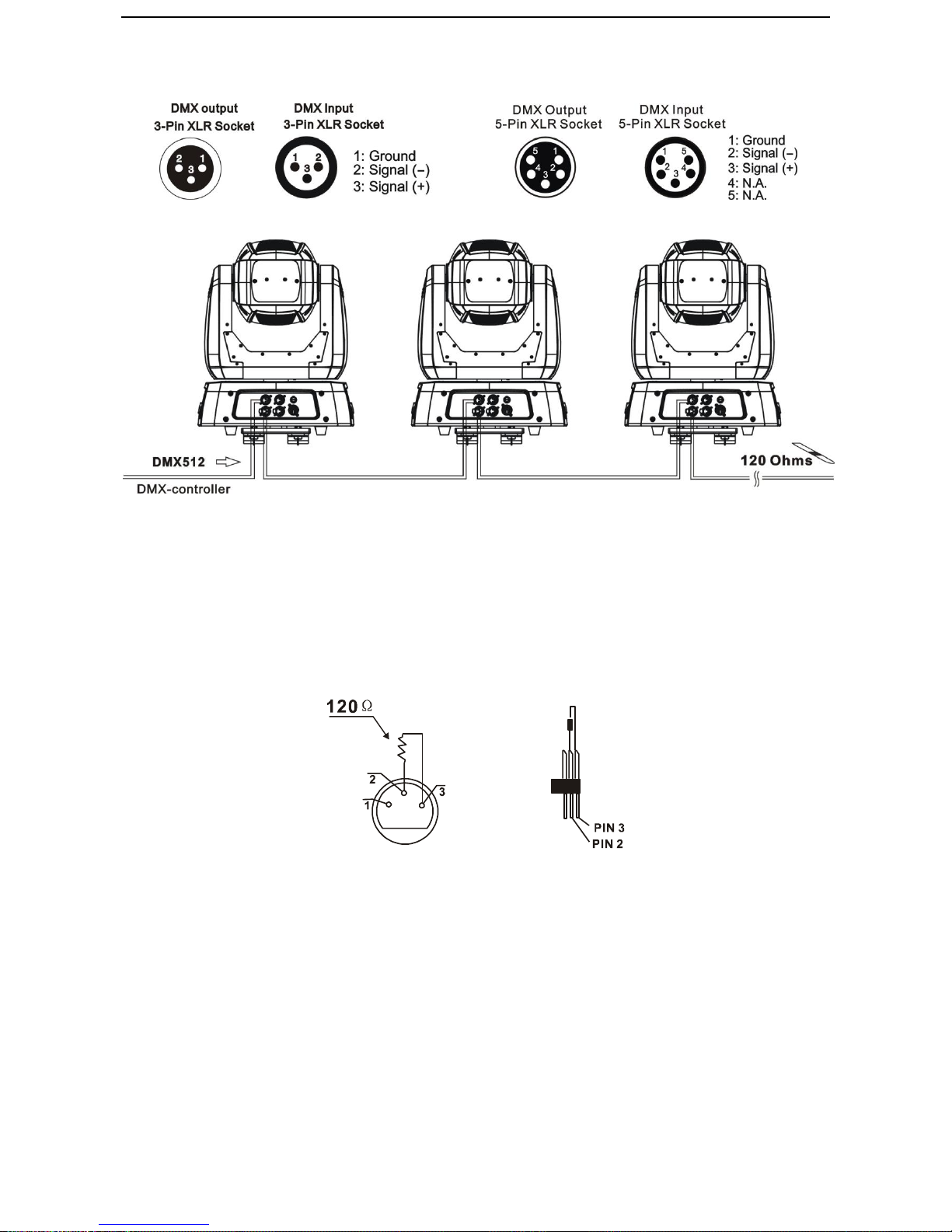

5. DMX-512 control connection..........................................................................................................................9
6. DMX-512 connection with DMX terminator ..............................................................................................10
7. Projector DMX start address selection........................................................................................................10
8. Operting instructions of the internal DMX wireless system...................................................................... 11
9. Control Board................................................................................................................................................12
9.1 FUNCTION ..........................................................................................................................................14
9.1.1 Set DMXAddress......................................................................................................................14
9.1.2 DMX Value................................................................................................................................14
9.1.3 Slave Mode ................................................................................................................................15
9.1.4Auto Program............................................................................................................................15
9.1.5 Sound Control...........................................................................................................................15
9.2 Information...........................................................................................................................................15
9.2.1 Time information......................................................................................................................15
9.2.2 Temperature Info......................................................................................................................17
9.2.3 Software version........................................................................................................................18
9.3 LAMP CONTROL ................................................................................................................................18
9.3.1 Lamp on/off...............................................................................................................................18
9.3.2Automatic on.............................................................................................................................18
9.3.3 Lamp on via external controller..............................................................................................19
9.3.4 Lamp off via external controller..............................................................................................19
9.3.5 Max on at temp.........................................................................................................................19
9.3.6 Lamp off temp...........................................................................................................................19
9.4 PERSONALITY....................................................................................................................................20
9.4.1 Status settings............................................................................................................................20
9.4.2 Service setting............................................................................................................................22
9.4. 3 Fans Control.............................................................................................................................22
9.4.4 Display settings..........................................................................................................................22
9.4.5 Temperature C/F.......................................................................................................................23
9.4.6 Initial Status..............................................................................................................................23
9.4.7 Wireless DMX...........................................................................................................................23
9.4.8 Reset Default .............................................................................................................................24
9.5 Reset-function.......................................................................................................................................24
9.6 Effect Adjust..........................................................................................................................................24
9.6.1 Test channel...............................................................................................................................24
9.6.2 Manual control..........................................................................................................................24
9.6.3 Calibration.................................................................................................................................25
9.7 Users mode set.......................................................................................................................................25
9.7.1 User mode..................................................................................................................................25
9.7.2 Edit User mode..........................................................................................................................25
9.8 Edit program.........................................................................................................................................25
9.8.1 Select programs.........................................................................................................................25
9.8.2 Edit program.............................................................................................................................25
9.8.3 Edit scenes.................................................................................................................................25
9.8.4Auto scenes rec..........................................................................................................................25
10. INSTRUCTIONS ON USE:........................................................................................................................28
11. ERROR MESSAGE.....................................................................................................................................31
12. CLEANINGAND MAINTENANCE.........................................................................................................32
13. TECHNICALSPECIFICATIONS.............................................................................................................32

Classe BS2 v1.0
2
Thank you for your patronage. We are confident that our excellent products and service can satisfy
you. For your own safety, please read this user manual carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction
strictly.
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the box you should find:
1. One XLR connection cable
2. Two omega clamps
3. One safety rope
4. Manual
Please check carefully that there is no damage caused by transportation. Should there be any,
consult your dealer and don’t install this device.
1. FEATURES
·Lamp: Philips PLATINUM 5R
··3 DMX Channels mode: 11/13/16 channels
·Stand alone operation with Master/Slave function, sound activated via built in microphone.
·Pan and tilt movement: 8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 540°/630°optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
·Colors: Basic color wheel with 12 dichroic mirrors, plus white, two direction rainbow effect.
·Rotation gobo: 8 interchangeable, rotating gobos plus open
·Prism and prism rotating , with 16 prism macros
·Linear dimmer in precise speed from 0% ~ 100%
·Stepless frost, 0%~100% linear change frost
·Control board with full color LCD graphic display and touch-keyboard
·Display: Can be changed 180° reverse to fit for different installation position.
·Strobe/shutter: High speed shutter, 0-13 Hz or random strobe

Classe BS2 v1.0
3
·Wireless receiver pre-installed
·Rechargeable Back up Battery for Display, no need external power supply, enable users to enter
display menu for address setting or access other functions setting.
·Auto-program: 7 pre-built programs can be selected.
·Software-upload by optional accessory via DMX line
2. FIXTURE OVERVIEW
3. SAFETY INSTRUCTIONS
3.1) Important safety warns
This device has left the factory in perfect condition. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The
dealer will not accept liability for any resulting defects or problems.
1: Lens
2: Display
3: Wireless indicator
4: DC Switch
5: Microphone
6: Left-button
7: Down-button
8: Right-button
9: Mode/Esc-button
10: Up-button
11: ENTER-button
12: Lamp bracketrear metal panel
13: 3-Pin DMX in
14: 3-Pin DMX out
15: 5-Pin DMX in
16: 5-Pin DMX out
17: Fuse
18: Power supply

Classe BS2 v1.0
4
If the device has been exposed to temperature changes due to environmental changes, do not switch
it on immediately. The arising condensation could damage the device. Leave the device switched
off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
If protection screen,lens or ultraviolet screen in the fixture is apparently damaged or is damaged
to exceed their own effective degree, such as cracked and gashed, it must be replaced.
The electric connection must carry out by qualified person.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by
the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Please be aware that damages caused by manual modifications to the device are not subject to
warranty. Keep away from children and non-professionals.
3.2) GENERAL GUIDELINES
This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the
device was designed for indoor use only.
This fixture is only allowed to be operated with the max alternating current which stated in the
technical specifications in the last page of this manual.
Lighting effects are not designed for permanent operation. Consistent operation breaks may ensure
that the device will serve you for a long time without defects.
Do not shake the device.Avoid brute force when installing or operating the device.

Classe BS2 v1.0
5
While choosing the installation-spot, please make sure that the device is not exposed to extreme
heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum
distance between light-output from the projector and the illuminated surface must be more than 8
meter.
If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners
turned in the quick lock holes correctly.
Operate the device only after having familiarized with its functions. Do not permit operation by
persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are forbidden.
If this device will be operated in any way different to the one described in this manual, the product
may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to
short-circuit, burns, electric shock, lamp explosion, crash, etc.
4. INSTALLATION INSTRUCTIONS
4.1) Installing or replacing the lamp
Only install thelamp with thedeviceunplugged from themains.
Thelamp has to bereplaced when it is damaged or deformed.
Because of the nature of the extreme heat associated with the Platinum 5R lamp and the
tight nature of the internal optical system it is imperative that the lamp be replaced
every 2000 hours. This is done to protect the internal optical system as well as prevent
accidental lamp explosion, which could lead to hot glass particles falling from the
fixture. Failure to change the lamp within 300 hours of operation will result in
automatic shut down of the fixture’s electronics.
At 2000 hours the display will begin to flash “Replace The Lamp” and the lamp will
flicker for the first five minutes of operation. At this point the lamp has reached the
maximum rated life and should be replaced immediately.After the lamp has flickered
for about five minutes it should strike normally allowing the fixture to be used
temporarily until a replacement lamp can be installed. The fixture will continue to
operate for an additional 300 hours, however the “Replace the Lamp” warning will
continue to flash in the display. Keep in mind that the flicker protection circuitry will
only work for about 300 hours (lamp clock life of 2000-2300 hours).

Classe BS2 v1.0
6
After 2300 hours the fixture will no longer respond to DMX commands and
immediately enter a hibernation mode that will electronically discontinue all fixture
functionality with the exception of a few menu commands. The fixture will continue to
enter hibernation mode until the lamp is replaced and the lamp clock has been reset.
Before replacing the lamp let the lamp cool down, because during operation, the lamp can
reach very high temperature.
During the installation of halogen lamps do not touch the glass bulbs bare handed. Always use a
cloth to handle the lamps during insertion and removal.
Do not install lamps with a higher wattage. They generate higher temperatures than which the
device was designed for.
For the installation, you need one: PLATINUM 5R
Procedures:
1) Unscrew the 2 screws (A, B) on the bottom of the housing, holding the plate where the lamp is
underneath. Carefully remove the metal plate.
2) Insert the lamp counter-clockwise 35 degree into the lampholder, then turn clockwise 35 degree
to put it into the right position. Attention: please wrap the lamp with the soft cloth that comes
with the packing, avoid naked hand contact to the lamp directly.
3) Put the lampholder back position after install the lamp, tighten the screw and complete the
installation.
Please remember the lamp is not a hot-restrike type, you must wait for approximately 10
minutes after having turned off the lamp before you can turn it back on again.
Please remember the lamp is not a hot-restrike type, you must wait for approximately 10
minutes after having turned off the lamp before you can turn it back on again.
Do not operate this device with open cover
4.2) Mounting the device
The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under
or above the temperature.

Classe BS2 v1.0
7
The installation of the effect has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety rope.
Never stand directly below the device when mounting, removing or servicing the fixture.
The operator has to make sure the safety relating and machine technical installations are approved
by an expert before taking the device into operation for the first time.
These installations have to be approved by a skilled person once a year.
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the device. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
Theelectric connection must only becarried out by a qualified electrician.
Before mounting make sure that the installation area can hold a minimum point load of 10 times the device’s
weight.
Connect the fixture to the mains with the power plug.
Installation via the Omega holders

Classe BS2 v1.0
8
a) Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in
the middle of the bracket.
b) Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom
of the device. Tighten the quick-lock fasteners fully clockwise.
c) Install the second Omega holder.
d) Pull the safety-rope through the holes on the bottom of the base and over the trussing system or
a safe fixation spot. Insert the end in the carabine and tighten the safety screw.
Notice: this step is quite important to ensure that the fixture will not drop out by the damage
of the clamp.

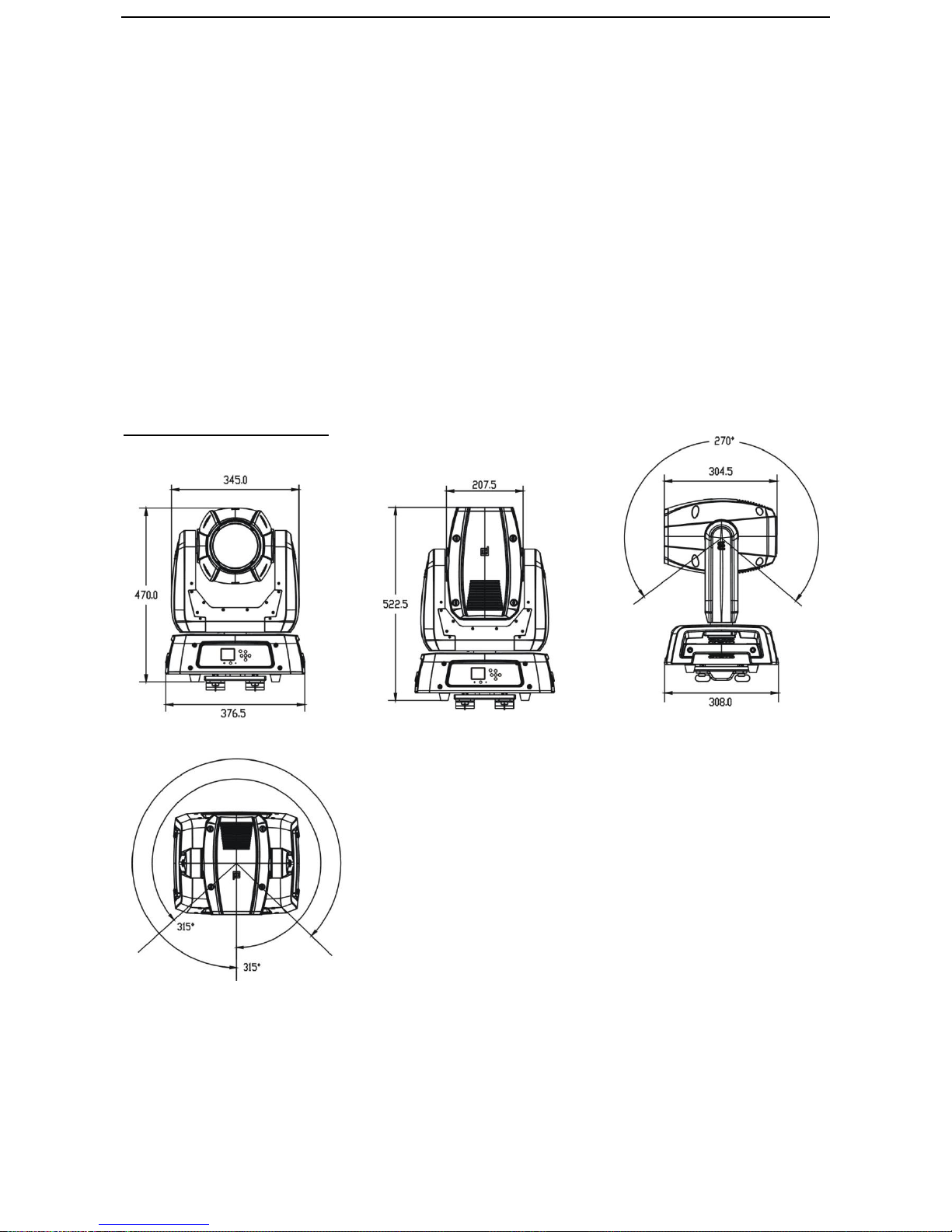

Dimensional Drawings:

Classe BS2 v1.0
9
Layout Drawings:
Mounting points
Be sure this fixture is kept at least 8m away from any flammable materials (decoration etc.). Always
use and install the supplied safety cable as a safety measure to prevent accidental damage and/or
injury in the event the clamp fails.
Overhead mounting requires extensive experience, including amongst others calculating working
load limits, a fine knowledge of the installation material being used, and periodic safety inspection
of all installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury.
5. DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other
side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened cable
with XLR input and output connectors. Please refer to the diagram below.

Classe BS2 v1.0
10
Address 1 Address 14 Address 27
6. DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in
preventing corruption of the digital control signal by electrical noise. The DMX terminator is
simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged
into the output XLR socket of the last fixture in the chain. Please see illustrations below.
7. Projector DMX start address selection
All fixtures should be given a DMX starting address when using a DMX signal, so that the correct
fixture responds to the correct control signals. This digital starting address is the channel number
from which the fixture starts to “listen” to the digital control information sent out from the DMX
controller. The allocation of this starting address is achieved by setting the correct number on the
display located on the base of the device.
You can set the same starting address for all fixtures or a group of fixtures, or make different
address for each fixture individually.
If you set the same address, all the units will start to “listen” to the same control signal from the
same channel number. In other words, changing the settings of one channel will affect all the
fixtures simultaneously.

Classe BS2 v1.0
11
If you set a different address, each unit will start to “listen” to the channel number you have set,
based on the quantity of control channels of the unit. That means changing the settings of one
channel will affect only the selected fixture.
In the case of the move head, which is a 13 channel fixture, you should set the starting address of
the first unit to 1, the second unit to 14 (13 + 1), the third to 27 (13 + 14), and so on.
8. Operting instructions of the internal DMX wireless system
1. Equipments:
DMX 512 controller, wireless transmitter, and the fixtures with wireless receiver.
2. Message from the LED indicator:
1) Rapid flashing red/Green: logging in to a transmitter
2) Slow flashing Red/Green: Logged on a transmitter and the DMX line is idle (No DMX is
connected to transmitter).
3) Solid Green: Logged on to a transmitter and receiving DMX data.
4) Solid Red: Not logged on to a transmitter (free)
3．WDMX in the menu of the fixture:
On a fixture installed with wireless system, in order to switch between wireless control system and
traditional DMX control (with cable), a new menu WDMX is added to the display board.
ON: (Activate WDMX)
1) When the fixture is on power，and the WDMX is activated to ON status, but did not connect
to the controller and did not log in to the transmitter, the fixture will search for the DMX signal
source. If the fixture is connected to the DMX controller it can be controlled by DMX controller; if
it is log in to the wireless transmitter, it can be controlled by the Transmitter
2) When the fixture is power off, and the WDMX is in ON status, if the fixture is connected to
DMX controller. After the fixture is power on, it can be controlled only by the DMX controller
which connected. The fixture can log in the wireless transmitter, and receive only radio signal
from transmitter, but not DMX from the transmitter.
OFF: (De-activate WDMX)
In this status, wireless system is not activated, so the fixture can not log in the transmitter.
REST: (reset WDMX memory);
Can remove the fixture from the connection with the transmitter, the fixture become free and
ready to log in any transmitter.
4. Setup the wireless system:
1) Connect the transmitter with the DMX controller
2) To make the fixture installed with wireless receiver log in to the transmitter
a) Initially, the indicator on the receiver fixture should be in Solid red
b) Press and hold the configuration button on transmitter for less than 3 seconds the red/green
LEDs on the transmitter and the receiver fixture will flash rapidly for about 5~ 10 seconds
while the system goes through its setup procedure.
c) Once the receiver fixture is logged in to the transmitter (T1), the fixture with wireless
receiver will keep the memory, even if restart the power, this unit will log in the
transmitter (T1) automatically.
3) Use the DMX 512 to control the fixture.

Classe BS2 v1.0
12
5．Remove the receivers from transmitter (T1) and to log in to another transmitter (T2)
Case 1: Remove a receiver:
a) On the control board of the fixture, enter menu to activated the function of REST;
b) The LED for wireless on the fixture should turn to Solid red; the receiver can log out from
the transmitter (T1);
c) press the configuration button on transmitter(T2) for less than 3 second, then the fixture will
start to connect with the transmitter(T2)
Case 2: Remove all receivers from a transmitter (T1) to log in to T2;
a) Press and hold the configuration button on the T1 as least 5 seconds, can clear the
connection with all the fixtures.
b) All the red/green LEDs on the receiver fixtures will turn to Solid red to indicate that the
receivers are unassigned and removed from the transmitter ( T1);
c) Press and hold the configuration button on the T2 less then less than 3 second , the fixtures
will connect with the T2
PS: 1. Please log the receivers out from the transmitter after every job, so that the receivers are in
free un assigned state and ready to be assigned to a transmitter.
2. Do not connect the fixture which is under the communication of wireless system to the DMX
controller, otherwise it will cause interference from the DMX controller.
9. Control Board
The Control Board offers several features: you can simply set the starting address , run the
pre-programmed program or make a reset.
The main menu is accessed by pressing the -button until the display starts flashing. Browse
through the menu by pressing the -button , -button , -button or -button.
Press the Enter-button in order to select the desired menu. You can change the selection by pressing
the the -button , -button , -button or -button. Confirm every selection
by pressing the -button. You can leave every mode by pressing the -button. The
functions provided are described in the following sections. it will exit from flash 10 seconds after
the last keypress. Press this key under edit mode, . The functions provided are described in the
following sections.
To access the display menu via the internal battery, press the DC switch button for 2seconds; To shut off the
display immediately, choose the commend " Reset All" menu and press "Enter" button, otherwise, the
display will automatically switch off about 1 minute from last button press.
Function
Set Dmx Address
Dmx Value
Slave Mode
Auto Program
Sound Control
A001~AXXX
PAN……
Slave1,Slave2,Slave3
Master / Alone
Master / Alone
DMX address setting
DMX value display
Slave setting
Auto program
Music control

Classe BS2 v1.0
13
Information
Time Information
Current Time
Total Run Time
Last Run Time
Lamp Hours
Lamp Off Time
LastRun Password
Clean Last Run
LampTime Password
Clean Lamp Time
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
XXXX(Hours)
XXXX(Minute)
Password=XXX
ON/OFF
Password=XXX
ON/OFF
Power on running time
Fixture running time
Fixture Last times clear
Lamp running time
Lamp off time
Timer Password 038
Clear Fixture Last time
Lamp Password =”038”
Clear lamp time
Temperature Info
Head Temperature
XXX℃/℉
Temperature in the head
Software Version
Vx.x……
Software version
Lamp Control
Lamp On/Off
Automatic On
Lamp On via DMX
Lamp Off via DMX
Max On at Temp.
Lamp Off Temp.
ON/OFF
ON/OFF
ON/OFF
ON/OFF
20~79℃,45℃/68~174℉113℉
80~139℃,130℃/176~282℉,266℉
Lamp on/off
Lamp on/off Power on
Lamp on via DMX
Lamp off via DMX
Lamp restart at temp.
Lamp off at temp.
Personality
Status Settings
Address Via DMX
No DMX Status
Pan Reverse
Tilt Reverse
Pan Degree
Feedback
Movement Speed
Mic Sensitivity
Hibernation
ON/OFF
Close/Hold/Auto/Music
ON/OFF
ON/OFF
630/540
ON/OFF
Speed 1~ 4
0~99%
OFF, 01M~99M，15M
Add. via DMX
Auto run if no DMX
Pan Reverse movement
Tilt Reverse movement
Pan Degree Select
Movement Feedback
Movement Mode Select
Sensitivity of Mic.
Stand by Mode
Service Setting
Password
RDM PID
Password=XXX
XXXXXX
Service Password“=050”
RDM PID Code
Fans Control
Auto Fan Speed
High Fan Speed
Low Fan Speed
Fans Speed select
Display Setting
Shutoff Time
Display Reverse
Key Lock
02~60m 05m
ON/OFF
ON/OFF
Display shutoff time
Reverse 180 degree
Key Lock
Temperature C/F
Celsius
Fahrenheit
Temperature switch
between ℃/℉
Initial Status
PAN =XXX
…….
Initial effect position
Wireless DMX
WDMX Off
Activate WDMX
Act & Data Out
Clean WDMX Memo
De-activate WDMX
Activate WDMX
Act & Data Out
Reset Wireless DMX Mem
Reset Default
ON/OFF
Restore factory set.
Reset Function
Reset All
Reset Pan&Tilt
Reset Colors
Reset Gobos
Reset Shutter
Reset Others
Reset all motors
Reset Pan/Tilt
Reset color wheel
Reset gobos
Reset shutter or dimmer
Reset other motors

Classe BS2 v1.0
14
Effect Adjust
Test Channel
PAN ……
Test function
Manual Control
PAN =XXX
:
Fine adjustment of the
lamp
Calibration
Calibrate Password
Color wheel=XXX
:
Password “050”
Calbrate and adjust the
effects to standard/right
position
Users Mode Set
User Mode
Standard Mode
Basic Mode
Extended Mode
User Mode A
User Mode B
User Mode C
User’s mode to change
channel numbers
Edit User Mode
Max Channel = XX
PAN = CH01
:
Preset User modes
Edit Program
Select Programs
Auto Pro Part 1 = Program 1 ~ 10 Program 1
Auto Pro Part 2 = Program 1 ~ 10 Program 2
Auto Pro Part 3 = Program 1 ~ 10 Program 3
Select programs to be run
Edit Program
Program 1
:
Program 10
Program Test
Step 01=SCxxx
Step 64=SCxxx
Testing program
Program in loop
Save and exit
Edit Scenes
Edit Scene 001
~ Edit Scene
250
Pan,Tilt,……
--Fade Time--
--Secne Time--
Input By Exterior
Save and automatically
return
manual scenes edit
Rec. Controller
XX~XX
Automat. scenes rec
Default settings shaded
9.1 FUNCTION
9.1.1 Set DMX Address
With this function, you can adjust the desired DMX-address via the Control Board.
1．Access the main menu.
2．Tap the <Up/Down>button until“Set DMX Address”is displayed.
3．Press ENTER, the display will show “Set DMX Address”.
4．Tap the <Up/Down>button，the display will show “A001~AXXX”
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
9.1.2 DMX Value
With this function you can display the DMX 512 value of each channel. The display automatically
shows the channel with a value changing.
1．Access the main menu.
2．Tap the <Up/Down>button until“DMX Value”is displayed.
3．Press ENTER, the display will show “DMX Value”.
4．Tap the <Up/Down>button，choose each channel.
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.

Classe BS2 v1.0
15
9.1.3 Slave Mode
With this function, you can define the device as slave.
1．Access the main menu.
2．Tap the <Up/Down>button until“Slave Mode”is displayed.
3．Press ENTER, the display will show “Slave Mode”.
4．Tap the <Up/Down>button，the display will show “Slave1”, ”Slave2”, ”Slave3”.
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
9.1.4 Auto Program
With this function, you can run the internal program. You can select the desired program under
“Select program”. You can set the number of steps under “Edit program”. You can edit the
individual scenes under “Edit scenes”. With this function, you can run the individual scenes either
automatically, i.e. with the adjusted Step-Time.
1．Access the main menu.
2．Tap the <Up/Down>button until“Auto Program”is displayed.
3．Press ENTER, the display will show “Auto Program”.
4．Tap the <Up/Down>button，the display will show “Master1”, ”Alone”.
5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu.
9.1.5 Sound Control
With this function, you can run the internal program sound-controlled.
1．Access the main menu.
2．Tap the <Up/Down>button until“Sound Control”is displayed.
3．Press <ENTER>, the display will show “Sound Control”.
4．Tap the <Up/Down>button，the display will show “Master”, ”Alone”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.2 Information
9.2.1 Time information
Current Time
With this function, you can display the temporary running time of the device from the last
power on. The display shows “XXXX”, “XXXX” stands for the number of hours. The
counter is resetted after turning the device off.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”. Press ENTER, the
display will show “Time Information”.
2．Press <Up/Down>, the display will show “Current Time”.
3．Press< ENTER>, the display will show “Current Time”.
4．The display will show “XXXX”(Hours) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Total Run Time
With this function, you can display the running time of the device. The display shows
“XXXX”, “XXXX” stands for the number of hours.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”.

Classe BS2 v1.0
16
Press ENTER, the display will show “Time Information”.
2．Press <Up/Down>, the display will show “Total run Time”.
3．Press< ENTER>, the display will show “Total run Time”.
4．The display will show “XXXX”(Hours) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Last Run Time
With this function, you can display last the running time of the lamp. The display shows
“XXXX”, “XXXX” stands for the number of hours
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”. Press ENTER, the
display will show “Time Information”.
2．Press <Up/Down>, the display will show “Last Run Time”.
3．Press< ENTER>, the display will show “Last Run Time”.
4．The display will show “XXXX”(Hours) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Lamp Hours
With this function, you can display the running time of the lamp. The display shows “XXXX”,
“XXXX” stands for the number of hours.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show“Time Info. Press ENTER, the display will
show “Time Information”.
2．Press <Up/Down>, the display will show “Lamp Hours”.
3．Press< ENTER>, the display will show “Lamp Hours”.
4．The display will show “XXXX”(Hours) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Lamp off time
With this function, you can display the temporary running time of the lamp from the last lamp
on. The display shows “XXXX”, “XXXX” stands for the number of hours. The counter is
resetted after turning the lamp off.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”. Press ENTER, the
display will show “Time Information”.
2．Press <Up/Down>, the display will show “Lamp Off Time”.
3．Press< ENTER>, the display will show “Lamp Off Time”.
4．The display will show “XXXX”(Minute) ；
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Last Run Password
With this function, you can display the timer password. The time password is 038.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”.

Classe BS2 v1.0
17
Press ENTER, the display will show “Time Information”.
2．Press <Up/Down>, the display will show “Last Run Password”.
3．Press< ENTER>, the display will show “Last Run Password”, the time password is 038.
4．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Clear Last Run
With this function, you can clear last run time of the fixture. The display shows “ON”or
“OFF”, Press “Enter”to confirm.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”. Press ENTER, the
display will show “Time Information”.
2．Press <Up/Down>, the display will show “Clear Last Run”.
3．At“Timer Password”menu input a correct password, press< ENTER>, the display will show
“Clear Last Run”,
4．The display will show “OFF”or“ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Lamp Time Password
With this function, you can display the timer password. The time password is 038.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”. Tap the
<Up/Down>button until the display will show “Time Information”. Press ENTER, the
display will show “Time Information”.
2．Press <Up/Down>, the display will show “Lamp Time Password”.
3．Press< ENTER>, the display will show “Lamp Time Password”, the time password is
038.
4．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Clean Lamp Time
With this function you can clear the running time of the lamp. Please clear the lamp time
every time you replace the lamp.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show“Information”. Tap the
<Up/Down>button until the display will show “Time Information”. Press ENTER, the
display will show “Time Information”.
2．Press <Up/Down>, the display will show “Clean Lamp Time”.
3．At“Timer Password”menu input a correct password, press< ENTER>, the display will show
“Clean Lamp Time”,
4．The display will show “OFF”or“ON”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.2.2 Temperature Info
Head Temperature
With this function you can display the temperature on the display board of the base (near
CMY-filter) in Celsius.

Classe BS2 v1.0
18
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”. Tap the
<Up/Down>button until“Temperature Info”is displayed. Press ENTER, the display will
show “Temperature Info”.
2．Press <Up/Down>, the display will show “Head Temperature”.
3．Press< ENTER>, the display will show “Head Temperature”.
4．The display show “XXX °C/ °F”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.2.3 Software version
With this function, you can display the software version of the device.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until
“Information”is displayed. Press ENTER, the display will show “Information”.
2．Press <Up/Down>, the display will show “Software version”.
3．Press< ENTER>, the display will show “Software version”.
4．The display show “Ver x.x……”.
5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3 LAMP CONTROL
When the real temperature around the lamp is higher than the preset value, the lamp will be shut
down in 5 minutes automatically.
·When the LCD display shows “Off”, it means the lamp must be turned on again manually;
·When the LCD display shows “Hot”, it means the actual temperature around the lamp is still
higher than the preset value, so even the lamp can not be striked even the menu Lamp is turned to
ON, as the lamp switch is compelled to turned off.
·When the temperature unit after the temperature value come to lowercase letter “c” or “f”, it
means menu Lamp is turned to ON, but the lamp is not full dimming up.
·When the temperature unit after the temperature value come to capital letter “C” or “F”, it menu
Lamp is turned to ON, and the lamp is full intensity.
9.3.1 Lamp on/off
With this function you can switch the lamp on or off via the Control Board.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Lamp
Control”is displayed. Press ENTER, the display will show “Lamp Control”. Tap the
<Up/Down>button until the display will show “Lamp On or Off”. Press ENTER, the
display will show “Lamp On or Off”.
2．Press <Up/Down>, the display will show “OFF”or“ON”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
Remark: The menu Lamp On/Off is the software command only, the lamp can be striked
successfully only when the menu Lamp is set to ON and the actual temperature is lower than the
limited value.
9.3.2 Automatic on
With this function you can select if the lamp will be switched on when switching the power on.
Select “ON” by turning the encoder if you wish to enable this function or “OFF” if you don’t.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Lamp
Control”is displayed. Press ENTER, the display will show “Lamp Control”.

Classe BS2 v1.0
19
Tap the <Up/Down>button until the display will show“Automatic On”. Press ENTER, the
display will show “Automatic On”.
2．Press <Up/Down>, the display will show “OFF”or“ON”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.3 Lamp on via external controller
With this function you can select if you can switch the lamp on via an external controller
(DMX-channel of internal programs, value 64-79). Select “ON” by turning the encoder if you wish
to enable this function or “OFF” if you don’t.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Lamp
Control”is displayed. Press ENTER, the display will show “Lamp Control”. Tap the
<Up/Down>button until the display will show “Lamp On Via DMX”. Press ENTER, the
display will show “Lamp On Via DMX”.
2．Press <Up/Down>, the display will show “OFF”or“ON”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.4 Lamp off via external controller
With this function you can select if you can switch the lamp off via an external controller
(DMX-channel of internal programs, value 224-239). Select “ON” by turning the encoder if you
wish to enable this function or “OFF” if you don’t.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Lamp
Control”is displayed. Press ENTER, the display will show “Lamp Control”. Tap the
<Up/Down>button until the display will show “Lamp Off Via DMX”. Press ENTER, the
display will show “Lamp Off Via DMX”.
2．Press <Up/Down>, the display will show “OFF”or“ON”.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.5 Max on at temp.
With this function you can set the inside temperature from which the projector will restrike the lamp
after automatic lamp shut off.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Lamp
Control”is displayed. Press ENTER, the display will show “Lamp Control”. Tap the
<Up/Down>button until the display will show “Max On at Temp”. Press ENTER, the
display will show “Max On at Temp”.
2．Press <Up/Down>, the display will show “45℃”, Temperature generally in 20~79 ℃.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
9.3.6 Lamp off temp.
With this function you can set the inside temperature at which the projector will automatically
switch the lamp off.
1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until“Lamp
Control”is displayed. Press ENTER, the display will show “Lamp Control”. Tap the
<Up/Down>button until the display will show “Lamp Off Temp”. Press ENTER, the
display will show “Lamp Off Temp”.
2．Press <Up/Down>, the display will show“130℃”, Temperature generally in 80~139 ℃.
3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu.
